M5Stack Colour Sensor RGB Unit (TCS3472)

M5StackSKU: U009

£4.50

incl. VAT

excl. VAT

Only 10 units left

Awesome Extras

M5Stack Core Basic ESP32 by M5Stack - The Pi Hut

ESP32 Basic Core loT Development Kit V2.7 by M5Stack - The Pi Hut

M5Stack M5Stack Core Basic ESP32

£38.40 incl. VAT excl. VAT

M5Stack Core2 v1.1 ESP32 IoT Development Kit by M5Stack - The Pi Hut

M5Stack M5Stack Core2 ESP32

£47.90 incl. VAT excl. VAT

M5Stack CoreS3 ESP32S3 by M5Stack - The Pi Hut

M5Stack M5Stack CoreS3 ESP32S3

£57.60 incl. VAT excl. VAT

The M5Stack Unit Colour (TCS3472) detects colours and sends RGB values over I2C, so it’s designed to be used with M5Stack boards and other I2C-capable microcontrollers.

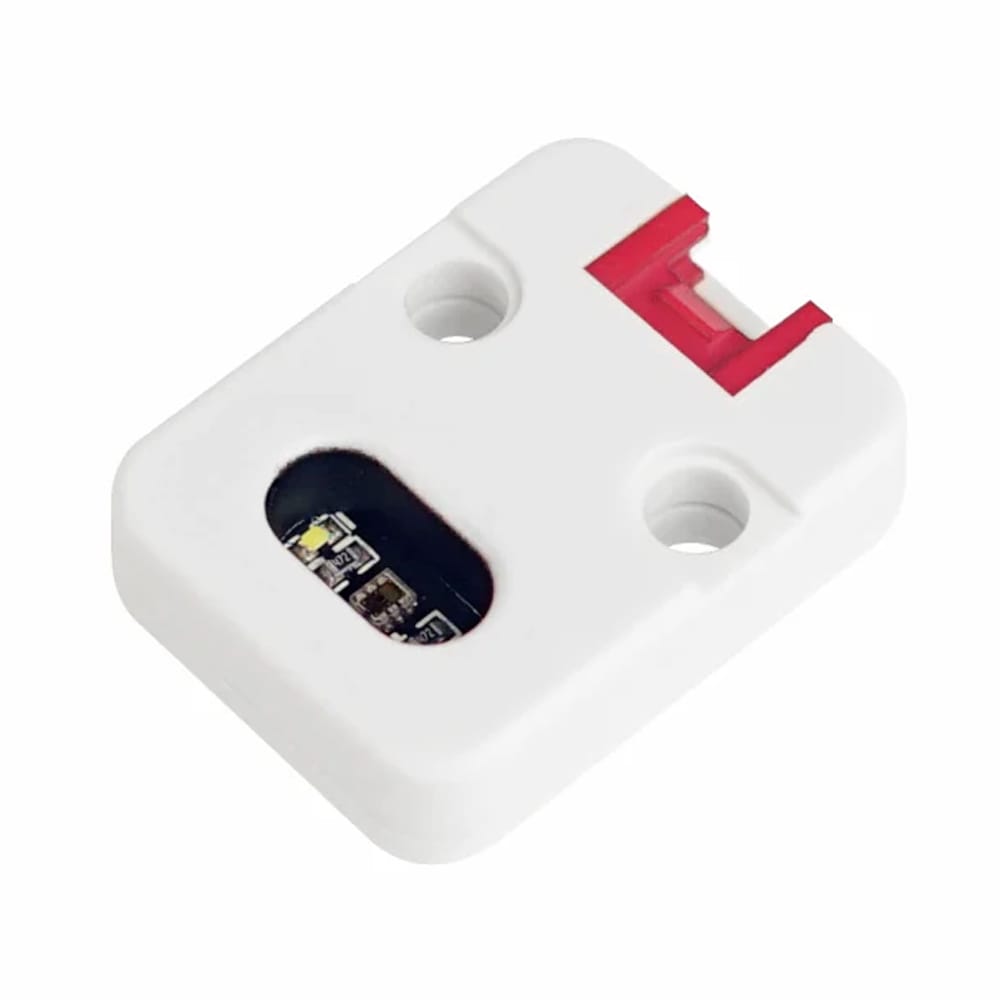

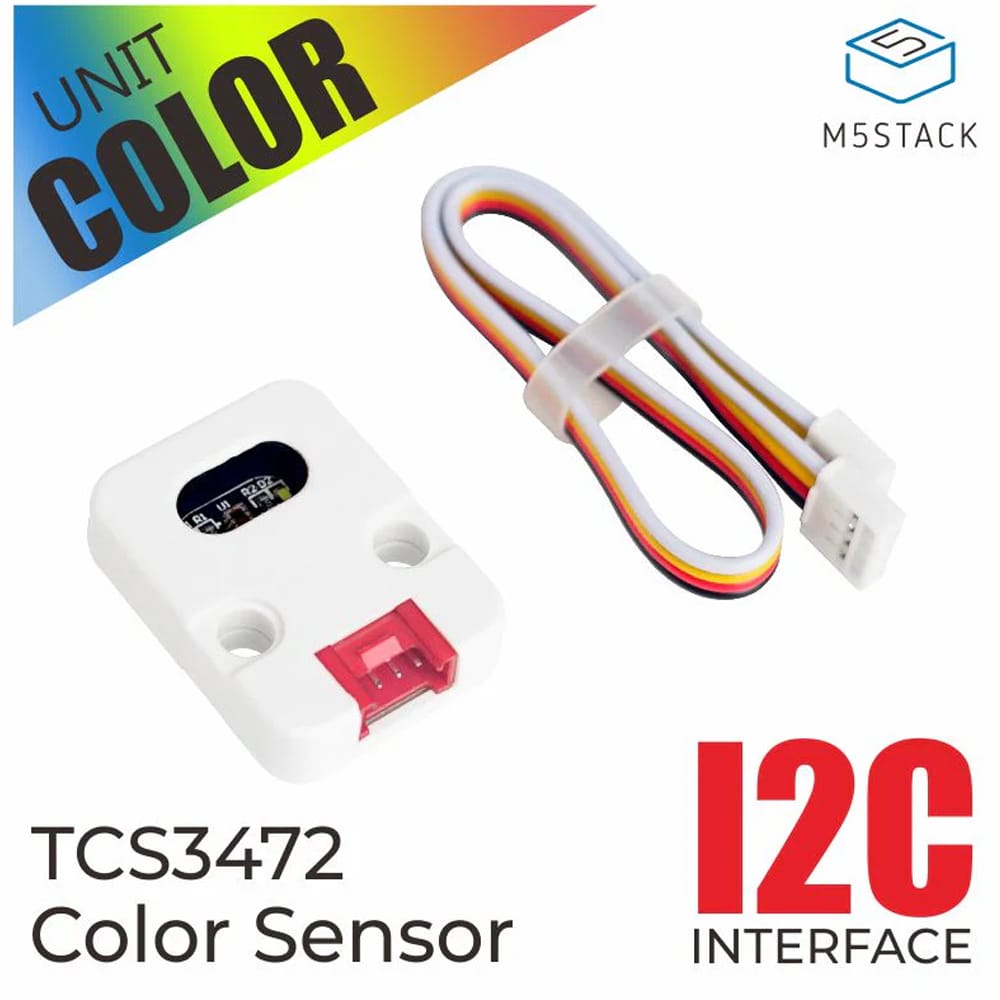

The M5Stack Unit Colour is a colour recognition unit that integrates a TCS3472 colour light digital converter, capable of converting detected colour values into RGB data and returning it to the M5Core.

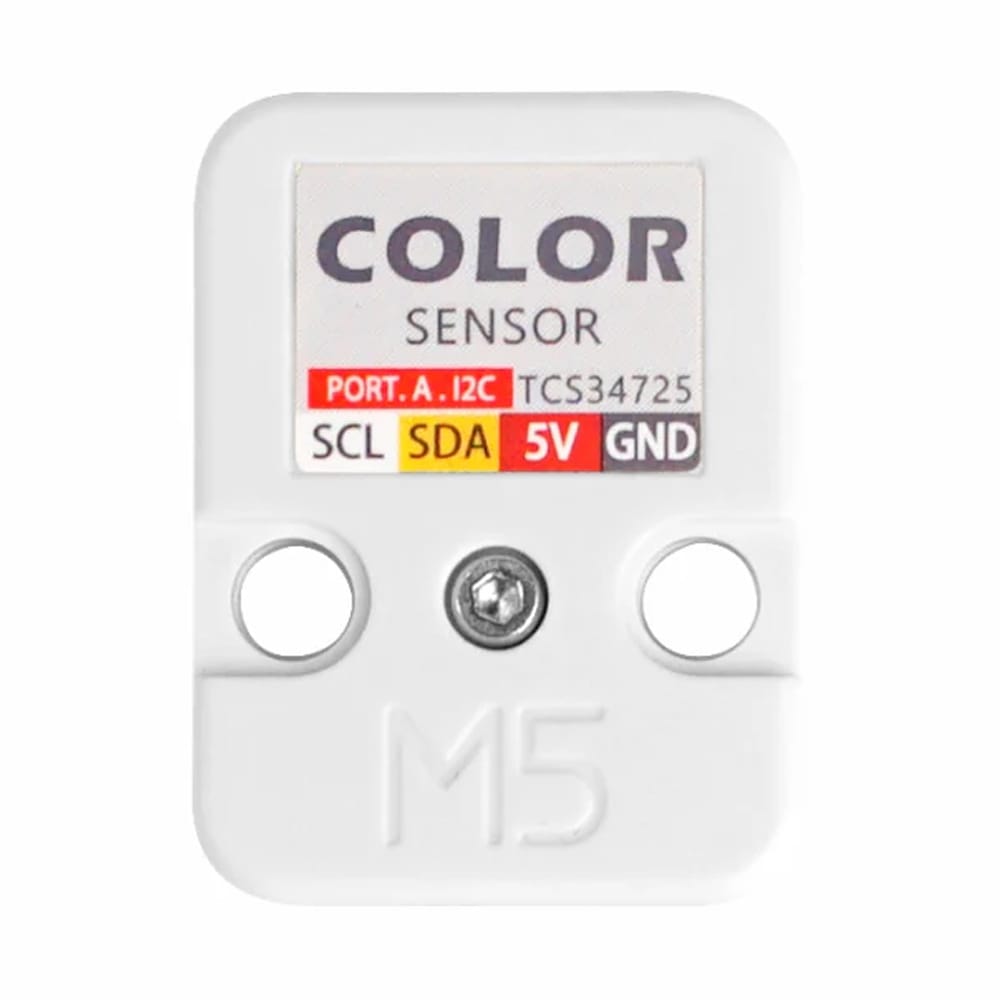

This unit communicates with the M5Core via the PORT A interface (I2C), with an I2C address of 0x29.

Features

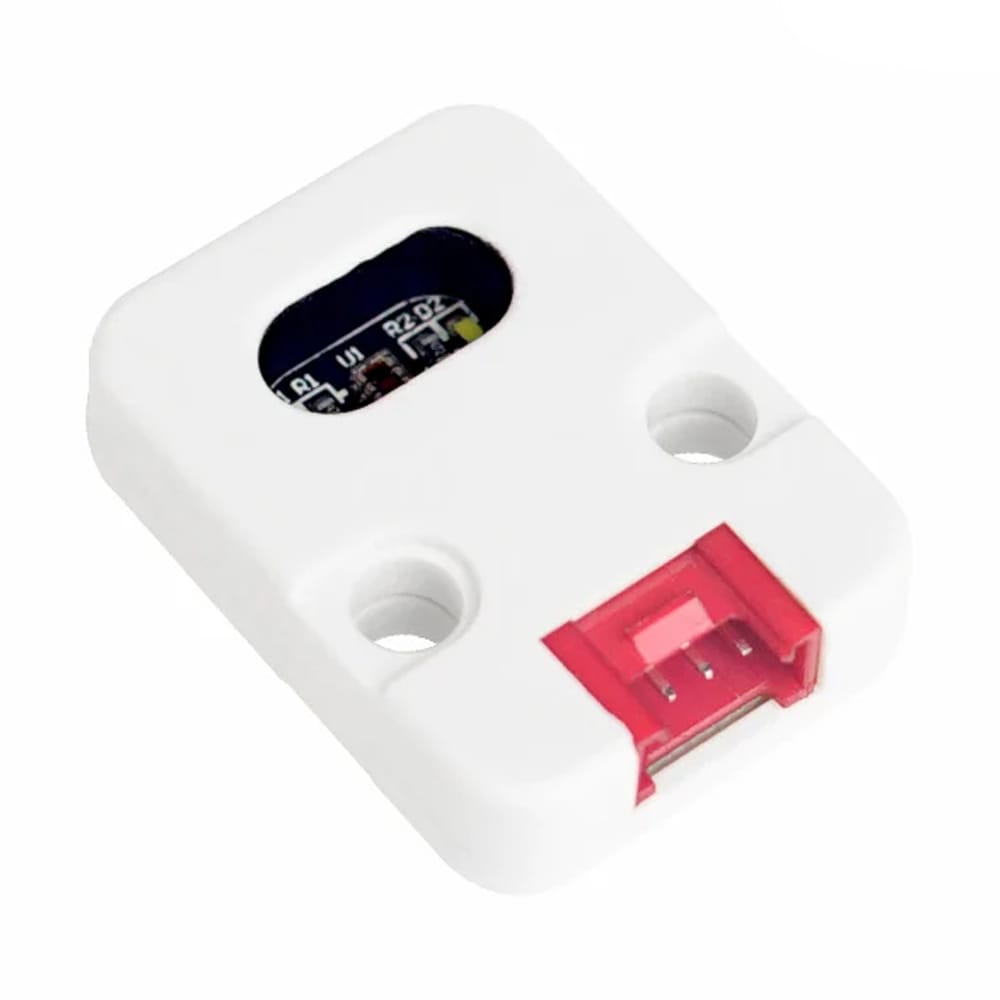

HY2.0-4P Interface, supports UIFlow and Arduino
2x LEGO compatible holes

Specifications

IC Model	TCS3472
Communication Interface	I2C @0x29
Operating Temperature Range	-40 ~ 85°C

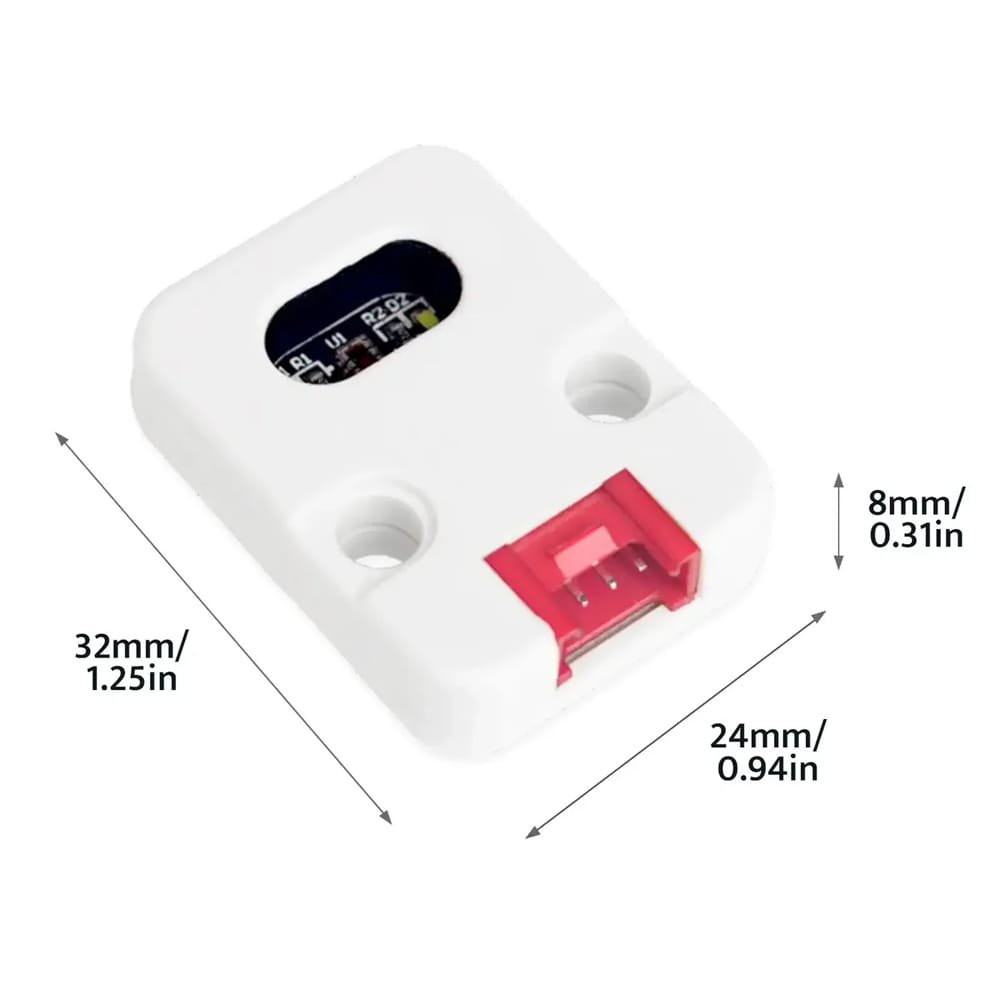

Product Size	32.0 x 24.0 x 8.0mm
Product Weight	4.3g

Resources

Product documents

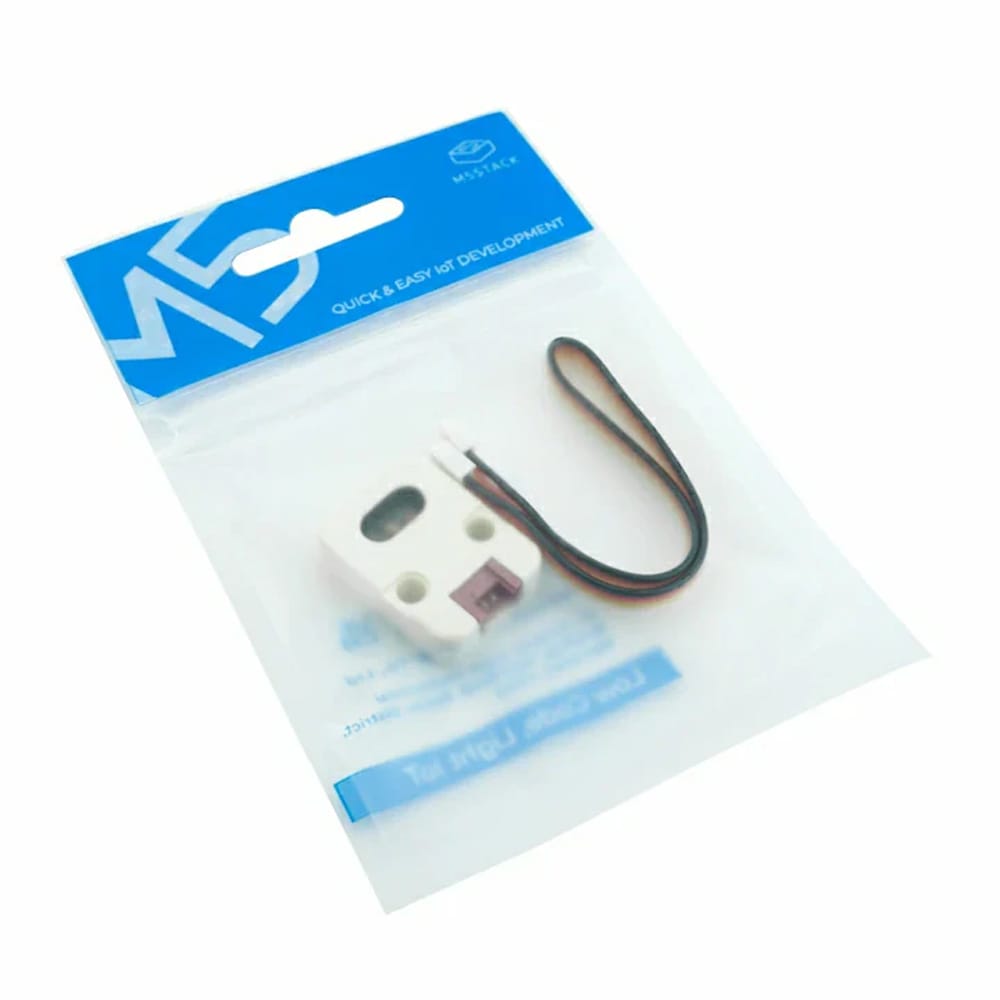

Package Contents

1x Unit Colour
1x HY2.0-4P Grove connection cable (20cm)
