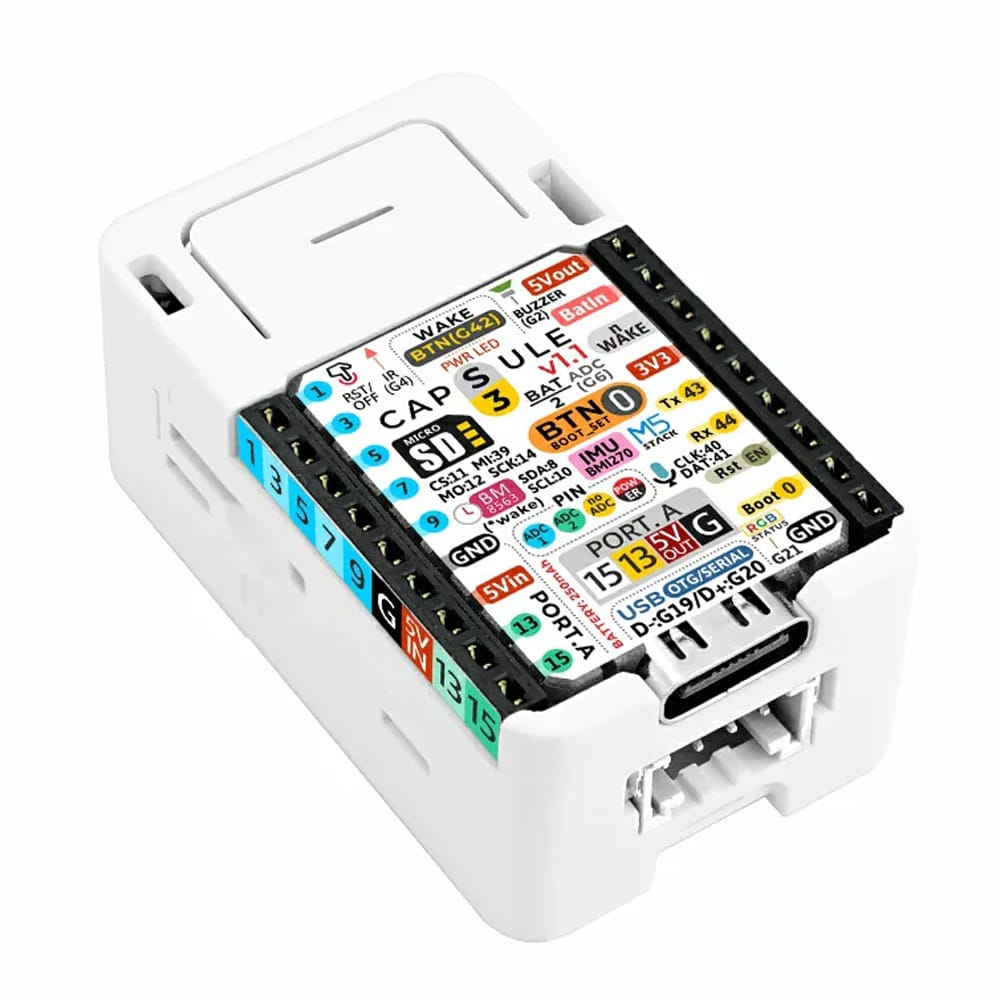

The M5Stack Capsule v1.1 with M5StampS3A packs motion sensing, audio input, battery power, storage expansion, and wireless control features into a compact enclosure, making it a versatile platform for IoT, data logging, and embedded development projects.
The M5StackCapsule v1.1 with M5StampS3A is an iterative upgrade of Capsule M5Stamp S3, with the core upgrade being the replacement of the main controller from Stamp-S3 to Stamp-S3A, further optimizing hardware performance and user experience.

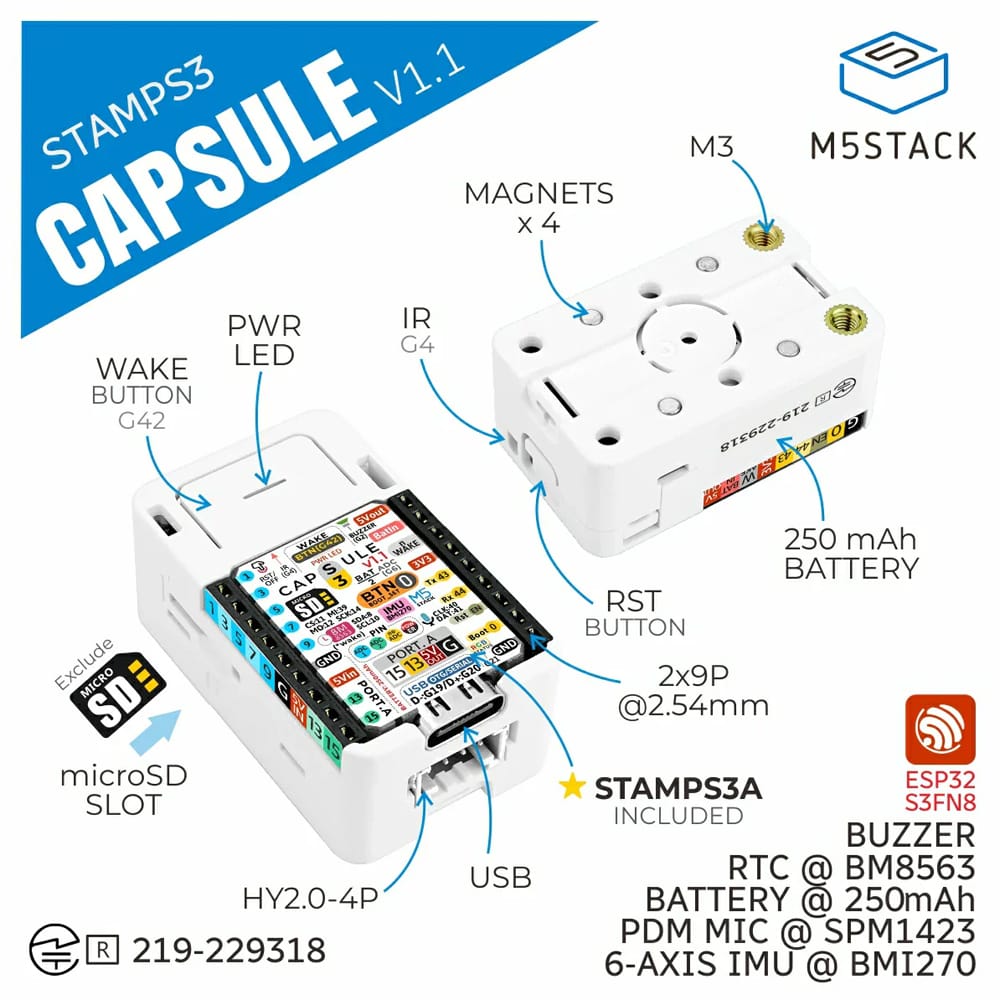

The Capsule v1.1 integrates sensing acquisition, power supply, data storage, and main controller drive into one unified function. It features a high-performance BMI270 IMU inertial measurement unit for precise motion trajectory tracking and attitude control. It incorporates an SPM1423 microphone supporting audio recording, voice recognition, and voice wake-up functions, and includes an infrared sensor for remote control operation. The power configuration includes a built-in 250mAh battery and supports external expansion batteries to ensure stable long-term operation.

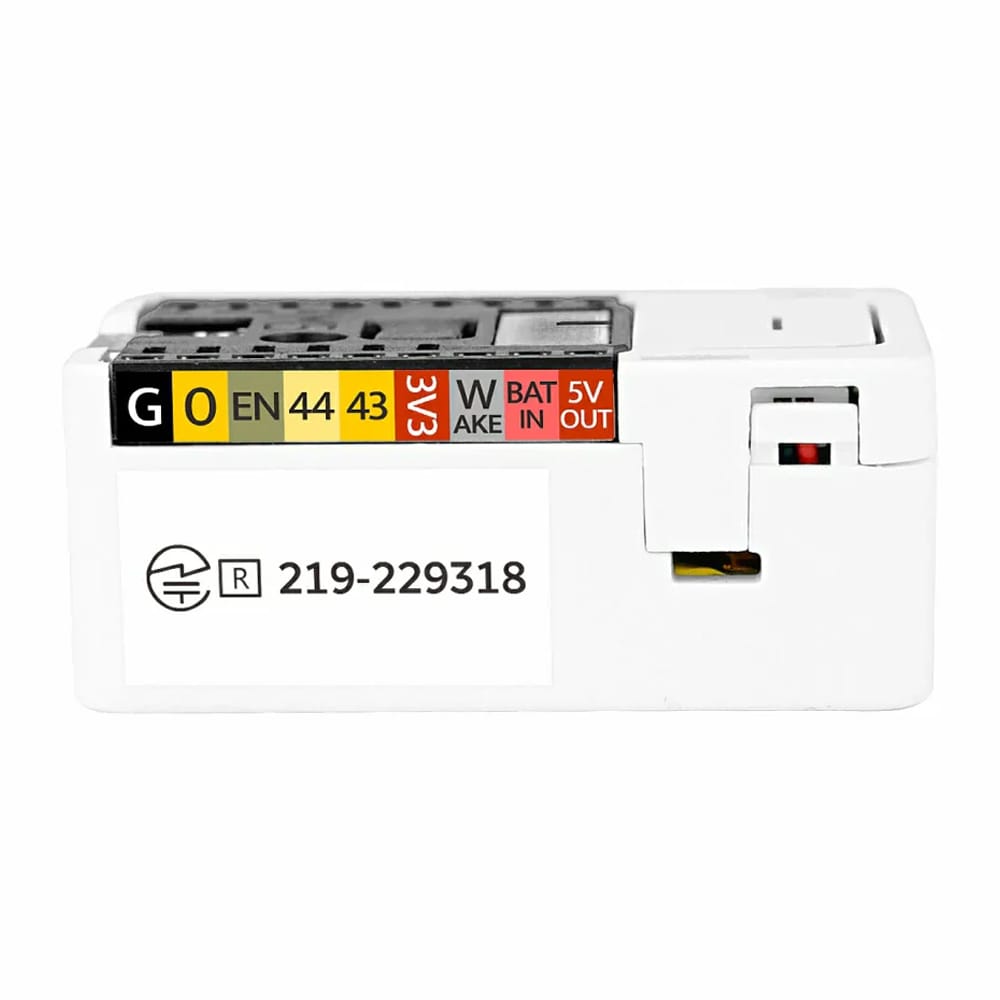

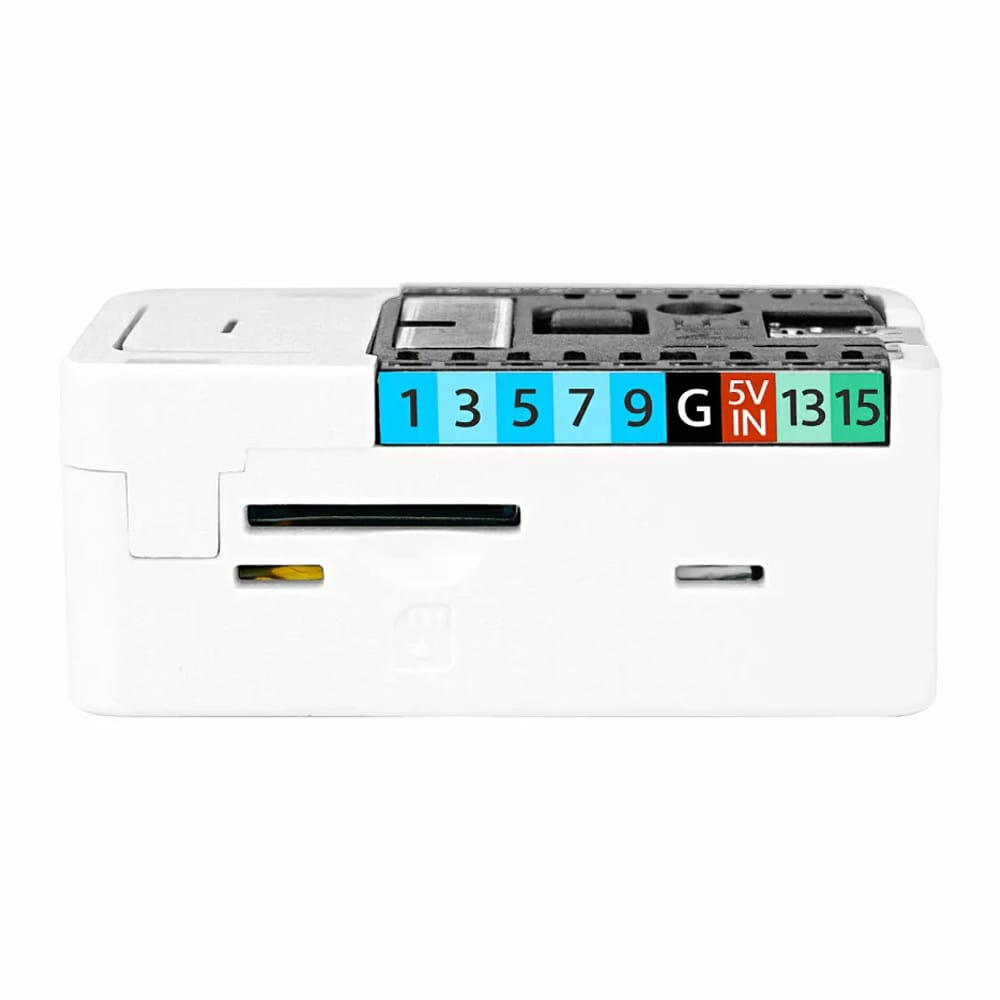

It has an onboard microSD card slot for flexible storage expansion, meeting data logging and media file storage needs. Equipped with an RTC8563 real-time clock module, it provides accurate time and date information and supports timed wake-up, effectively achieving low-power operation. The device integrates a buzzer for sound prompts and status feedback, and has a reserved Proto pin header expansion interface for freely connecting various custom sensors and expansion boards, suitable for diverse project development needs.

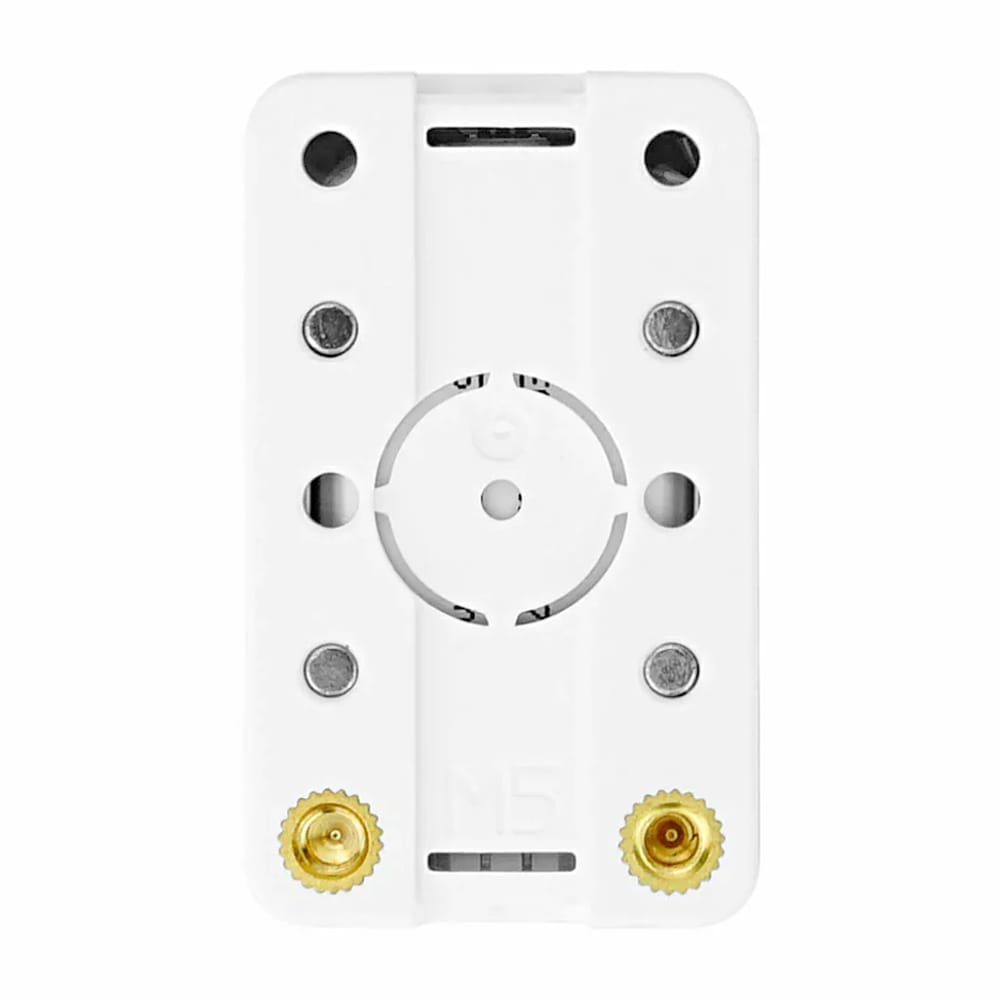

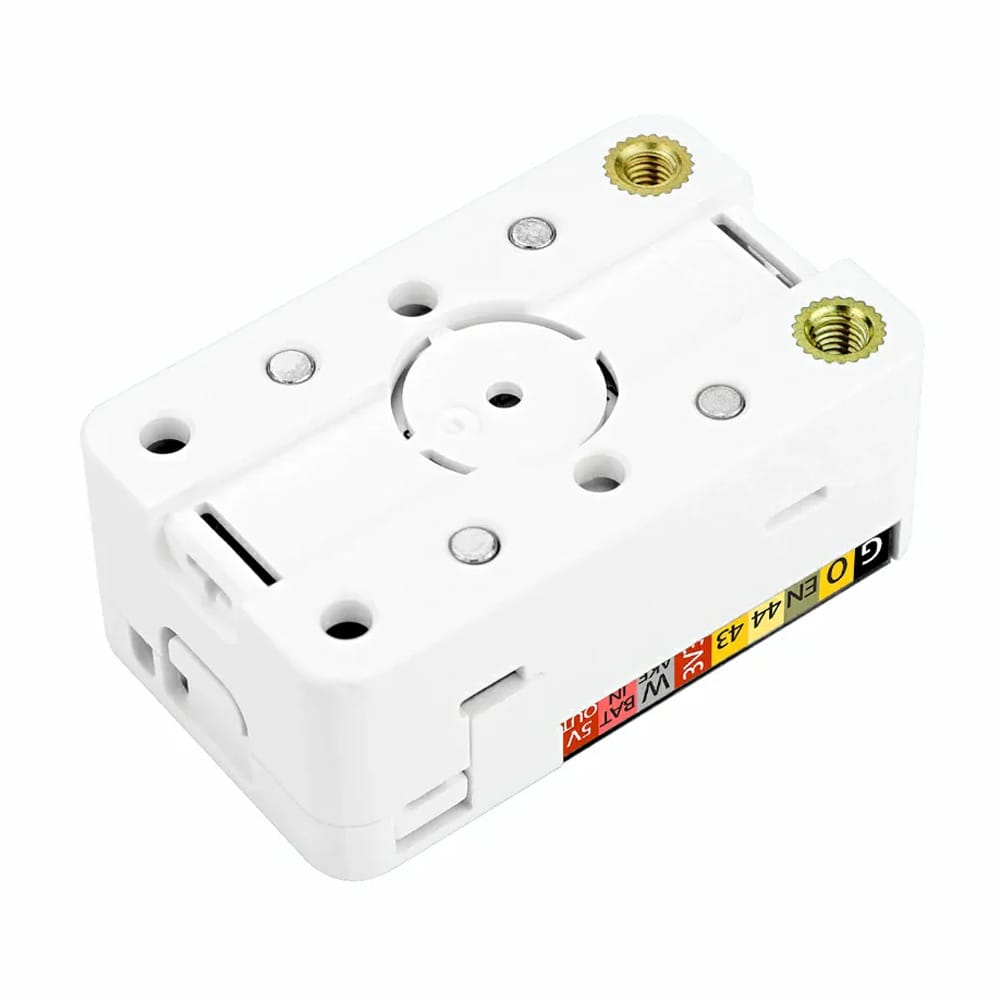

The body is built-in with four strong magnets and two M3 screw fixing holes, supporting magnetic placement and screw installation, greatly broadening usage scenarios. This product can be applied to IoT setups, embedded development, environmental sensing monitoring, smart terminal data collection, and various project scenarios.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
Integrated buzzer for status feedback
Integrated BMI270 attitude tracking
Supports microphone and infrared remote control
Built-in 250mAh battery & external battery support
