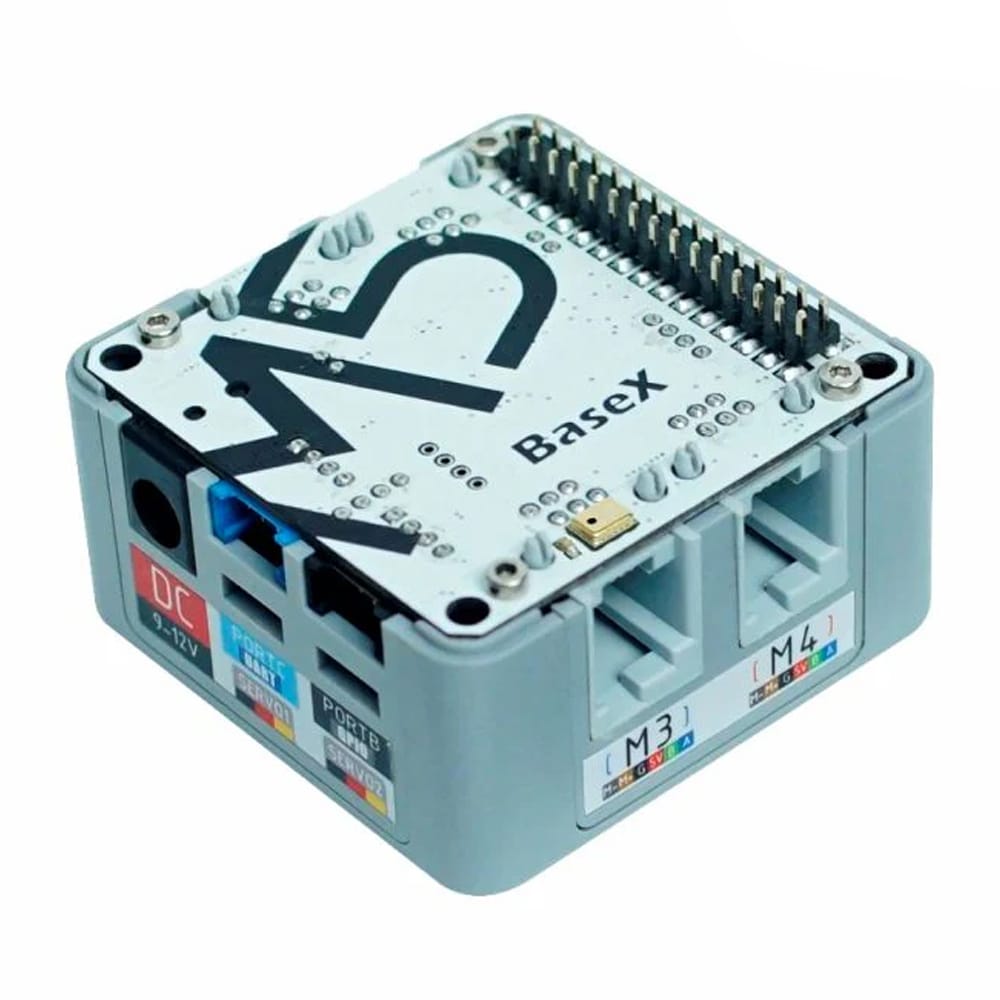

The M5Stack Base X expands M5Core with support for up to four LEGO EV3 motors, dual servo outputs, built-in microphone, GPIO/UART connectivity, and a rechargeable battery, making it ideal for LEGO-compatible robotics and custom sensor projects.

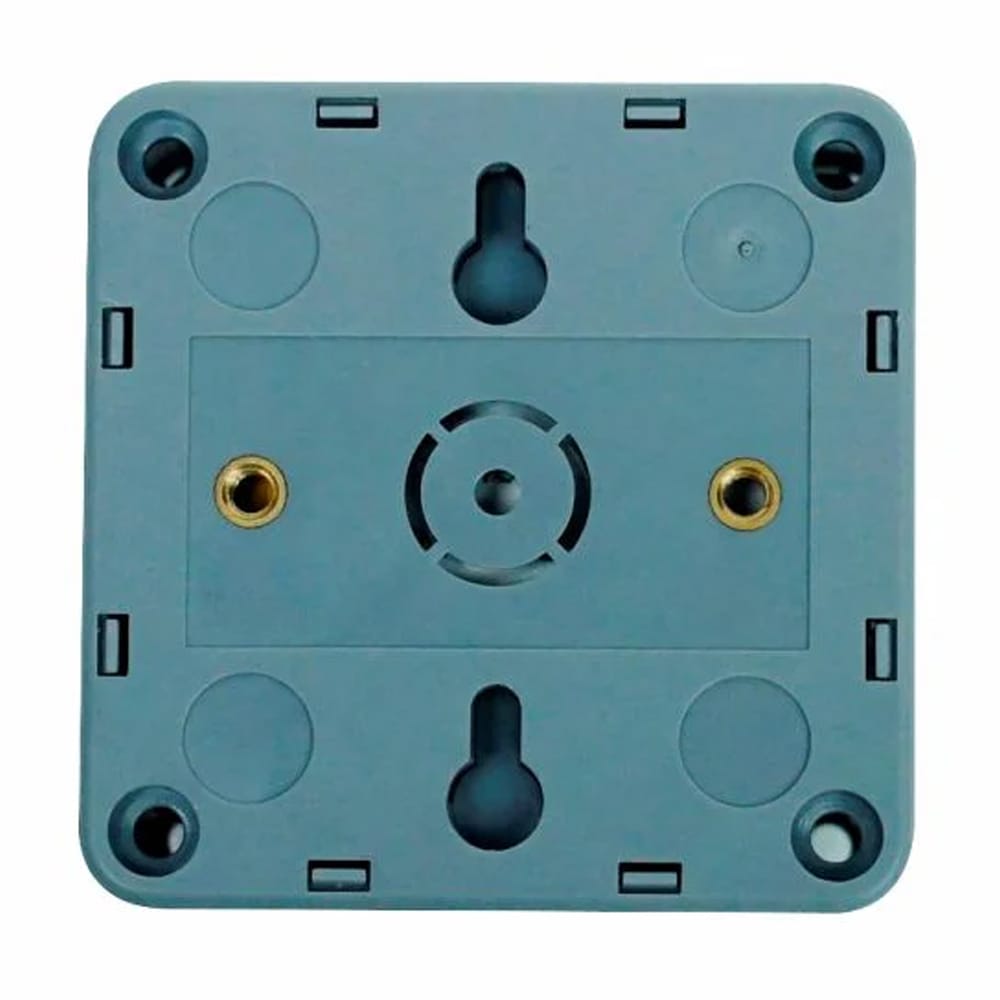

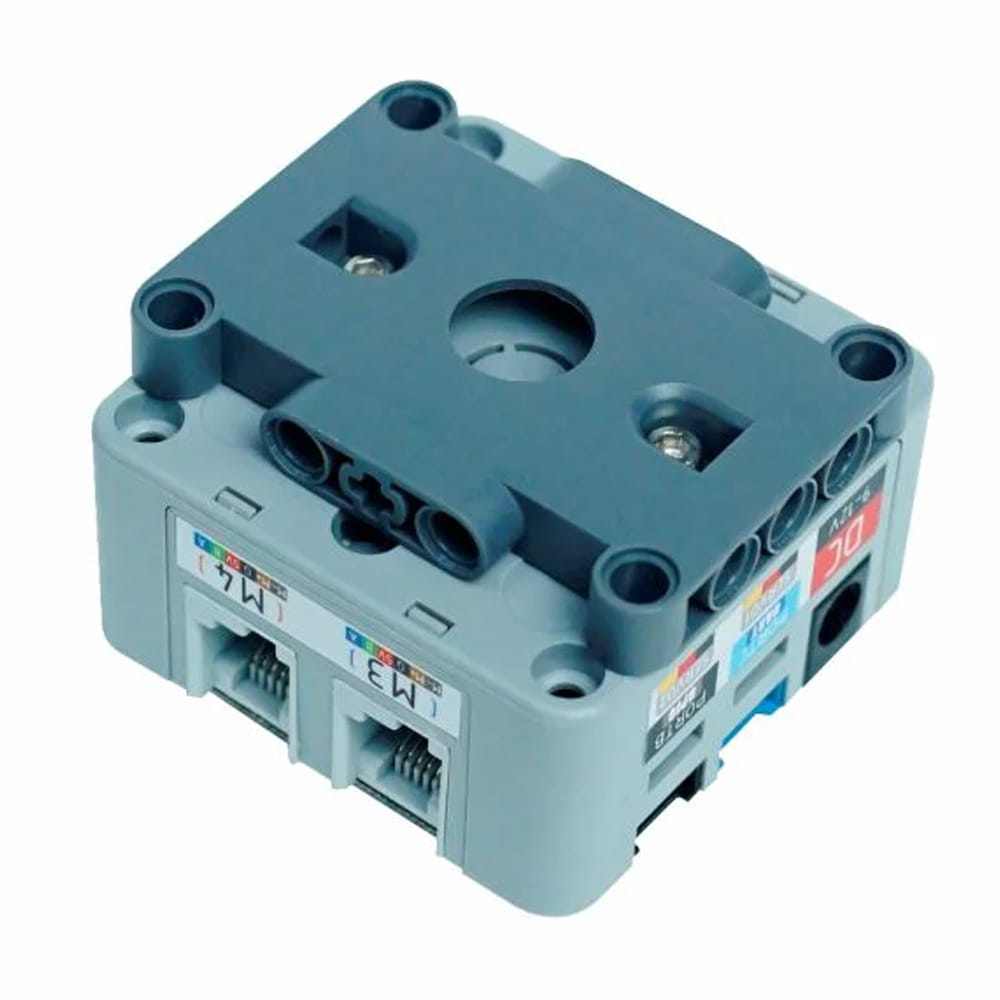

The M5StackBase X is a specialized base compatible with LEGO EV3 motors. Its structural design is similar to BASE26, supporting multiple mounting methods, and additionally providing a LEGO connector base that allows Base X to be easily integrated into LEGO builds.

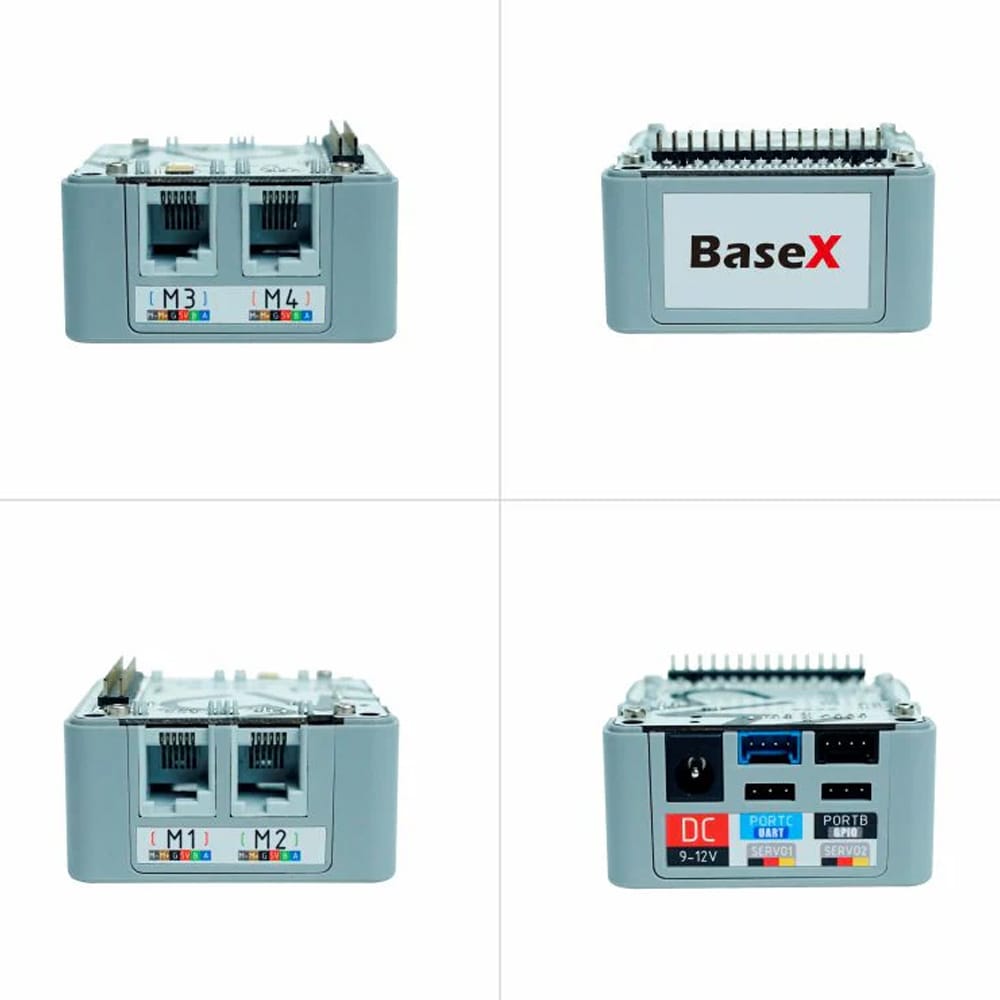

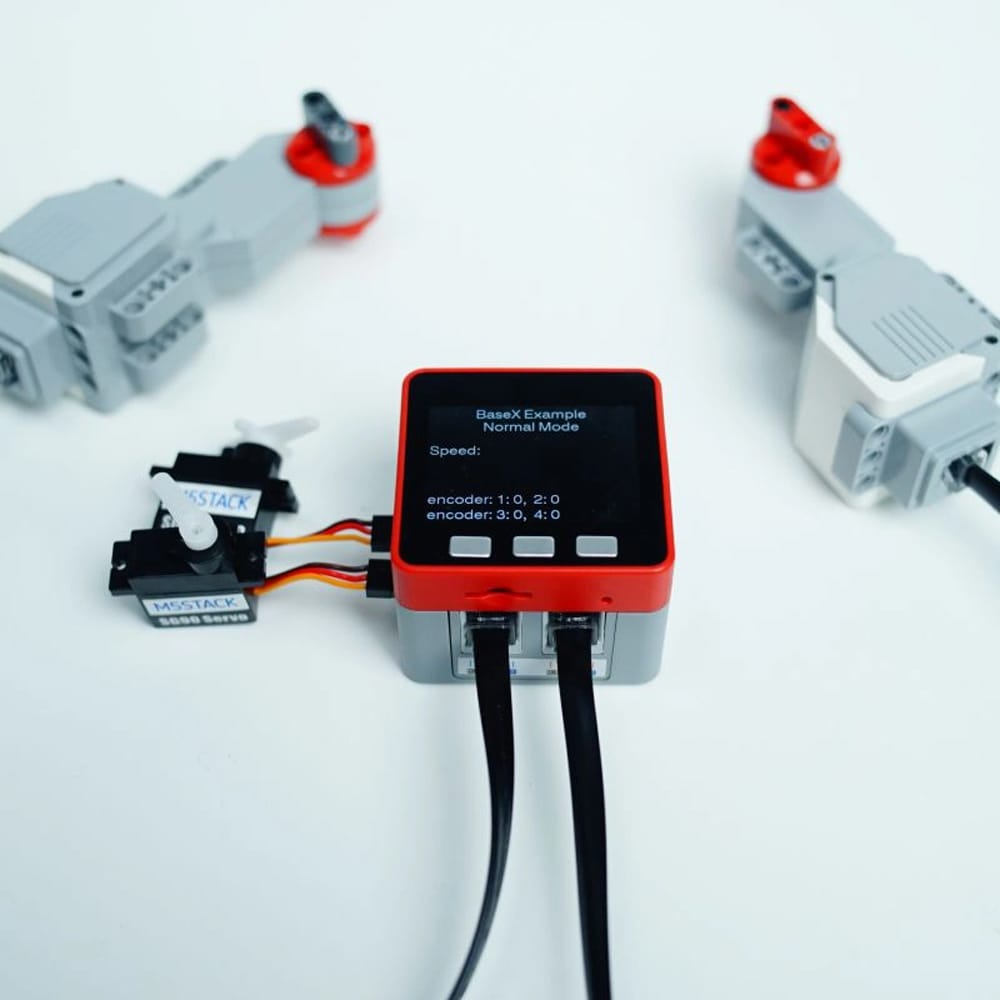

Base X can connect up to 4 LEGO motors (RJ11) simultaneously, supporting angle/speed reading and control, perfectly compatible with the original motor functions.

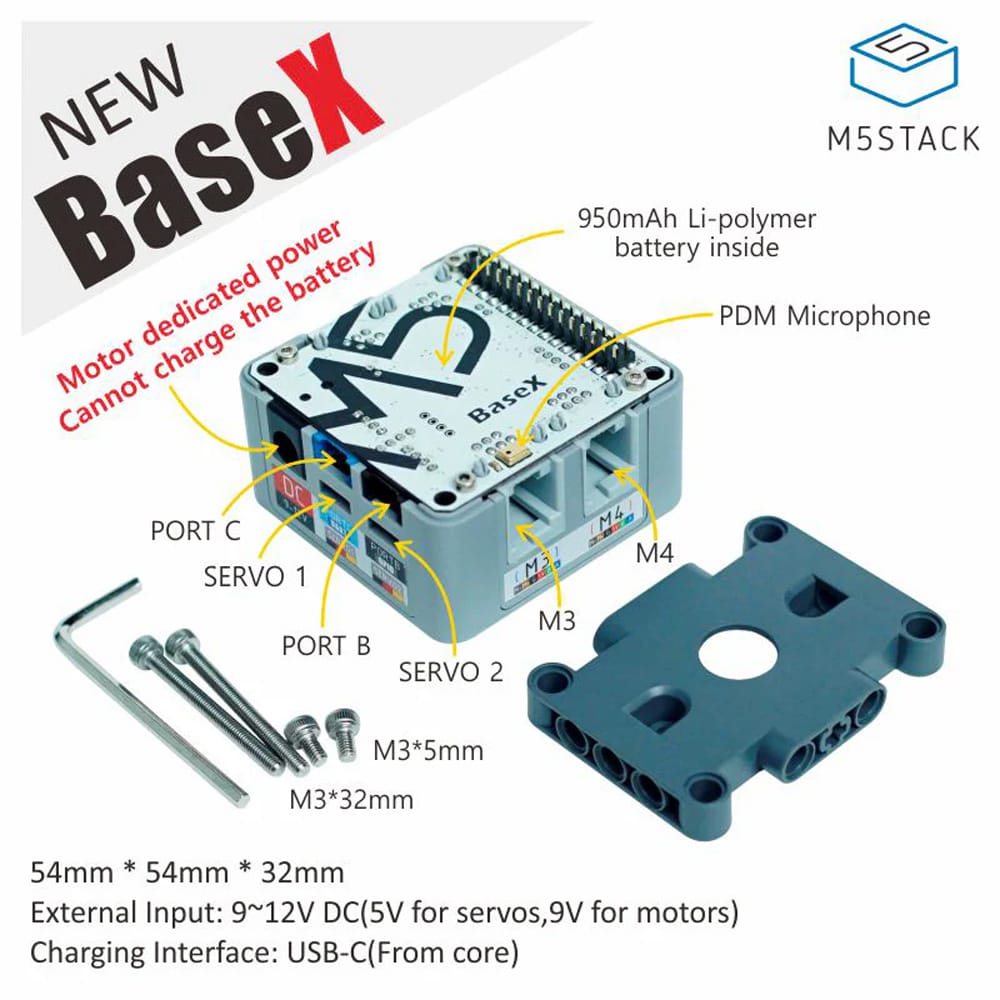

In addition, the base provides 2 servo interfaces for direct servo angle control, a built-in PDM microphone for sound acquisition, a UART interface (16/17), and a GPIO interface (26/36), making it more flexible for connecting various sensors in different scenarios. The base has a built-in 950mAh battery that can be charged via the M5Core’s USB Type-C port to extend battery life. To improve the driving capability of the interfaces, the base is equipped with a DC power jack for powering motors using an external 9 ~ 12V DC power supply (charging through the base is not supported).
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
4-way RJ12 LEGO motor interface (total maximum current output 2A for the base)
2-way servo drive (total maximum current output 2A for the base)
1-way UART
1-way GPIO

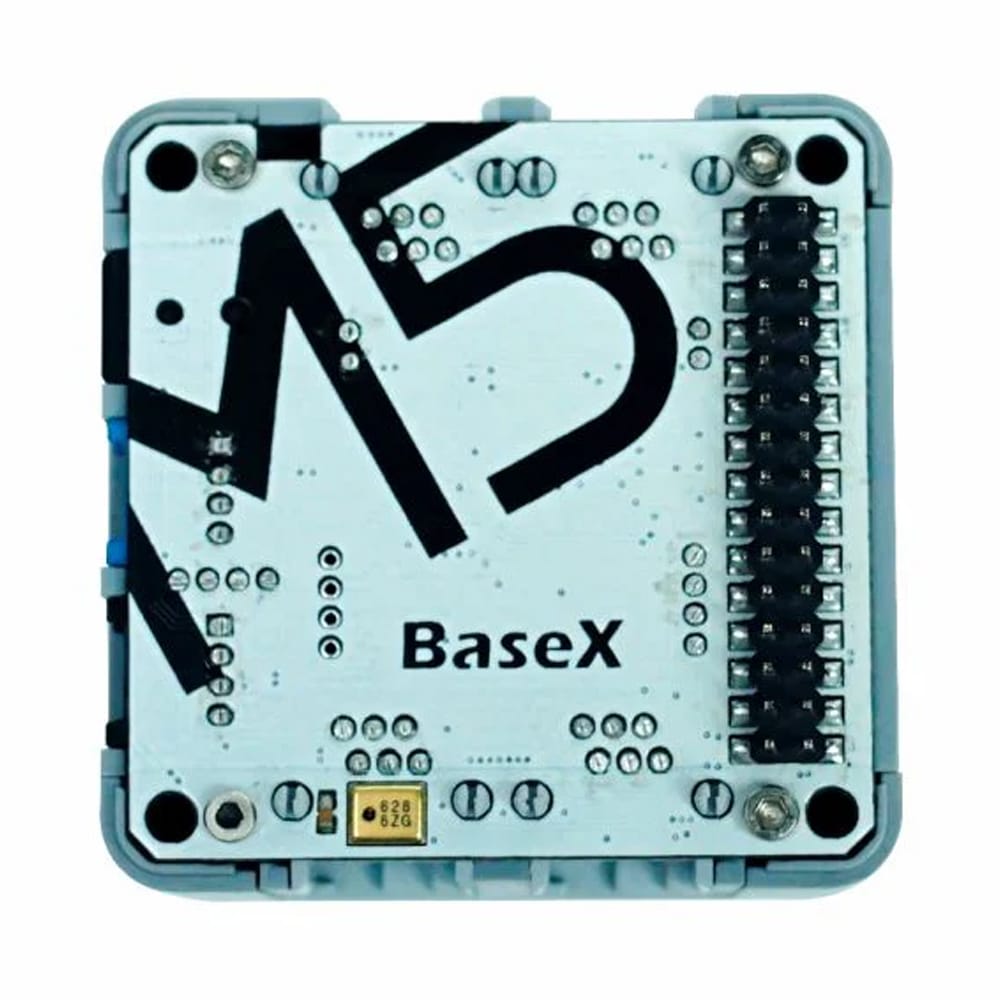

Built-in PDM microphone (G34)
Onboard DC-DC conversion (9 ~ 12V input, for independent motor power only)
