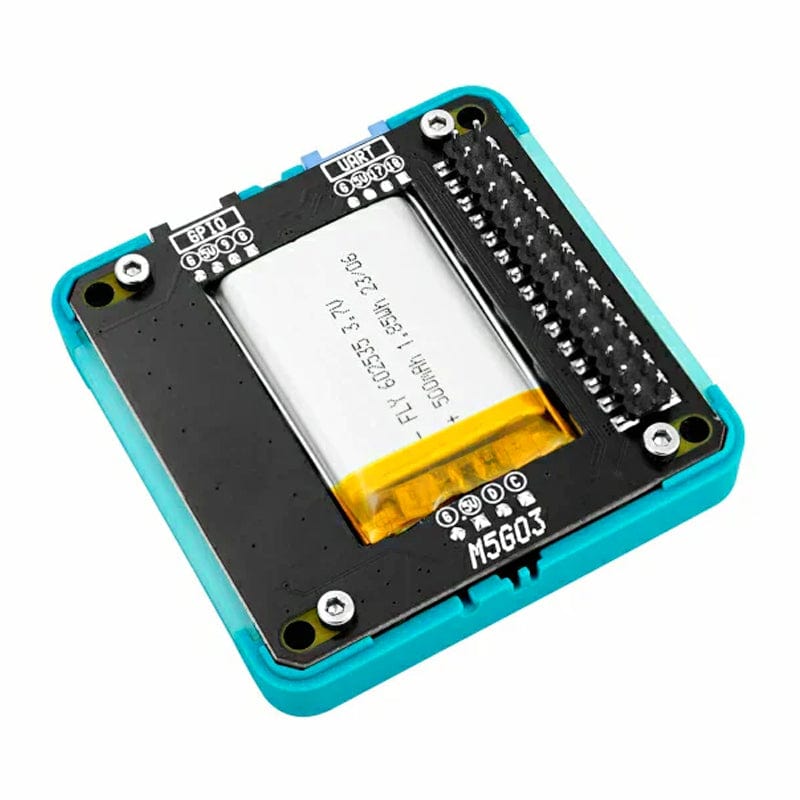

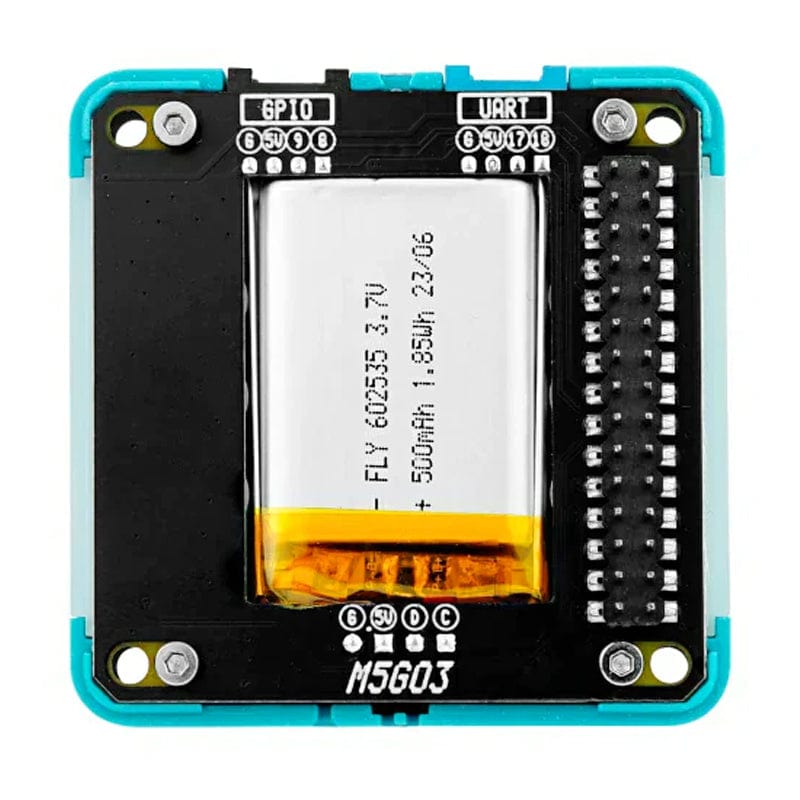

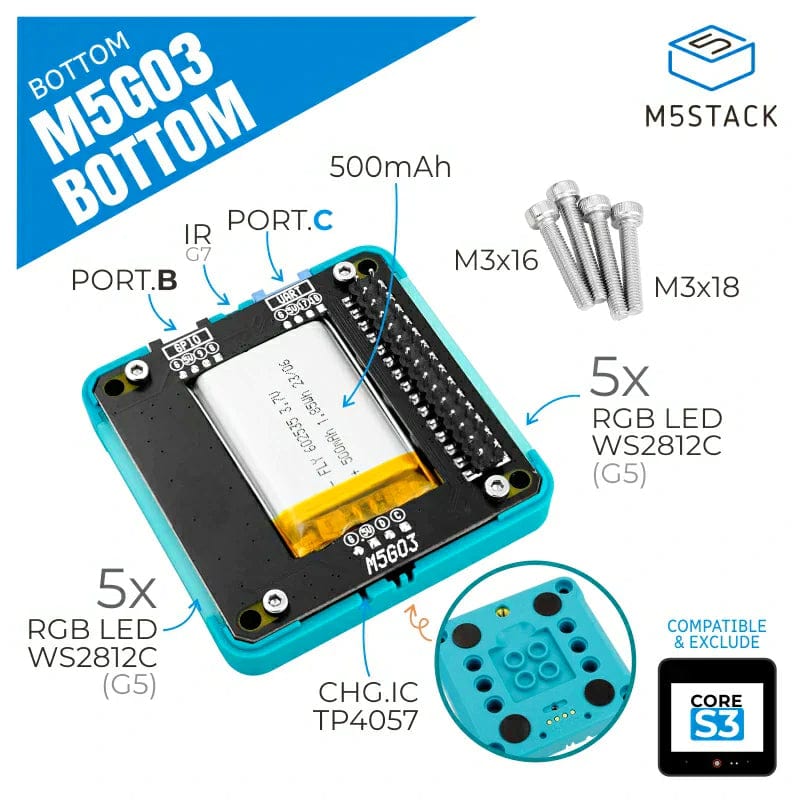

The M5GO3 Bottom is specifically designed for use with the M5CoreS3. It has an infrared transmission LED, a 500mAh lithium battery, and programmable RGB lights, and it also offers compatibility with Lego bricks.

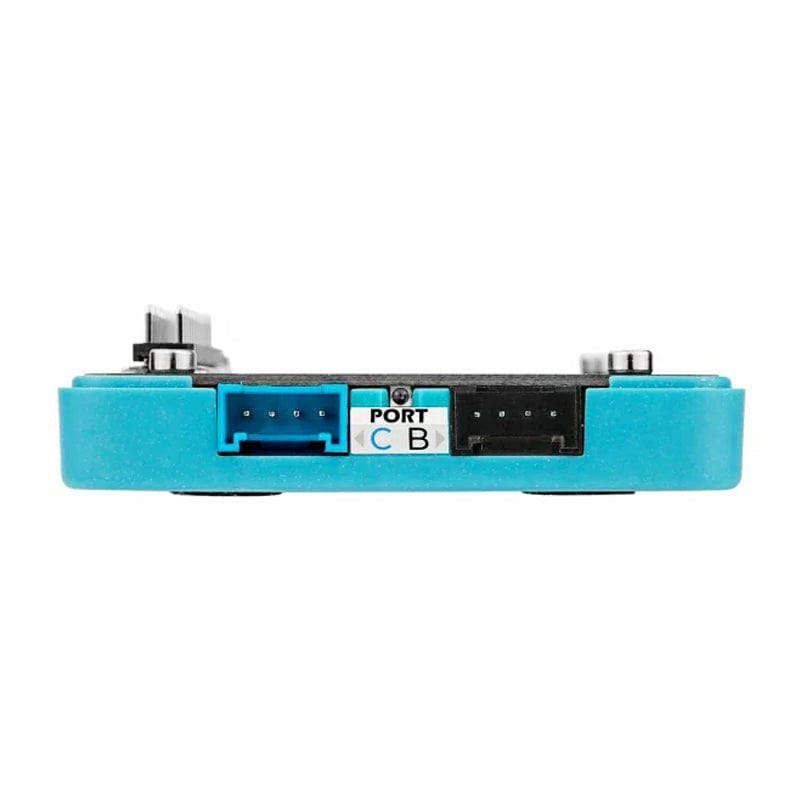

Equipped with two sets of HY2.0-4P expansion interfaces, the M5GO3 Bottom provides the connection of various sensors by bringing out commonly used ADC/DAC/UART pins. This design makes it easy for you to connect sensors that measure temperature, humidity, light, and other parameters.

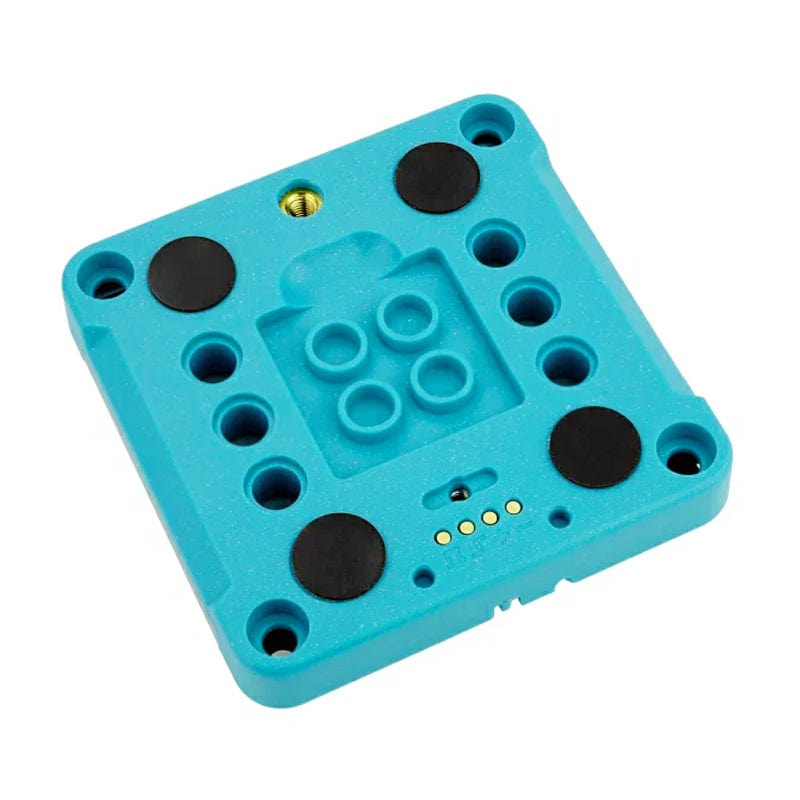

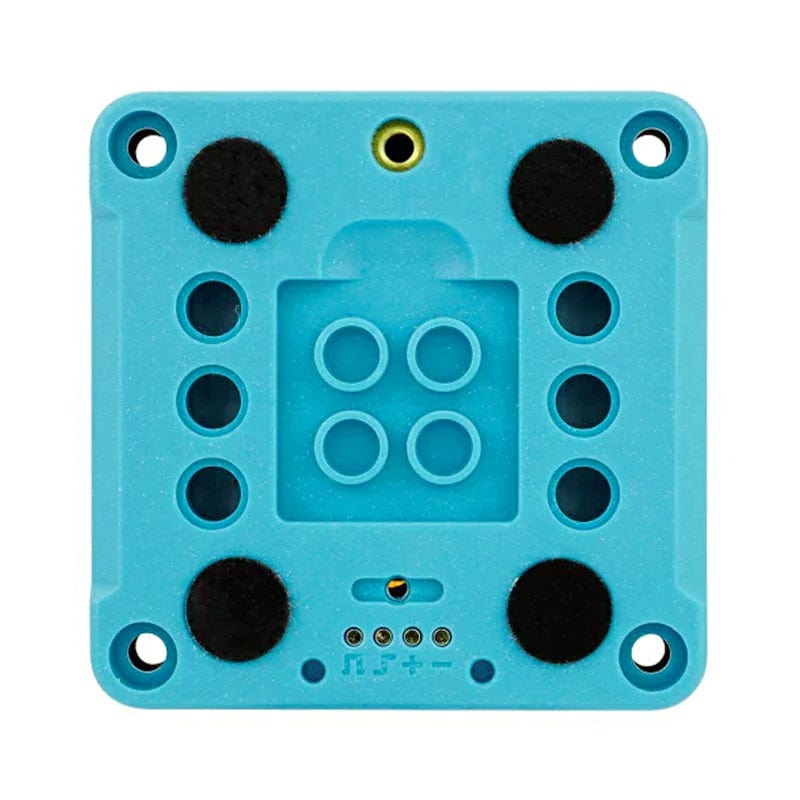

It has a pogo-pin magnetic charging interface on the bottom. When connected to a charging base, it provides a safe current flow into the internal battery via the TP4057 charging chip, thus enabling effective charging. Additionally, the pogo pin extends the main control I2C bus, supporting external expansions through magnetic adsorption.

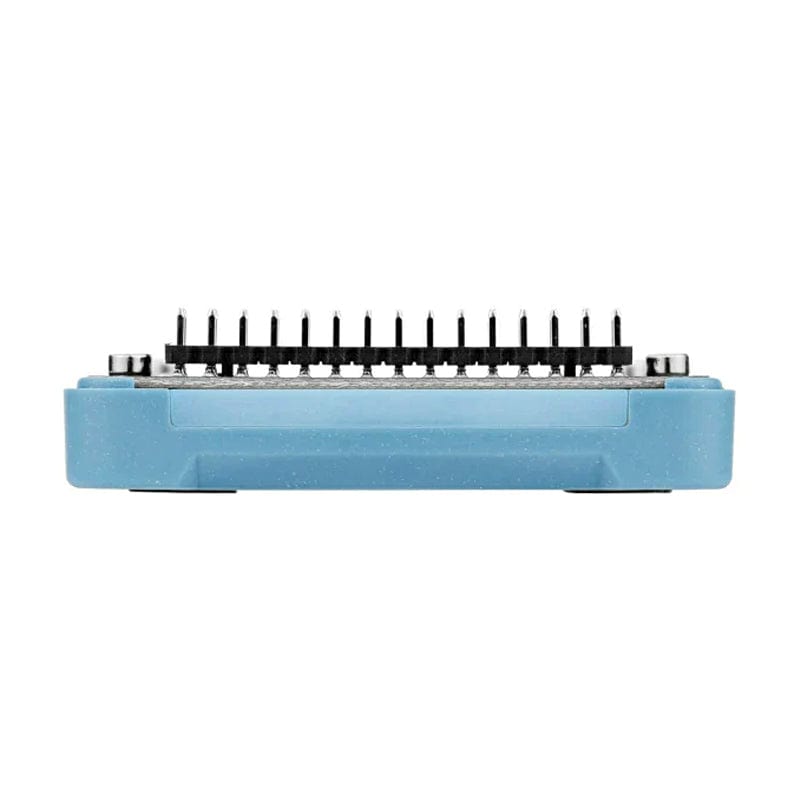

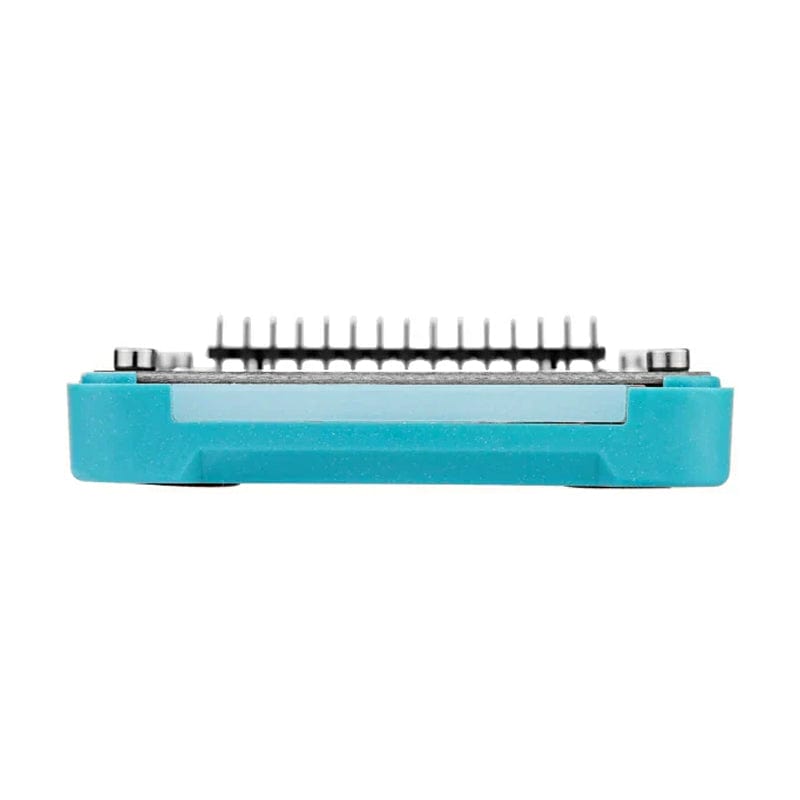

Each side of the base has ten programmable RGB lights (SK6812) paired with frosted light-shielding strips, which create a soft and comfortable lighting effect. You can program these lights to control their brightness and colour, adding an engaging element to their projects.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?
