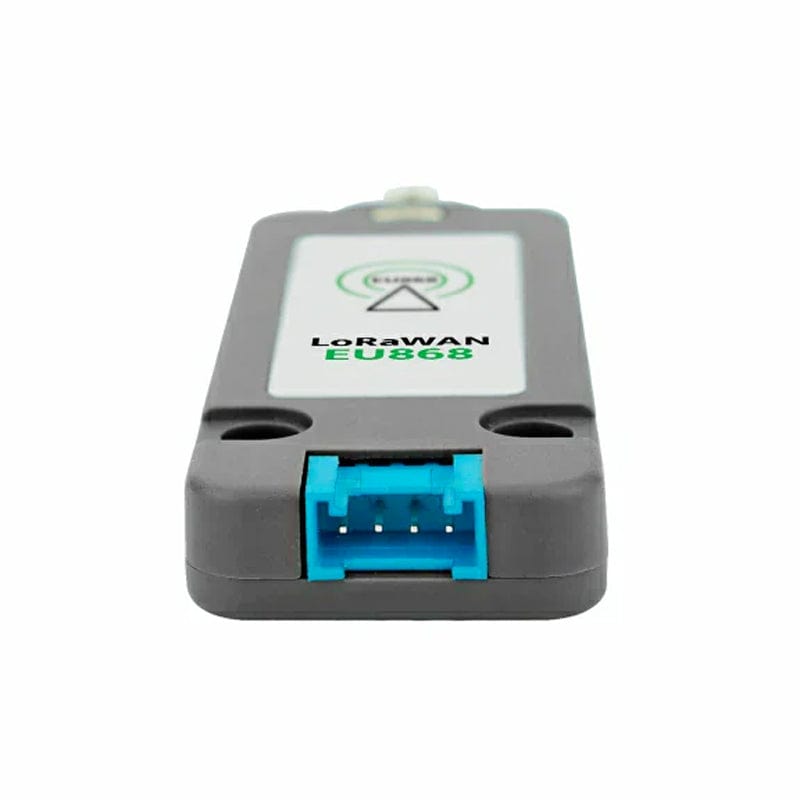

LoRaWAN Unit EU868 (STM32WLE5) with Antenna
Price:
Sale price
£20.70
Stock:
Coming Soon
Coming Soon
Awesome Extras
This LoRaWAN-EU868 is a communication module based on LoRa technology, specifically designed for the EU868 frequency band, making it ideal for Europe and regions using the same frequency standard. The STM32WLE5 core gives the module long-range communication, low power consumption, and high sensitivity.
It comes with the LoRaWAN protocol stack and supports three operating modes: Class A, Class B, and Class C. It also supports point-to-point (P2P) communication, allowing flexible data transmission even without a central gateway. Configuration is done through a UART connection using simple AT commands, making setup straightforward and adaptable to different needs.
Equipped with a rubber antenna, it provides stable signal coverage and an extended communication range, even in difficult areas. It can function as a data collection node, sending information to a gateway for centralised management, or it can enable direct communication between devices when no gateway is available.
Features
- Follows LoRaWAN® 1.0.3 protocol
- Supports EU868 frequency band
- Supports LoRa® P2P (point-to-point) communication
- LoRaWAN activation modes: OTAA, ABP
- Serial communication (AT commands)
- High-sensitivity stub antenna
- Low power consumption
- Compatible with LEGO holes
- Development platforms:
- UIFlow 1.0
- UIFlow 2.0
- Arduino IDE
Specifications
| LoRa Solution | STM32WLE5 @256 KB flash, 64 KB RAM |
| Supported Frequency | EU868 (868-870 MHz) |
| Protocol Support | LoRaWAN® 1.0.3 (Class A, Class B, Class C) |
| Reception Sensitivity | -137 dBm |
| LoRaWAN Activation | OTAA, ABP |
| Communication Mode | LoRaWAN and point-to-point (P2P) |
| Communication Distance (P2P) | 2300m (125Kbps), 1300m (500Kbps) |
| Interface Type | UART serial supports AT commands |

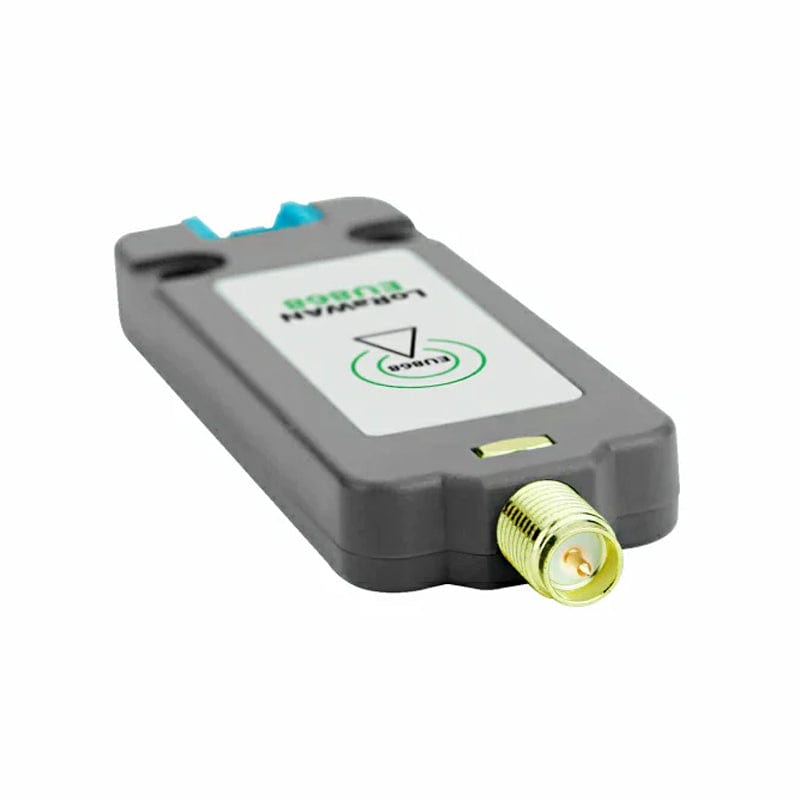

| Antenna Type | High-performance stub antenna, 50-ohm impedance @2.8dBi, total length 195mm SMA inner pin |
| Standby Power | Idle state: DC5V/7.23mA |
| Sleep state: DC5V/28.61uA | |
| Operating Current | 500Kbps Data reception: DC5V/9.20mA |
| Data transmission: DC5V/11.36mA | |
| 125Kbps Data reception: DC5V/8.43mA | |
| Data transmission: DC5V/117.16mA | |
| Operating Temperature | 0 - 40°C |
| Product Size | 71.4 x 24 x 8mm |
| Product Weight | 31.9g |
| Package Size | 240 x 92 x 10mm |
| Package Weight | 33.4g |
Resources

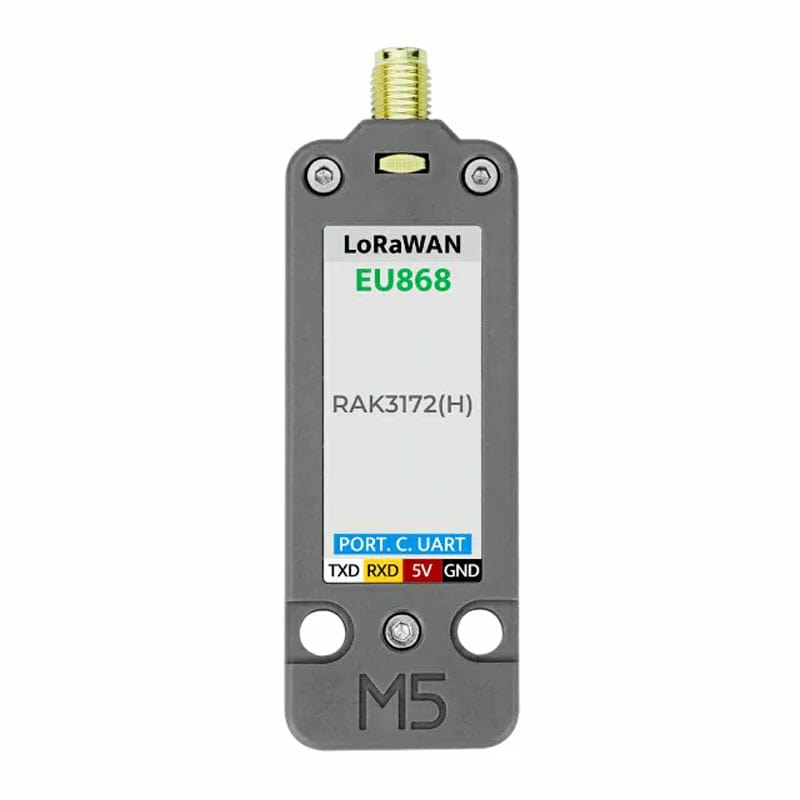

Pinout
| HY2.0-4P | Black | Red | Yellow | White |
| Define | GND | 5V | TXD | RXD |
Package Contents
- 1x Unit LoRaWAN-EU868
- 1x HY2.0-4P cable (20cm)
- 1x Stub antenna (@2.8dBi, total length 195mm SMA inner pin)
