This is a 170mm white 915MHz 50ohm antenna kit tested and recommended by iLabs for use with their LoRa products, such as the Challenger RP2040 LoRa (915MHz). They can also be used with any other LoRa board requiring a 915MHz U.FL antenna solution.

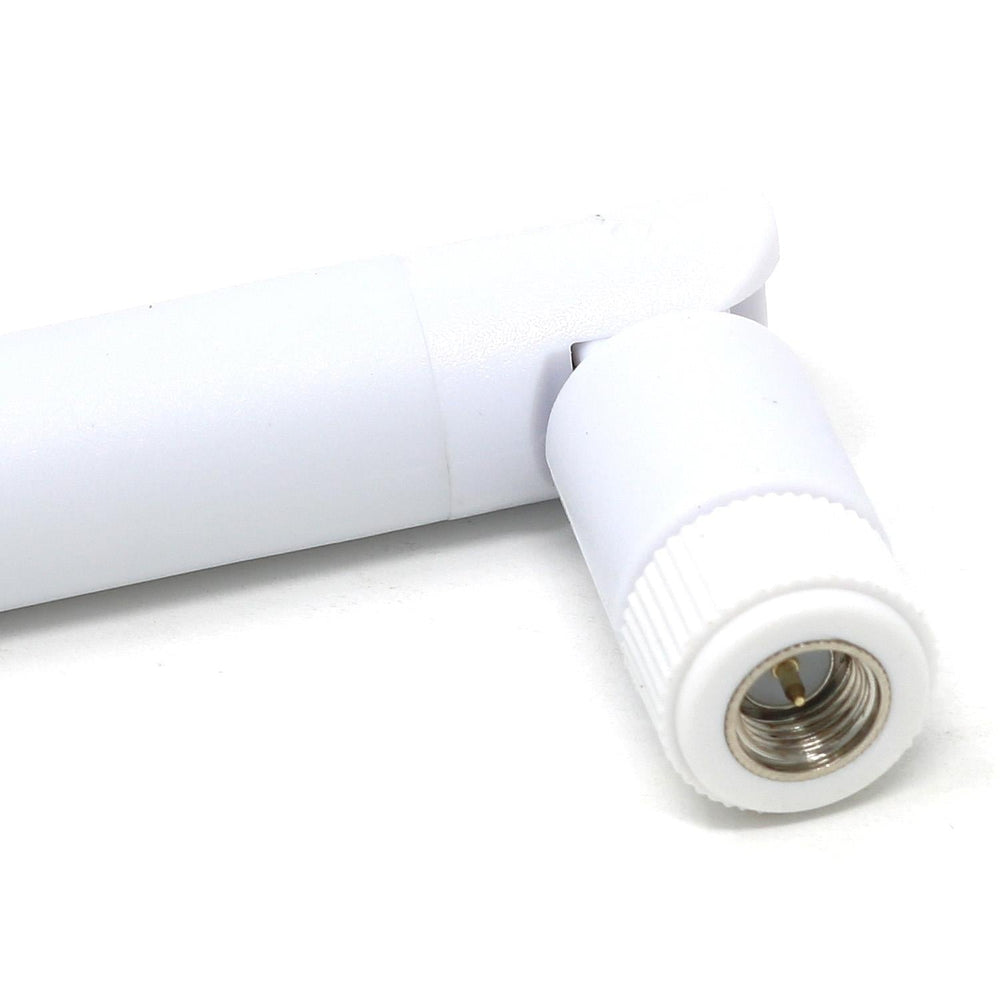

The antenna can tilt and swivel making it easy to install it in various applications.

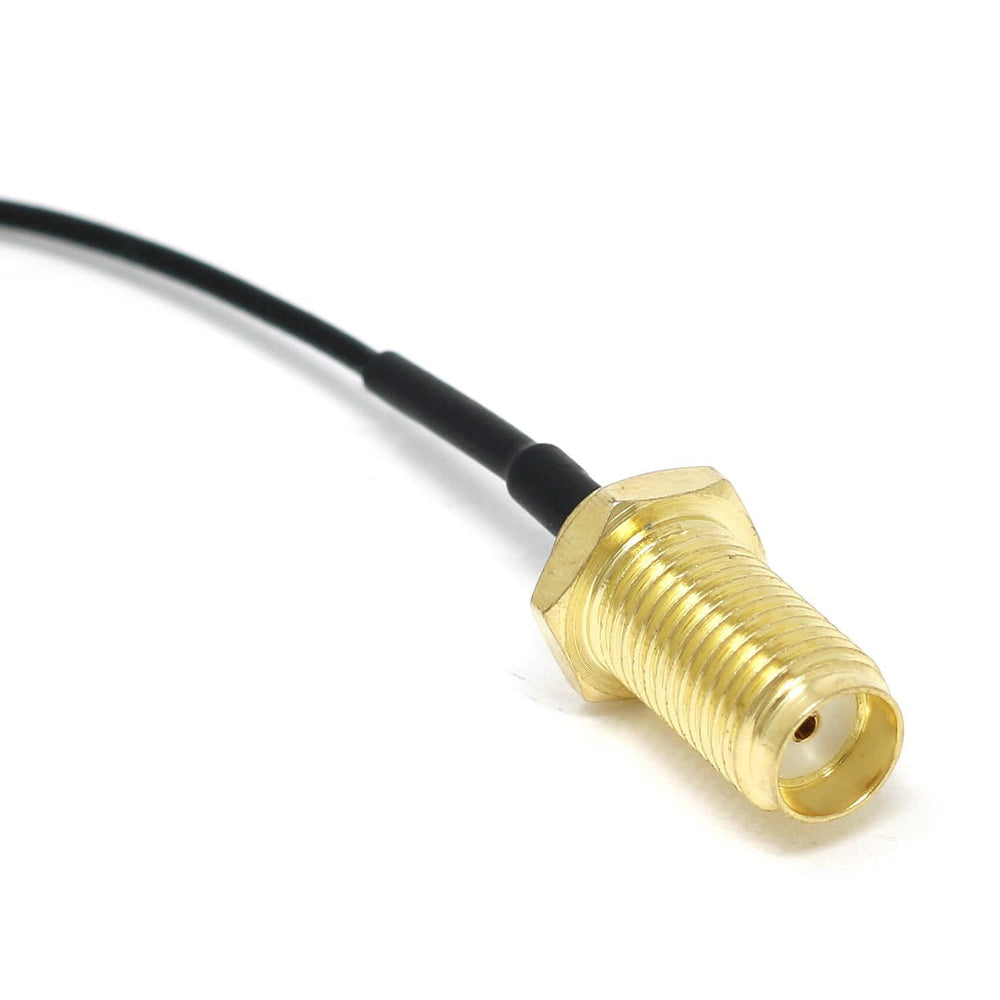

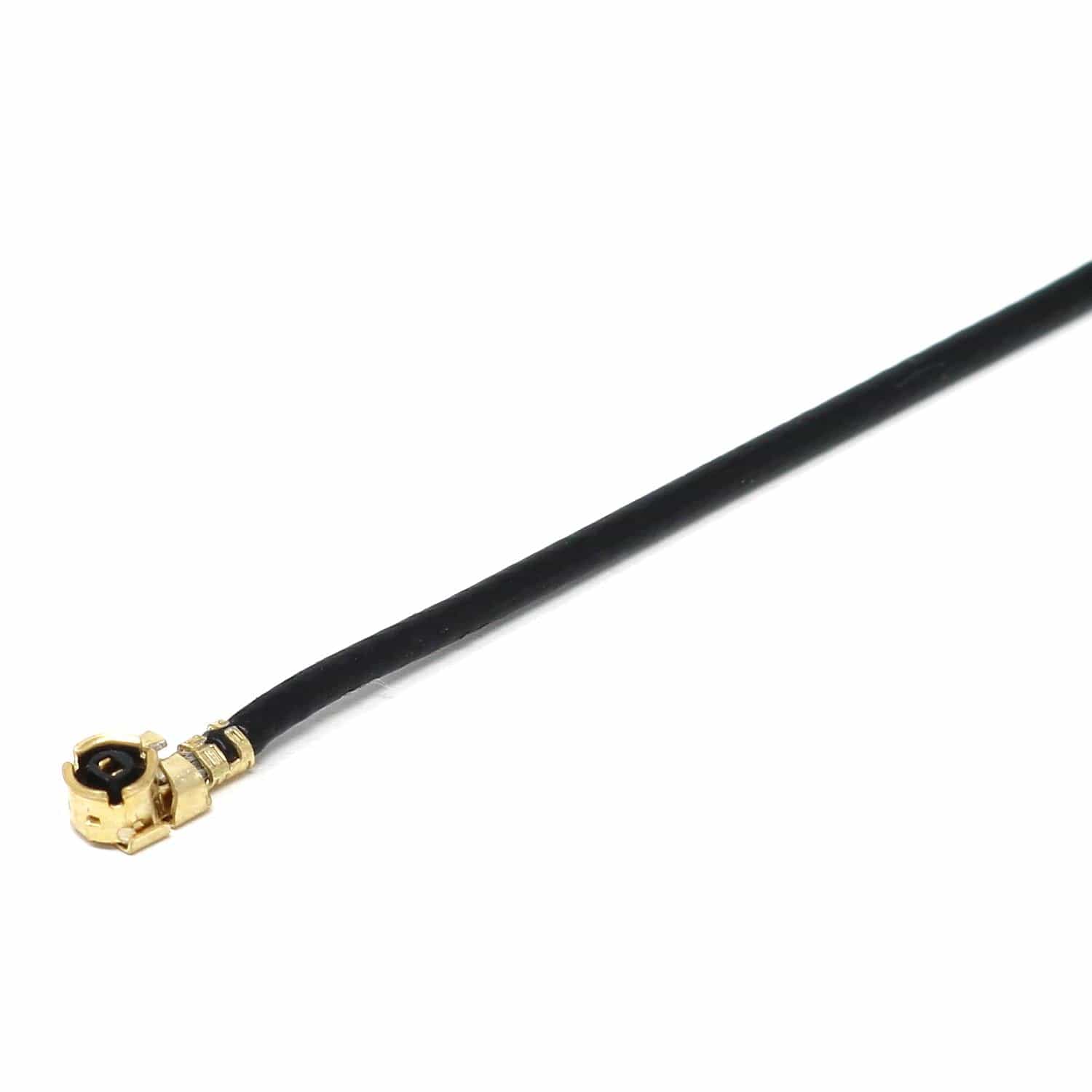

The kit comes with an RF cable assembly containing an RP-SMA (Female) and JK-IPEX/MHF/U.FL for connection to the PCB. The coax uses a 1-13mm 50Ohm cable and is 100 mm long. Weight: 0.023kg

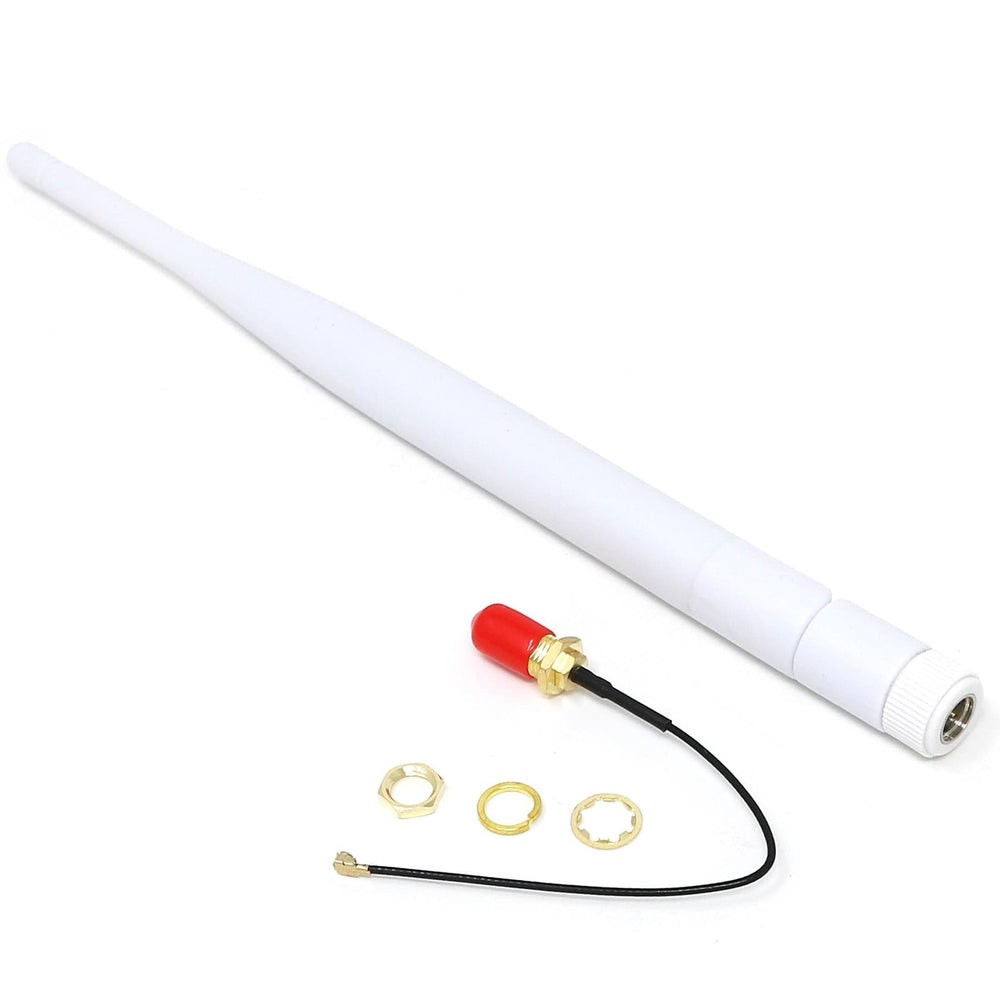

- 1x LoRa 915MHz Antenna (white)
- 1x RP-SMA (female) to U.FL pigtail cable assembly
Return loss diagram
