LoRa Antenna with Pigtail - 868MHz Black

iLabsSKU: 105078
Price:
Sale price £4.90
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

Challenger RP2040 LoRa (868MHz) - The Pi HutChallenger RP2040 LoRa (868MHz) - The Pi Hut
iLabsChallenger RP2040 LoRa (868MHz)
Sale price £19.70 incl. VAT excl. VAT
LoRa Antenna with Pigtail - 868MHz White - The Pi HutLoRa Antenna with Pigtail - 868MHz White - The Pi Hut
iLabsLoRa Antenna with Pigtail - 868MHz White
Sale price £4.90 incl. VAT excl. VAT
USB-A to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT

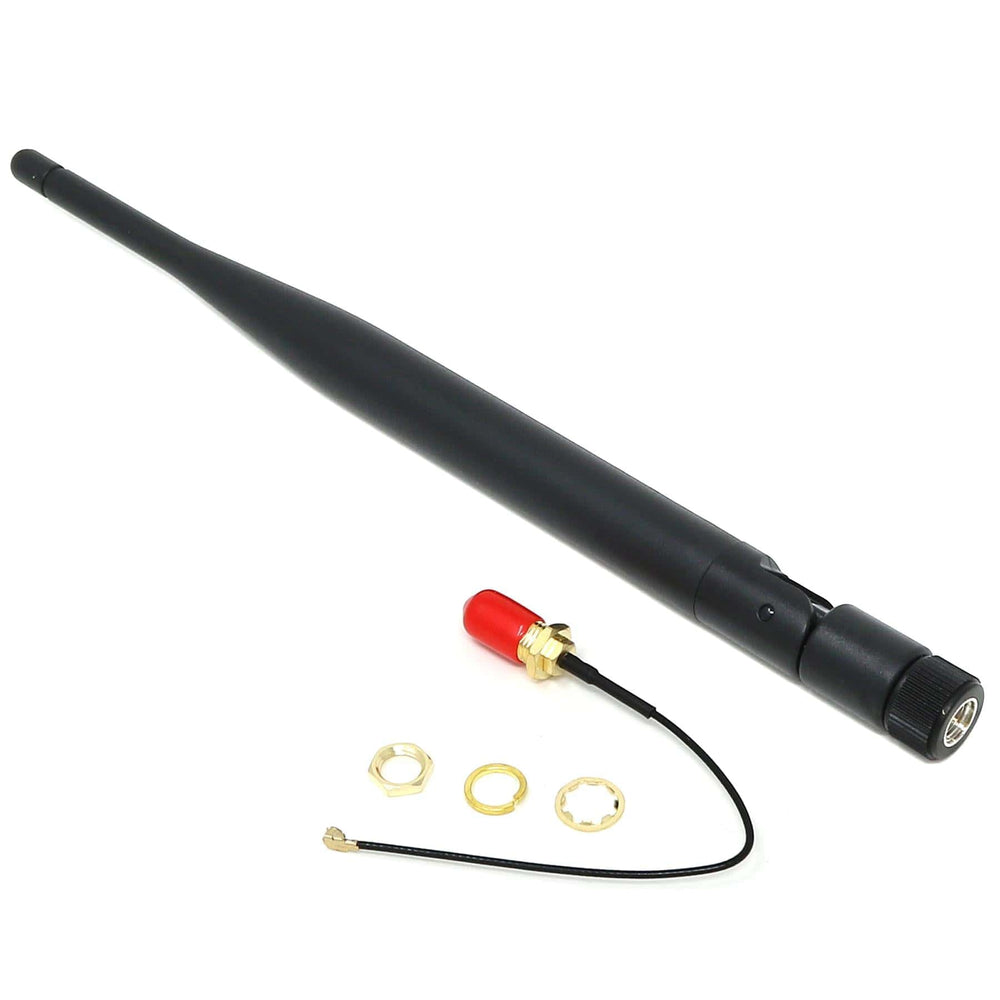

This is a 170mm black 868MHz 50ohm antenna kit tested and recommended by iLabs for use with their LoRa products, such as the Challenger RP2040 LoRa. They can also be used with any other LoRa board requiring an 868MHz U.FL antenna solution.

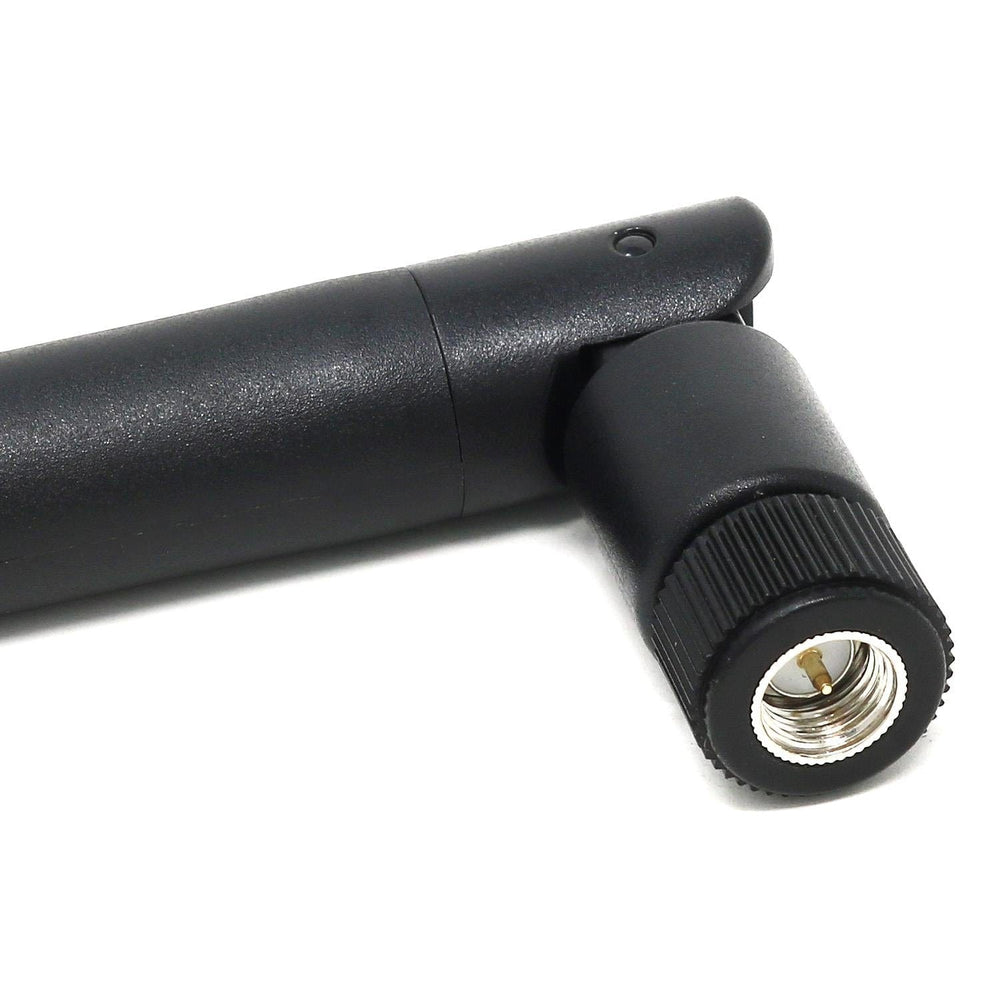

The antenna can tilt and swivel making it easy to install it in various applications.

The kit comes with an RF cable assembly containing an RP-SMA (Female) and JK-IPEX/MHF/U.FL for connection to the PCB. The coax uses a 1-13mm 50Ohm cable and is 100 mm long. Weight: 0.023kg

Also available in white, or a 915MHz version!

Package Contents

  • 1x LoRa 868MHz Antenna (black)

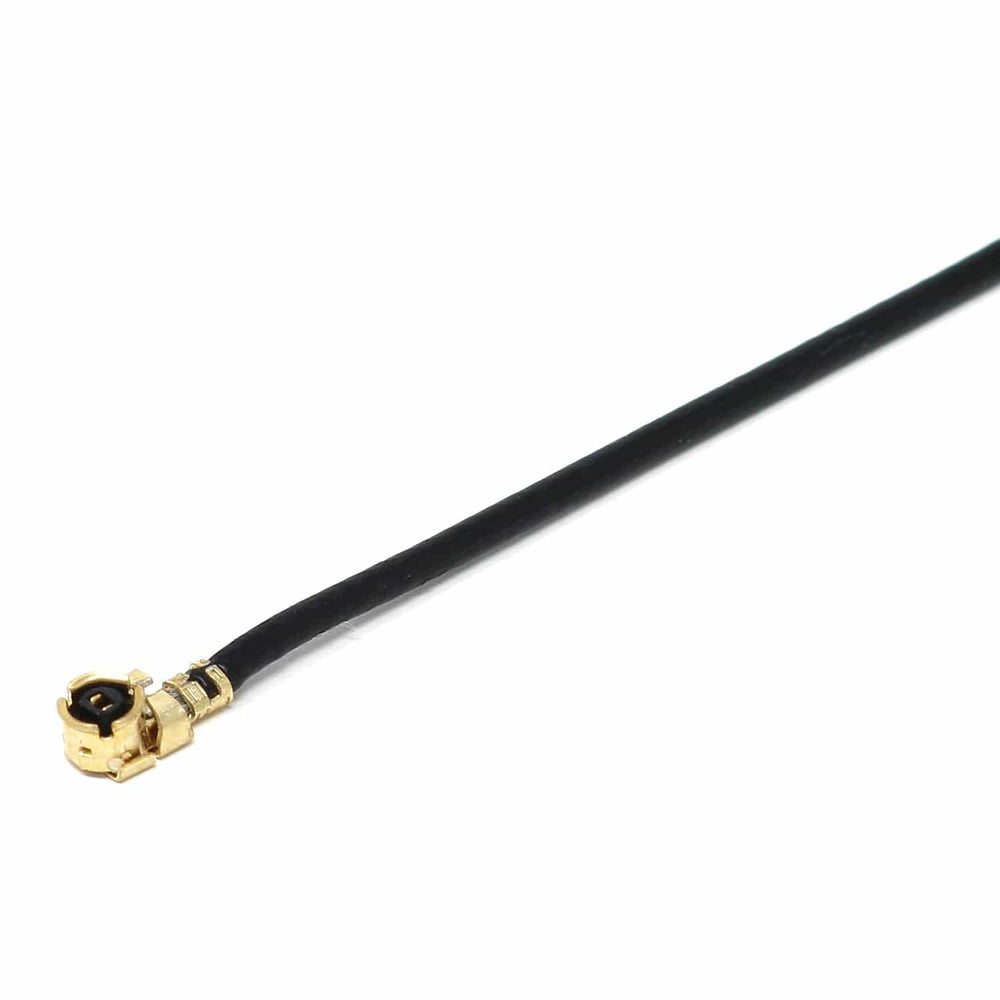

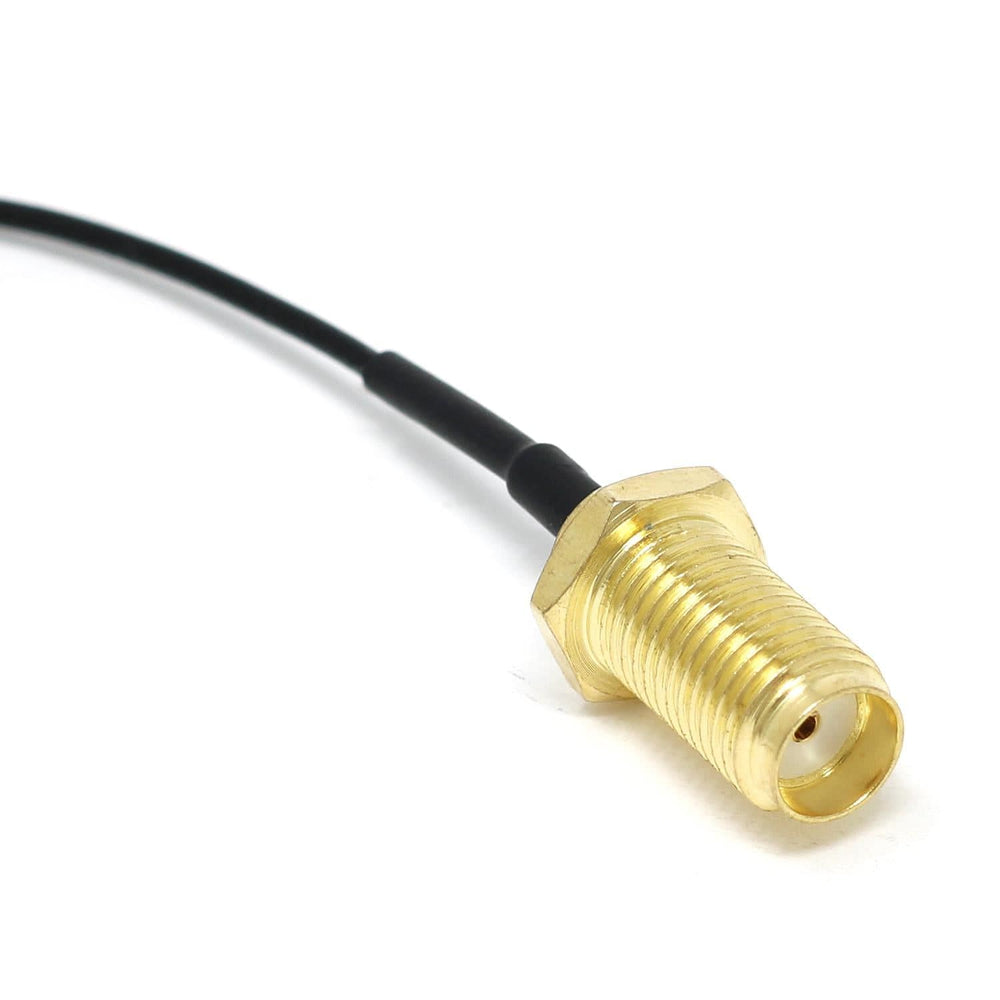

  • 1x RP-SMA (female) to U.FL pigtail cable assembly

Performance

Return loss diagram

Smith diagram
