The LED Driver Board for XIAO supports 5V and 12V addressable RGB strips, including WS2812, WS2813, and WS2815. Compatible with all XIAO boards, it works with WLED and Home Assistant for smart lighting control and includes built-in protection for reliable operation.


This LED driver board is a compact yet powerful solution supporting both 5V and 12V LED strips, including popular addressable RGB LEDs such as NeoPixel WS2812, WS2813, WS2815. Compatible with all XIAO boards, it enables smart control and automation through WLED and Home Assistant when using XIAO ESP32 Series, while offering flexible power options and comprehensive protection for safe, reliable operation in your lighting setup.

XIAO is not included, but we offer a range of options here.

This expansion board is currently not directly compatible with the XIAO nRF54L15 series because Arduino is not supported. However, the hardware interface is fully compatible, and developers can manually adapt the software if needed. Official software support from Seeed Studio is under development — stay tuned for updates!

Features

  • Wide LED Compatibility
    • Versatile driver supporting both 5V/3A and 12V/2A LED strips with built-in power regulation. Compatible with single-colour and addressable RGB LEDs, including NeoPixel WS2811, WS2812(B), WS2813, WS2815, SK6812, and other 1-wire protocol LEDs, providing extensive lighting options.
  • XIAO Compatibility for Smart Control
    • Designed for all Seeed Studio XIAO boards. When paired with XIAO ESP32 Series (ESP32-C3/S3/C6), unlock smart features through:
      • WLED app support – control colours, effects, brightness, and create custom animations (XIAO ESP32C3 is highly recommended)
      • Home Assistant integration via ESPHome – enable remote control, automation, and smart home scenarios
  • Grove Ecosystem Compatibility
    • The onboard plug-and-play Grove interface is compatible with over 400 Seeed Studio modules, including infrared sensors, temperature sensors, accelerometers, and more, allowing you to easily enhance lighting interactivity with the environment and motion for smarter, personalised effects.
  • Flexible Power Input
    • Supports 12V/2A power via standard DC adapter (EU/US plugs) or direct DC wiring, featuring a universal 5.5mm x 2.1mm DC Barrel Jack connector. Suitable for both temporary and permanent installations.
  • Compact Form Factor
    • Space-efficient design allows for discreet installation near LED strips or in tight spaces, ideal for various lighting applications while maintaining full functionality.
  • Comprehensive Protection
    • Integrated safety features, including overcurrent, overvoltage, overtemperature, and short-circuit protection, ensure reliable operation and component longevity.

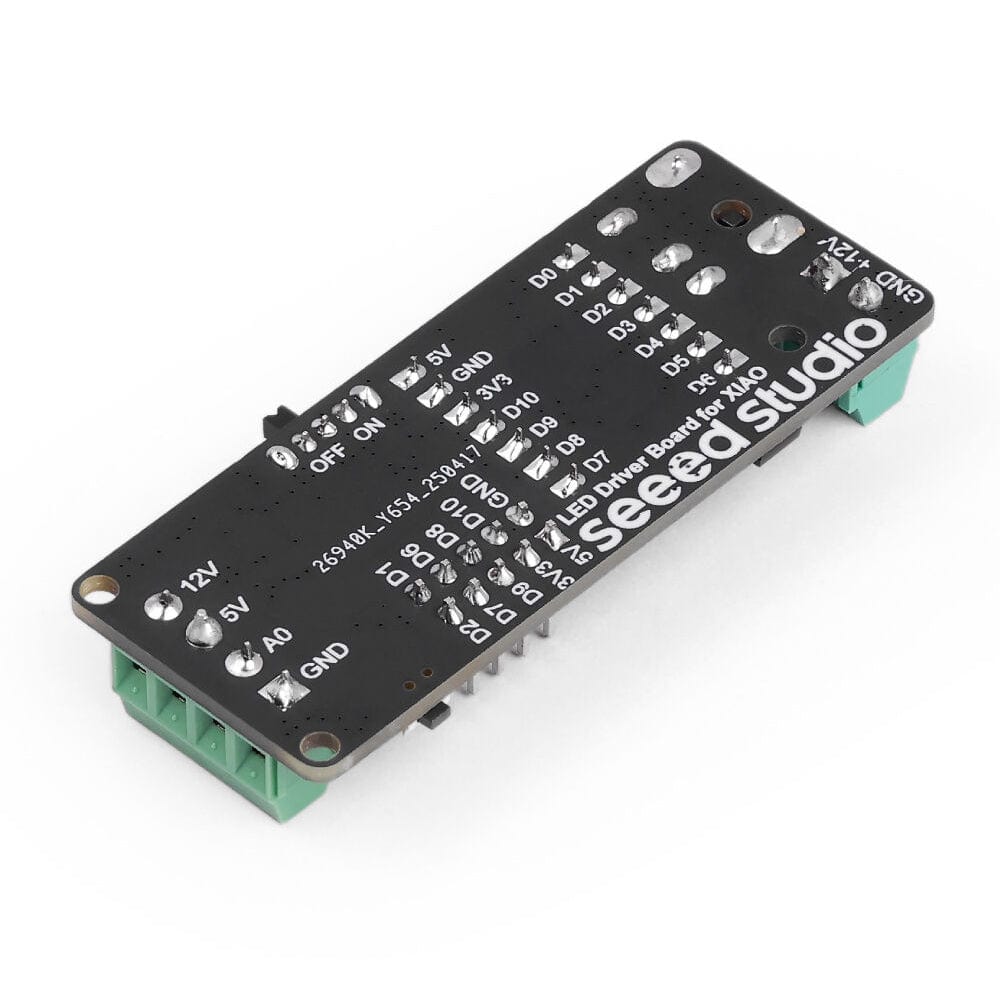

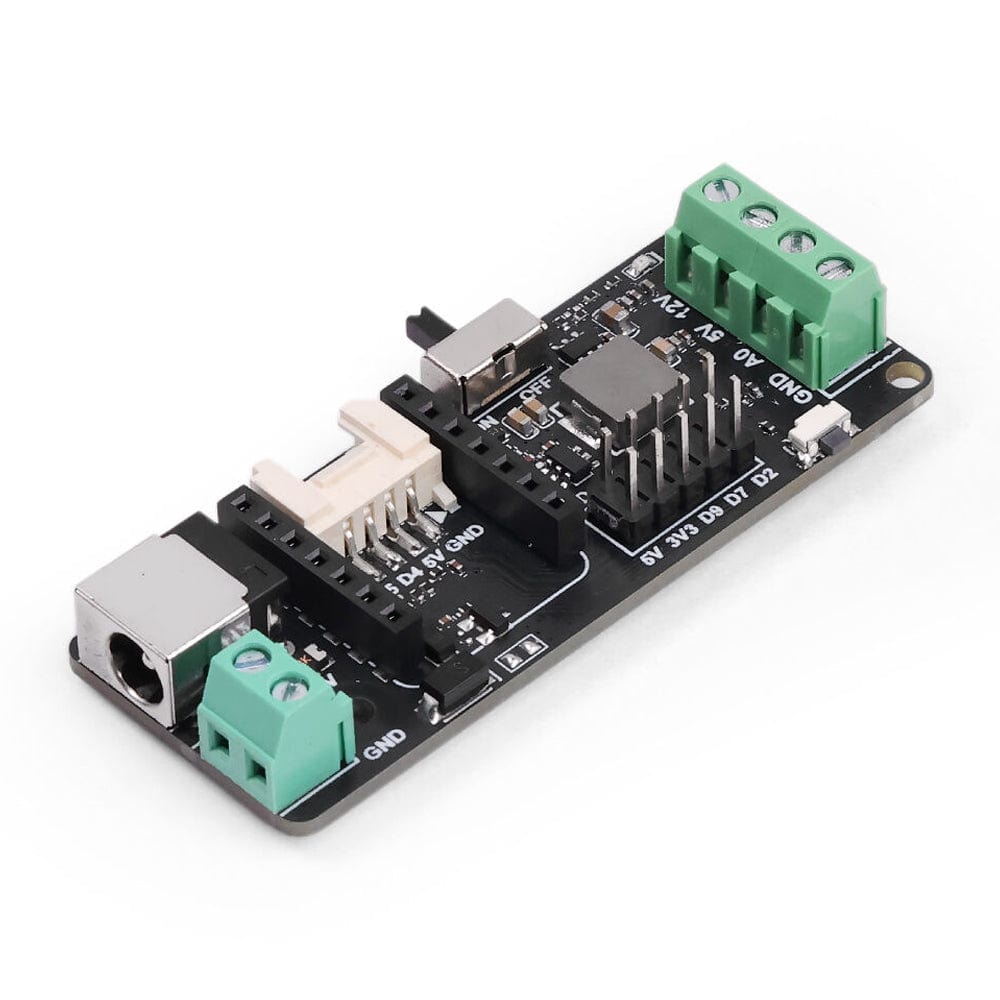

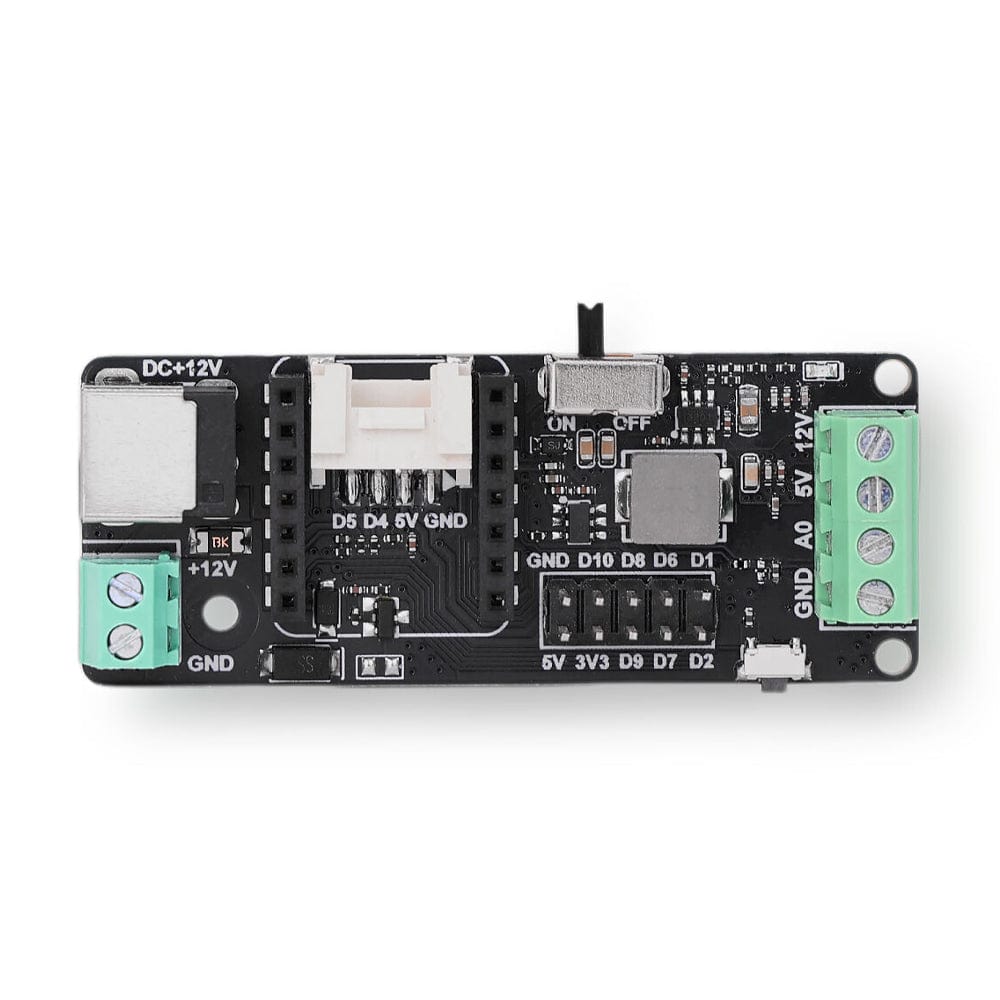

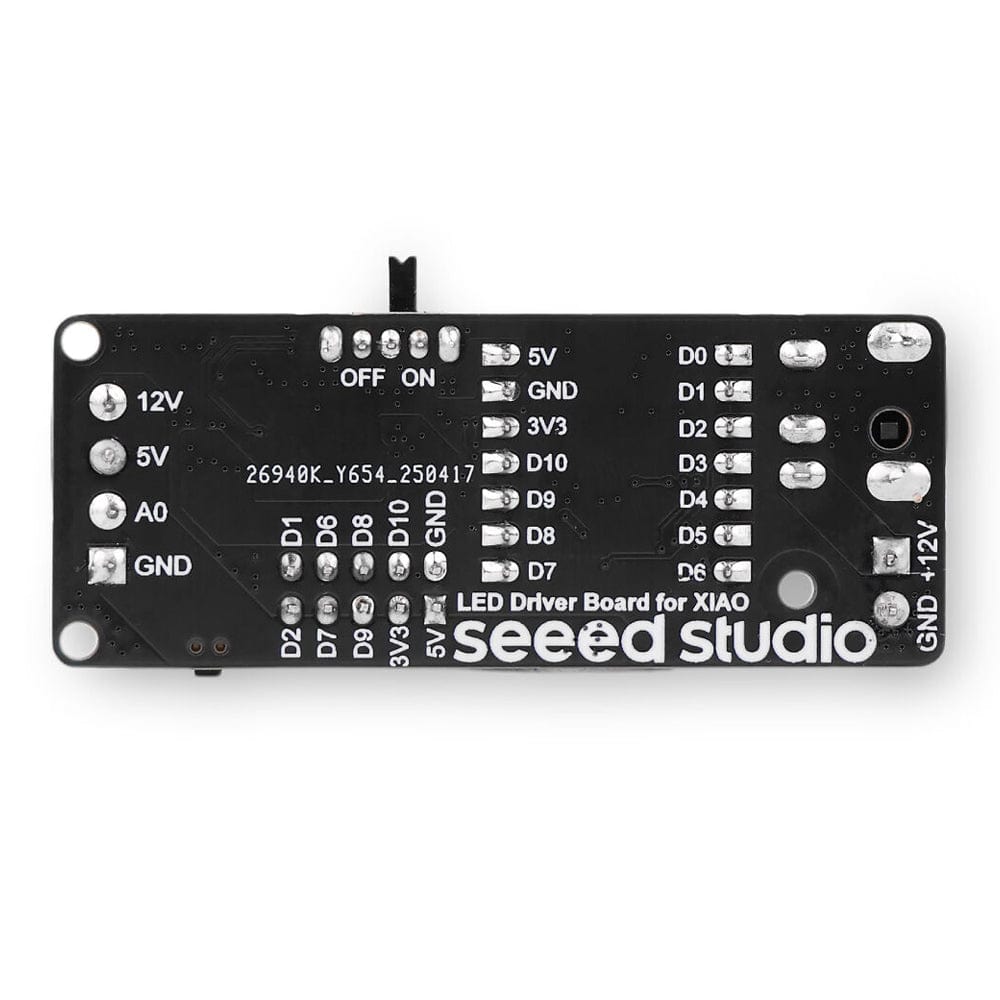

Hardware Overview

Hardware overview image

Specifications

Item Detail
Supported LED models Single-colour LEDs,
Addressable RGB LEDs (WS2811, WS2812, WS2812B, WS2813, WS2815…)
Other 1-wire protocol LEDs
LED Connector 4 Pin 3.81mm Screw Terminal Block Connector:
12V
5V
A0
GND
Power Input Power Adapter, 12V/2A/24W, EU/US Plug, DC Output
Other DC 12V Power Adapter with 5.5mm x 2.1mm x 10±0.3mm Plug
DC 12V Wire
LED Power Support DC 12V / DC 5V
Operating Current 12V/2A, 5V/3A
Onboard Power Switch x1
Grove I²C Connector x1
User Button (D3) x1
Power LED x1
User Pin Header SPI x1, UART x1, Digital x2

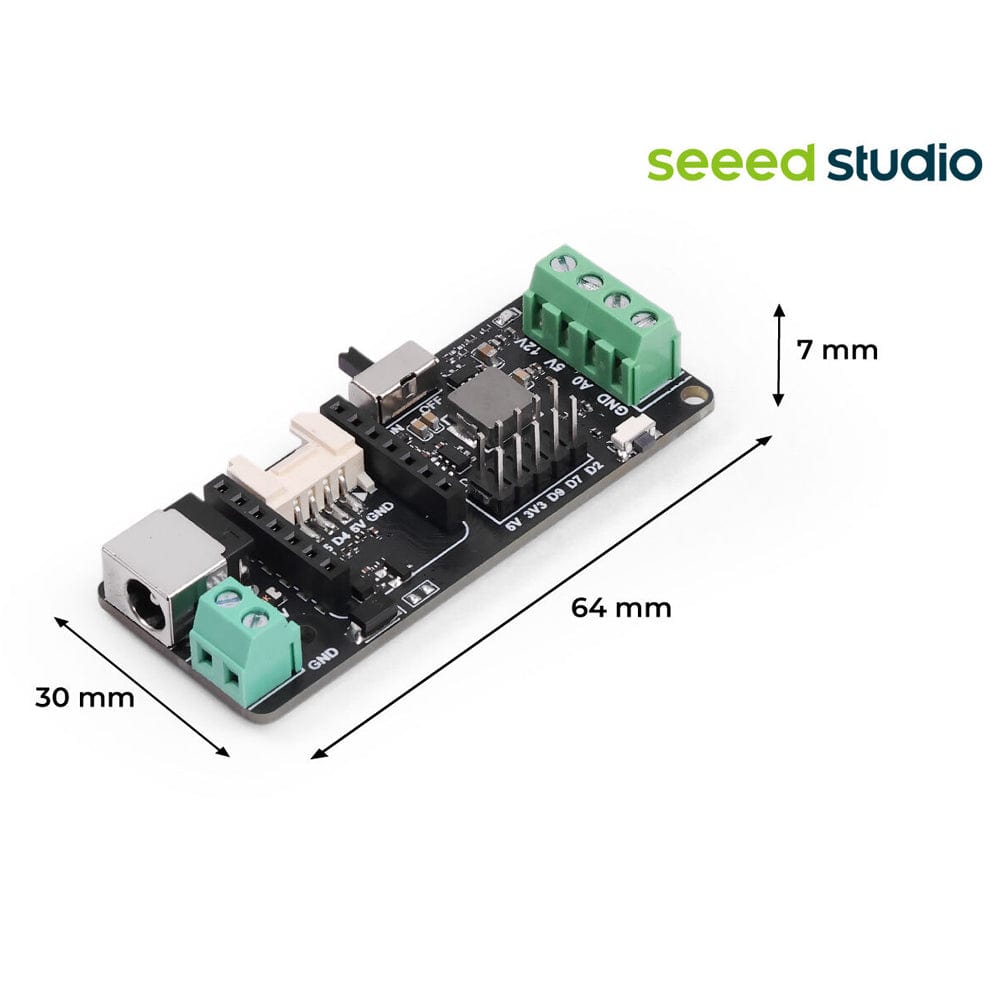

Dimensions 63mm x 30mm x 14.4mm (with Seeed Studio XIAO)
Supplier Code 105100021

Resources

Package Contents

  • 1x LED Driver Board for Seeed Studio XIAO
