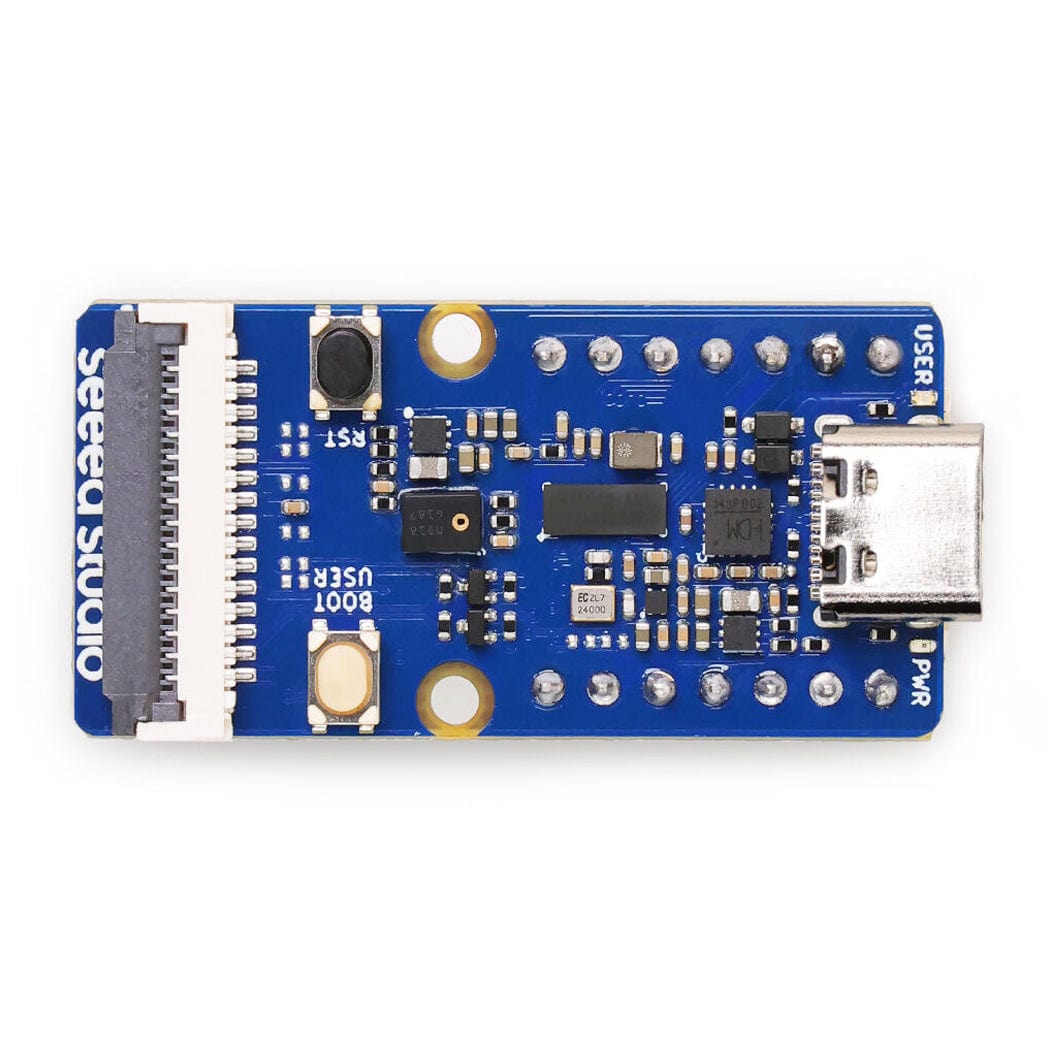

Grove - Vision AI Module V2

This AI module has the Himax HX6537-A processor, a high-powered dual-core MCU with a dedicated AI accelerator that enables image processing and machine learning tasks. It supports popular machine learning frameworks such as TensorFlow Lite and Caffe, making it suitable for users who want to create smart projects with computer vision capabilities.

Equipped with a 2-megapixel camera and a range of connectivity options, including UART, I2C, and Grove connectors, this module is easy to integrate with other hardware and development platforms. It has a Grove interface, allowing for easy connection with a variety of Grove sensors and modules. It also supports face detection, object recognition, and classification tasks, providing users with pre-trained models to get started quickly.

Features

• Powerful AI Processing Capabilities: Uses WiseEye2 HX6538 processor with a dual-core Arm Cortex-M55 and integrated Arm Ethos-U55 neural network unit.
• Versatile AI Model Support: Easily deploy off-the-shelf or your custom AI models from SenseCraft AI, including Mobilenet V1, V2, Efficientnet-lite, Yolo v5 & v8. TensorFlow and PyTorch frameworks are supported.
• Rich Peripheral Devices: Includes PDM microphone, SD card slot, Type-C, Grove interface, and other peripherals.
• High Compatibility: Compatible with XIAO series, Arduino, Raspberry Pi, ESP32 dev board, easy for further development
• Fully Open Source: All codes, design files, and schematics available for modification and use.
• Product number: Seeed 101021112

What's on Board

Specifications

Resources

• Product Wiki
• Datasheet
• Circuit Diagram
• Layout Diagram

Package Contents

• 1x Grove Vision AI V2 (Camera not included)
• 1x Cable
