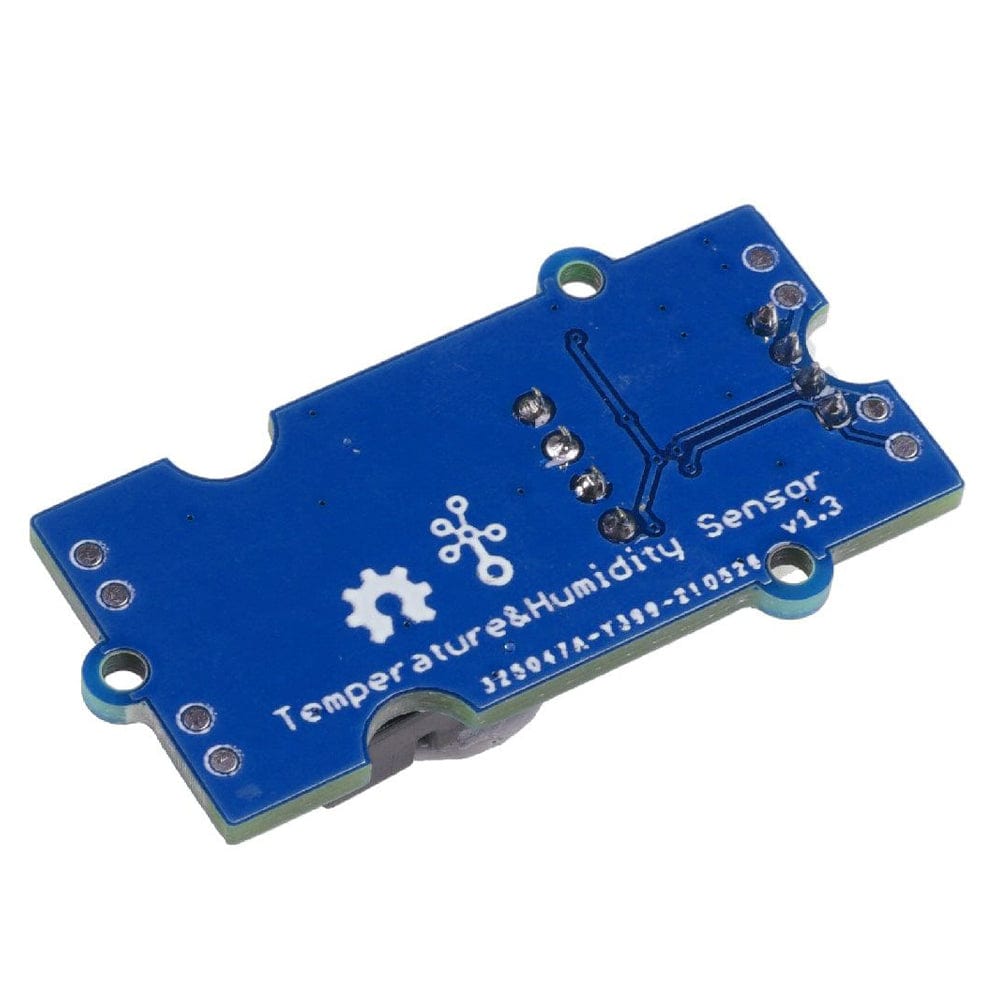

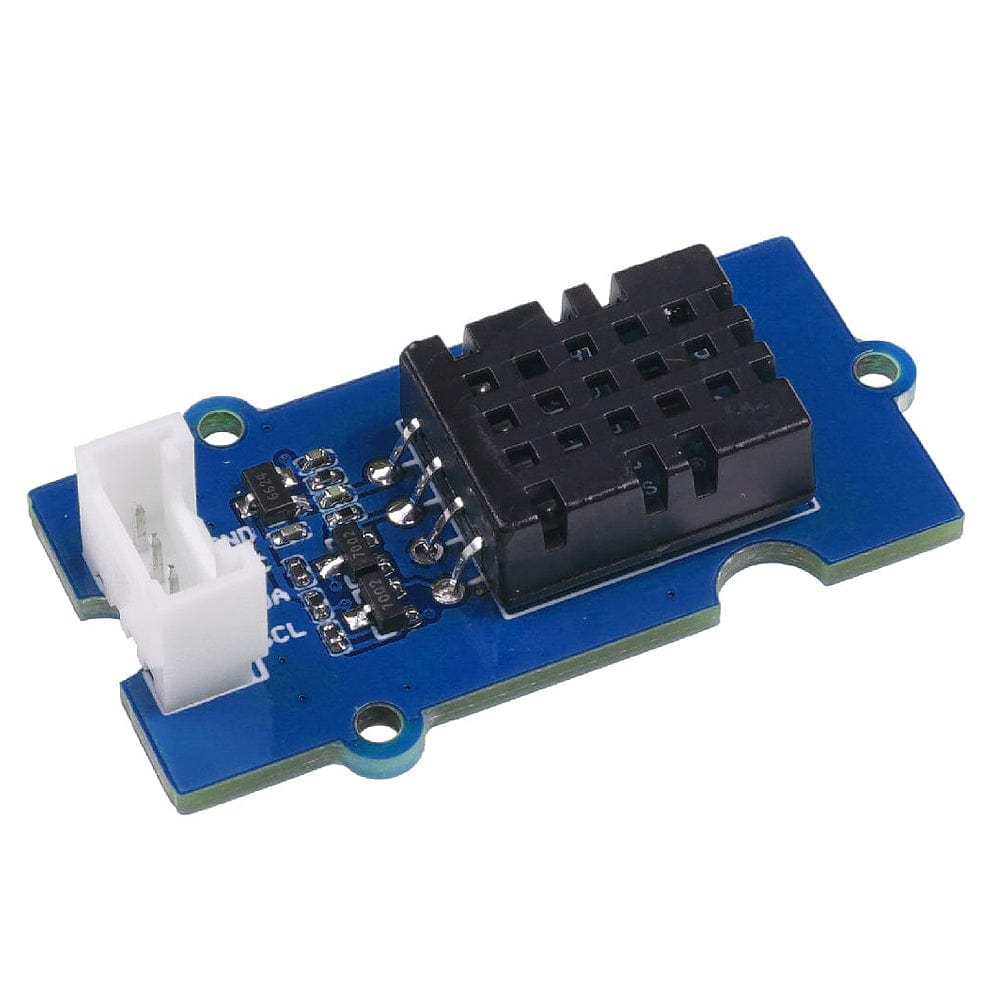

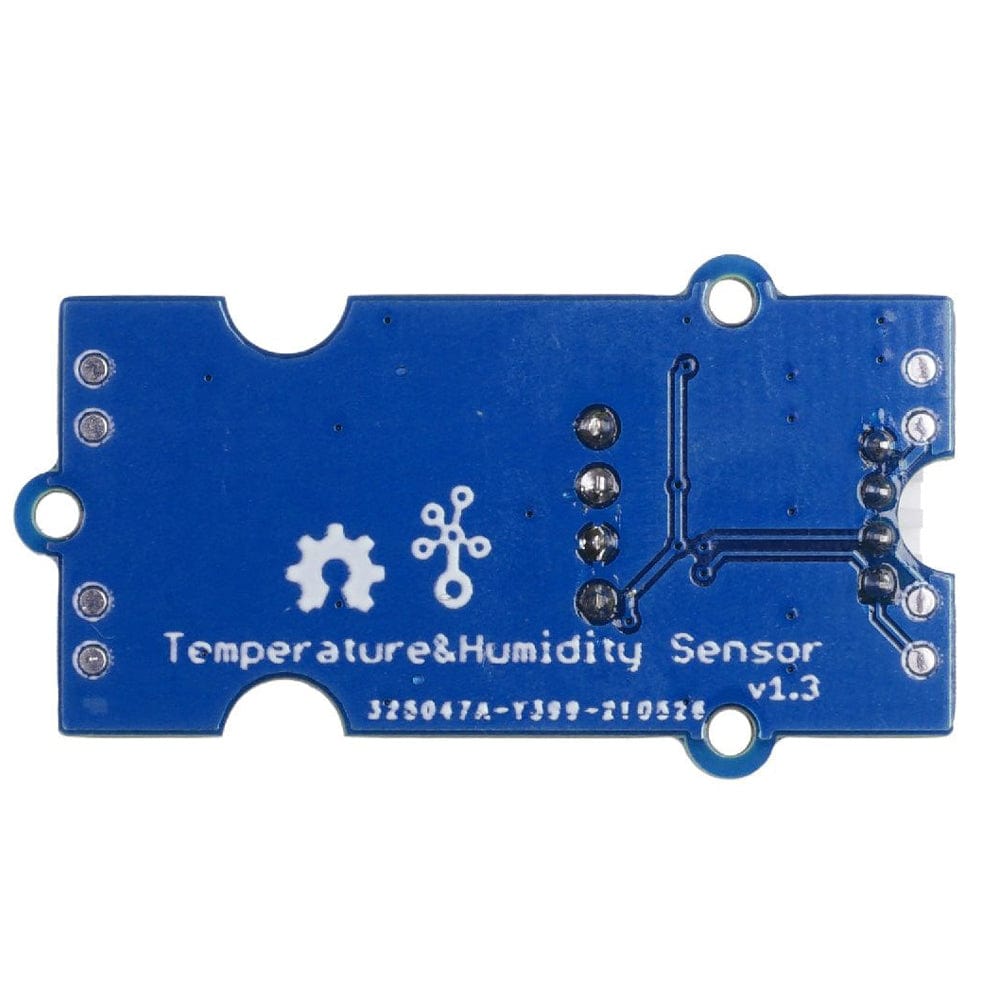

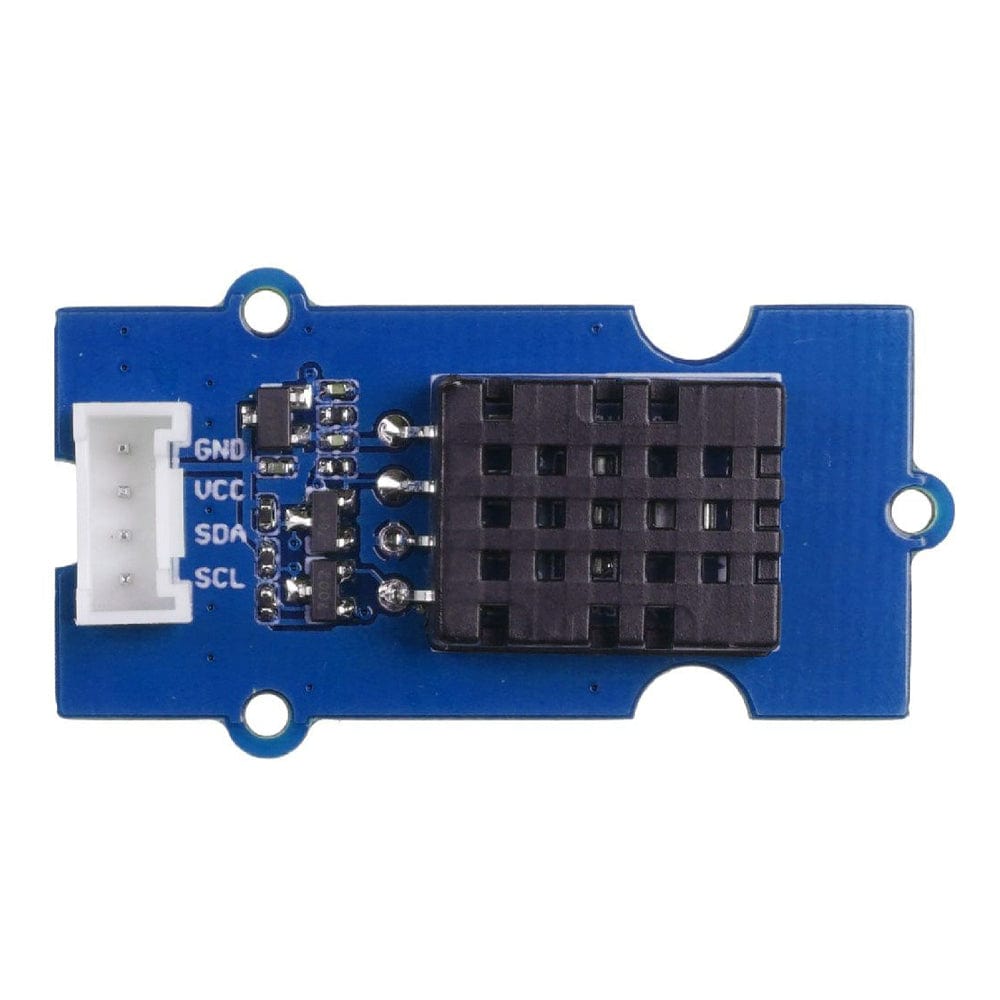

Grove - Temperature & Humidity Sensor V2.0 (DHT20)

SeeedSKU: 104908
Price:
Sale price £7.50
incl. VAT
excl. VAT
Stock:
Only 17 units left
Quantity:

Awesome Extras

(2 Reviews)
SeeedGrove Shield for Raspberry Pi Pico v1.0
Sale price £4.50 incl. VAT excl. VAT
(2 Reviews)
SeeedSeeed XIAO Expansion board
Sale price £14.80 incl. VAT excl. VAT
SeeedGrove Shield for Seeed XIAO
Sale price £4.70 incl. VAT excl. VAT
(2 Reviews)
SeeedGrove Shield FeatherWing for Particle Mesh and all Feathers
Sale price £6.10 incl. VAT excl. VAT
SeeedGrove - Base Shield V2.0 for Arduino
Sale price £4.50 incl. VAT excl. VAT

The new Seeed Grove - Temperature & Humidity Sensor V2 is based on the DHT20 sensor. The DHT20 is an upgraded version of the DHT11, compared with the previous version, the temperature and humidity measurement accuracy are higher, and the measurement range is larger. It features I2C output which means easier to use.

The DHT20 features a brand-new ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity module, and a standard on-chip temperature element. Besides its performance, the efficiency of DHT20 has also improved over the previous generation, making it more cost-effective. Following the miniaturization and changes, the DHT20 is proven to be more robust in harsher conditions! DHT20 is also more versatile with its I2C signal which supports multiple masters.

With the wider and more precise range of measurement, the DHT20 will be more than suitable for various IoT uses, especially for cases such as precision farming and quality control. Each DHT20 sensor is factory calibrated and tested to ensure that it maintains its stable performance in the long term for the years to come.

With its rigidity, reliability, and performance, the DHT20 is very suitable for HVAC, automobiles, data loggers, weather stations, home appliances, and even medical uses and other related temperature and humidity detection and controlled areas.

Features

  • High Accuracy:
    • Temperature Accuracy:± 0.5 ℃
    • Humidity Accuracy:± 3 % RH ( 25 ℃ )
  • Wide measurement ranges:
    • Measuring Range (Humidity):0 ~ 100% RH
    • Measuring Range (Temperature):-40 ~ + 80 ℃
  • Better compatibility:
    • Digital output
    • I²C interface
  • Fully calibrated
  • Excellent long-term stability
  • Quick response and anti-interference capability
  • Wide voltage support 2.5-5.5V DC

Specifications

Input Voltage 2.0 – 5.5V
Measuring Humidity Range 0 ~ 100% RH
Measuring Temperature Range -40 ~ + 80 ℃
Humidity Accuracy ± 3 % RH ( 25 ℃ )
Temperature Accuracy ± 0.5 ℃
Output Signal I2C signal

Package Contents

  • 1x Grove - Temperature & Humidity Sensor
  • 1x Grove Cable

Resources
