Grove - LED String Light

SeeedSKU: 104922
Sale price £12.92
incl. VAT
excl. VAT
Only 9 units left

Awesome Extras

SeeedGrove - LED Strip Driver
Sale price £8.75 incl. VAT excl. VAT
SeeedGrove - Base Shield V2.0 for Arduino
Sale price £3.75 incl. VAT excl. VAT
SeeedGrove - RGB LED Ring (20x WS2813 Mini)
Sale price £9 incl. VAT excl. VAT

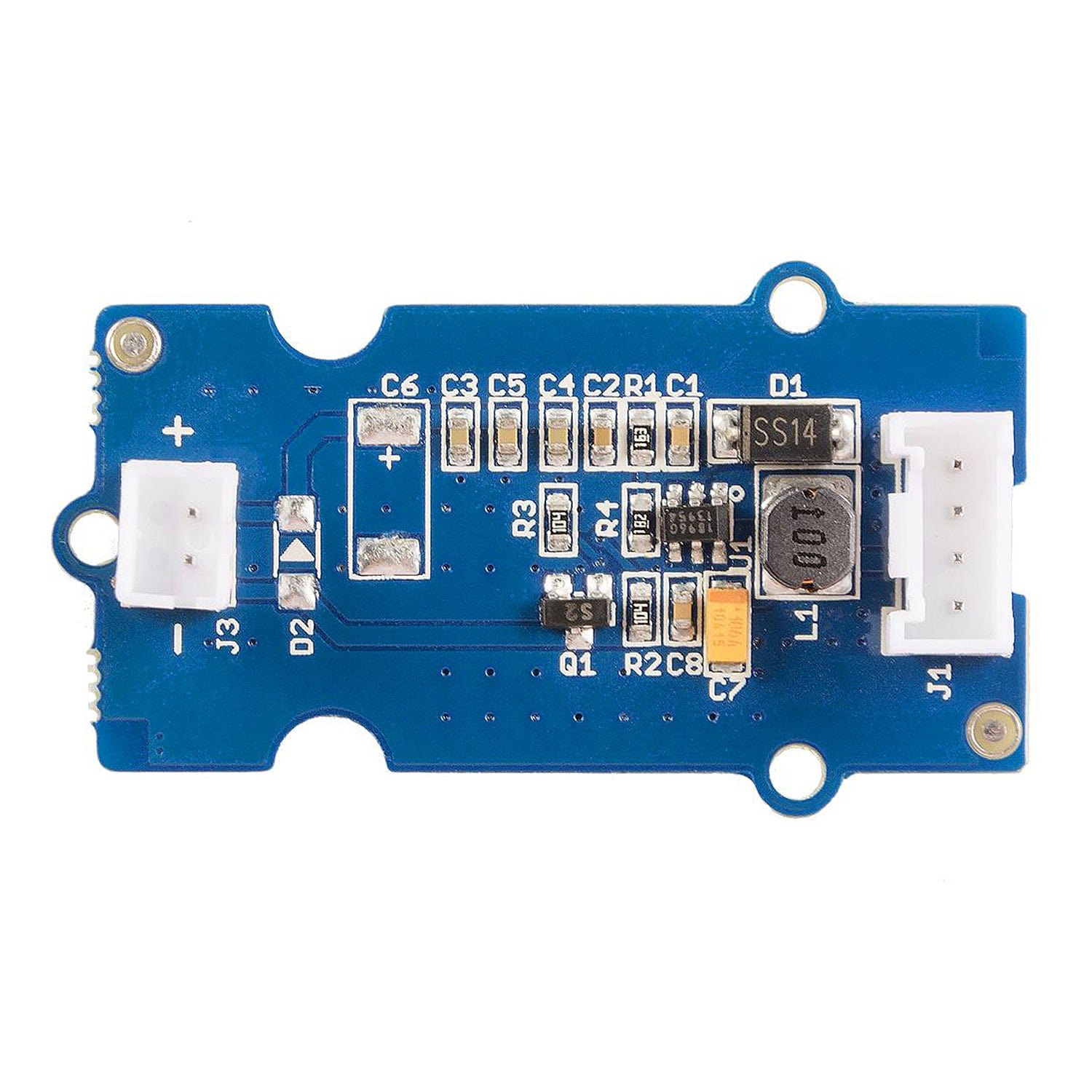

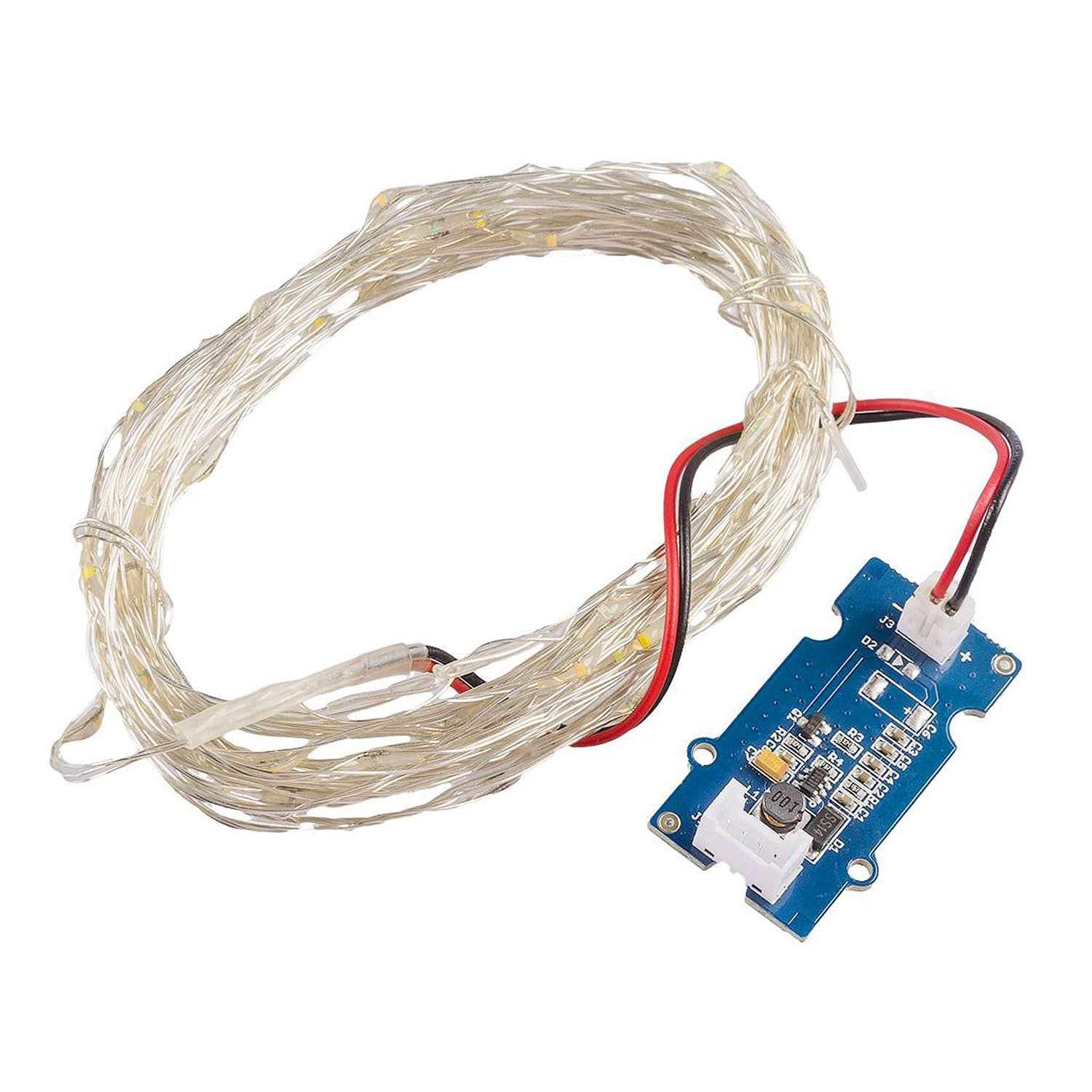

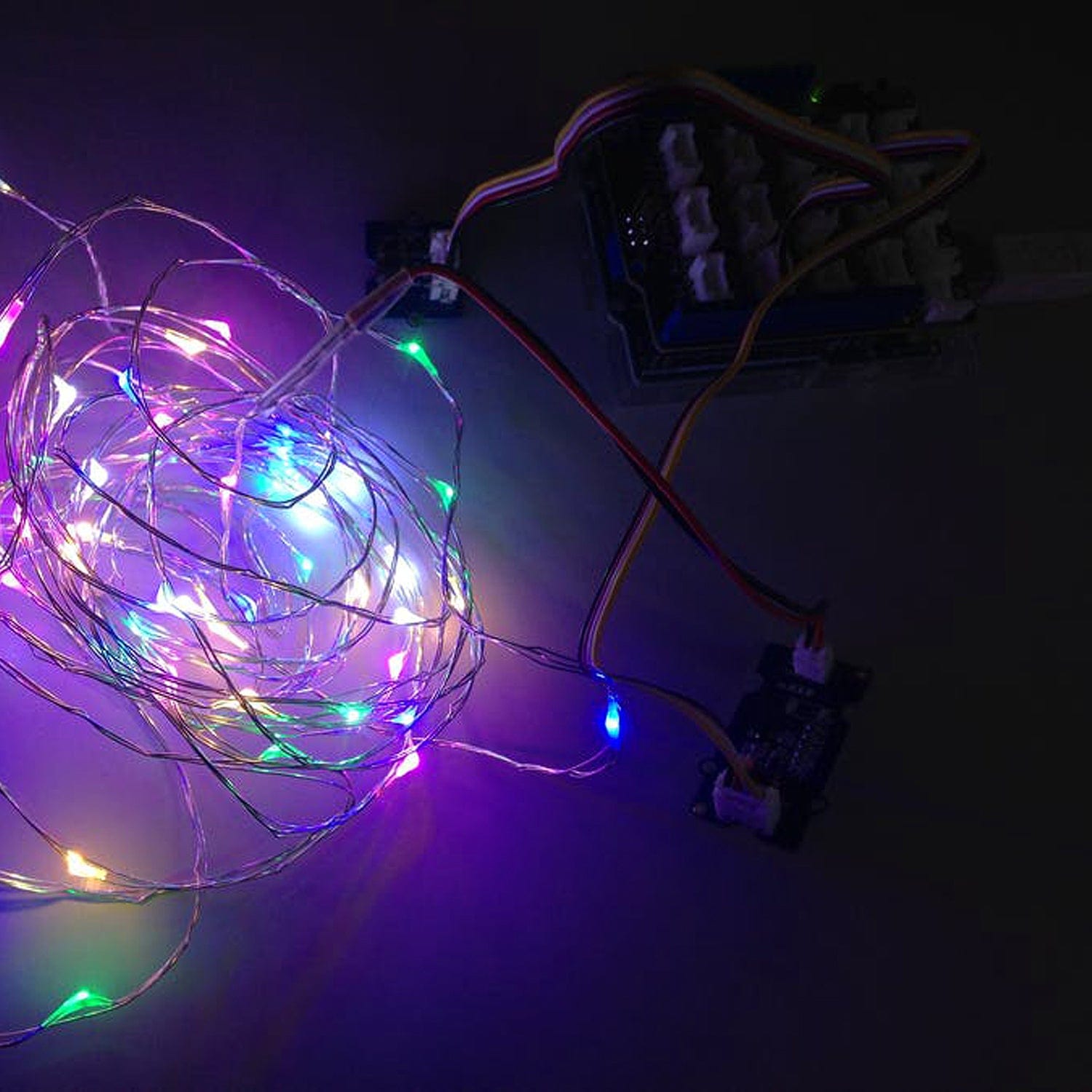

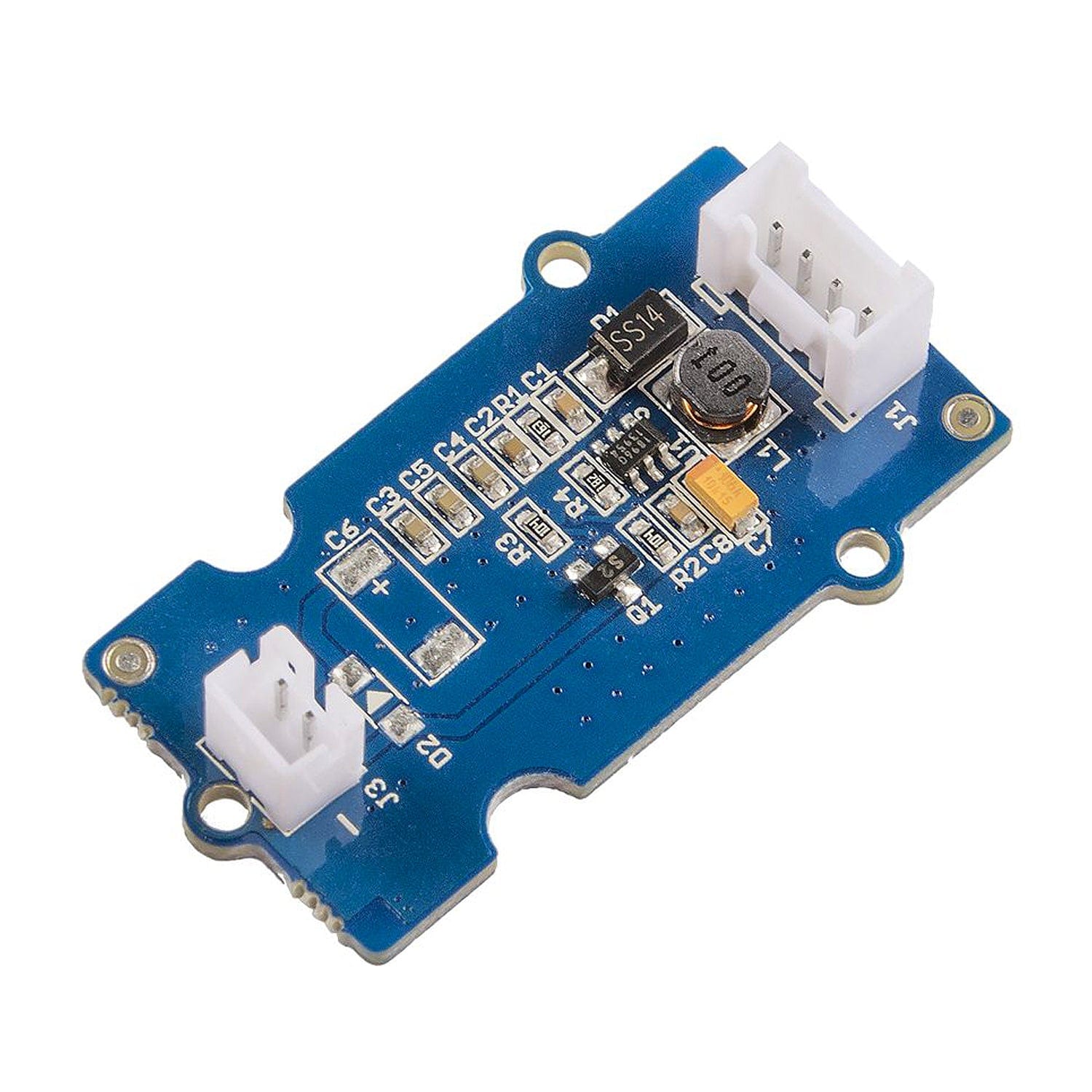

The Grove - LED String Light module is essentially an LED driver for the LED string lights included in the pack. The voltage of the module is 3.3V/5V, however, the LED string lights require a working voltage of 12V. Therefore, this module uses an AIC1896 current mode step-up DC-DC converter to provide the requisite voltage to the LED string lights. The LED string light is 5 meters in length and has 50 RGB LEDs on it connected equidistant to one another. You can use these to dress a Christmas tree, light your party or decorate your room.


  • Used in conjunction with LED string lights
  • LED String lights of 5 meters in length included with the pack
  • 50 RGB LEDs connected at equal distances along the entire length of 5 meters give a colourful appearance
  • JST 2.0 Interface used to connect the LED String lights with the driver module

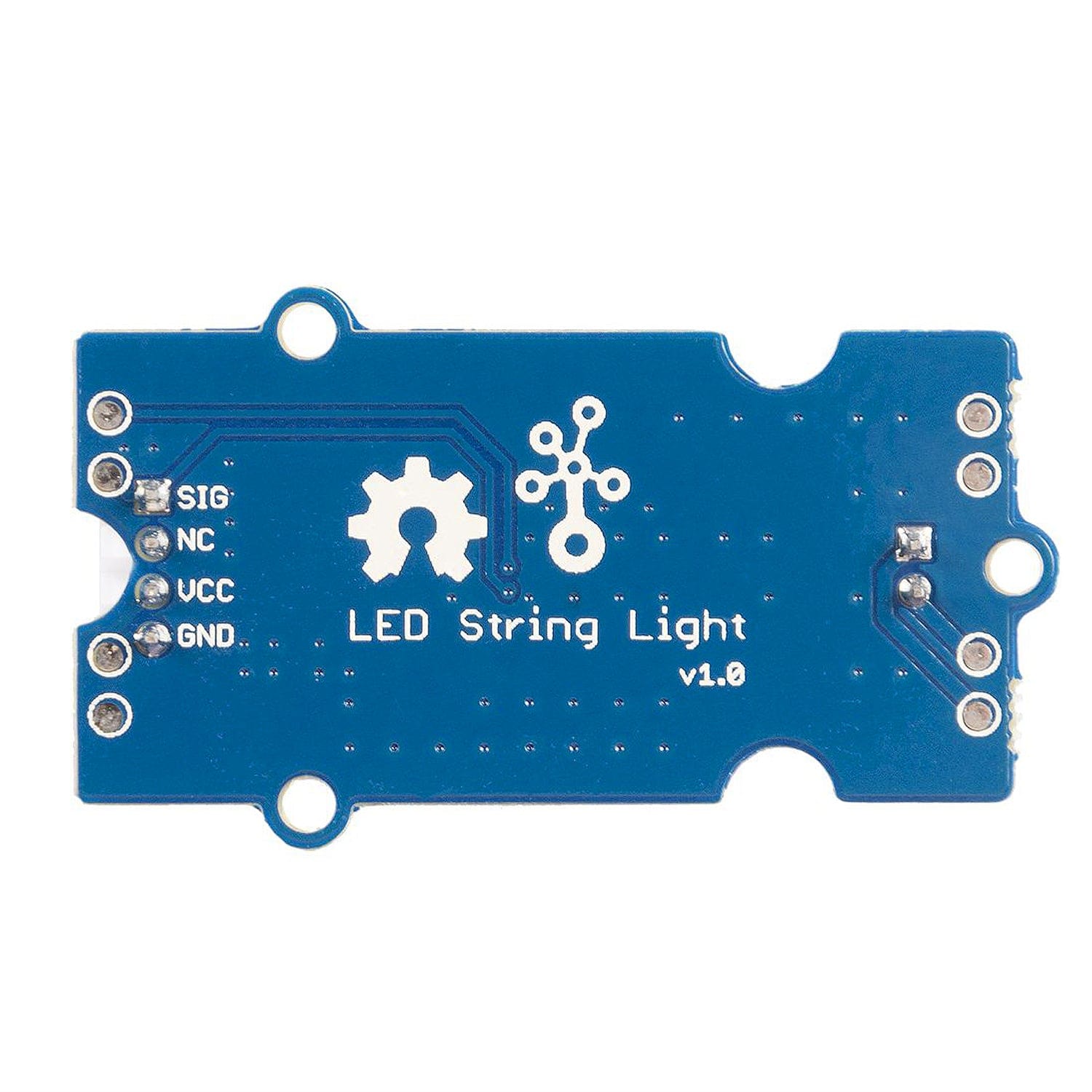

  • Uses Standard 4-pin Grove Cables to connect to other Grove modules
  • Product number: Seeed 104020005

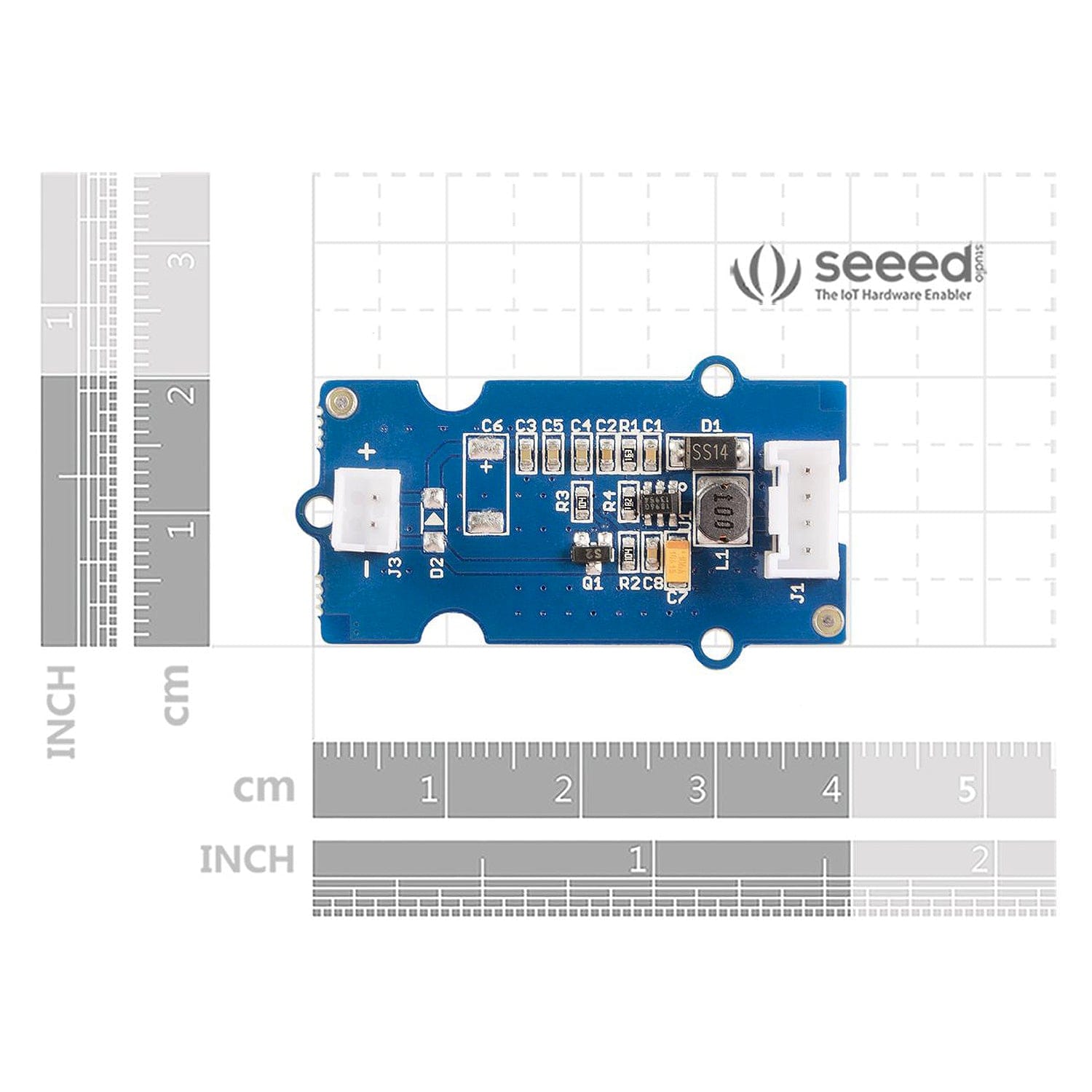

  • Dimensions: 110mm x 70mm x 11mm
  • Weight: 27g

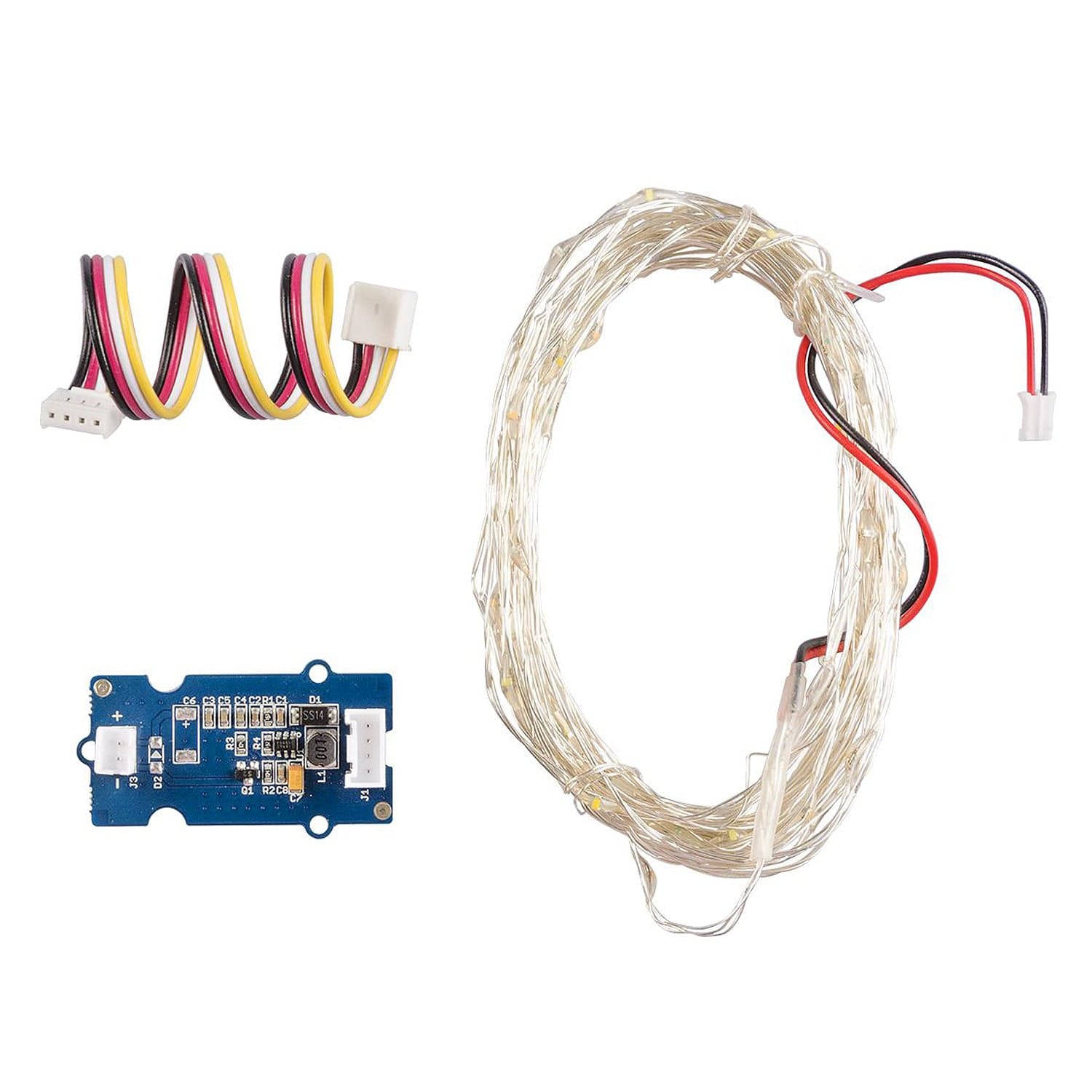

Package Contents

  • 1x Grove - LED String Light
  • 1x LED String
  • 1x Grove cable - 20cm
