Grove - RGB LED Ring (20x WS2813 Mini)

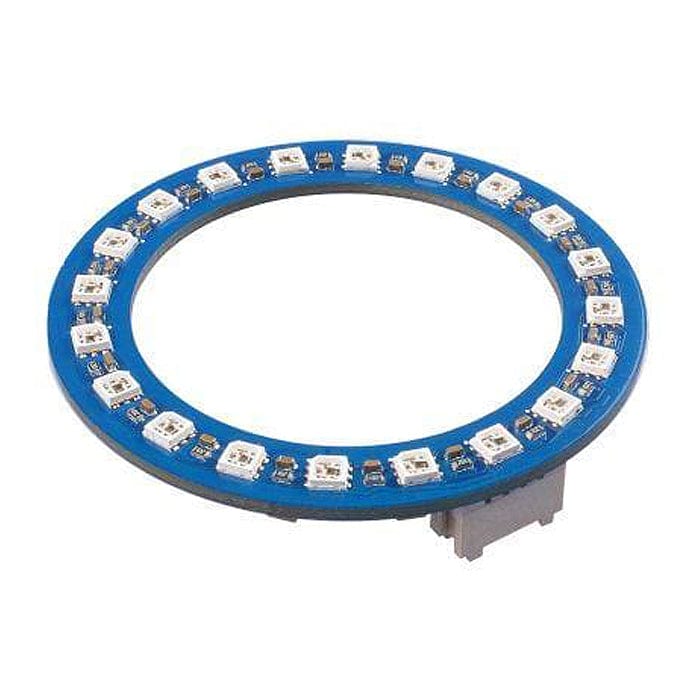

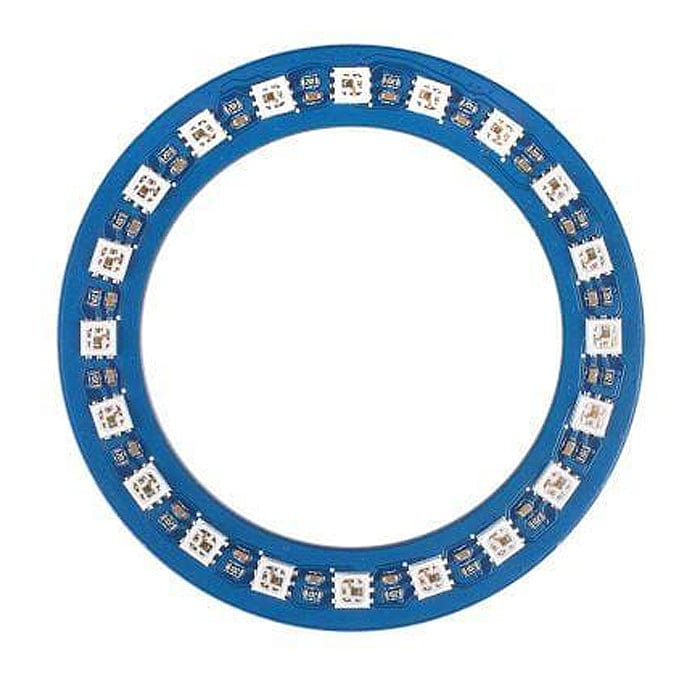

This LED ring from Seeed includes 20 full-colour WS2813 Mini LEDs.

The WS2813B-Mini intelligent control LED is an upgraded version of the WS2812B, the control circuit and RGB chip are integrated into a package of 3535 components. With the help of the built-in control circuit, each LED is addressable. So you can control the lighting and colour of specific LED lights as you like, creating endless lighting effects.

A significant advantage of WS2813B-Mini compared to traditional LED is the support for signal break-point continuous transmission. This means that even if one or two LEDs are damaged, the entire LED ring will still work properly. Each LED is chainable and we also keep the chainable pads on the back of the LED rings, so you can cascade several LED rings to make it even cooler. Since all Grove - RGB LED Rings are based on WS2813 Mini, you can also connect the rings of different diameters together.

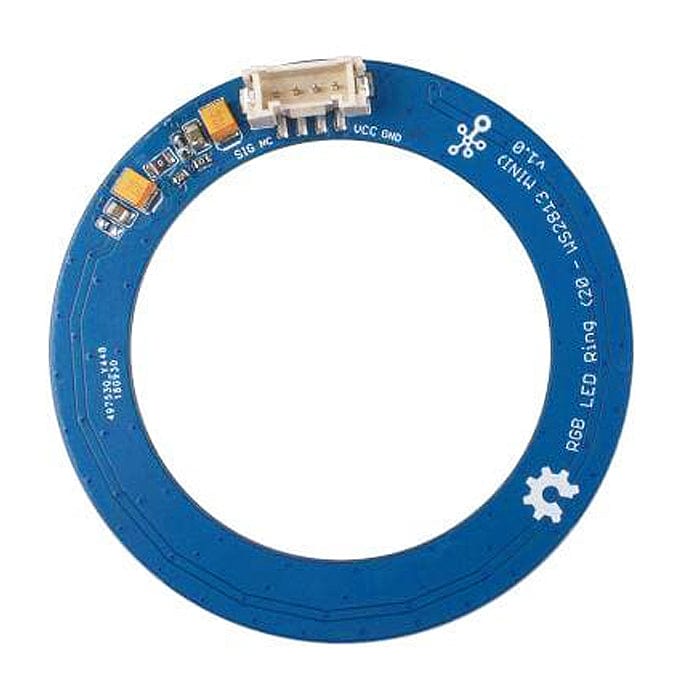

When multiple light rings are connected, the control signal can be input from the Grove SIG pin or from the DIN input. However, Grove VCC has an insufficient power supply and needs to input power from VIN.

On top of that, we have the onboard Grove connector and cable, making it quicker and easier to get started when using a Grove system.

Features

• 256 grey levels, 256*256*256=16777216” full-colour display
• Built-in control circuit in a 3535 components
• Chainable - can be cascaded with multiple LED rings
• Support 5V/3.3V power in, support 5V/3.3V control data level.
• Dual-signal wires, signal break-point continuous transmission
• Product number: Seeed 104020128

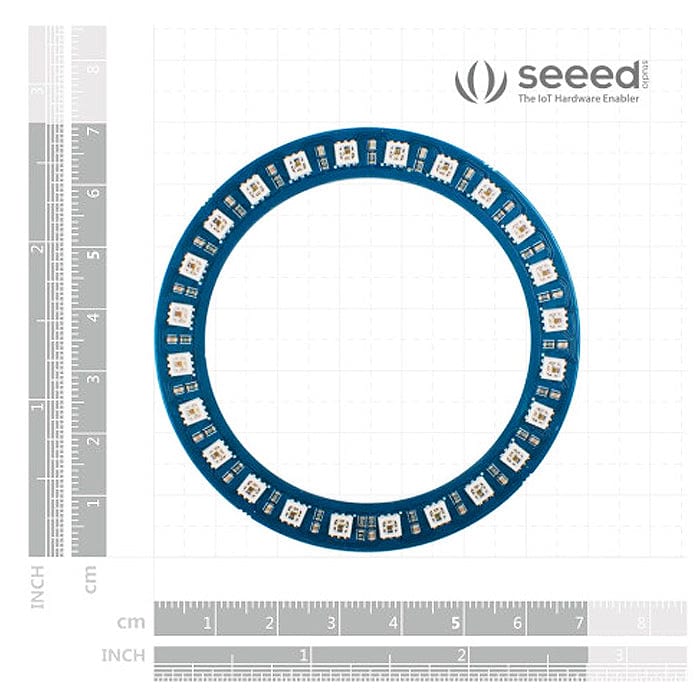

Hardware Overview

Specifications

Resources

Product Wiki

Package Contents

• 1x Grove - RGB LED Ring (20-WS2813 Mini)

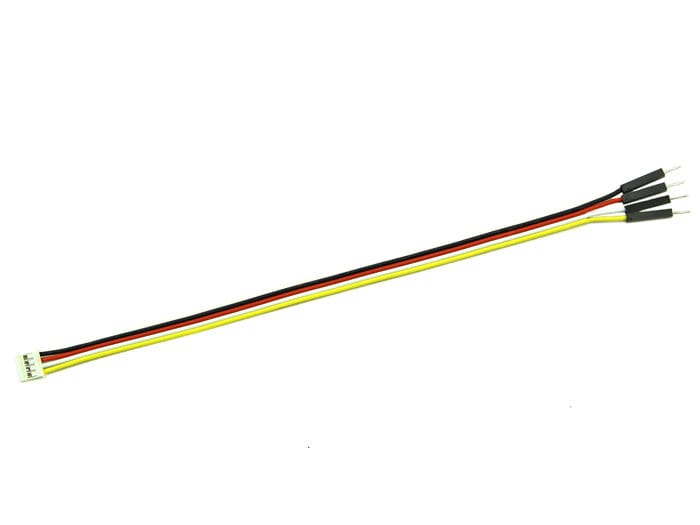

• 1x Grove Cable
