Grove 2-to-1 Converter with USB-C

The M5Stack Grove Converter links controllers and modules using interconnected HY2.0-4P connectors and adds USB-C 5V power with self-recovery overcurrent protection. It includes M3, LEGO and nut-slot mounting options for easy installation.

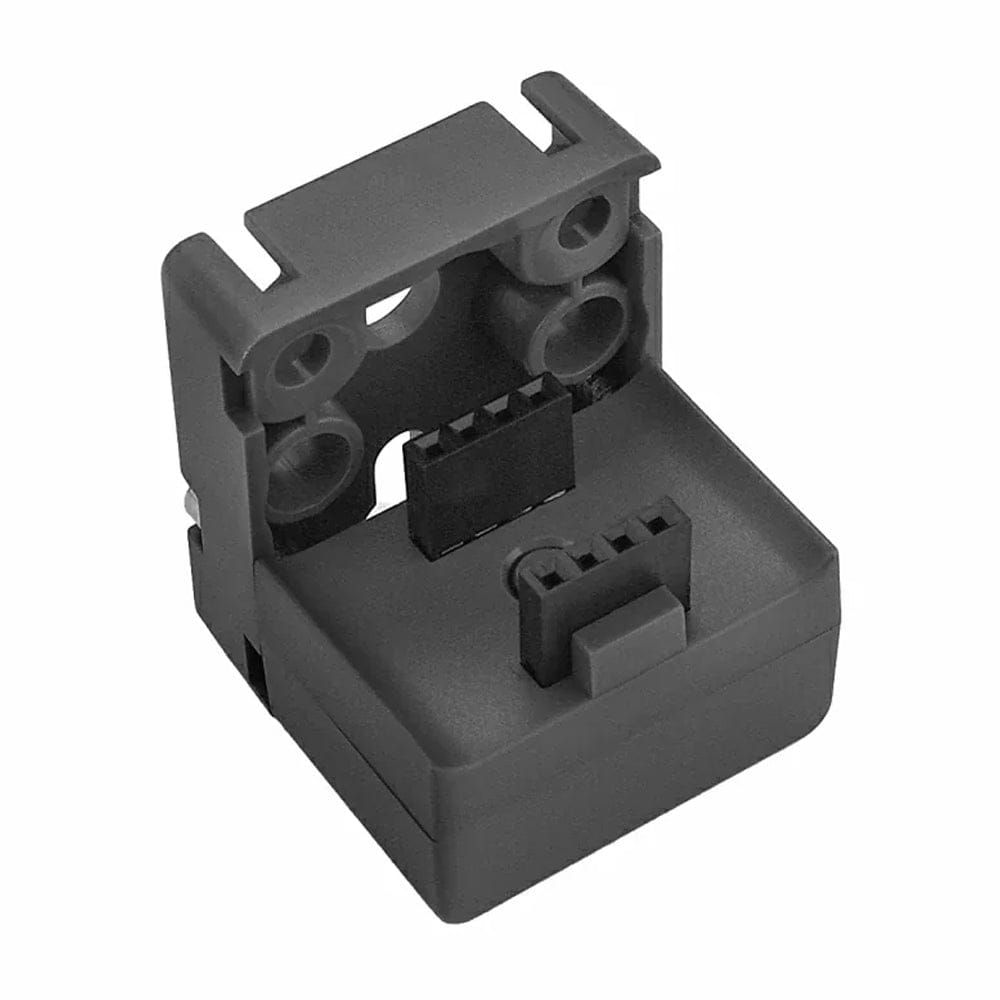

The M5Stack Grove Converter is a Unit interface combination connector designed to make linking controllers and expansion modules simpler and more flexible. It includes two male HY2.0-4P connectors and one female HY2.0-4P connector, all interconnected to support a wide range of connection setups between devices.

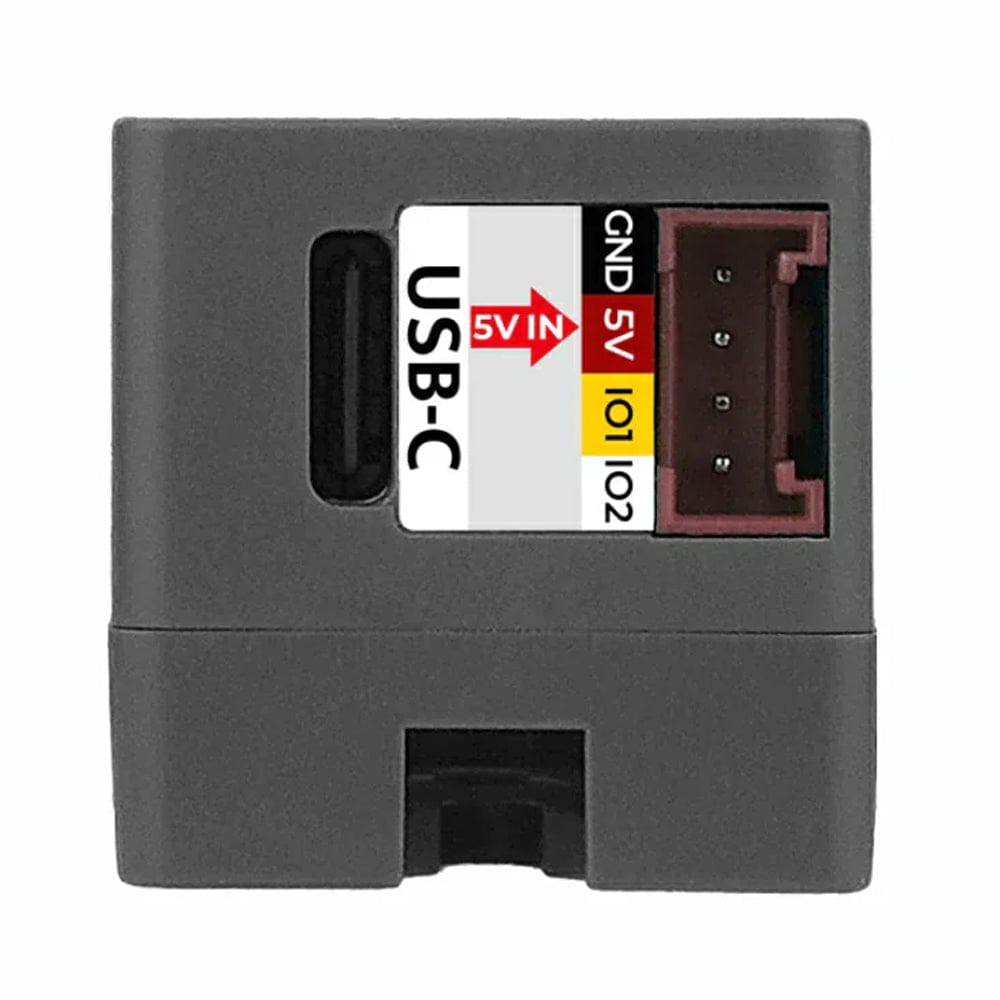

For powering multiple modules, the board also includes a USB Type-C power input that provides a stable 5V supply. Built-in self-recovery overcurrent protection helps protect connected devices and improves overall safety during use.

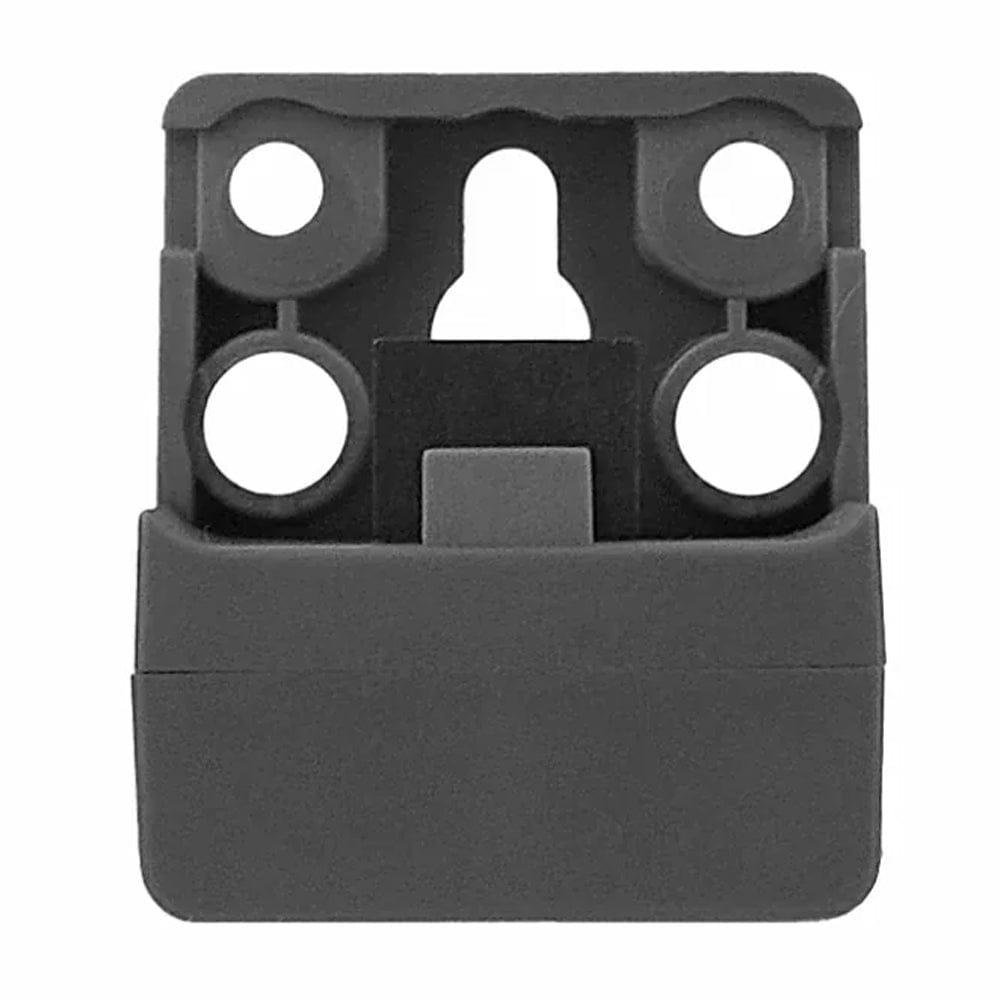

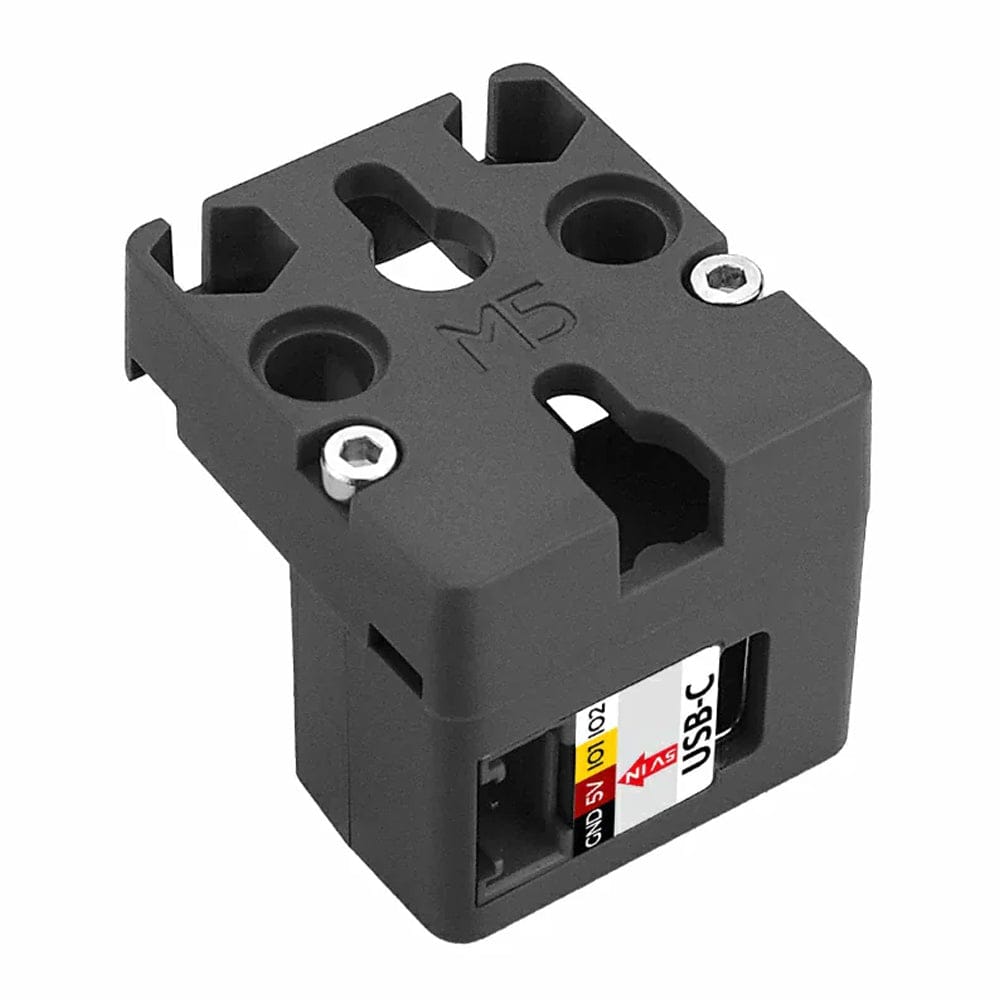

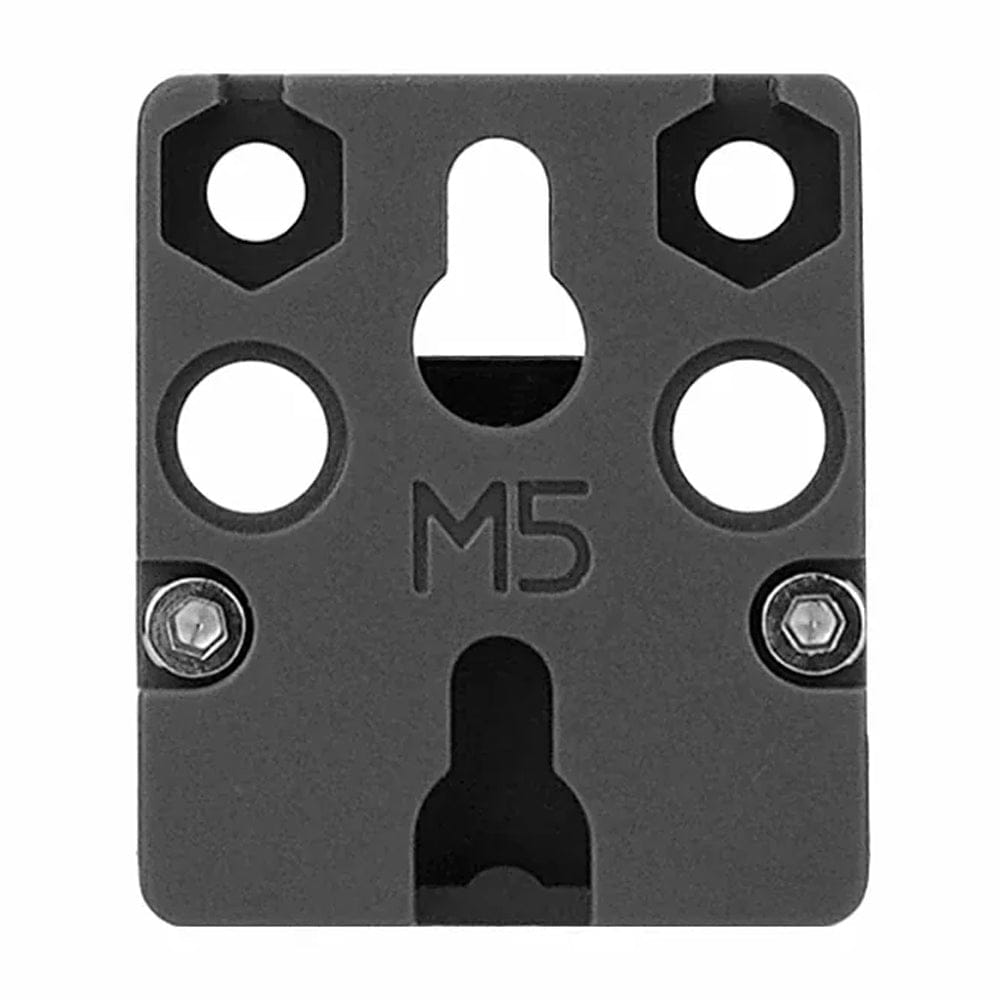

On the back, the Grove Converter includes several installation options to suit different projects. It features M3-compatible mounting holes, LEGO-compatible holes, and nut slots, making it easy to mount securely and integrate into enclosures, frames, or custom builds across a variety of applications.

Features

• Multiple mounting options
• M3 hanging holes
• M3 nut slots
• LEGO-compatible holes
• USB Type-C with overcurrent protection
• Unit interface extension

Specifications

Resources

• Documents

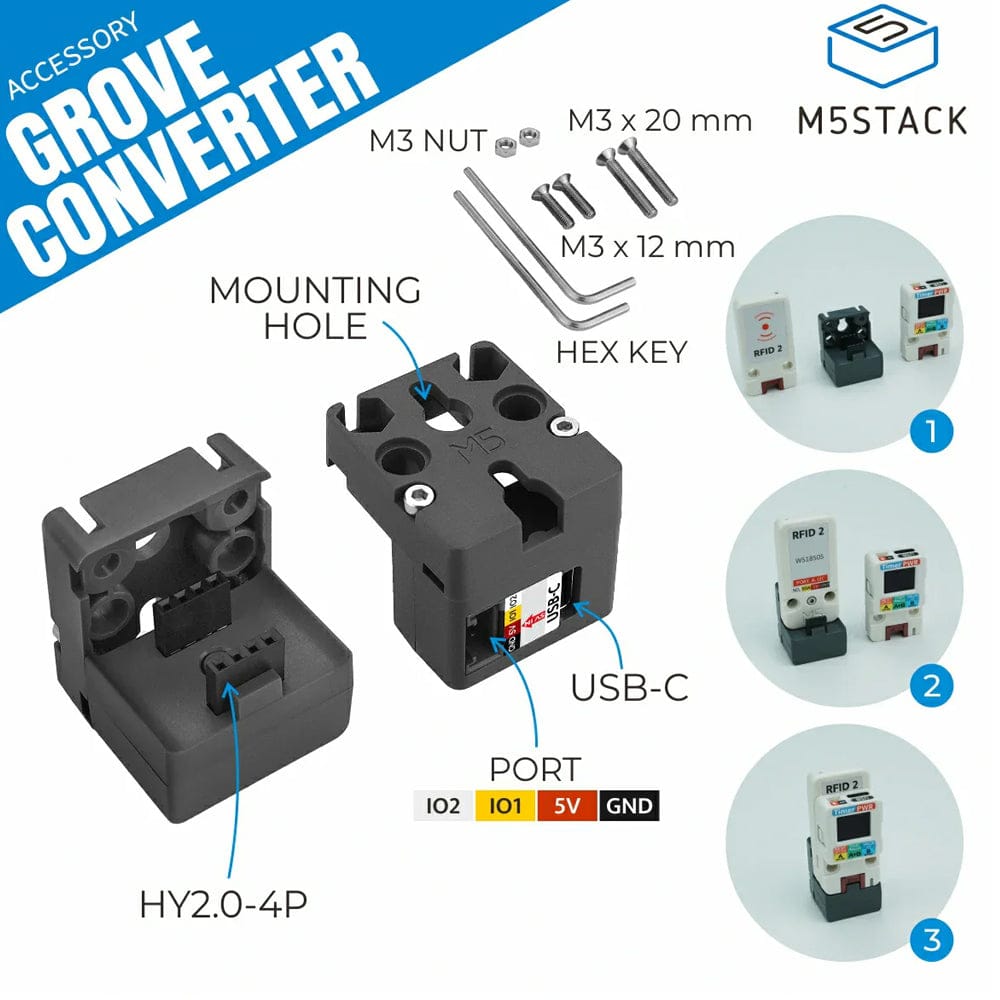

Package Contents

• 1x Grove Converter
• 2x M3 * 12mm Screws (pan head, self-tapping)
• 2x M3 * 20mm Screws (pan head, self-tapping)
• 2x M3 Nuts
• 1x Hex Key L-Shape 2.0mm (For M2.5 Screw)
• 1x Hex Key L-Shape 1.5mm (For M2 Screw)
