Gravity: 8-Digital LED Segment Display Module

DFRobotSKU: DFR0646-G
LED Colour:Green
£5.70
incl. VAT
excl. VAT
Only 2 units left

Awesome Extras

Gravity: IO Expansion Shield for Arduino V7.1 - The Pi HutGravity: IO Expansion Shield for Arduino V7.1 - The Pi Hut
DFRobotGravity: IO Expansion Shield for Arduino V7.1
£8.50 incl. VAT excl. VAT
Gravity: IO Expansion HAT for Raspberry Pi - The Pi HutGravity: IO Expansion HAT for Raspberry Pi - The Pi Hut
DFRobotGravity: IO Expansion HAT for Raspberry Pi
£9.50 incl. VAT excl. VAT
Gravity: 4-Digit Red Seven-Segment LED Display Module - The Pi HutGravity: 4-Digit Red Seven-Segment LED Display Module - The Pi Hut
DFRobotGravity: 4-Digit Red Seven-Segment LED Display Module
£4.70 incl. VAT excl. VAT

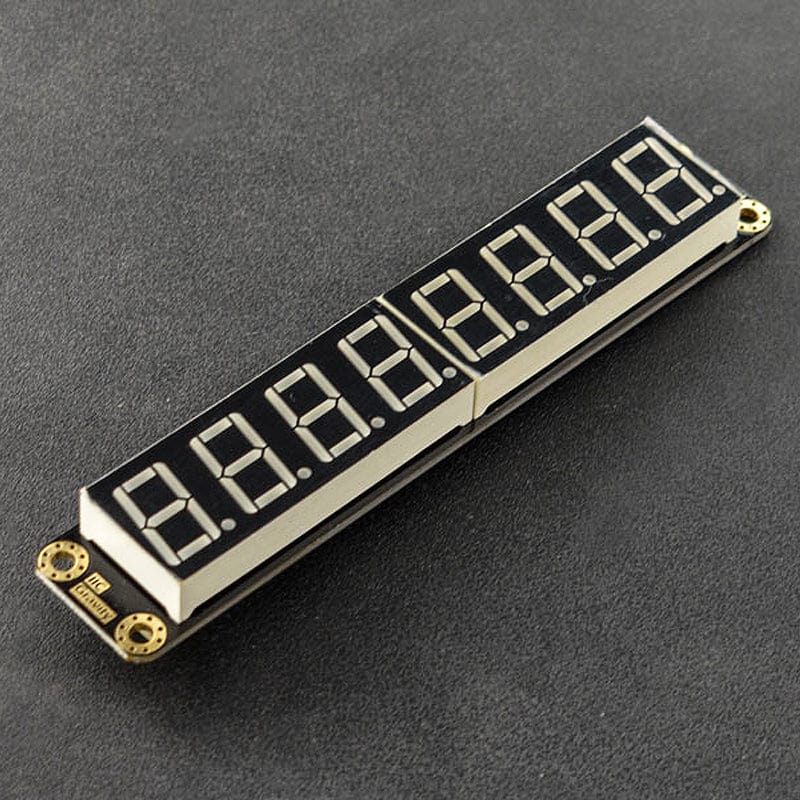

Quickly and easily add an 8-digit LED segment display to your project with these DFRobot Gravity compatible modules, available with either red or green LED segments (select above before adding to cart).

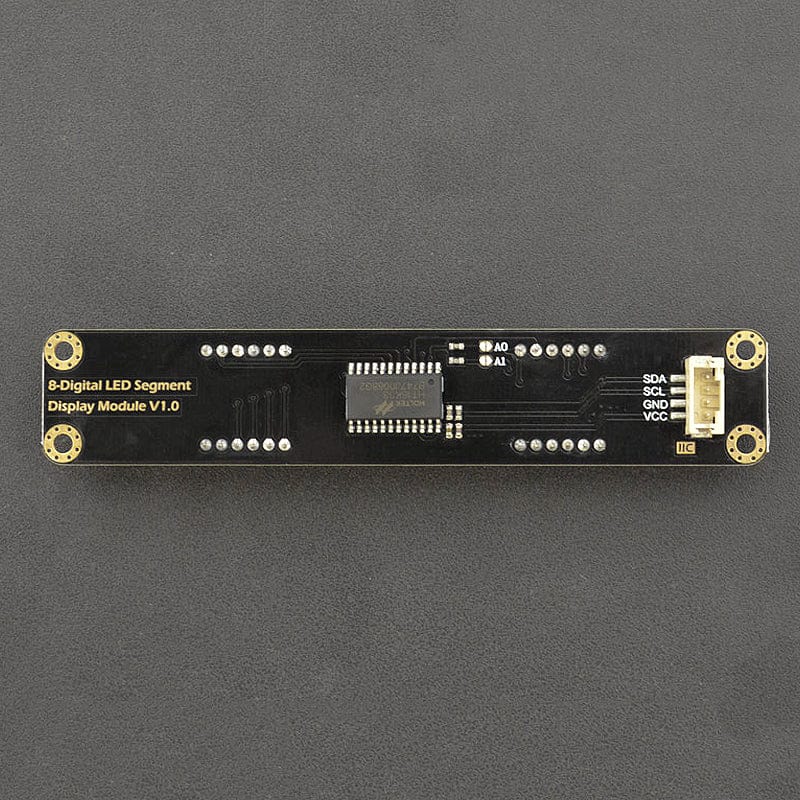

The modules have the usual Gravity-style IIC port alongside handy mounting holes for your project. Each module has 16-level brightness adjustment and 4 slave addresses (via solderable jumpers) to avoid address conflicts with multiple modules.

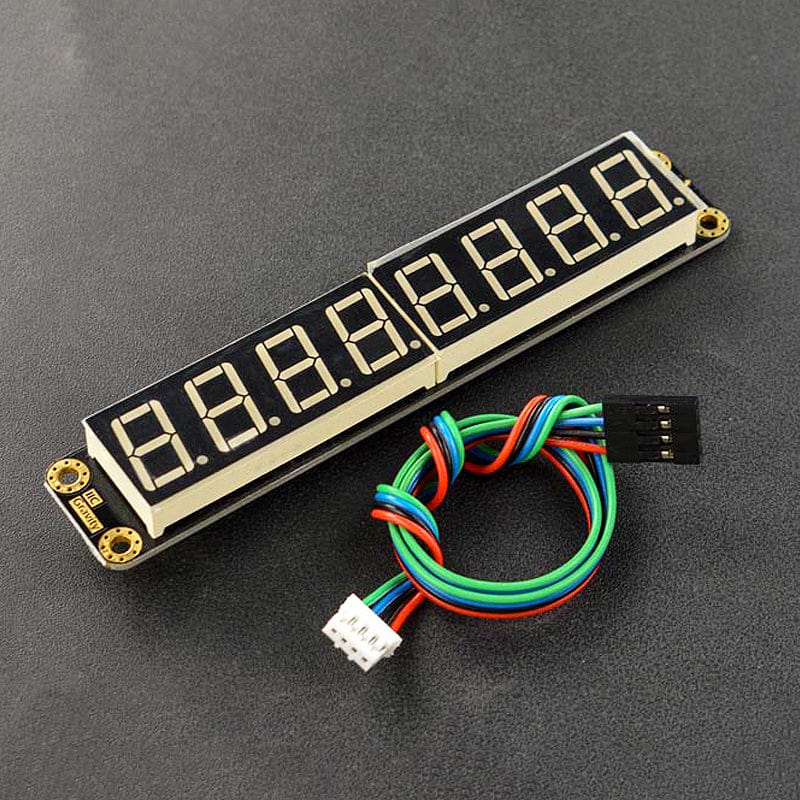

Each module comes complete with a Gravity 4-pin connector cable.

Features

  • Display Mode: 8 segment x 8 digit

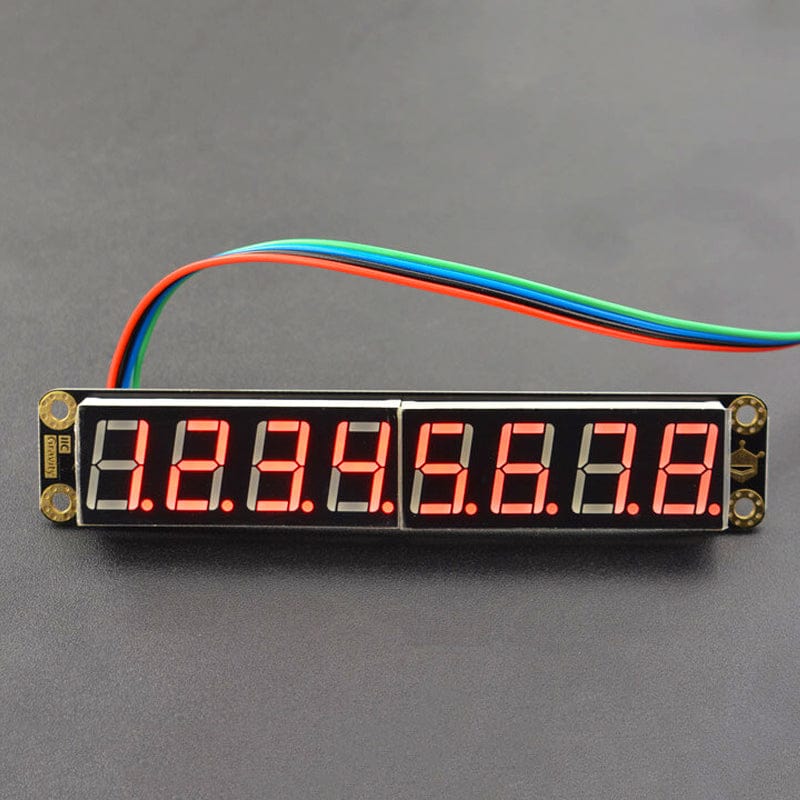

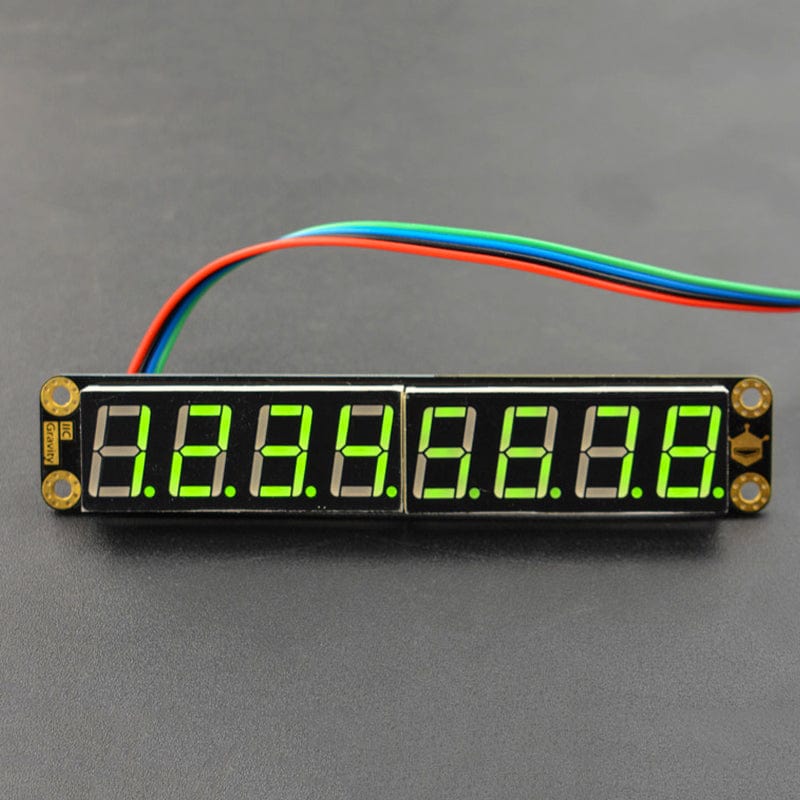

  • Available in two colours - red or gree LEDs
  • Supports 16-level brightness adjustment
  • I2C communication
  • Mounting holes
  • Slave address jumpers

Specification

  • Operating Voltage: DC  5V
  • Operating Current: <130mA
  • Operating Temperature: -40 ºC ~ +85 ºC
  • Storage Temperature: -55 ºC ~ +125 ºC
  • Digital Tube Size: 10.1cm x 1.9cm

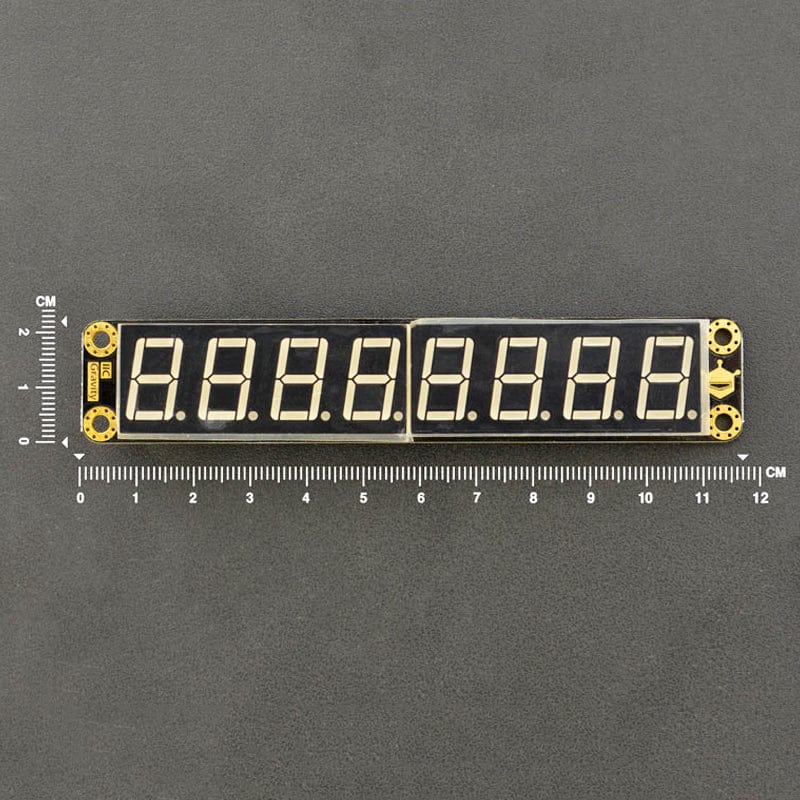

  • PCB Size: 11.7cm x 2.2cm

Resources

Shipping List

  • 1x 8-Digital LED Segment Display Module
  • 1x Gravity 4-pin I2C Connector
