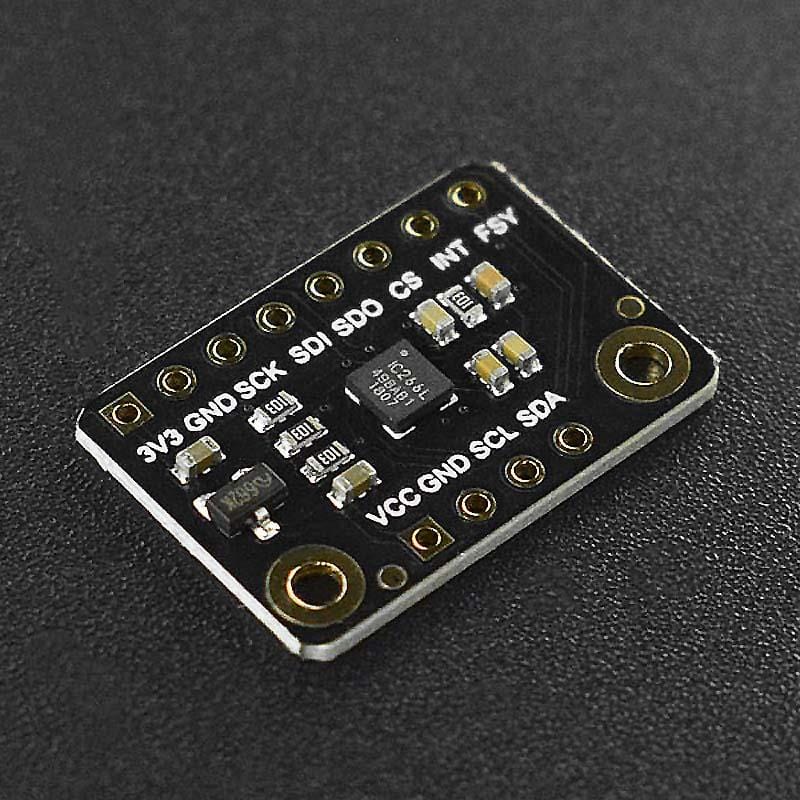

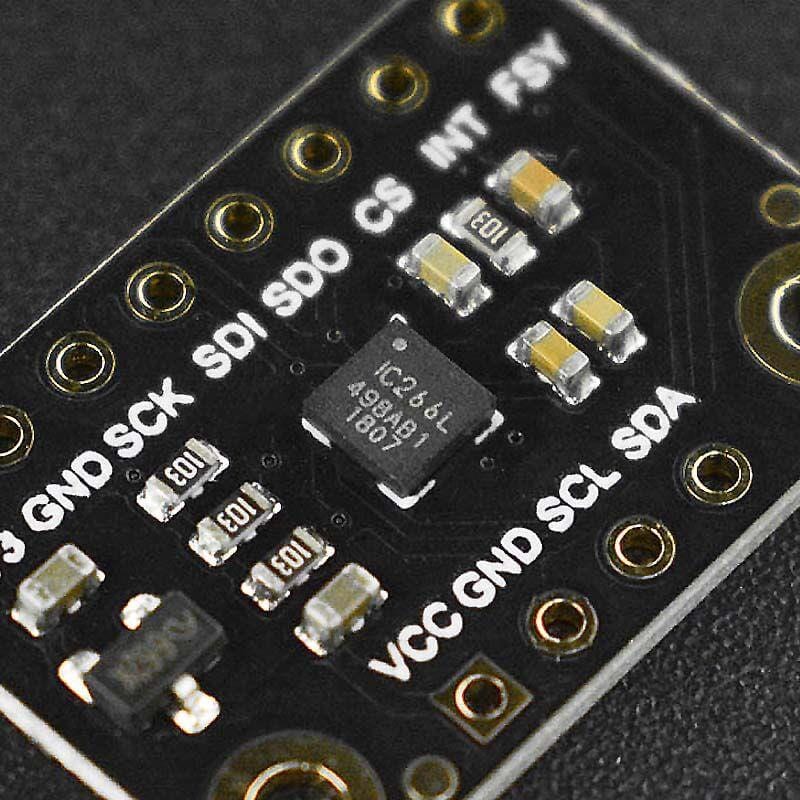

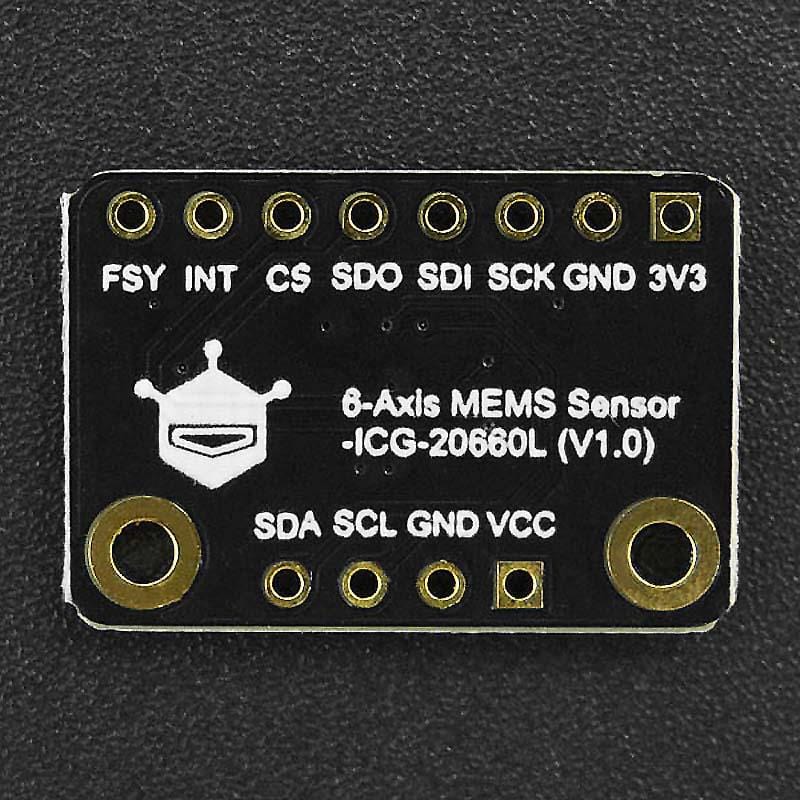

Fermion: ICG 20660L Accel+Gyro 6-Axis IMU Module

DFRobotSKU: SEN0443
Price:
Sale price £19.10
incl. VAT
excl. VAT
Stock:
Only 1 unit left
Quantity:

Awesome Extras

(92 Reviews)
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
Sale price £6 incl. VAT excl. VAT
(77 Reviews)
The Pi HutPrototyping Wire Spool Set - 6 Spool
Sale price £12 incl. VAT excl. VAT
(18 Reviews)
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.20 incl. VAT excl. VAT

The ICG-20660L is a high-precision 6-axis IMU module that integrates a 3-axis accelerometer (±2/4/8/16g), a 3-axis gyroscope (±125/250/500dps) and on-chip 16-bit ADCs.

With up to ±1% initial sensitivity and low noise (6.5mdps/√Hz), it is very suitable for anti-shaking applications.

The 6-axis motion sensor includes 512-byte FIFO to reduce traffic on the serial bus interface. Also, it features functions like programmable interrupts and FSYNC (frame synchronization), which can be used with other image/video capture devices to build up OIS (Optical Image Stabilization)/ EIS (Electric Image Stabilization) projects.

Additionally, the small size of the sensor makes it flexible for various scenarios.

Features

  • High Precision
  • Low Noise
  • 512-byte FIFO
  • Programmable interrupts
  • Frame synchronization

Connection Diagram

Fermion ICG 20660L Accel+Gyro 6-Axis IMU Module Connection Diagram

Specification

  • Operating Voltage: 3.3V
  • Current Consumption:
    • 140uA (sleep mode)
    • 520uA (Accelerometer mode only)
    • 4.27mA (Gyro mode only)
    • 4.9mA (accelerometer and gyro mode)
  • Initial Sensitivity: accelerometer ±1%; gyro ±1%
  • Non-linear Sensitivity: accelerometer ±0.5%, gyro ±0.1%
  • Interface: I2C/SPI(7MHz)
  • Selectable Scale: ±2g/±4g/±8g/±16g
  • Gyroscope Range: ±125/±250/±500dps
  • Operating Temperature Range: -40~85℃

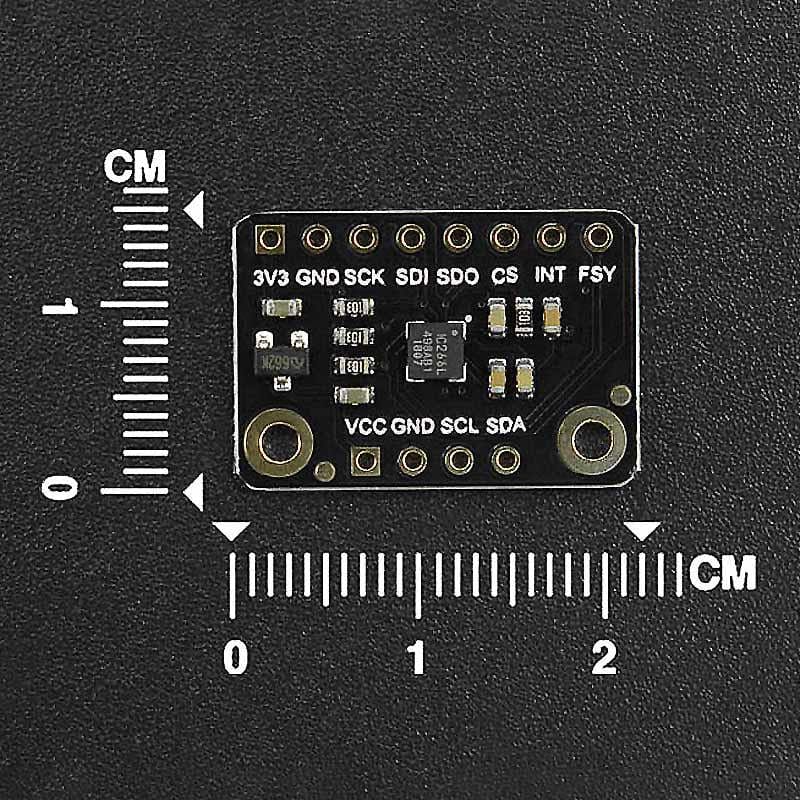

  • Dimension: 22x15mm/ 0.87x0.59"

Package Contents

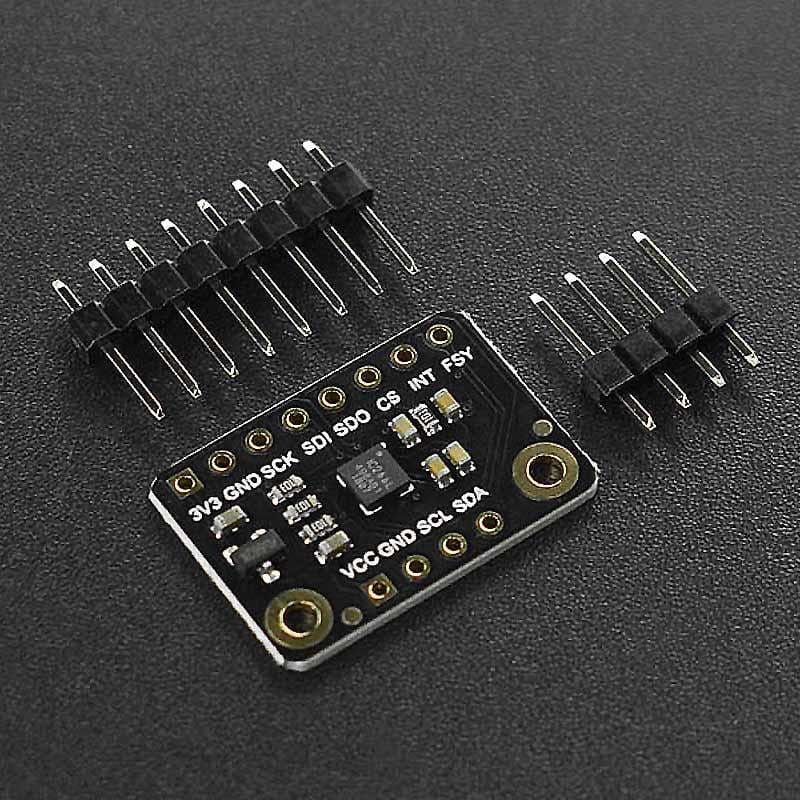

  • 1x Fermion ICG 20660L Accel+Gyro 6-Axis IMU Module Breakout
  • 1x 2.54mm Single Row Pin Header Black-8P
  • 1x 2.54mm Single Row Pin Header Black-4P
