ESP32-S3 Development Board with 2" IPS Display (240 x 320)

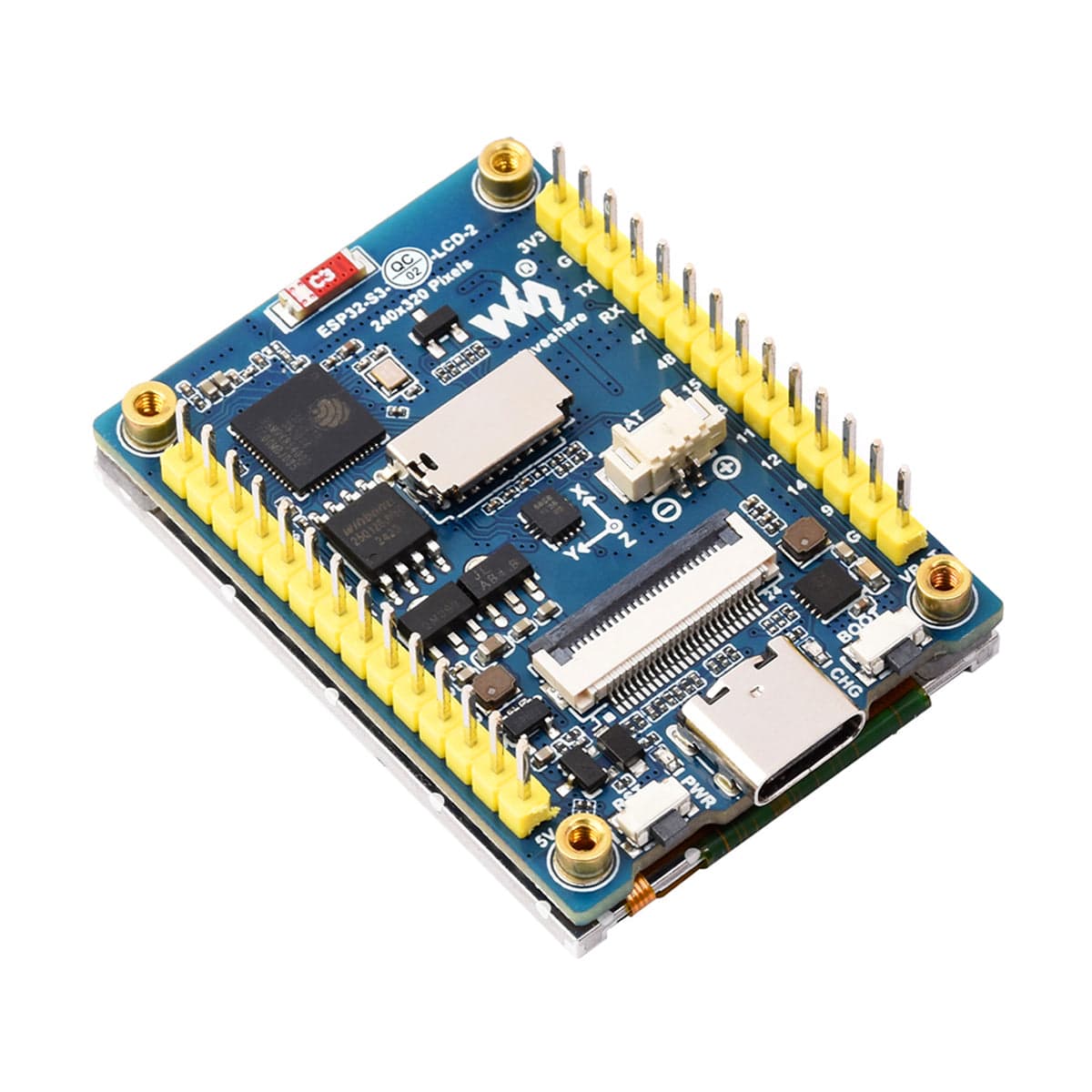

This board has an ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor that operates up to 240MHz and has 16MB Flash, 8MB PSRAM and an SD card slot. It supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an antenna, and there is a 24-pin camera connector on the board that works with OV2650, OV5640 and other cameras (If you select the camera option, there is an OV5640 camera that comes with the board).

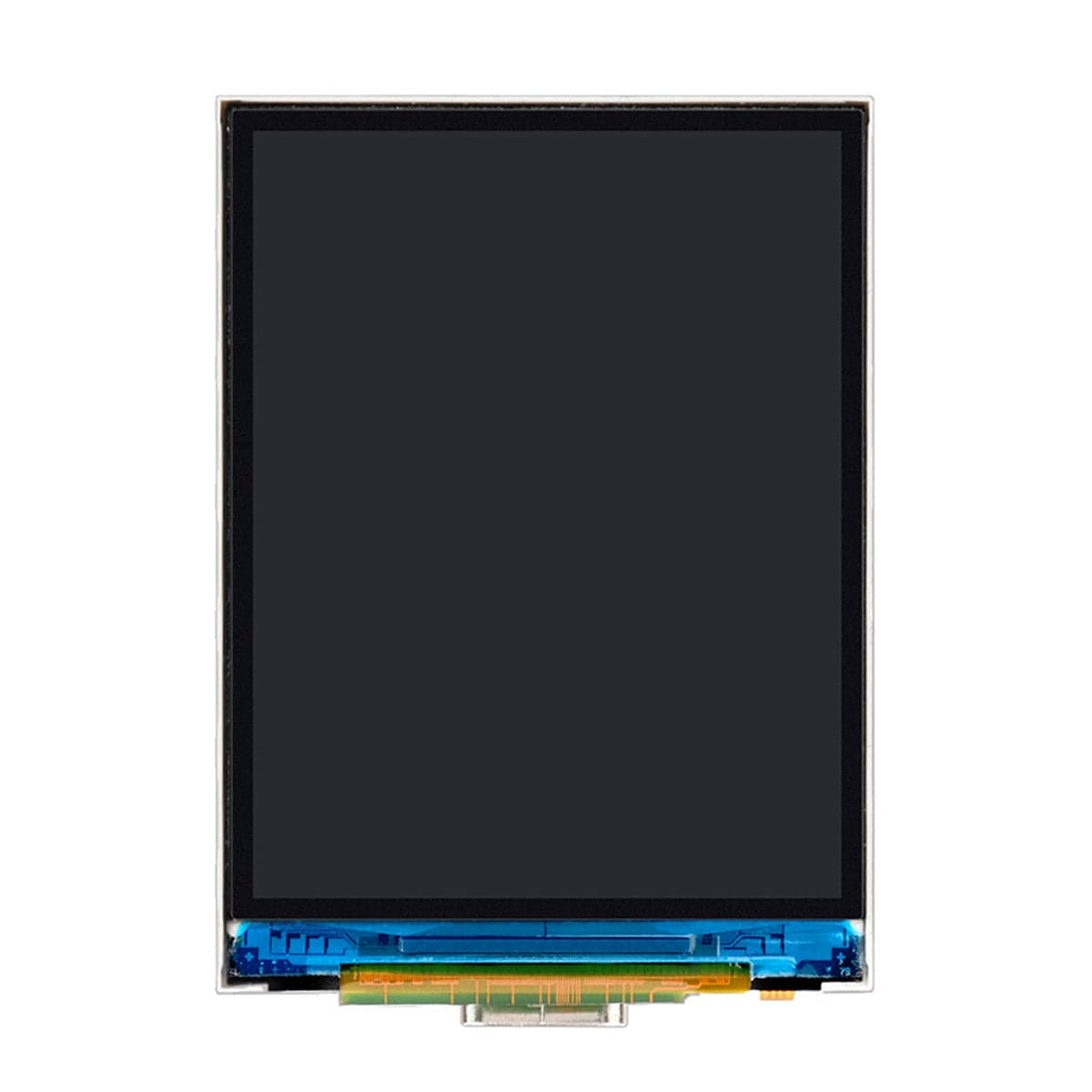

On the back of the board, you'll find a colourful 2" IPS display with 262K colours, a wide viewing angle and a 240 x 320 resolution that is powered by the ST7789T3 display driver. You'll also find a 3.7V MX1.25 Lithium battery charger header and a USB-C port for power supply, program downloading, and debugging.

Two variants are available - Board Only, or With OV5640 Camera. Please select an option before adding it to your cart!

We also have the touchscreen version here.

Please note: this board uses a tiny MX1.25 connector for LiPo power. Most LiPo batteries on the market (including ours) use a larger JST fitting. We do not yet stock batteries with an MX1.25 connector, however, you can customise your battery with one of our 1.25mm pitch cables to make a compatible battery yourself (assuming you have the ability, knowledge and tools to do this safely). If you want to source your own battery to fit inside the case, a battery size of 3.85 x 24 x 28 mm is recommended.

Features

• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built-in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
• 2" LCD for clear colour picture display, 240 x 320 resolution, 262K colour
• ST7789T3 display driver, using SPI communication, effectively saving the IO resources
• QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
• 3.7V MX1.25 Lithium battery recharge/discharge header
• USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
• SD card slot for external SD card storage of pictures or files
• 22x GPIO pins for flexible configuration of pin function
• Camera interface, compatible with cameras such as OV2640 and OV5640 for image and video acquisition

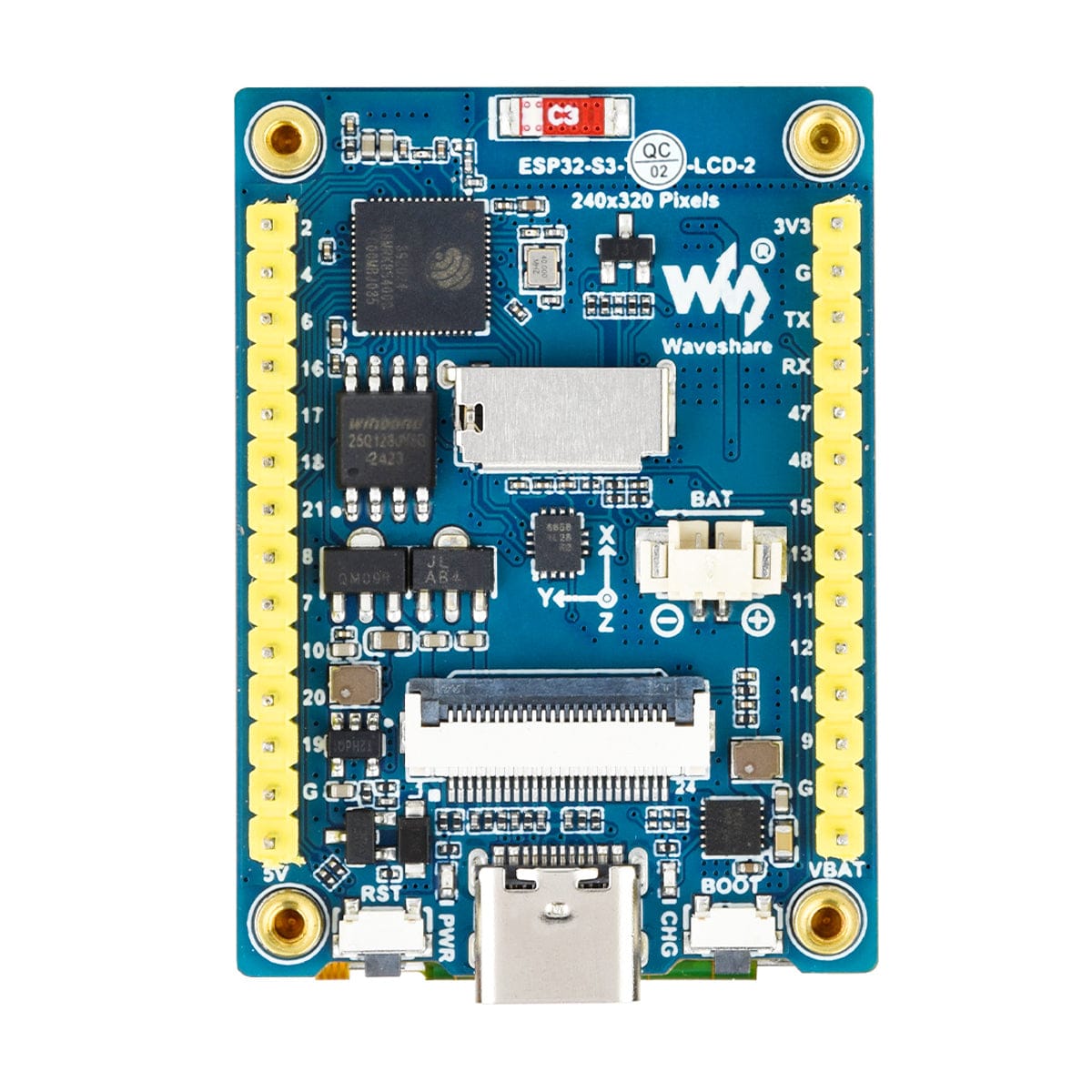

What's on Board

Specifications

Resources

• Product Wiki

Pinout

Package Contents

Board Only

• 1x ESP32-S3 2" Display Development Board

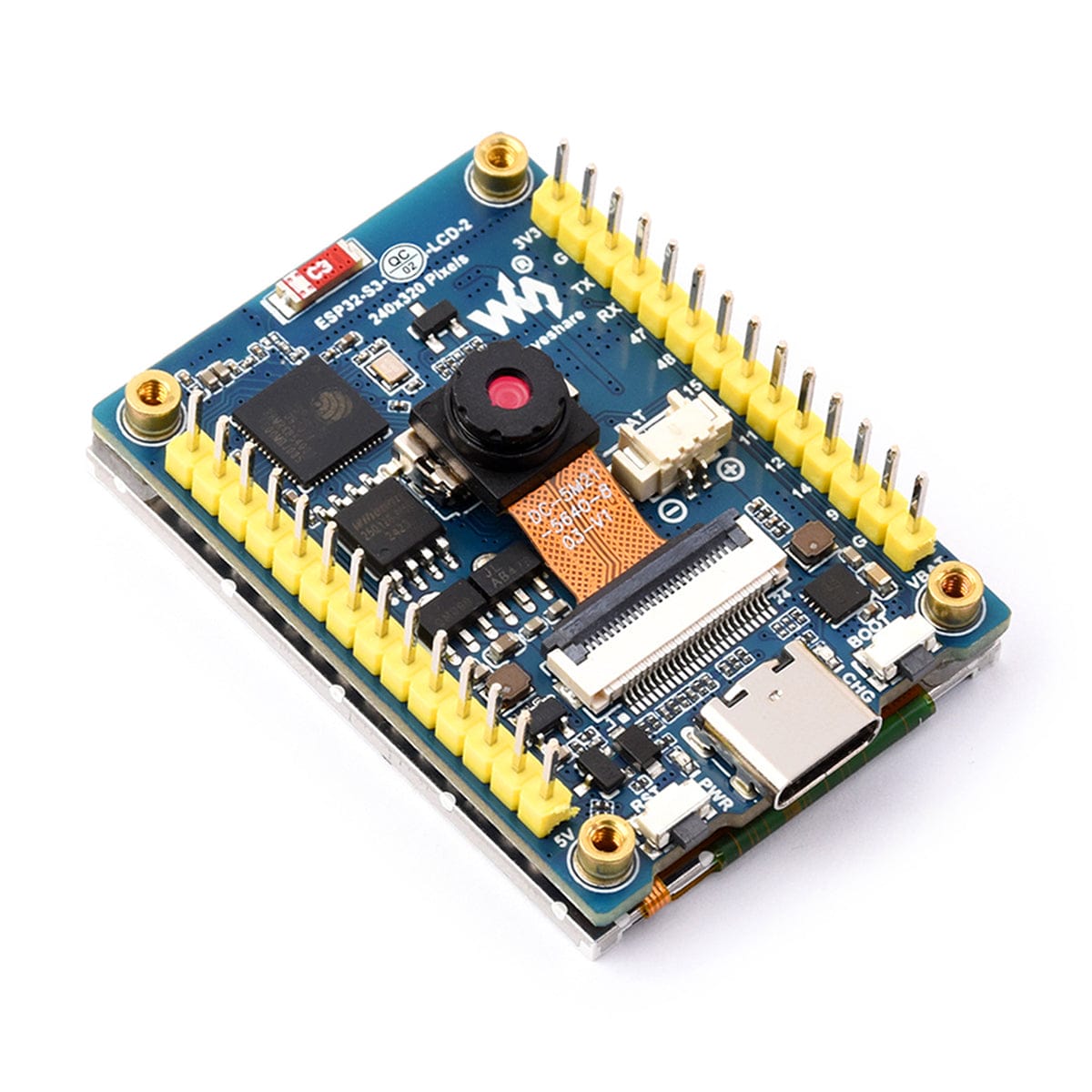

With OV5640 Camera

• 1x ESP32-S3 2" Display Development Board
• 1x OV5640 Camera
