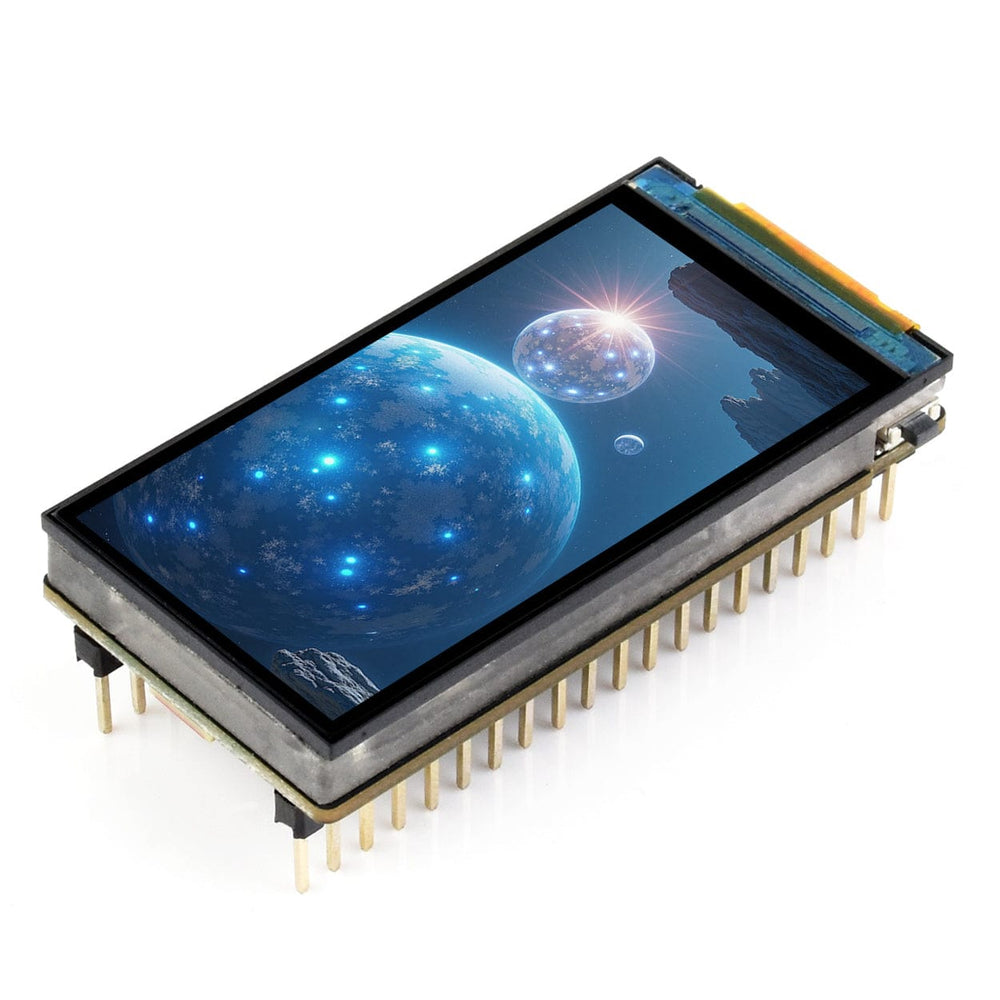

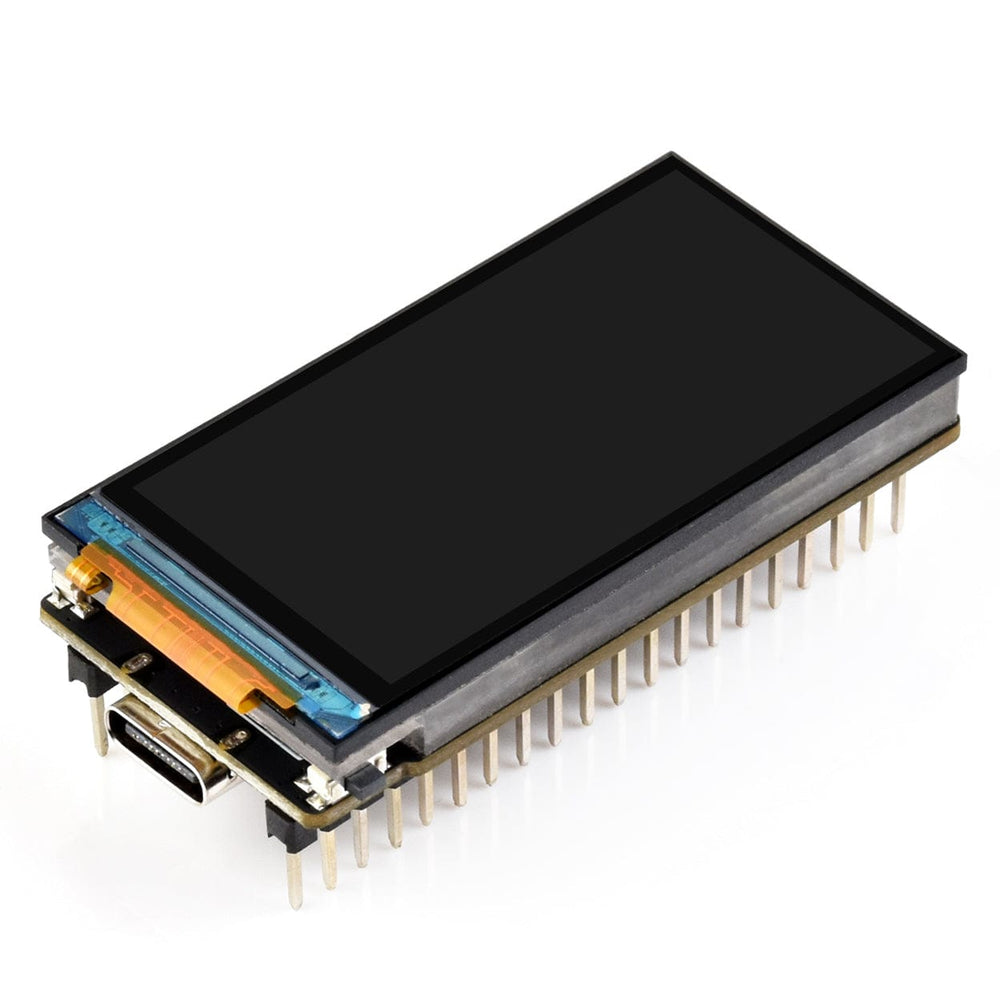

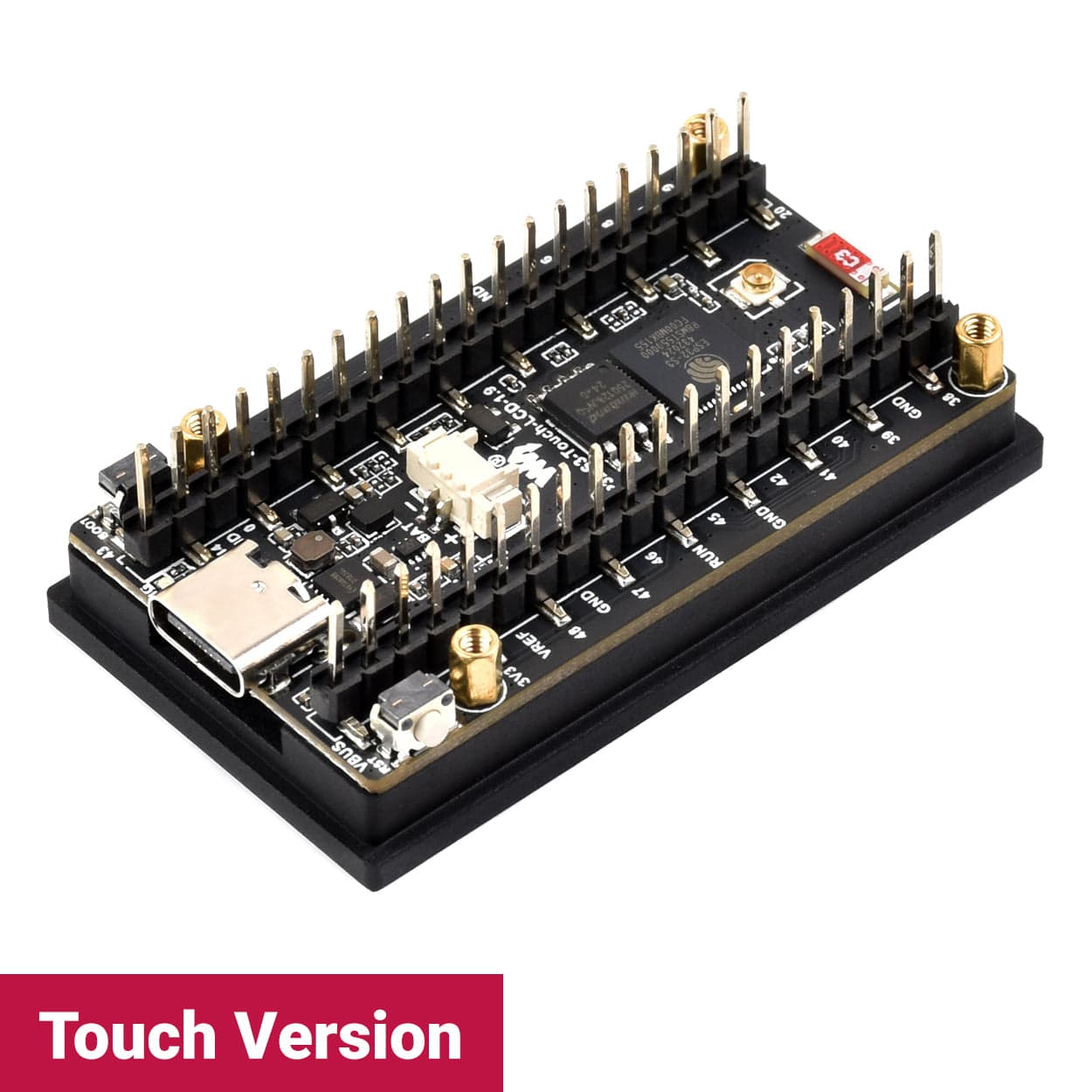

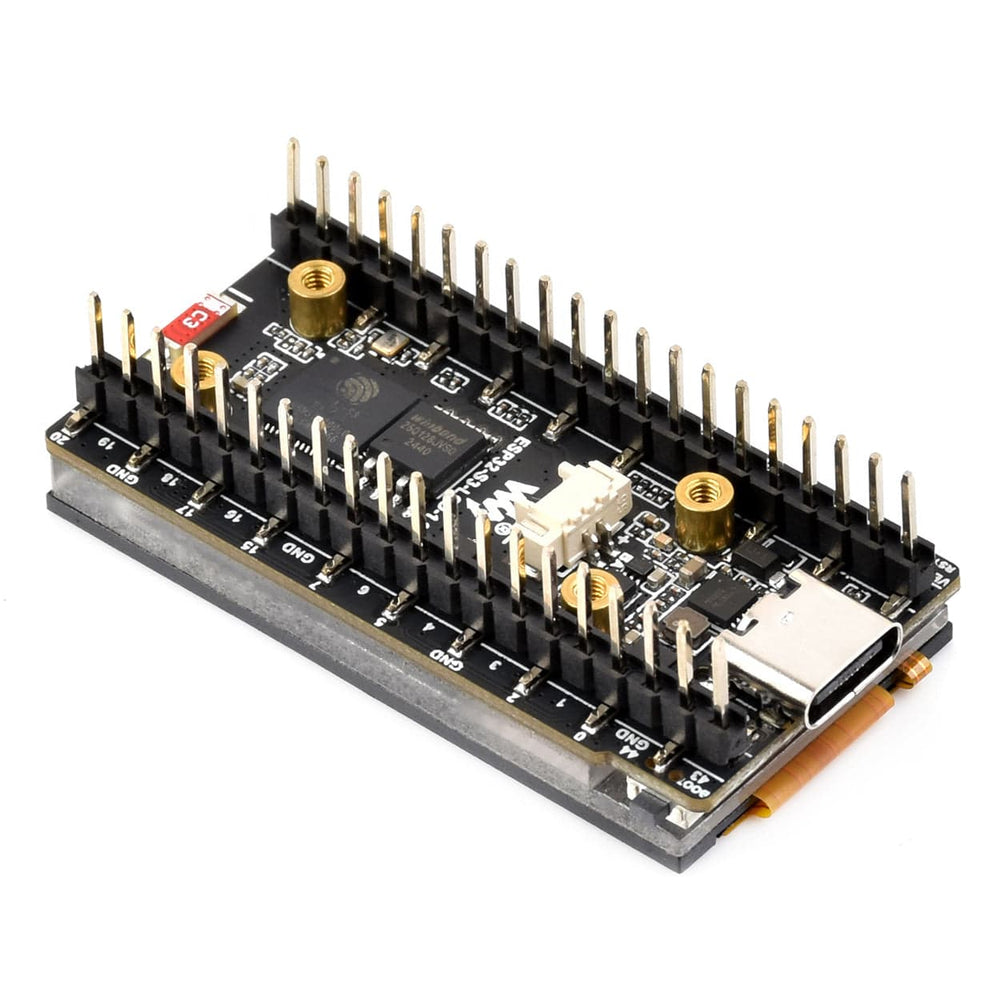

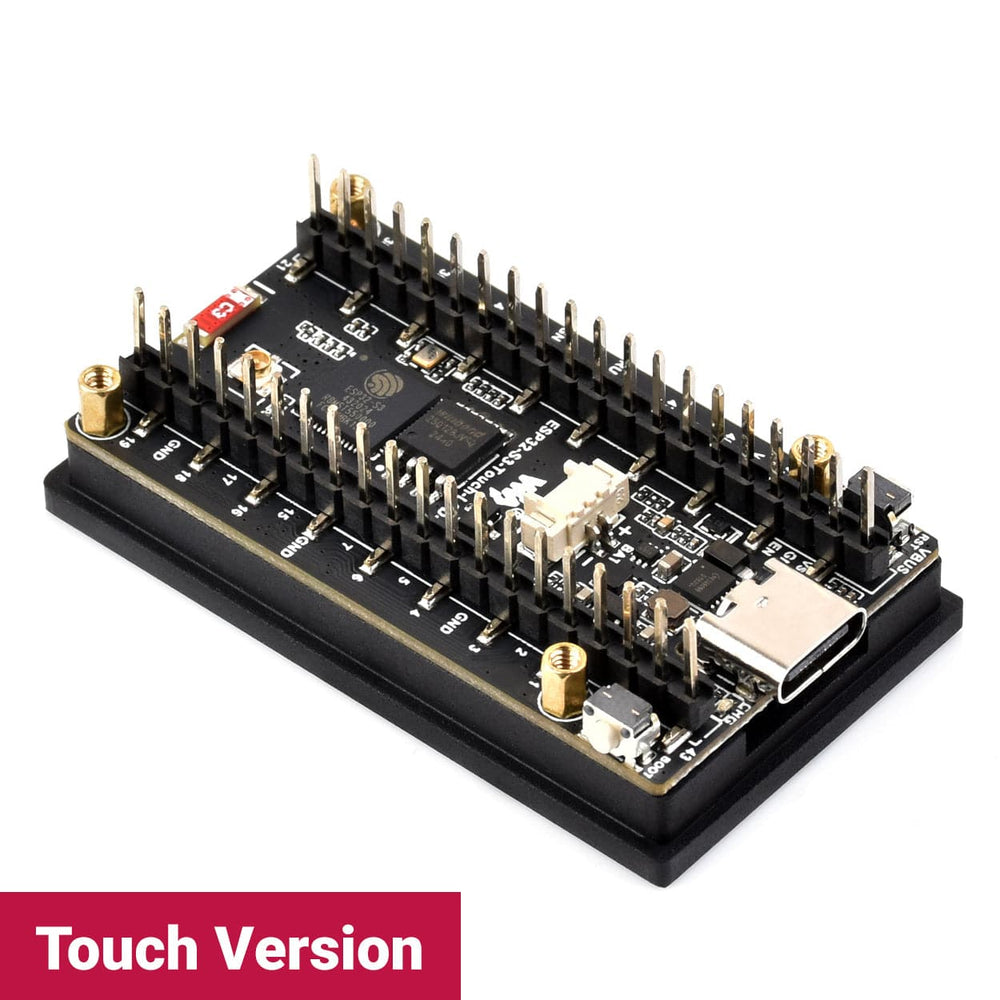

ESP32-S3 1.9" Display Dev Board with IMU

This compact ESP32-S3 development board includes a 6-axis IMU and 1.9" LCD display - with a variant option including touch control - and has a pinout compatible with the Raspberry Pi Pico, allowing the use of Pico HATs and other Pico-intended hardware!

The popular ESP32-S3 provides 2.4GHz Wi-Fi along with Bluetooth 5 LE via an onboard ceramic antenna, and comes with the usual built-in 512KB SRAM and 384KB ROM, supported by the onboard 16MB FLASH and 8MB PSRAM. The board is powered and programmed by USB-C.

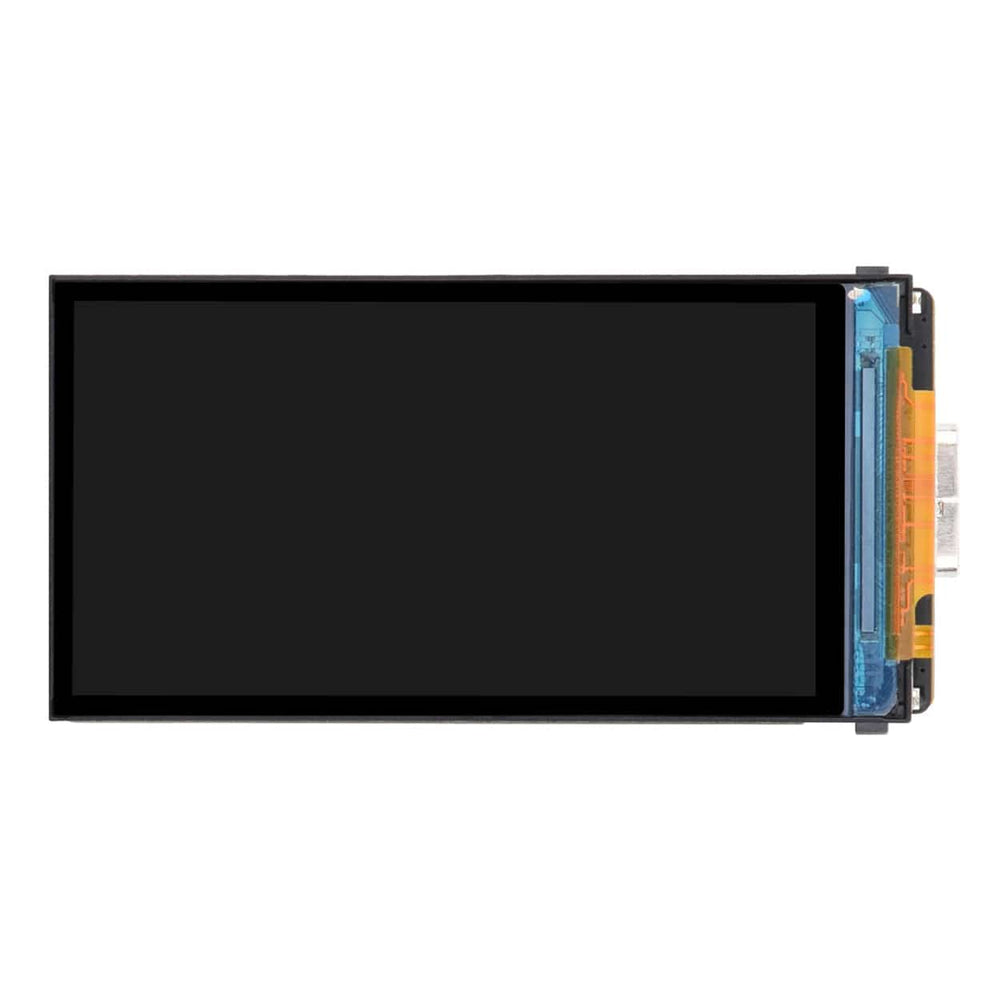

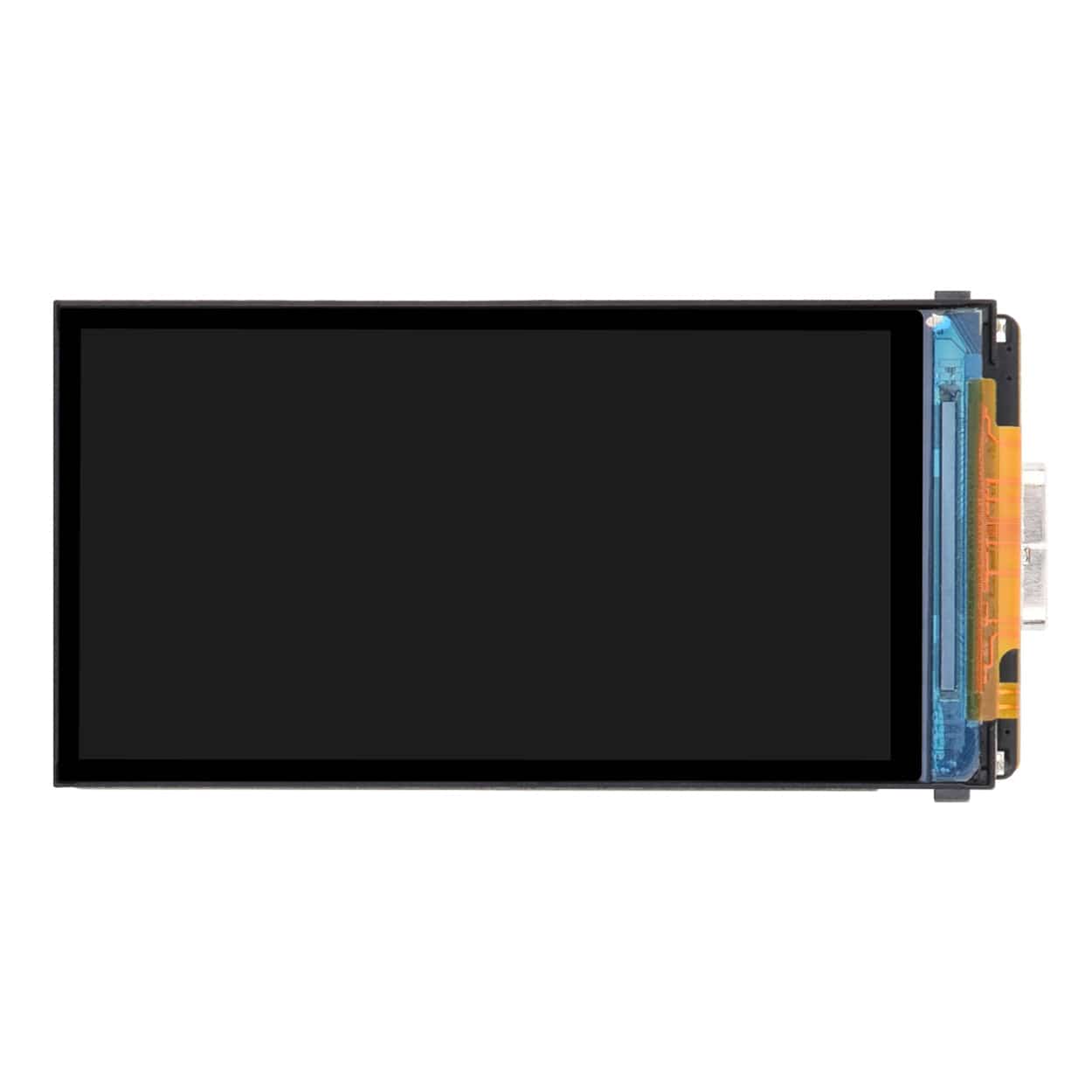

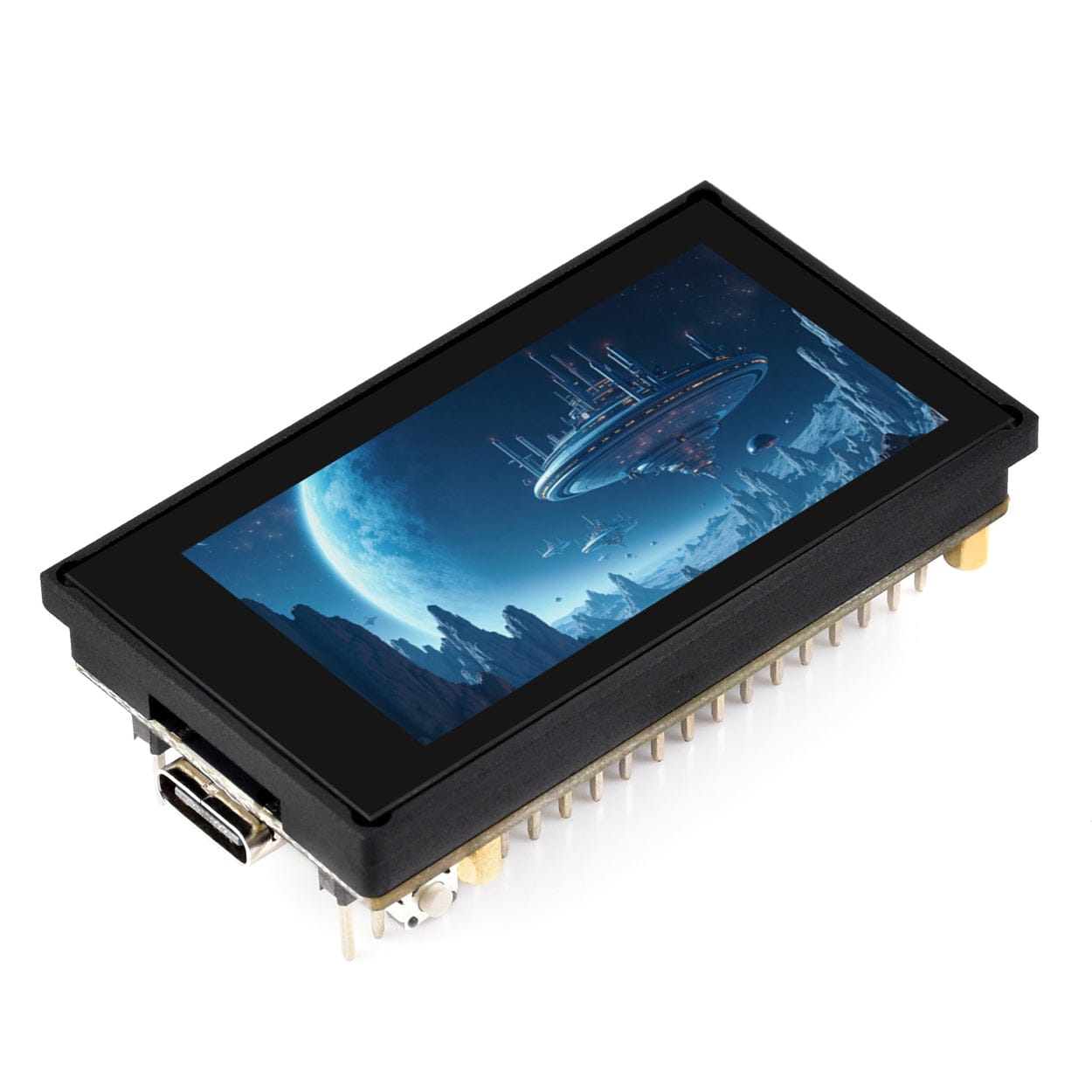

The display is a small 1.9" panel with a 170x320 resolution, 160° viewing angles and 262k colours. A version with touch control is available, select the appropriate variant before adding to cart.

Other features include a QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, a microSD slot, connector for a MX1.25/PicoBlade-compatible lithium battery (with charging circuit) and the BOOT/RESET buttons.

In fact, the non-touch and touch versions have a couple of other differences too:

• The non-touch version includes a WS2812 RGB LED on the underside
• The touch version includes an IPEX1 connector for using an external antenna (resistor resoldering required to enable)
• The touch version includes touch input (but you knew that already!)

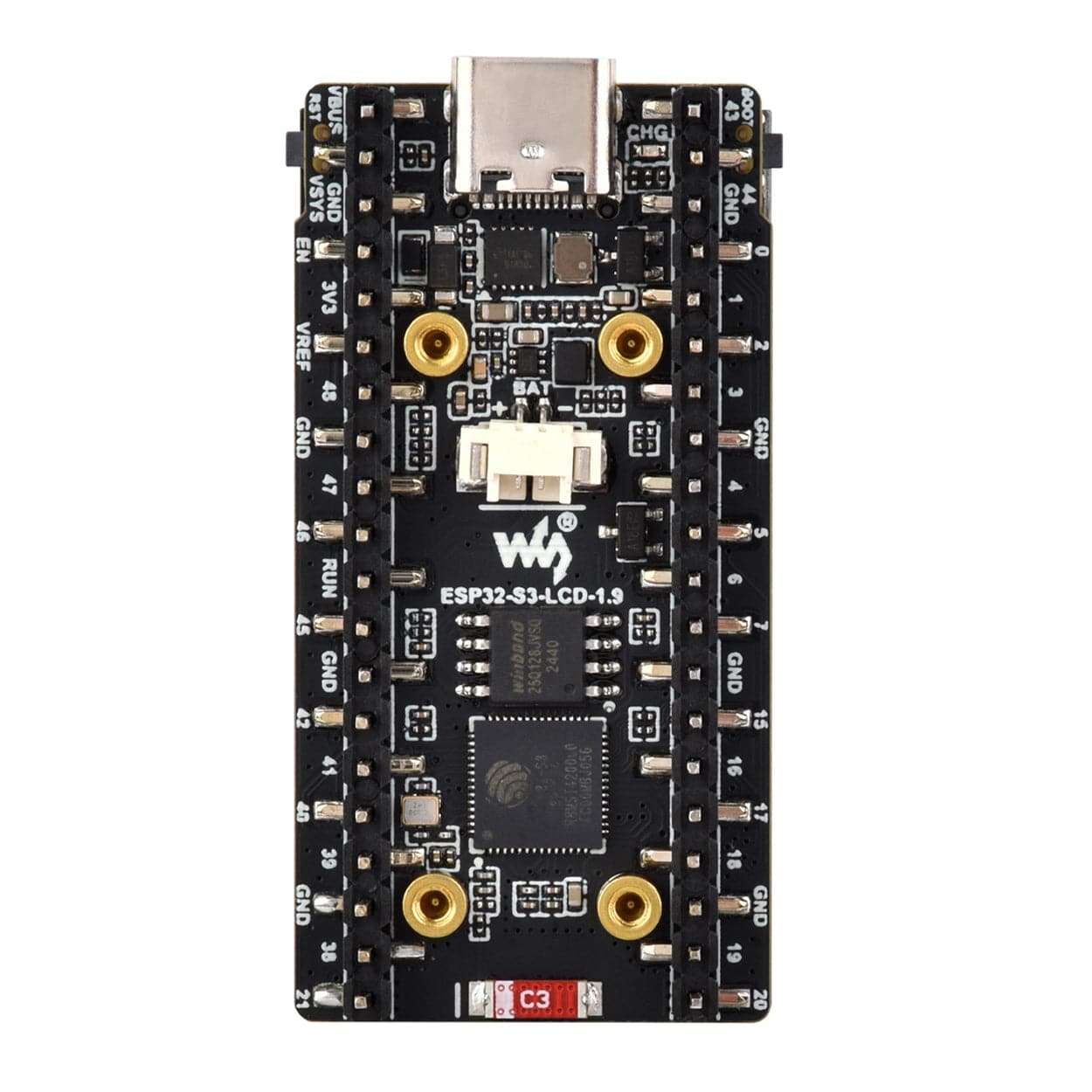

What's Onboard?

1. ESP32-S3R8
   • Dual-core processor with an operating frequency of up to 240 MHz
2. W25Q128 16 MB Flash
3. MX1.25 battery header
   • MX1.25 2-pin connector for a 3.7 V lithium battery, supports charging and discharging
4. RESET button
5. USB-C port
   • Used for power input and data transmission
6. TF card slot (on the rear)
   • Supports TF cards for external storage
7. Charge indicator
   • Battery charge LED: on while charging, off when fully charged
8. BOOT button
   • Used for firmware download or entering boot mode
9. WS2812 RGB LED (non-touch version only)
   • Coloured lighting LED located on the underside of the PCB
10. QMI8658 sensor (on the rear)
    • 6-axis IMU with a 3-axis gyroscope and a 3-axis accelerometer
11. IPEX1 connector (touch version only)
    • Supports use of an external antenna via resistor re-soldering
12. Onboard ceramic antenna
    • Space-saving antenna design for stable wireless performance

Features

• ESP32-S3 development board with dual-core Xtensa LX7 processor up to 240 MHz
• 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 LE via onboard ceramic antenna
• 16 MB Flash and 8 MB PSRAM, plus built-in 512 KB SRAM and 384 KB ROM
• 1.9" LCD display, 170 × 320 resolution, 262K colours, 160° viewing angles

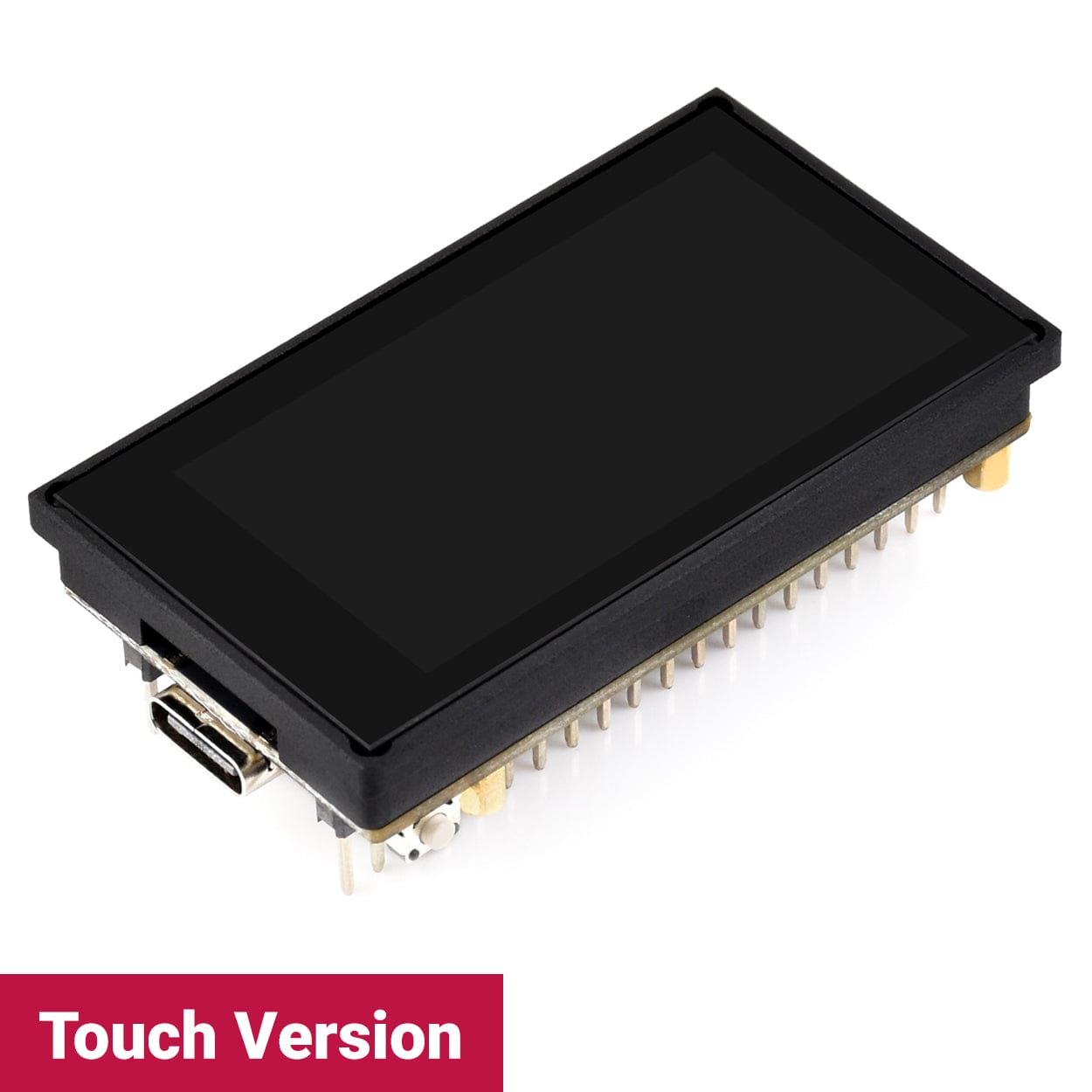

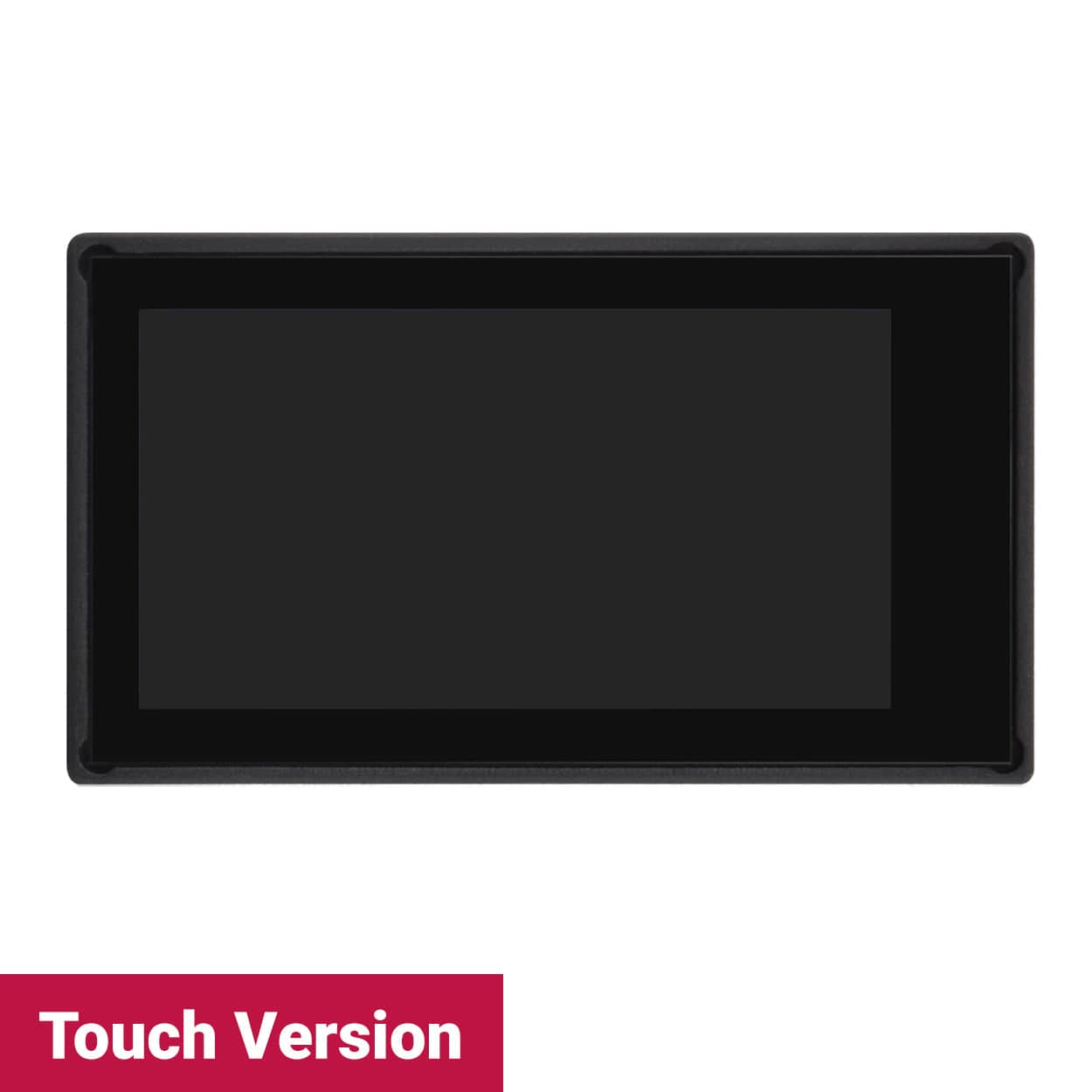

• Touch-enabled variant available (select version before purchase)
• QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
• Raspberry Pi Pico–compatible pinout for use with Pico HATs and accessories
• USB-C for power, programming, and debugging
• MicroSD card slot for external storage
• MX1.25 / PicoBlade-compatible LiPo battery connector with charging circuit
• BOOT and RESET buttons
• Non-touch version includes an onboard WS2812 RGB LED
• Touch version adds capacitive touch input and an IPEX1 connector for an external antenna (resoldering required)

Specifications

Resources

• Product Wiki
• Schematic
  • Non-touch
  • Touch

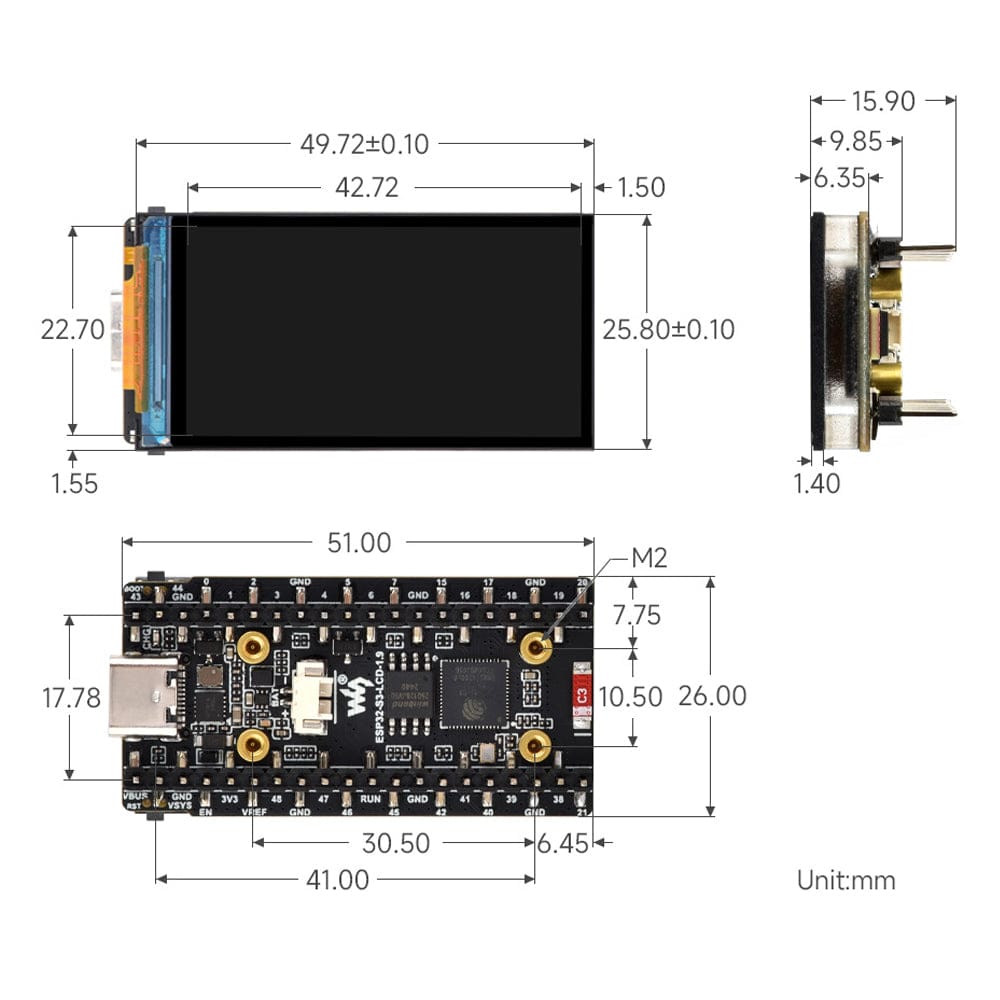

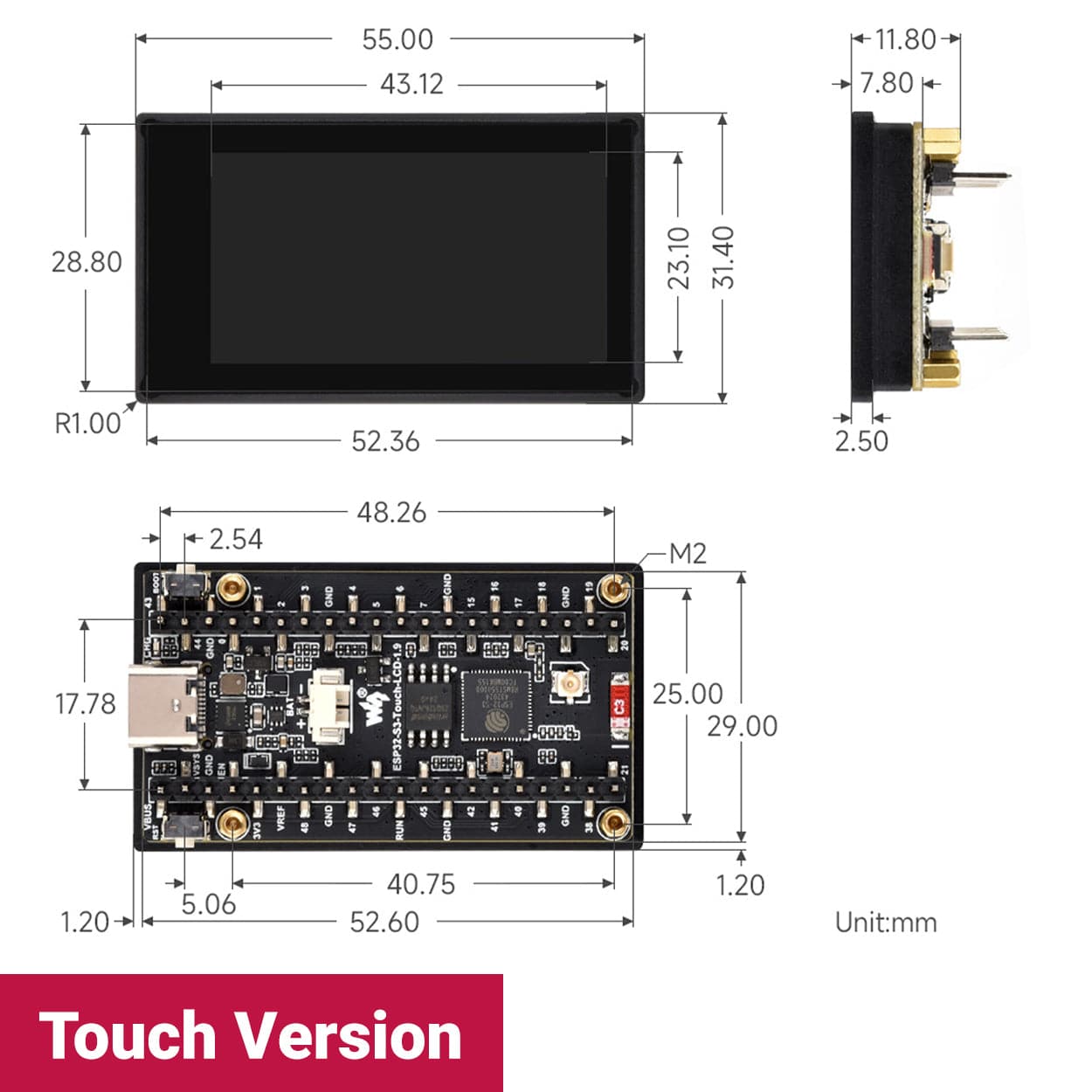

• Dimensions
  • Non-touch
  • Touch
• ESP32-S3 Series Datasheet
• ST7789 Datasheet
• QMI8658 Datasheet
• CST816 Datasheet

Pinout

Package Contents

• 1x ESP32-S3 1.9" Display Dev Board (170x320)
  • Select non-touch or touch when adding to cart
