ESP32-S2 WiFi Development Board (Pico Format)

WaveshareSKU: WAV-21178
Price:
Sale price £11.90
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Awesome Extras

USB-A to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
USB-C to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-C to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
Full-Size Breadboard - White - The Pi HutFull-Size Breadboard - White - The Pi Hut
The Pi HutFull-Size Breadboard - White
Sale price £5 incl. VAT excl. VAT

This is a compact WiFi development board from Waveshare based on the ESP32-S2 with a pinout that supports most HATs designed for the Raspberry Pi Pico!

The board offers numerous peripheral interfaces, integrated low-power Wi-Fi System-on-Chip (SoC), USB-C connectivity and mass memory. Equipped with a hardware crypto accelerator, RNG, HMAC and Digital Signature module, it can meet the security requirements of the Internet of Things.

Multiple low-power operating states are available to satisfy power requirements in IoT, mobile devices, wearable electronics, smart home and other application scenarios.

We also stock a version with a 0.96" LCD!

Features

  • Supports the Raspberry Pi Pico expansion board ecosystem
  • Xtensa single-core 32-bit LX7 microprocessor, ESP32-S2FH4, support clock frequency up to 240 MHz
  • Integrated 320KB SRAM, 128KB ROM, 8MB PSRAM, 4MB Flash memory
  • Supports IEEE802.11 b/g/n, on-board 2.4 GHz WiFi ceramic antenna, up to 150 Mbps data transfer rate
  • USB-C connector, no more plug orientation problem
  • On-chip integrated full-speed USB OTG interface, LCD interface (8-bit serial RGB/8080/6800), TWAI controller (ISO11898-1 compatible), capacitive sensor GPIO, temperature sensor and RMT (TX/RX)
  • On-board 1.8A current high-efficiency boost/buck DC-DC TPS63000 power supply IC
  • Support a variety of low-power operating states for adjusting the optimal balance between communication distance, data rate and power consumption
  • C/C++, MicroPython and CircuitPython Support

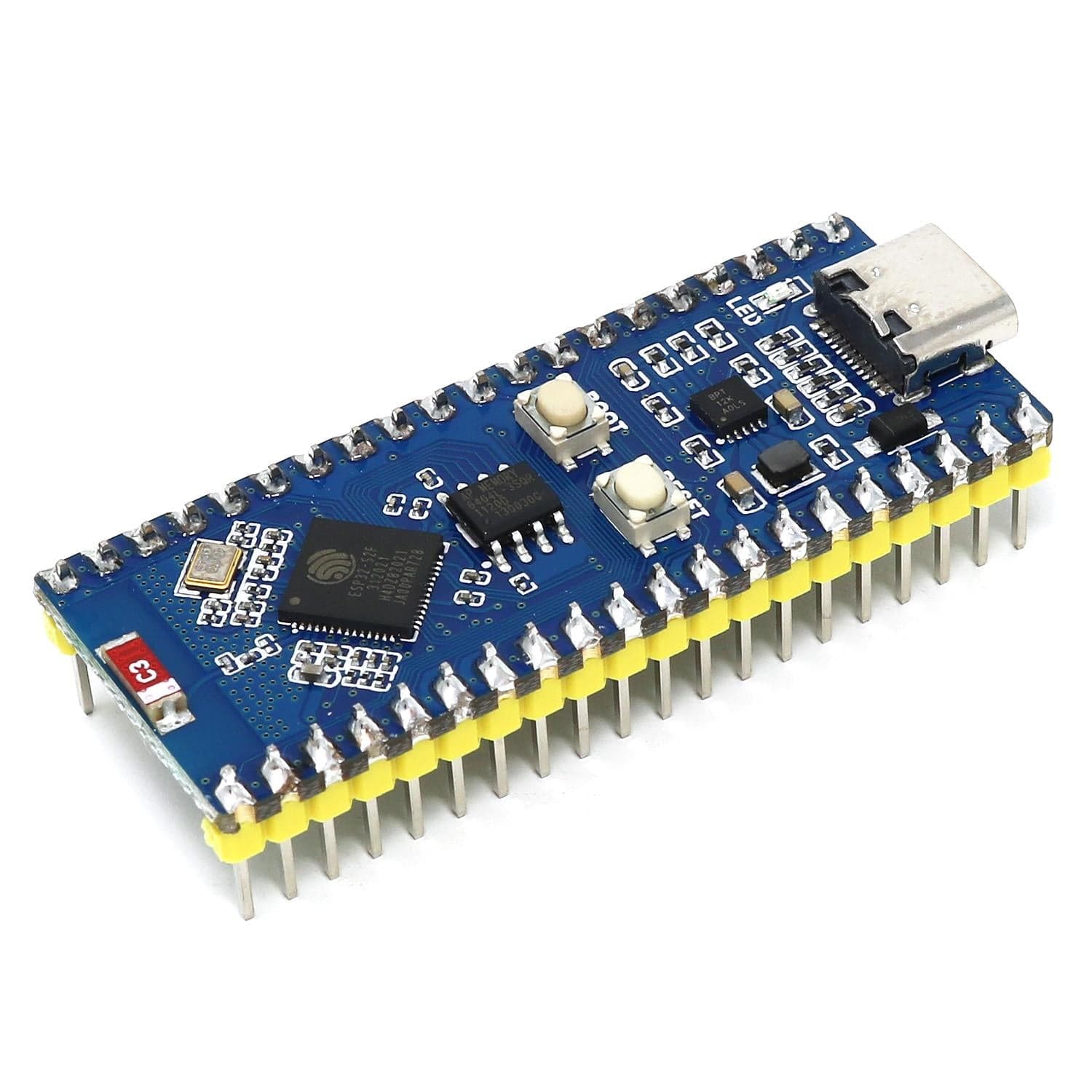

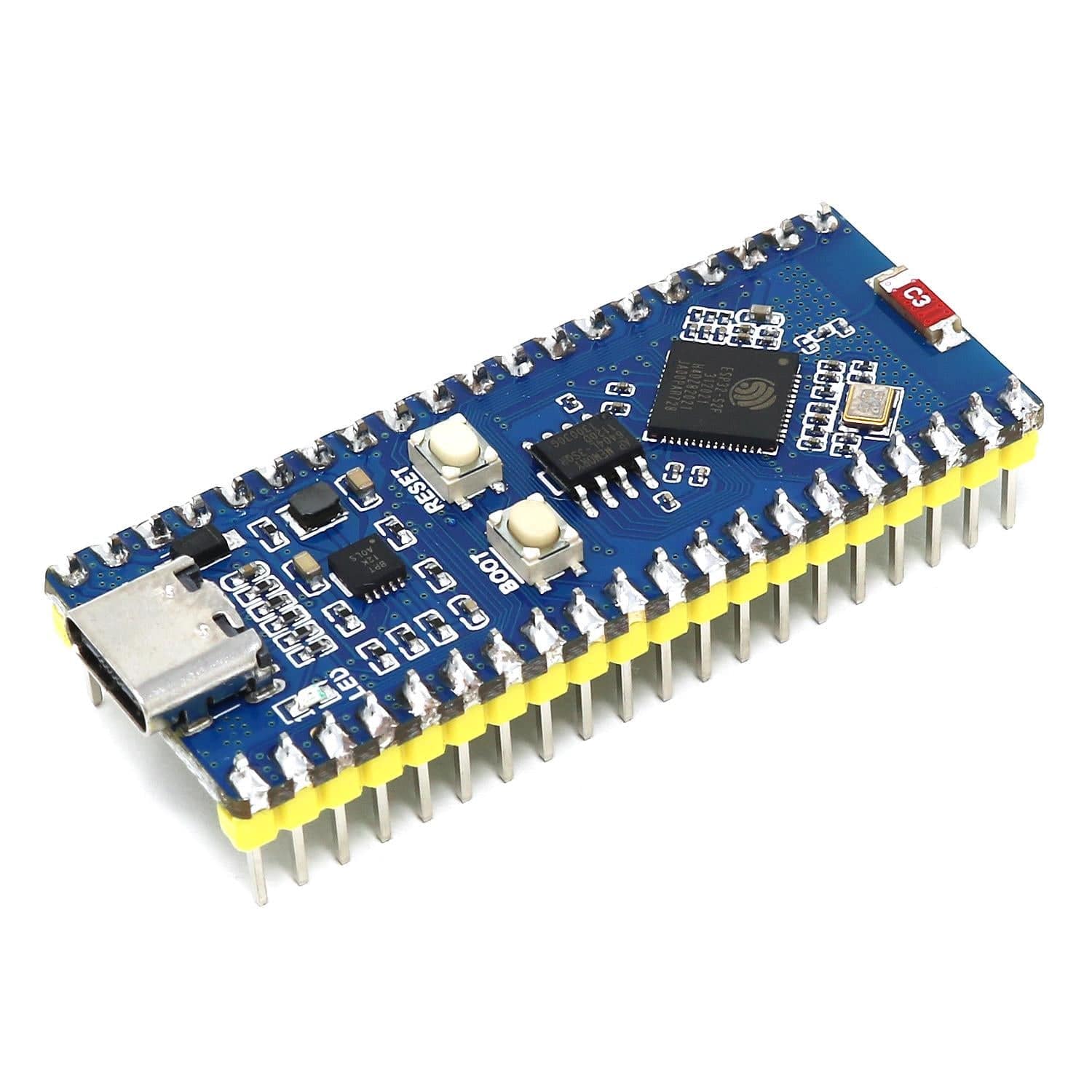

What's On Board


1) ESP32-S2FH4
- Xtensa single-core 32-bit LX7 microprocessor
2) APS6404L-3SQR-SN
- 8MB PSRAM
3) BOOT button
- BOOT button, press BOOT and then RESET button to enter download mode
4) RESET button
5) TPS63000DRCR
- High-efficiency DC-DC buck-boost chip
6) LED
- User LED (not power indicator)

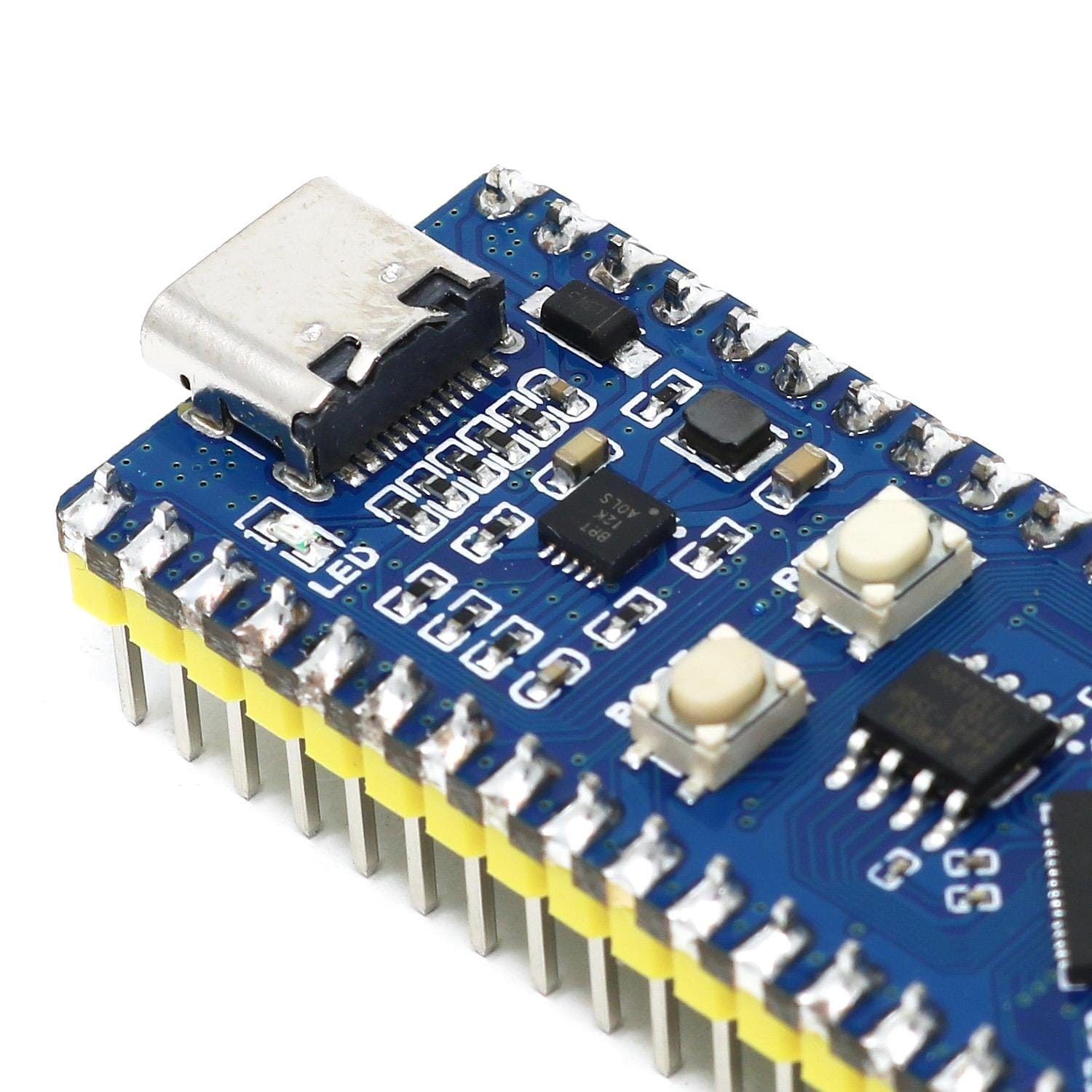

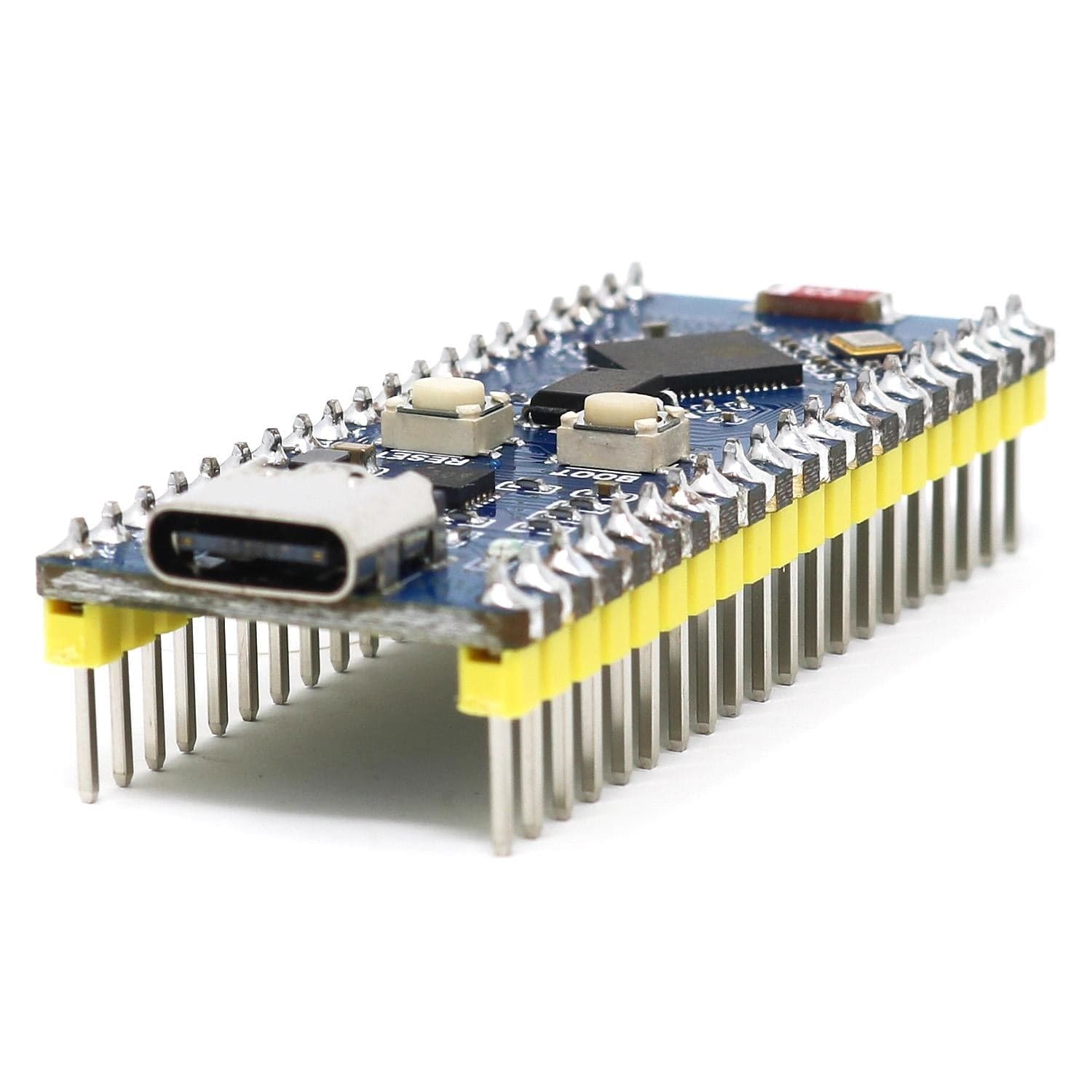

7) USB Type-C connector
- For programming, serial printing, etc.

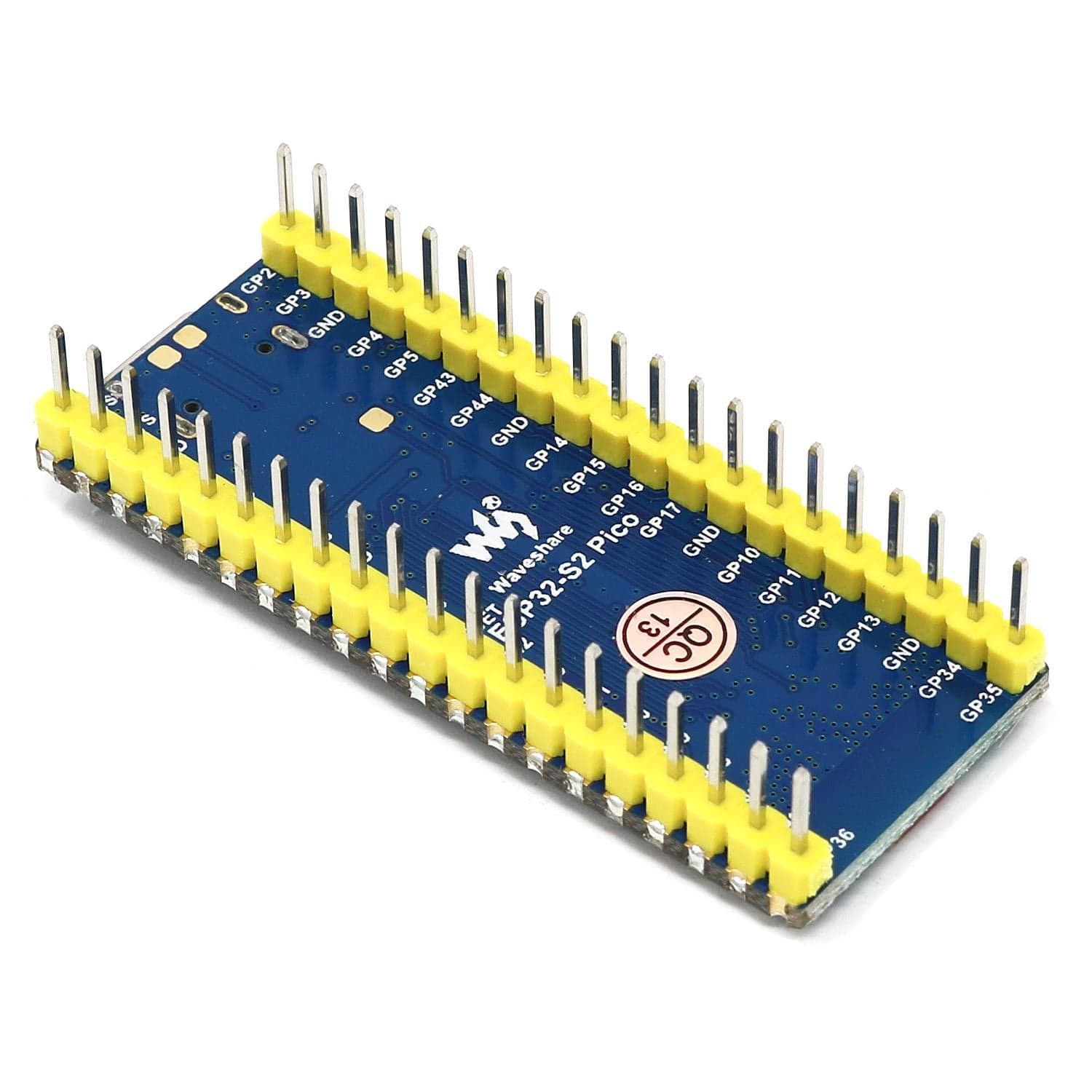

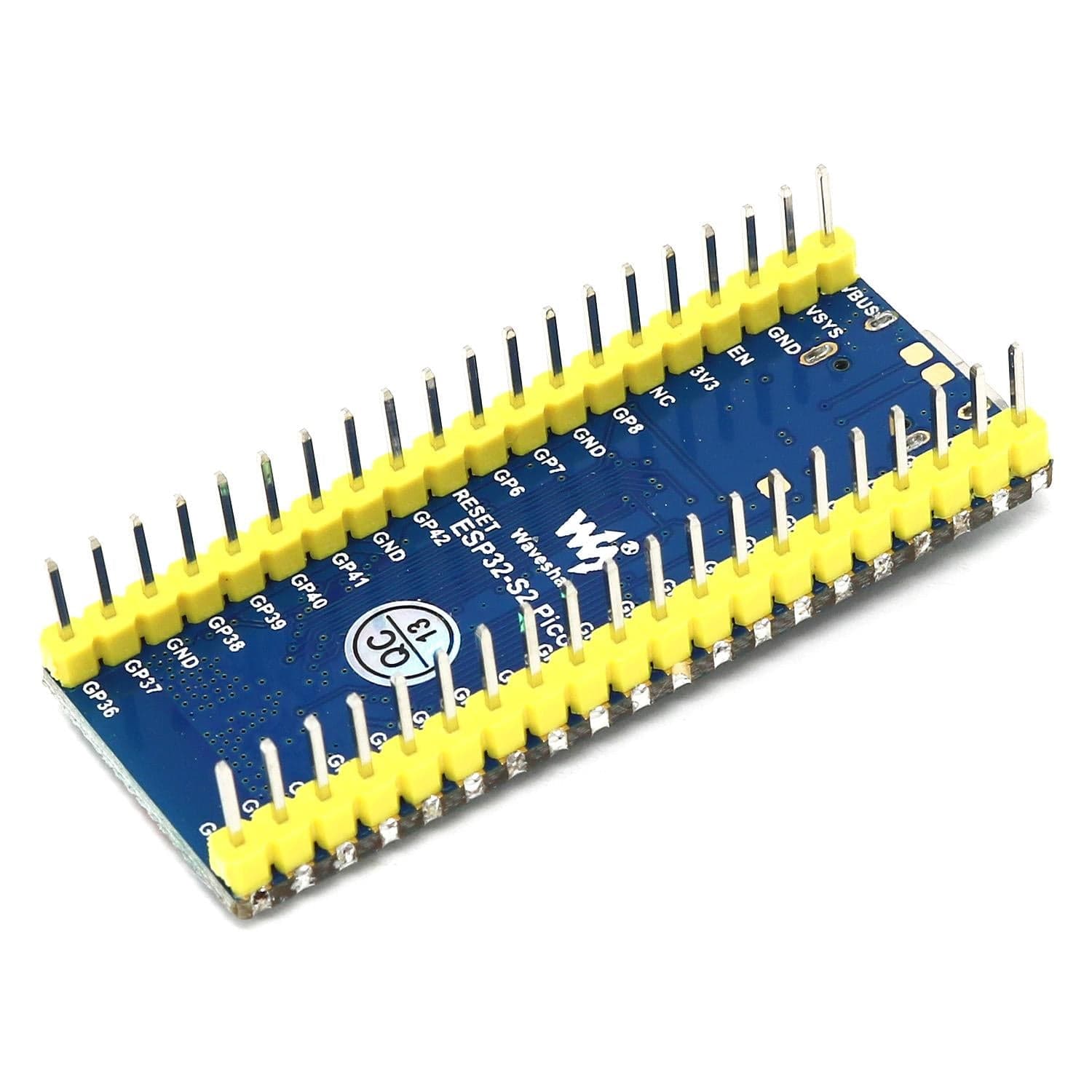

8) Pinout
- Compatible with Raspberry Pi Pico
9) USB test points
- Connecting to USB interface
10) BOOT test point
- Connecting to BOOT button
11) WiFi ceramic antenna

Package Contents

  • 1x ESP32-S2-Pico (Standard Version)

Resources

Pinout

For more details, please check ESP32-S2 Datasheet, Chapter 3.10 Peripheral Pin Assignments, and the schematic
