ESP32-C6 Microcontroller

This ESP32-C6 microcontroller has WiFi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) and is compatible in size and connection with most Raspberry Pi Pico HATs. The board uses the ESP32-C6-MINI-1 chip, which has a RISC-V 32-bit single-core processor running at 160 MHz. It also includes 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 4MB flash memory for sufficient storage. The onboard MP28164 DC-DC buck-boost chip supports load currents up to 2A, enhancing the board's reliability.

You can use ESP-IDF, Arduino, or other development areas for quick and easy project integration. The ESP32-C6-MINI-1 chip provides strong wireless communication with integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode. Additionally, it has a Type-C connector, 20 multi-function GPIO pins, and 7 expanded IO pins. It supports a variety of peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, and PWM, adding flexibility to your projects with the many different boards you can add.

We also have a DALI-2 module that works with this board if you're looking for smart lighting integration.

Features

• ESP32-C6-MINI-1 chip with RISC-V 32-bit single-core processor, capable of running at 160 MHz
• 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 4MB flash
• 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
• Type-C connector, easier to use
• DC-DC chip MP28164, high-efficiency DC-DC buck-boost chip with load current up to 2A
• 20x multi-function GPIO pins and 7x expanded IO pins
• Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM, etc. to achieve various functions flexibly
• Castellated module allows soldering directly to carrier boards
• Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
• Supports most of the Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development

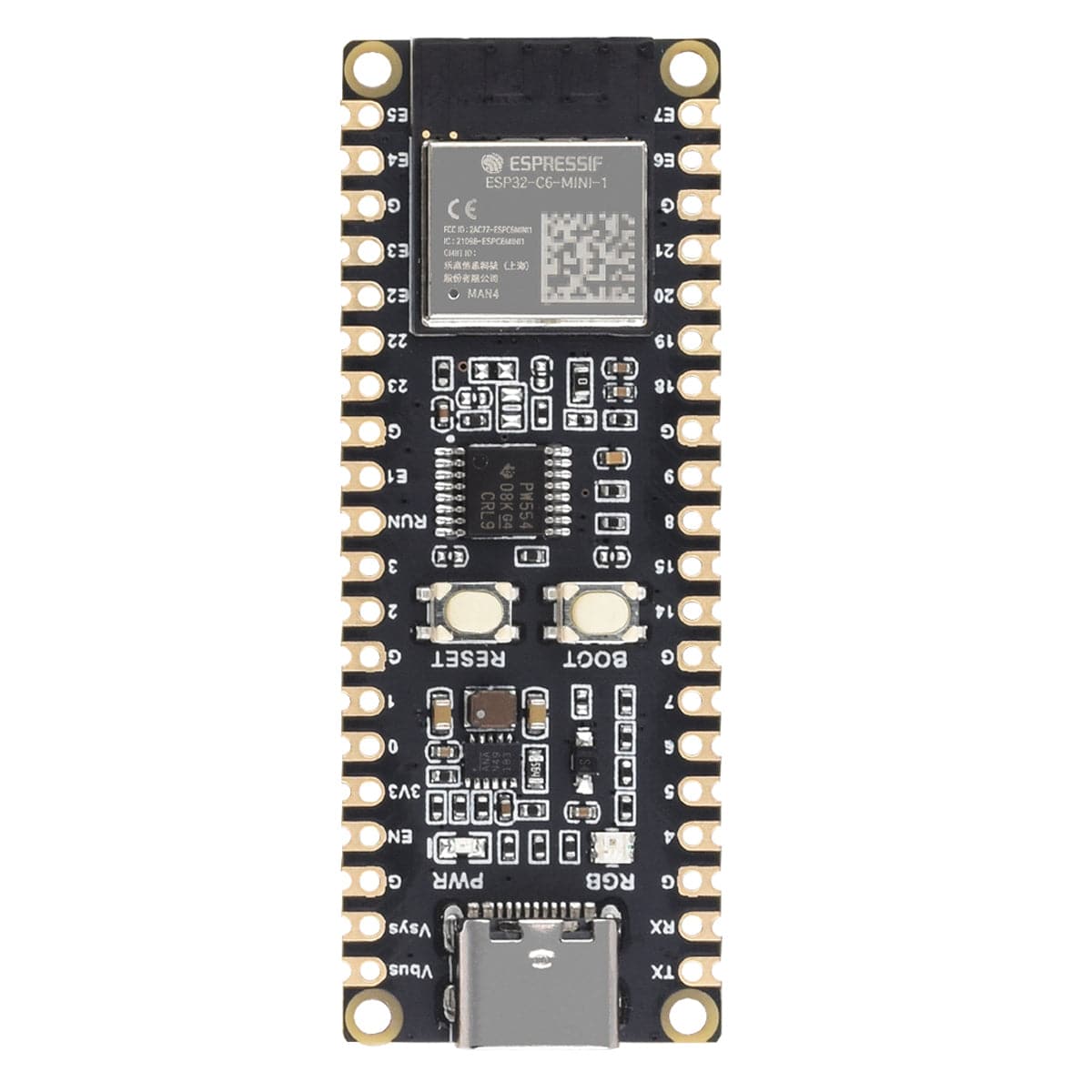

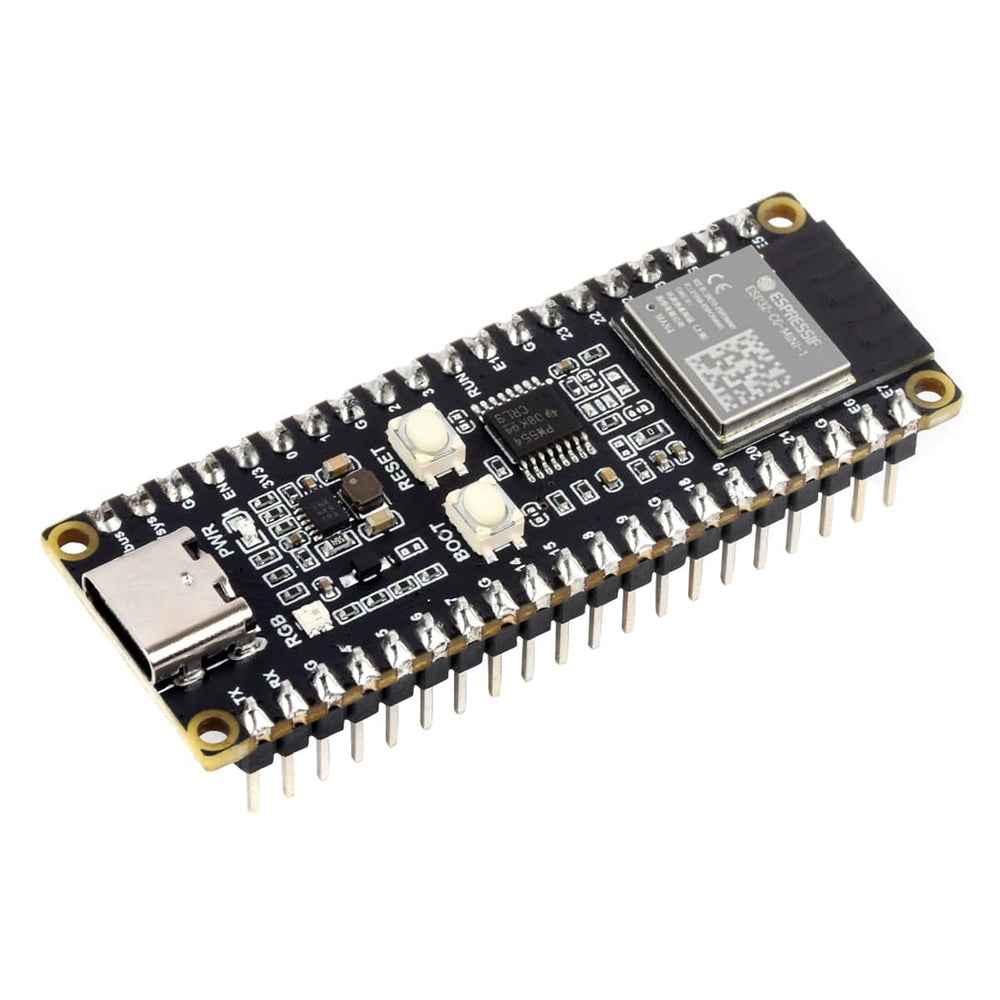

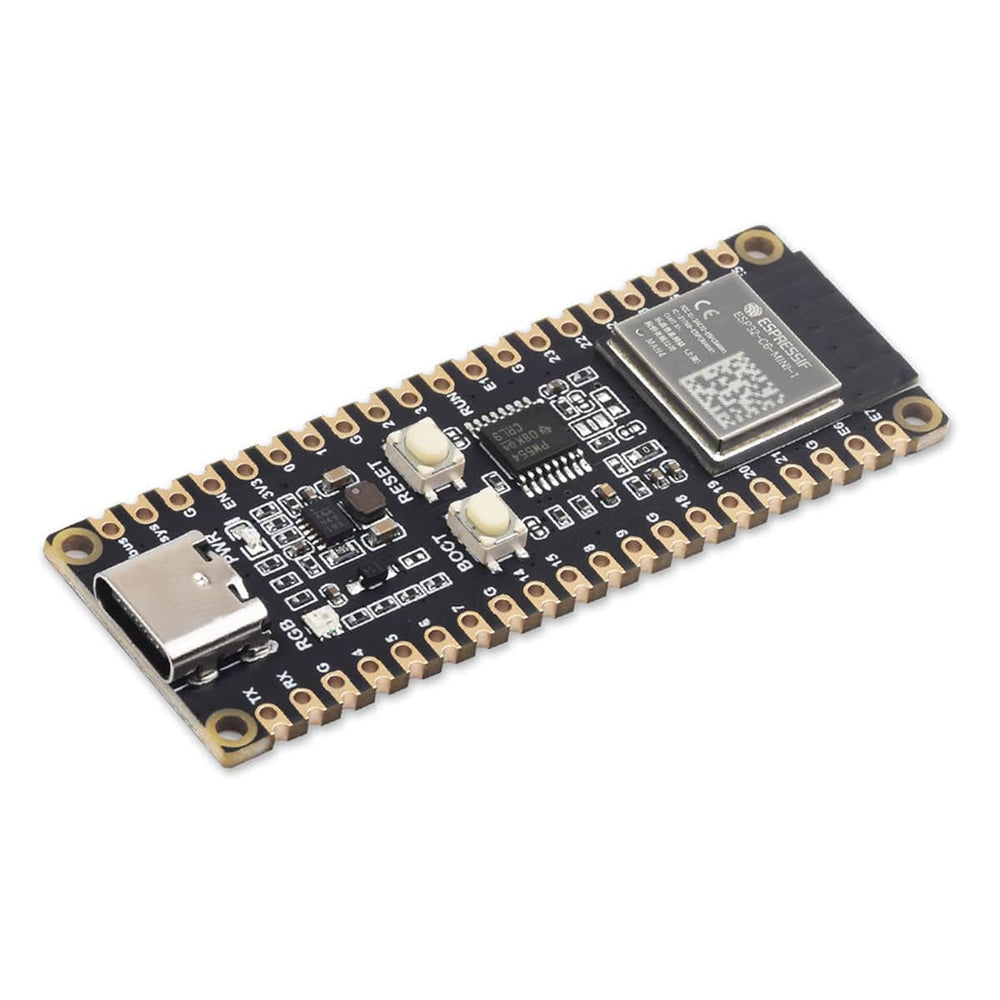

What's on Board

1. ESP32-C6-MINI-1
   RISC-V 32-bit single-core processor
2. BOOT button
   Press it when resetting to enter download mode
3. RESET button
4. TCA9554PWR
   GPIO expander, extending 7x IO pins such as E1-E7
5. MP28164
   High-efficiency DC-DC buck-boost chip
6. RGB LED
7. Power indicator
8. USB Type-C port
   For program downloading and serial debugging

Resources

• Product Wiki
• Schematic
• Datasheet

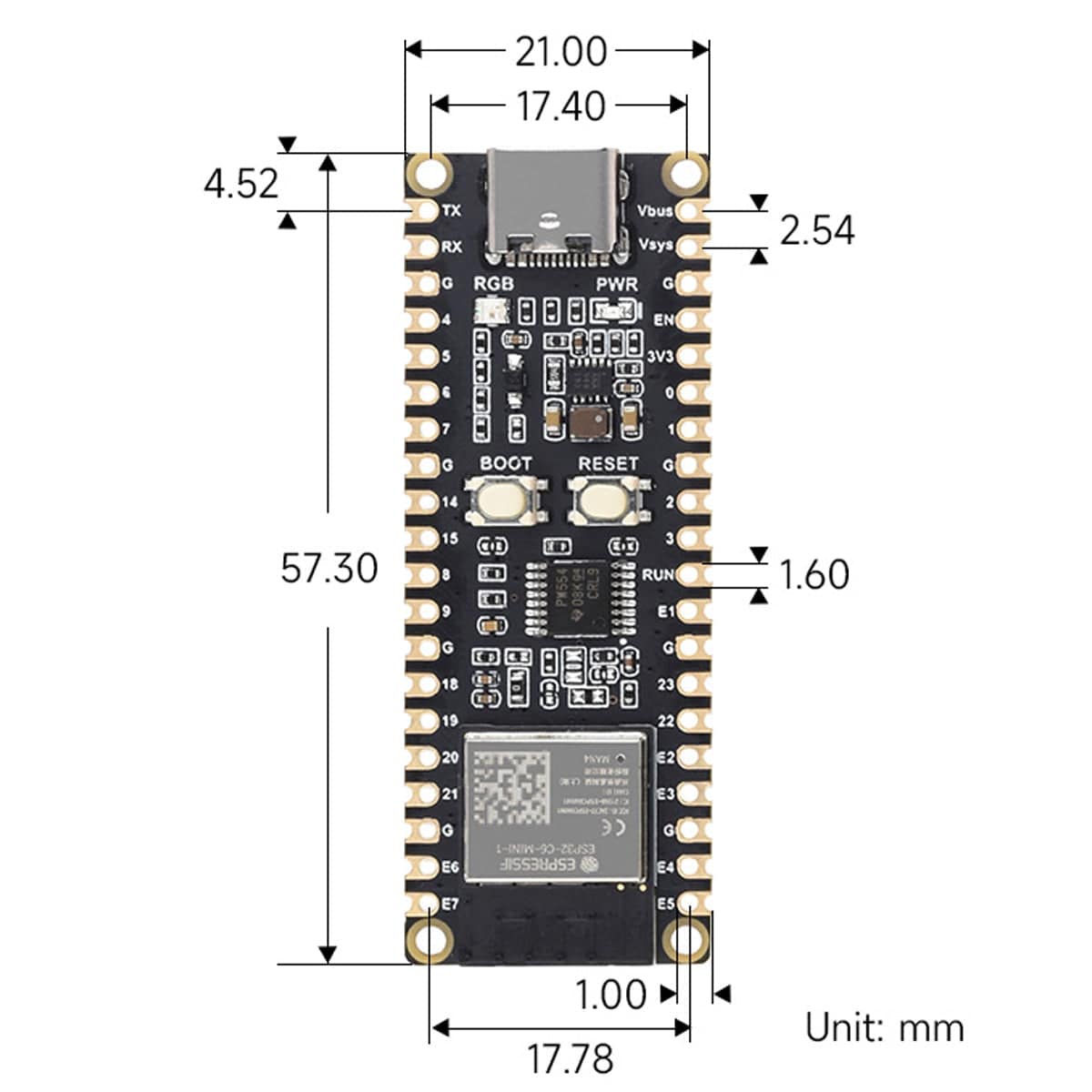

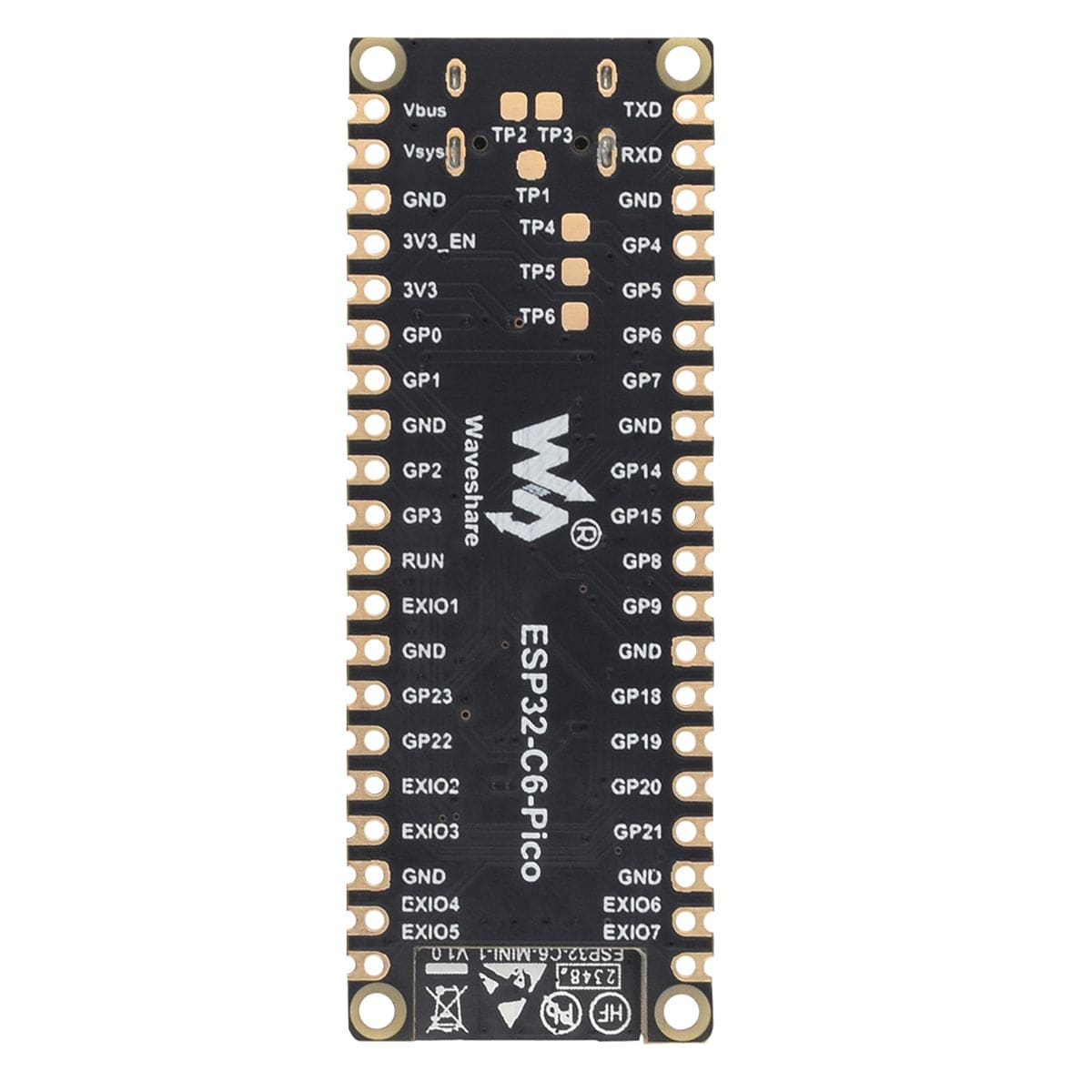

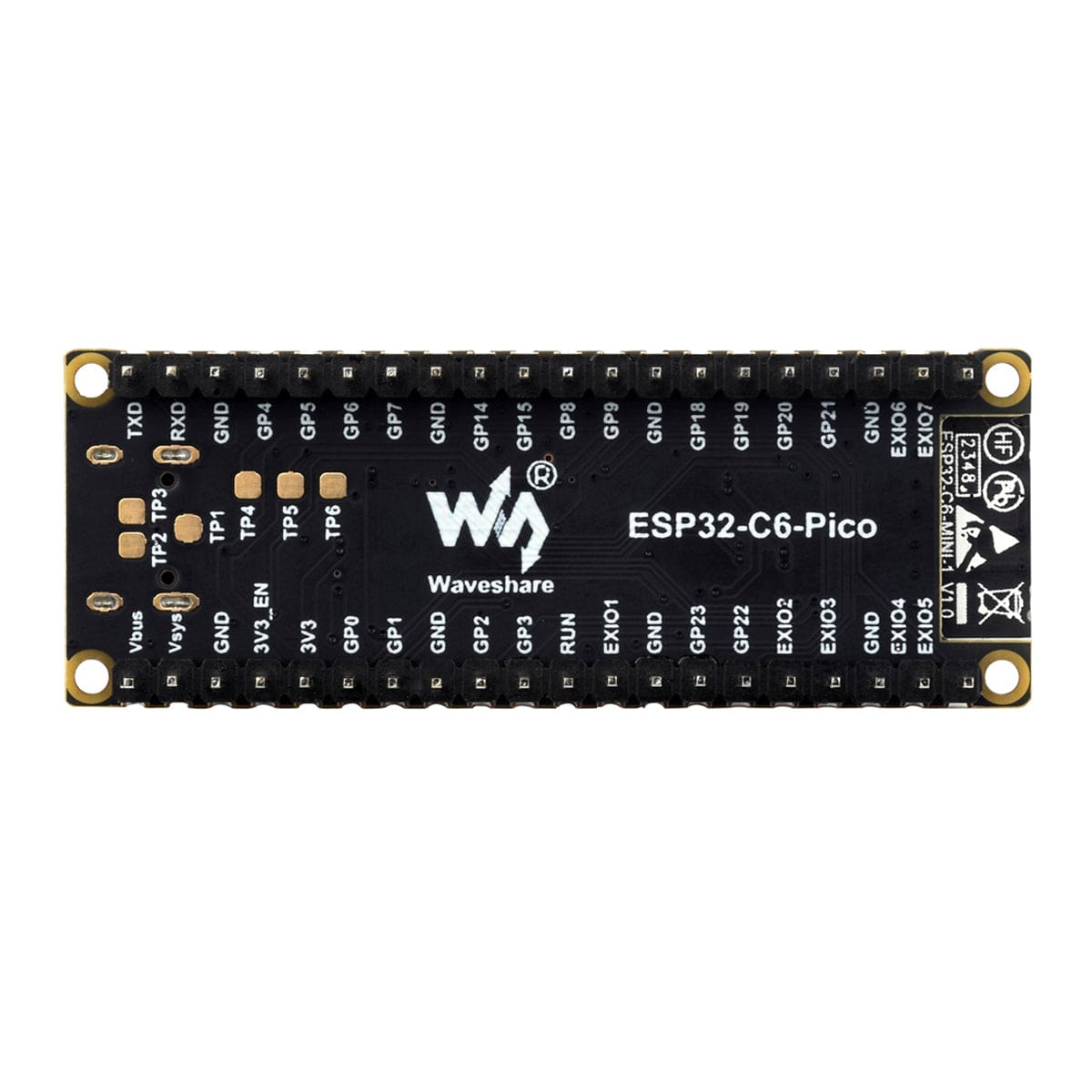

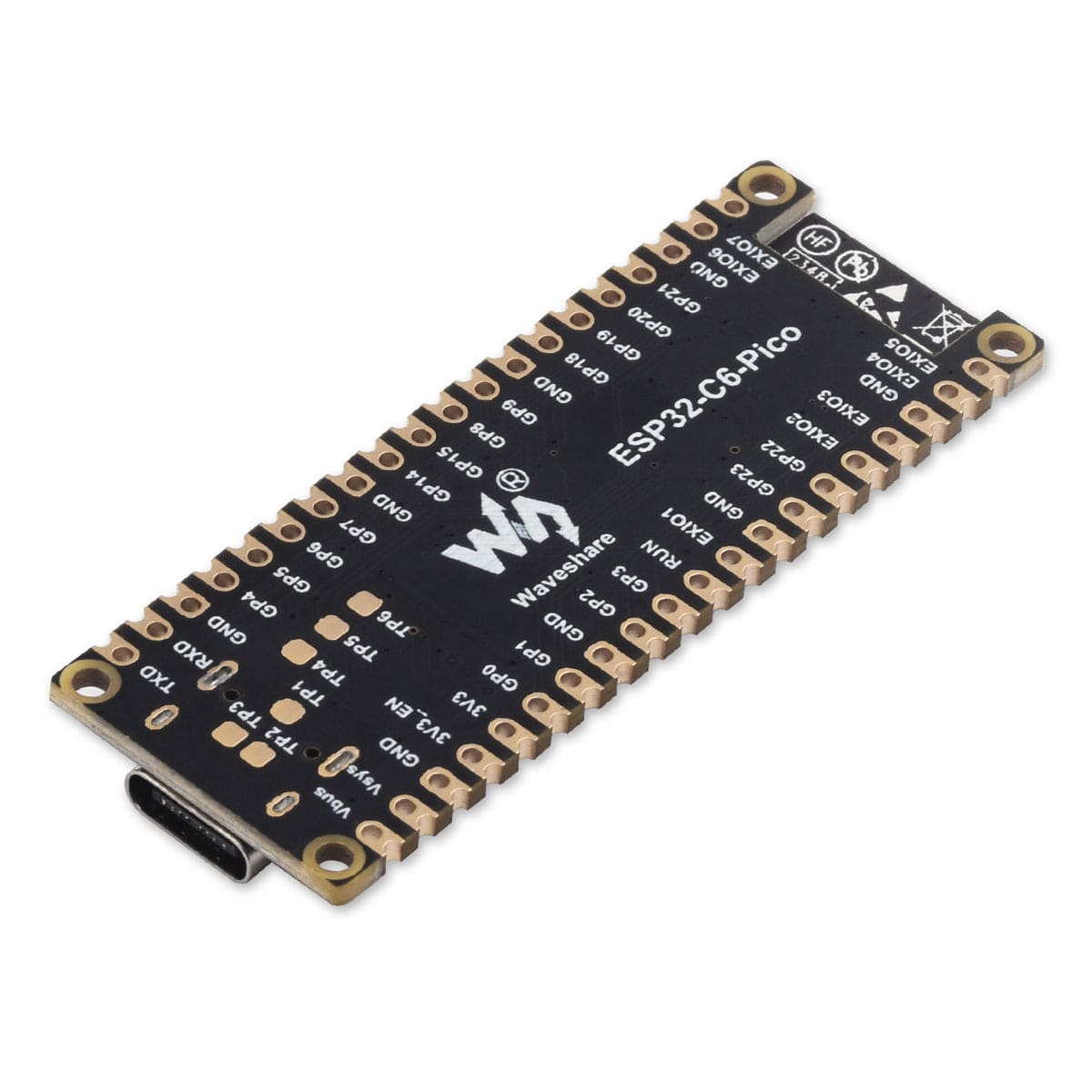

Pinout

Package Contents

• 1x ESP32-C6 Microcontroller

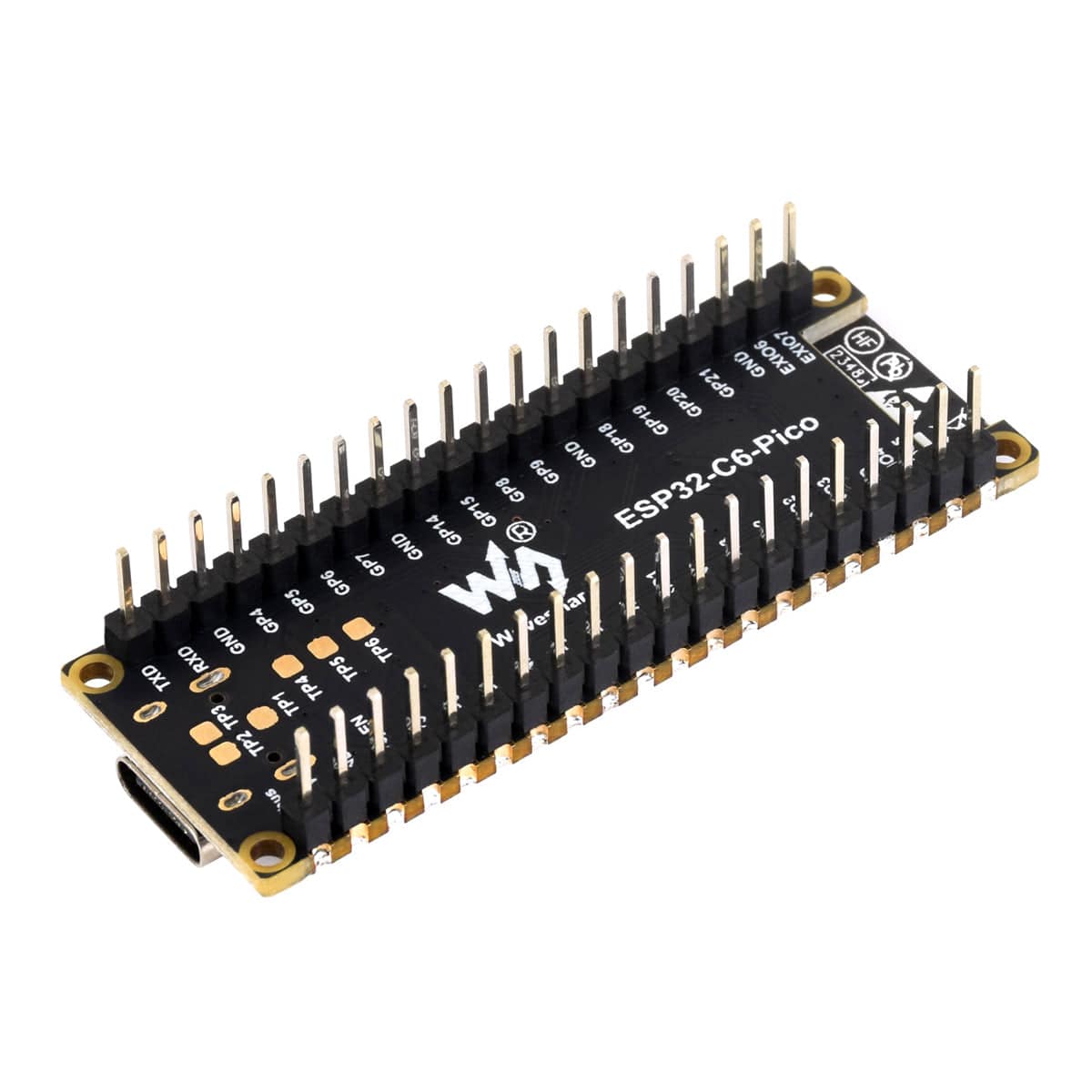

• 1x 40-pin male pin header (Black)
