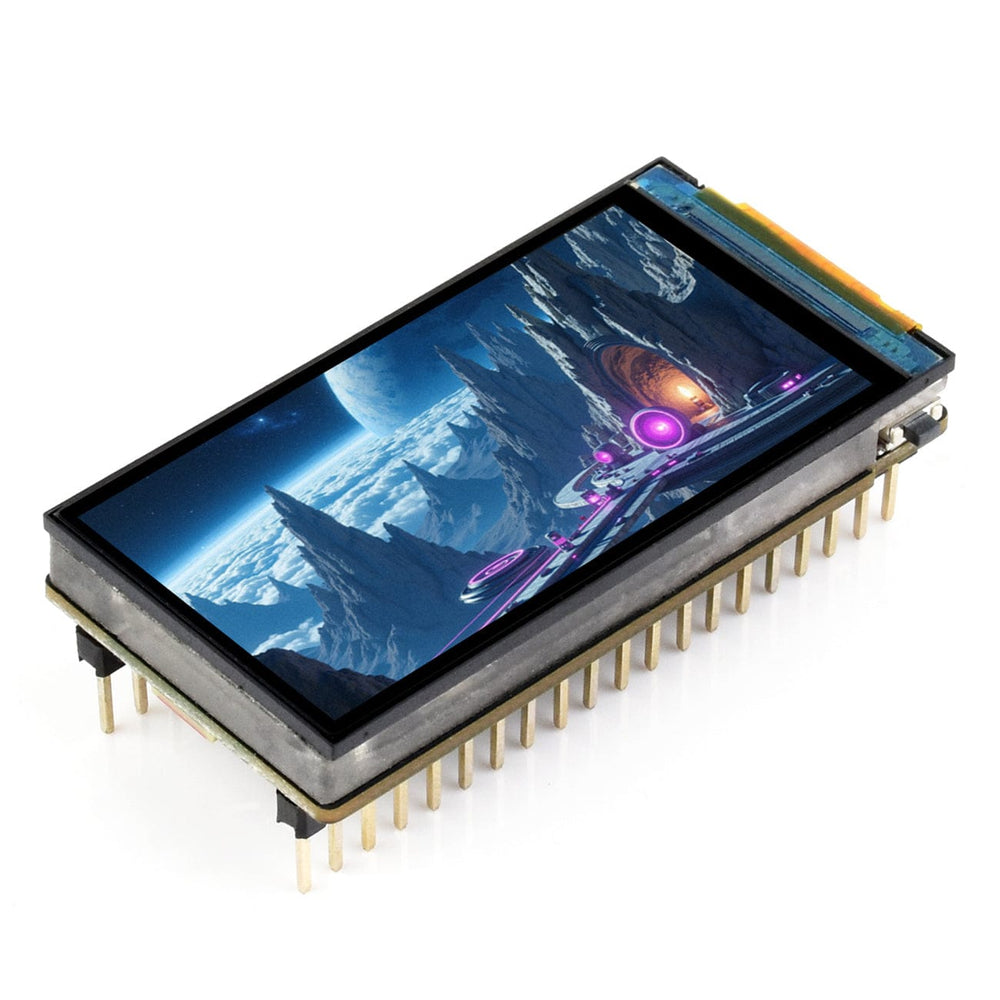

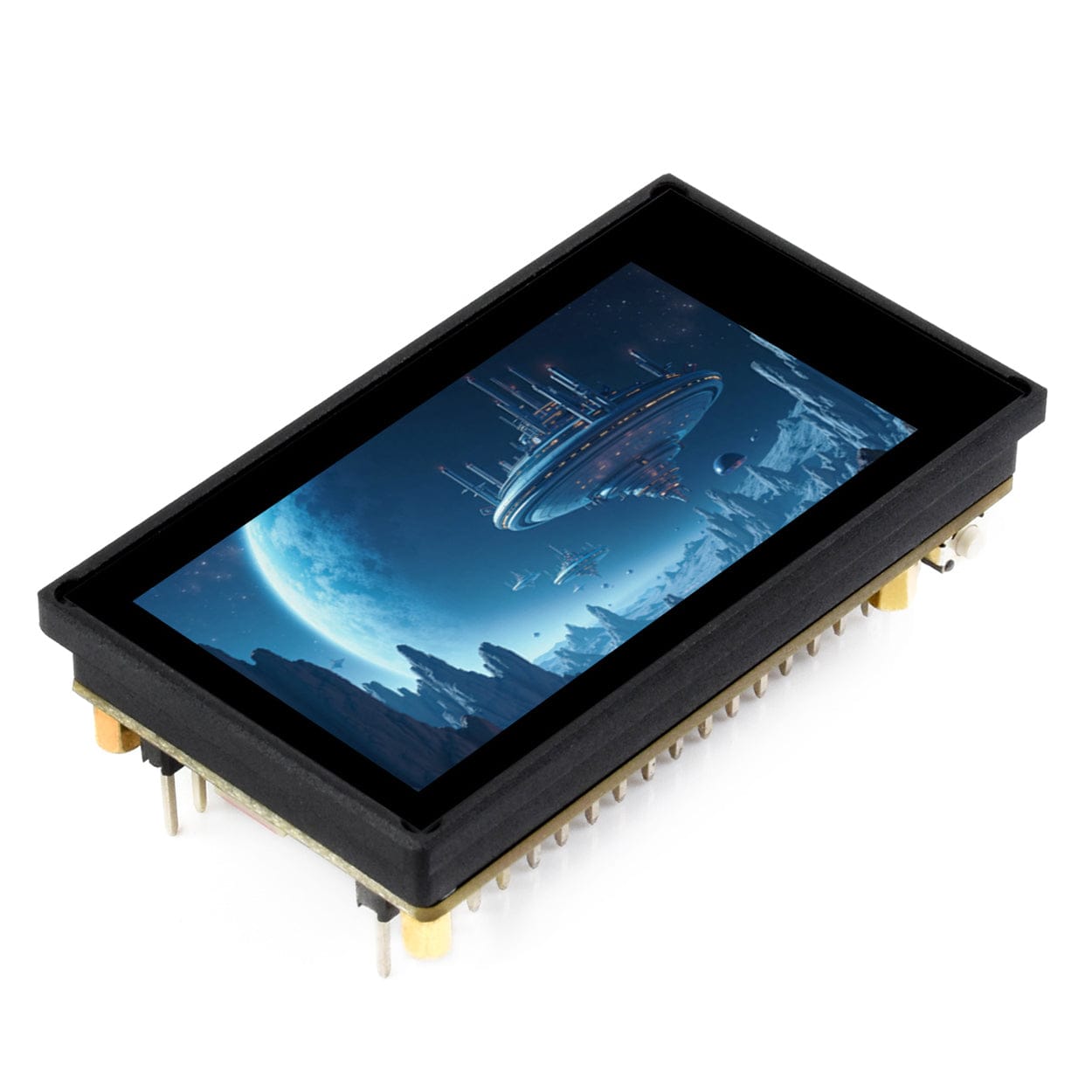

ESP32-C6 1.9" Display Dev Board with IMU

This compact ESP32-C6 development board includes a 6-axis IMU and 1.9" LCD display - with a variant option including touch control - and has a pinout compatible with the Raspberry Pi Pico, allowing the use of Pico HATs and other Pico-intended hardware!

The powerful ESP32-C6 provides 2.4GHz Wi-Fi 6, Bluetooth 5 LE and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication via an onboard ceramic antenna, and comes with 512KB HP SRAM, 16KB LP SRAM, and 320KB ROM, supported by 8MB FLASH. The board is powered and programmed by USB-C.

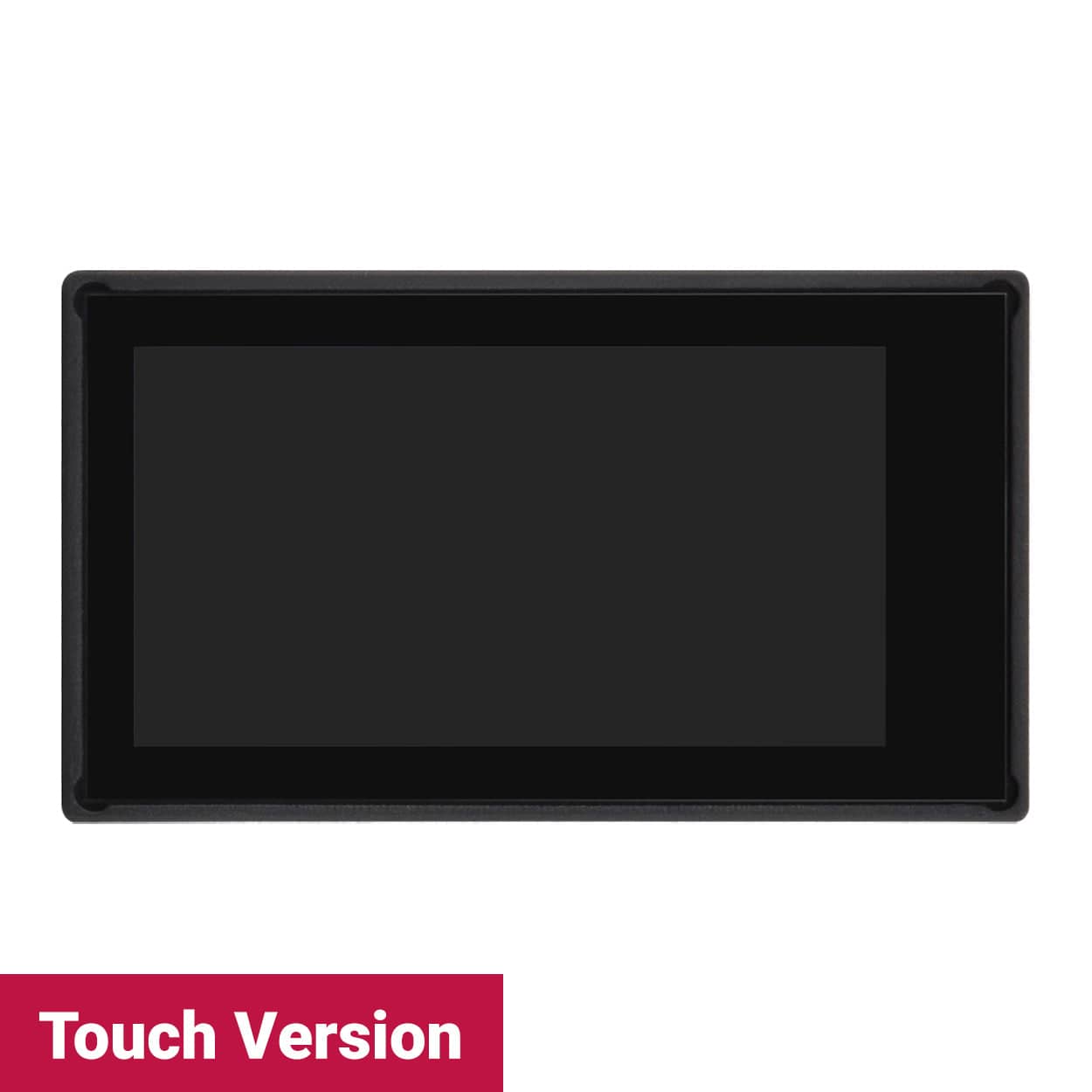

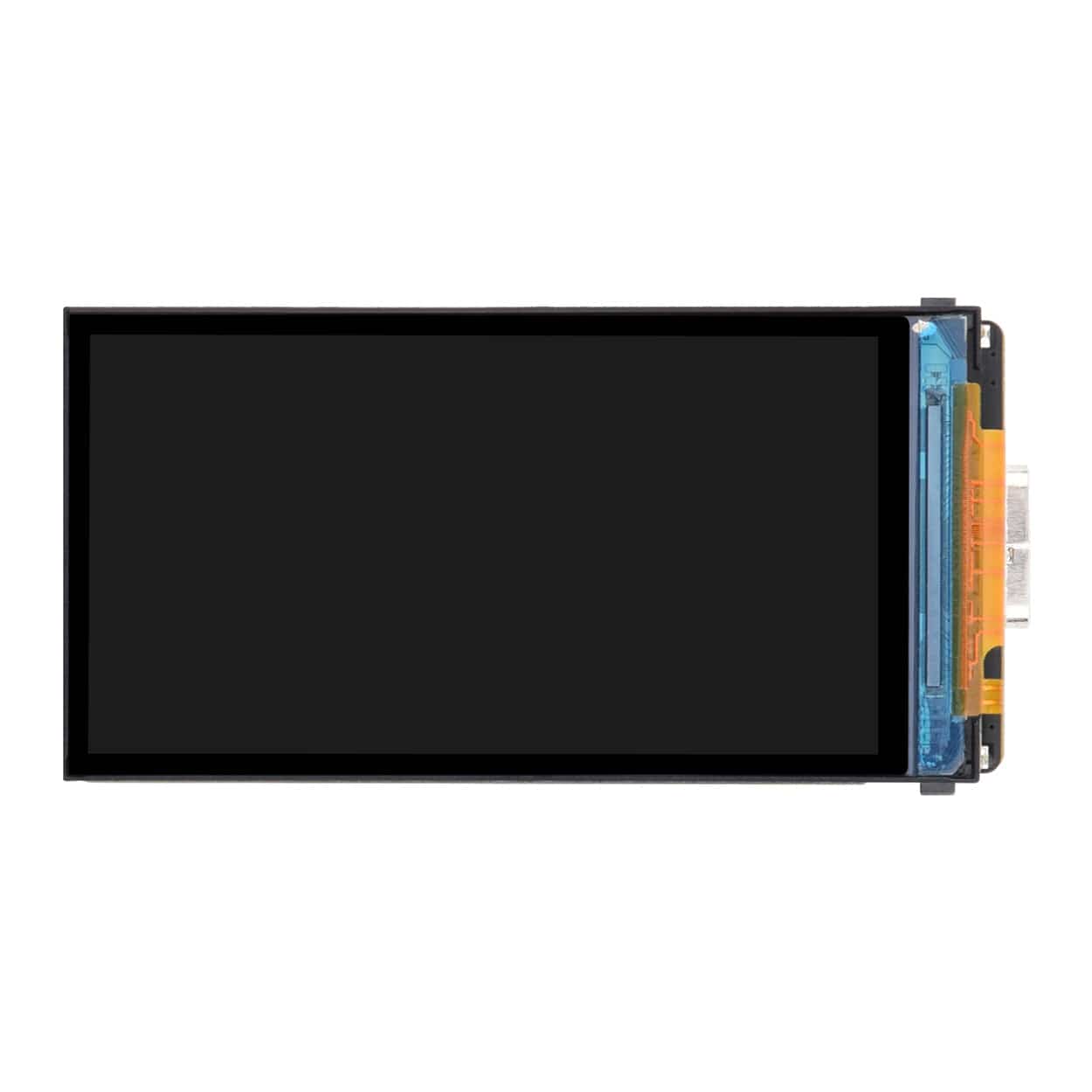

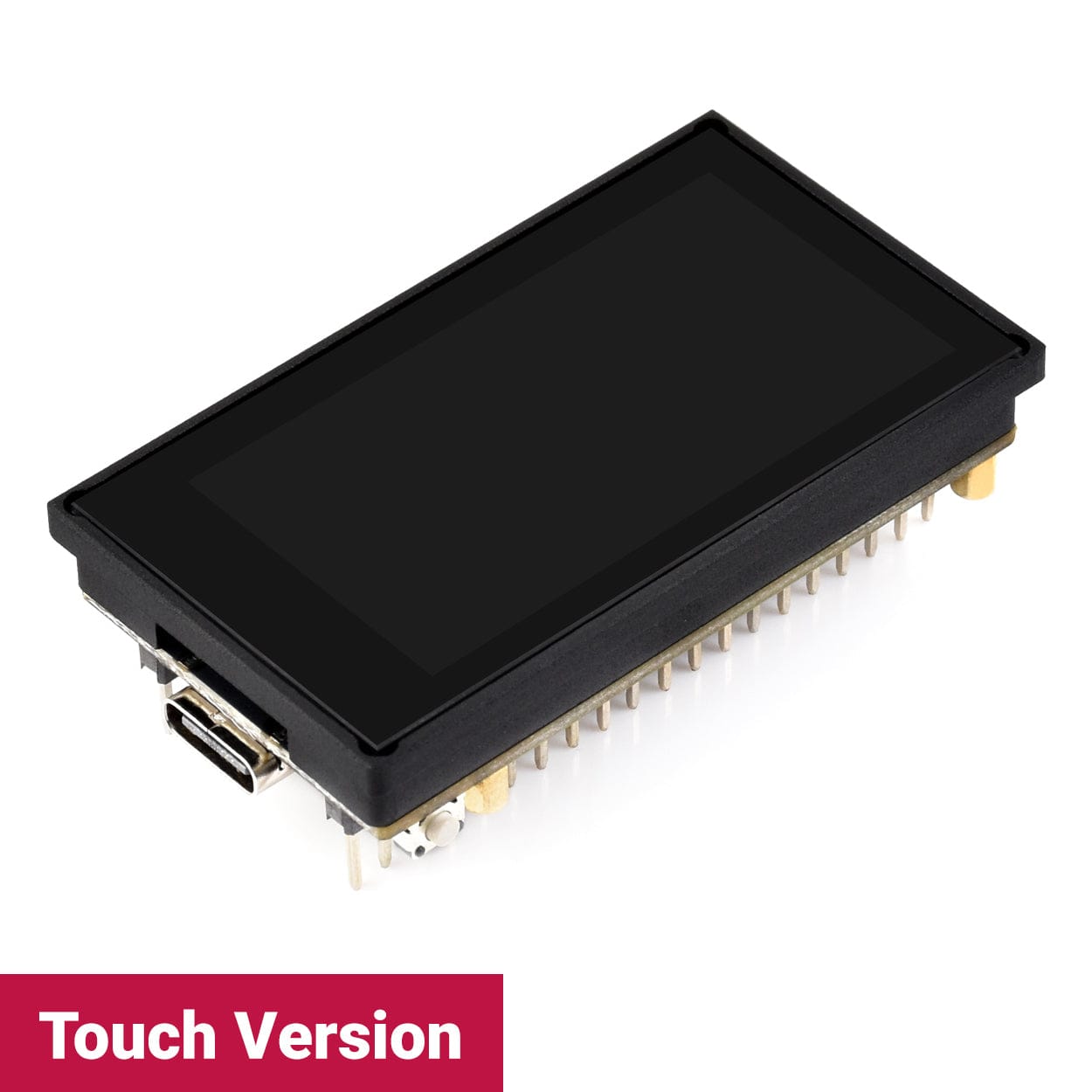

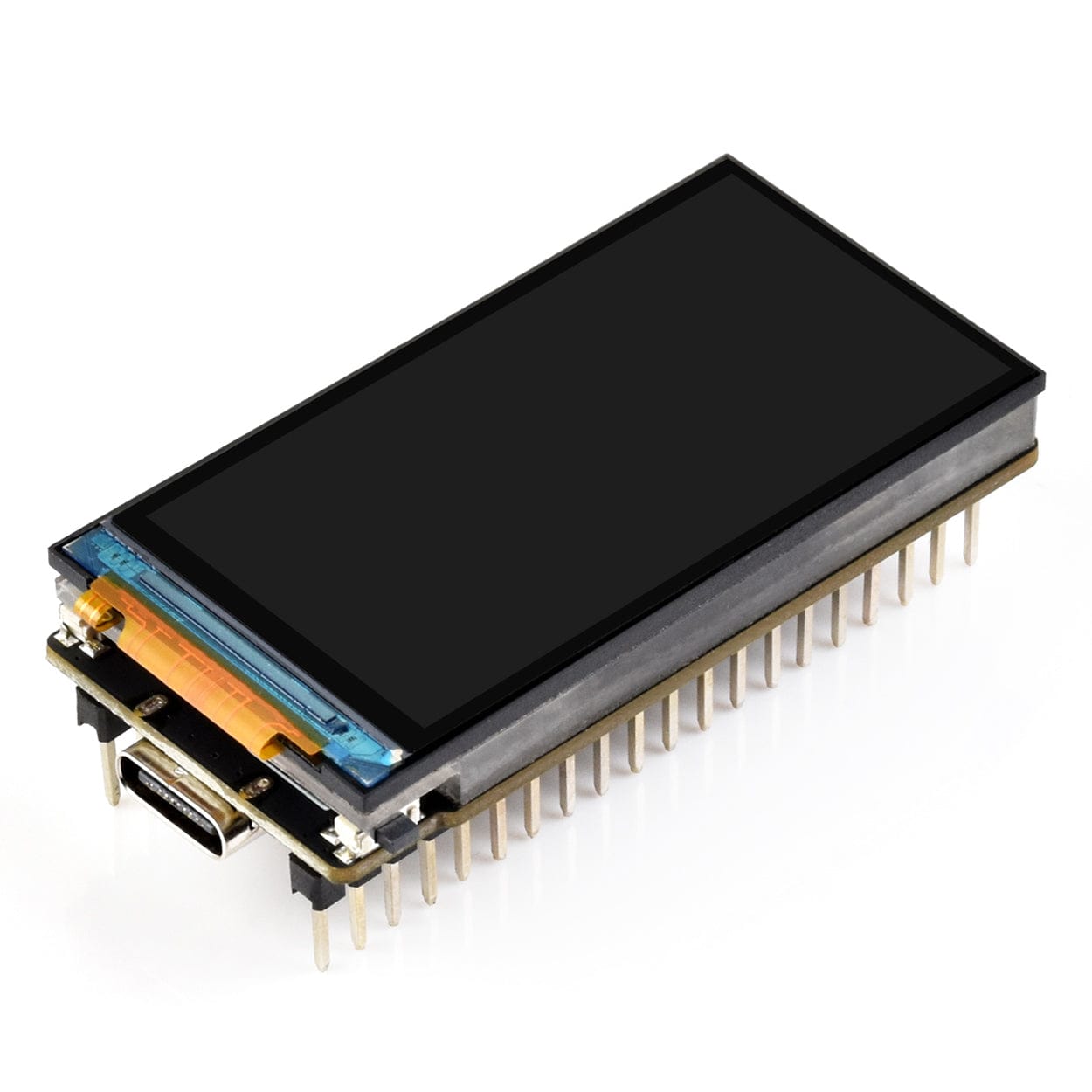

The display is a small 1.9" panel with a 170x320 resolution, 160° viewing angles and 262k colours. A version with touch control is available, select the appropriate variant before adding to cart.

Other features include a QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, a microSD slot, connector for a MX1.25/PicoBlade-compatible lithium battery (with charging circuit) and the BOOT/RESET buttons.

The non-touch and touch versions have a couple of other differences too:

• The non-touch version includes a WS2812 RGB LED on the underside
• The touch version includes an IPEX1 connector for using an external antenna (resistor resoldering required to enable)
• The touch version includes touch input (but you knew that already!)

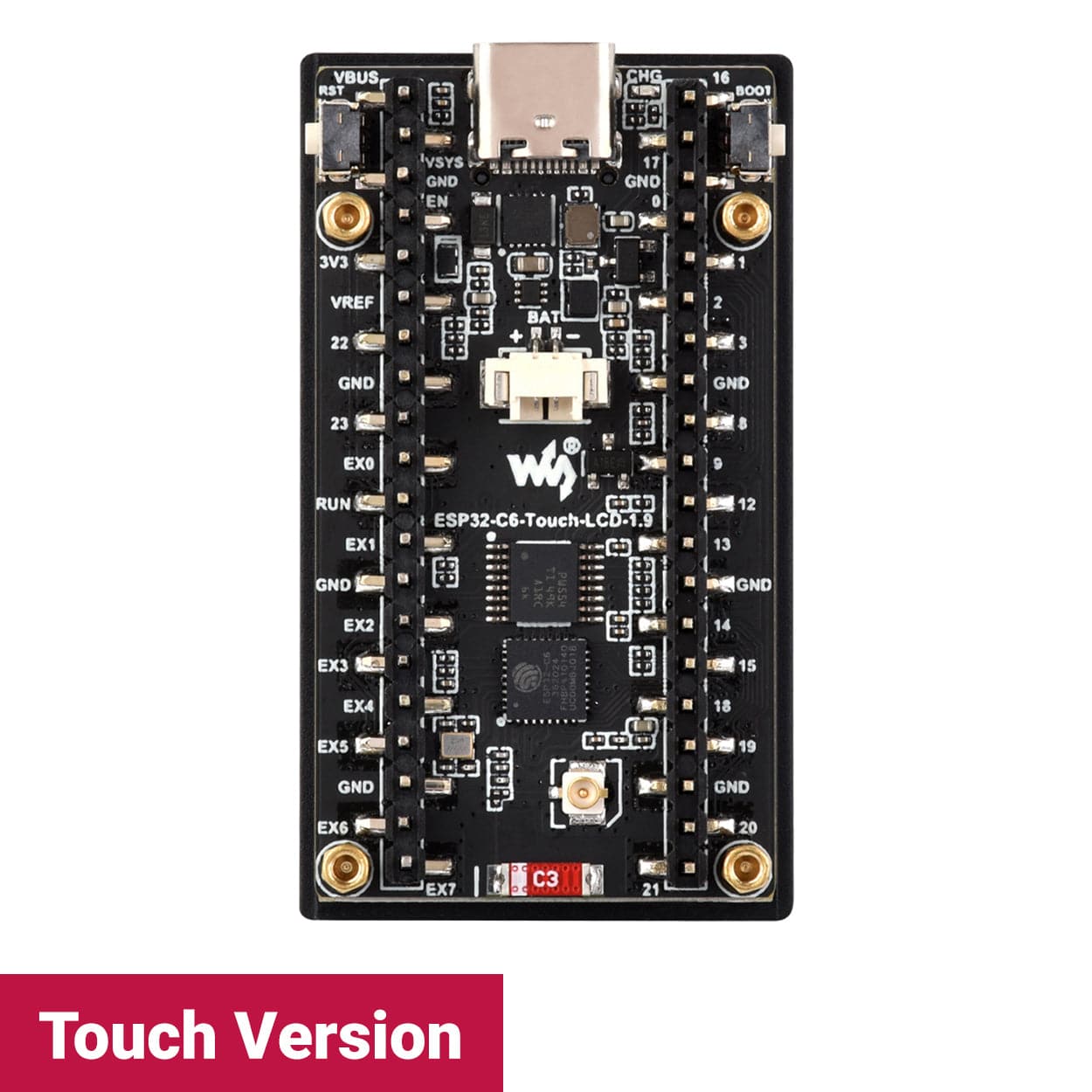

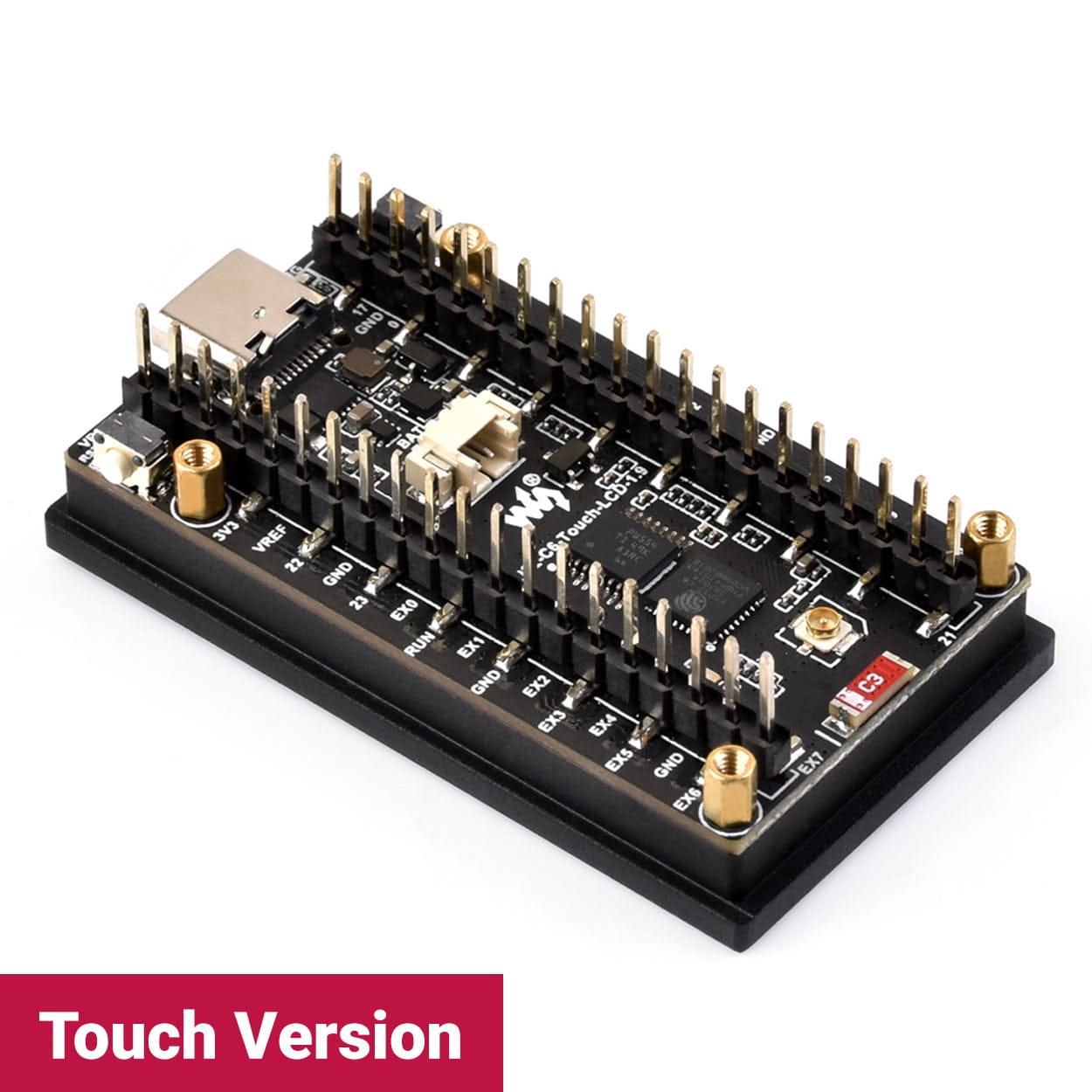

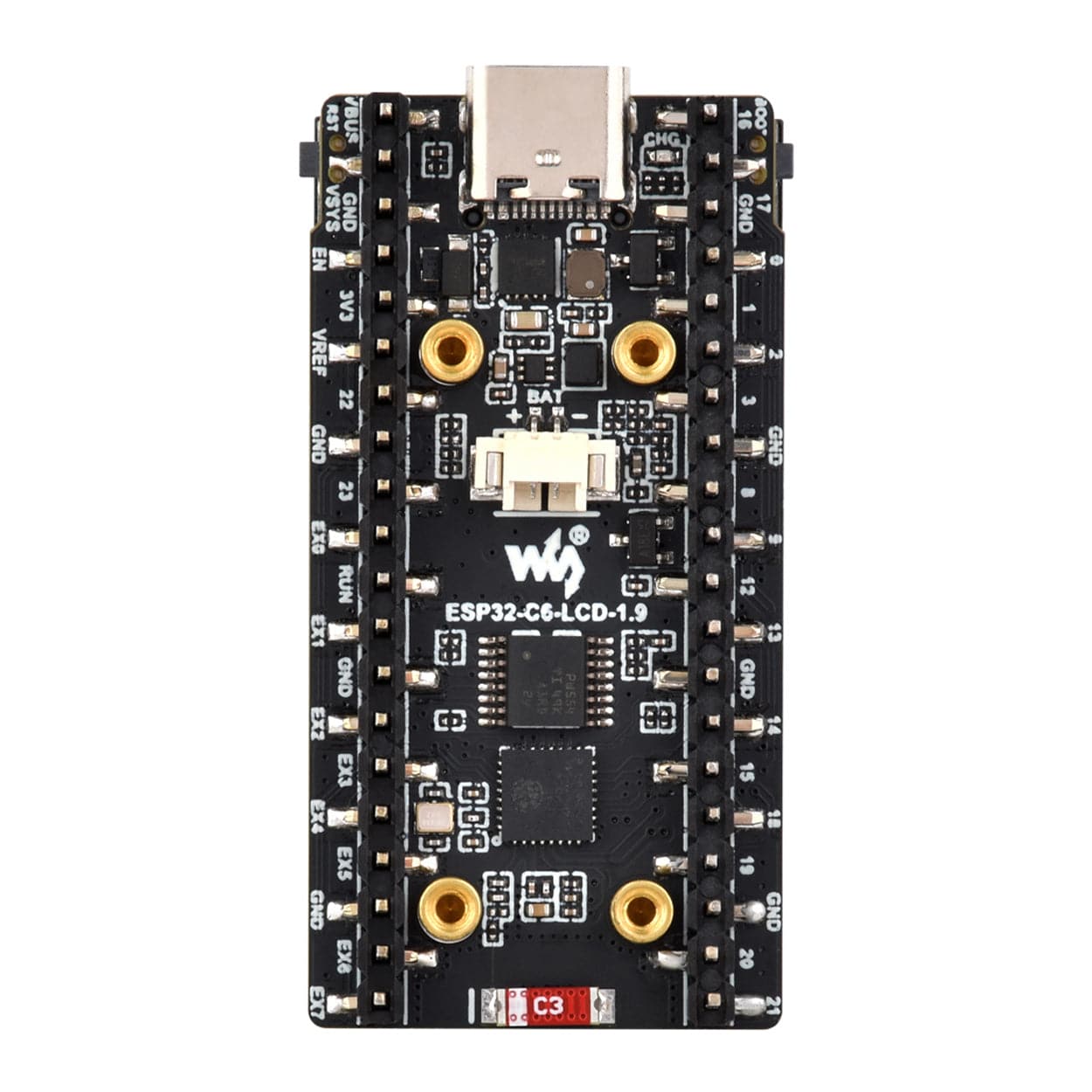

What's Onboard?

1. ESP32-C6FH8
   • Integrates 8MB Flash, up to 160MHz operating frequency
2. TCA9554
   • 8-channel GPIO expander chip, improves I/O flexibility
3. MX1.25 battery header
   • MX1.25 2-pin connector for a 3.7V lithium battery, supports charging and discharging
4. RESET button
5. USB-C port
   • For power input and data transfer
6. MicroSD card slot (rear-mounted)
   • Supports MicroSD cards for expanded storage
7. Charge indicator
   • Lights up while charging and turns off when fully charged
8. BOOT button
   • Used for firmware download or entering boot mode
9. WS2812 RGB LED (non-touch version only)
   • Provides coloured lighting effects on the rear of the PCB
10. QMI8658 sensor (rear-mounted)
    • 6-axis IMU with a 3-axis gyroscope and 3-axis accelerometer
11. IPEX1 connector (touch version only)
    • Allows use of an external antenna by re-soldering the onboard resistor
12. Onboard ceramic antenna
    • Space-saving design with stable wireless performance

Features

• ESP32-C6 development board with 32-bit RISC-V processor with clock speed up to 160 MHz
• WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication
• 512KB HP SRAM, 16KB LP SRAM, 320KB ROM, 8MB Flash
• 1.9" LCD display, 170 × 320 resolution, 262K colours, 160° viewing angles
• Touch-enabled variant available (select version before purchase)
• QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
• Raspberry Pi Pico–compatible pinout for use with Pico HATs and accessories
• USB-C for power, programming, and debugging
• MicroSD card slot for external storage
• MX1.25 / PicoBlade-compatible LiPo battery connector with charging circuit
• BOOT and RESET buttons
• Non-touch version includes an onboard WS2812 RGB LED
• Touch version adds capacitive touch input and an IPEX1 connector for an external antenna (resoldering required)

Specifications

Resources

• Product Wiki
• Schematic
  • Non-touch
  • Touch

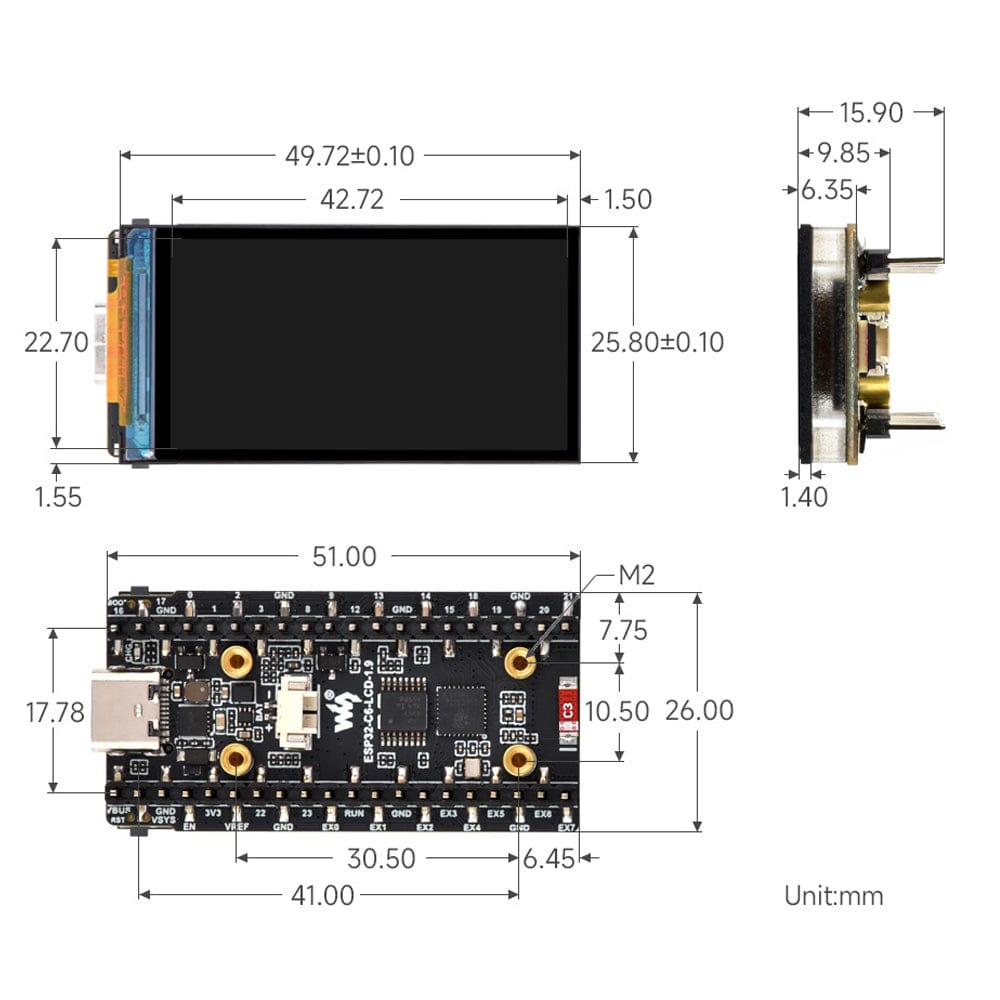

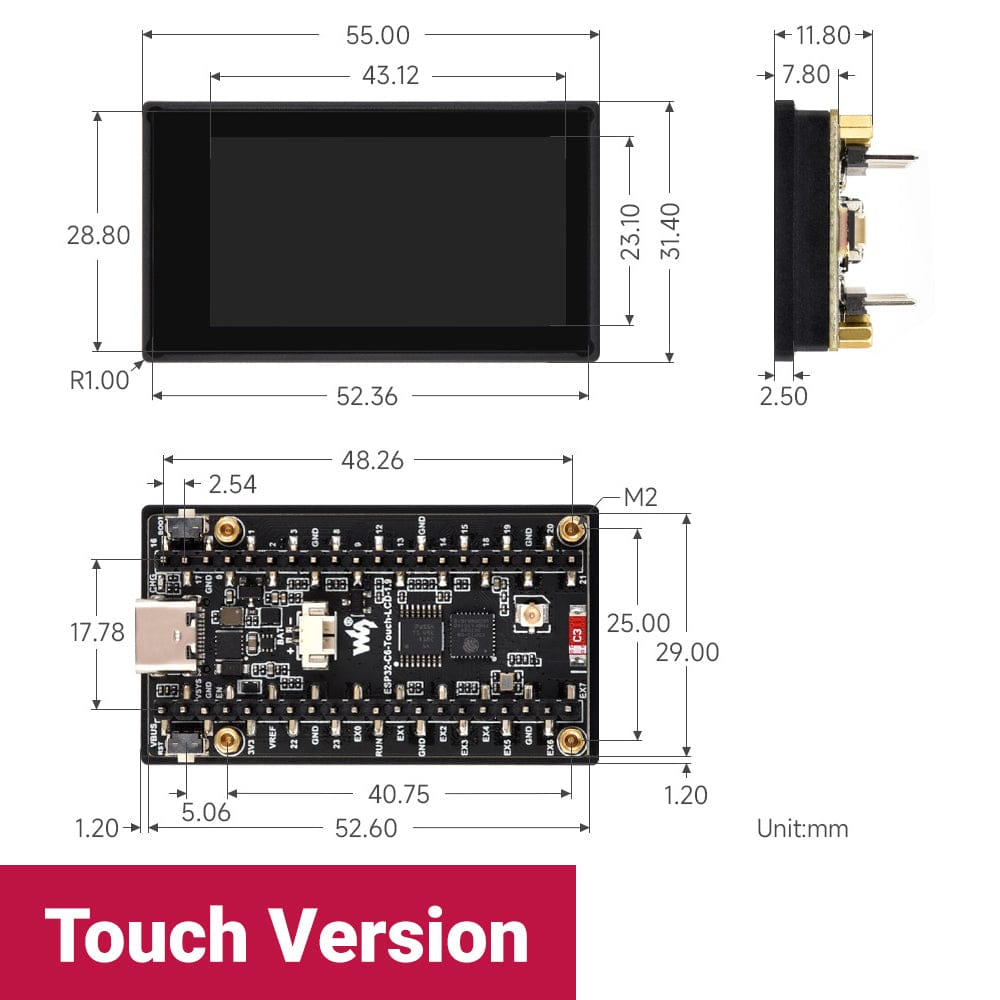

• Dimensions
  • Non-touch
  • Touch
• ESP32-C6 Series Datasheet
• ST7789 Datasheet
• QMI8658 Datasheet
• CST816 Datasheet

Pinout

Package Contents

• 1x ESP32-C6 1.9" Display Dev Board (170x320)
  • Select non-touch or touch when adding to cart
