M5Stack Byte Button Unit with 8x Buttons (STM32G031)

Name: M5Stack Byte Button Unit with 8x Buttons (STM32G031)
Brand: M5Stack
SKU: U192
Price: 7.20 GBP
Availability: OutOfStock

M5StackSKU: U192

£7.20

incl. VAT

excl. VAT

Coming Soon

Awesome Extras

M5Stack CoreS3 ESP32S3 loT Development Kit - The Pi Hut

M5Stack M5Stack CoreS3 ESP32S3

£57.90 incl. VAT excl. VAT

ATOM Matrix ESP32 Development Kit - The Pi Hut

M5Stack M5Stack ATOM Matrix ESP32 Development Kit

£15 incl. VAT excl. VAT

ATOM Lite ESP32 Development Kit - The Pi Hut

M5Stack M5Stack ATOM Lite ESP32 Development Kit

£9 incl. VAT excl. VAT

M5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm - The Pi Hut

M5Stack M5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm

From £2 incl. VAT excl. VAT

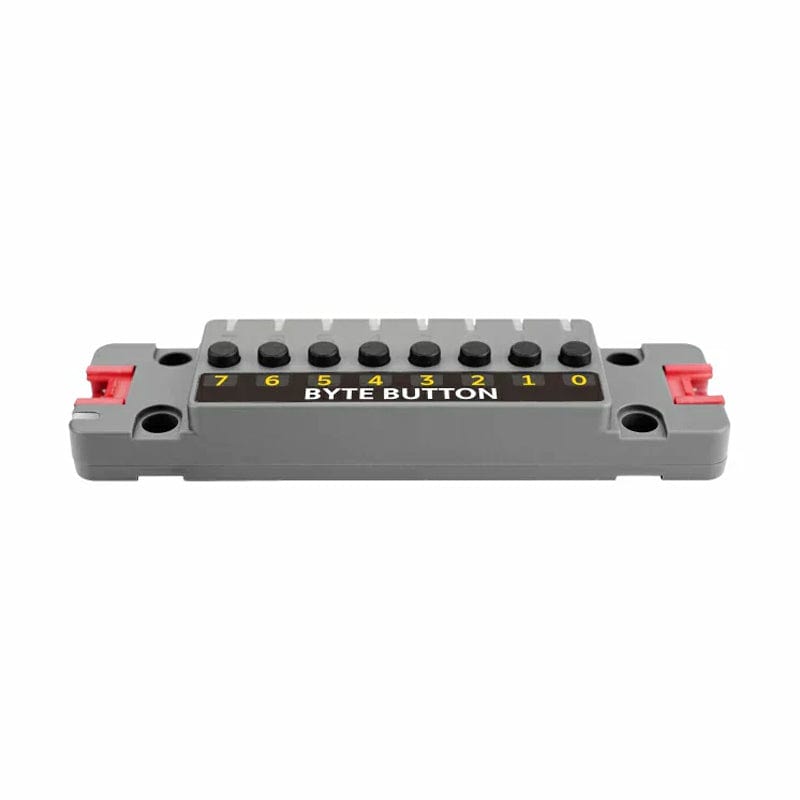

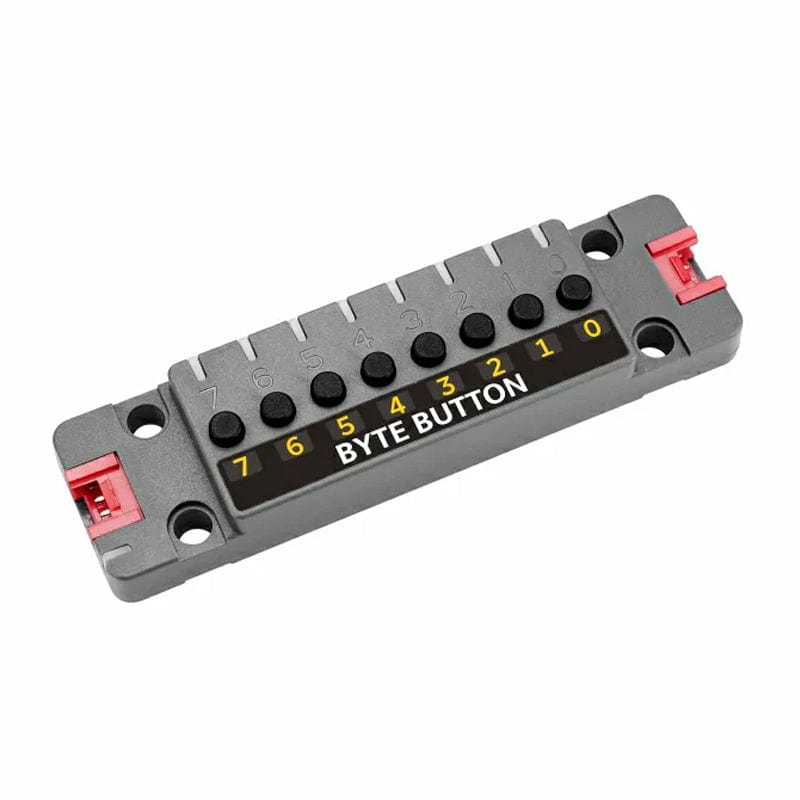

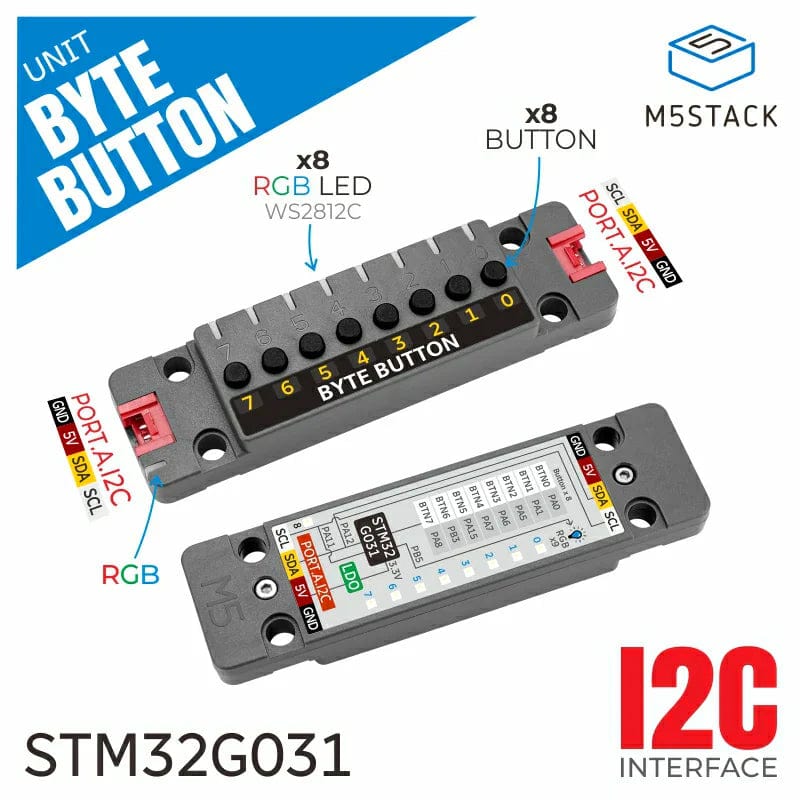

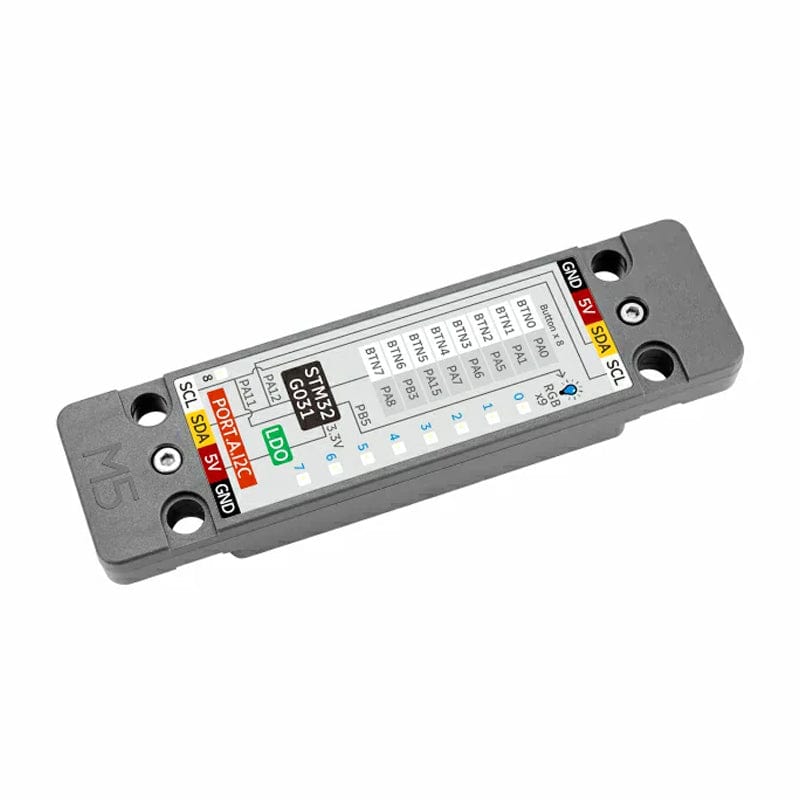

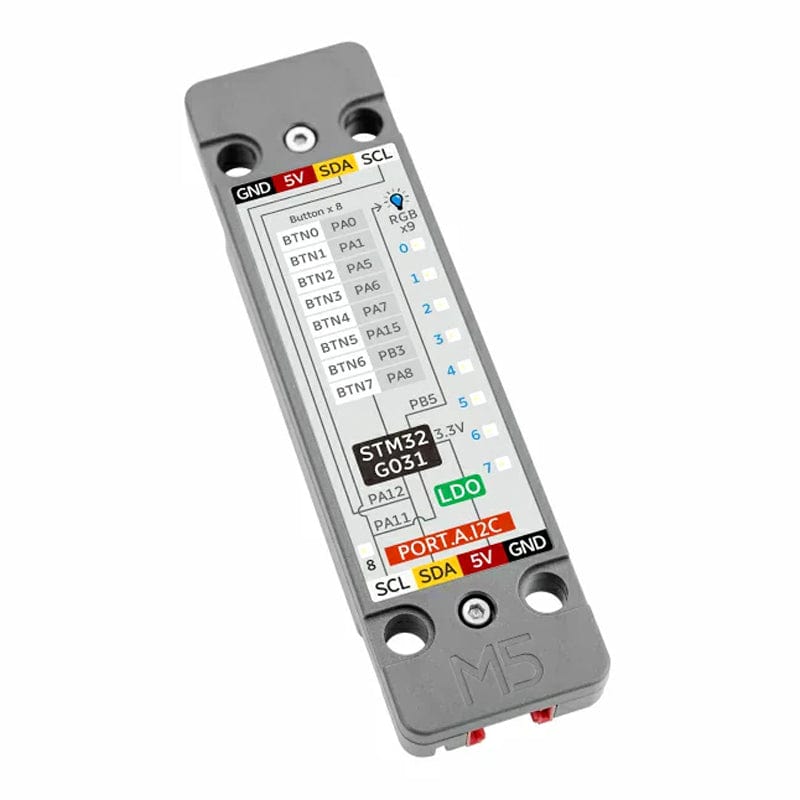

This ByteButton Unit is an 8-button touch input module with (you guessed it) 8 touch buttons and 9 colourful WS2812C RGB LEDs. It uses the STM32 microcontroller and communicates via I2C, letting you use this with a variety of different systems.

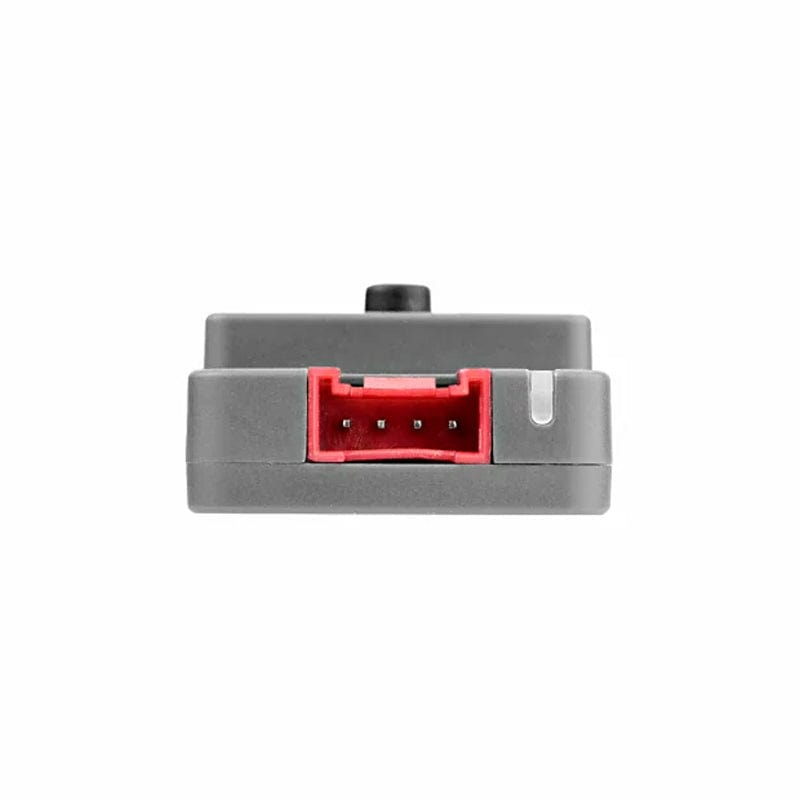

The module includes two Port A connectors, allowing you to put multiple ByteButton Units together to create larger, more tricky setups. It has both button input detection and lighting feedback, making it great for projects such as smart home control, status displays and many more!

Features

8 Independent button inputs
9 WS2812C RGB LEDs
STM32 microcontroller
I2C communication interface

Specifications

MCU	STM32G031G8U6, 32-bit ARM Cortex-M0+ core, 64 MHz
Button Count	8 independent button inputs
Button Type	Capacitive touch buttons
RGB LEDs	WS2812C-2020 (9 LEDs)
Communication	I2C @ 0x47
Grove Interface	2 (I2C bus expansion)
Standby Power	DC 5V@8.94mA
Operating Temperature	0-40°C
Product Size	88 x 24 x 12mm
Package Size	169 x 119 x 13mm
Product Weight	15.1g
Package Weight	21.5g
