This binocular base board for the Raspberry Pi Compute Module 4 is perfect for evaluating the CM4 for stereo vision, depth vision, AI applications, robotics and more, with the onboard dual IMX219 8MP cameras with up to 3280x2464 resolution per camera.

The main base board includes a slot for your CM4 board and also offers a number of handy features such as a MicroSD slot, full-size HDMI slot (4K 30FPS), Gigabit Ethernet, USB-C (power/programming), USB 2.0 port and additional interface FFC connectors for the included Interface Expander board.

The included Interface Expander adds to this by giving the user another USB 2.0 port, another HDMI port, a 40-pin GPIO connector, M.2 M Key slot and more.

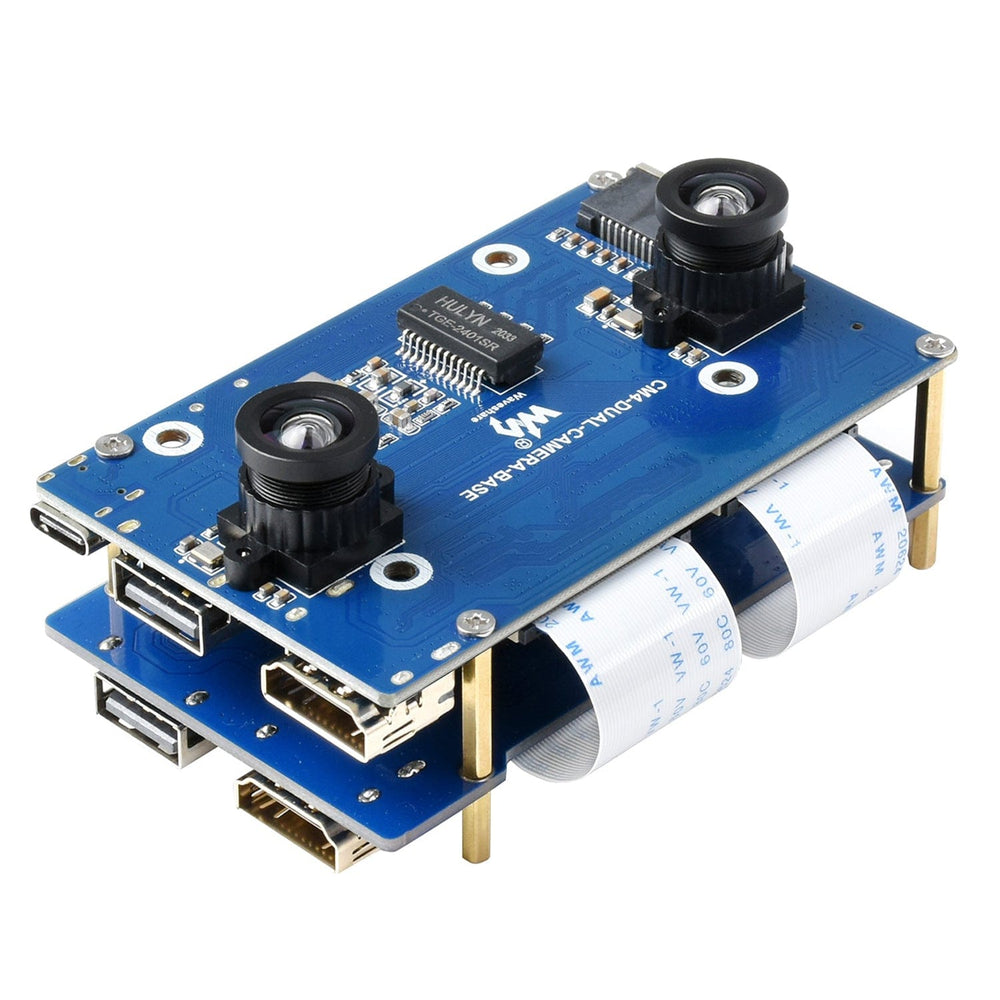

With the base and expander assembled together, there's still room for this CM4 heatsink to keep temperatures in check.

CM4 not included.

Camera Base Onboard Features

Interface Expander Onboard Features

What's Onboard

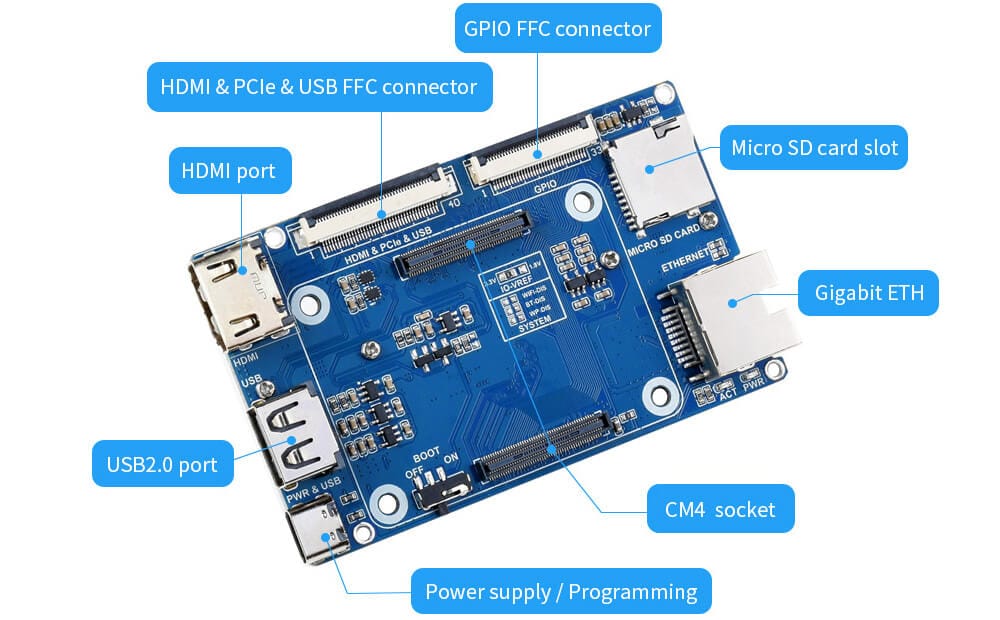

Dual Camera Base

  1. CM4 socket
    • Suitable for all variants of Compute Module 4
  2. HDMI connector
    • Supports 4K 30fps output
  3. USB 2.0 port
    • For connecting sorts of USB devices
  4. PWR & USB
    • USB-C connector, 5V DC power supply or USB programming port
  5. BOOT selection
    • ON: CM4 will be booted from USB-C interface
    • OFF: CM4 will be booted from eMMC or Micro SD card
  6. CM4 status indicator
    • PWR: Raspberry Pi power indicator
    • ACT: Raspberry Pi operating status indicator
  7. RJ45 Gigabit Ethernet
    • 10/100/1000M compatible
  8. Micro SD card slot
    • For connecting a Micro SD card with a pre-burnt image (Lite variant ONLY)
  9. GPIO FFC connector
    • For expanding 40PIN GPIO
  10. HDMI & PCIe & USB FFC connector
    • For expanding HDMI1, PCIe, USB

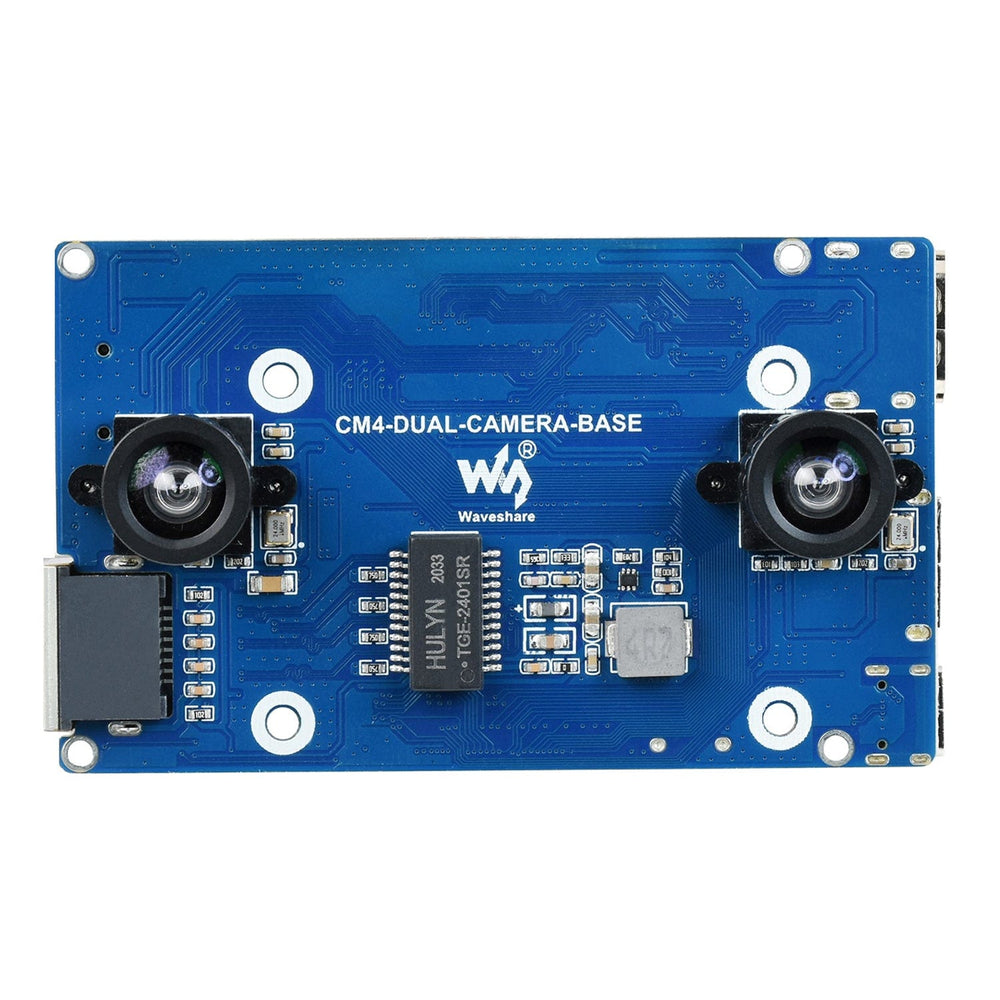

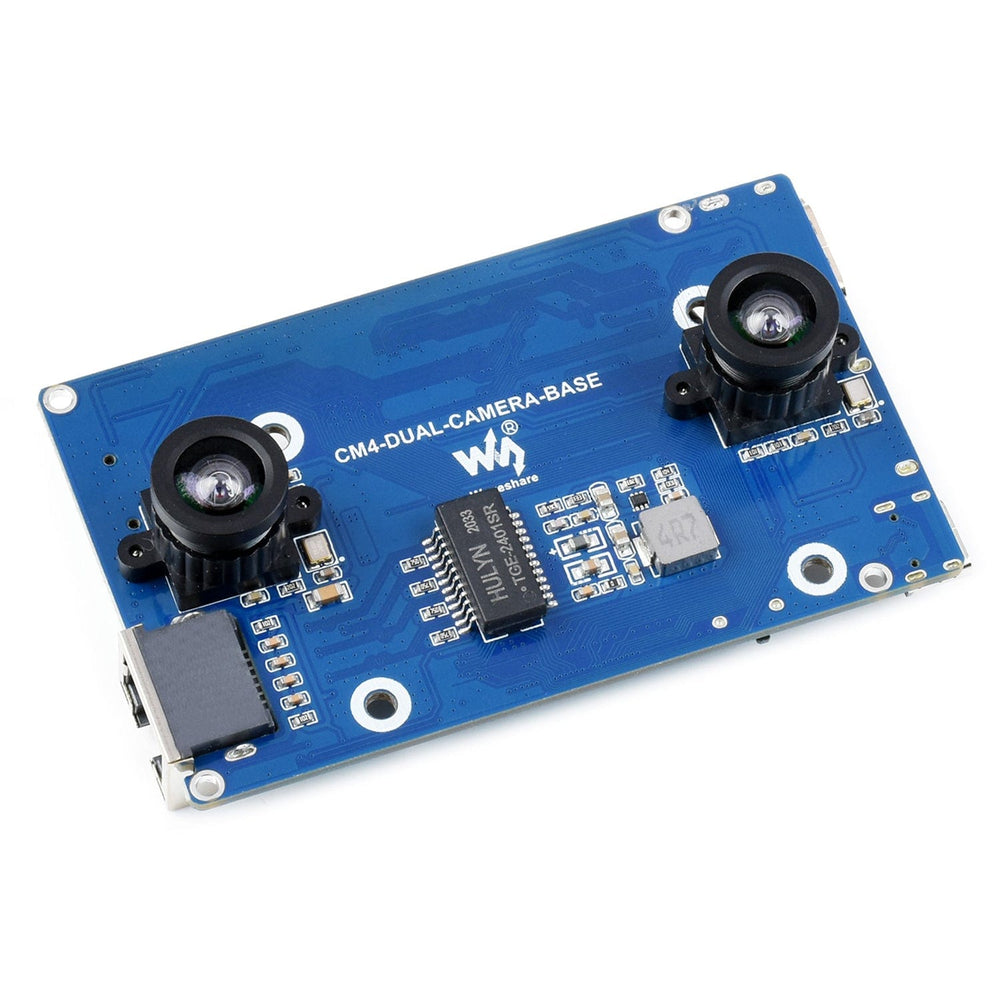

  11. Dual cameras
    • IMX219, 8MP

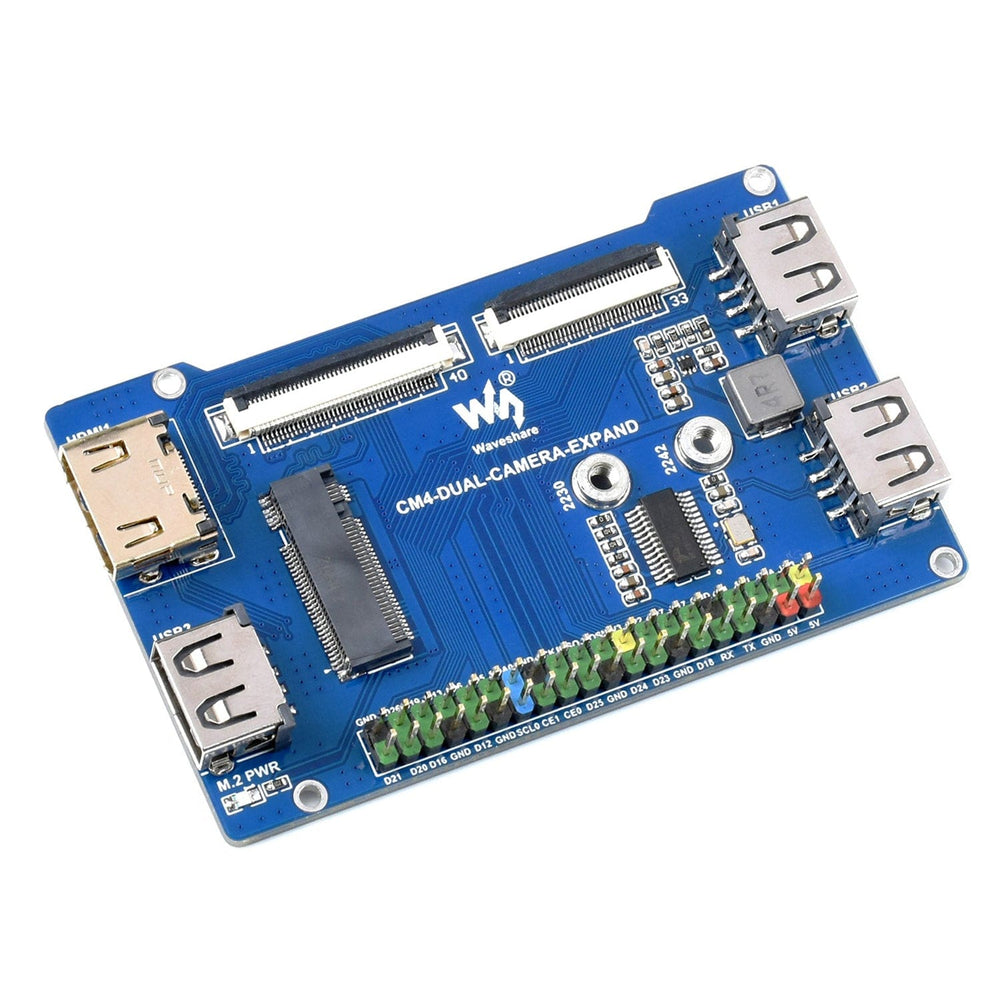

Interface Expander

  1. USB 2.0 port
    • For connecting USB devices
  2. HDMI1 connector
    • Supports 4K 30fps output
  3. HDMI & PCIe & USB FFC connector
    • For expanding HDMI1, PCIe, USB
  4. GPIO FFC connector
    • For expanding 40PIN GPIO
  5. 40-pin GPIO header
  6. M.2 M KEY
    • For NVME SSD, or communication module with PCIE M.2 M KEY interface
  7. M.2 indicator
    • Indicating the operating status of the interface

Specifications

Dual Camera Base

CM4 socket For all variants of CM4
Networking Gigabit Ethernet RJ45
USB USB 2.0 x1
FFC connector HDMI & PCIe & USB FFC
GPIO FFC
Dual camera pixels 8MP
sensor IMX219
resolution 3280 × 2464 (per channel)
CMOS size 1/4"
aperture F2.4
focal length 2.6mm
FOV 83/73/50 degree
(diagonal/horizontal/vertical)
distortion < 1%
baseline length 60mm
Video HDMI × 1, 4K 30FPS output
Storage MicroSD socket for CM4 Lite
Power input 5V/2.5A
Dimensions 85.0 × 51.5mm

Interface Expander

USB USB 2.0 x3
FFC connector HDMI & PCIe & USB FFC connector
GPIO FFC connector
Other connectors M.2 M KEY × 1
for  NVME SSD or communication module
Raspberry Pi 40-pin GPIO header
Video HDMI × 1, supports 4K 30fps output
Dimensions 85.0 × 51.5mm

Resources

Package Contents

  • 1x Dual camera base
  • 1x Interface expander
  • 1x Screws pack
  • 2x FFC cable

CM4, heatsinks and other parts not listed are not included
