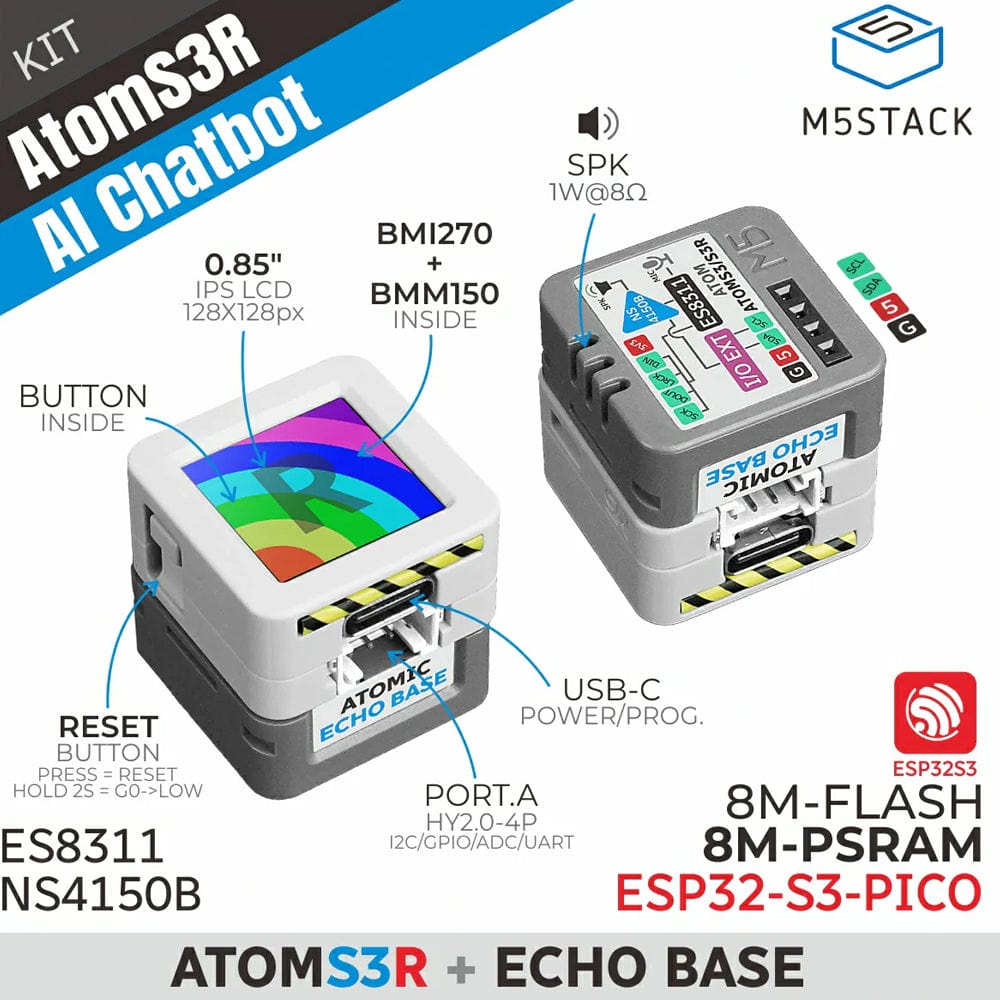

The AtomS3R-AI Chatbot kit combines an ESP32-S3 controller with 8MB Flash, 8MB PSRAM, 9-axis IMU, and an IR emitter, with a voice base featuring the ES8311 audio codec for high-quality audio. It supports multiple voice assistants for real-time interaction

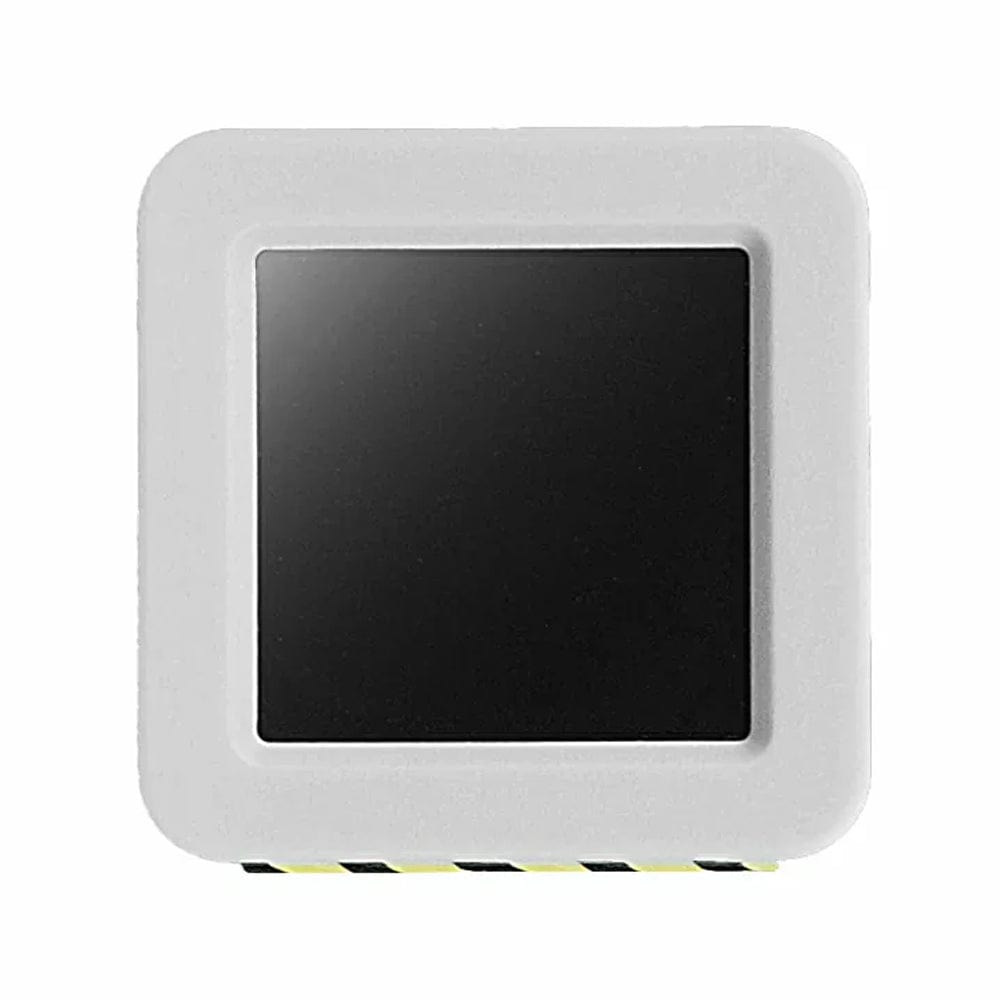

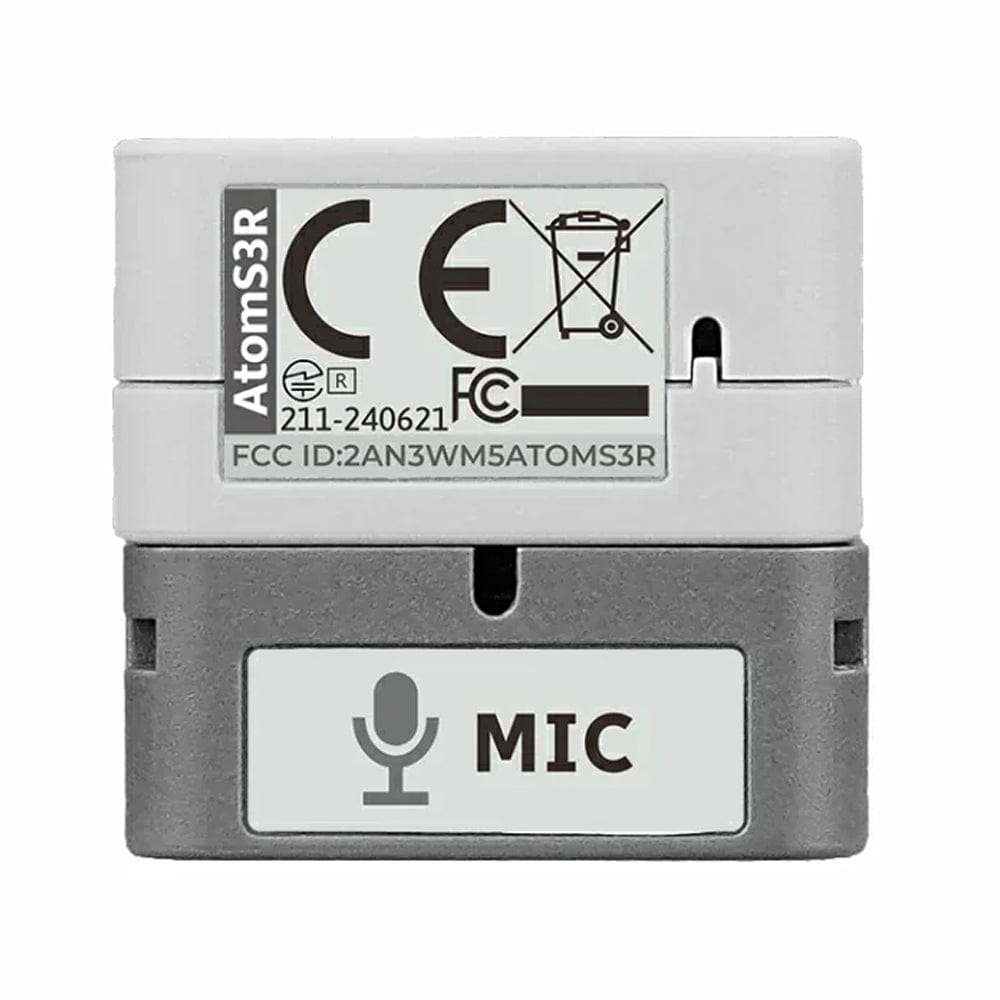

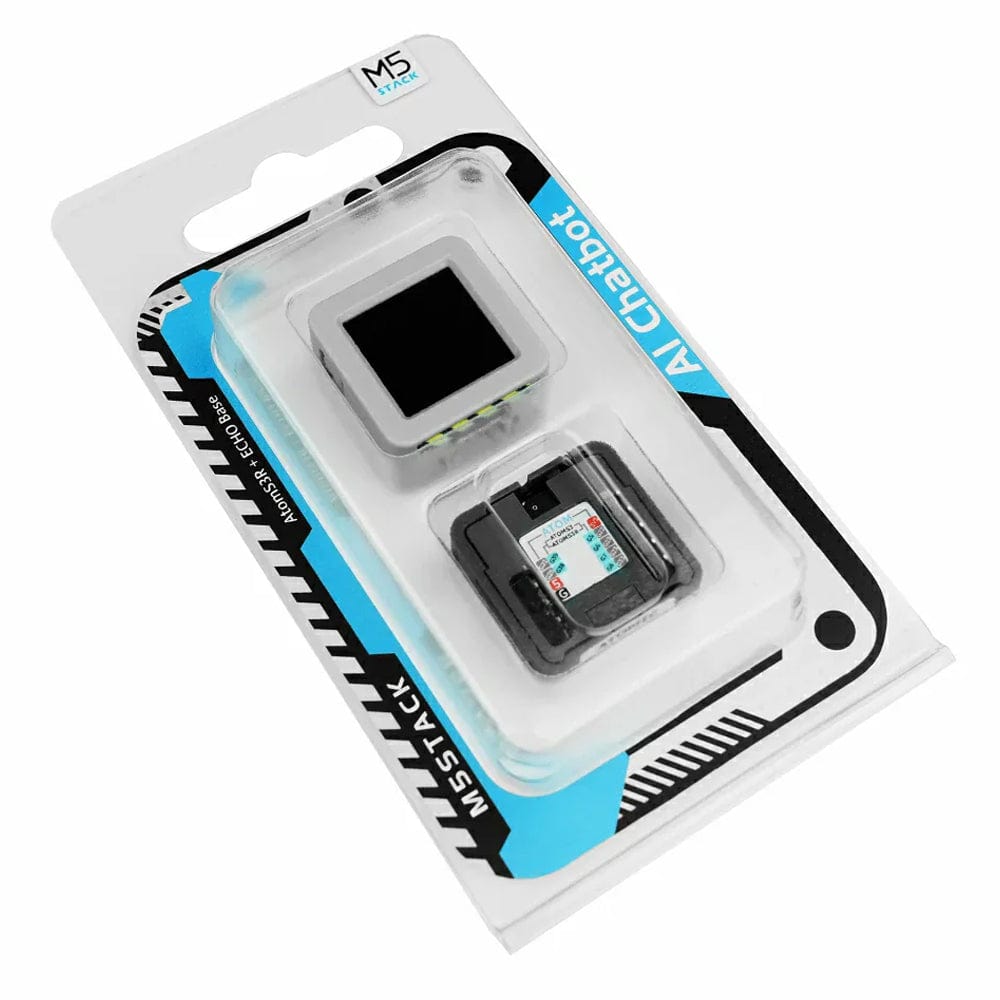

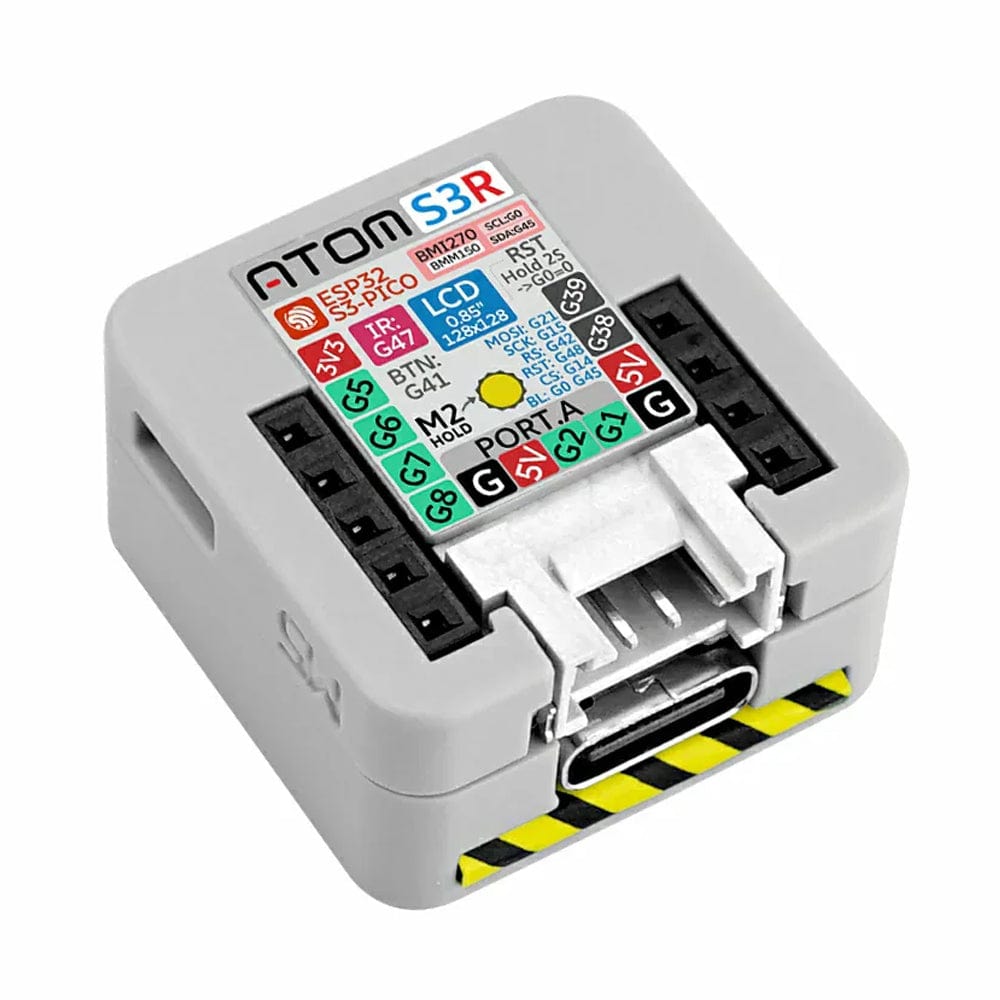

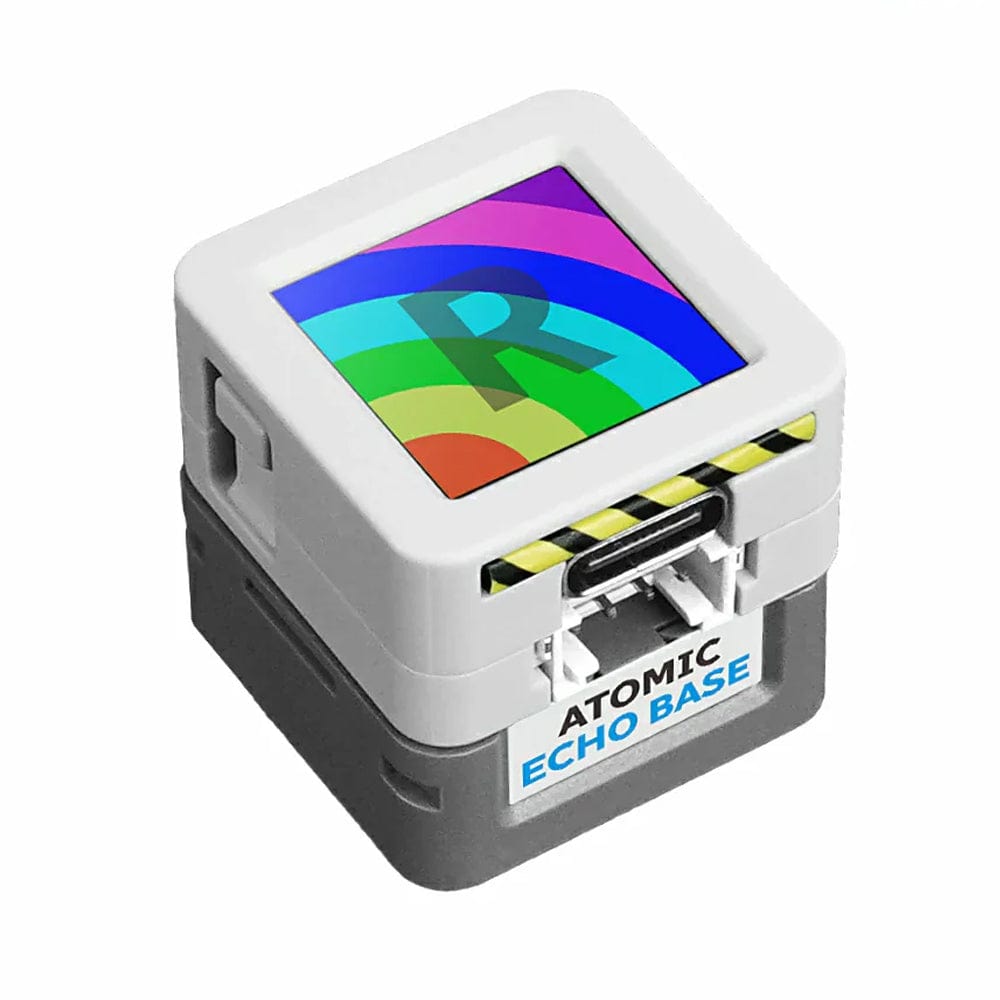

M5Stack AtomS3R-AI Chatbot is an AI voice development kit. The kit consists of two core parts: the controller and the voice base. The controller adopts AtomS3R, which is based on the ESP32-S3 chip. It provides a large memory combination of 8 MB Flash + 8 MB PSRAM.

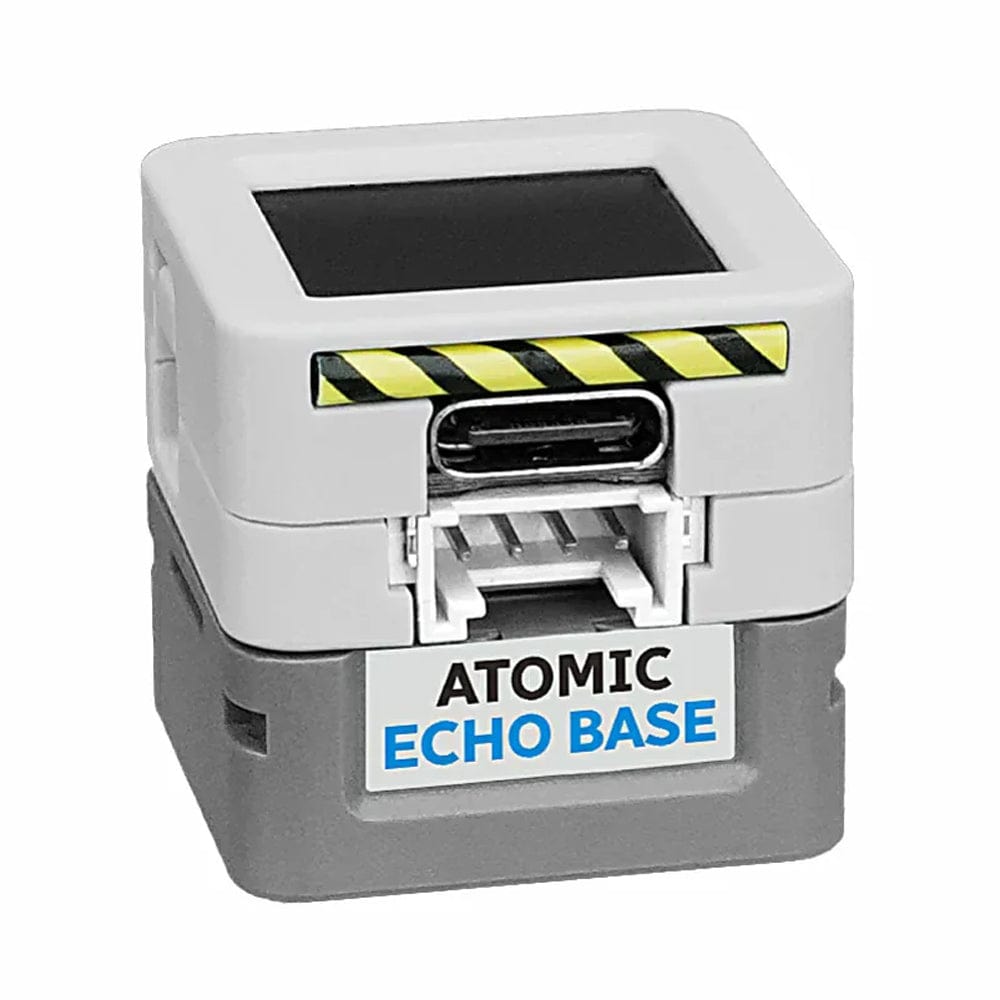

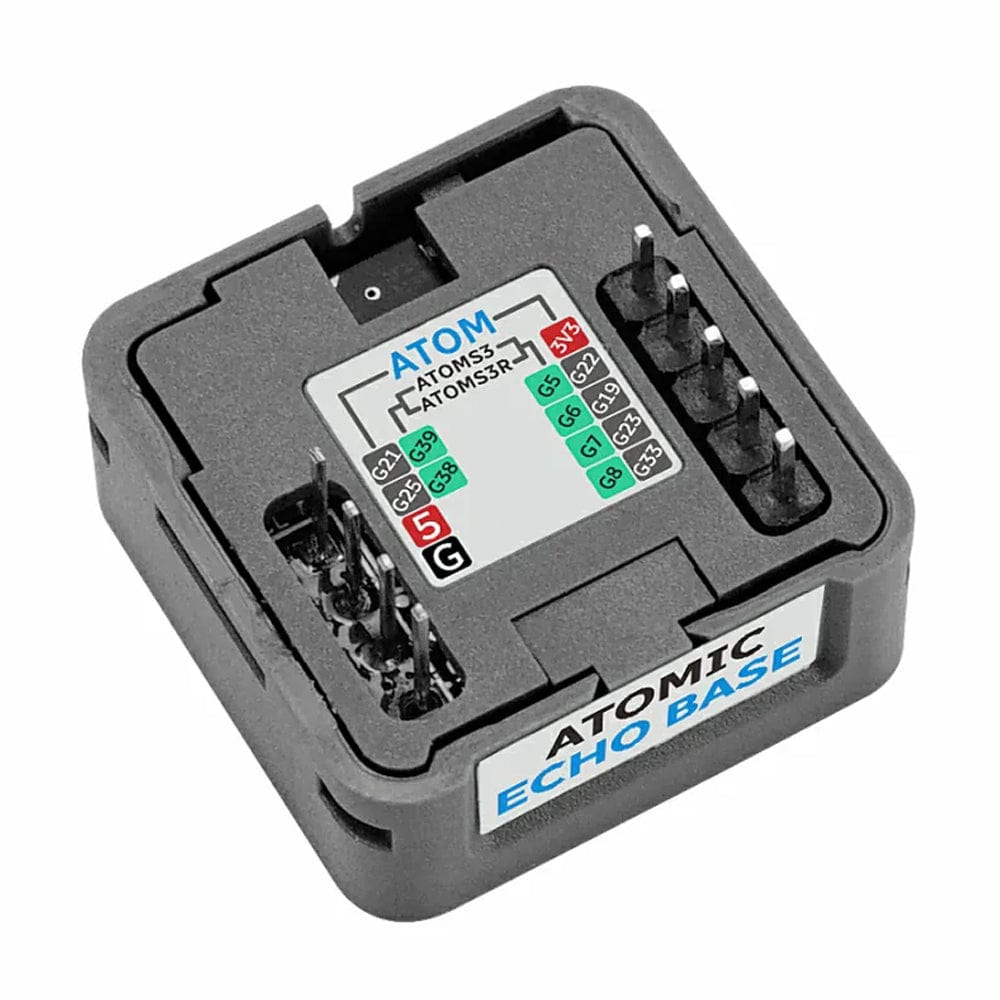

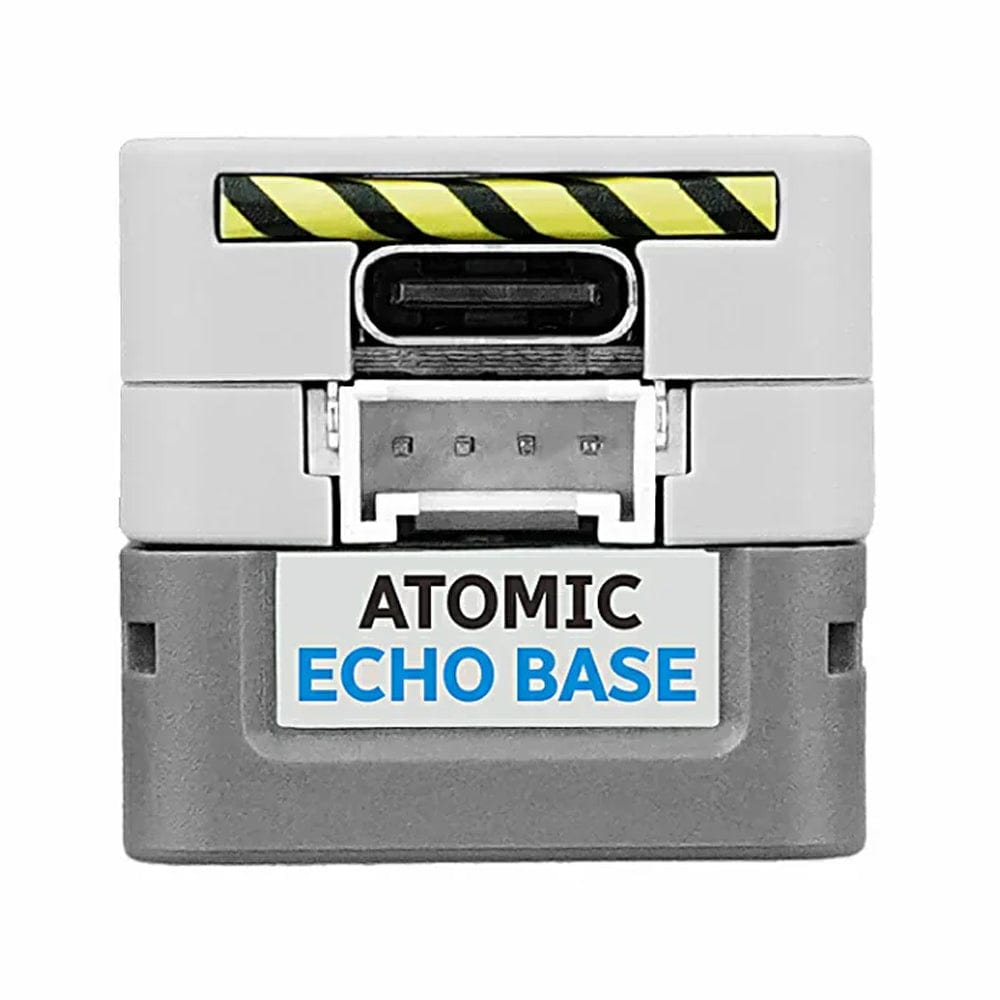

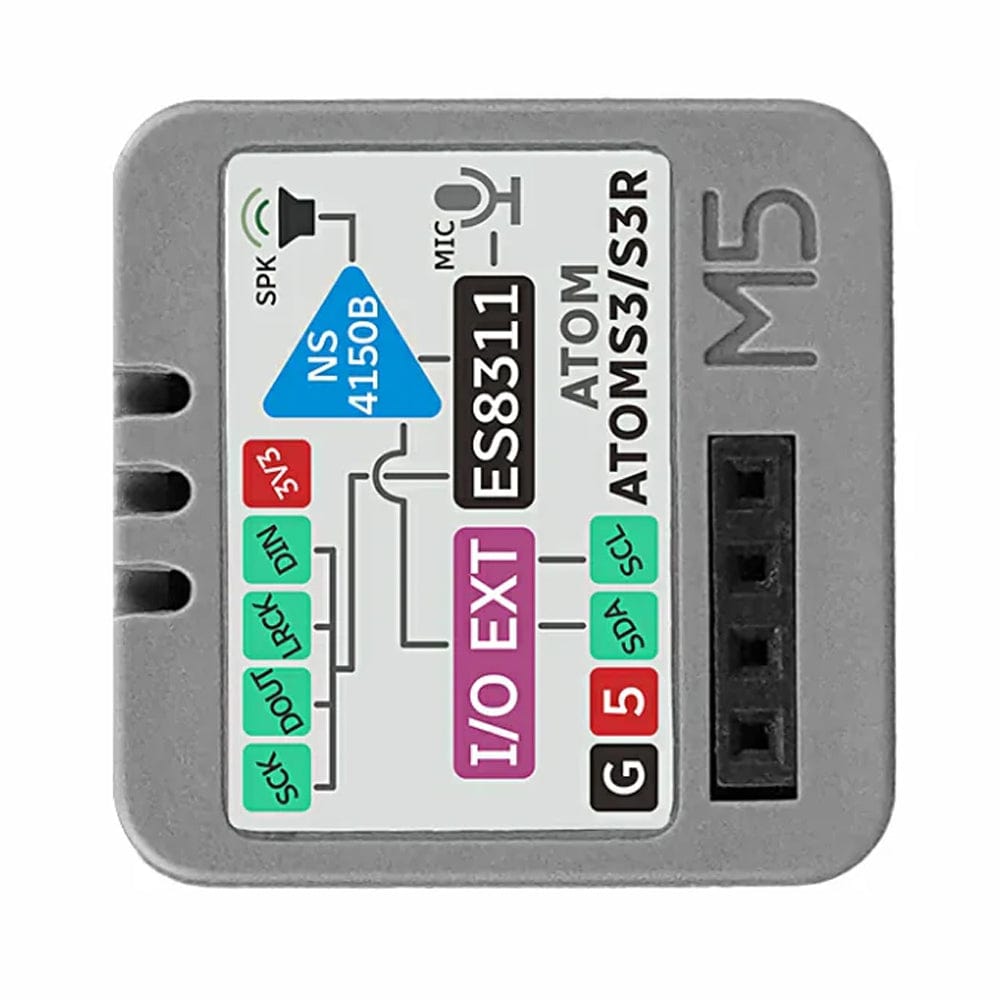

It also integrates a 9-axis IMU (BMI270 + BMM150), IR emission tube, and other rich peripherals. The voice base uses Atomic Echo Base, based on the ES8311 audio codec chip, capable of high-fidelity audio decoding and microphone and speaker driving. The kit supports integration with XiaoZhi Voice Assistant, OpenAI Voice Assistant, and Volcengine Voice Assistant, enabling real-time voice interaction, custom wake words, and low-latency recognition.
SoC | ESP32-S3-PICO-1-N8R8, dual-core Xtensa LX7 @240 MHz, USB-OTG |
PSRAM | 8 MB PSRAM |
FLASH | 8 MB FLASH |
TFT Driver | GC9107 |
Color IPS Resolution | 128 × 128 |
6-axis attitude sensor (BMI270) | Accuracy: 0.05% (acceleration), 0.05°/s (angular velocity) I2C address: 0x68 |
3-axis geomagnetic sensor (BMM150) | Accuracy: 0.3 μT Mounted on BMI270, magnetometer data obtained via Sensor Hub |
Infrared IR | ∠180° emission distance: 12.46 m (unobstructed) |

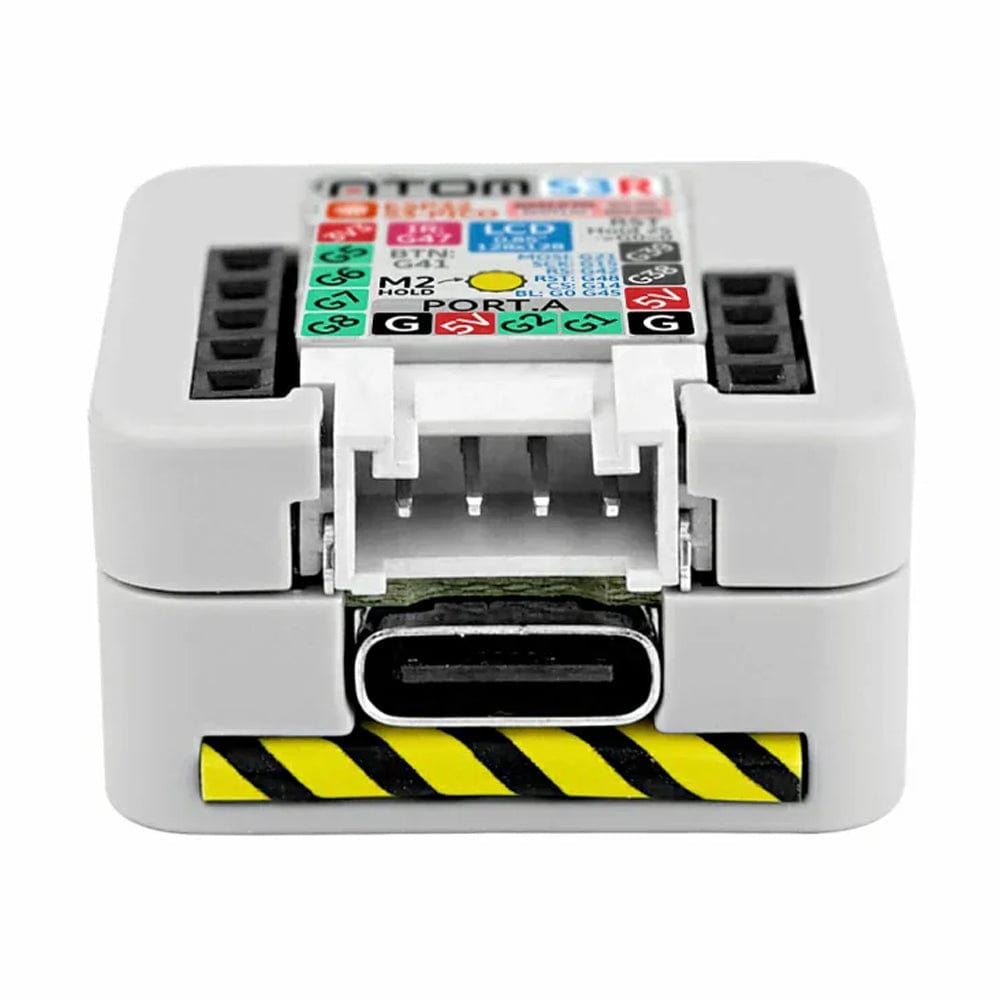

Expansion Interfaces | Bottom GPIO: G5/G6/G7/G8/G38/G39 and HY2.0-4P expansion port |
Audio Codec | ES8311: 24-bit resolution, using I2S protocol |
MEMS Microphone | MSM381A3729H9BPC, SNR: ≥65 dB |
Power Amplifier | NS4150B: Class D power amplifier |
Speaker | 2014 cavity speaker: 1 W @ 8 Ω |
Operating Temperature | 0 ~ 40 °C |
Product Dimensions | AtomS3R: 24.0 × 24.0 × 12.9 mm Atomic Echo Base: 24.0 × 24.0 × 14.14 mm |
Product Weight | AtomS3R: 6.6 g Atomic Echo Base: 6.3 g |
