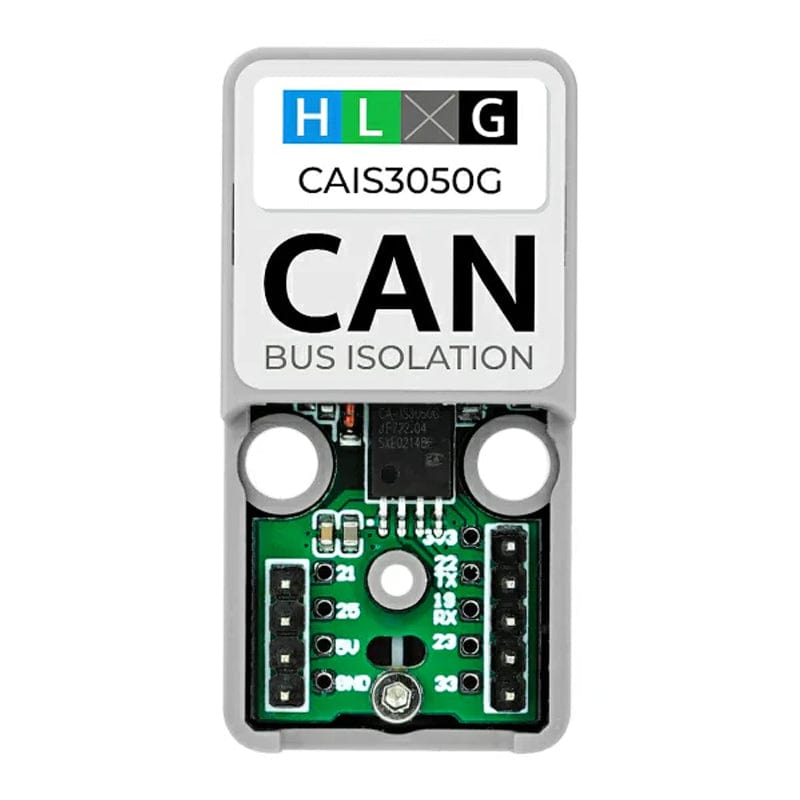

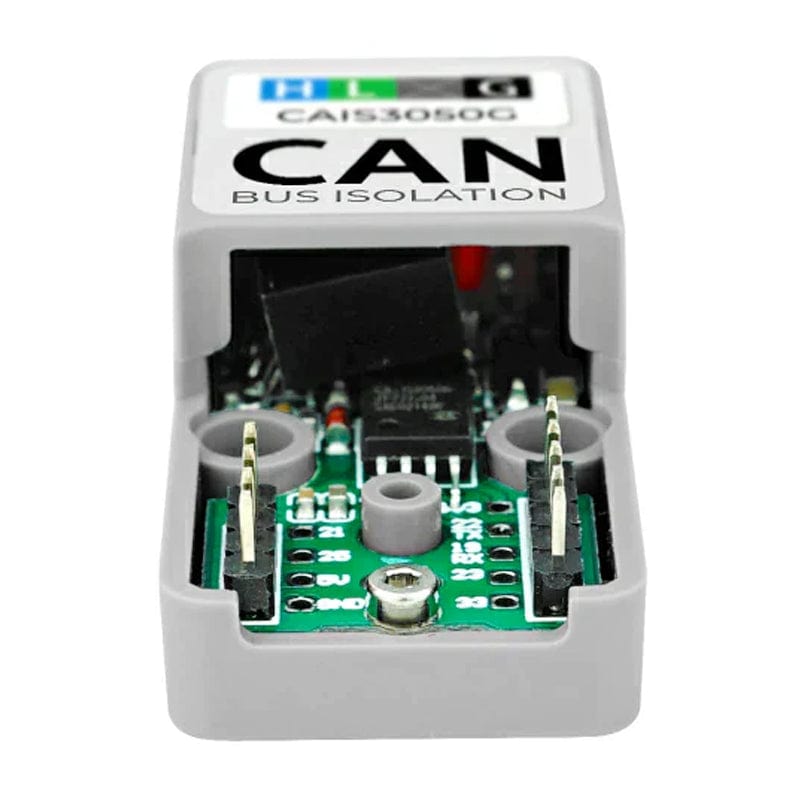

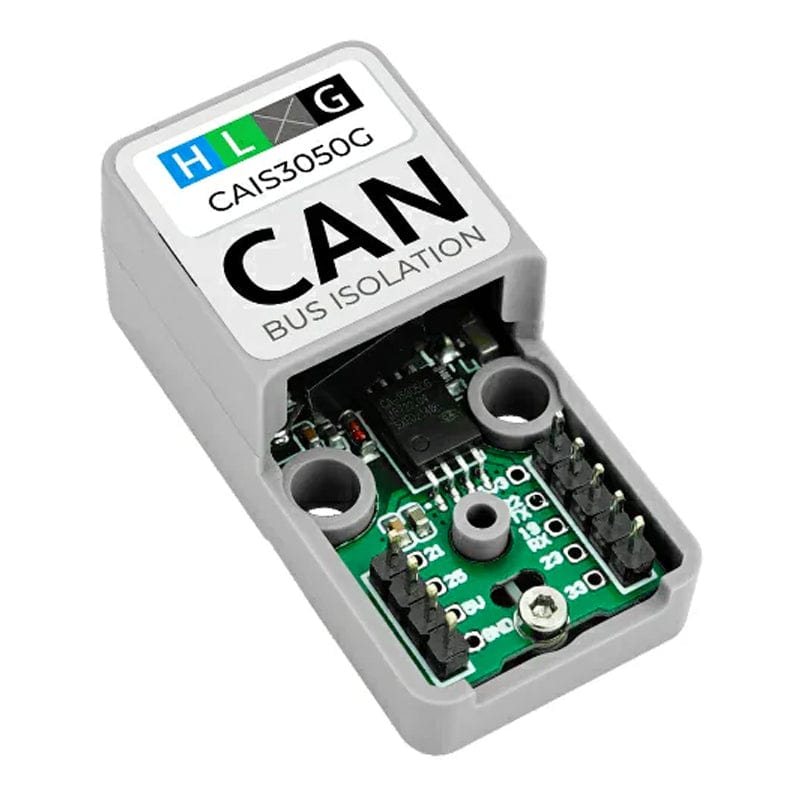

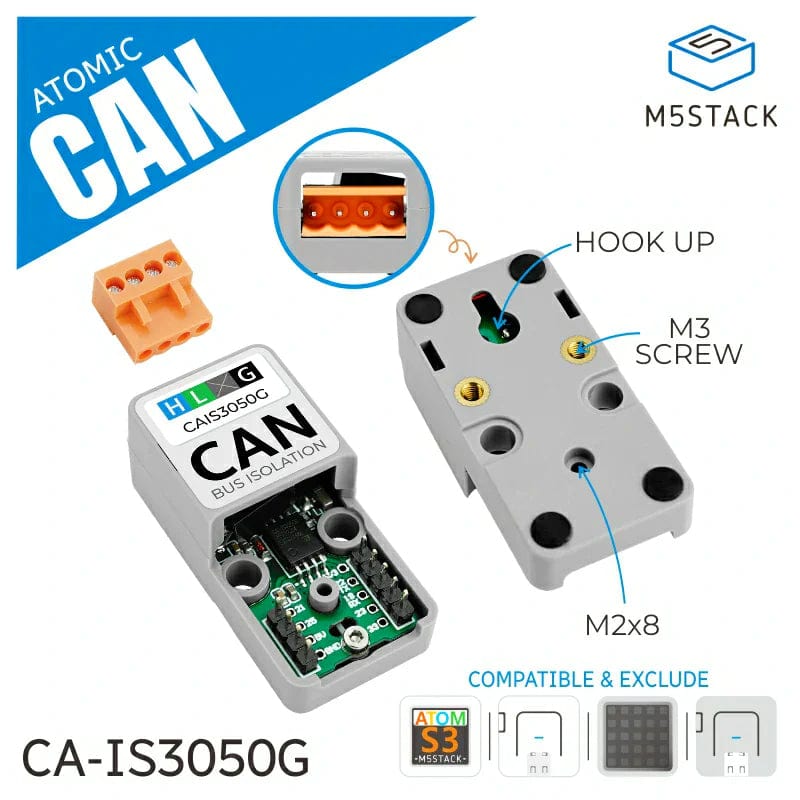

The ATOMIC CAN Base is a CAN bus communication unit created to work with the ATOM series controllers. Utilising the CA-IS3050G transceiver solution, this unit includes a built-in DC-DC isolated power chip, enhancing circuit safety by isolating interference and protecting against damage to sensitive components. Made for compatibility with Atom Matrix, Atom Lite, AtomS3, and AtomS3 Lite, the ATOMIC CAN Base is ideal for vehicle transportation and security system projects.
Supporting up to 110 nodes, this unit offers scalability for extensive system networks. It has a high-speed signal transmission rate of up to 1Mbps, providing reliable data communication. The base is equipped with electrical circuit protection measures, including a common-mode voltage range of -12V to +12V. It features over-voltage protection, failure protection, and over-temperature protection, all of which safeguard against electromagnetic interference, overvoltage, and current peaks, thereby maintaining the stability and reliability of communication signals.
