M5Stack ATOM Lite ESP32

M5StackSKU: C008
£9
incl. VAT
excl. VAT
In stock

Awesome Extras

USB-A to USB-C Cable - Black by The Pi Hut - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
From £2.25 incl. VAT excl. VAT
USB-C to USB-C Cable - Black by The Pi Hut - The Pi Hut
The Pi HutUSB-C to USB-C Cable - Black
From £2.25 incl. VAT excl. VAT
M5Stack Atomic Battery Base (200mAh) by M5Stack - The Pi HutM5Stack Atomic Battery Base (200mAh) by M5Stack - The Pi Hut
M5StackM5Stack Atomic Battery Base (200mAh)
£6.50 incl. VAT excl. VAT
M5Stack Atomic Echo Base with Microphone and Speaker by M5Stack - The Pi HutM5Stack Atomic Echo Base with Microphone and Speaker by M5Stack - The Pi Hut
M5StackM5Stack Atomic Echo Base with Microphone and Speaker
£6.50 incl. VAT excl. VAT
Notify me
M5Stack ATOMIC Proto Kit by M5Stack - The Pi HutM5Stack ATOMIC Proto Kit by M5Stack - The Pi Hut
M5StackM5Stack ATOMIC Proto Kit
£3.40 incl. VAT excl. VAT
ATOMIC PoE Base W5500 by M5Stack - The Pi HutATOMIC PoE Base W5500 by M5Stack - The Pi Hut
M5StackATOMIC PoE Base W5500
£17.80 incl. VAT excl. VAT
ATOMIC PortABC Extension Base by M5Stack - The Pi HutATOMIC PortABC Extension Base by M5Stack - The Pi Hut
M5StackATOMIC PortABC Extension Base
£3.40 incl. VAT excl. VAT

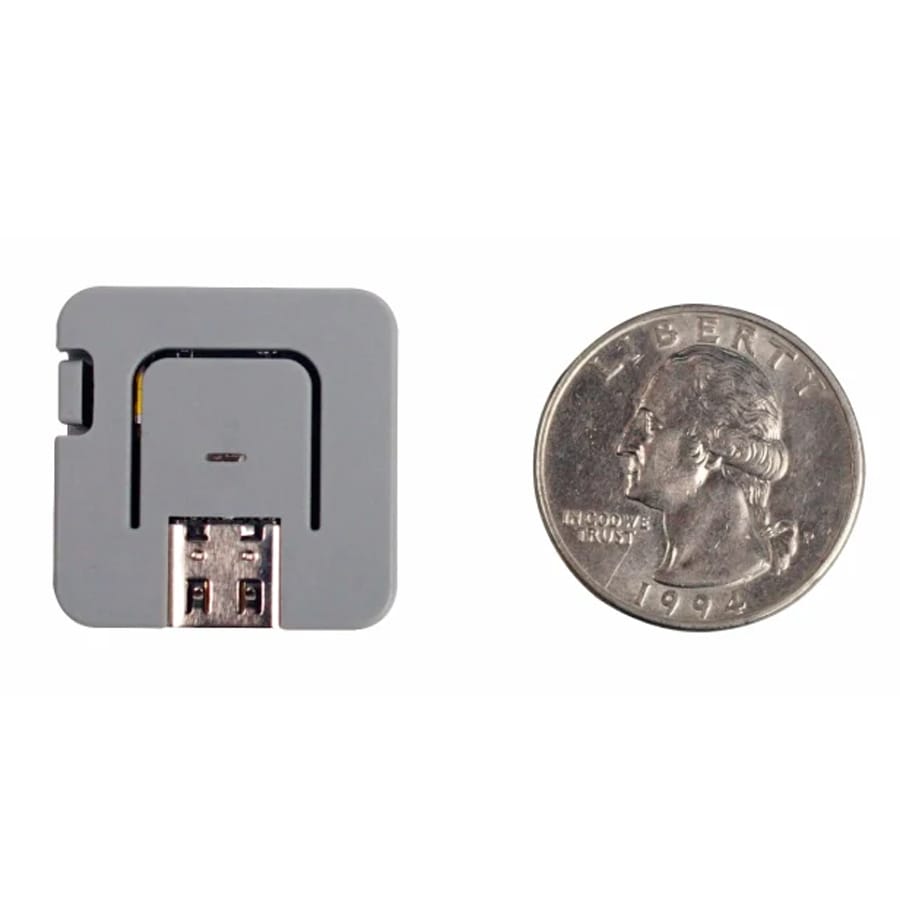

The M5Stack ATOM Lite ESP32 IoT development kit is ideal for making embedded smart home devices and smart toys. At only 24 x 24mm, it's great for fitting into projects where space is at a premium. Popular as a Bluetooth proxy for Home Assistant!

There are a wide range of ATOM bases and add-ons to use with the ATOM Lite./.

For more information and for help getting started, click here

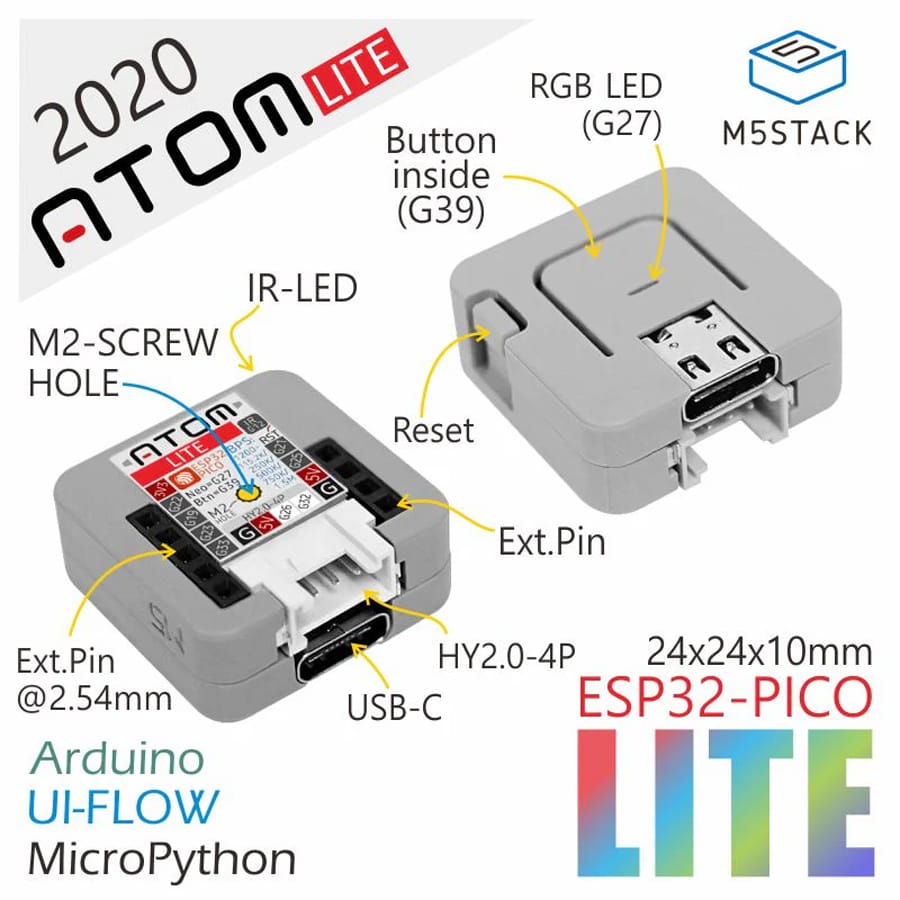

Features

  • ESP32-PICO chip
  • Onboard wifi and Bluetooth
  • 4MB of integrated SPI flash memory
  • RGB LED
  • Programmable button
  • Built-in Infra-red LED
  • Six GPIO connectors for attaching to external sensors
  • PH2.0 interface
  • On-board USB-C interface for programming
  • Program Platform: Arduino / UIFlow

    Specifications

    Resources Parameter
    ESP32 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
    Flash 4MB
    Power Input 5V @ 500mA
    Port TypeC x 1, GROVE (I2C+I/0+UART) x1

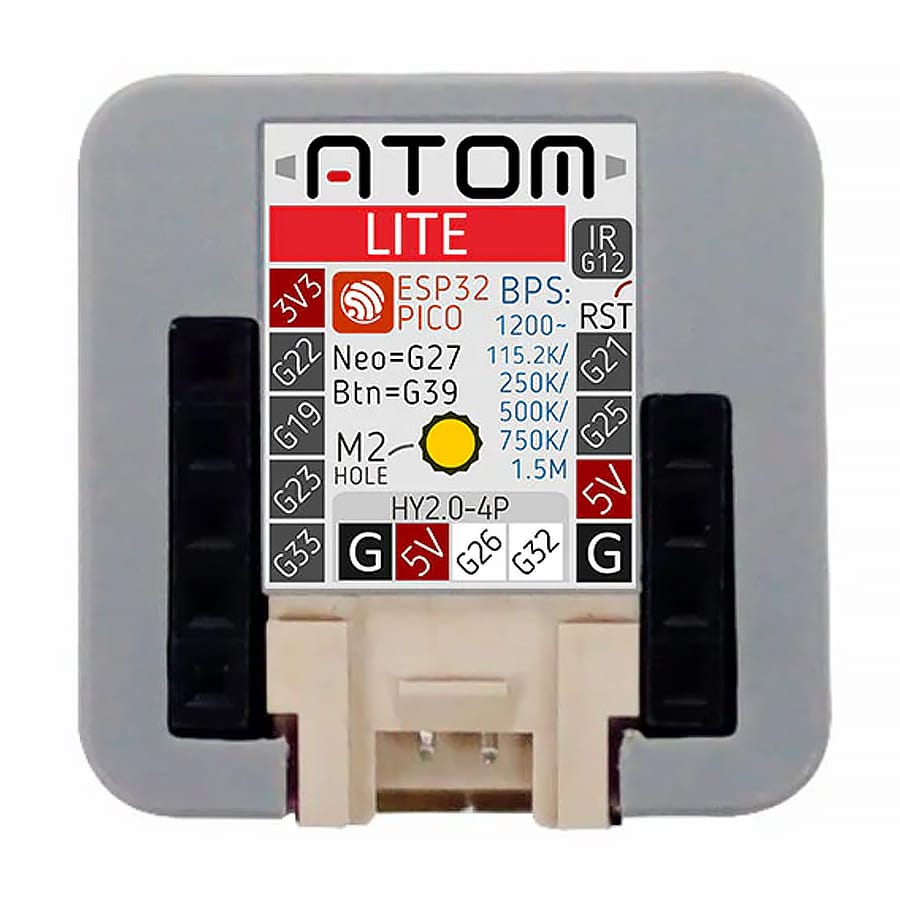

    PIN Port G19, G21, G22, G23, G25, G33
    RGB LED WS2812B x 1
    IR Infrared transmission
    Button Custom button x1
    Antenna 2.4G 3D Antenna
    Operating Temperature 32°F to 104°F ( 0°C to 40°C )

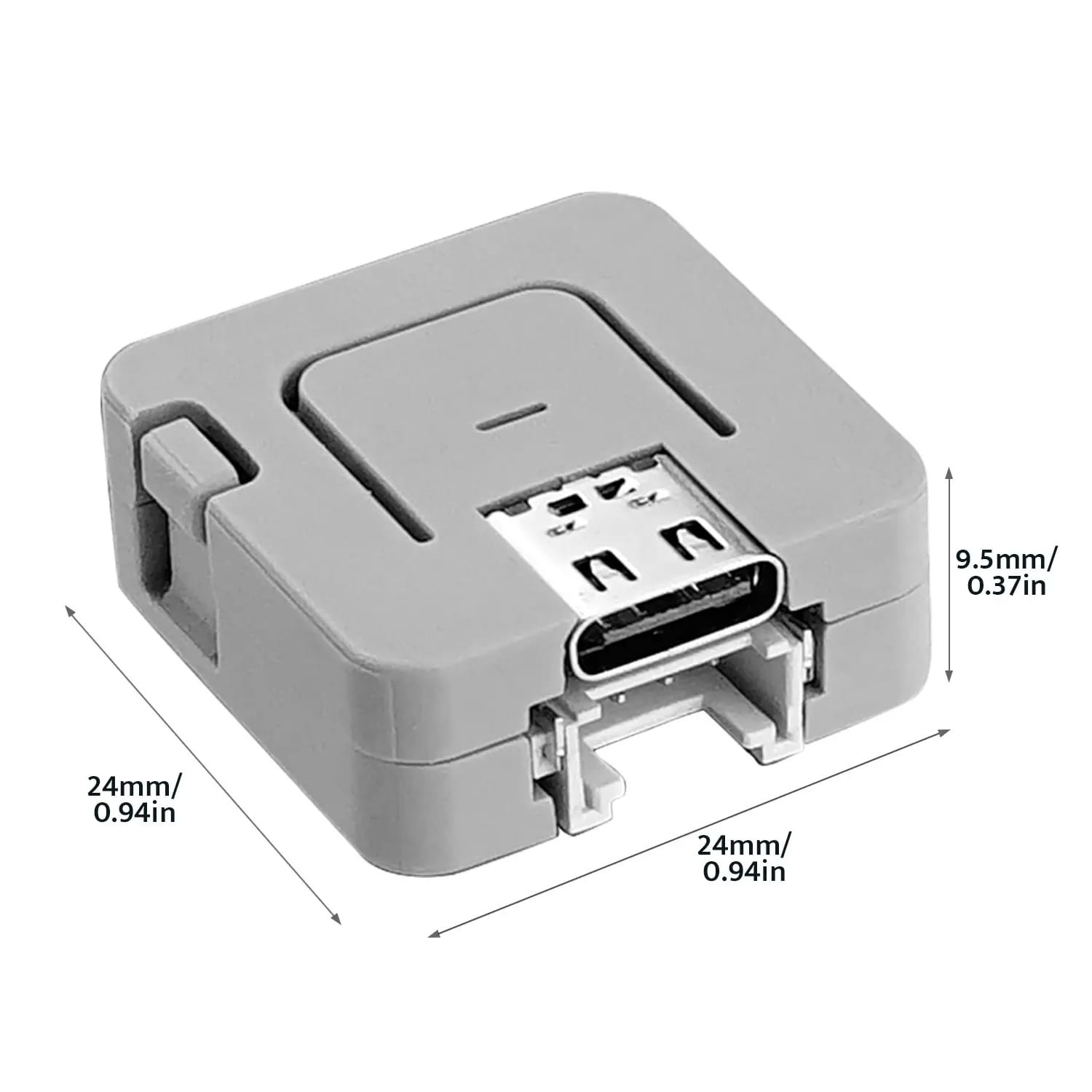

    Size 24 x 24 x 10 mm
    Weight 12g
    Case Material Plastic ( PC )
