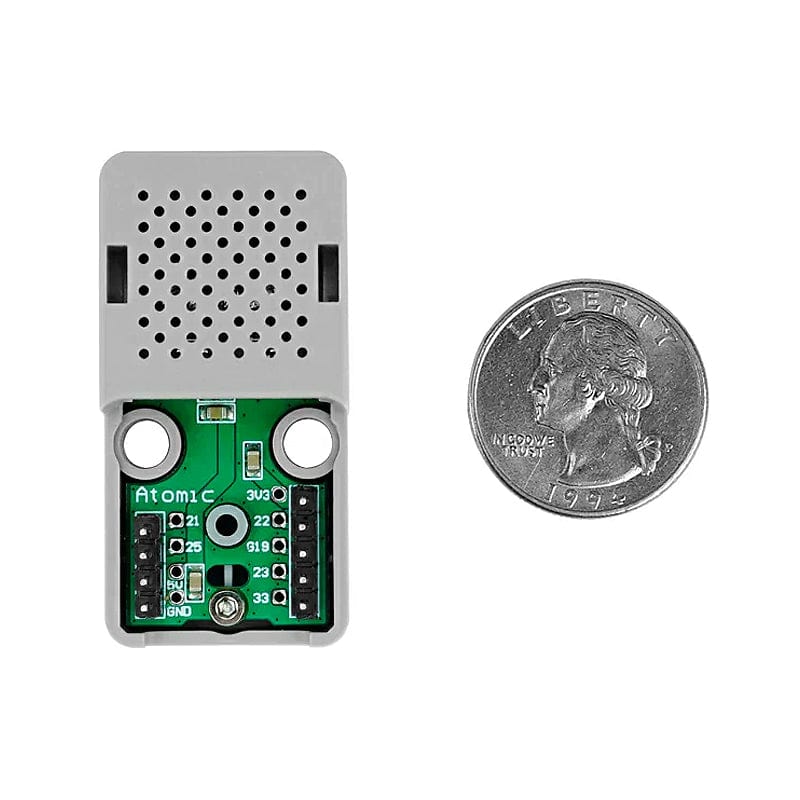

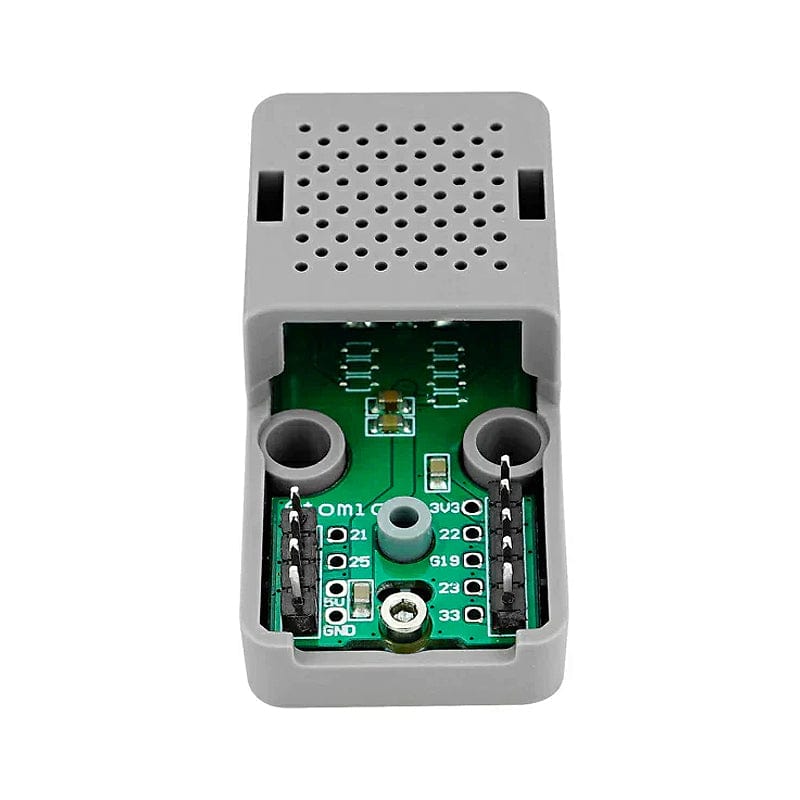

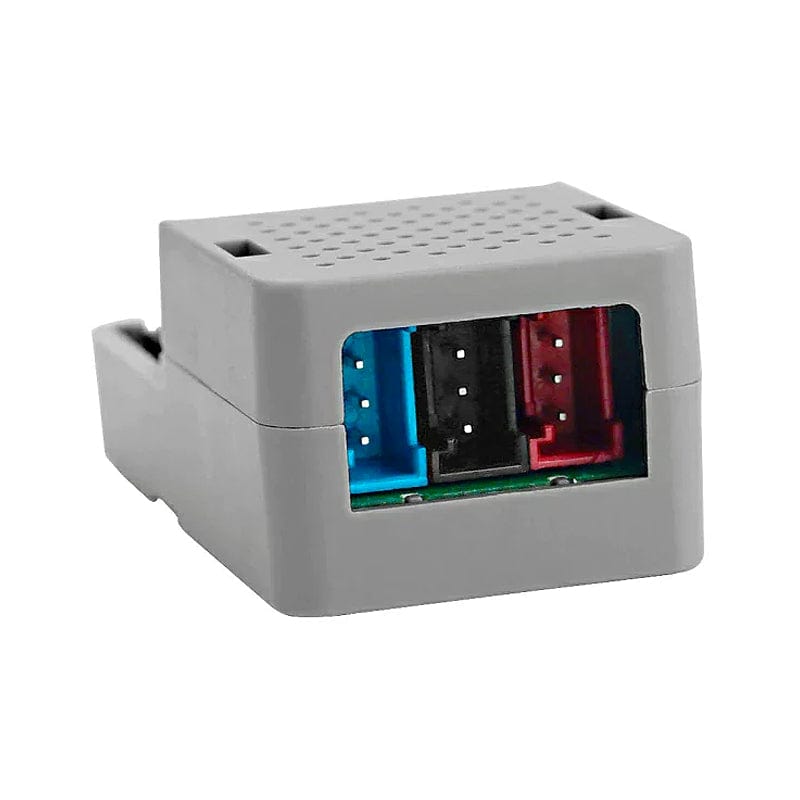

ATOMIC PortABC Extension Base
Price:
Sale price
£3.40
Stock:
Quantity:
Awesome Extras
The Atom PortABC is a Grove port extension base specially adapted to the ATOM series, which is convenient for users to connect to I2C, UART, and GPIO type UNIT units at the same time. The product offers a variety of fixing methods, such as suspension, lego connection, screw fastening, etc. It is suitable for scenarios such as building multi-functional mini-node controllers.
Features
- Compatible with port ABC (I2CGPIOUART)
- Compatible with ATOM series hosts
Specifications
| Resources | Parameters |
| Applicable sensor interface type | I2C, UART, GPIO |
| Operating temperature | 0-40°C |
| Supported ATOM | ATOM Matrix, ATOM Lite, ATOMS3, ATOMS3 Lite |
| Product Size | 64 x 24 x 29mm |
| Package Size | 91 x 42 x 24.5mm |
| Product Weight | 5g |
| Package Weight | 10g |
Resources
Pinout
Package Contents
- 1 x ATOMIC PortABC Extension Base
- 1 x Pin Map sticker
