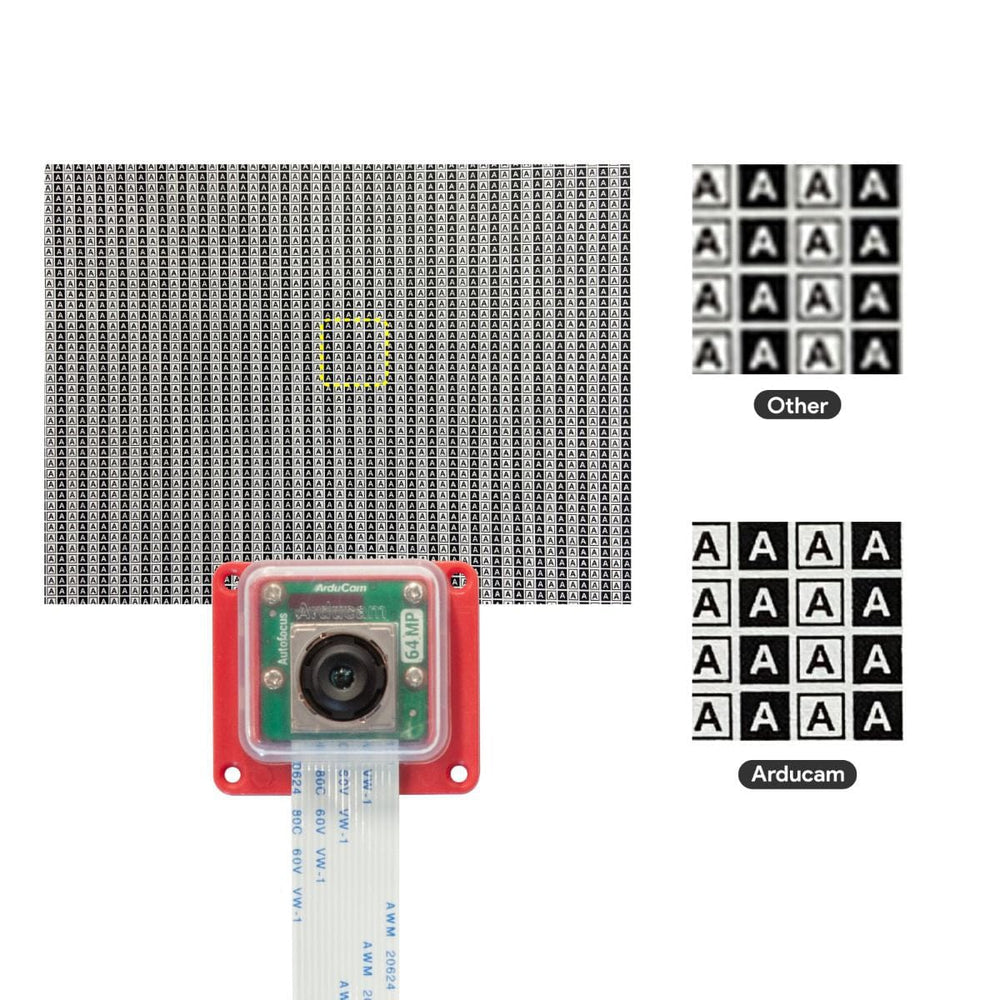

Arducam's latest 64MP 'OwlSight' camera sets new standards with the largest sensor size available for Raspberry Pi cameras, with an impressive resolution of 9248 x 6944 pixels. Additionally, it supports an impressive 10x digital zoom, allowing for flexibility in framing and capturing subjects at varying distances. What's more, the product boasts a maximum exposure value of 900s at maximum resolution.

This sensor size empowers exceptional light-sensitive performance, even in complex lighting conditions.

The camera offers seamless compatibility with libcamera, delivering a hassle-free experience for Raspberry Pi users. No need to tinker with any configuration files – it's truly a plug-and-play solution right out of the box.

The camera presents a variety of focus options, including auto-focus, manual focus, and continuous focus. Whether you require meticulous control over focus or prefer a hands-off approach, this camera can cater to your specific needs.

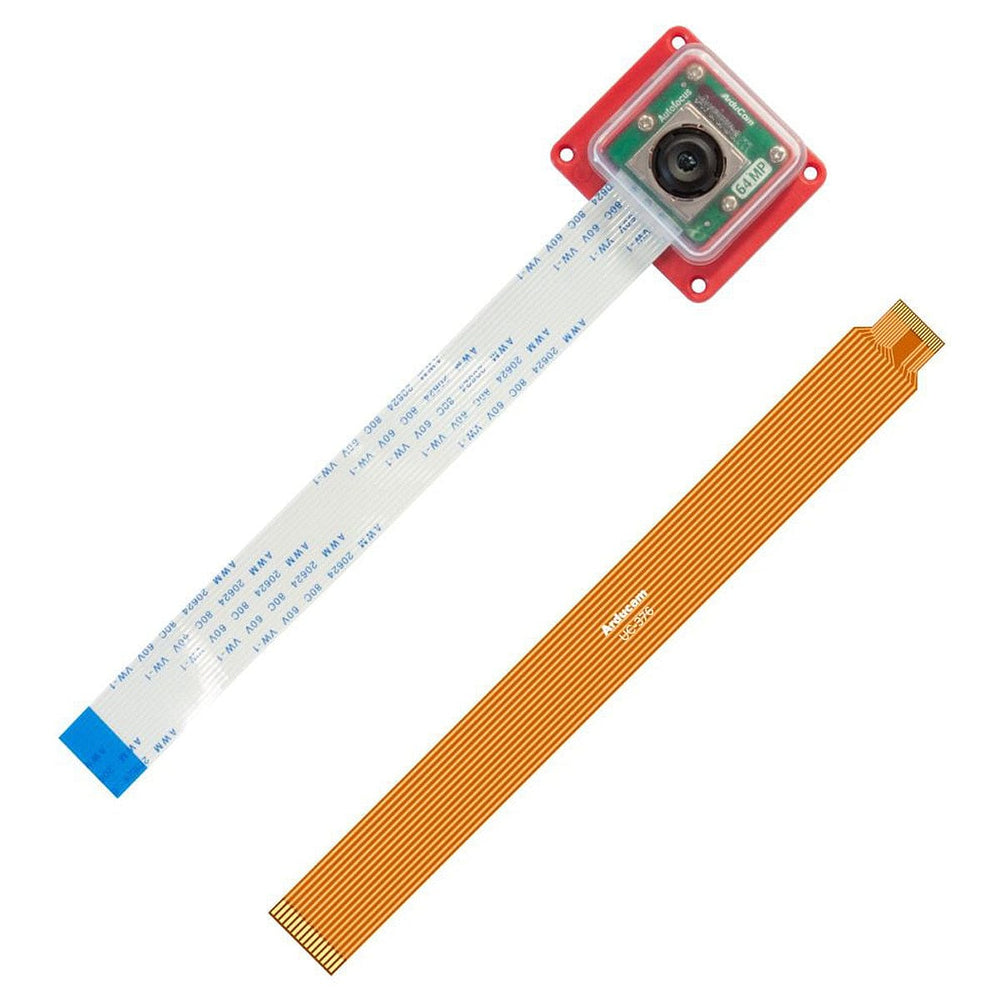

The package includes two different FPC cables for use with different boards, including Pi 5 and Zero!

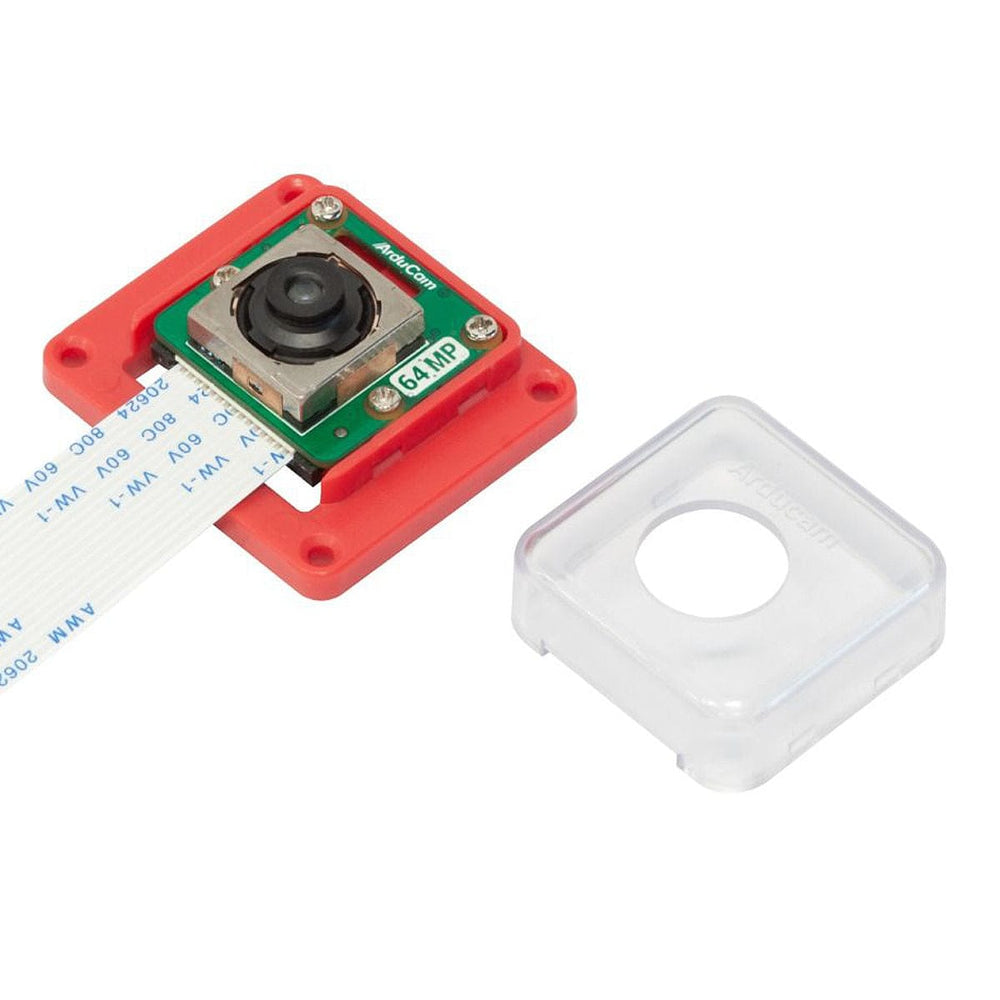

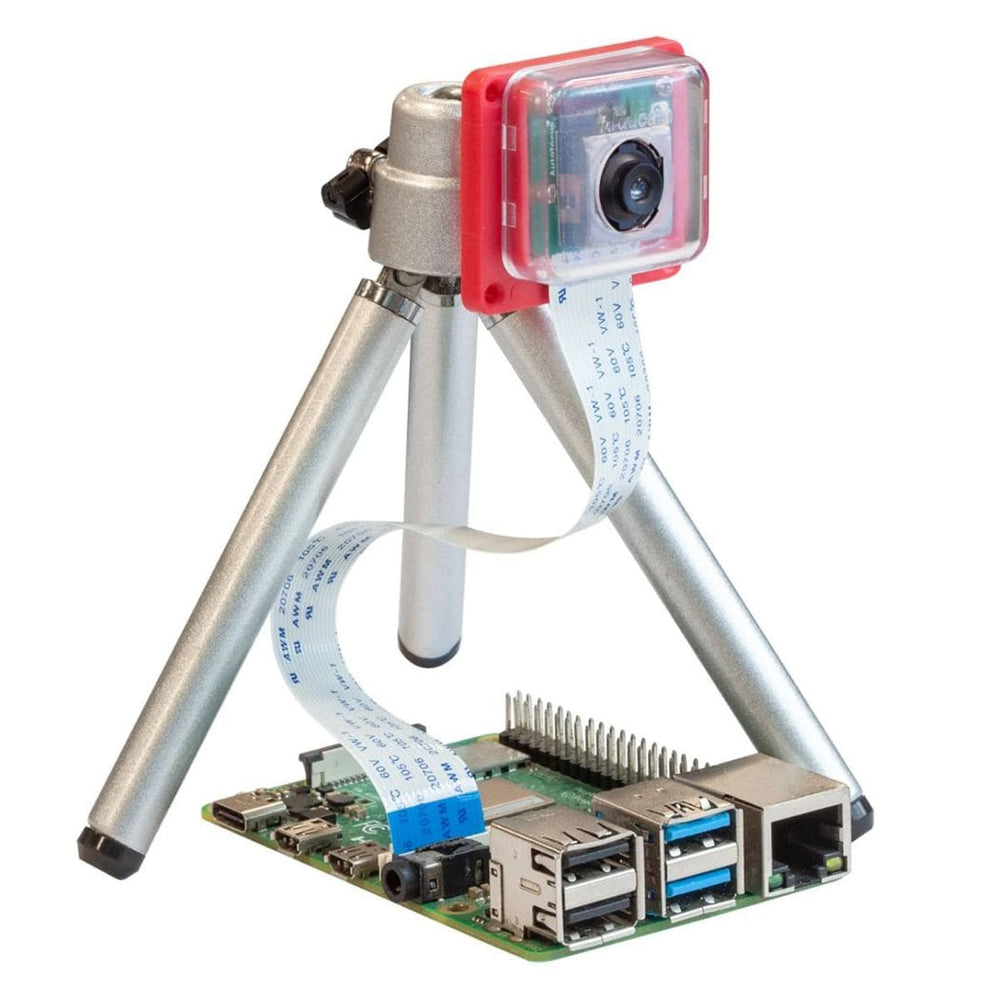

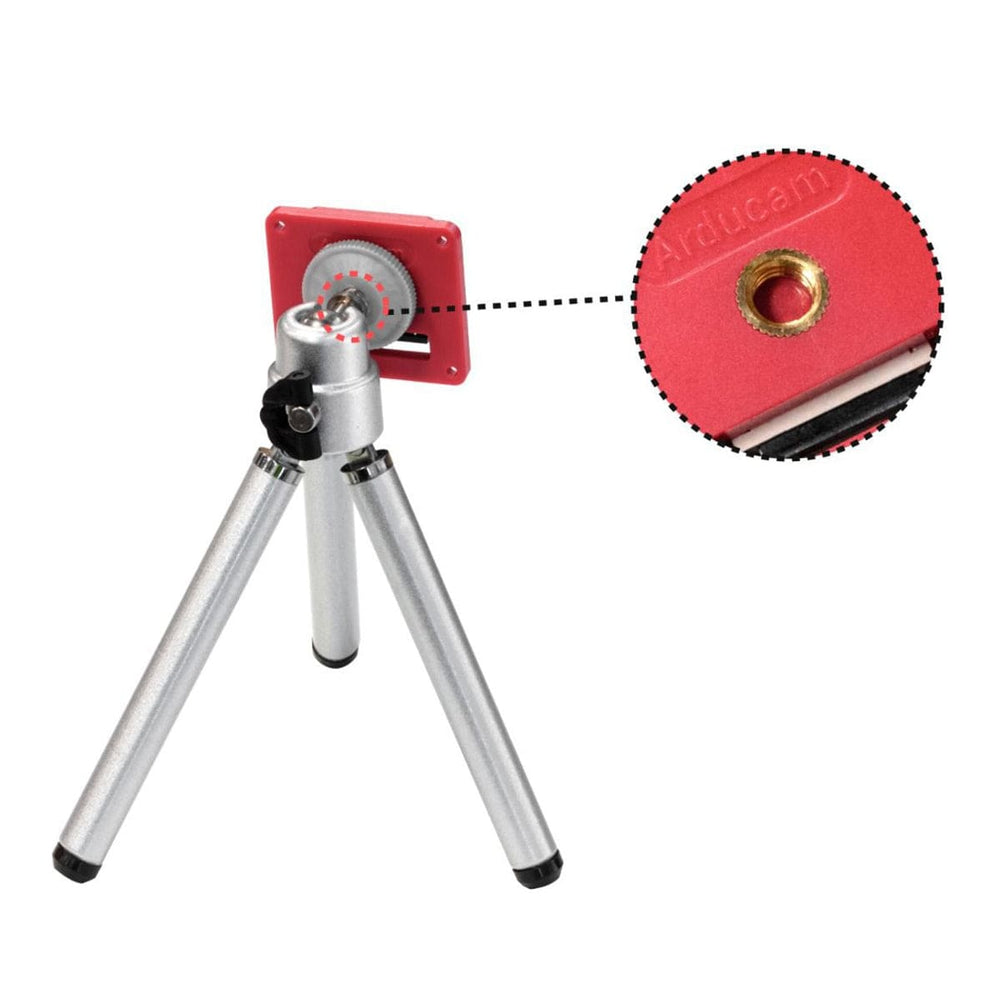

The included case is compatible with standard tripods, however mounts from the rear - we recommend grabbing a swivel ball adapter!

Features

  • Plug-and-Play with libcamera: Native support, effortless setup, no config tweaks needed for instant use
  • Largest Sensor, Superb light sensitivity: Massive 9248×6944 sensor excels, ideal for night shots
  • 64MP & 10x Digital Zoom: High-resolution 64MP and 10x digital zoom for impeccable detail
  • Flexible Focus Choices: Auto, manual, and continuous focus options for diverse environments

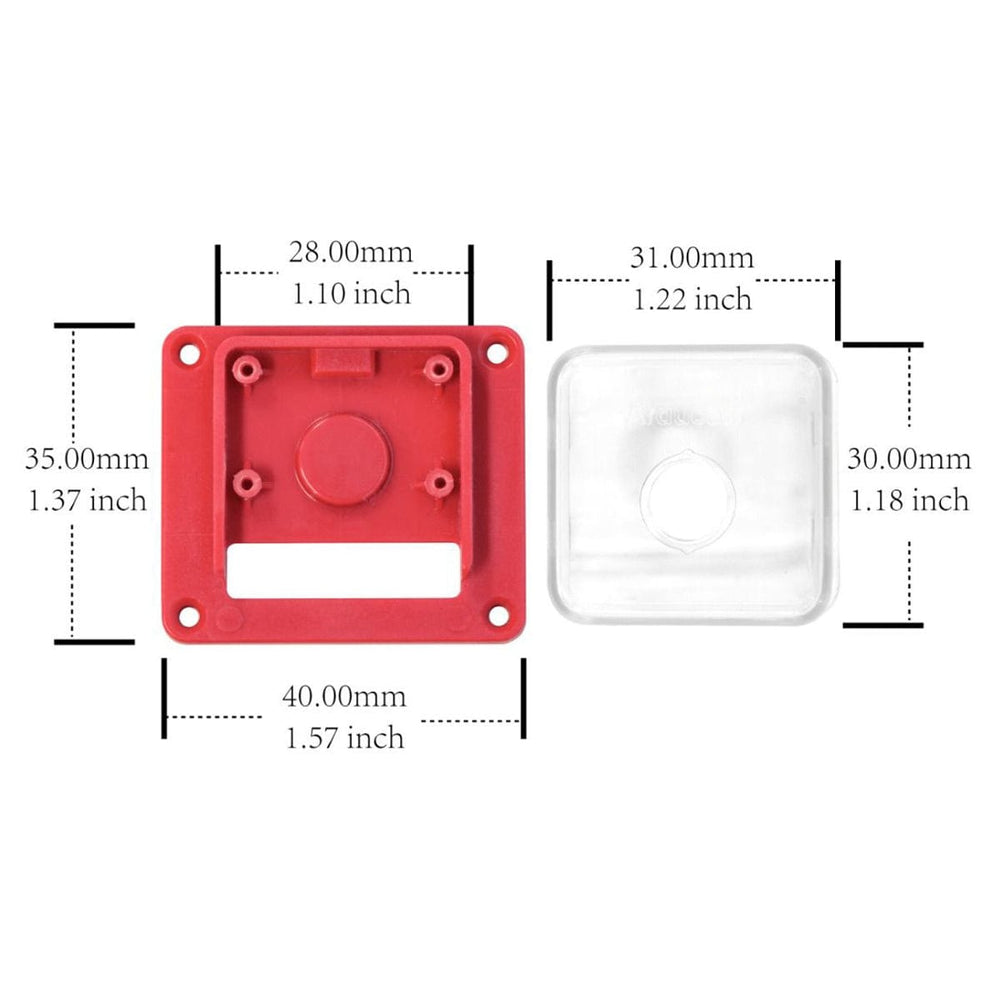

  • Compact & Compatible Design: Small 24x25mm size with ABS case with tripod compatibility

Specifications

Image Sensor
Sensor OV64A40
Still Resolution 64 Megapixels
Color Filter Type Color
Shutter Type Rolling
Optical Size 1/1.32"
Pixel Size 1.008 µm x 1.008 µm
Sensor Active Area 9248(H)×6944(V)
Output Format JPEG/YUV/RGB/RAW10
Video Modes (on Raspberry Pi) 1080p30,720p60 and 640×480p60/90
Video Modes (Camera Module) 9152×6944@2fps, 8000×6000@2.5fps, 4624×3472@7.6fps, 3840×2160@14.8fps, 2312×1736@26.7fps, 1920×1080@45fps.
IR Sensitivity Integral IR-cut Filter, visible light only
Lens
Focus Type Manual/Auto
Focal Length 6.65mm
F.NO F1.9
Field of View (FOV) 84°(D)×68°(H)×56°(V)
Lens Mount Stock Lens
Default Focus Range 12cm~∞
Electrical and Mechanical
Power Requirements 3.3V/300mA
Camera Board Size 25×24 mm
Functionality and Compatibility
Supported OS Raspberry Pi OS (bookworm)
Supported Platforms* Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W

*Raspberry Pi 2/3/Zero W may not be able to enable maximum resolution due to RAM, please make sure your platform has RAM greater than or equal to 1G. Capturing maximum resolution on the Pi 4 and CM4 may be impacted by CMA, which can be fixed by switching the GUI mode to terminal mode.

Resources

Package Contents

  • 1x 64MP Camera Module
  • 1x 15cm 15-22pin FPC cable
  • 1x 15cm 15-15pin FFC cable

Tripod not included
