Place your Raspberry Pi camera up to 15 metres away with the Arducam LAN Cable Extension Kit. It converts the MIPI CSI-2 interface to Ethernet, works out of the box with Pi 5/4/3/CM, and supports a wide range of cameras.

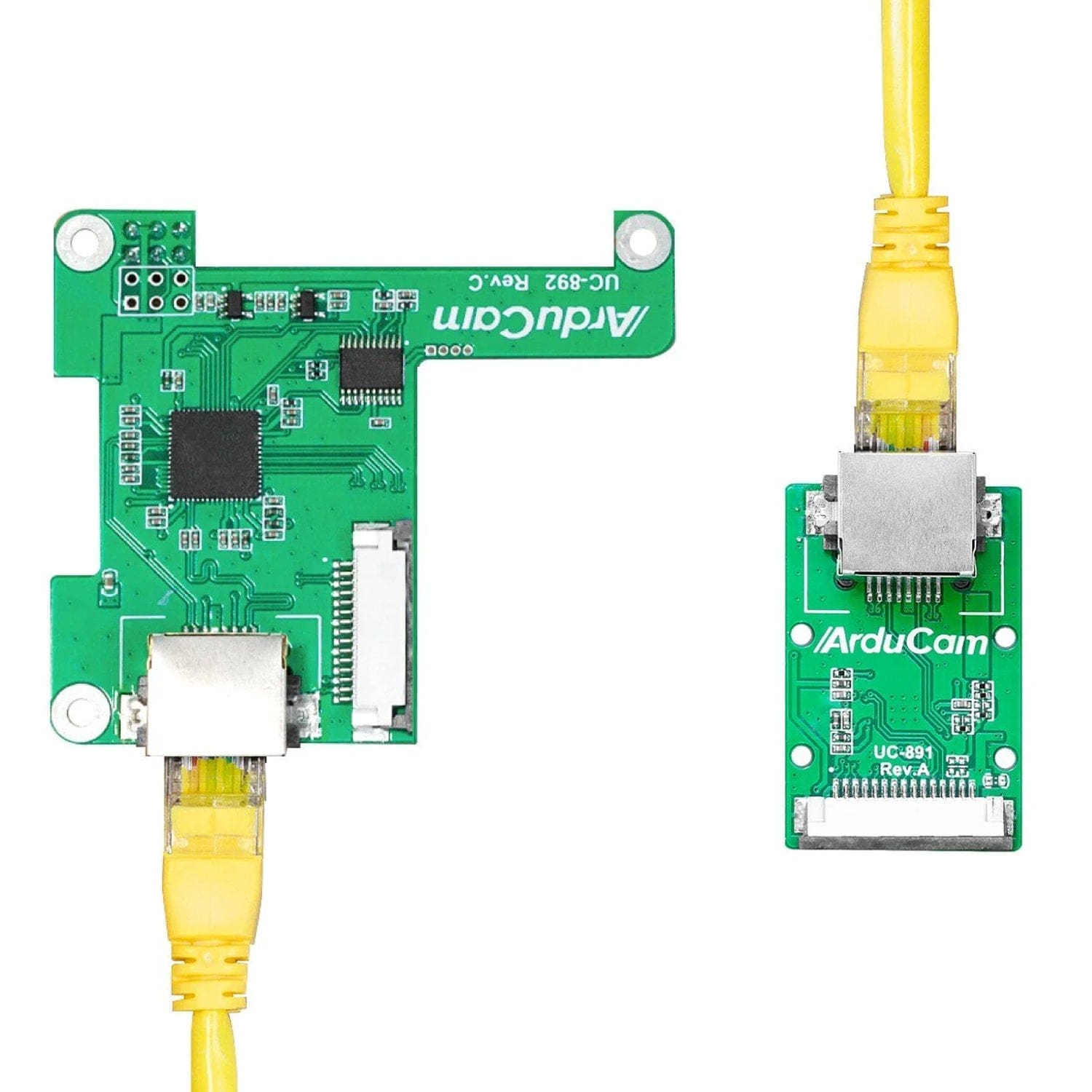

The Arducam LAN Cable Extension Kit lets you place your Raspberry Pi camera up to 10–15 metres away from your board using a standard LAN cable (1m cable included). It converts the high-speed MIPI CSI-2 interface into an Ethernet-compatible connection, allowing far greater range than a traditional FFC cable - and without needing any additional software or configuration.

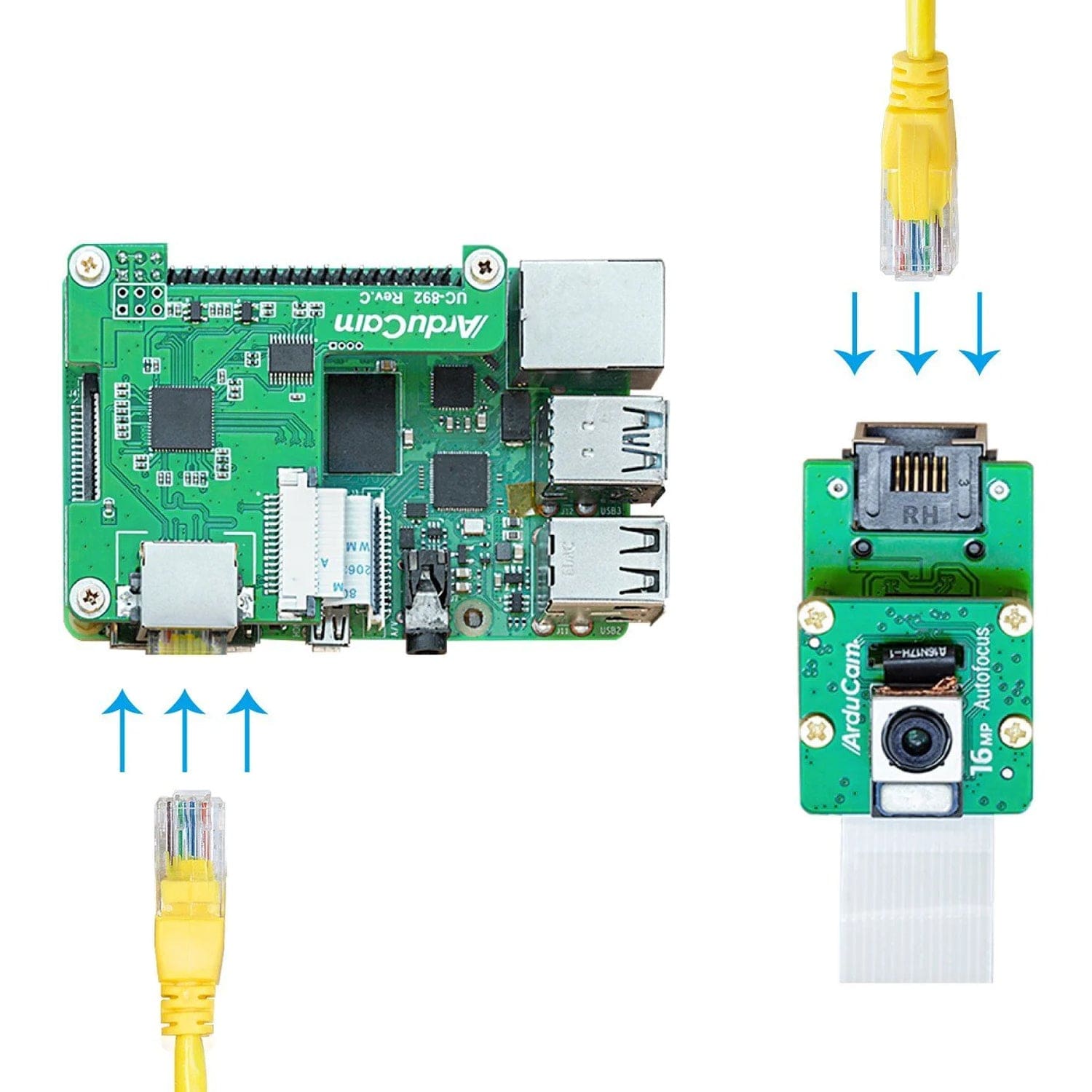

It’s plug-and-play with Raspberry Pi 5, 4 and 3 and Compute Modules (CM modules via carrier boards with appropriate IO available). Simply connect your camera and board at each end of the LAN cable, and you’re ready to go. A 1m Rj45 cable is included to get you started, but you'll find longer RJ45 cable options in the store.

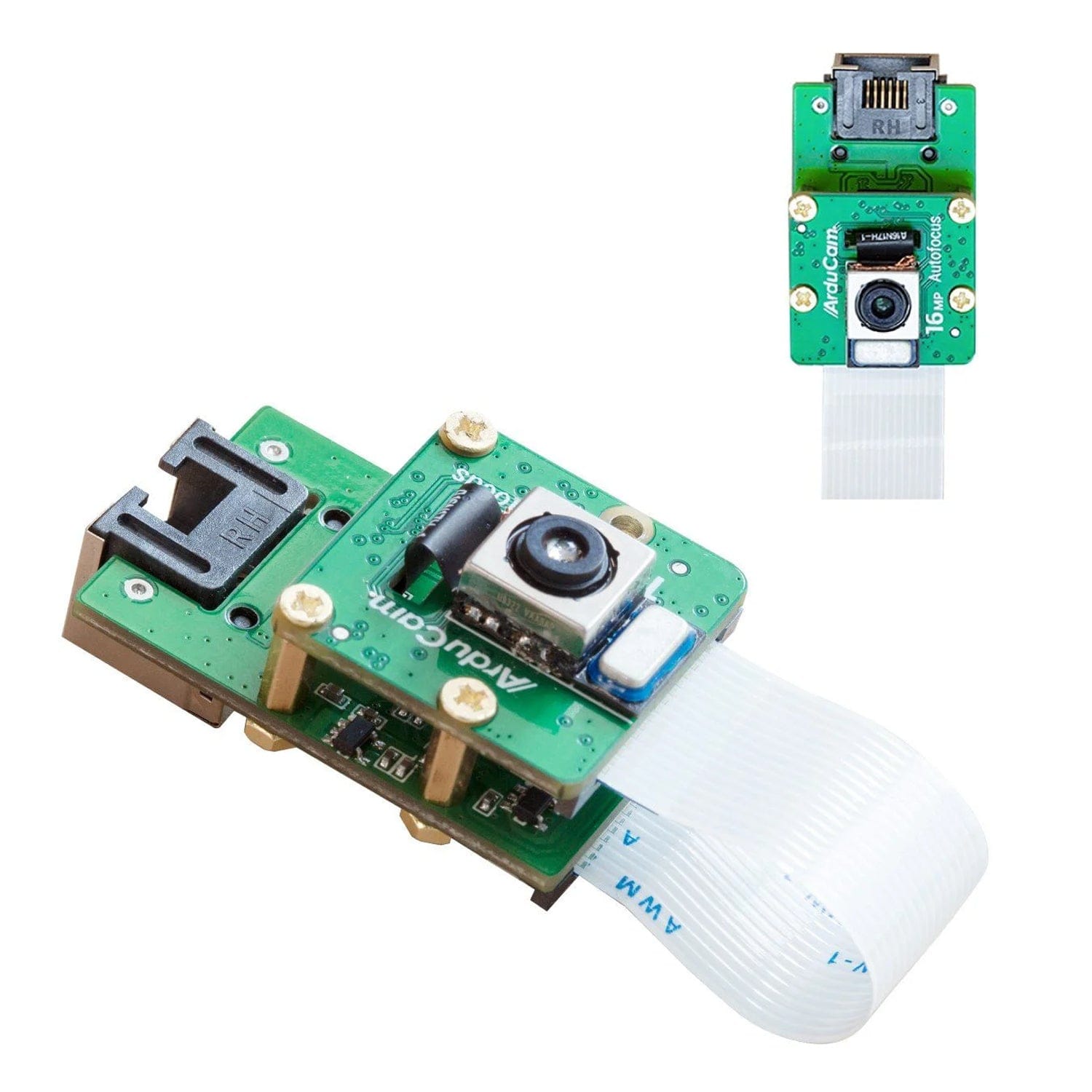

The kit supports a wide range of camera modules, including:

Raspberry Pi and camera modules not included

Supported Camera and Modes

Supported cameras Video Modes
Camera Module V1 (OV5647) 1080p 30 fps, 720p 60fps, 480p 60fps/90fps
Camera Module V2 (IMX219) 1080p47, 1640×1232p41, 640×480p206
HQ Camera (IMX477) 2028×1080p50, 2028×1520p40, 1332×990p120
Camera Module V3 (IMX708) 2304×1296p56, 2304×1296p30 HDR, 1536×864p120
Arducam IMX296 Global Shutter Camera (B0445) 1440×1080@60fps
Arducam IMX519 Camera 1080p30, 720p60
Arducam 64MP Camera (B0399) 1080p30, 720p60, 640×480p60/90
Arducam 64MP Camera (B0483) (link-frequency=456000000) 1080p30, 720p60, 640×480p60/90
Arducam ToF Camera (B0410) 240×180@30fps

Resources

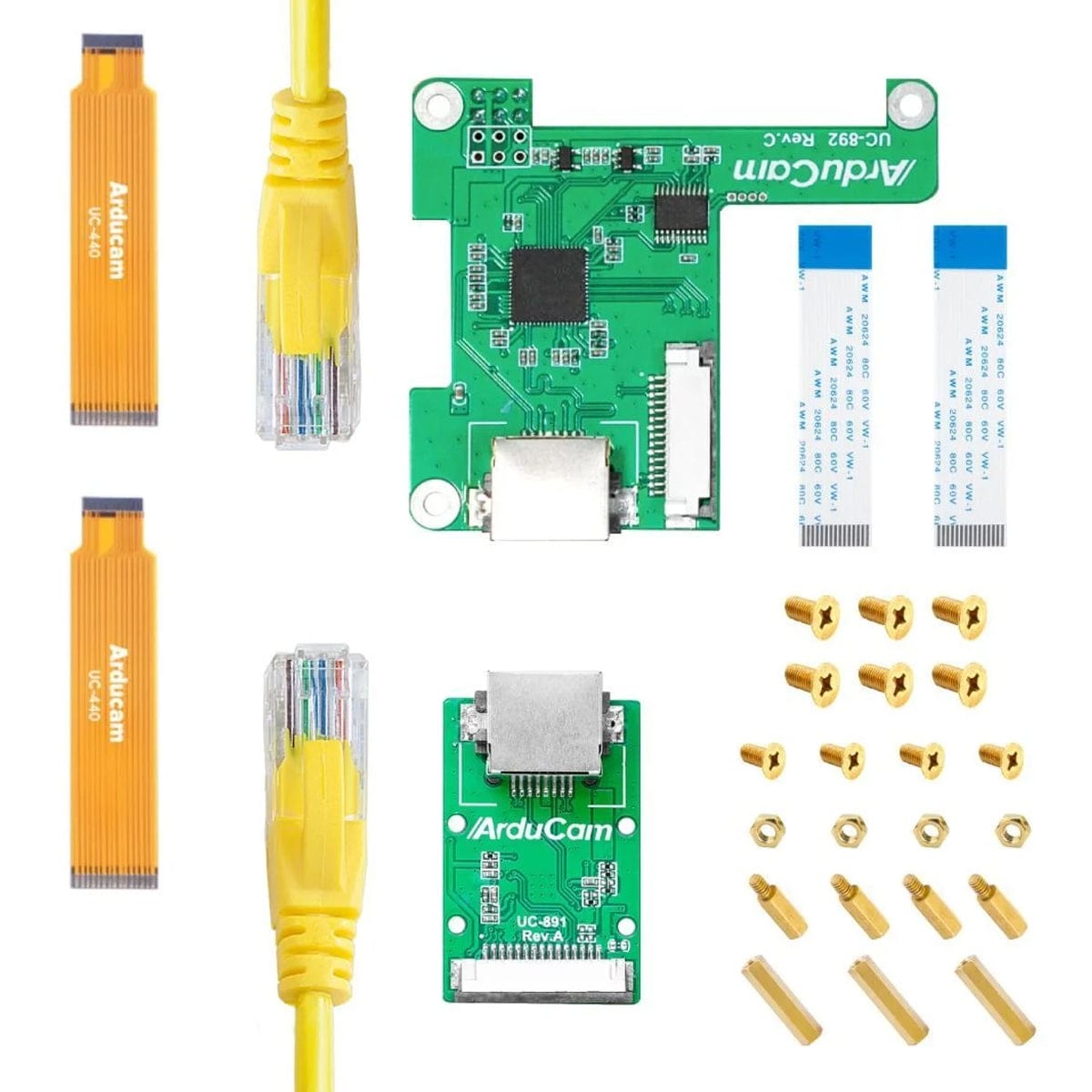

Package Contents

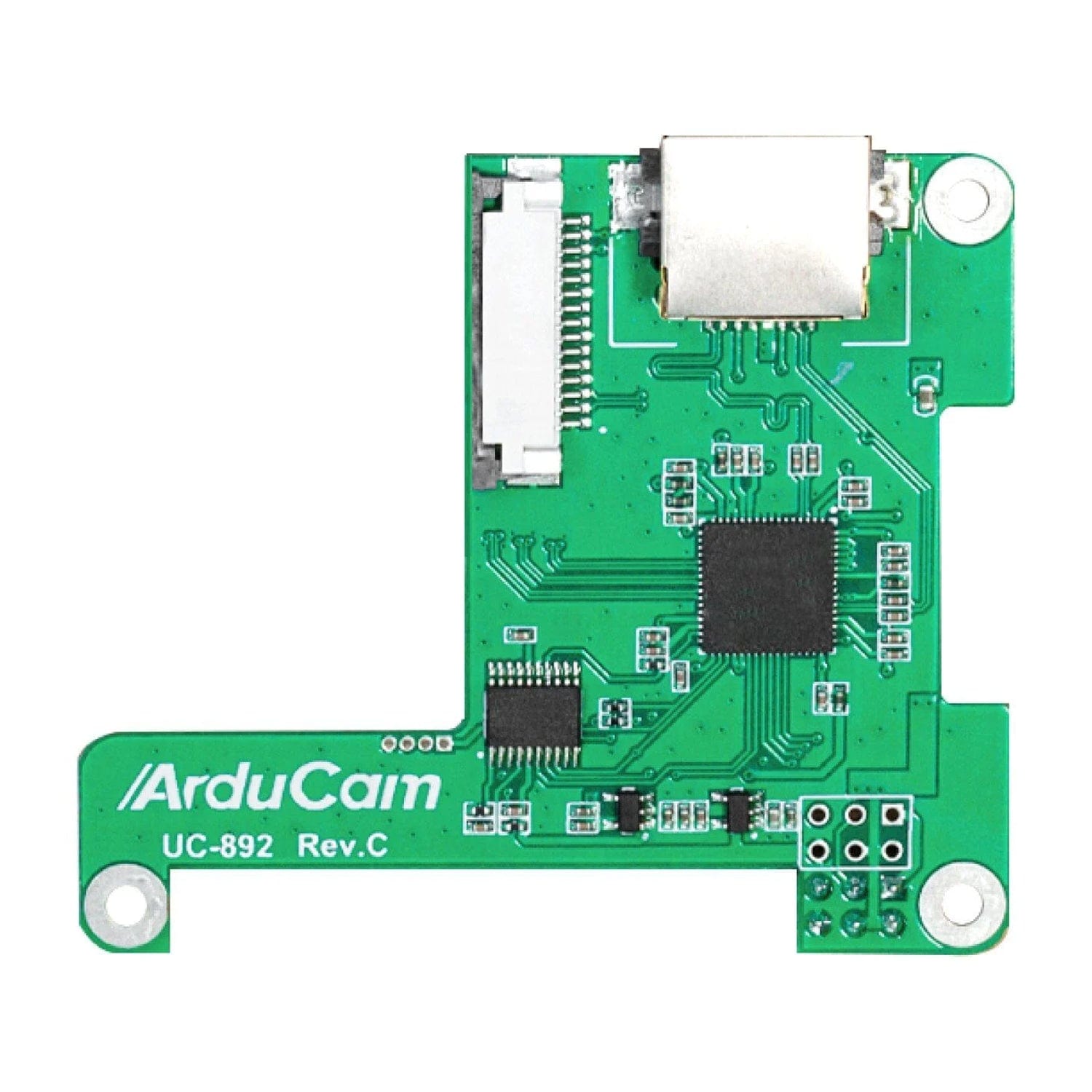

  • 1x Rx board

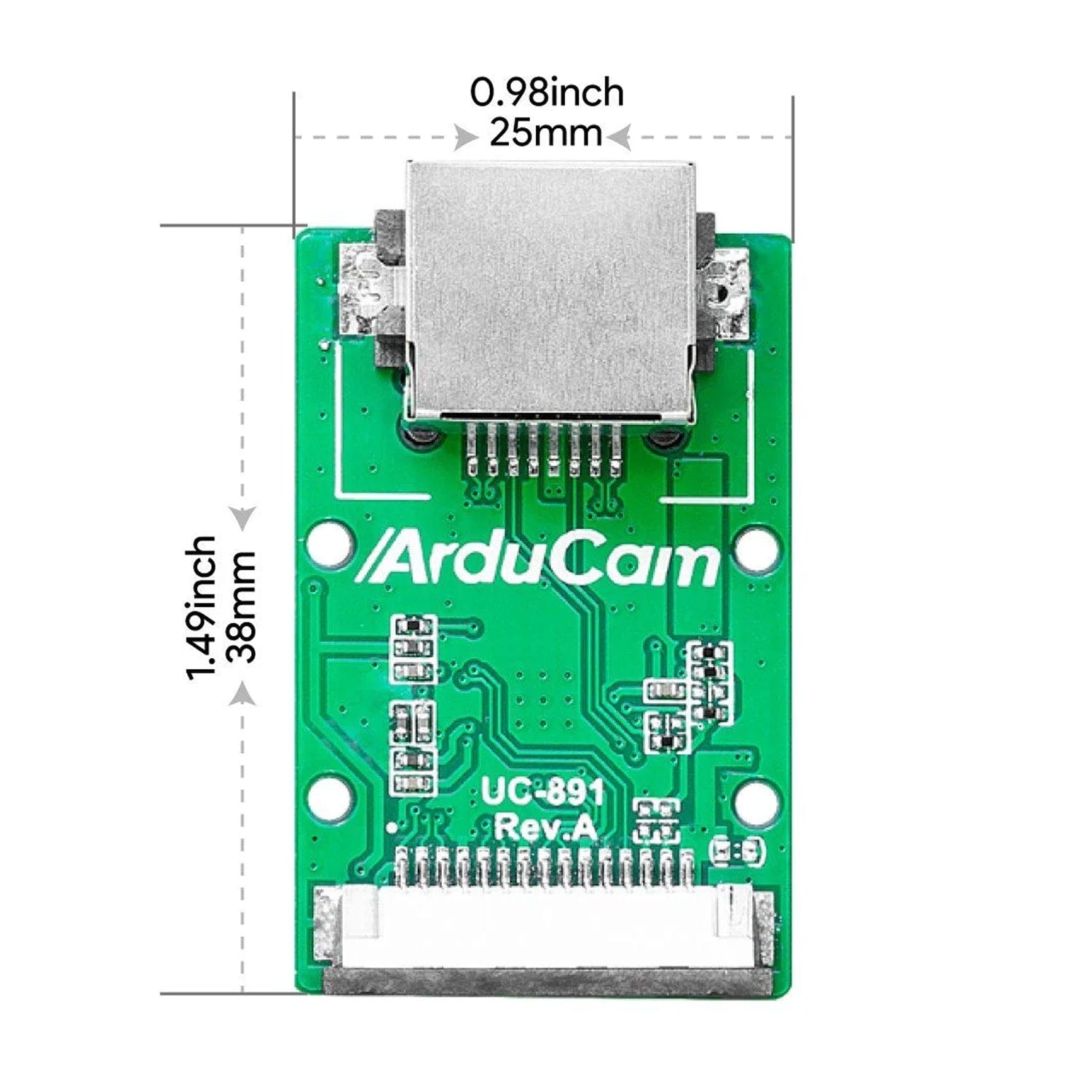

  • 1x Tx board
  • 1x 1m LAN cable
  • 2x 8cm ribbon flex cables for MIPI CSI-2 Transmission
  • 2x 7.3cm 15-22pin FPC Cable
  • 1x Mounting screw pack

Raspberry Pi and camera modules not included
