M5Stack Ammeter Unit (ADS1115)

Price:
Sale price £18.70
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Awesome Extras

M5Stack CoreS3 ESP32S3 loT Development Kit - The Pi HutM5Stack CoreS3 ESP32S3 loT Development Kit - The Pi Hut
M5StackM5Stack CoreS3 ESP32S3
Sale price £57.90 incl. VAT excl. VAT
M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi HutM5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut
M5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW) - The Pi HutM5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW) - The Pi Hut
M5StackM5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW)
Sale price £7.30 incl. VAT excl. VAT

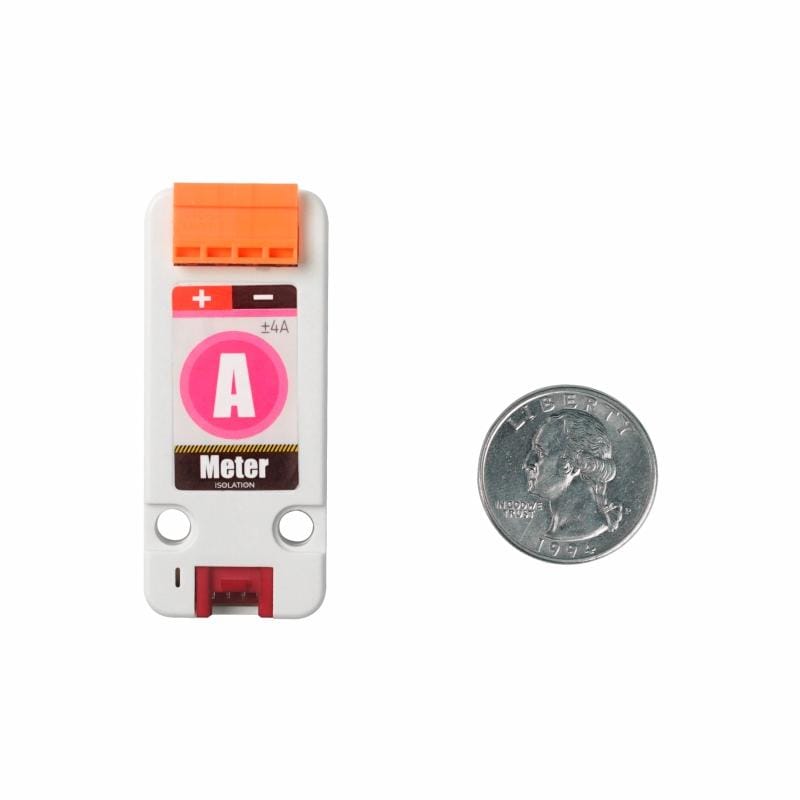

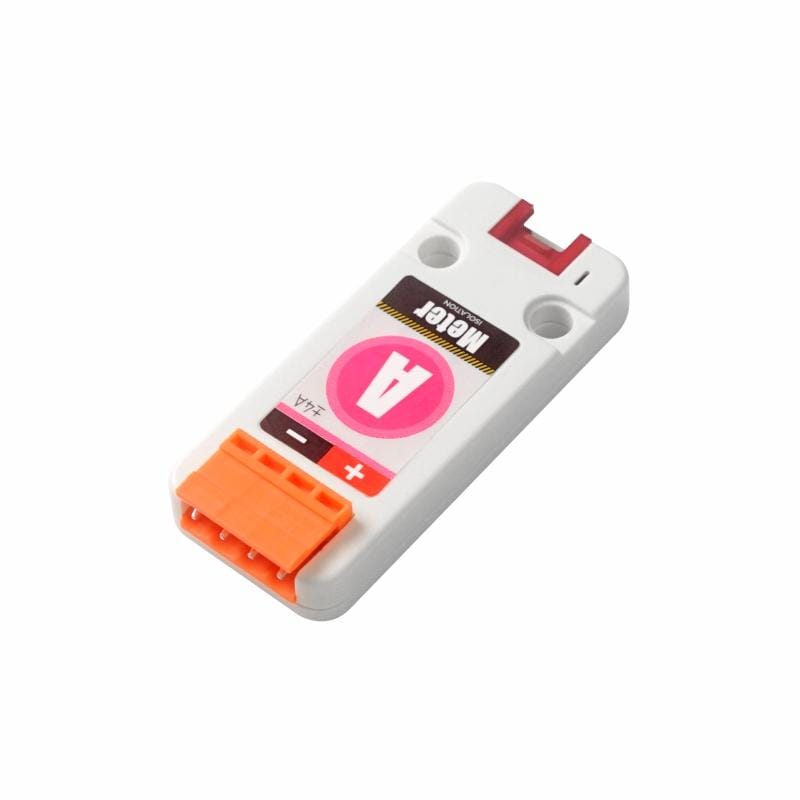

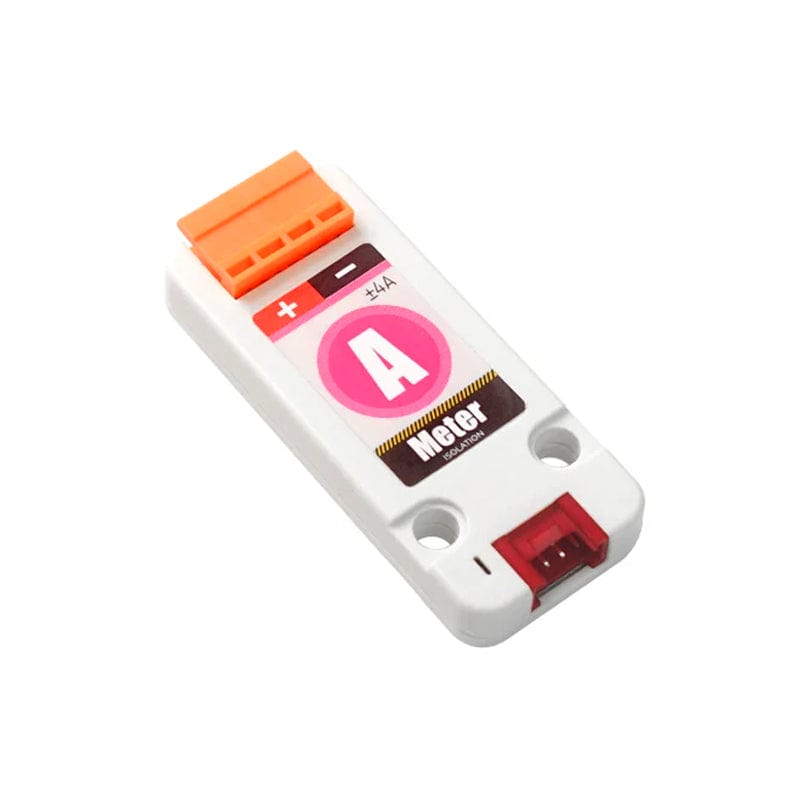

The Ameter Unit is a current meter that can monitor the current in real time. The 16-bit ADS1115 ADC (analog-to-digital) converter can be used to communicate through I2C protocol (By default the I2C address is 0X48 unless manually modified).

In order to ensure the measurement accuracy, there is a built-in DC-DC isolated power supply.

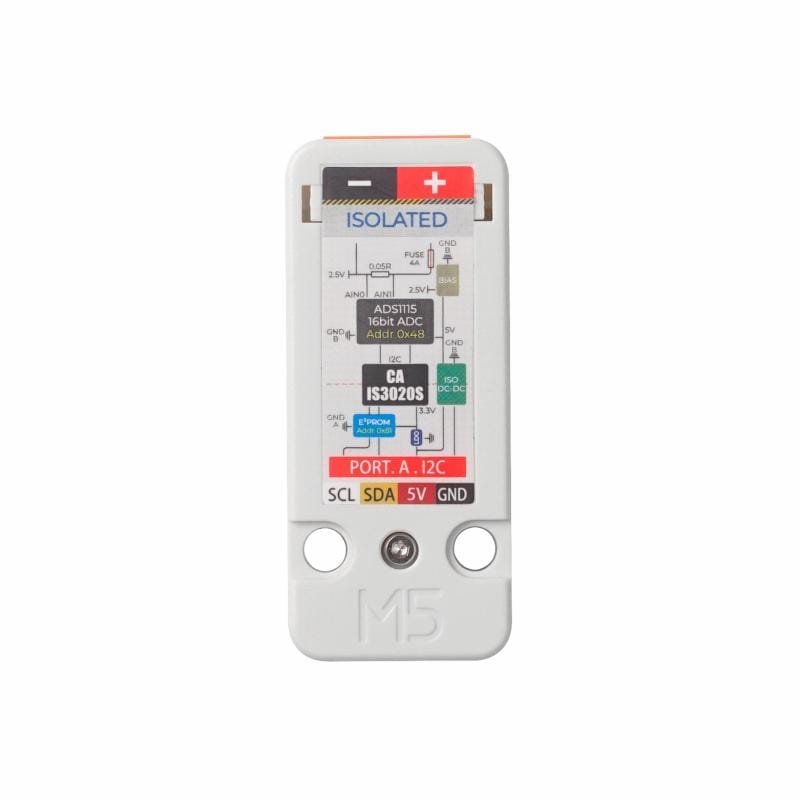

The I2C interface is also electrically isolated through the isolator module CA-IS3020S, this prevents noise and surges on the data bus or other circuits from entering the local ground terminal to interfere or damage sensitive circuits.

Each unit is factory calibrated with an initial accuracy of 0.1%FS, ±1 count and resolution of 0.3mA.

The unit has a maximum measurement current of ±4A, and an internal integrated 4A fuse to prevent excessive measurement current from burning out the circuit.

The EEPROM (0x51) has built-in calibration parameters when leaving the factory. Please do not write to the EEPROM, otherwise the calibration data will be overwritten and the measurement results will be inaccurate.

Features

  • ±4A range
  • 16-bit ADC conversion
  • Inital Accurancy 0.1%FS, ±1 count
  • Resolution 0.3mA
  • LED power indicator
  • 4A Slow-blow Fuse
  • Factory calibration (Cal data saved in on-board EEPROM)
  • Built-in I2C isolator CA-IS3020S
  • Isolated DC-DC
  • Development platform: Arduino, UIFlow (under development)
  • 2x LEGO compatible holes

Package Contents

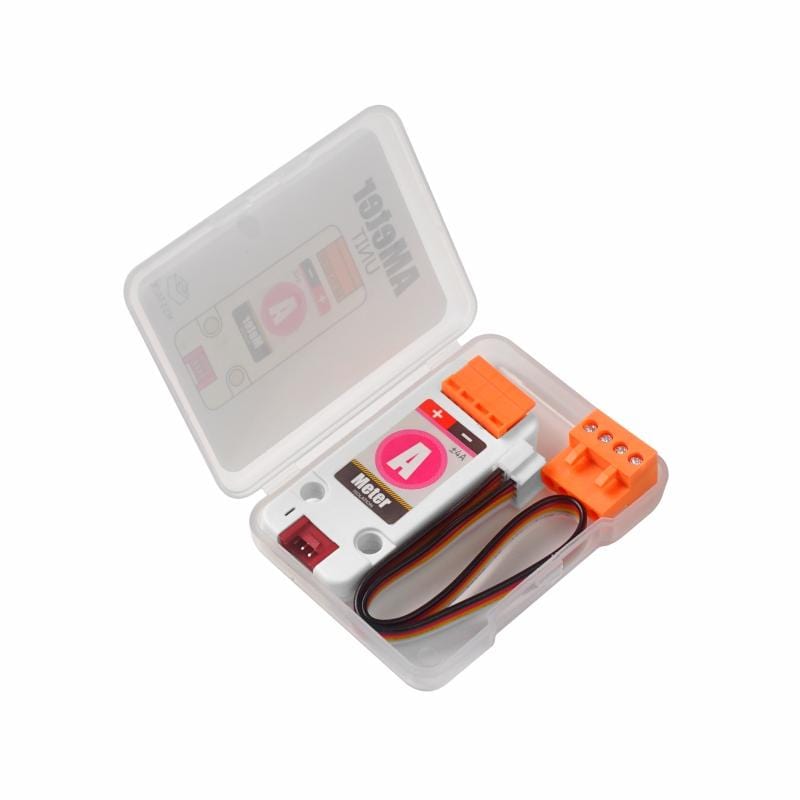

  • 1x Ameter Unit
  • 1x Grove Cable (20cm)

    Specifications

    Resources Parameter
    Measuring range ±4A
    Communication protocol I2C:0x48
    Net Weight 9g
    Gross Weight 24g
    Product Size 65 x 24 x 8mm
    Package Size 67 x 53 x 12mm
