Alpha Single-Gang 16mm Right-angle PC Mount (20K "W" TS Tone - RV16AF-41-15R1)

AlphaSKU: ADA5257
Price:
Sale price £1.90
incl. VAT
excl. VAT
Stock:
Only 18 units left
Quantity:

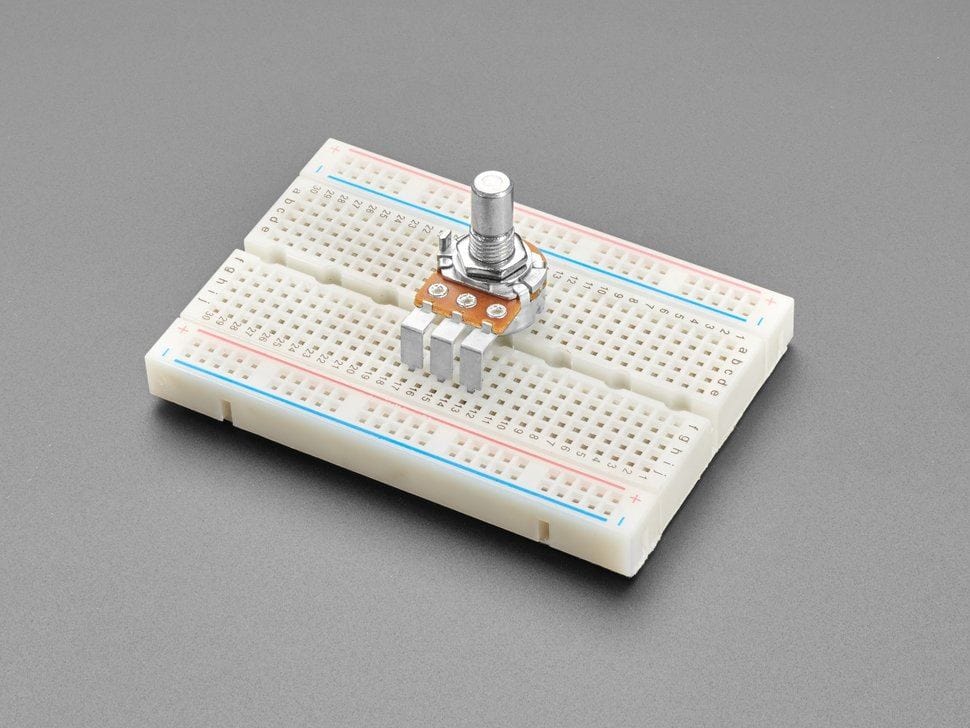

This Alpha 20K "W" TS Tone potentiometer is a two-in-one, good in a breadboard or with a panel. It's a funky W TS Tone taper 20K ohm potentiometer. A W taper is pretty unique and is reverse audio log up to the midpoint and regular audio log after that, sometimes these are called 'G' taper. It's smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard.

Folks love Alpha pots for their reliability and consistency - and we agree! They make great low-cost, high-quality potentiometers

This potentiometer has a round (not T18 or flattened) shaft that is nominally 6mm diameter (we measured 6.3mm with our calipers)

Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer using the included washer and hex nut.
