The M5Stack Air Quality v1.1 is a small, low-power air monitor using the Stamp-S3A for better efficiency and Wi-Fi performance. It has a 1.54” e-ink display and built-in sensors for PM1.0–PM10, temperature, humidity, VOCs, and CO₂. A 600mAh battery with sleep and wake functions supports long-term use, and data can be uploaded to Ezdata Cloud. With its magnetic base and LEGO-compatible mounting holes, it’s easy to set up in homes, schools, or industrial environments.
The M5Stack Air Quality v1.1 is an integrated low-power air quality monitoring device. Compared to the previous generation, the new version adopts the Stamp-S3A master control, with optimizations and improvements in overall power consumption and Wi-Fi antenna design.

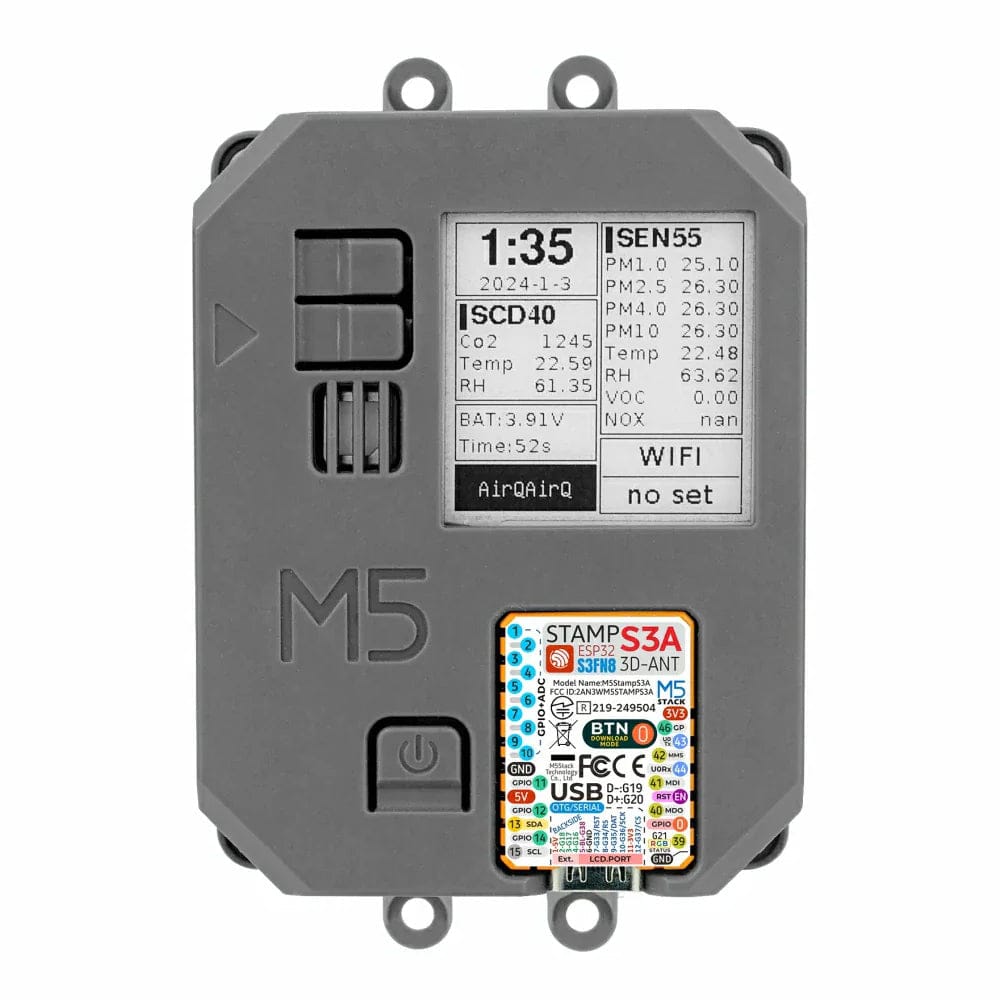

The device features a 1.54" e-ink screen with a 200x200 resolution. It is equipped with a multifunctional air quality sensor SEN55 and a CO2 sensor SCD40, capable of monitoring PM1.0, PM2.5, PM4, PM10 particulates, temperature, humidity, VOC, and CO2 concentration in the air.
The built-in 600mAh lithium battery and RTC low-power power management circuit allow it to achieve sleep and timed wake-up functions. The factory firmware supports uploading air quality data to the M5Stack Ezdata cloud platform, providing users with a convenient remote data viewing function.

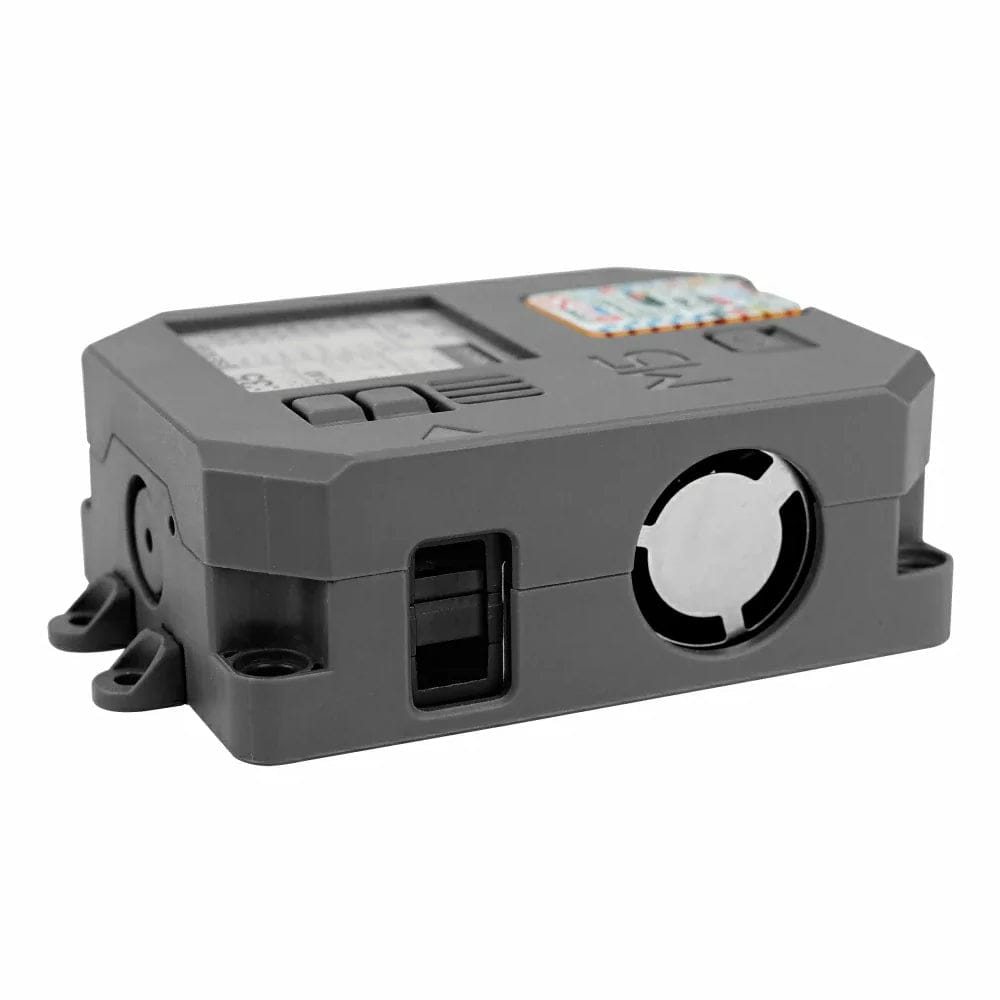

The bottom structure offers LEGO-compatible mounting holes, a magnetic base, and 4 removable mounting lugs, supporting various mounting methods. Suitable for air monitoring in homes, schools, industrial sites, and medical environments.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?
Features
Stamp-S3A master control
SEN55 and SCD40 sensors
1.54" e-ink screen (200 x 200 resolution)
Built-in 600mAh lithium battery

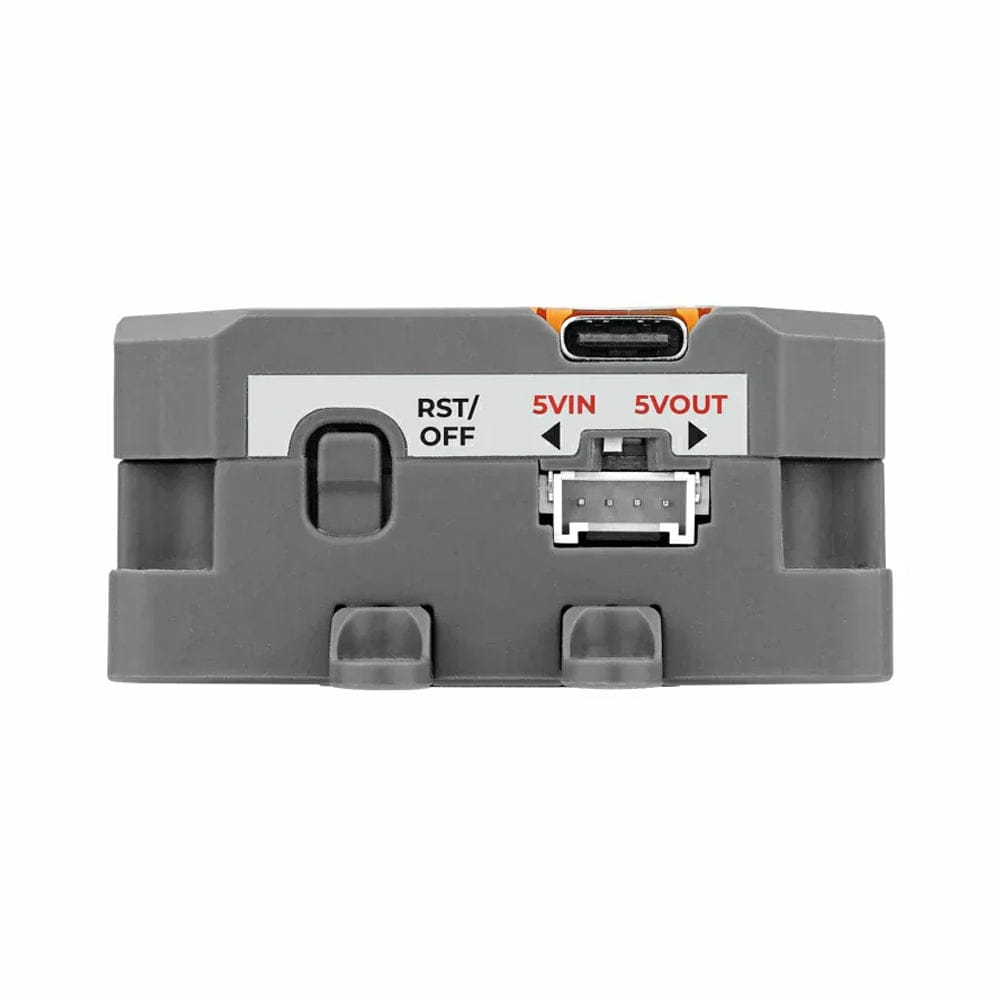

HY2.0-4P interface
EZDATA cloud platform access
RTC timed wake-up
Development Platform
UiFlow2
Arduino IDE
ESP-IDF
PlatformIO
Specifications
Specification
Parameter
Power Detection IC
INA226, high-precision, bidirectional current / power monitoring IC
