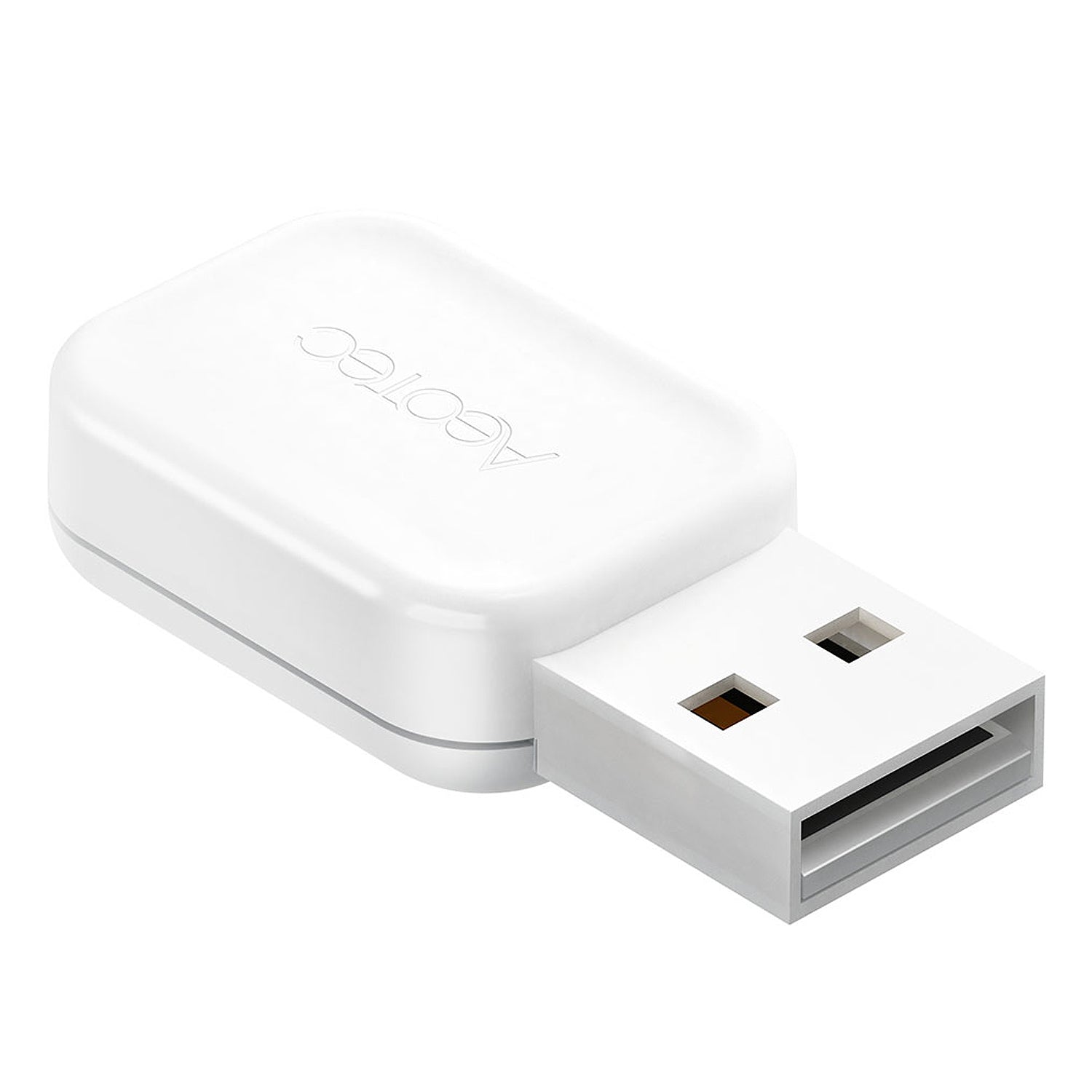

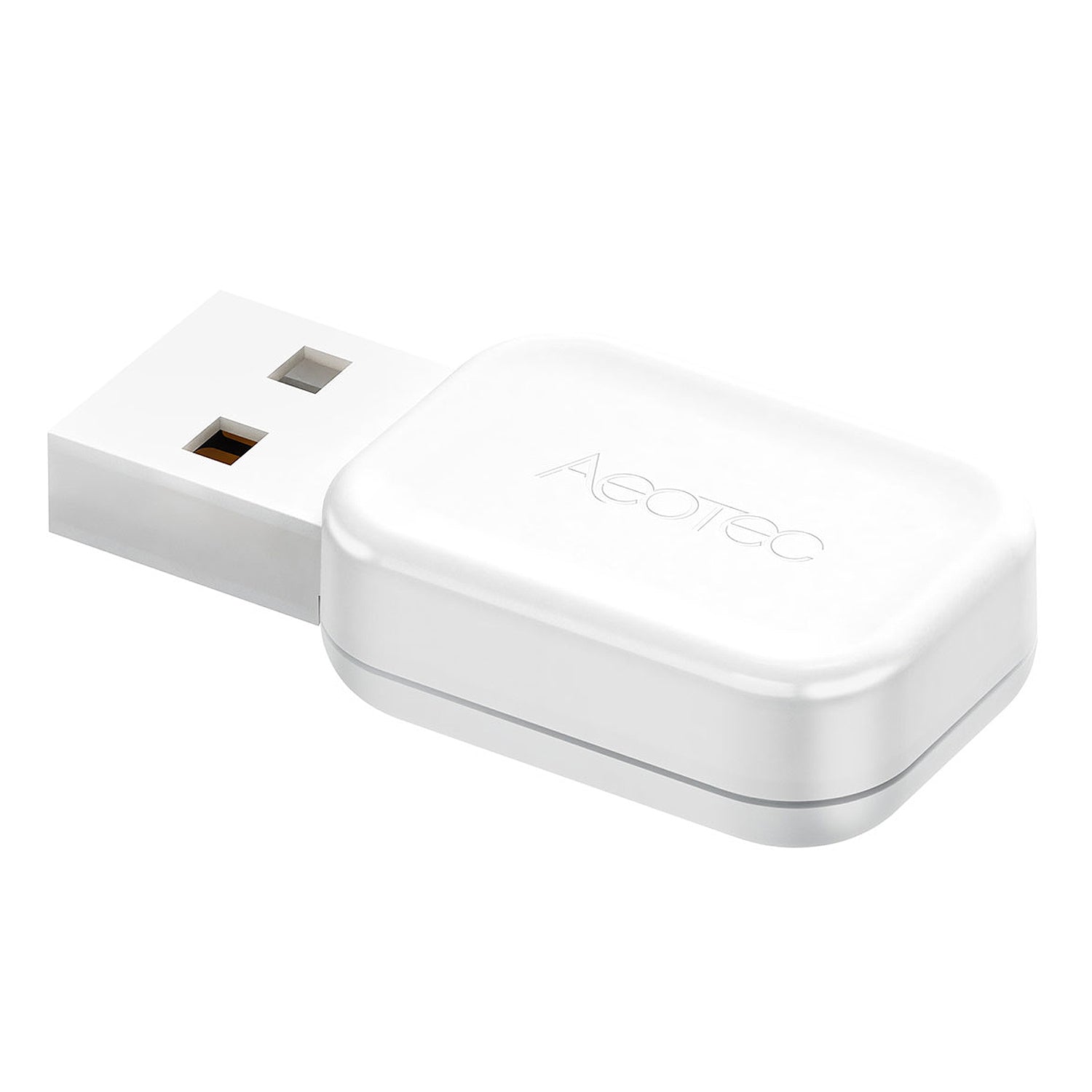

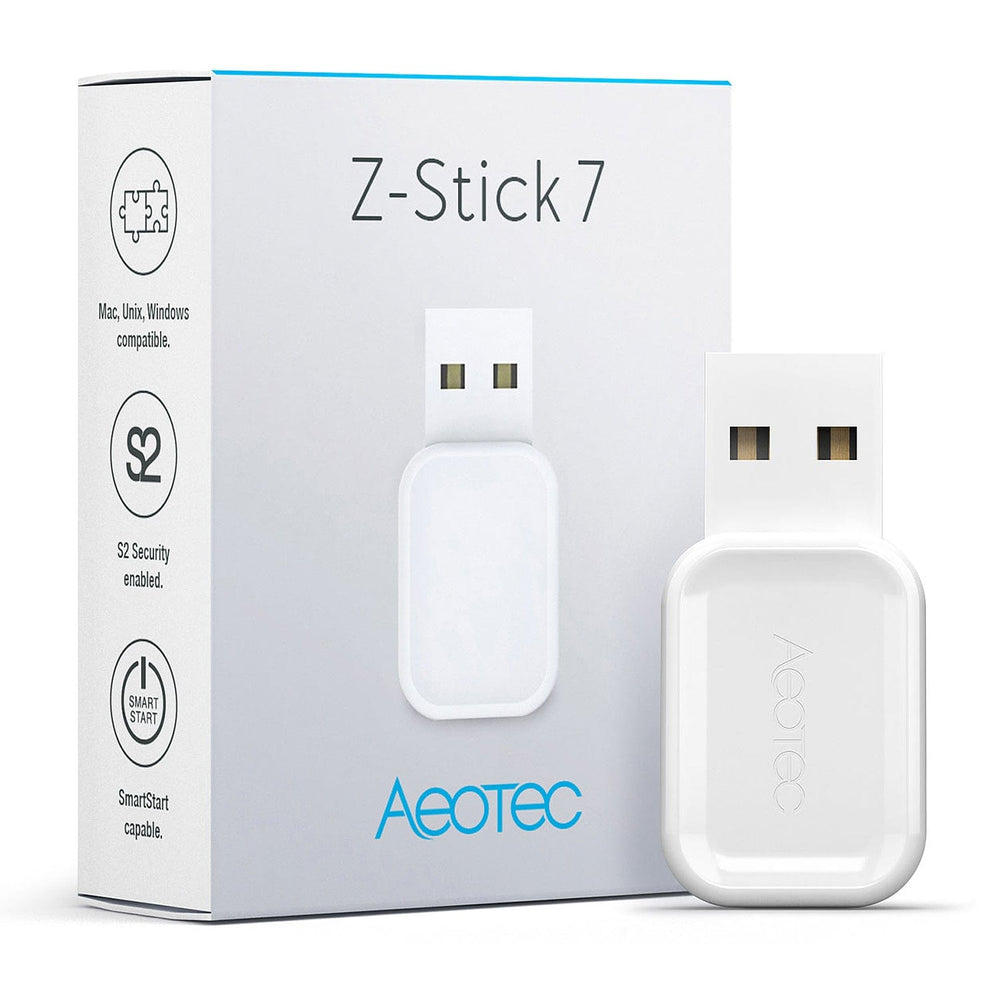

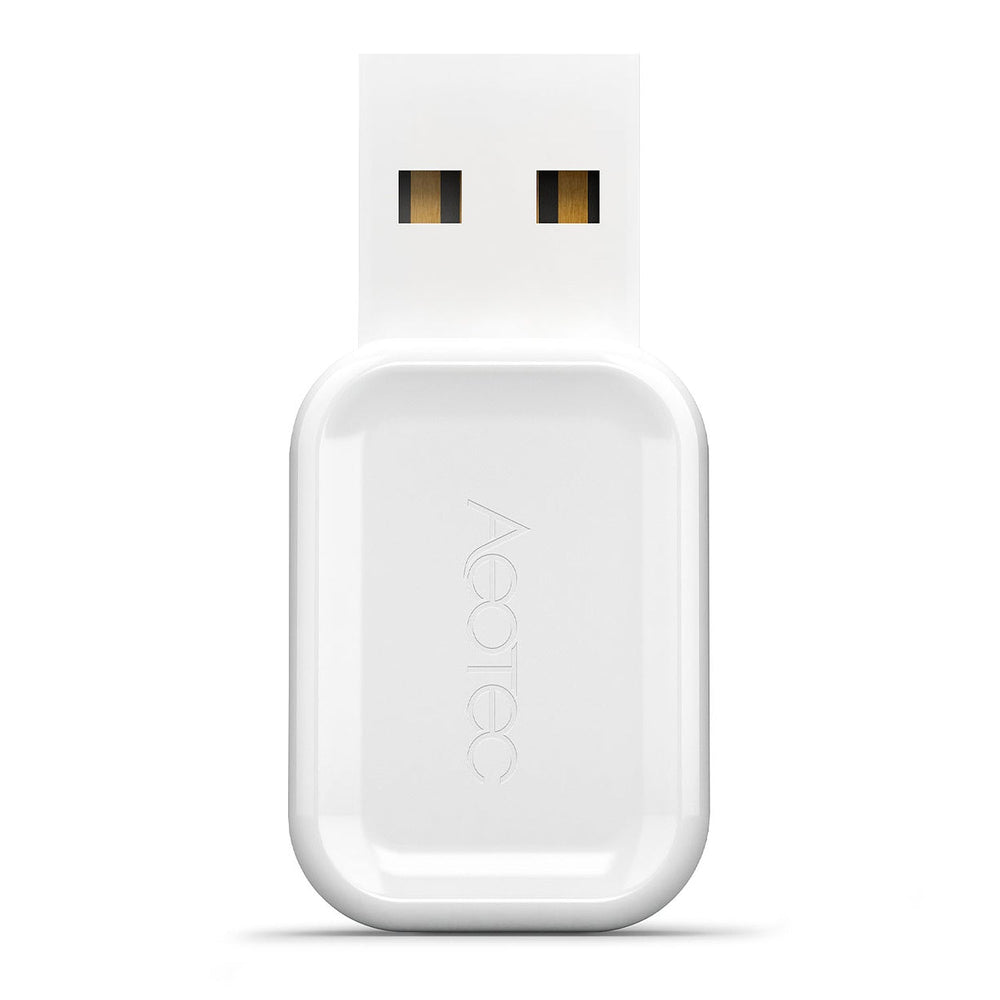

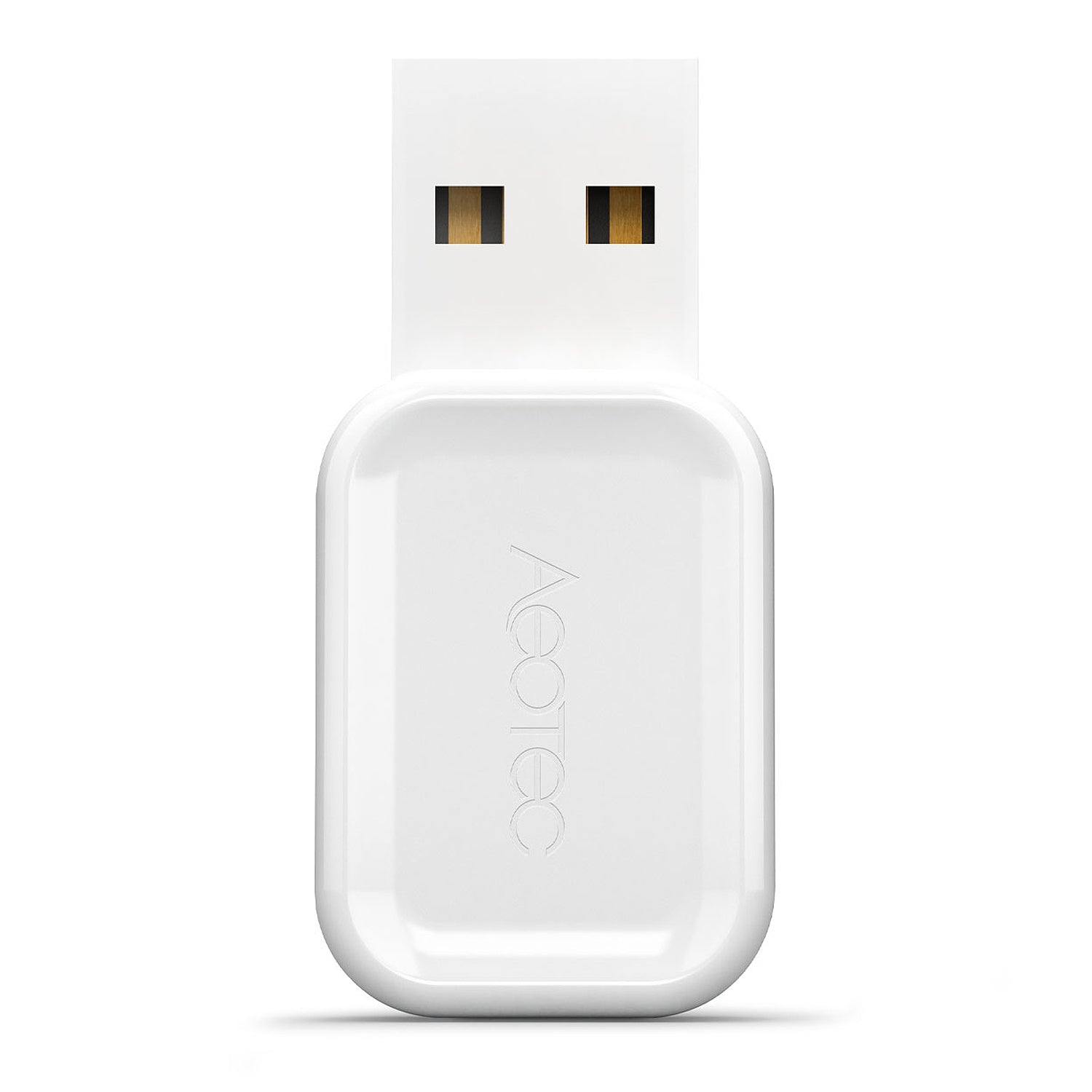

The Aeotec Z-Stick 7 is a USB Z-Wave gateway using Gen7 and 700 series Z-Wave technologies, compatible with Raspberry Pi, Windows, Linux and iOS.

It allows you to monitor and control Z-Wave sensors, smart switches and other Z-Wave devices within your chosen home automation system such as Home Assistant (along with the Z-Wave integration).

Brimming with new features and technology, yet wholly more compact, Z-Stick 7 is 79 % smaller than Z-Stick Gen5+, and yet it is still just as easy to set up.

S2 Encrypted

Z-Stick 7 is S2 encrypted - wireless communication between its Z-Wave antenna and Z-Wave products installed in your home is secured with S2 security's triple-layered security.

Local hosting

If it isn't locally hosted, your automation system's security and privacy could be at risk. Take control of both by using open-source hardware, such as Raspberry Pi and Z-Stick 7 to host and control your automation setup locally

SmartStart enabled

Install new devices in seconds. Z-Stick 7 offers SmartStart natively, allowing for new Z-Wave devices to be connected to your system simply by scanning their QR code through a SmartStart-enabled app.

Features

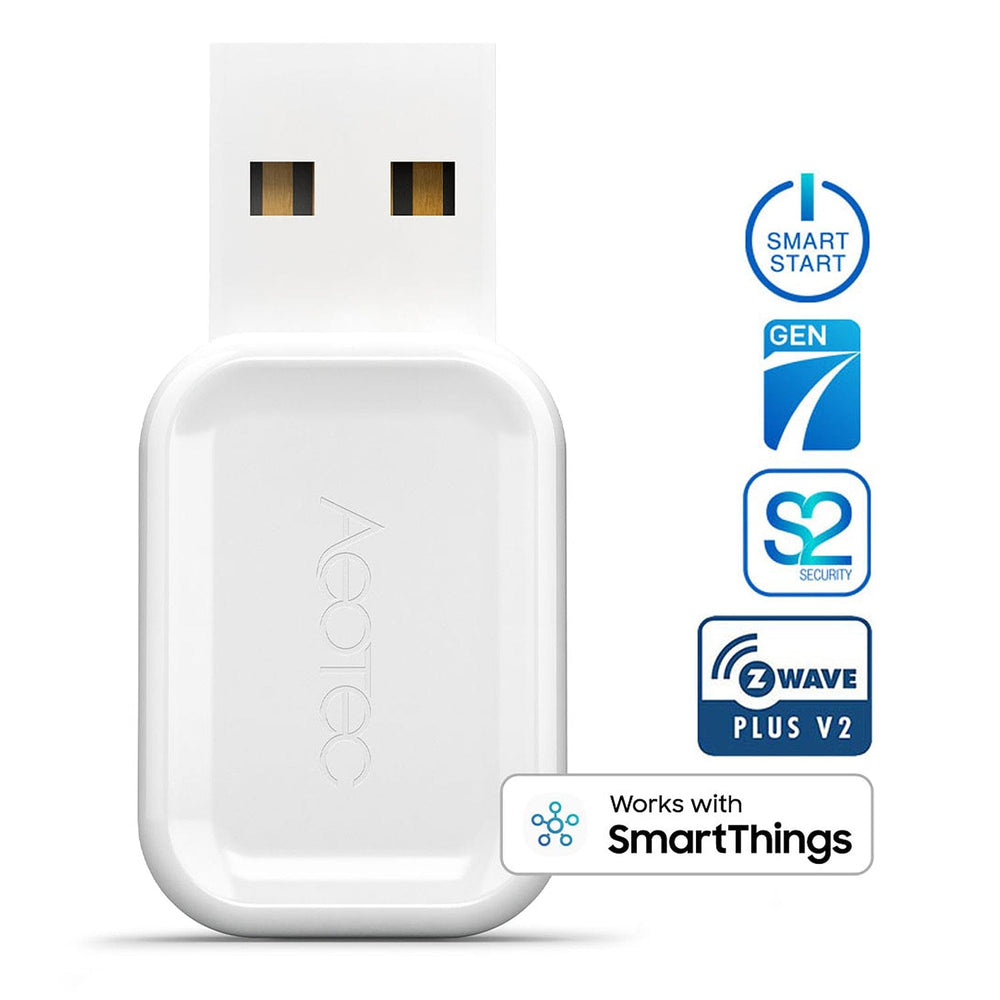

  • Built with Z-Wave 700 series - higher range, more efficient and better performance compared to older generation series
  • Z-Wave controller as a USB stick
  • Wireless technology: Z-Wave Plus V2
  • SmartStart enabled
  • S2 Security
  • Compatible with Raspberry Pi, Windows, Linux and iOS
  • Manages up to 232 Z-Wave devices
  • Universally usable with various Z-Wave software solutions (requires Z-Wave Serial Bridge API support)

Specifications

  • Name: Z-Stick 7
  • Model Number: ZWA010-C (UK/EU version)
  • UK/EU frequency 868.42 Mhz
  • Product Weight: 3.5g
  • UPC/EAN: 1220000016545
  • Library Type: Bridge Controller
  • Device Type: Z-Wave USB Controller
  • Z-Wave Plus Certified: Yes
  • SmartStart: Yes
  • Z-Wave Chip: EFR32ZG14
  • Z-Wave Version: Series 700 and Gen7
  • Security: S2 native
  • QR Code Inclusion: SmartStart native
  • Z-Wave SDK: 7.11.0 or later
  • Power Supply: USB DC 4.75V to 5.25V
  • Sensitivity of the RF receiver:
    • TX Power: +4,8 dBm
    • RX sensitivity: -97.5 dBm
  • Standby current: 18 - 20 mA
  • Max current: 40mA
  • Recommended host current: 50mA
  • Known compatibilities:
    • Tested to be compatible with Raspberry Pi 3 and up
    • Tested to be compatible with Windows 10 OS
    • Tested to be compatible with Linux OS
    • Tested to be compatible with OSX OS
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -20 C to 70 C
  • Product Dimensions: 37 x 28 x 8.5mm
  • Operating Distance:
    • Up to 50m indoor
    • Up to 150m outdoors

Resources

Package Contents

  • 1x Aeotec Z-Stick 7
