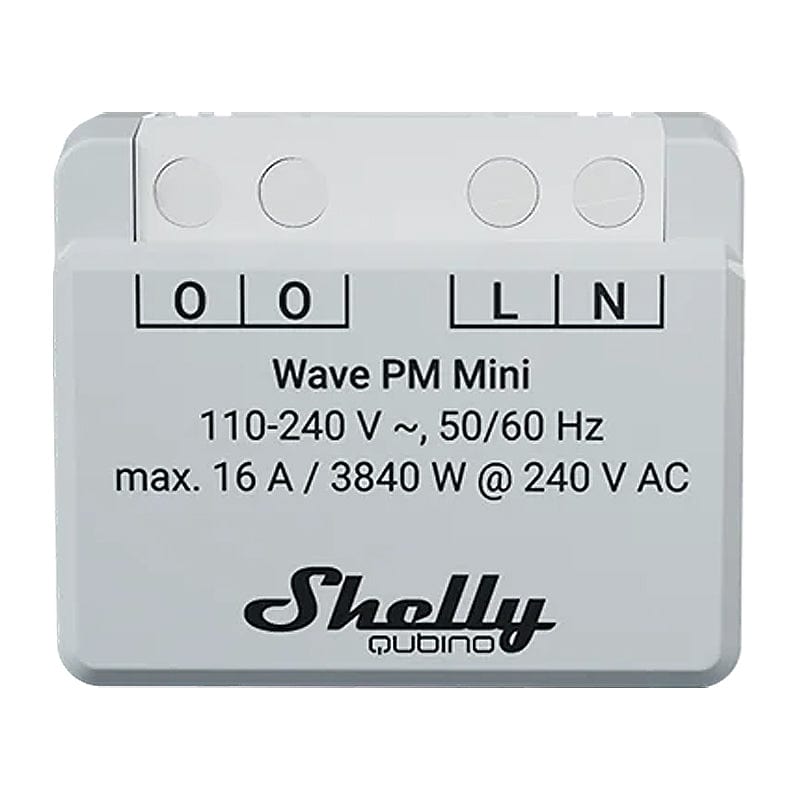

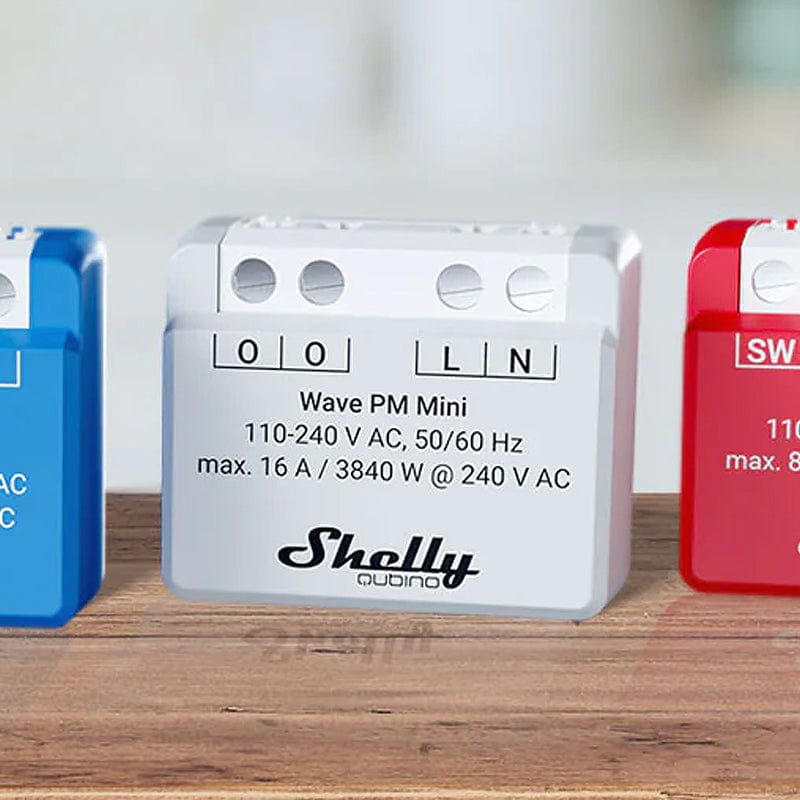

Shelly Wave PM Mini

ShellySKU: 106377
Price:
Sale price £21.50
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

Zooz 800-Series Z-Wave USB StickZooz 800-Series Z-Wave USB Stick
ZoozZooz 800-Series Z-Wave USB Stick
Sale price £29.20 incl. VAT excl. VAT
Zooz 800-Series Z-Wave GPIO ModuleZooz 800-Series Z-Wave GPIO Module
ZoozZooz 800-Series Z-Wave GPIO Module
Sale price £22.40 incl. VAT excl. VAT
QuickFix JB-U Maintenance-Free Junction BoxQuickFix JB-U Maintenance-Free Junction Box
QuickFix JBQuickFix JB-U Maintenance-Free Junction Box
Sale price £1.65 incl. VAT excl. VAT
WAGO Green 221-422 32A 2-Way Lever Connectors - Pack of 3WAGO Green 221-422 32A 2-Way Lever Connectors - Pack of 3
WAGO Green 221-423 32A 3-Way Lever Connectors - Pack of 3WAGO Green 221-423 32A 3-Way Lever Connectors - Pack of 3
Shelly Wave Door/WindowShelly Wave Door/Window
ShellyShelly Wave Door/Window
Sale price £20 incl. VAT excl. VAT
Shelly Wave Plug (UK)Shelly Wave Plug (UK)
ShellyShelly Wave Plug (UK)
Sale price £26 incl. VAT excl. VAT
Coming Soon
Aeotec Z-Wave Range Extender 7 (UK)Aeotec Z-Wave Range Extender 7 (UK)
AeotecAeotec Z-Wave Range Extender 7 (UK)
Sale price £36.20 incl. VAT excl. VAT
Aeotec Z-Wave MultiSensor 7Aeotec Z-Wave MultiSensor 7
AeotecAeotec Z-Wave MultiSensor 7
Sale price £72.50 incl. VAT excl. VAT
Zooz Z-Wave Outdoor Motion Sensor - 800 SeriesZooz Z-Wave Outdoor Motion Sensor - 800 Series
ZoozZooz Z-Wave Outdoor Motion Sensor - 800 Series
Sale price £41.90 incl. VAT excl. VAT

The Shelly Wave PM Mini is the smallest Z-Wave power meter in the world for precise power monitoring (no relays/no switching). Track electrical appliances' power consumption up to 16A from anywhere and optimise your energy usage.

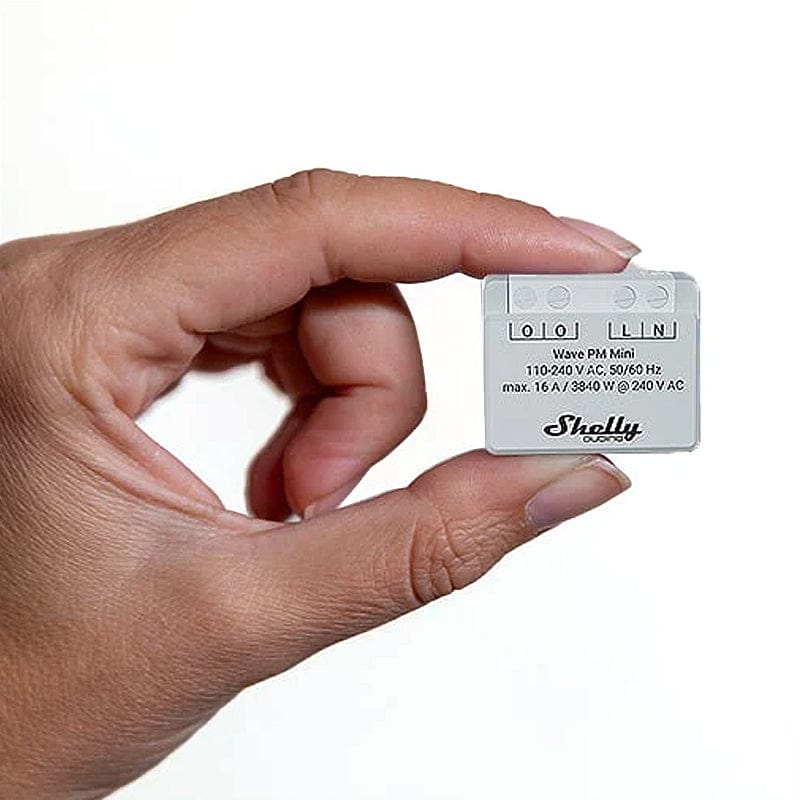

Designed with convenience in mind, this Mini power meter has the powerful capability of energy consumption monitoring in a compact and space-saving form factor. The Wave PM Mini is perfect for those tight spaces where traditional devices simply won't fit. Despite their small size, Wave Mini devices don't compromise performance or functionality.​

Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances with a popular home automation software such as Home Assistant via a Raspberry Pi!

Note: You may require a neutral wire to use this product. Please research the device and your home wiring (safely, see below) before purchasing.

Works with all certified Z-Wave Gateways

Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet.

By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.

Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: www. z-wavealliance.org

⚠️Caution - Read Before Buying⚠️

  • Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
  • Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
  • Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
  • Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
  • Do not connect the device to appliances exceeding the given max load.
  • Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
  • Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.

Highlights

  • Z-Wave operated - Include Wave PM Mini to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
  • Power Monitoring - Wave PM Mini provides precise power consumption monitoring.
  • Supports up to 16A - The device can measure power consumption of a load of up to 16A
  • Wide range of voltage support - Use it to monitor a wide range of AC devices and appliances
  • Associations - Establish direct communication between devices in your Z-Wave local network and set actions with no gateway present!​
  • Smart scenes - Set custom scenes by combining Wave PM Mini with any other Z-Wave devices (gateway required). ​

Features

  • Supports up to 16 A at 240 V AC​
  • Power metering​
  • Extremely low power consumption: < 0.3 W​
  • Z-Wave frequency band: 868.4 MHz (CEPT countries)​
  • Latest technology: Z-Wave 800 Series​
  • Automatic set-up with SmartStart ​
  • Security 2 Authenticated for the highest level of security​
  • Supports over-the-air firmware updates​

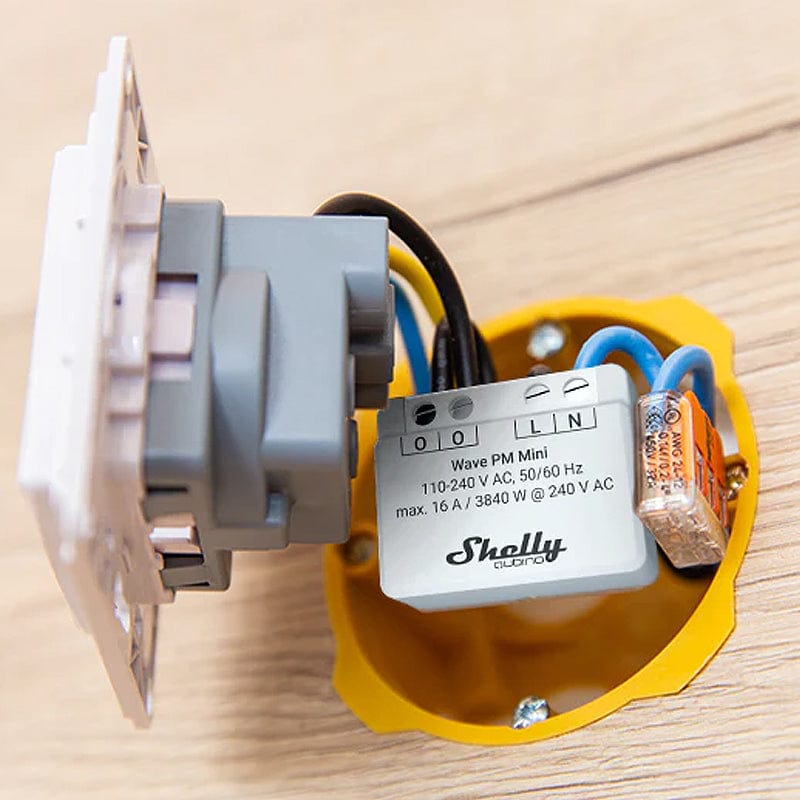

  • Fast and simple installation in most standard electrical boxes and switches​
  • Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices​
  • A Z-Wave™ gateway is not included. A gateway (smart hub) is required for the configuration of the device.

Specifications

Power supply 110 - 240 V AC, 50/60 Hz
Power consumption < 0,3 W
Power measurement (W) Yes
External protection 16 A, tripping characteristic B or C
6 kA interrupting rating
Energy limiting class 3
Max. measurement power 3840 W
Max measurement current 16 A
Overheating protection Yes
Distance Up to 40 m indoors (131 ft.)
(depends on local conditions)
Z-Wave® repeater Yes
CPU Z-Wave® S800
Z-Wave® frequency band: 868,4 MHz
Maximum radio frequency
power transmitted in frequency band(s)
< 25 mW

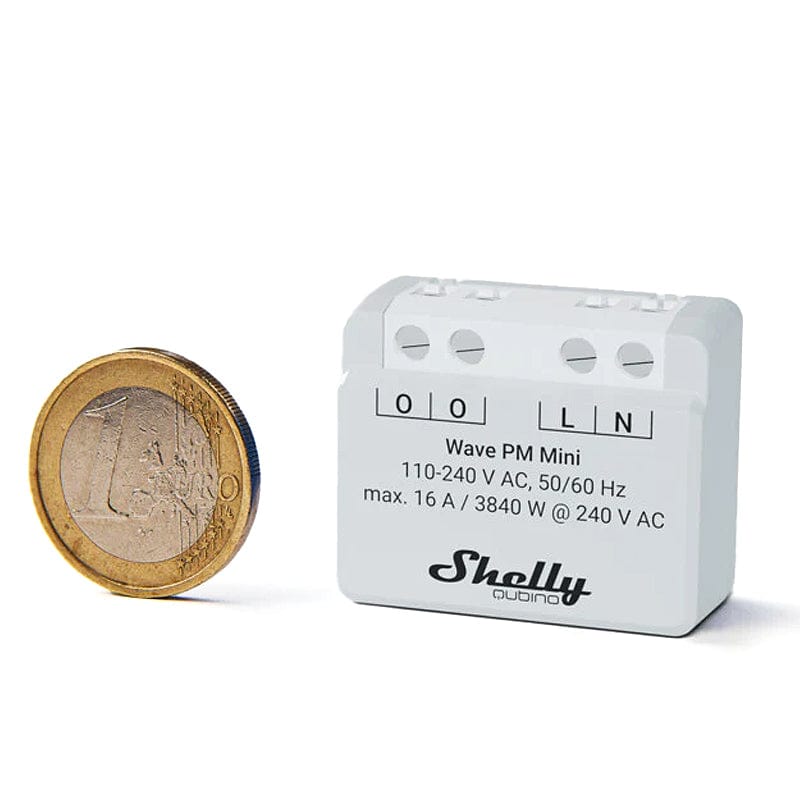

Size (H x W x D) 29x35x16 ±0.5mm
Weight 13 ±1 g / 0.46 ±0.04 oz
Mounting Wall box
Screw terminals max. torque 0.4 Nm / 3.54 lbin
Conductor cross-section 0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length 5 to 6 mm / 0.20 to 0.24 in
Shell material Plastic
Colour Light grey
Ambient temperature -20°C to 40°C
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.
Ambient temperature -20°C to 40°C
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.

Resources

Handy Shelly Resources

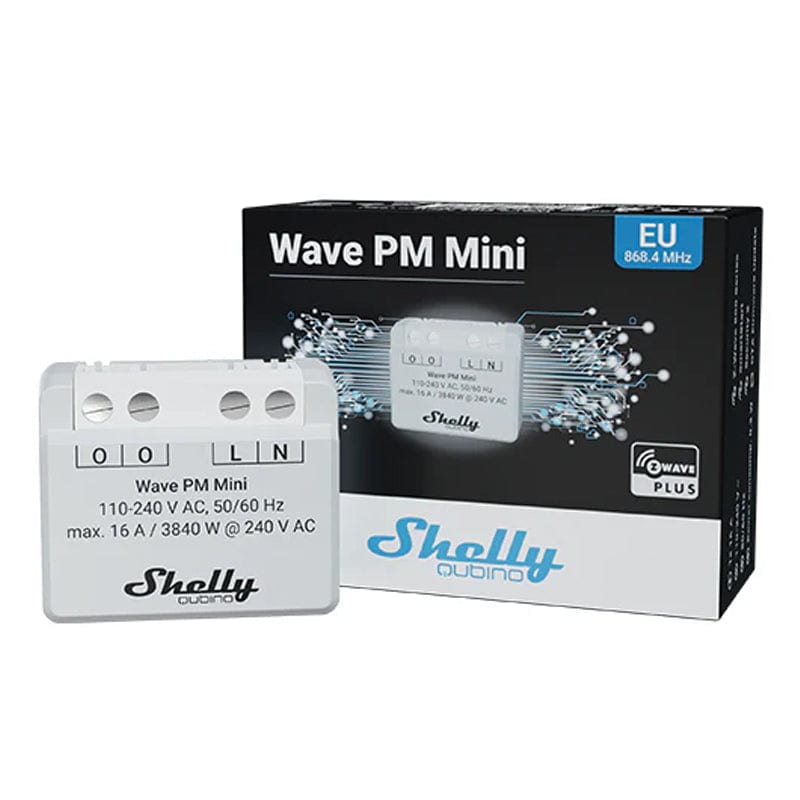

Package Contents

  • 1x Shelly Wave PM Mini
  • 1x DSK Label
  • 1x User Guide
