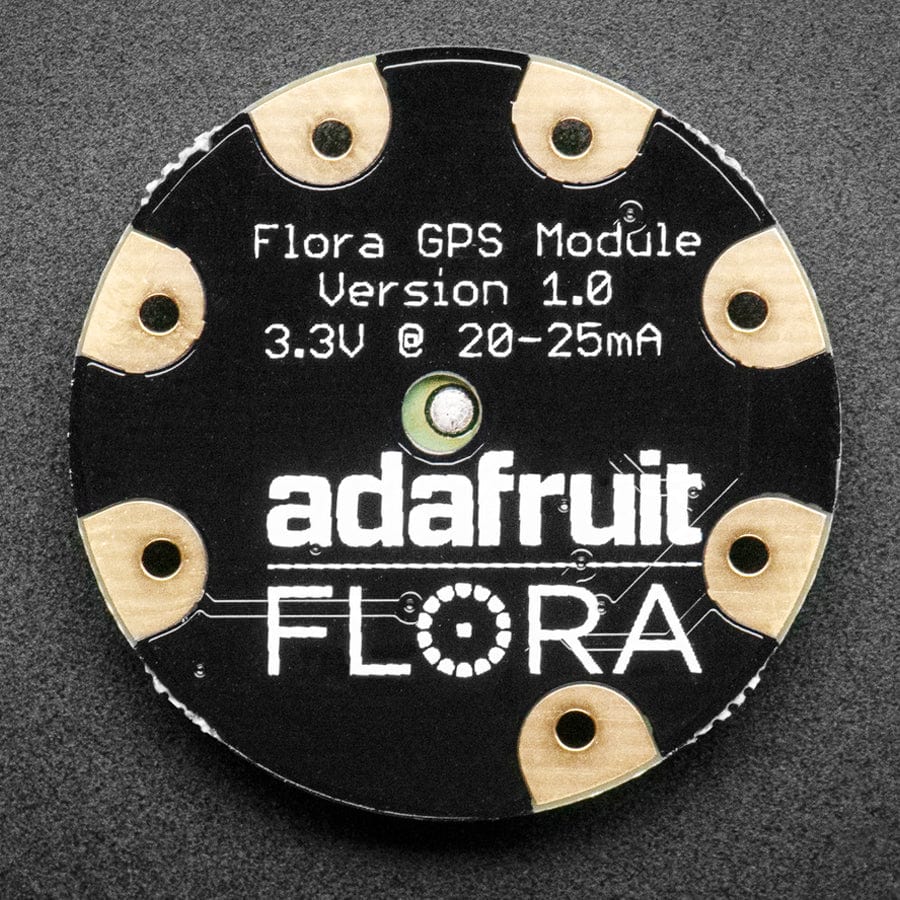

Flora Wearable Ultimate GPS Module

AdafruitSKU: ADA1059
Price:
Sale price £23.40
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Awesome Extras

ANSMANNCR2032 3V Lithium Coin Cell Battery
Sale price £1.20 incl. VAT excl. VAT
The Pi HutSewable CR2032 Battery Holder
Sale price £2 incl. VAT excl. VAT
The Pi HutSMA to uFL/u.FL/IPX/IPEX RF Adapter Cable
Sale price £3.40 incl. VAT excl. VAT
AdafruitFLORA Budget Pack
Sale price £39.80 incl. VAT excl. VAT

This module is the best way to add a GPS to your wearable project. It's part of the Adafruit Flora series of wearable electronics, designed specifically for use with the Flora motherboard. Installed on the PCB is the latest of our Ultimate GPS modules, a small, super-thin, low-power GPS module with built-in data-logging capability! This module is easy to use, but extremely powerful:

  • -165 dBm sensitivity, 10 Hz updates, 99 search channels
  • Designed for wearable use with the Flora system
  • Only 30mA current draw
  • RTC battery-compatible - sew a battery on to create an atomic-precision real-time clock
  • Built-in data logging

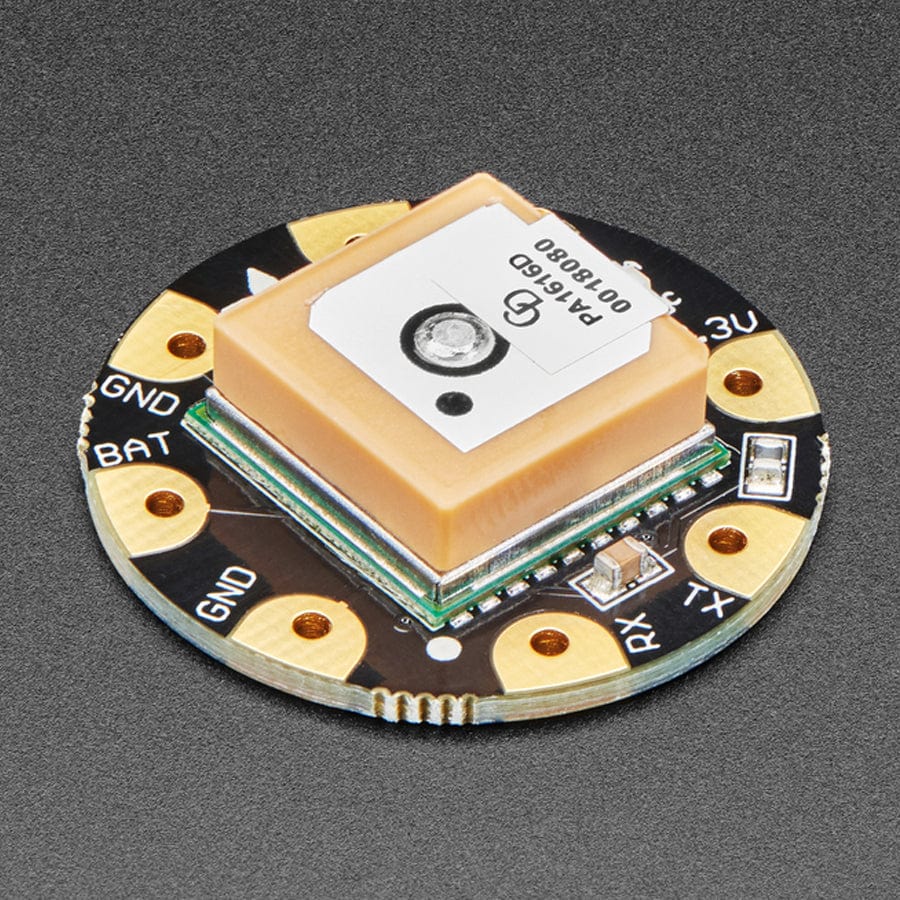

  • Internal patch antenna + u.FL connector for external active antenna
  • Fix status LED

The breakout is built around the MTK3333 chipset, a no-nonsense, high-quality GPS module that can track up to 22 satellites on 66 channels, has an excellent high-sensitivity receiver (-165 dB tracking!), and a built-in antenna. It can do up to 10 location updates a second for high-speed, high-sensitivity logging, or tracking. Power usage is incredibly low, only 30 mA during navigation.

We found and are using a nearly identical version of the module - it's a little taller (4mm) but has the same functionality. The commands for querying the antenna have changed slightly so existing projects may need to update their firmware.

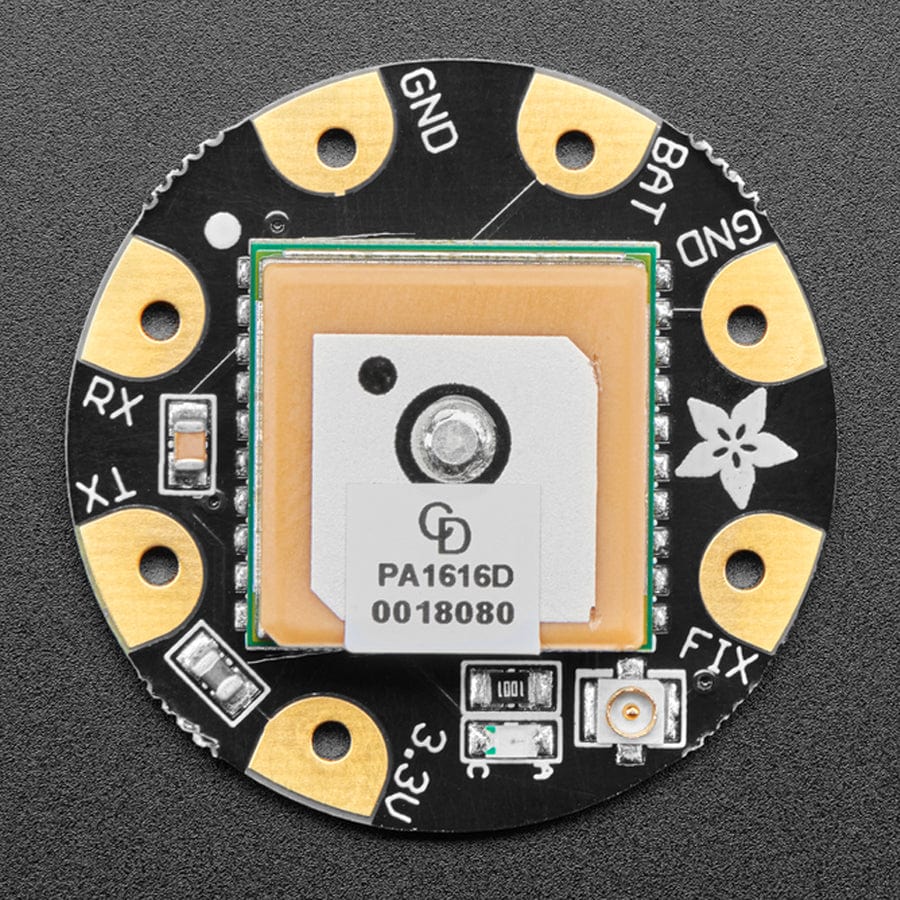

The module is kept small and simple, we have a ferrite bead, filter capacitor and red fix LED on board. The LED blinks at about 1Hz while it's searching for satellites and blinks once every 15 seconds when a fix is found to conserve power. If you want to have an LED on all the time, we also provide the FIX signal out on a pin so you can put an external LED on.

Two features that really stand out about the MTK3333-based module are the external antenna functionality and the built-in data-logging capability. The module has a standard ceramic patch antenna that gives it -165 dB sensitivity, but when you want to have a bigger antenna, you can snap on any 3V active GPS antenna via the uFL connector. The module will automatically detect the active antenna and switch over! Most GPS antennas use SMA connectors so you may want to pick up one of our uFL to SMA adapters.

The other cool feature of the new MTK3333-based module (which we have tested with great success) is the built-in data-logging ability. Since there is a microcontroller inside the module, with some empty FLASH memory, the newest firmware now allows sending commands to do internal logging to that FLASH. The only thing is that you do need to have the Flora mainboard send the "Start Logging" command. However, after that message is sent, Flora can go to sleep and does not need to wake up to talk to the GPS anymore to reduce power consumption. The time, date, longitude, latitude, and height are logged every 15 seconds and only when there is a fix. The internal FLASH can store about 16 hours of data, it will automatically append data so you don't have to worry about accidentally losing data if power is lost. It is not possible to change what is logged and how often, as it's hardcoded into the module but we found that this arrangement covers many of the most common GPS datalogging requirements.

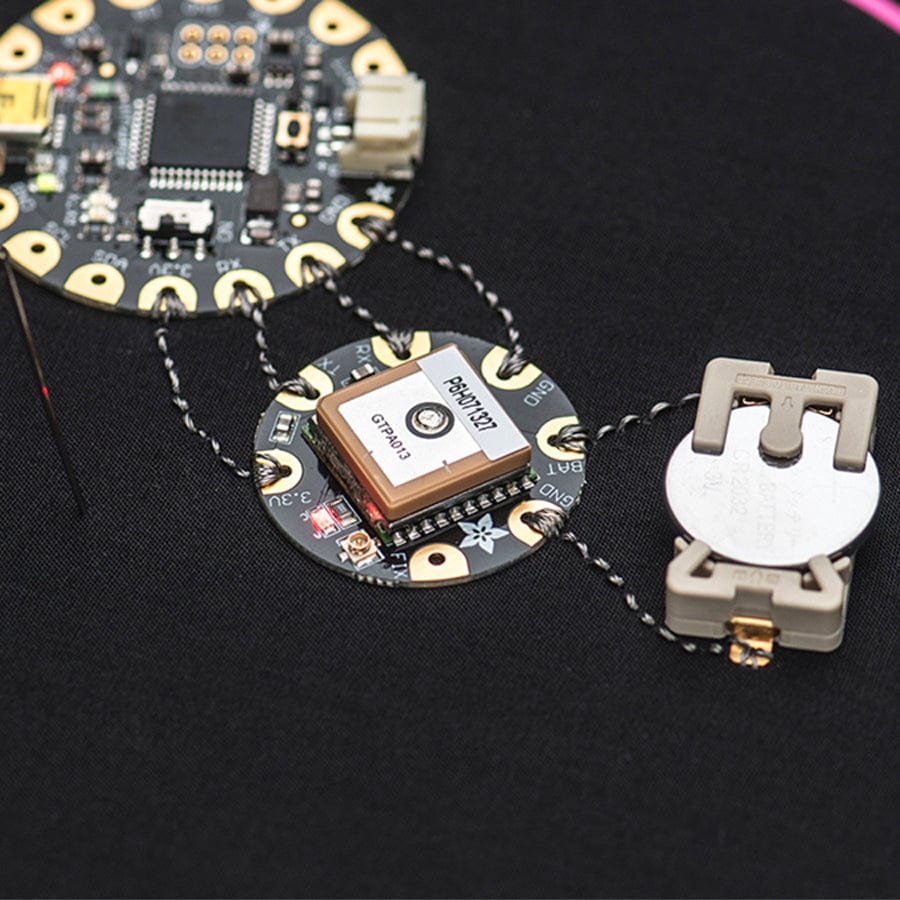

Comes with one fully assembled and tested module. If you'd like to back up the RTC for faster fix-recovery, pick up a sewable CR2032 holder & CR2032 battery and sew it so the + side connects to the VBAT pad and the - side connects to the ground.

Note: Cables, batteries and boards are NOT included

Revision History

As of June 12, 2024 - The original GPS module is no longer available, so we've replaced it with a nearly identical GPS module that has the same shape and performance. Some commands for querying the antenna have slightly changed.

Specifications

  • Satellites: 33 tracking, 99 Searching
  • Patch Antenna Size: 15mm x 15mm x 4mm
  • Update rate: 1 to 10 Hz
  • Position Accuracy: < 3 meters (all GPS technology has about 3m accuracy)
  • Velocity Accuracy: 0.1 meters/s
  • Warm/cold start: 34 seconds
  • Acquisition sensitivity: -145 dBm
  • Tracking sensitivity: -165 dBm
  • Maximum Velocity: 515m/s
  • Vin range: 3.0-4.3 VDC
  • MTK3333 Operating current: 25mA tracking, 20 mA current draw during navigation
  • Output: NMEA 0183, 9600 baud default
  • DGPS/WAAS/EGNOS supported
  • AGPS support (Offline mode: EPO valid up to 14 days )
  • Up to 210 PRN channels
  • Jammer detection and reduction
  • Multi-path detection and compensation

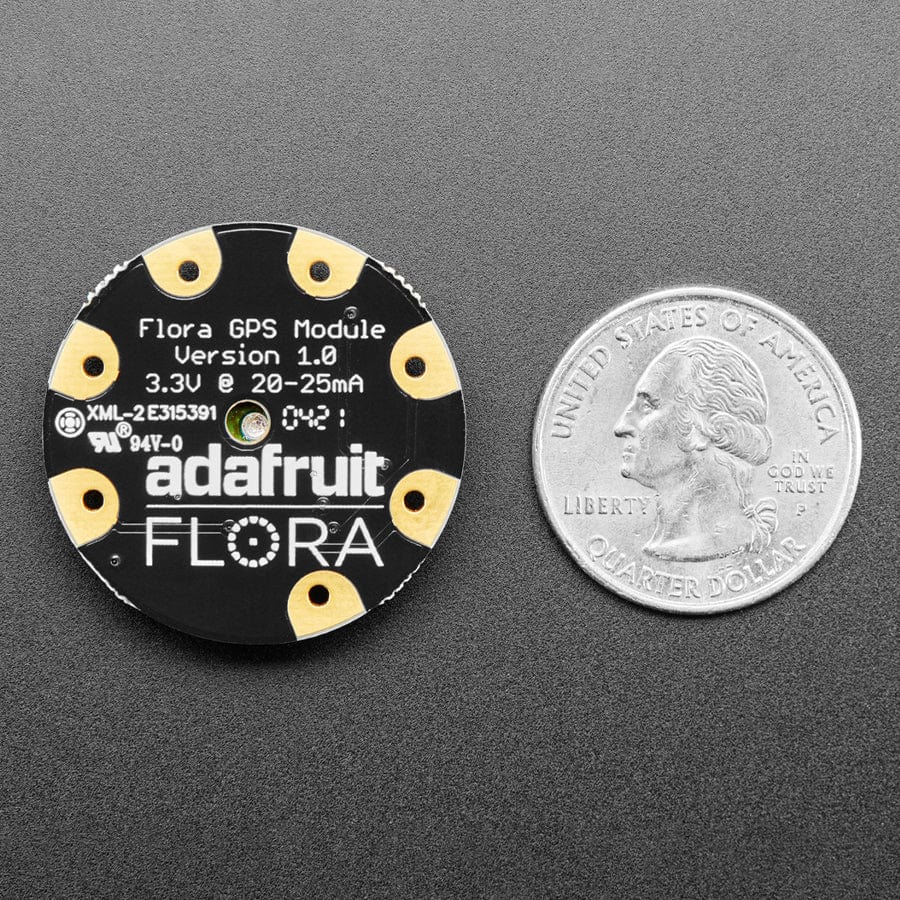

Breakout board details:

  • Weight: 5.43g
  • Dimensions: 30.5mm diameter x 5.98mm thick
