Adafruit DRV2605L Haptic Motor Controller - STEMMA QT / Qwiic

AdafruitSKU: ADA2305
Price:
Sale price £7.60
incl. VAT
excl. VAT
Stock:
Only 9 units left
Quantity:

Awesome Extras

Vibrating Mini Disc Motor - The Pi HutVibrating Mini Disc Motor - The Pi Hut
The Pi HutVibrating Mini Motor Disc
Sale price £1.70 incl. VAT excl. VAT
Antex Lead Free Solder - 4m Tube
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.40 incl. VAT excl. VAT
STEMMA QT / Qwiic Compatible JST-SH 4-Pin Cable (50mm) - The Pi HutSTEMMA QT / Qwiic Compatible JST-SH 4-Pin Cable (50mm) - The Pi Hut
Adafruit QT Py - SAMD21 Dev Board with STEMMA QT - The Pi HutAdafruit QT Py - SAMD21 Dev Board with STEMMA QT - The Pi Hut
AdafruitAdafruit QT Py - SAMD21 Dev Board with STEMMA QT
Sale price £8.40 incl. VAT excl. VAT

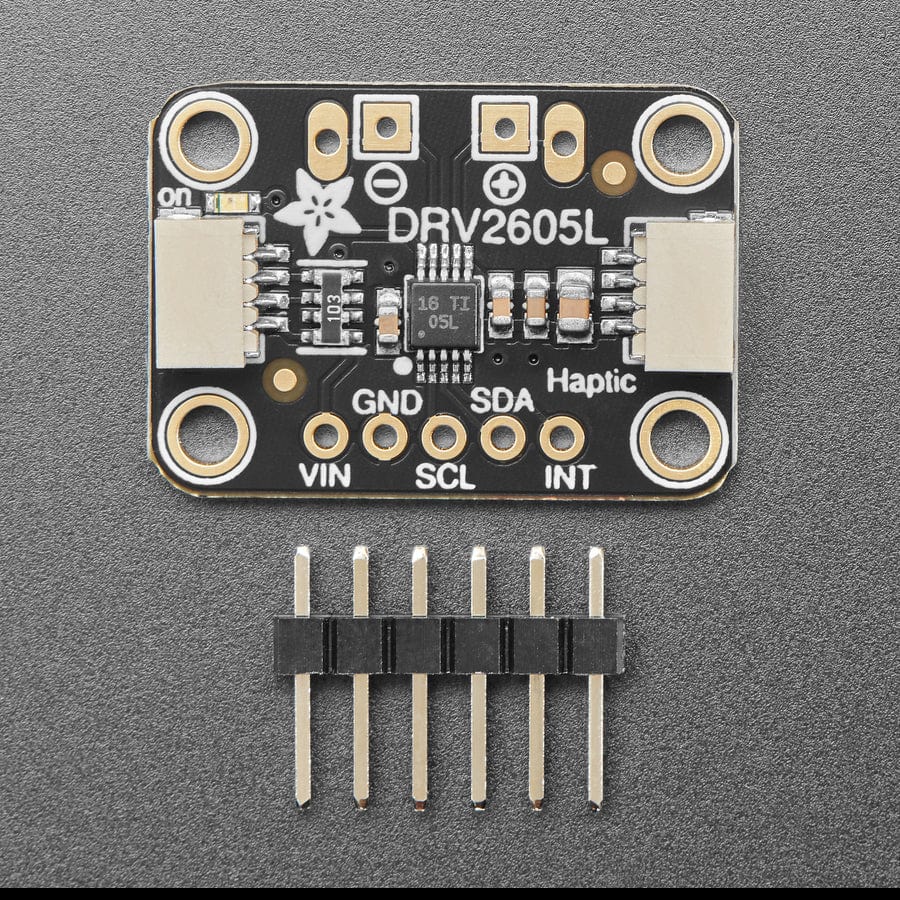

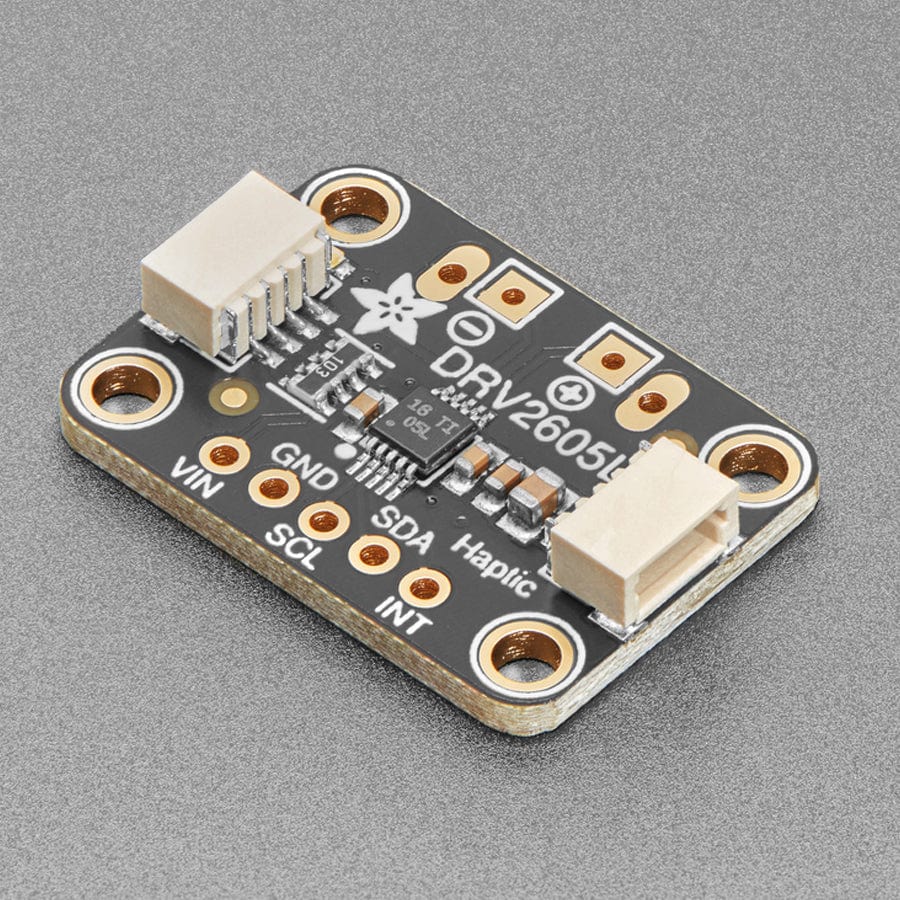

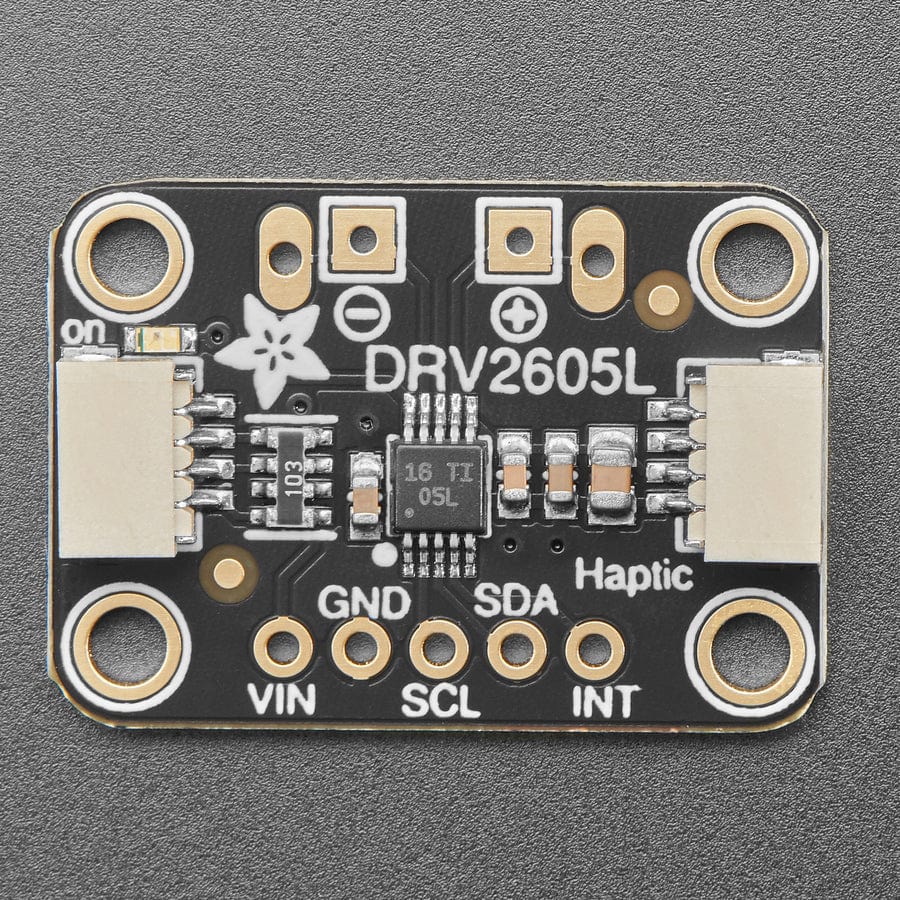

The DRV2605 from TI is a fancy little motor driver. Rather than controlling a stepper motor or DC motor, its designed specifically for controlling haptic motors - buzzers and vibration motors. Normally one would just turn those kinds of motors on and off, but this driver has the ability to have various effects when driving a vibe motor. For example, ramping the vibration level up and down, 'click' effects, different buzzer levels, or even having the vibration follow a musical/audio input.

This chip is controlled over I2C - after initialization, a 'string' of multiple effects can be strung together in the chips' memory and then triggered to actuate in a row. The built-in effects are much much nicer than just 'on' and 'off' and will make your haptic project a way nicer feeling.

According to the product page, it can be used with both LRA (Linear Resonance Actuator) and ERM (Eccentric Rotating Mass) type motors but we have only used it with our little vibration pancake ERM.

This chip is 3-5V compliant, making it a perfect choice for interfacing with any 3V or 5V microcontroller or computer, such as Arduino or Raspberry Pi. We've got both Arduino (C/C++) and CircuitPython (Python 3) libraries available so you can use it with any microcontroller like Arduino, ESP8266, Metro, etc, or with Raspberry Pi or other Linux computers, thanks to Blinka (our CircuitPython library support helper).

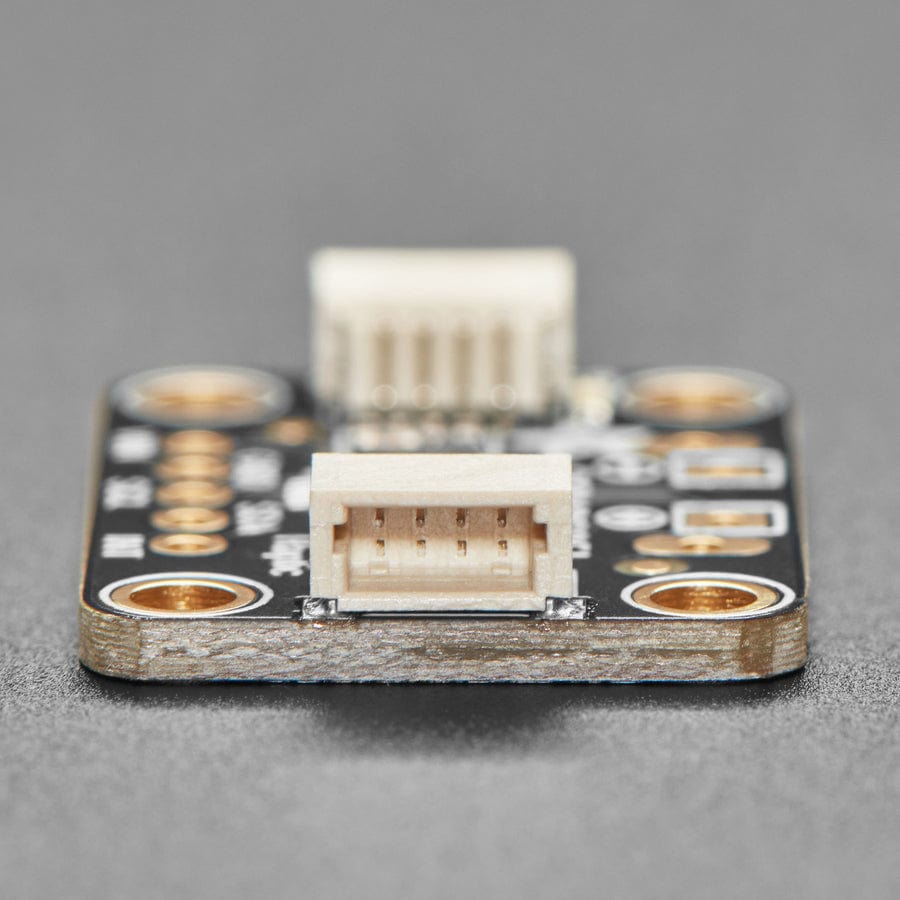

As if that weren't enough, we've also added SparkFun qwiic compatible STEMMA QT connectors for the I2C bus so you don't even need to solder. For a no-solder experience, just wire up to your favorite micro using a STEMMA QT adapter cable. The Stemma QT connectors also mean the breakout can be used with our various associated accessories. QT Cable is not included, but we have a variety in the shop

Specifications

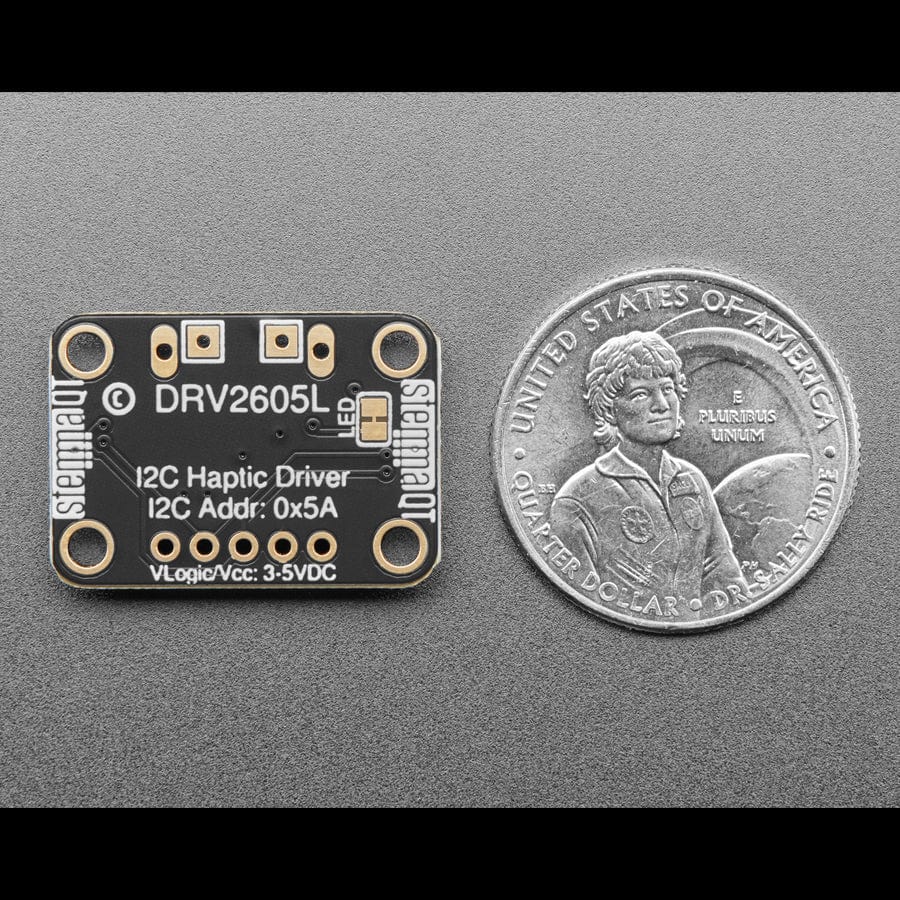

  • Product Dimensions: 25.8mm x 17.8mm x 4.6mm / 1.0" x 0.7" x 0.2"
  • Product Weight: 1.7g / 0.1oz

Resources

Revision History

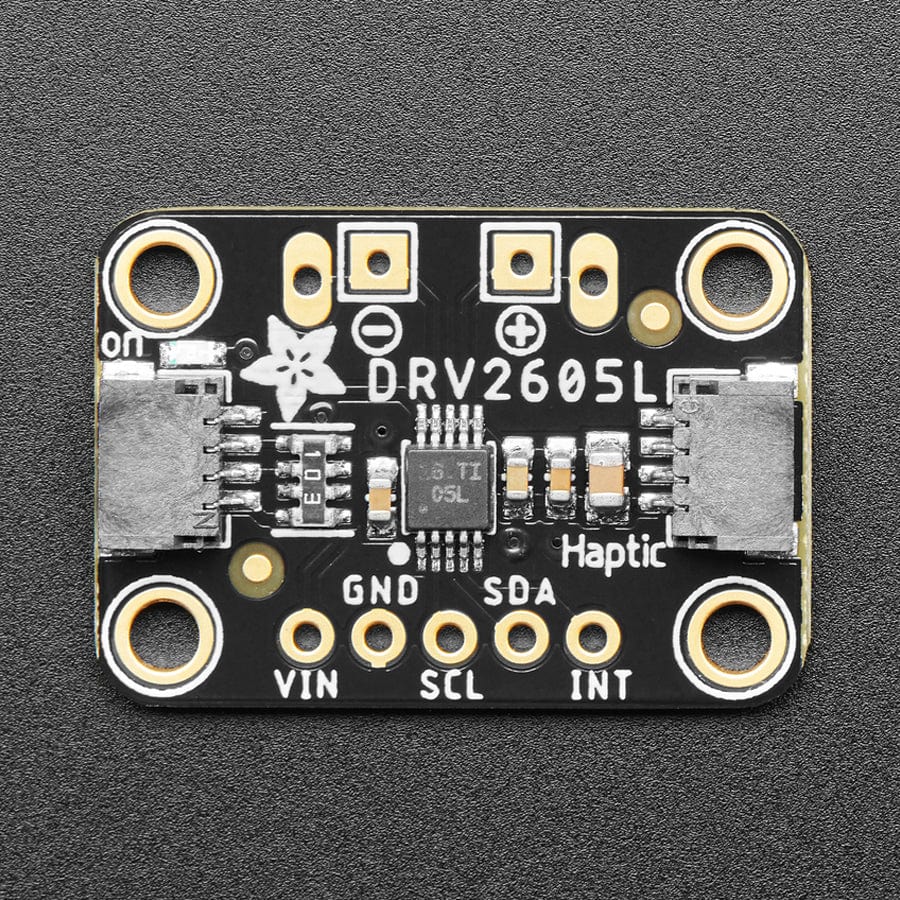

  • As of January 16, 2023 – we've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen - you may get the new PCB or the older version with vector fonts - both are identical other than the fancy silkscreen. Additionally, this sensor breakout may come with black or tan STEMMA QT connectors. They work the same!
  • As of July 11, 2022 - this board now comes in STEMMA QT format. Functionality and schematic remain the same, physical shape has changed to make it plug-and-play, much easier to use
