8-Channel Servo Driver Unit (STM32F030)

M5StackSKU: U165
(1 Review)
£6.60
incl. VAT
excl. VAT
Only 2 units left

Awesome Extras

ESP32 Basic Core loT Development Kit V2.7 - The Pi HutESP32 Basic Core loT Development Kit V2.7 - The Pi Hut
(1 Review)
M5StackESP32 Basic Core loT Development Kit V2.7
£38.40 incl. VAT excl. VAT
Notify me
M5Stack RoverC Pro (W/O M5StickC) - The Pi HutM5Stack RoverC Pro(W/O M5StickC) - The Pi Hut
(1 Review)
M5StackM5Stack RoverC Pro (W/O M5StickC)
£62.50 incl. VAT excl. VAT
M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - The Pi HutM5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - The Pi Hut
(1 Review)
M5StackM5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0)
£8.70 incl. VAT excl. VAT
Notify me

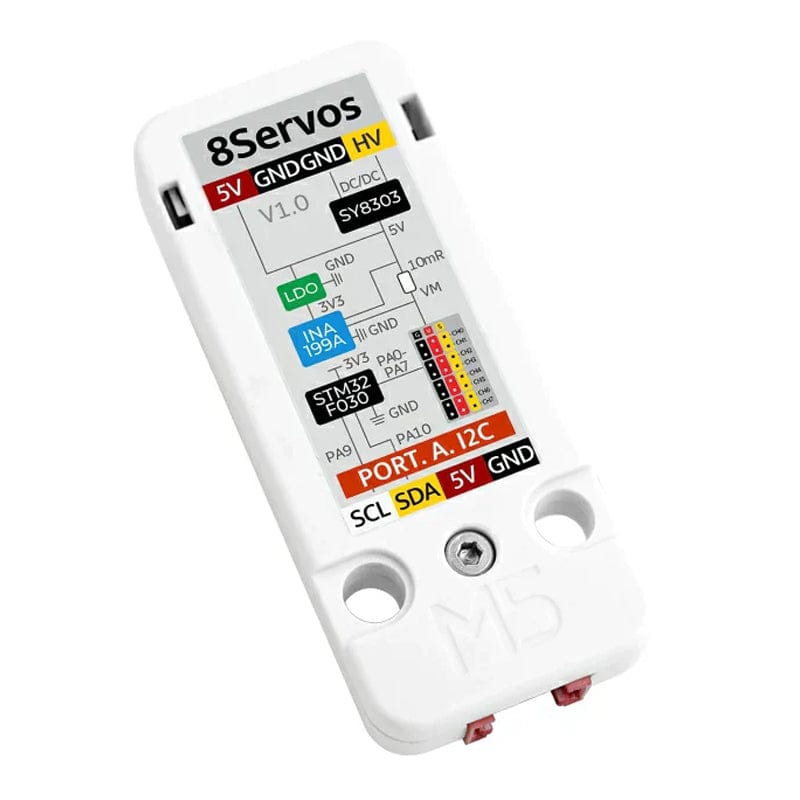

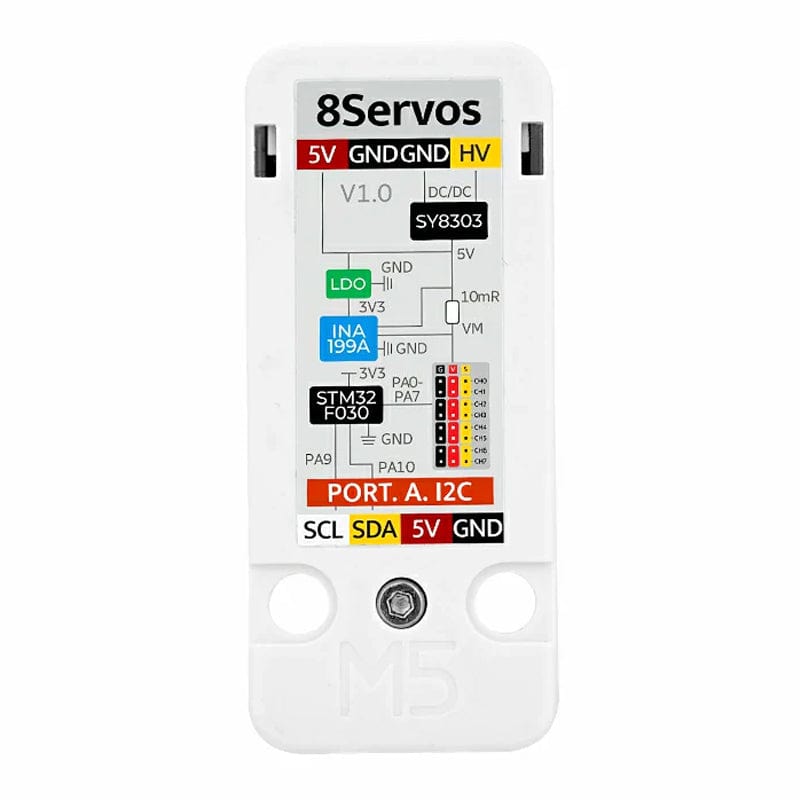

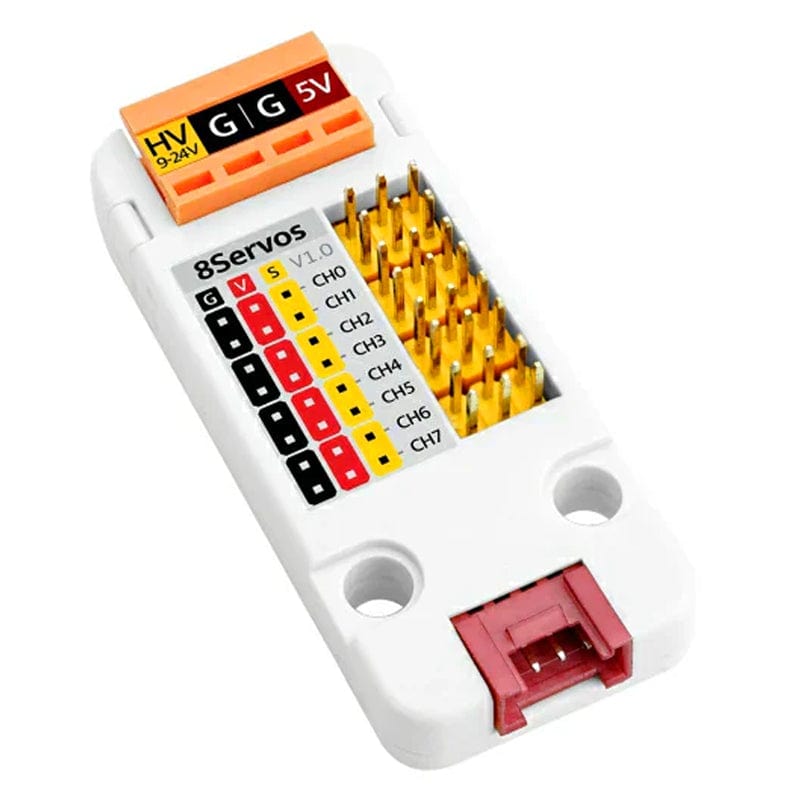

The 8Servos Unit is an 8-channel servo driver designed for a variety of uses, including servo and robot control, and intelligent toys. It uses the STM32F030F4 master control to accurately produce multiple PWM signals for driving servos and integrates easily with your M5 host through I2C communication (address: 0x25).

This unit also includes a MOSTUBE switch circuit for total power, which helps in controlling the motor release and lock functions, giving you more flexibility in managing your servo operations. Additionally, it comes with a current acquisition circuit that lets you keep track of total circuit parameters, helping you stay informed about your system's power usage.

With two sets of power inputs, the 8Servos Unit can operate on a wide range of voltages, from 9-24V to 5V, making it compatible with various power sources.

Features

  • 8-channel servo drive
  • Programmable motor power supply
  • I2C Protocol Control (0x25)
  • Reverse power supply protection
  • Total current harvesting function

Specifications

Current acquisition chip INA199A1DCKR
Servo drive channel 8-channel
Maximum drive load capacity 8-channel maximum load capacity: DC5V@1.3A
I2C Address 0x25

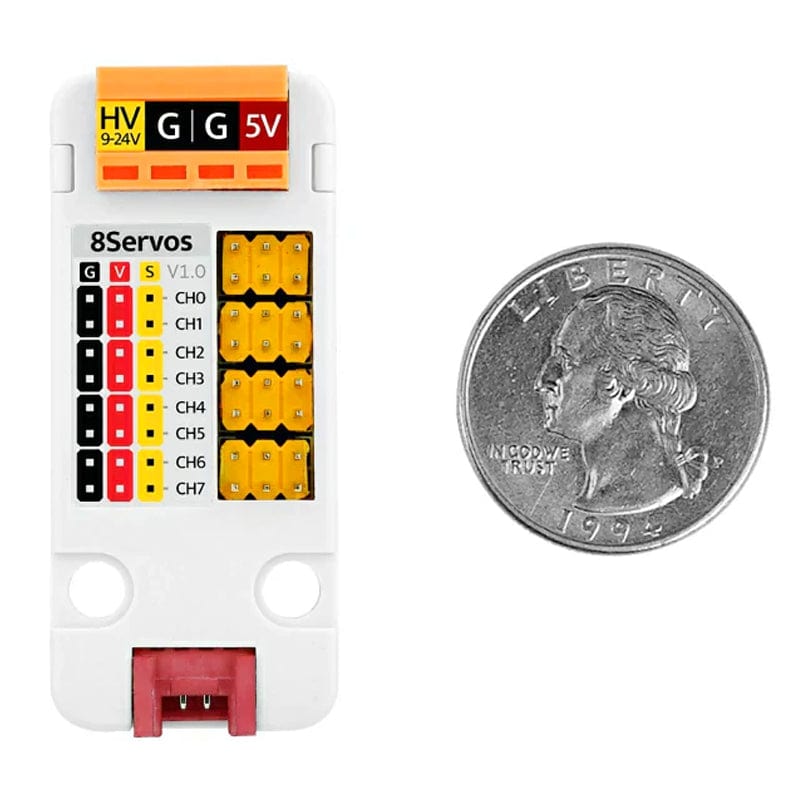

Product Size 55 x 24 x 11.5mm
Package Size 136 x 92 x 13mm
Product Weight 10.1g
Package Weight 17.6g

Resources

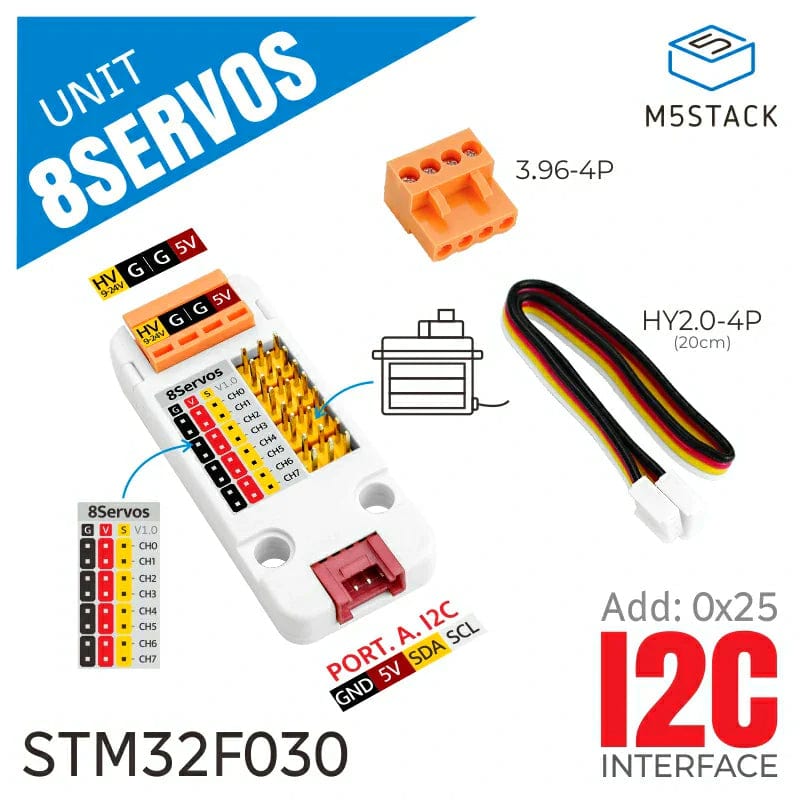

Package Contents

  • 1x 8Servo Unit
  • 1x HT3.96-4P
  • 1x HY2.0-49 Cable
