M5Stack RoverC Pro (W/O M5StickC)

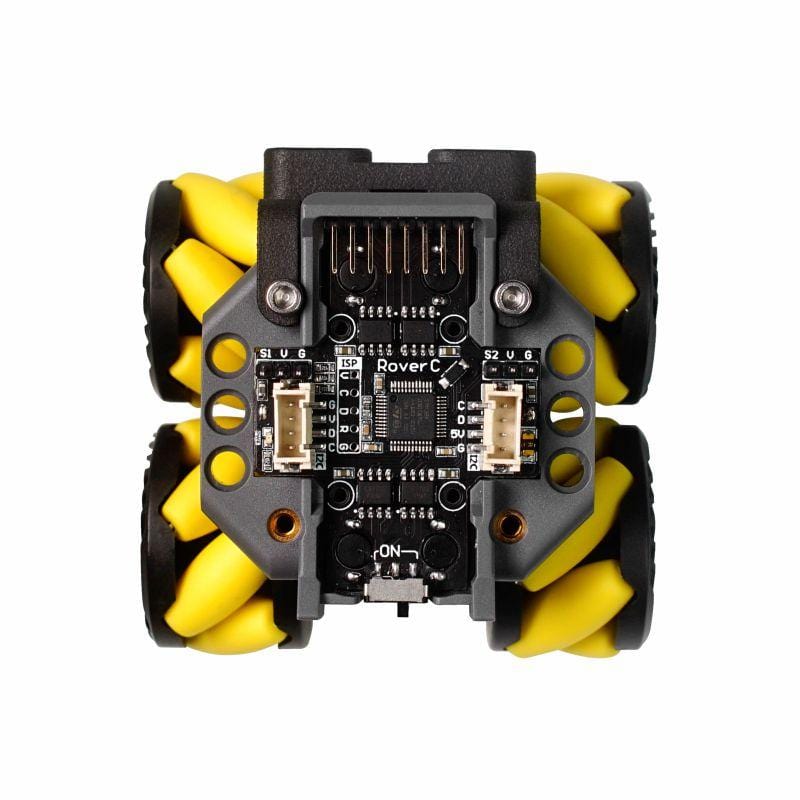

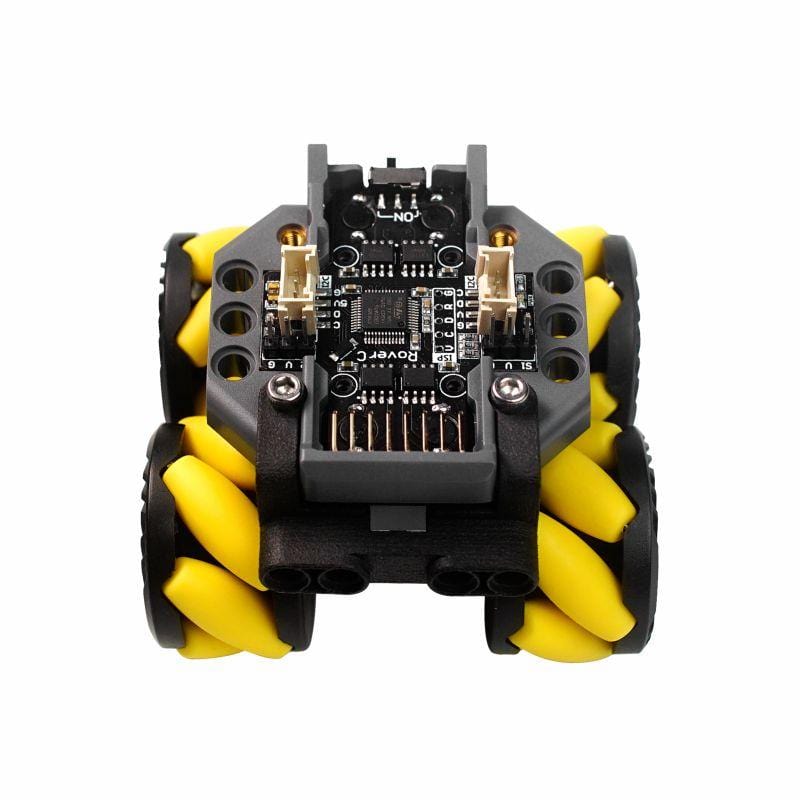

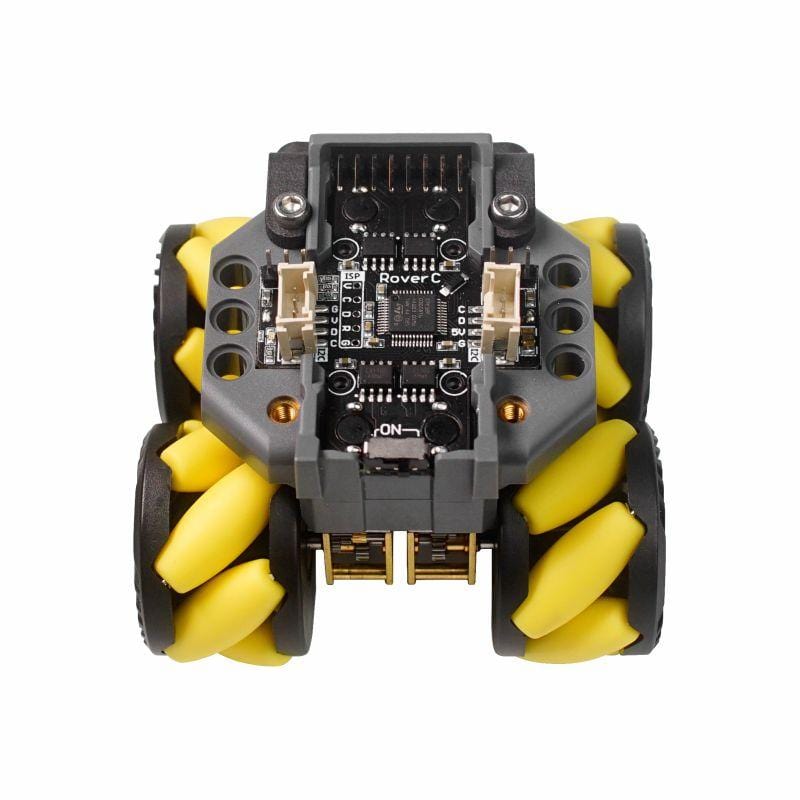

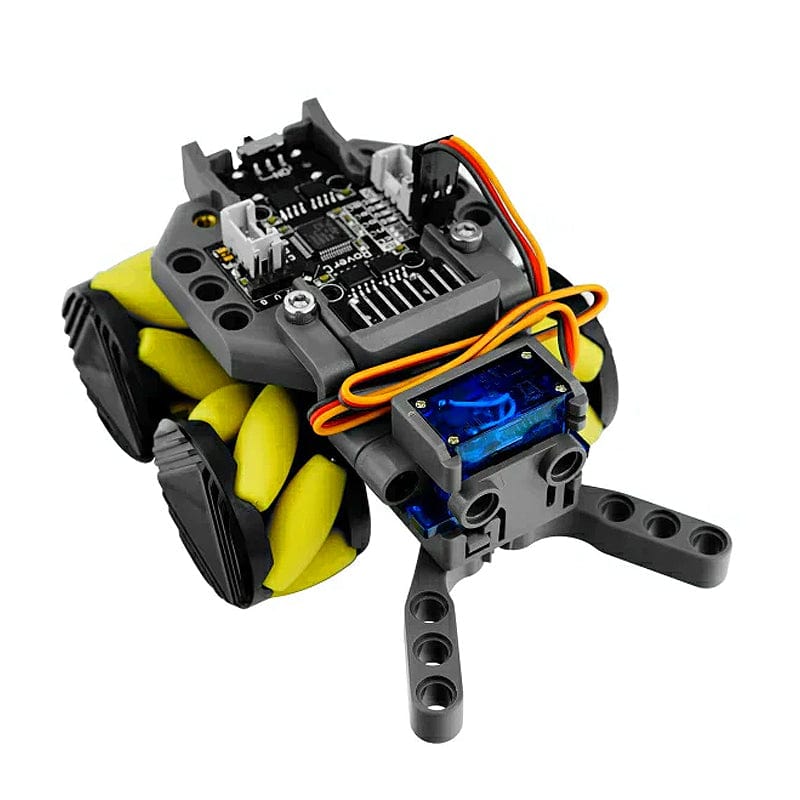

RoverC-Pro is a programmable Mecanum wheel omnidirectional mobile robot base. Compatible with M5StickC/M5StickC PLUS, it can be initialised by just inserting M5StickC/M5StickC PLUS. The main control chip is STM32F030C6T6, and it incorporates four N20 worm gear motors to drive the wheels directly by the motor driver.

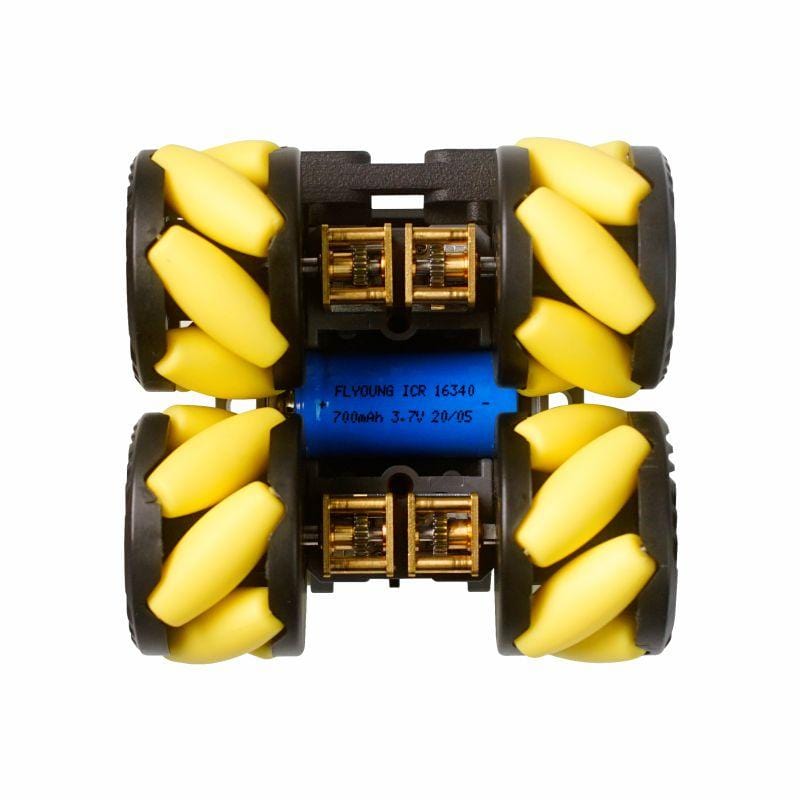

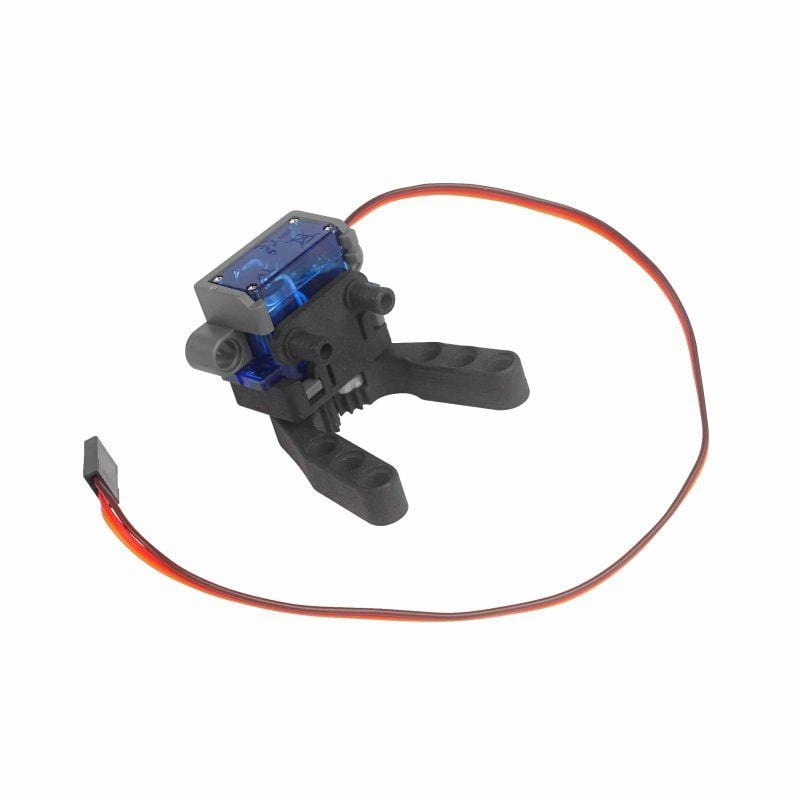

The PRO version provides a gripping mechanism controlled by a servo for gripping objects. The base provides two dedicated servo control drivers. In addition, it also provides two Grove-compatible I2C connectors to facilitate the expansion of other modules. The base is compatible with Lego and can be expanded structurally. There is an 16340 (700mAh) battery on the back, from which the battery can be replaced. It can be recharged through M5StickC/M5StickC PLUS. The power of the base is controlled by an independent switch.

Product Features

• I2C Address 0x38
• Remote Control
• Gripping mechanism
• Programmable
• Four-channel motor driver
• LEGO compatible

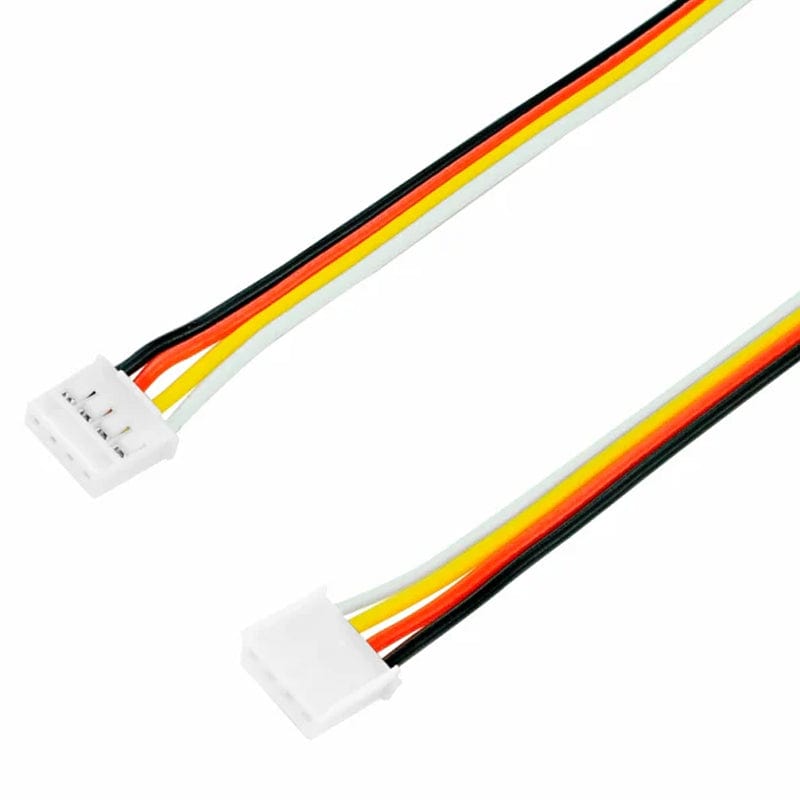

• Extra Grove ports for expansion
• Equipped with 16340(700mAh) battery holder
• Flexible movement in all directions

Applications

• Autonomous Rover
• Mini RC surveilance car
• Smart and cognitive toys

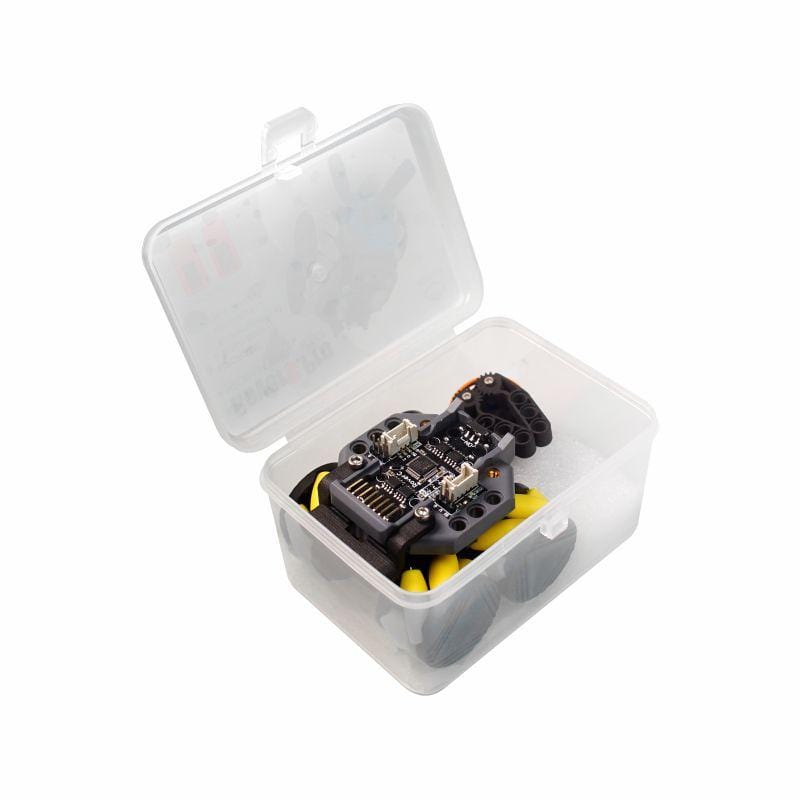

Include

• 1x RoverC base(includes 16340(700mAh) Battery)

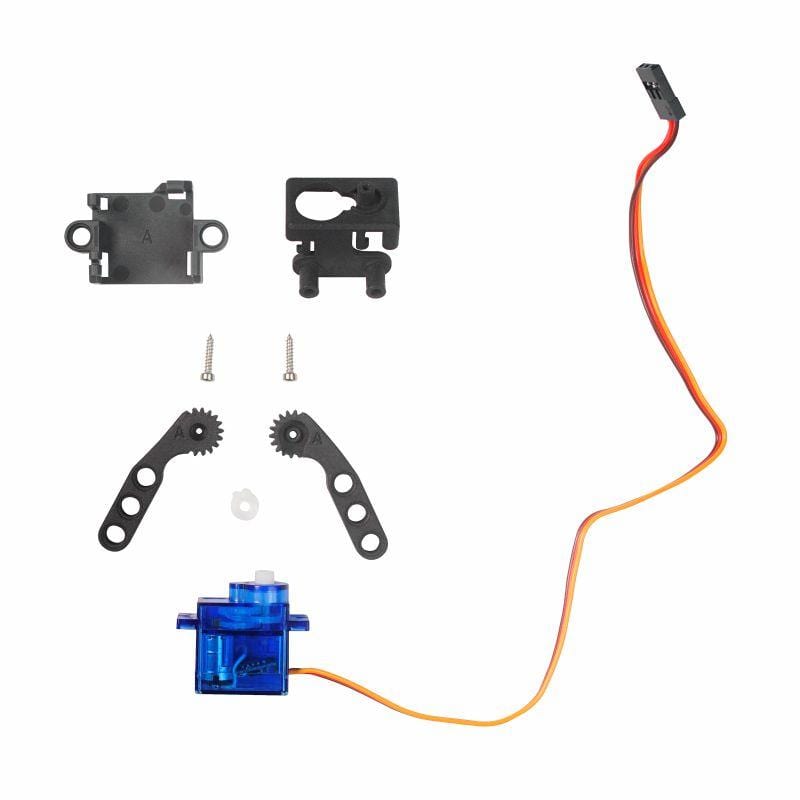

• 1x Claw Kit

Specification

LEARN AND DOCUMENTS

RoverC with M5Atom

Using M5StickC on RoverC and JoyC with M5Atom attached to display direction of the RoverC.

Bluetooth programmable mecanum wheel robot

Use Bluetooth serial to program omnidirectional movement sequences. Make a game out of it and try to guide the robot around obstacles.
