Please note - this raw panel cannot be used with Waveshare's usual ePaper driver boards. Either grab the version with the driver onboard or design your own PCB project to use this panel.

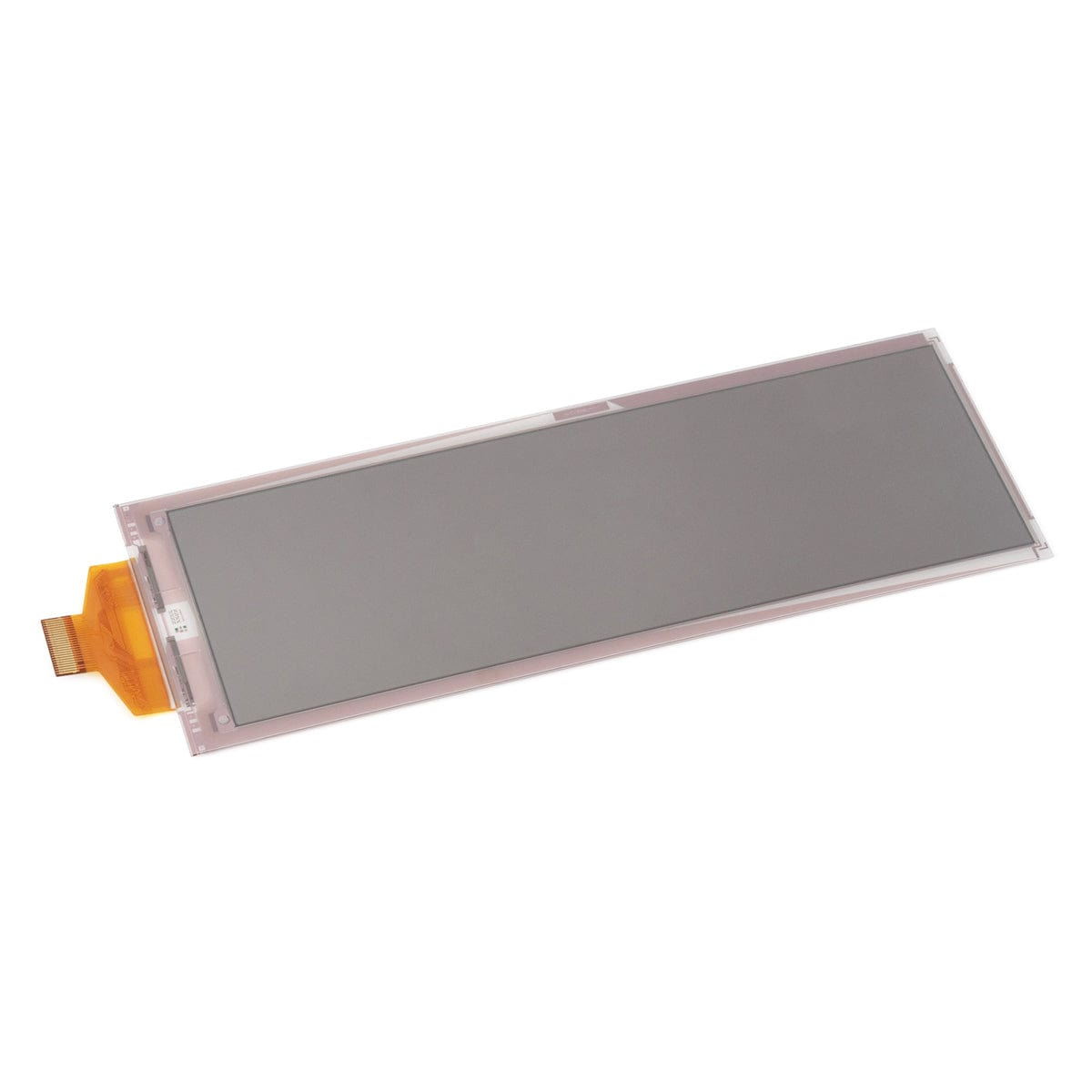

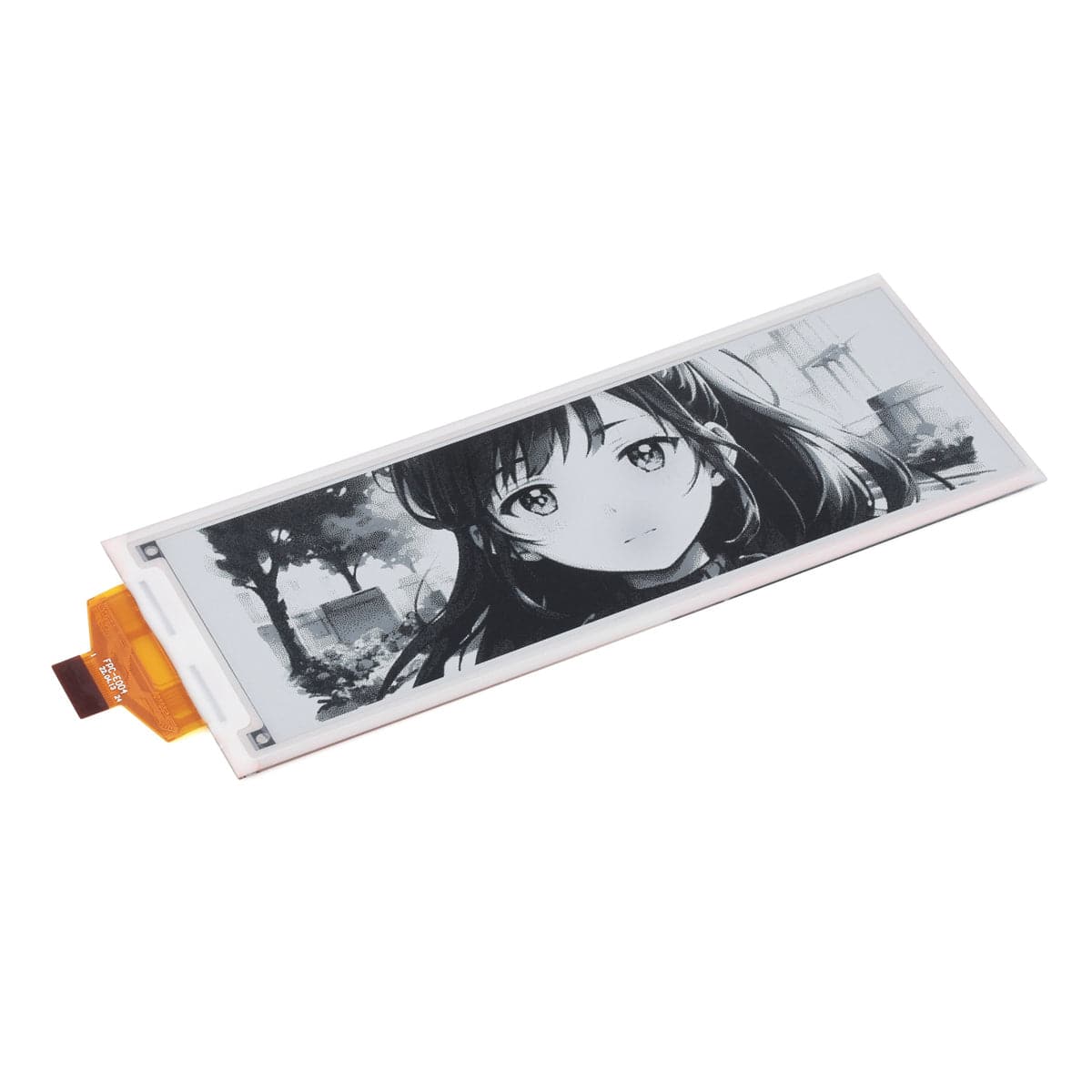

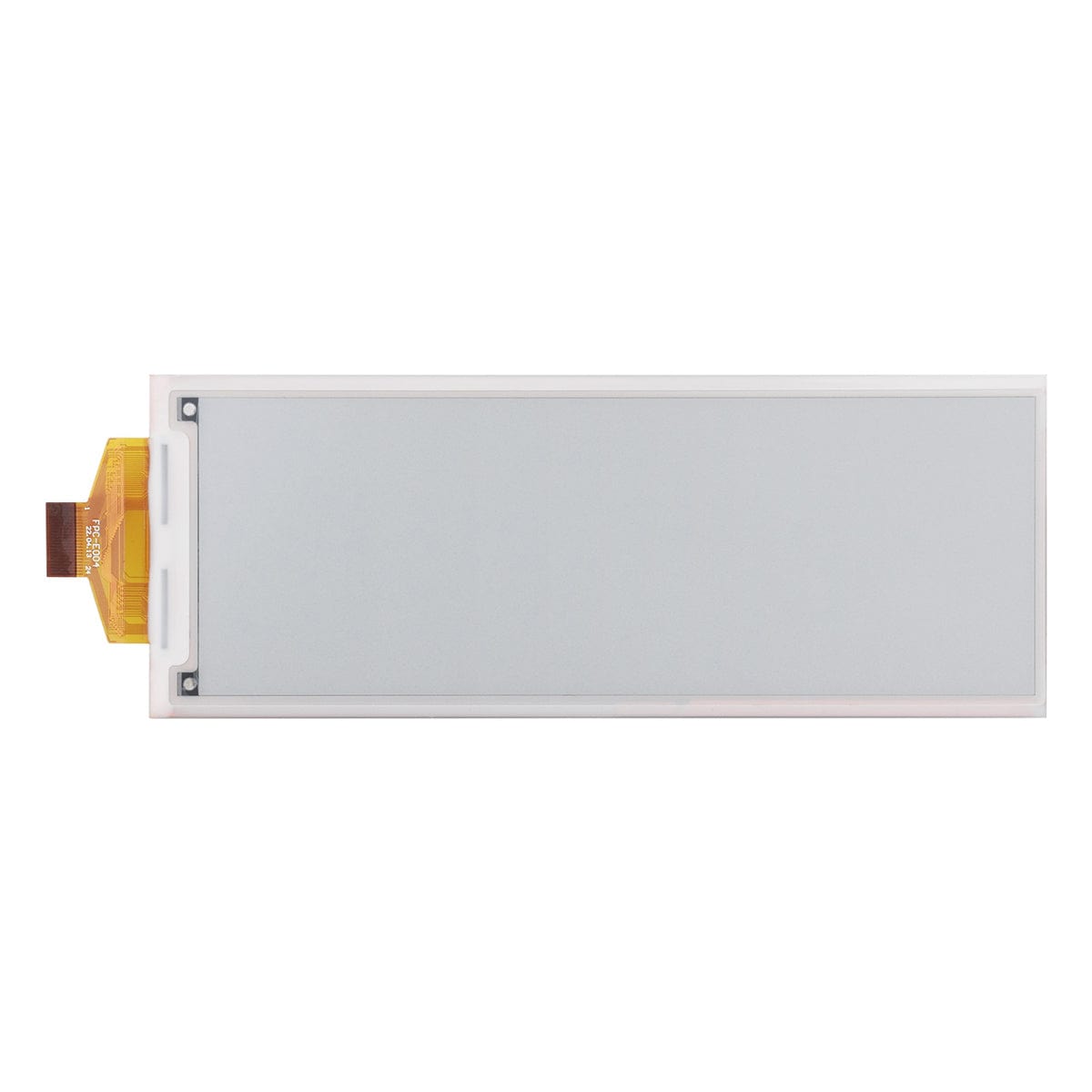

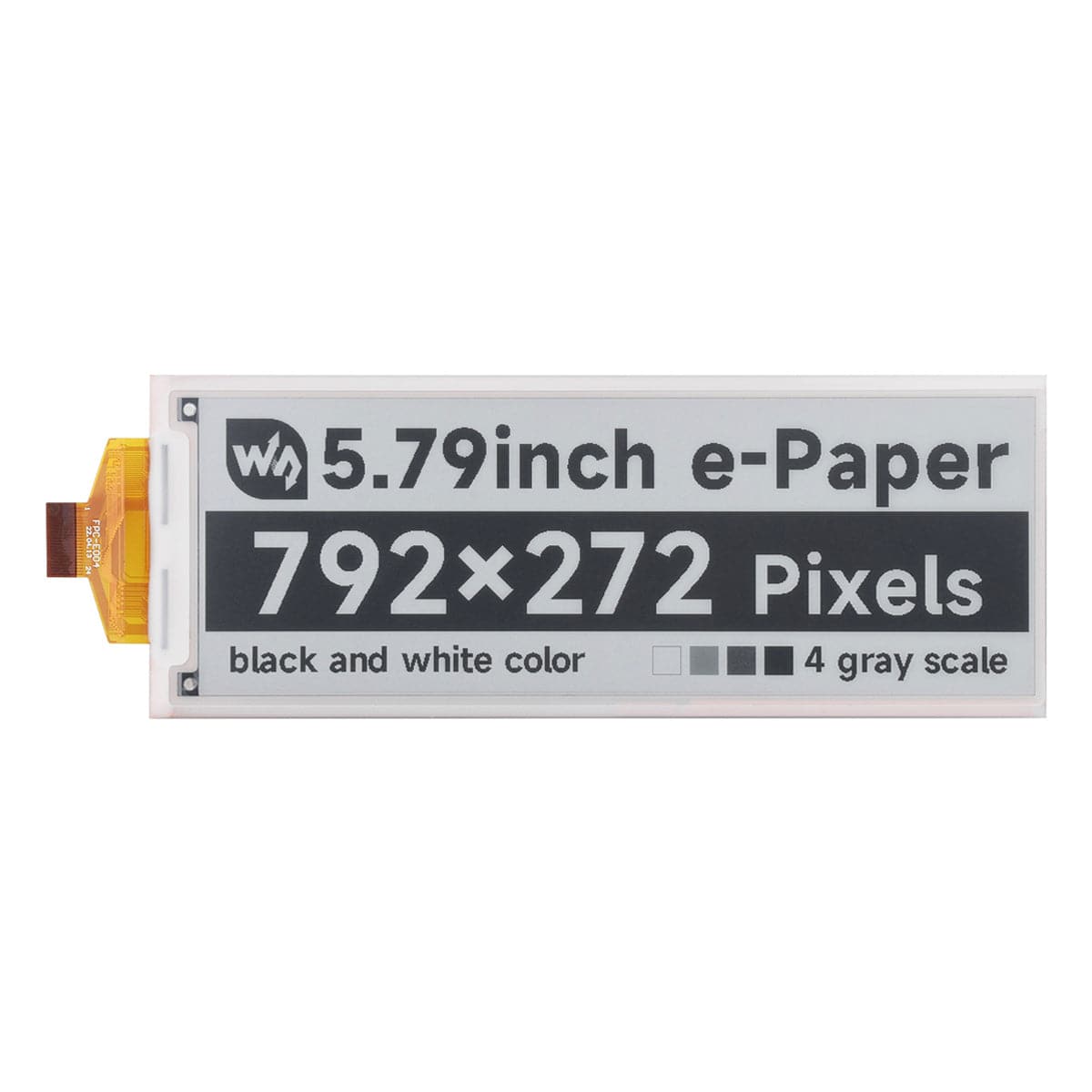

This 5.79" E-Paper raw display, is a versatile and energy-efficient e-ink display that is ideal for a variety of projects, including price tags, shelf labels, and industrial instruments. This black-and-white display has a resolution of 792 x 272 pixels for a sharp image, a grey scale of 4, a wide viewing angle of over 170°, and a paper-like appearance that remains visible even when powered off.
It supports SPI communication and has ultra-low power consumption with a full refresh time of 3.5 seconds and a partial refresh in just 0.8 seconds. Online development resources and a manual are also included, featuring examples for Raspberry Pi, Jetson Nano, Arduino, and STM32. This display is ideal for projects requiring minimal energy and clear, static displays.
For the same display with an SPI board attached to the back of it click here.
This raw panel cannot be used with Waveshare's usual ePaper driver boards.
Features
No backlight, keeps displaying last content for a long time even when powered down
Ultra-low power consumption, basically power is only required for refreshing
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
