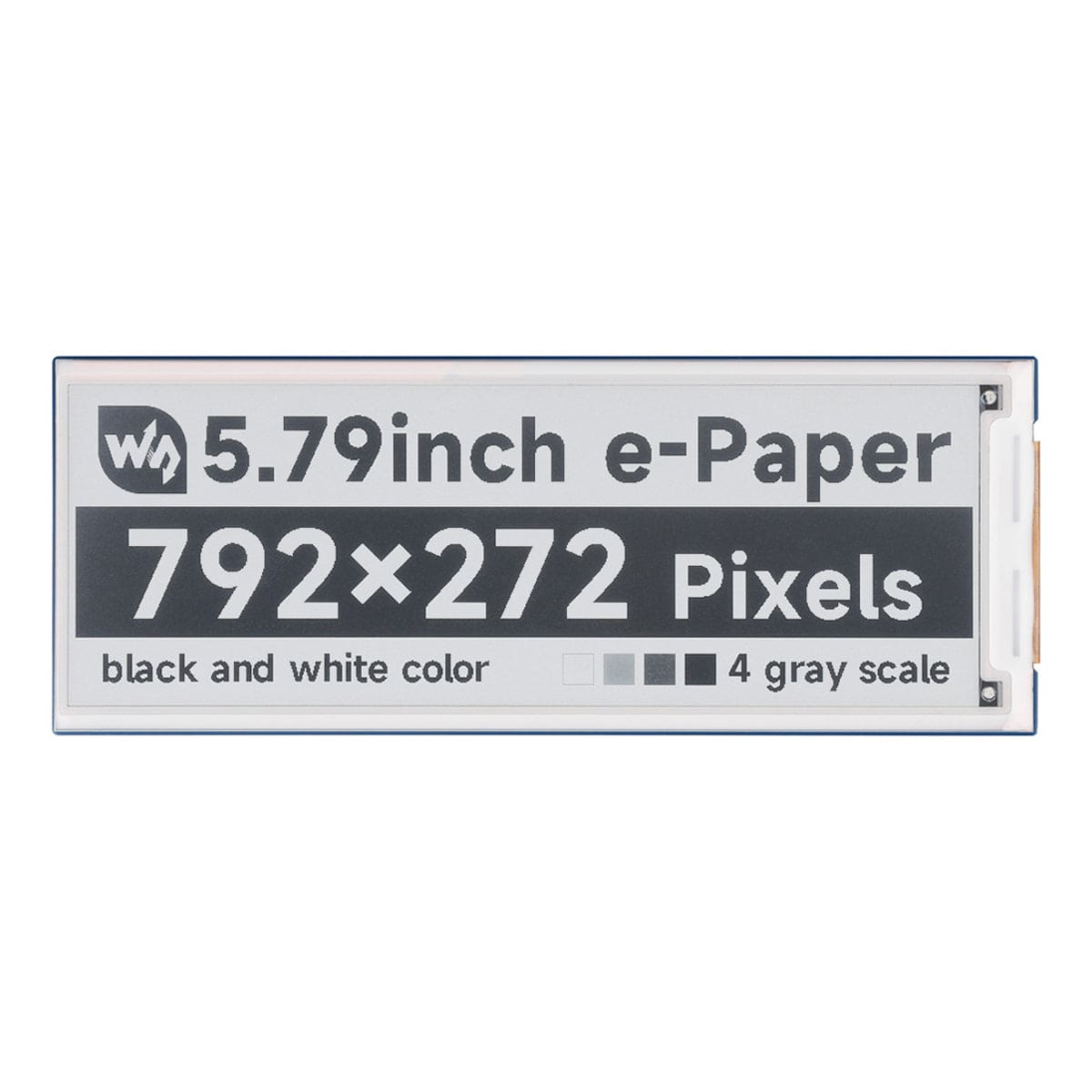

This 5.79" e-Paper display module has a black and white display with a resolution of 792 x 272. With a grey scale of 4 and a 170° viewing angle, it provides clear and sharp visuals from any angle. It does not require a backlight and can maintain its last content for extended periods even when powered off.

Its ultra-low power consumption means power is mainly needed only for refreshing the display. The module has an SPI interface, making it compatible with various controller boards such as Raspberry Pi, Jetson Series, Arduino, and STM32, providing easy integration into different projects.

For the raw version of this display with no board attached, click here

Note: Raspberry Pi 5 is NOT included

Features

  • No backlight, keeps displaying last content for a long time even when powered down
  • Ultra-low power consumption, basically power is only required for refreshing
  • SPI interface, for connecting with other controller boards like Raspberry Pi/Jetson Series/Arduino/STM32, etc.
  • Voltage translator, compatible with 3.3V/5V MCUs
  • Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Series/Arduino/STM32)

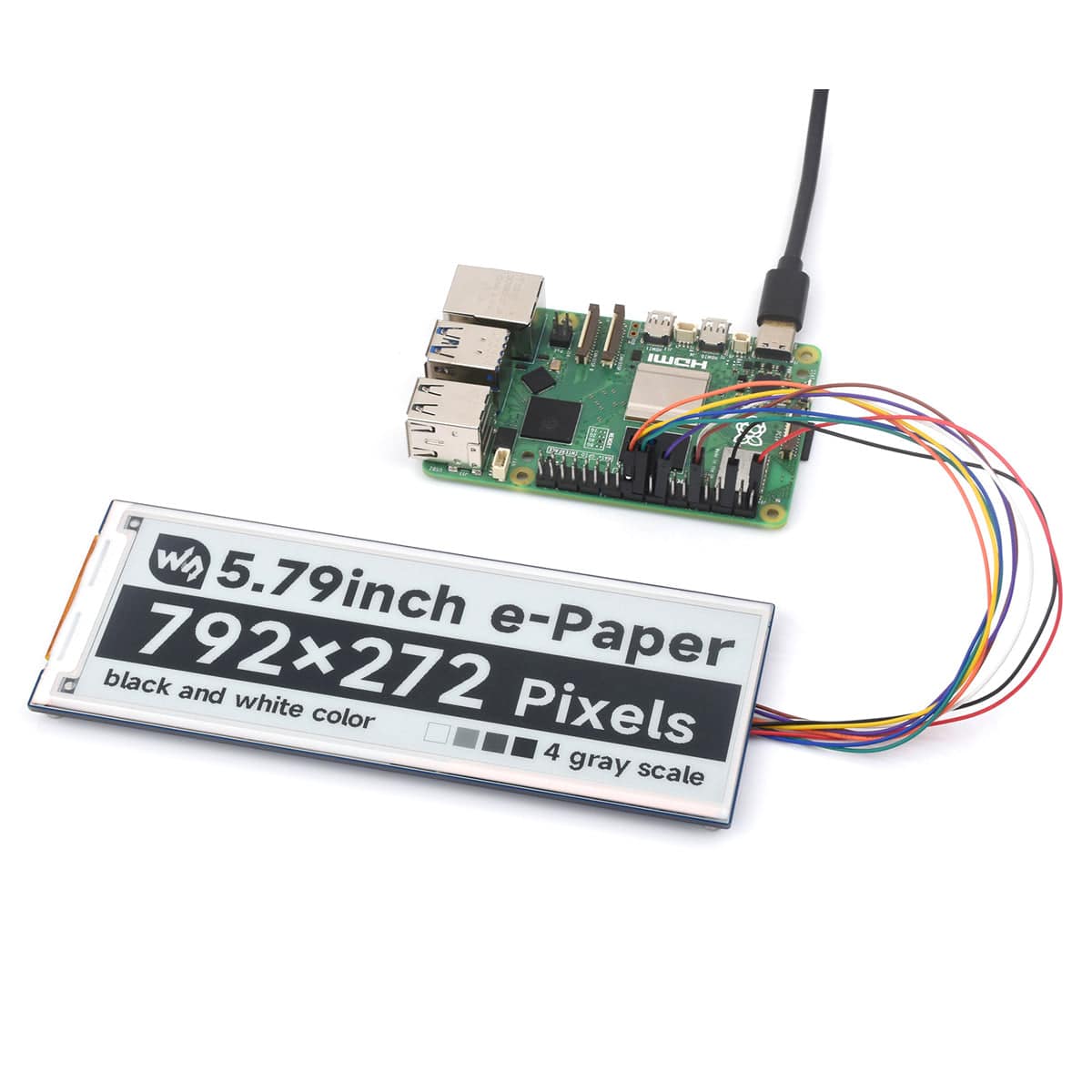

Connection Example - Raspberry Pi 5

Note: The Raspberry Pi 5 is NOT included

Specifications

Operating Voltage 3.3V/5V
Interface 3-wire SPI, 4-wire SPI

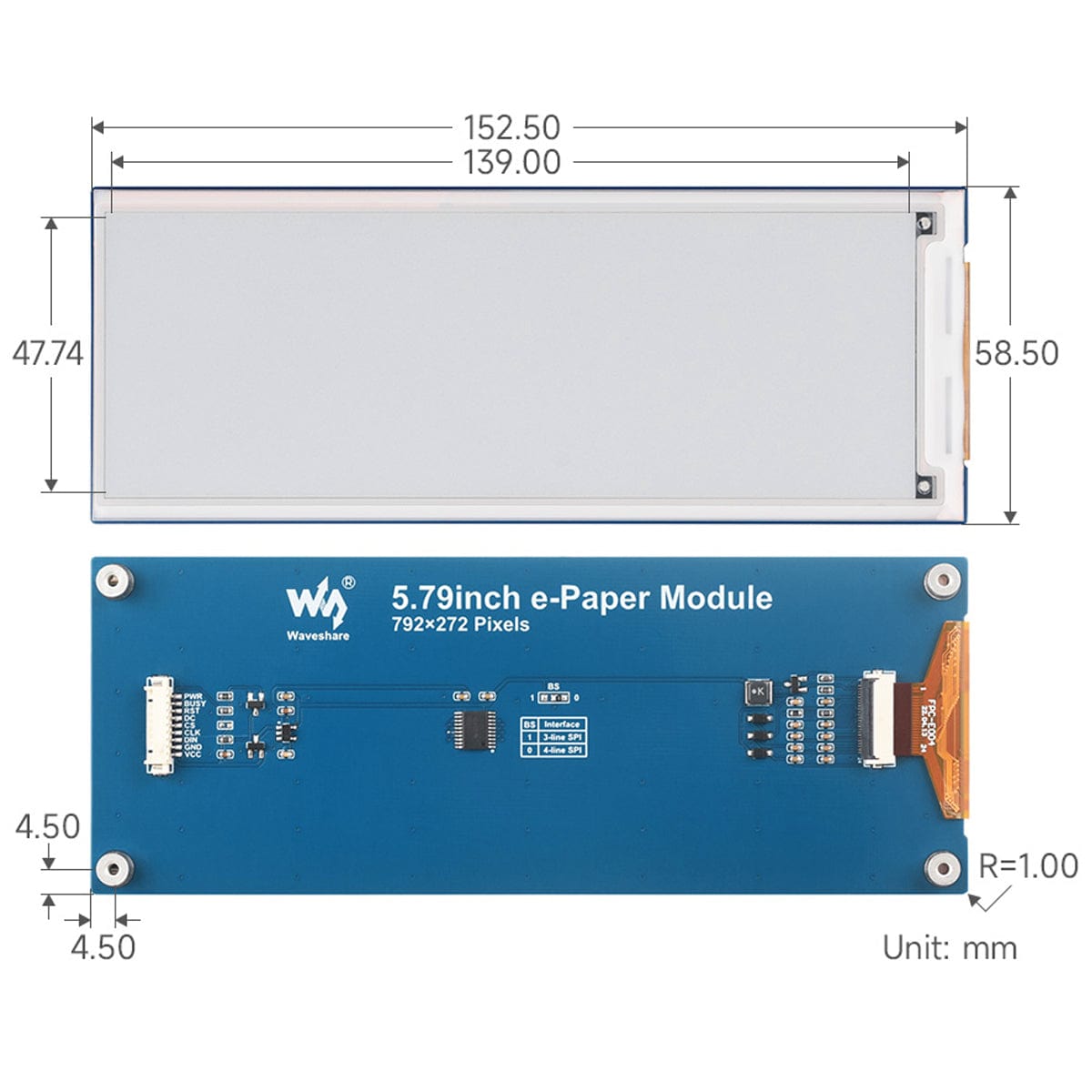

Outline Dimensions 152.50 x 58.50mm
Display Size 139.00 x 47.74mm
Dot Pitch 0.1755 x 0.1755mm
Viewing Angle >170°
Resolution 792 x 272 pixels
Display Colour Black/White
Grey Scale 4
Full Refresh Time 3.5s
Partial Refresh Time 0.8s
Refresh Power <50mW
Standby Current <0.01uA (almost none)

Resources

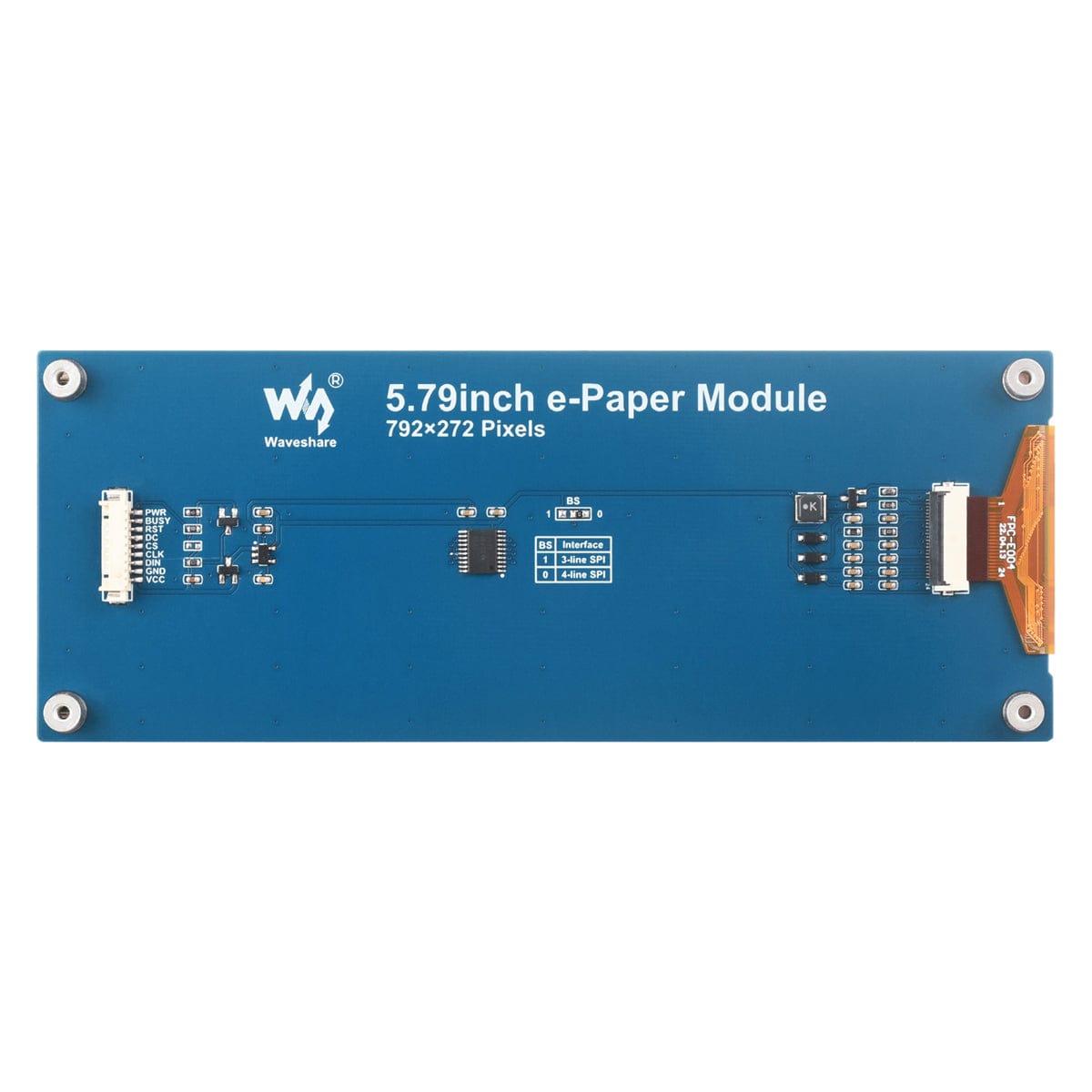

Pinout

PWR Power on/off control
BUSY Busy status output pin
RST External reset, low active
DC Data/Command selection (high for data, low for command)
CS SPI chip selection, low active
CLK SPI SCK pin
DIN SPI MOSI pin
GND Ground
VCC Power (3.3V / 5V input)

Package Contents

  • 1x 5.79" e-Paper Module
  • 1x GH1.25 9-pin cable 20cm
