4-Channel USB 3.2 Module Case for Raspberry Pi 5

This PCIe to USB 3.2 module case extends the Raspberry Pi 5's functions by adding four USB 3.2 Gen1 ports through a PCIe to USB 3.2 adapter. It is wrapped in a tough, well-vented aluminium alloy case with handy mounting options and space for adding HATs, coolers, and internal wiring.

The case also includes an internal adapter module (on the other side of the Pi) that routes features to where you really need them:

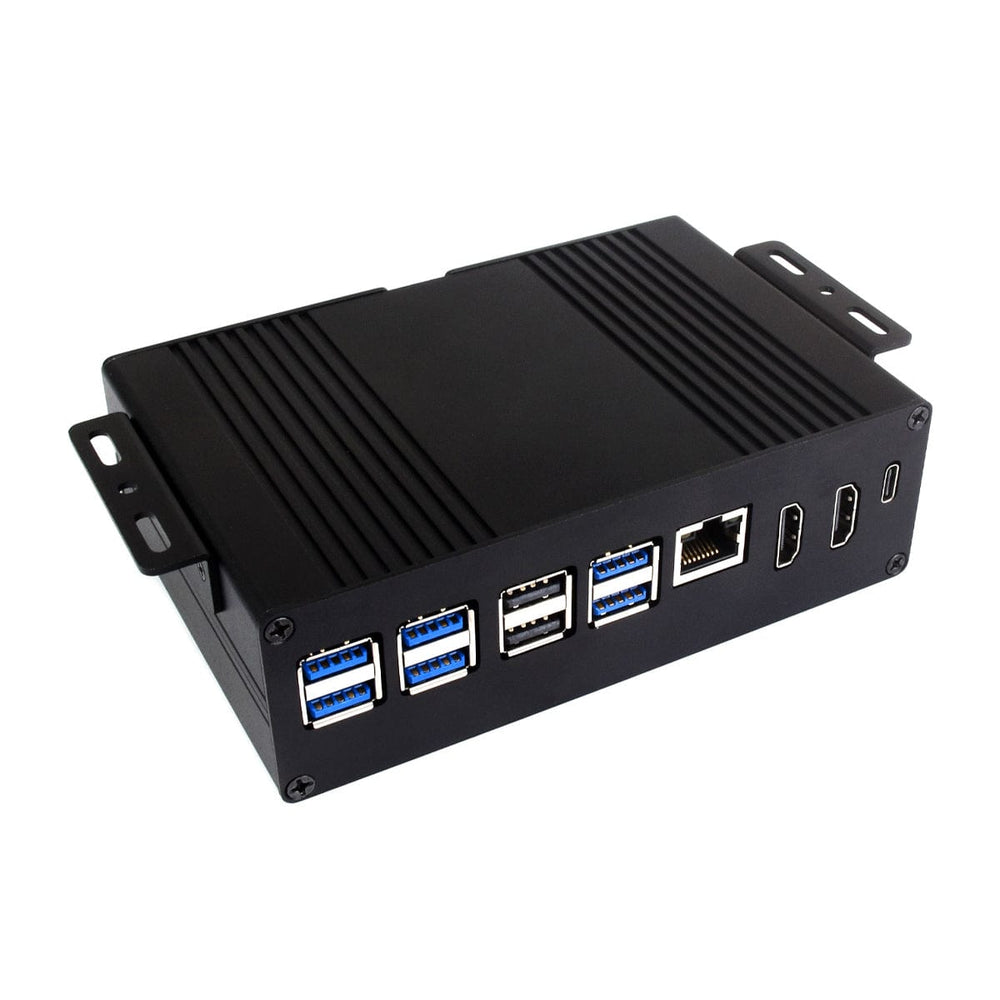

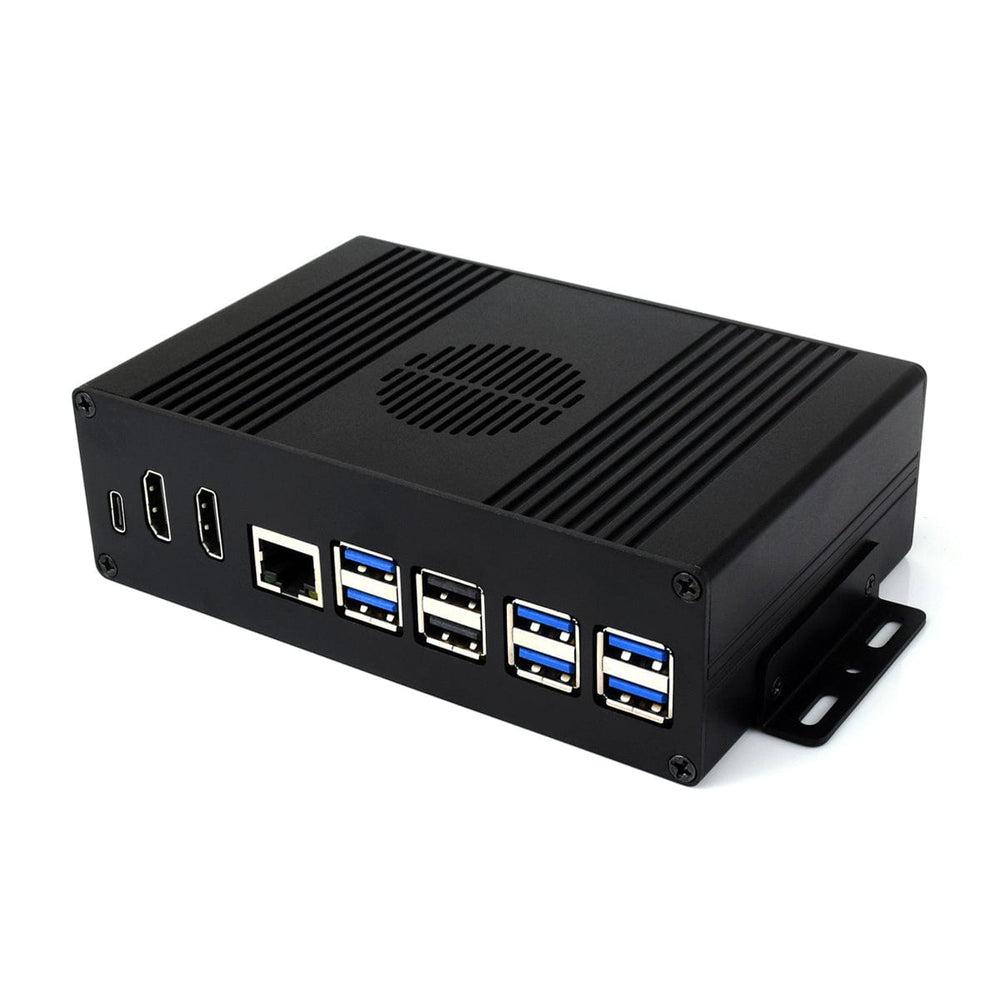

• On the rear:
  • USB-C power port
  • Dual full-size HDMI
  • Pi 5 Gigabit Ethernet port
  • 2x USB 3.0
  • 2x USB 2.0
  • 4x USB 3.2 (from module)

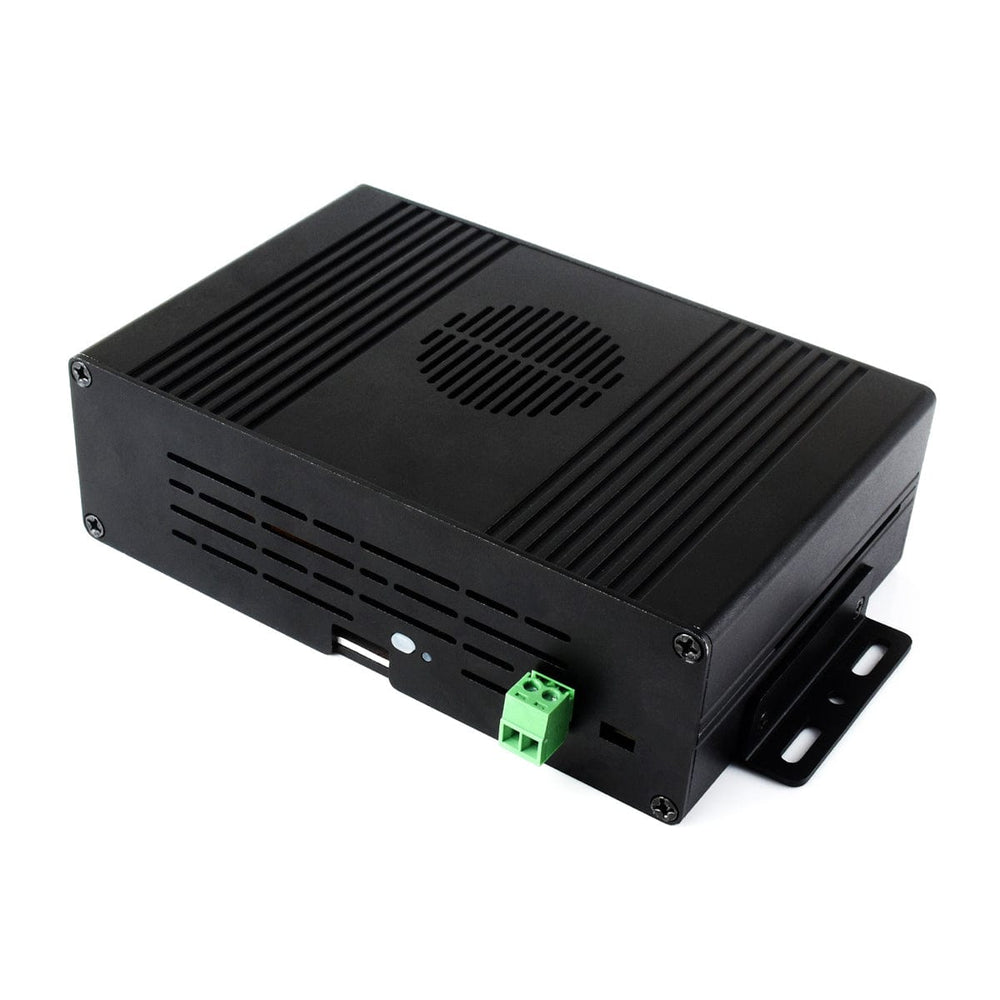

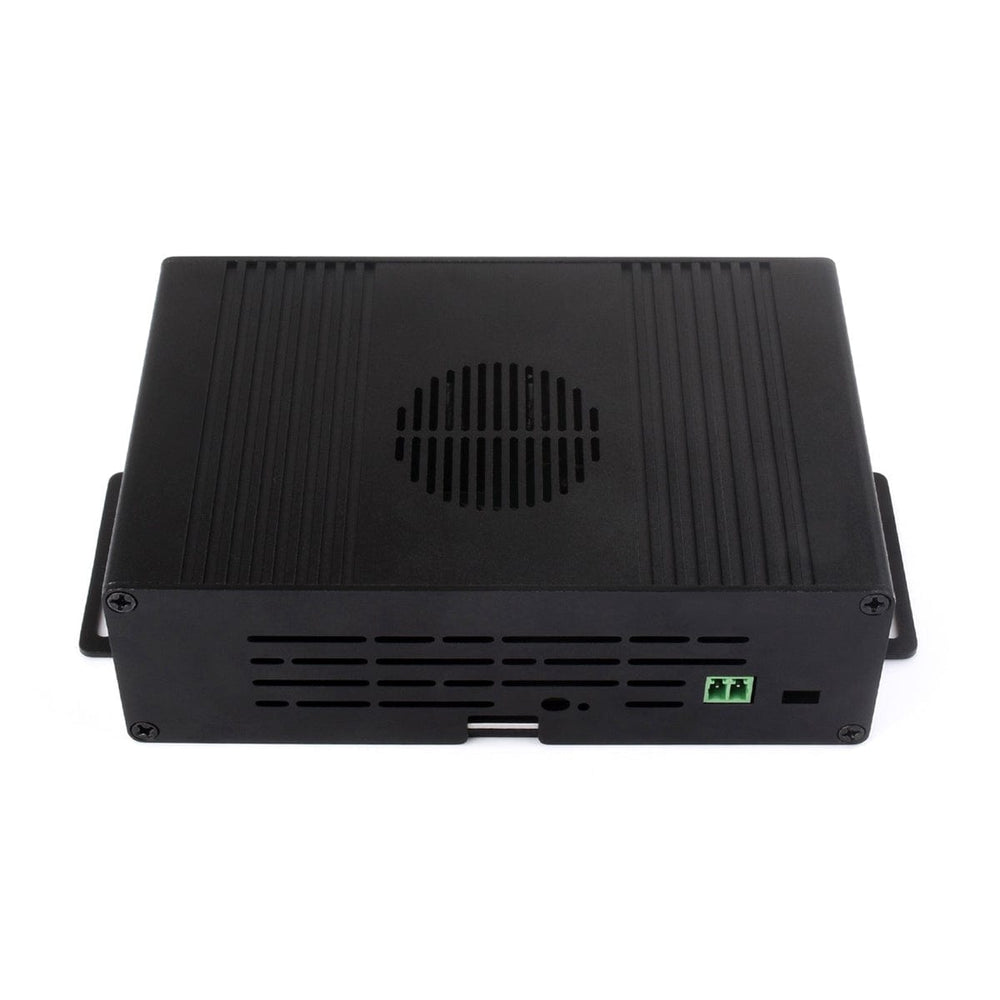

• On the front:
  • Power button
  • Power indicator
  • MicroSD slot
  • UART debugging port
  • Pluggable power screw terminal
• Inside:
  • UART debugging port
  • 5V power output connector

The module case also comes with accessories, including cables and connectors - just add your Raspberry Pi 5, a 27W power supply and a Micro SD card!

We also have a Gigabit Ethernet and an M.2 module case in our store.

Note: Raspberry Pi 5 is NOT included

What's on Board

Raspberry Pi 5 is not included

Resources

• Product Wiki

Package Contents

1. 1x Pi5 HDMI and Type-C adapter
2. 1x PCIe to 4-channel USB 3.2 Gen1 Adapter
3. 1x Metal case and white aluminium alloy base plate
4. 1x Silicone button
5. 1x PCIe cable
6. 1x Screw terminal
7. 1x Screws pack
8. 1x SH1.0 3-pin Cable
9. 1x SH1.0 3-pin Squid Cable
10. 1x PH2.0 3-pin Cable

Raspberry Pi 5 is not included
