4-Channel Analog to 12C 13.2 Module 4-20mA Input (ST32G030)

Sale price £24.10
incl. VAT
excl. VAT
Only 9 units left

Awesome Extras

M5StackRCA Audio/Video Composite Module 13.2
Sale price £12 incl. VAT excl. VAT
M5StackAnalog to 12C Unit 4-20mA Input (STM32G030)
Sale price £7.30 incl. VAT excl. VAT
M5StackM5Stack Core2 v1.1 ESP32 IoT Development Kit
Sale price £44.50 incl. VAT excl. VAT

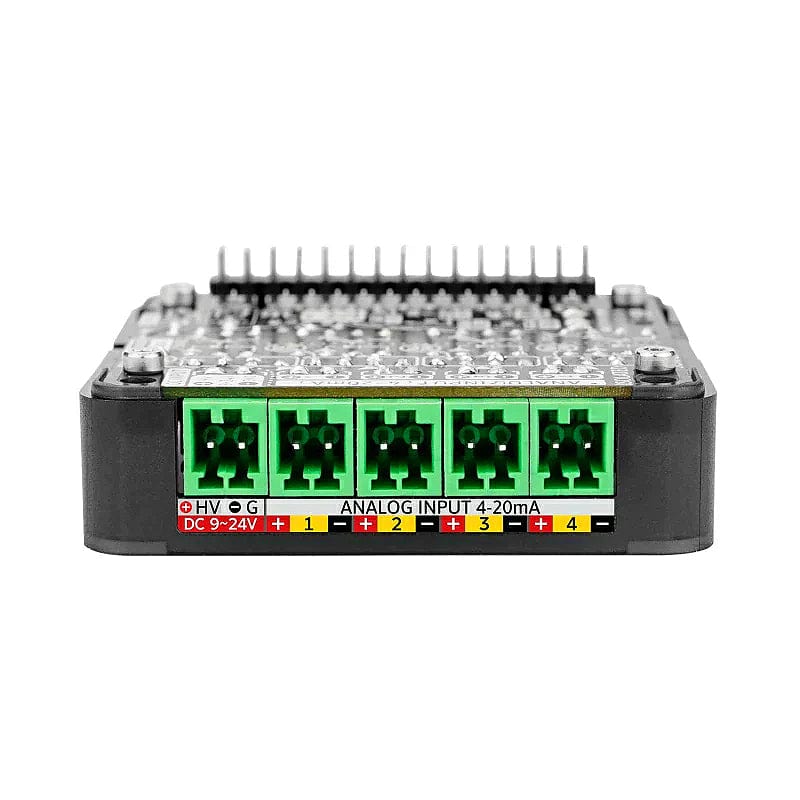

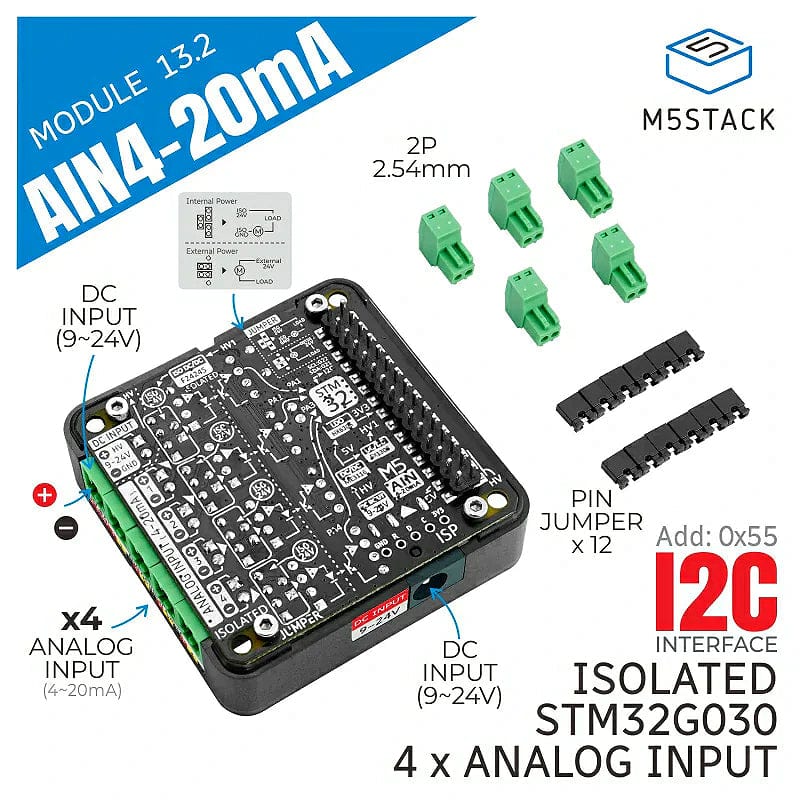

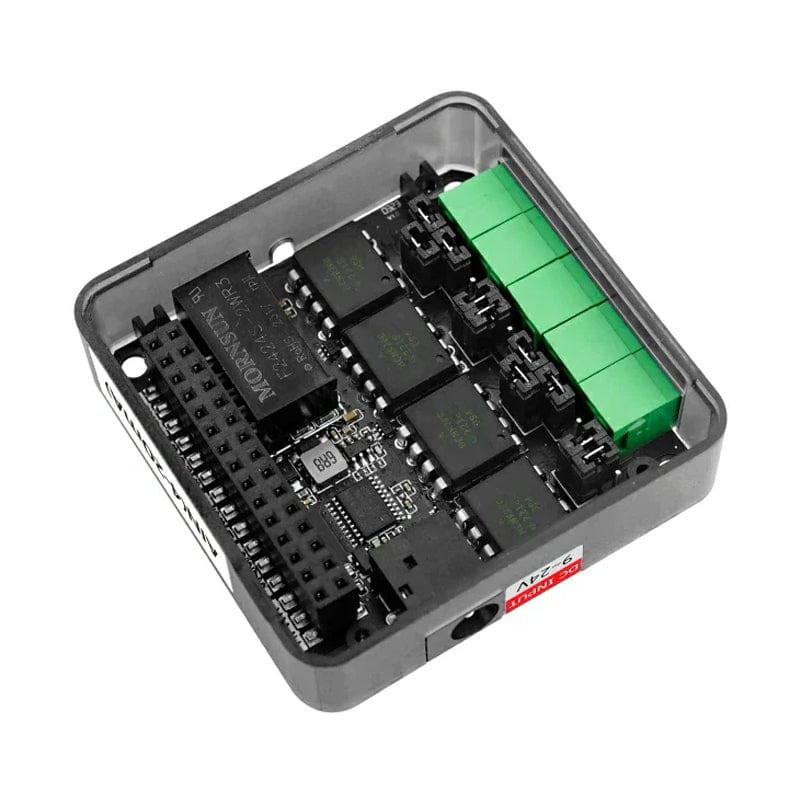

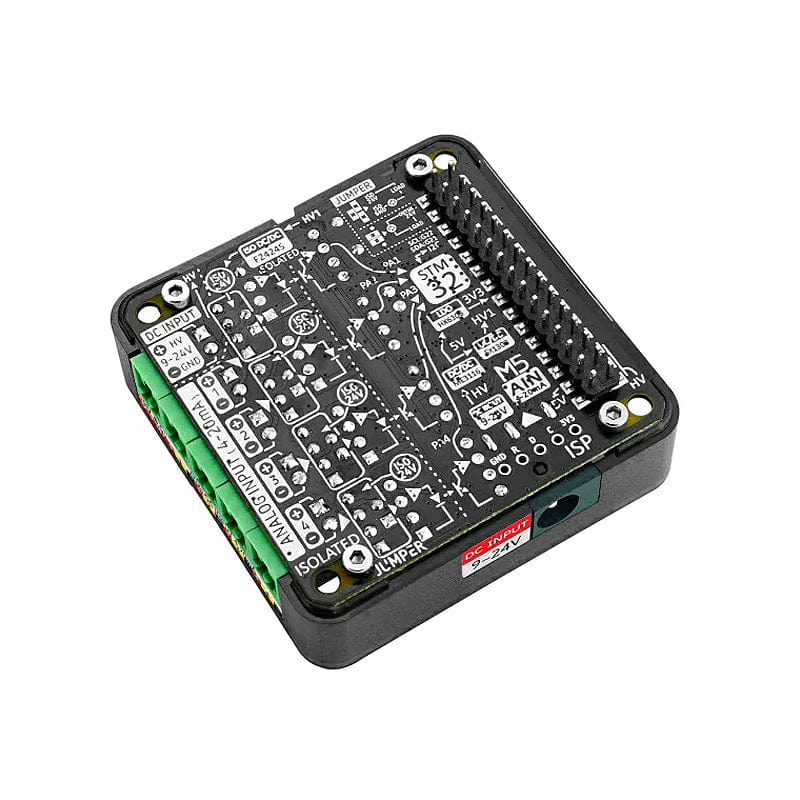

The 4-Channel Analog to 12C 13.2 Module is a quad-channel 4~20mA current analogue acquisition module. It has the STM32G030F6 main control chip and a dedicated acquisition chip with isolation to communicate with the M5 host for I2C communication. It supports switching to internally or externally powered wiring via jumper caps. There's an onboard power isolation chip and built-in op amp circuitry that accurately measures external current sensors and provides signal accuracy and system safety. In terms of power supply, the DC-JACK interface and the corresponding DC-DC boost circuit can provide power to the entire device. It's suitable for power system equipment monitoring, motor control, energy management and automation, and industrial process control.


  • STM32G030F6® 32-bit Cortex®-M0+ CPU
  • I2C communication
  • Support four 2 or 4-wire sensors, jumper cap switching
  • Built-in galvanic isolation chip
  • Support Arduino, UIFlow and other programming platforms


Resources Parameters
MCU STM32G030F6(64 Kbytes of Flash/8 Kbytes of SRAM)
Power isolation chip F2424S-2WR3
Signal isolation chip HCNR200
Op amp chip SGM321YC5/TR
I2C mailing address 0x55
Operating temperature 0-40°C
External DC supply voltage 9-24V
Product Size 54 x 54 x 13mm
Package Size 95 x 65 x 25mm
Product Weight 26.9g
Package Weight 51.7g


Package Contents

  • 1x 4-Channel Analog to 12C 13.2 Module
  • 12x Jumper cap
  • 5 x 2.54mm plug-in terminal block
