Analog to 12C Unit 4-20mA Input (STM32G030)

M5StackSKU: U162
£7.30
incl. VAT
excl. VAT
Only 9 units left

Awesome Extras

AtomS3 Lite ESP32S3 Dev Kit - The Pi HutAtomS3 Lite ESP32S3 Dev Kit - The Pi Hut
M5StackAtomS3 Lite ESP32-S3 Dev Kit
£7.70 incl. VAT excl. VAT
ATOM Matrix ESP32 Development Kit - The Pi HutATOM Matrix ESP32 Development Kit - The Pi Hut
M5StackM5Stack ATOM Matrix ESP32 Development Kit
£15 incl. VAT excl. VAT

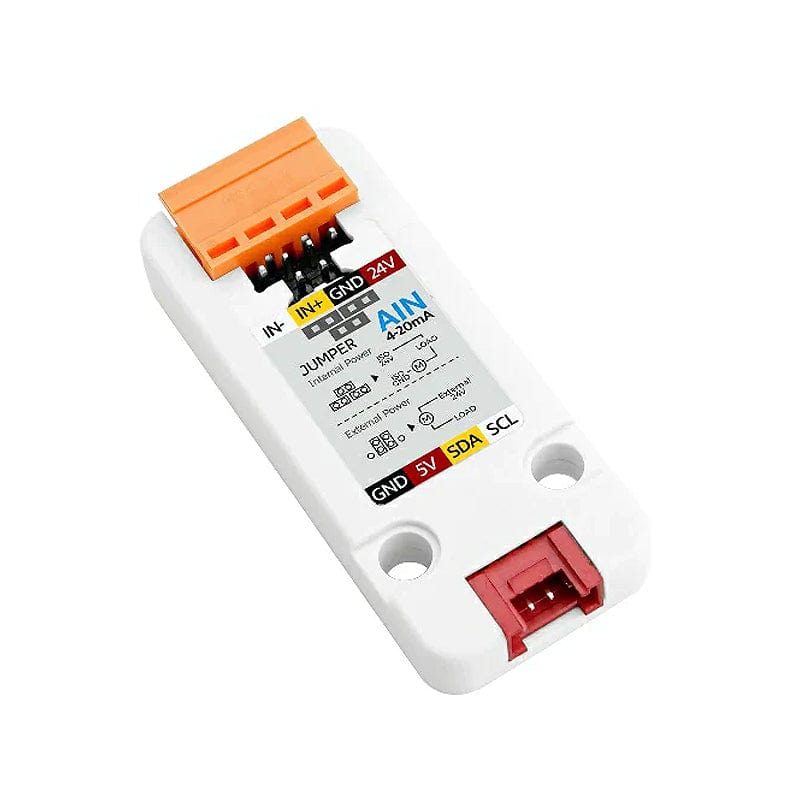

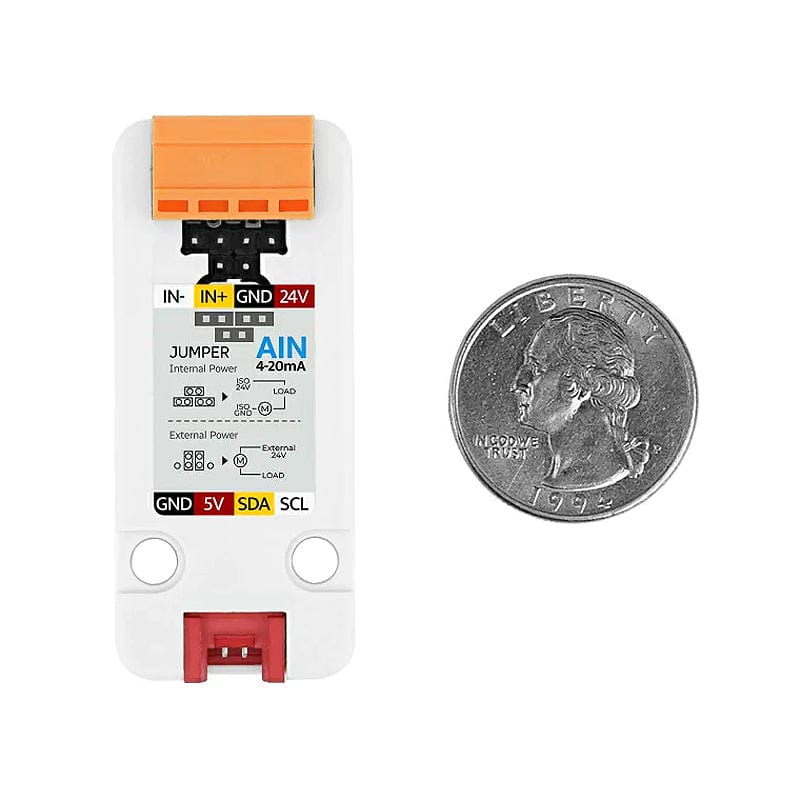

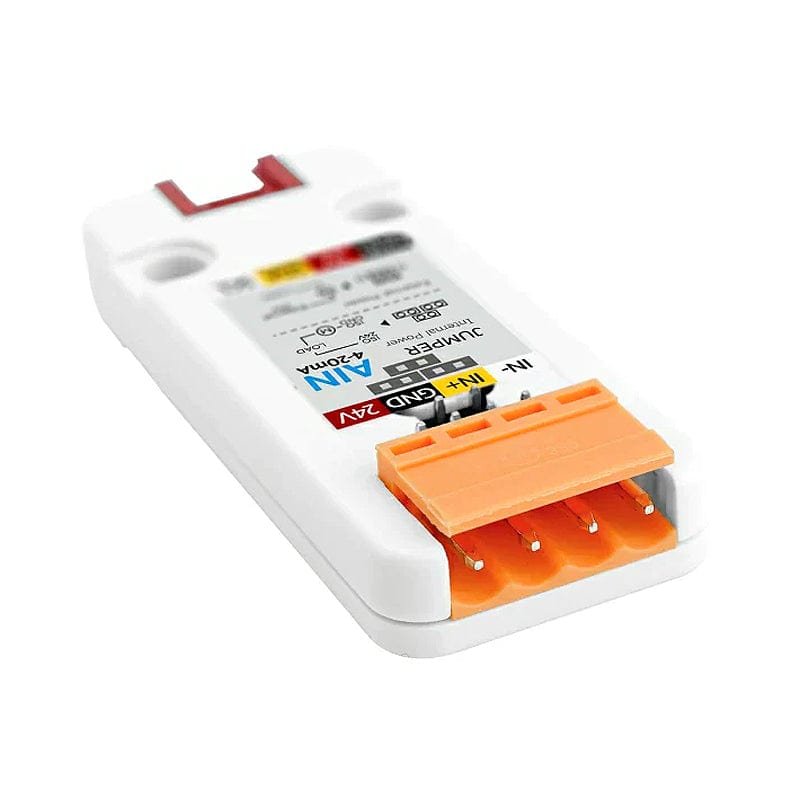

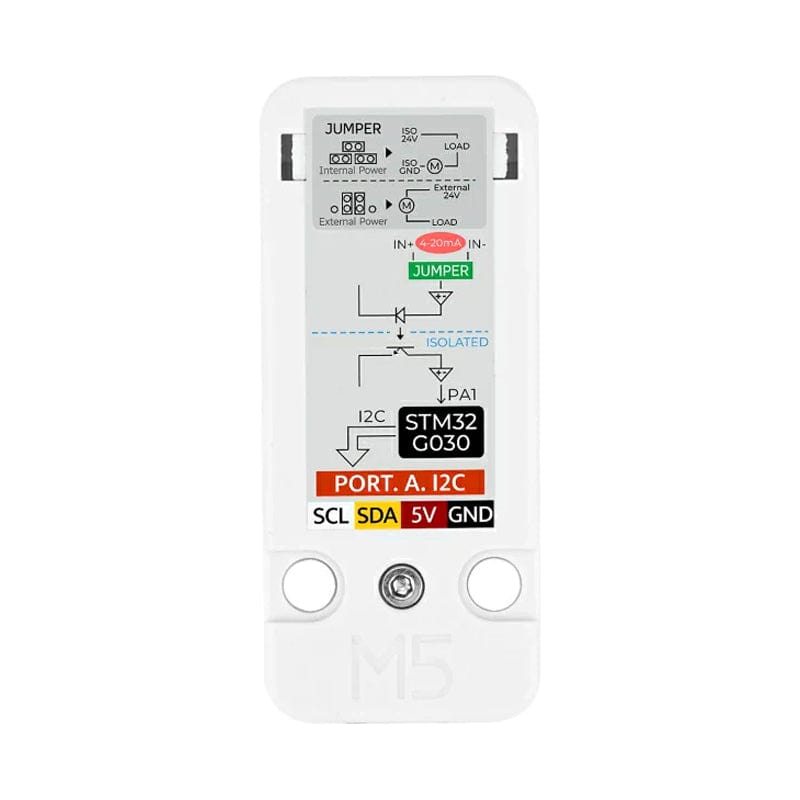

The Analog to 12C Unit is a single-channel 4~20mA current analogue measurement unit. It has the STM32G030F6 main control chip to communicate with the M5 host through I2C. It features switching to internally or externally powered wiring via jumper caps. There's an onboard power isolation chip and built-in op amp circuitry that accurately measures external current sensors and provides signal accuracy and system safety. It is suitable for power system equipment monitoring, motor control, energy management and automation, and industrial process control.

Features

  • STM32G030F6® 32-bit Cortex®-M0+ CPU
  • I2C communication
  • Supports 2 or 4-wire sensors, jumper cap switching
  • Built-in galvanic isolation chip
  • Support Arduino, UIFlow and other programming platforms

Specifications

Resources Parameters
MCU STM32G030F6（64 Kbytes of Flash/8 Kbytes of SRAM）
Power isolation chip HCNR200
Op amp chip SGM321YC5/TR
I2C address 0x55
Operating temperature 0-40°C
Product Size 56x24x12mm
Package Size 136x92x13mm
Product Weight 8.2g
Package Weight 15.6g

Resources

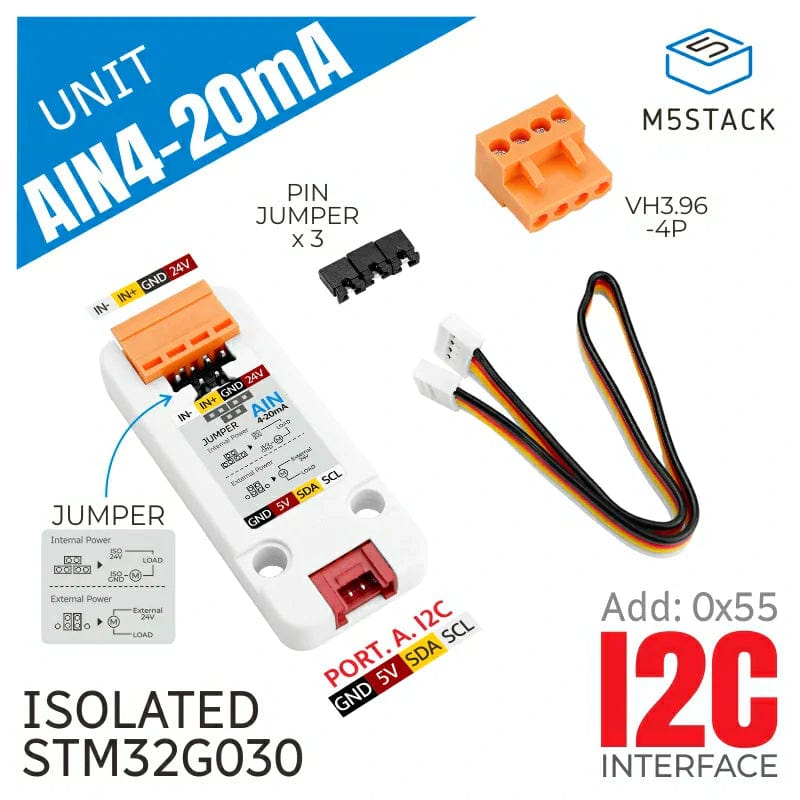

Package Contents

  • 1x Analog to 12C Unit
  • 1x VH3.96-4.0P
  • 1x Grove wire (20cm）
  • 3x Jumper caps
