4.3" DSI QLED Capacitive Touch Display for Raspberry Pi (800x480)

WaveshareSKU: WAV-24783
Price:
Sale price £35.75
incl. VAT
excl. VAT
Stock:
Only 3 units left
Quantity:

Compatible with:

Awesome Extras

The Pi HutRaspberry Pi 4 Model B Starter Kit
Sale priceFrom £53.33 incl. VAT excl. VAT
The Pi HutUSB-C Cable with On/Off Switch
Sale price £2.50 incl. VAT excl. VAT
Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £29.17 incl. VAT excl. VAT

This is the QLED version of the 4.3" LCD display, which you can find here. Going back to this particular display, it has an impressive resolution of 800x480 pixels, and with a cutting-edge display module, it brings a new level of visual excellence to your projects. With its advanced QLED (Quantum Light Emitting Diode) technology, you can experience vivid colours, exceptional brightness, and stunning contrast, elevating your viewing experience to a whole new level.

The display comes equipped with a DSI (Display Serial Interface) interface, ensuring seamless and efficient communication with a wide range of compatible devices. Its 160° viewing angle allows you to enjoy clear and vibrant visuals from almost any perspective. With the 5-Point Capacitive Touch feature, it gives you responsive touch controls, and you can effortlessly navigate through applications, browse multimedia content, and interact with interactive interfaces with precision and ease.

In addition to all of this, it offers support for Raspberry Pi, Ubuntu, Win10 and many more, low power consumption and a compact size making it a brilliant versatile display for many different projects, that doesn't compromise on quality despite its small size.

Note: The Raspberry Pi is NOT included

Features

  • 4.3" QLED touch display with a hardware resolution of 800 x 480.
  • 5-point touch control, toughened glass panel with up to 6H hardness.
  • Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, partial CM3/3+/4 adapter boards require a DSI-Cable-15cm.
  • Refresh rate up to 60Hz.
  • Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi
  • Supports software adjustable backlight for more power saving

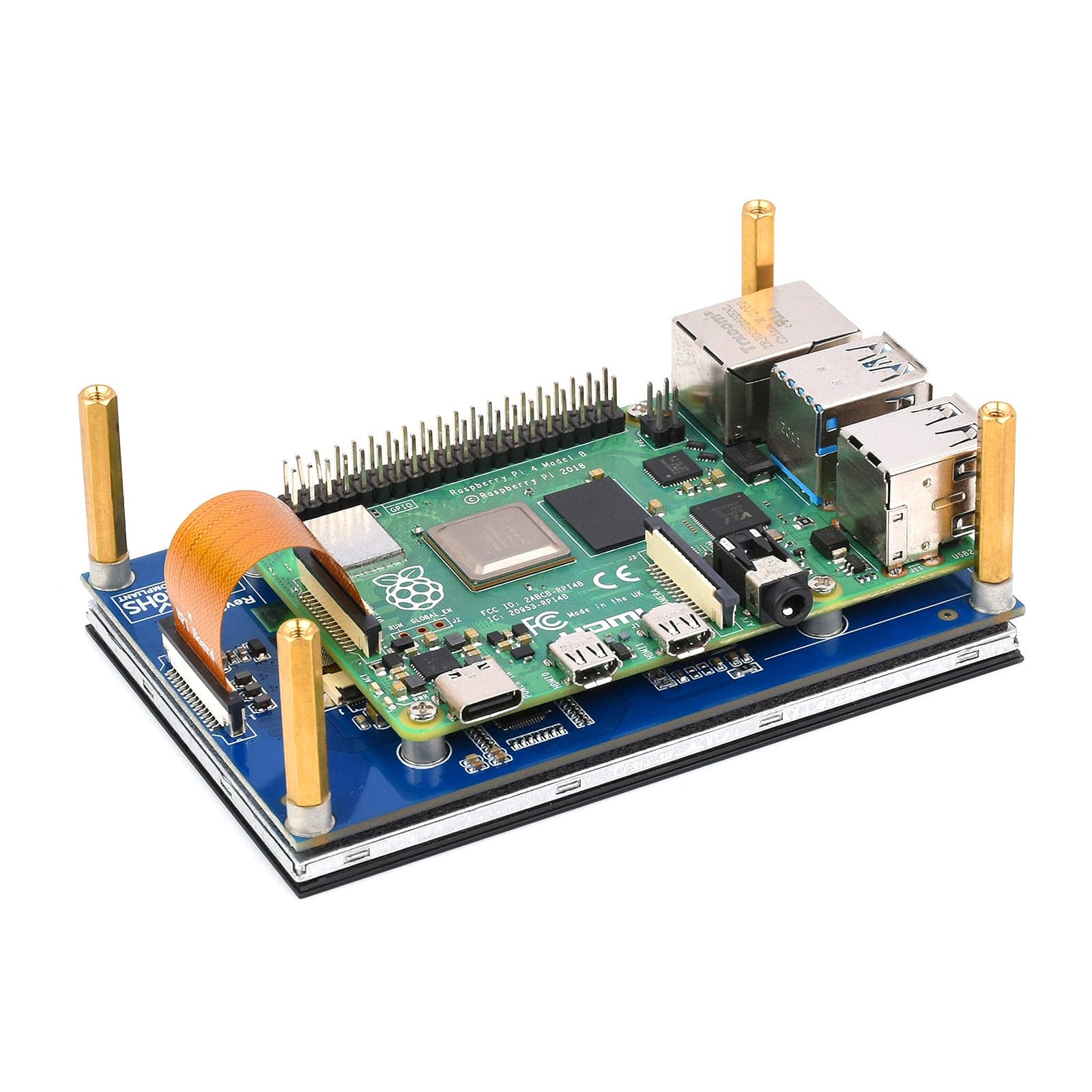

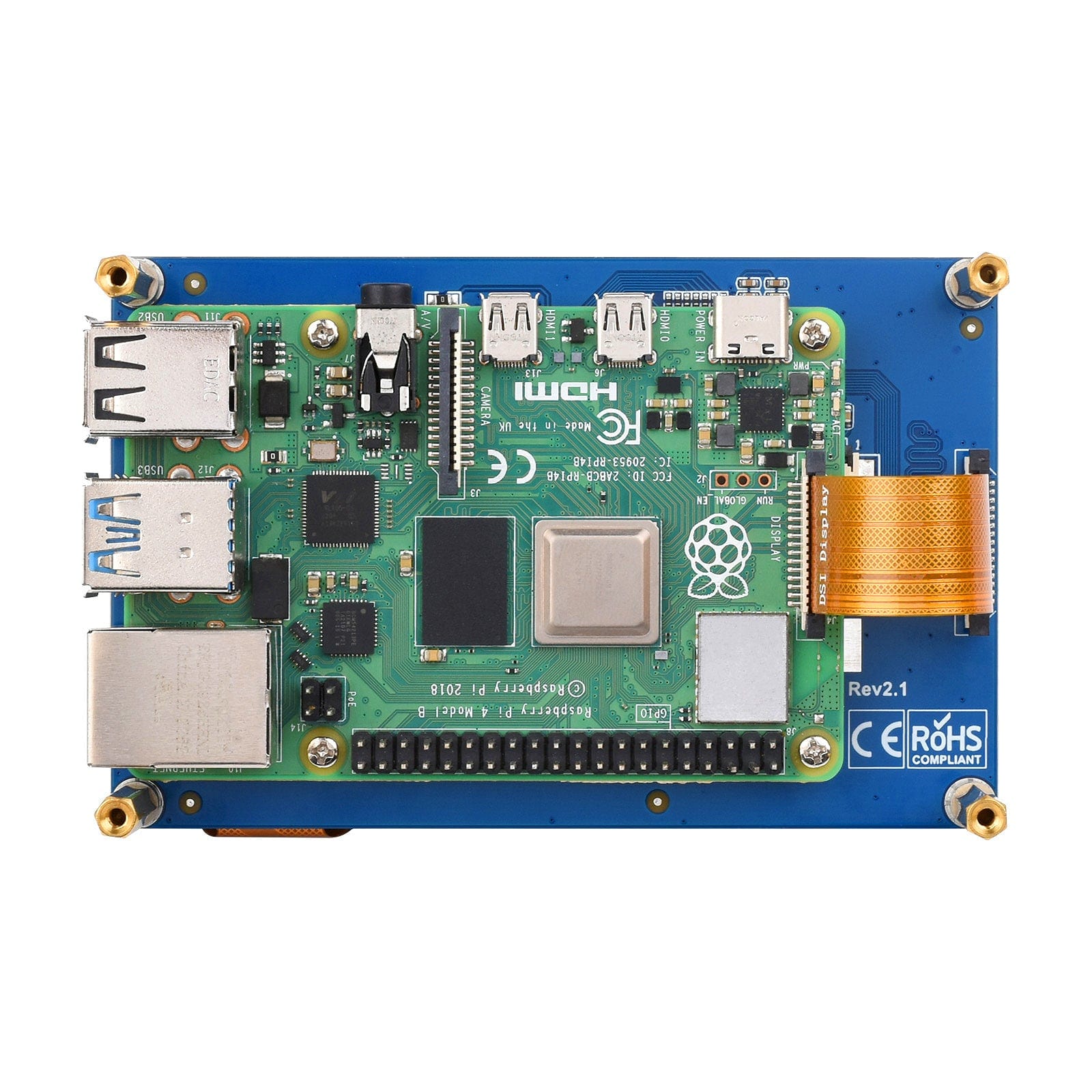

Connection Example - Raspberry Pi 4B Via DSI Interface

Specifications

Item Description Unit
Model 4.3" DSI QLED /
Dimensions 4.3 Inch
Viewing Angle 160 Deg
Resolution 800 (RGB) x480 Pixels

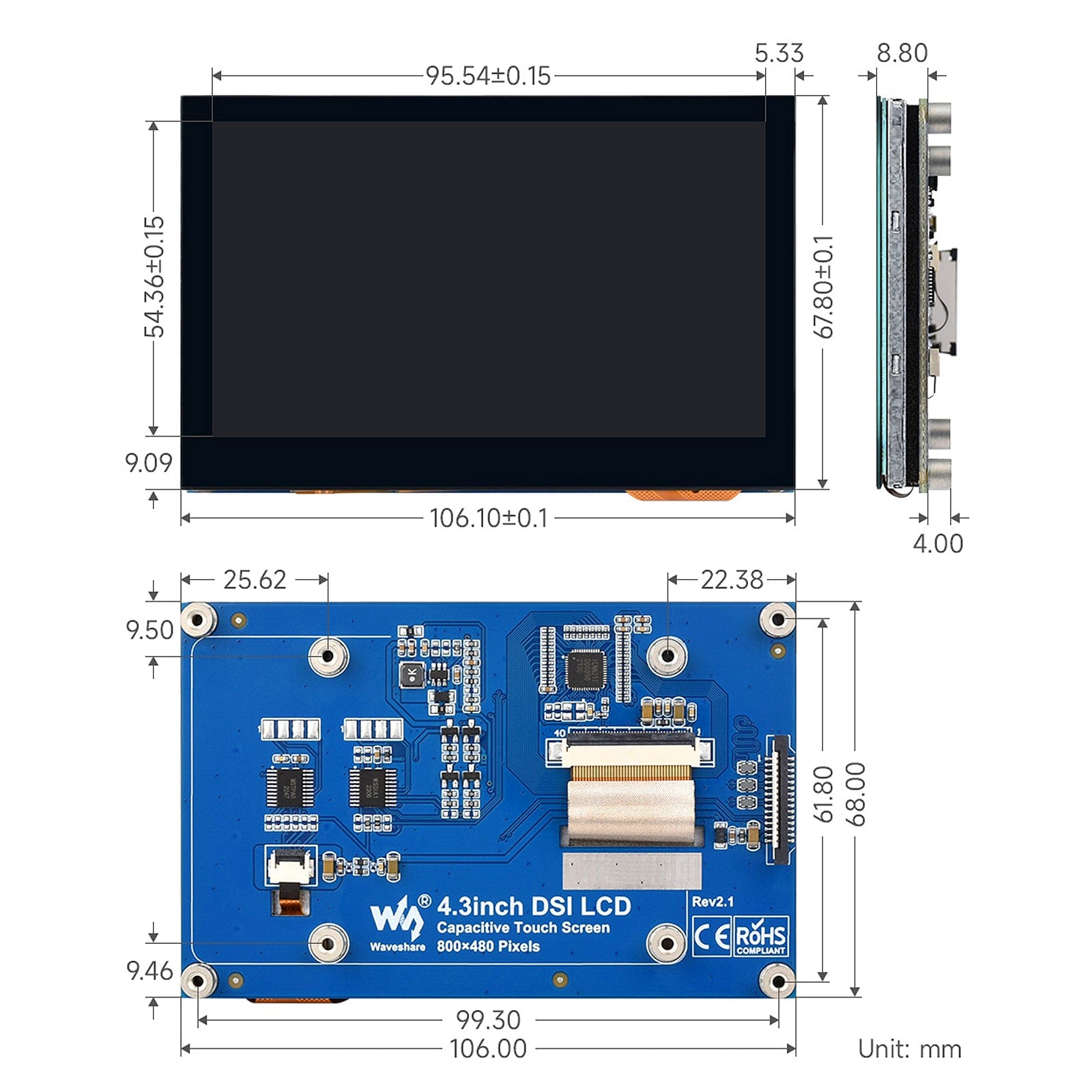

Touch Screen Dimensions 106.10(H) x 67.80(V) x 8.80(D) mm
Display Area 95.04(W) x 53.86(H) mm
QLED Color Gamut 78% NTSC
Max. Brightness 300
Backlight Adjustment Software
Contrast 50.00069444 cd/m²
Color Depth 16.7M
Refresh Rate 60 Hz
Driver Interface DSI

Resources

Package Contents

  1. 1x 4.3" DSI QLED
  2. 2x FPC 15 PIN cable (~ 50mm)
  3. 1x Screws pack
