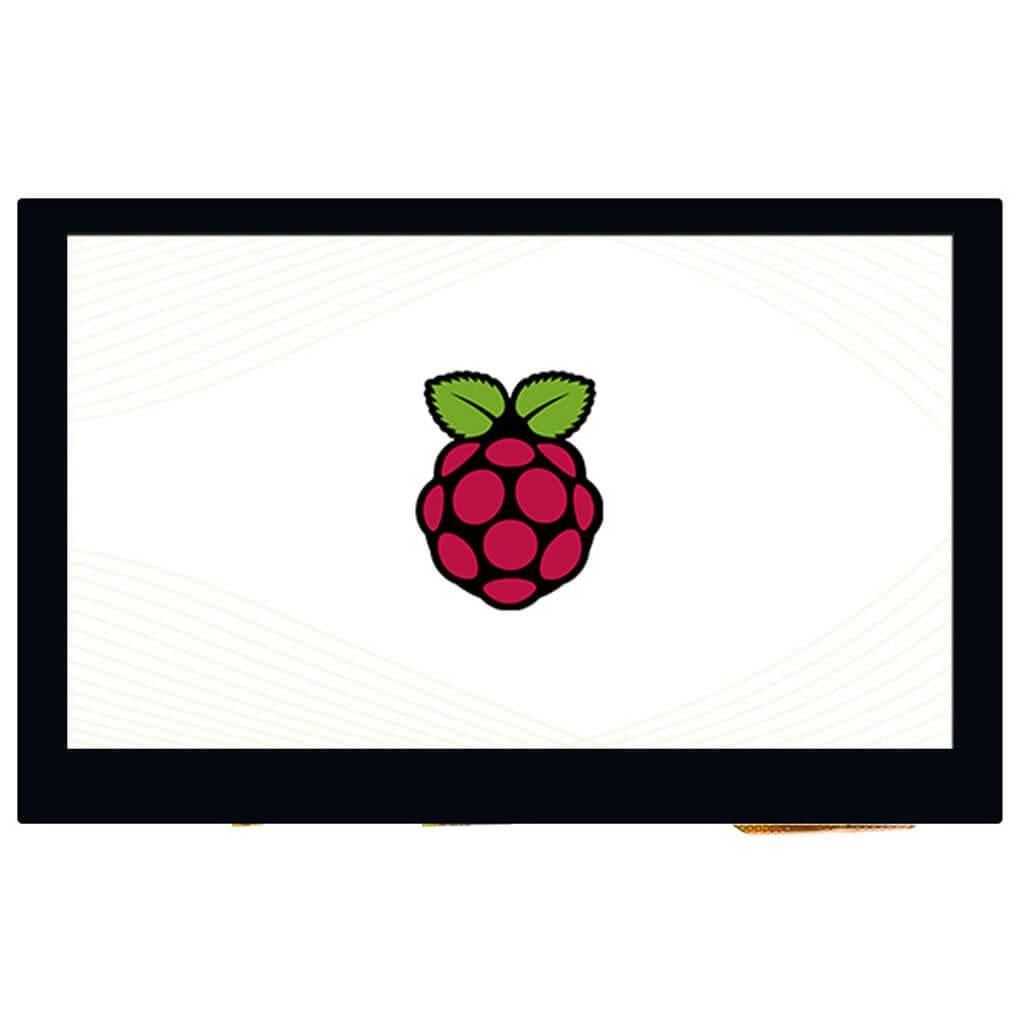

4.3" DSI Capacitive Touchscreen Display for Raspberry Pi (800x480)

WaveshareSKU: WAV-16239
Sale price £38.90
incl. VAT
excl. VAT
In stock

Compatible with:

Awesome Extras

Raspberry PiDisplay Adapter Cable for Raspberry Pi 5
Sale priceFrom £1 incl. VAT excl. VAT
The Pi HutRaspberry Pi OS Pre-installed Micro SD Card
Sale priceFrom £9.90 incl. VAT excl. VAT

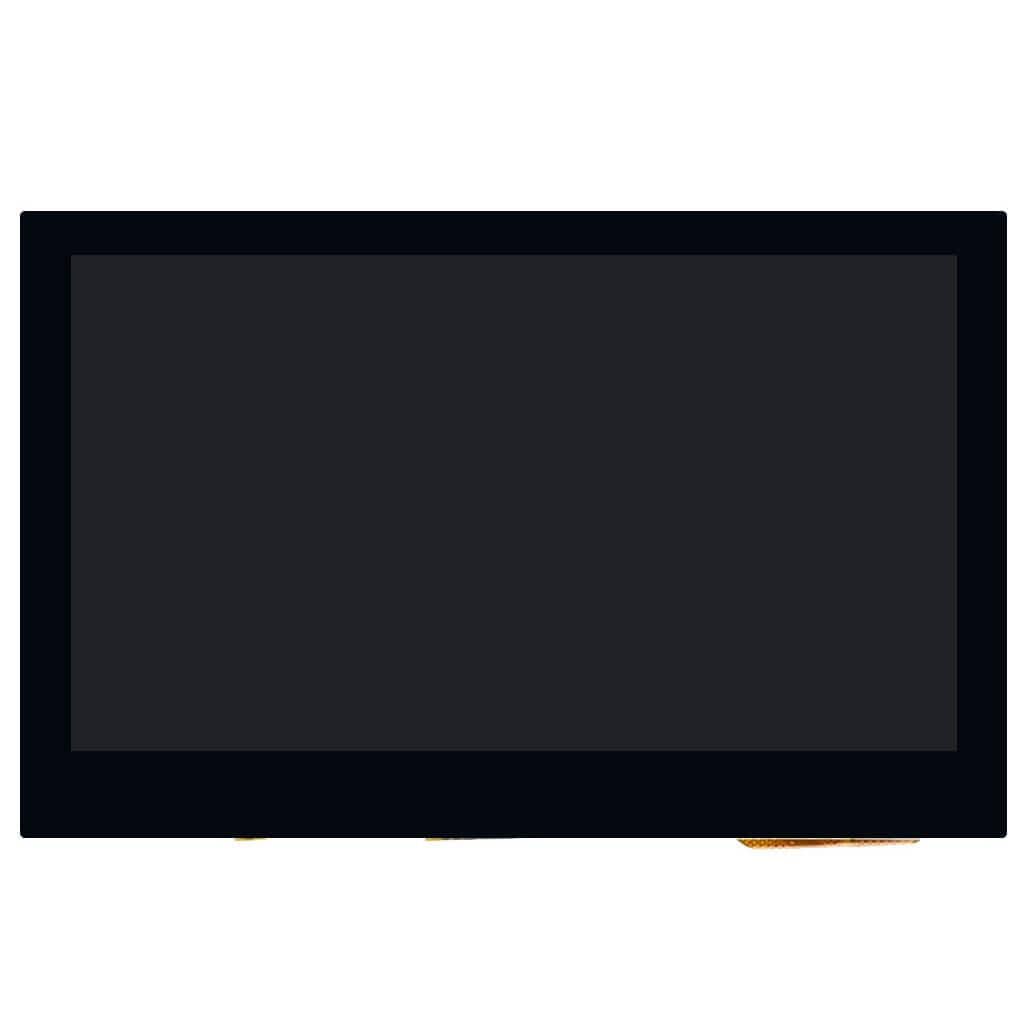

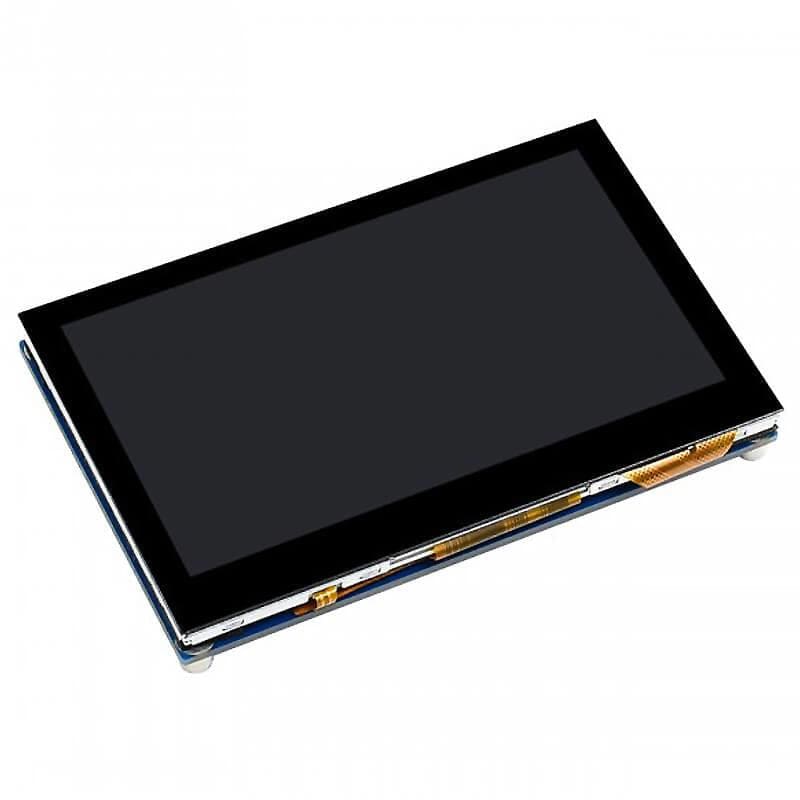

This compact capacitive touchscreen display for the Raspberry Pi offers an impressive 800x480 resolution squashed into a 4.3" IPS panel and is driven via the DSI port on your Raspberry Pi.

To use this DSI display with a Raspberry Pi 5, you will need to buy this adapter cable! Also please see this guidance for the Raspberry Pi 5 before buying.

With a decent resolution for the size of the panel, combined with IPS technology, 160° viewing angles and toughened glass, this display is a great choice for those looking for a small display without the usual quality drawbacks of mini screens.

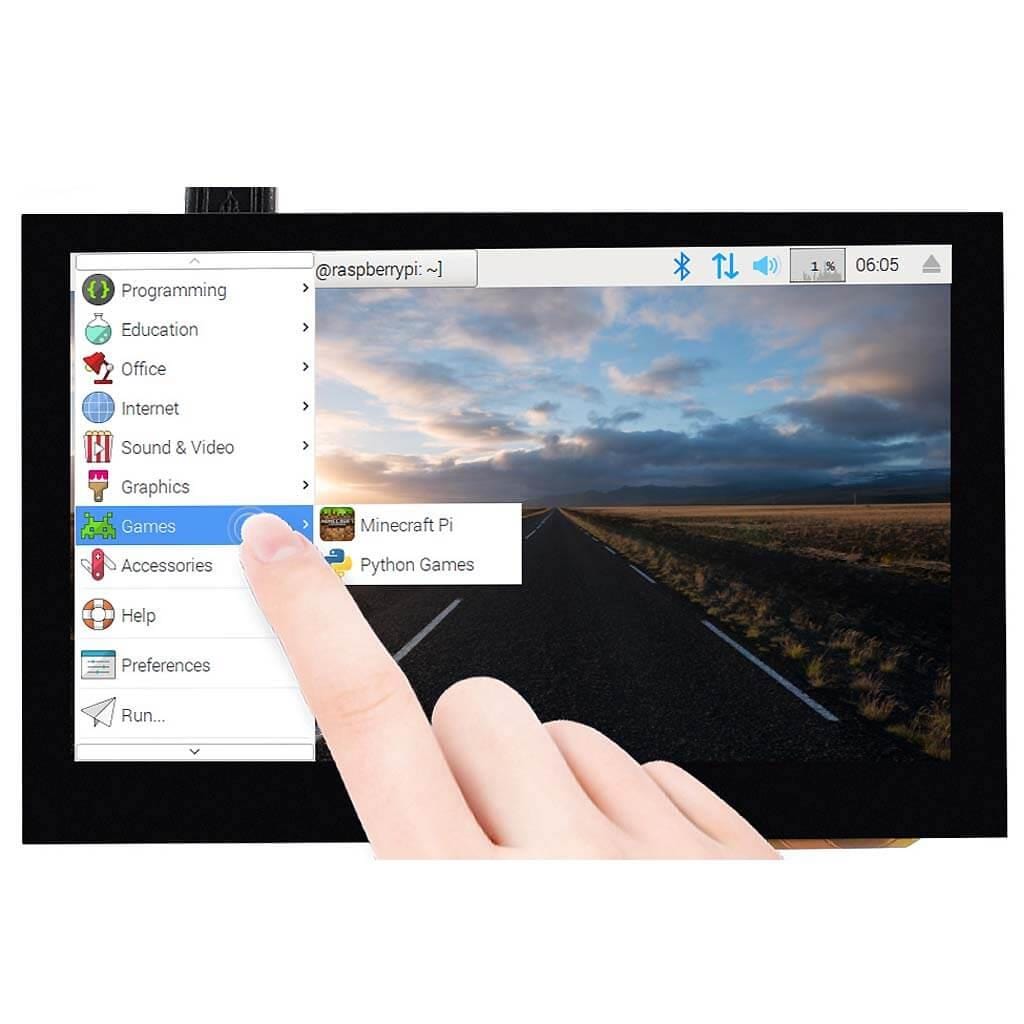

The 5-point capacitive touch opens it up to projects that require interaction without the need for traditional USB peripherals, whilst the DSI interface leaves your full GPIO header completely free for HATs, components and more.

The online Wiki will help you get set up and configure your Raspberry Pi for the display.,


  • 4.3" IPS display
  • 800x480 hardware resolution
  • Capacitive touch - supports 5-point touch
  • Supports all Raspberry Pi models with a DSI connector - Pi 4, 3B+, 3A+, 3
  • DSI interface - refresh rate up to 60Hz.
  • Supports Raspberry Pi OS

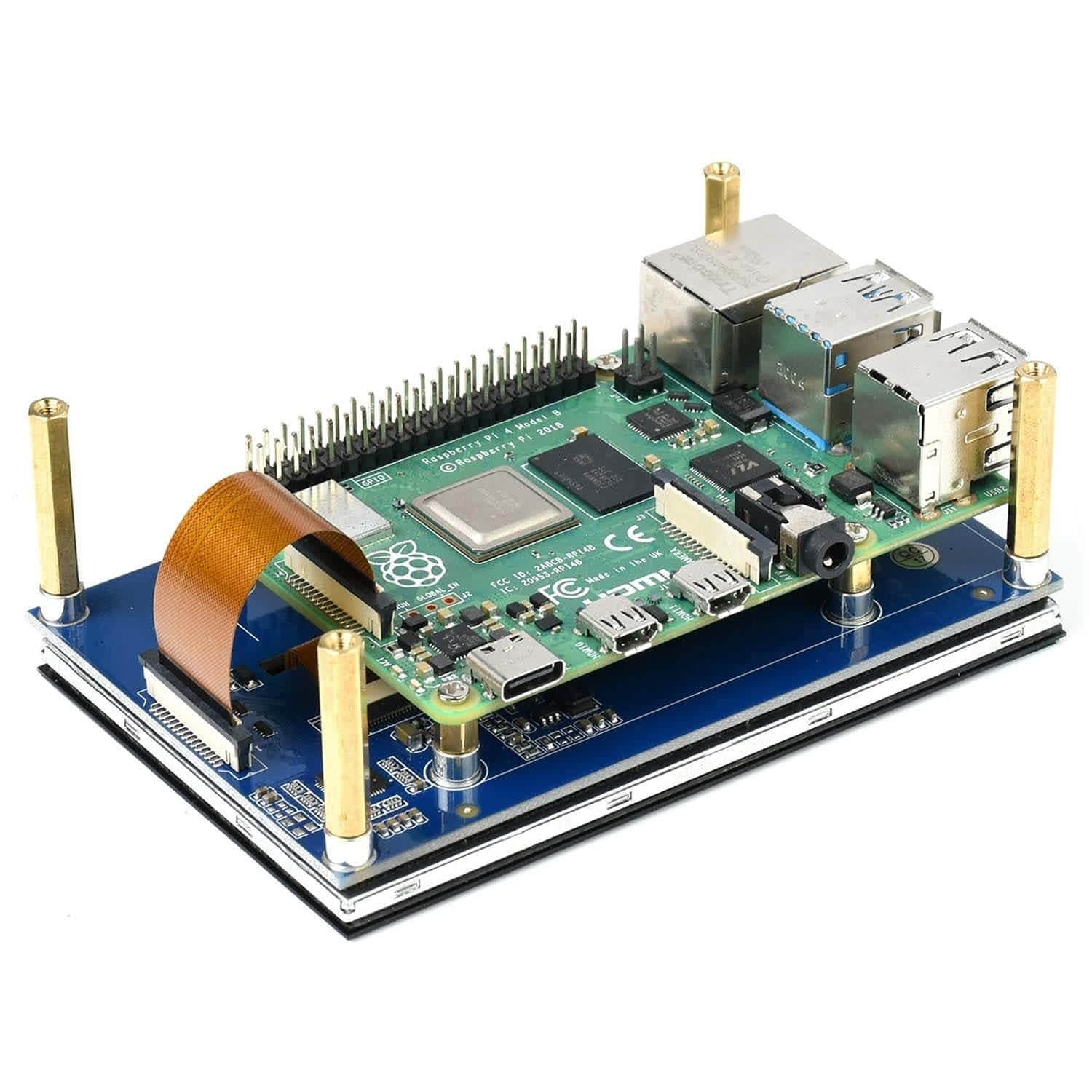

Connection Example

4.3" DSI display connection example


  • Screen size: 4.3"
  • Resolution: 800x480
  • Display Type: DSI
  • Display Panel: IPS
  • Viewing angles: 160°
  • Touch type: Capacitive
  • Touch points: 5
  • Touch port: I2C
  • Touch panel: Toughened Glass

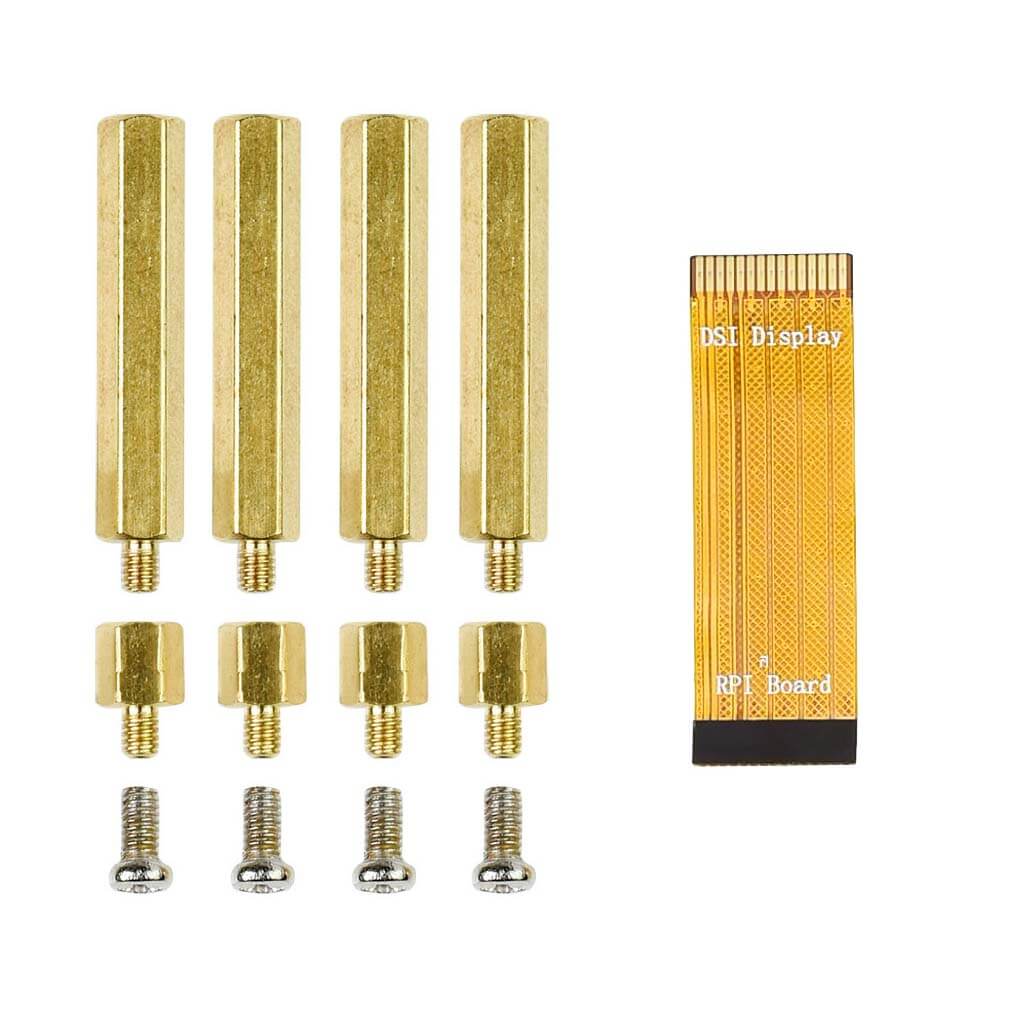

Package Contents

  • 1x 4.3" DSI LCD
  • 1x 15-pin FPC cable - 1.0 pitch 50mm (opposite sides)
  • 1x Screws pack

Raspberry Pi not included
