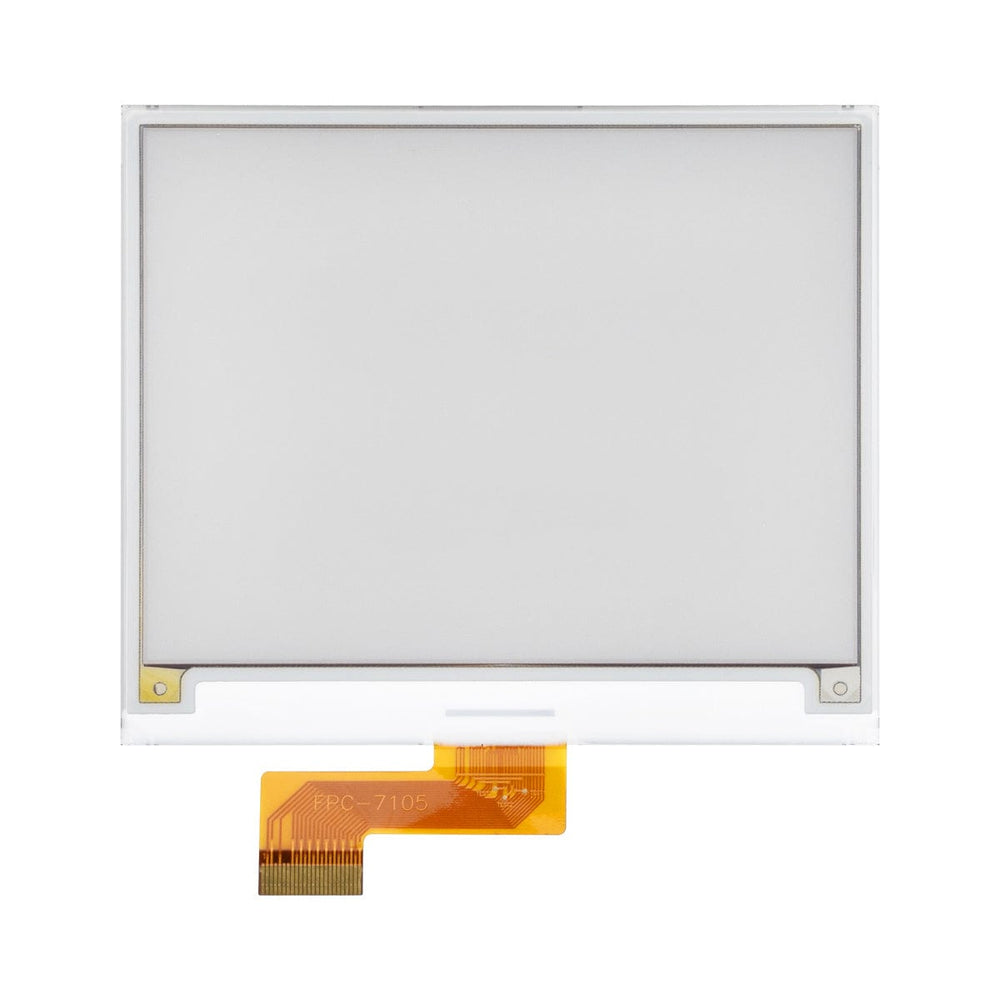

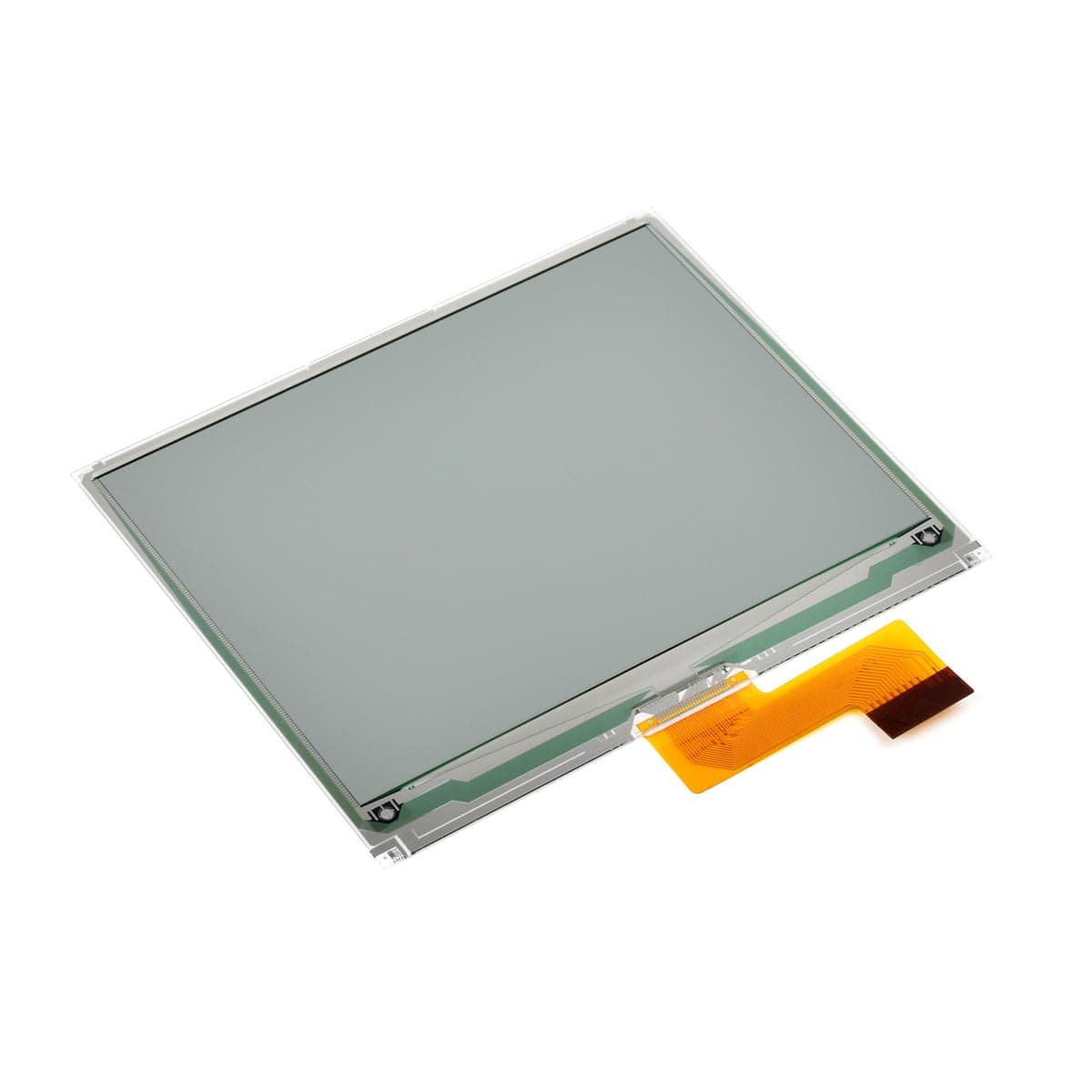

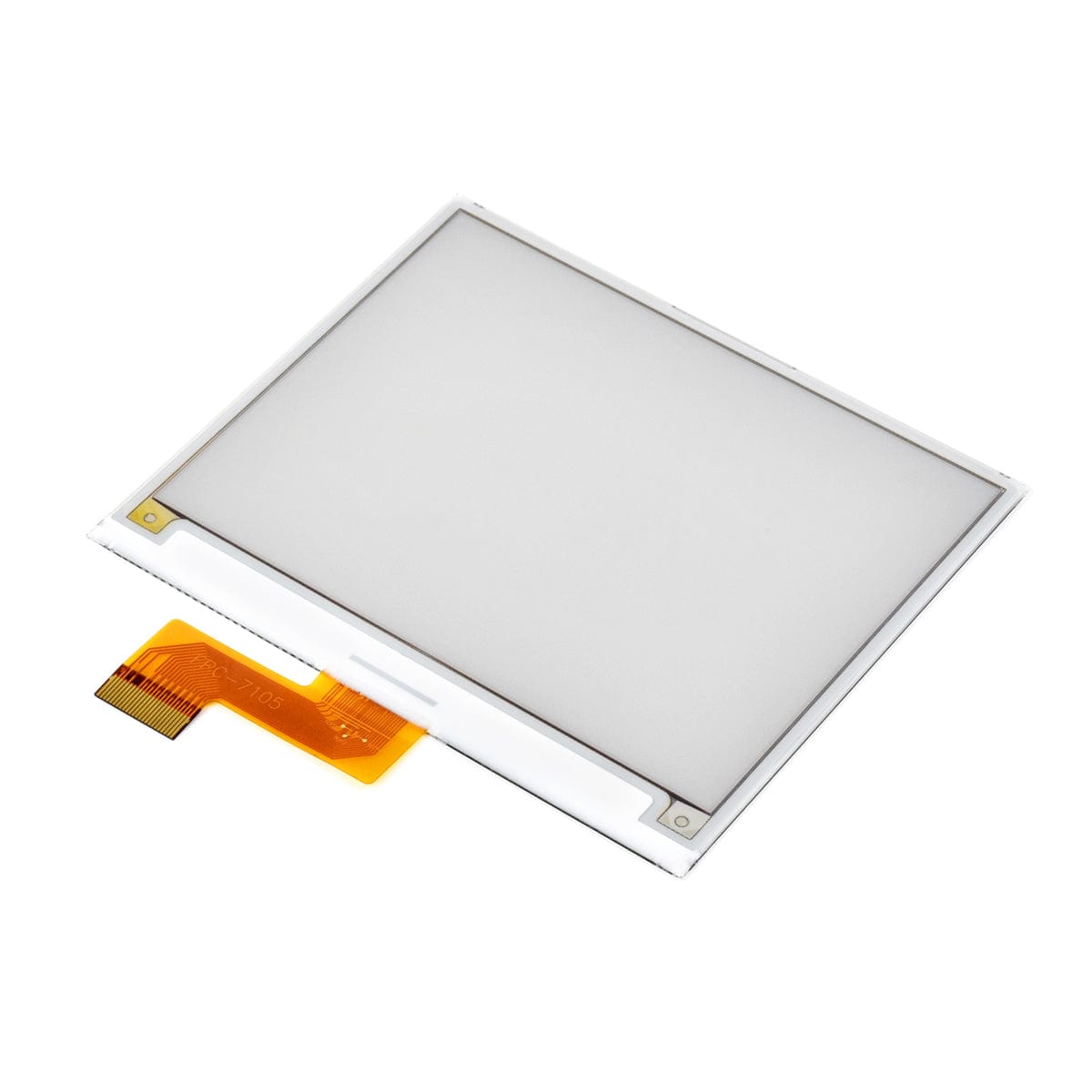

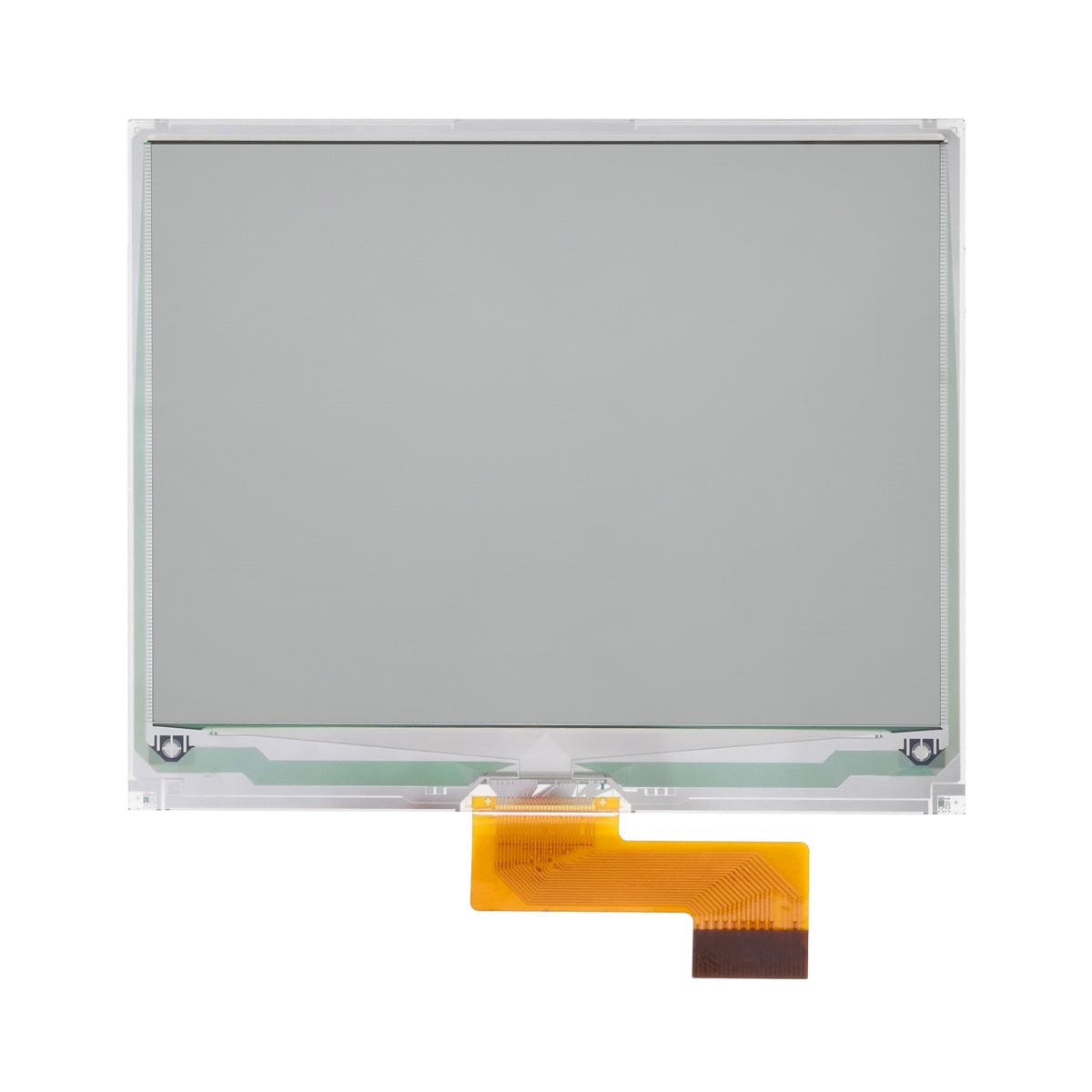

4.2" E-Paper Quad Colour Raw Display Panel (400 x 300)

WaveshareSKU: WAV-29926
Price:
Sale price £24.60
incl. VAT
excl. VAT
Stock:
Coming Soon
Notify me

Awesome Extras

Universal e-Paper Raw Panel Driver HAT - The Pi HutUniversal e-Paper Raw Panel Driver HAT - The Pi Hut
WaveshareUniversal e-Paper Raw Panel Driver HAT
Sale price £10.80 incl. VAT excl. VAT
Raspberry Pi 5 - The Pi HutRaspberry Pi 5 - The Pi Hut
Raspberry PiRaspberry Pi 5
Sale priceFrom £48 incl. VAT excl. VAT
Coming Soon
4.2" Quad Colour E-Paper Display Module (400 x 300)4.2" Quad Colour E-Paper Display Module (400 x 300)
Arduino Uno Rev3 - The Pi HutArduino Uno Rev3 - The Pi Hut
ArduinoArduino Uno Rev3
Sale price £24.50 incl. VAT excl. VAT
2.15" E-Paper Quad Colour Raw Display Panel (296 x 160)2.15" E-Paper Quad Colour Raw Display Panel (296 x 160)

This E-Paper Raw panel has a 400 x 300 resolution, a viewing angle of over 170° and red, black, yellow and white colours.

Without the need for a backlight, it saves on energy by continuing to keep the latest content you had put on there even when powered down. This means it will consume barely any power, and it will only be needed when it's refreshing. Online development resources and a manual are included, with examples for Raspberry Pi, Jetson Nano, Arduino, and STM32.

Note: an e-Paper Raw Panel Driver HAT will be needed to run this display. Click here to find one in our store.

If you're looking for this display with a driver board, click here

Features

  • No backlight, keeps displaying last content for a long time even when powered down
  • Ultra-low power consumption, basically power is only required for refreshing
  • Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32)

Specifications

Operating Voltage 3.3V
Connection 3-wire SPI, 4-wire SPI

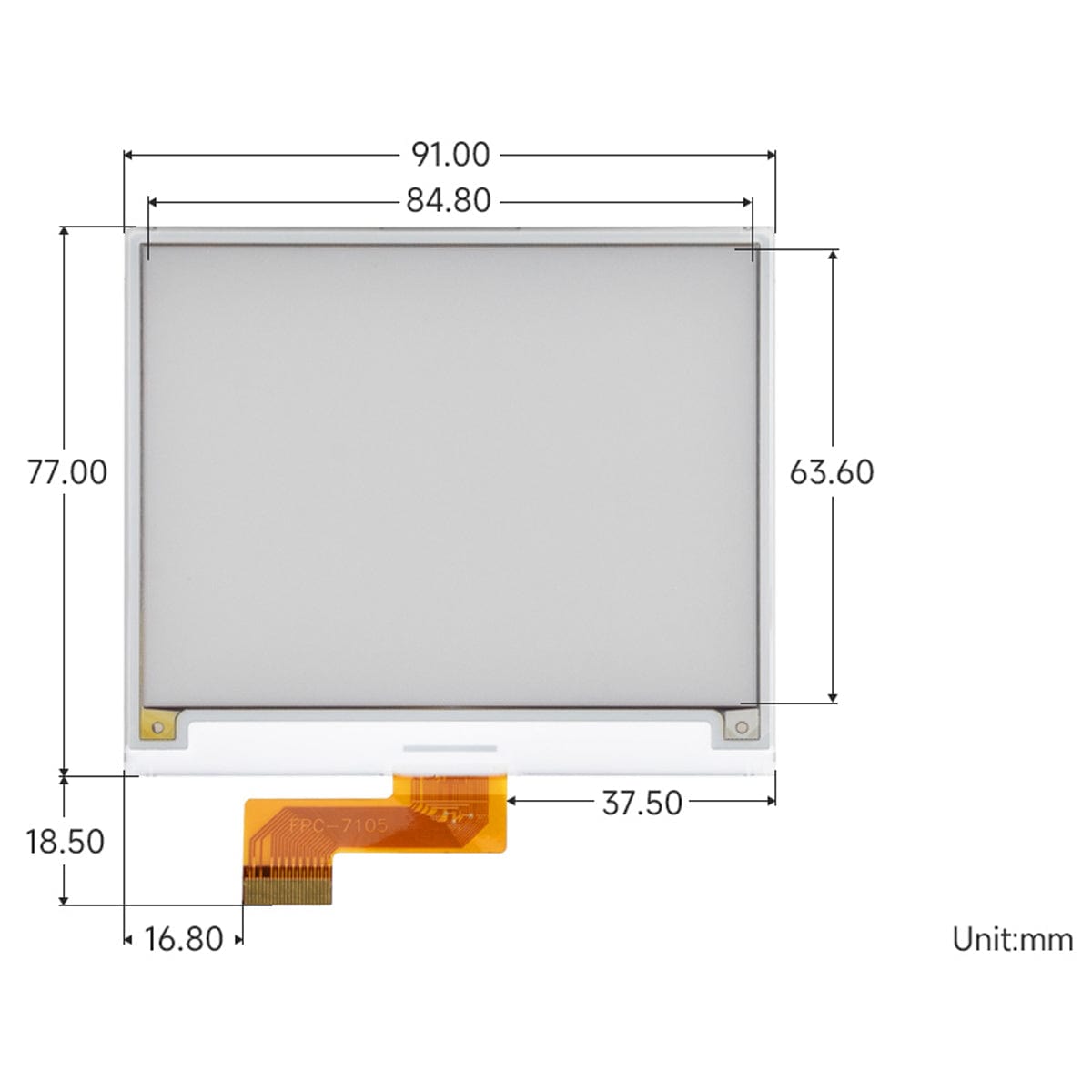

Outline Dimensions 91 x 77 x 1.00 (mm)
Display Size 84.8 x 63.6 (mm)
Dot Pitch 0.212 x 0.212 (mm)
Resolution 400 x 300 pixels

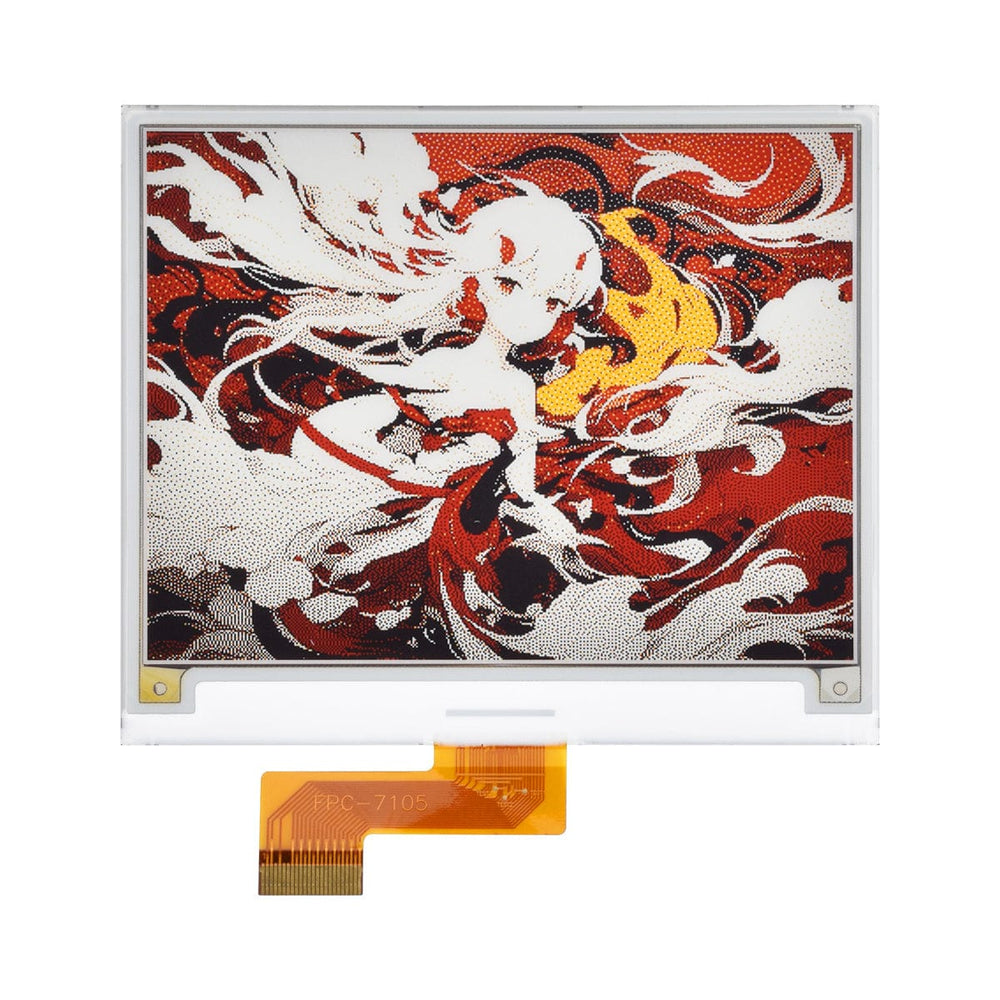

Display Colour Red/Black/White/Yellow
Greyscale 2
Full Refresh Time 21s
Refresh Power <30mW
Standby Current <0.01uA (almost none)
Viewing Angle >170°

Resources

Package Contents

  • 1x 4.2" e-Paper Display
