This E-Paper raw driver shield is equipped with an onboard voltage translator making it compatible with both 3.3V and 5V microcontrollers. It includes an onboard MX25R6435F Flash chip for data storage and management.

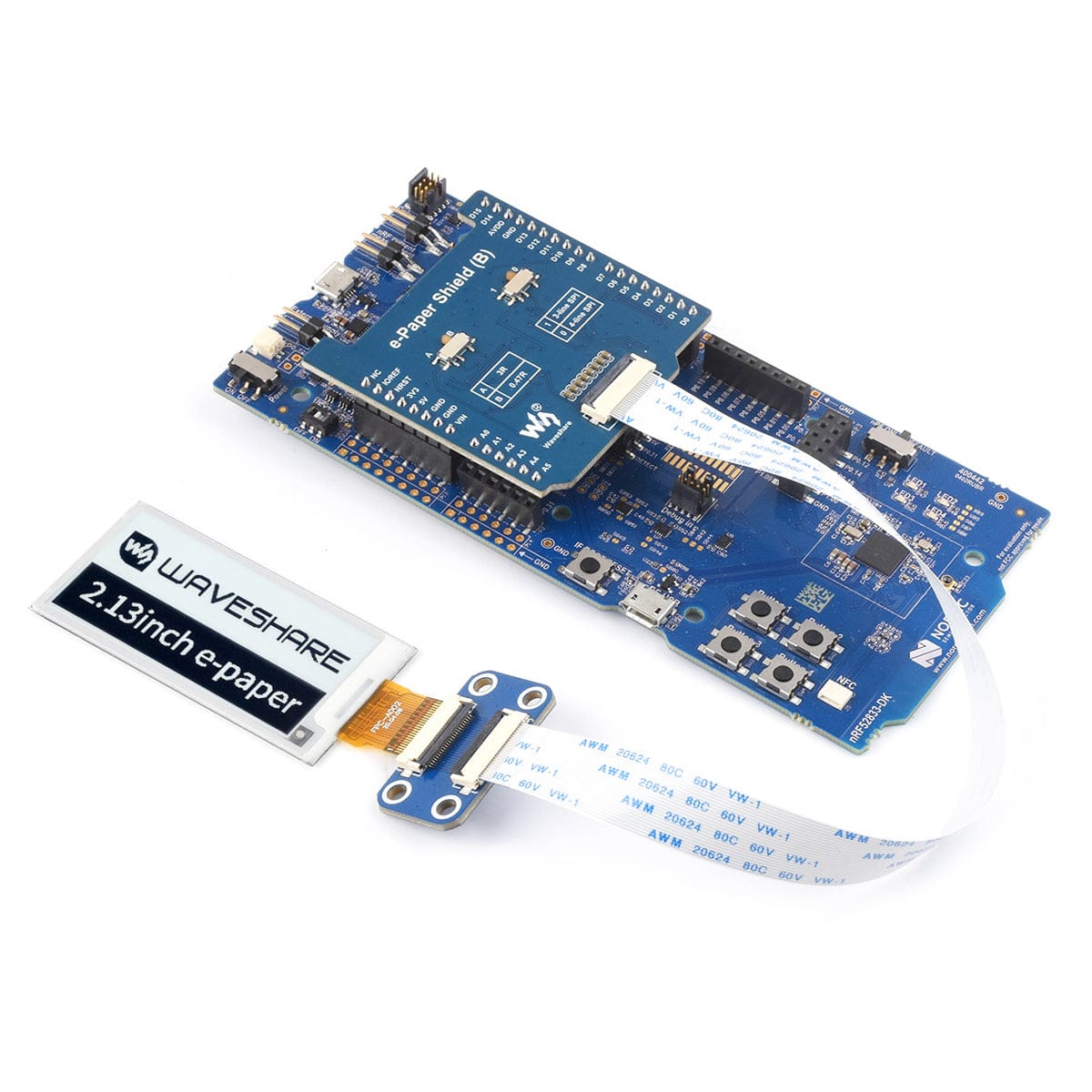

Additionally, it features reserved external RAM soldering pads, providing the option to expand memory space as needed for more complex projects. This driver shield is an ideal choice for people using e-paper displays in their projects, as it offers flexibility and ease of use. The shield connects with a variety of host boards including nRF528xx, UNO, Leonardo, NUCLEO, and XNUCLEO through standard Arduino connectivity.

Note: The board and e-paper screen are NOT included


  • Standard Arduino connectivity, compatible with host boards like nRF528xx, UNO, Leonardo, NUCLEO, XNUCLEO
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Onboard MX25R6435F Flash chip
  • Reserved external RAM soldering pads for expanding more space
  • Comes with online resources and manual

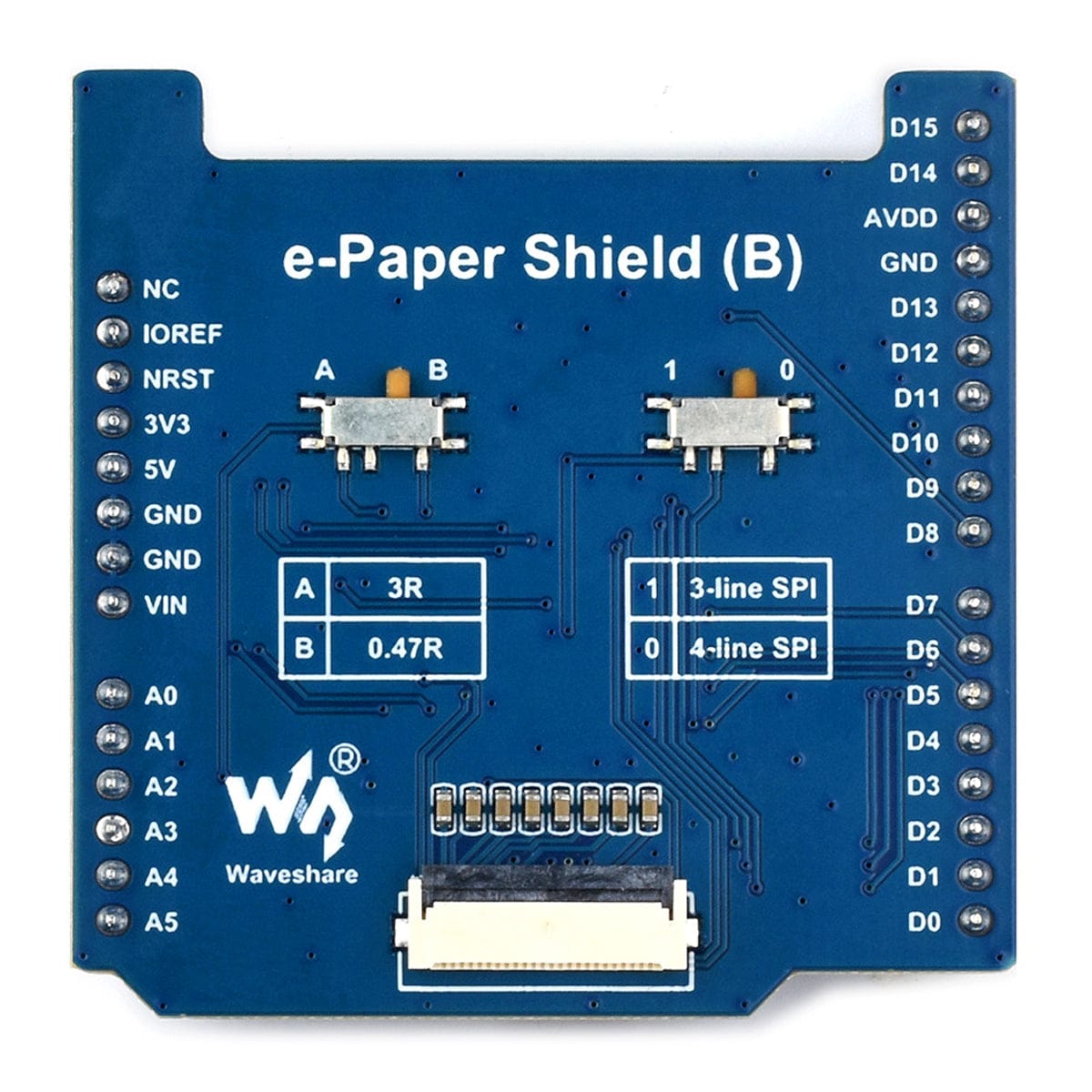

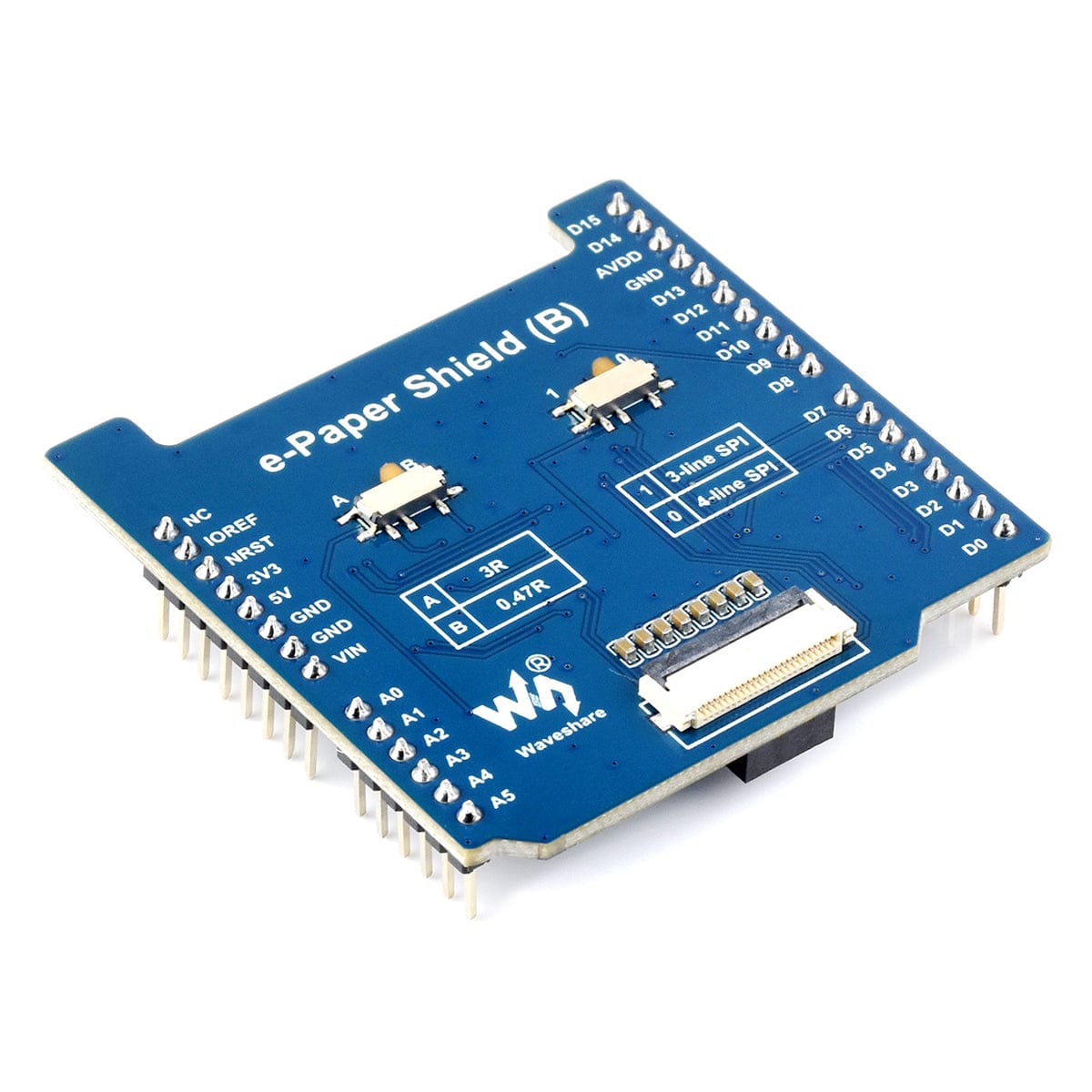

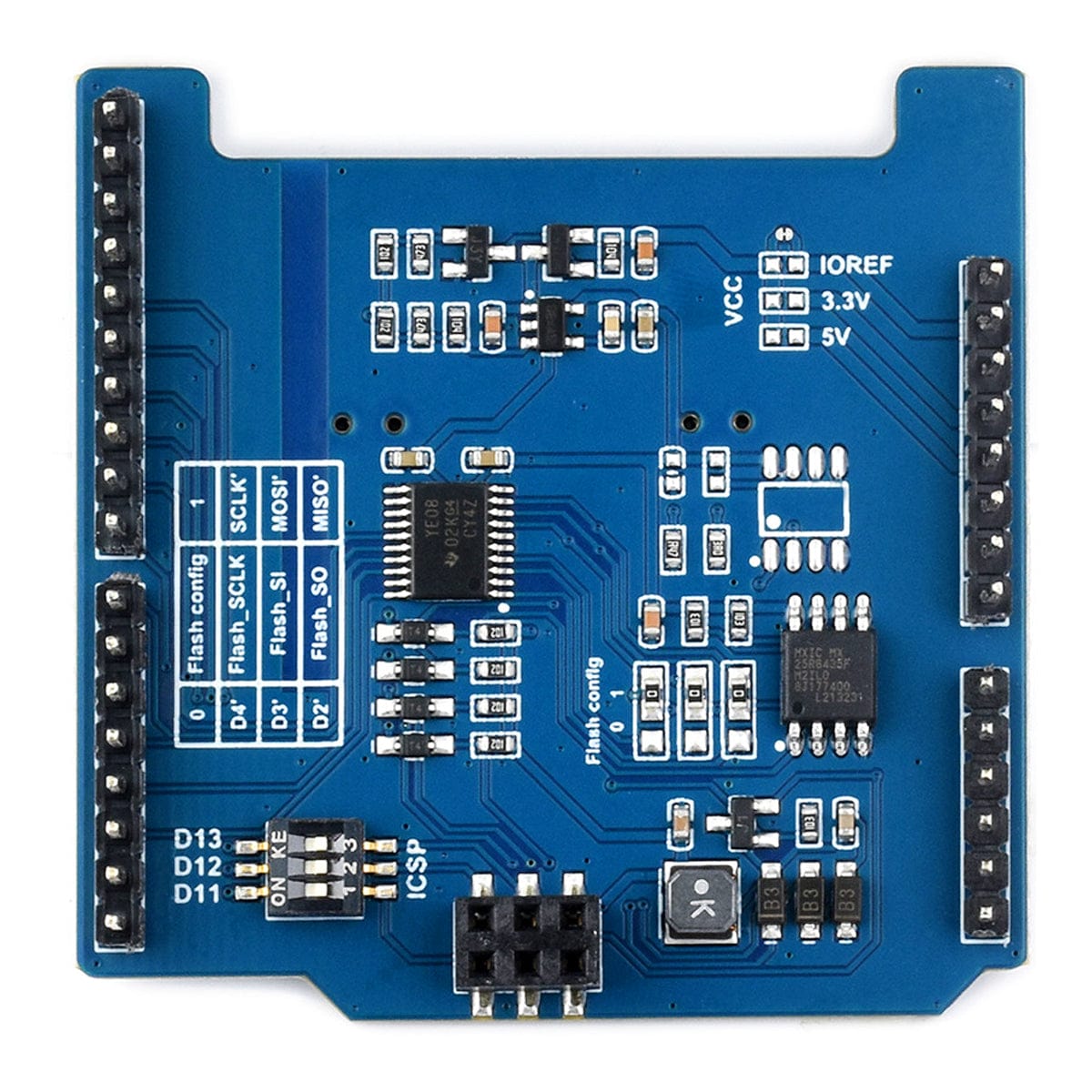

What's on Board

  1. E-Paper driver resistor selection
  2. 3-wire/4-wire SPI selection
  3. 24-Pin E-paper connector
  4. Arduino standard interface
  5. Voltage translator
  6. Flash Chip
  7. DIP switch
    Arduino board SPI communication selection (ICSP by default)
  8. ICSP header
  9. Power selection
    IOREF by default
  10. Reserved RAM soldering pads


Operating Voltage 3.3V/5V
Interface 3-wire SPI, 4-wire SPI
Flash Memory Size 64M-bit / 8M-byte
Reserved RAM Package SOIC-8

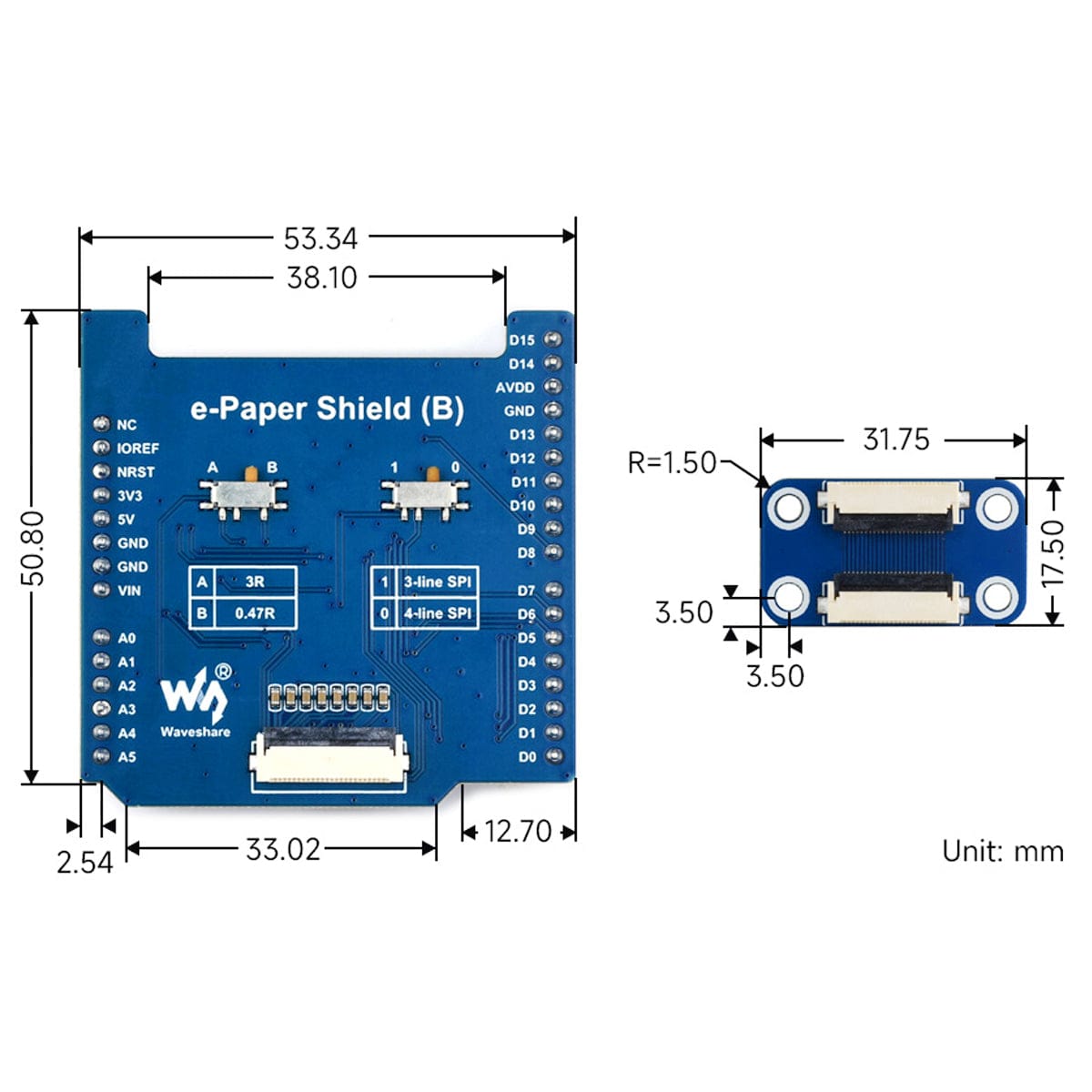

Dimensions 53.34 x 53.34mm



Board Pin PIN Description
5V/3.3V/IOREF(default) VCC Power input
GND GND Ground
SCLK/D13 SCLK SPI clock input
MOSI/D11 MOSI SPI data input
MISO/D12 MISO SPI data output
D10 EPD_CS E-Paper chip selection
D9 EPD_DC E-Paper data/command
D8 EPD_RST E-Paper reset
D7 EPD_BUSY E-Paper busy
D6 Flash_CS SPI Flash chip selection
D5 RAM_CS SPI RAM chip selection
D4 SCLK (Flash optional) SPI clock input (Flash optional)
D3 MOSI (Flash optional) SPI data input (Flash optional)
D2 MISO (Flash optional) SPI data output (Flash optional)

Package Contents

  • 1x E-Paper Shield (B)

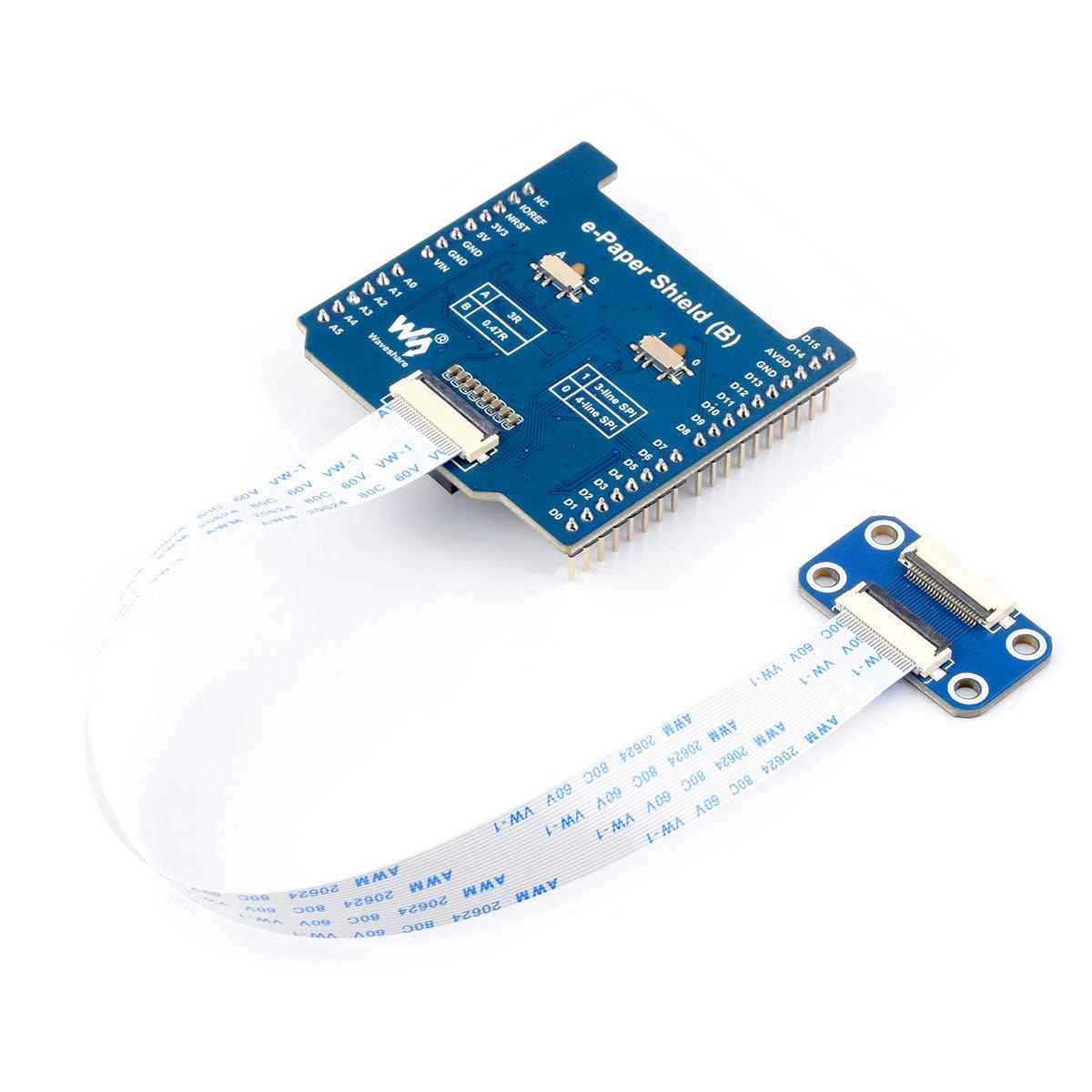

  • 1x E-Paper Adapter with 24-Pin FFC cable ~200mm
