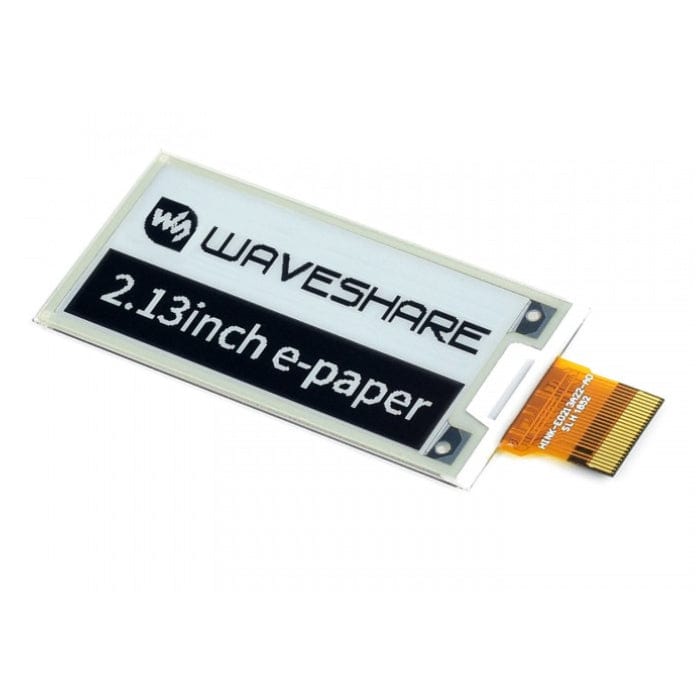

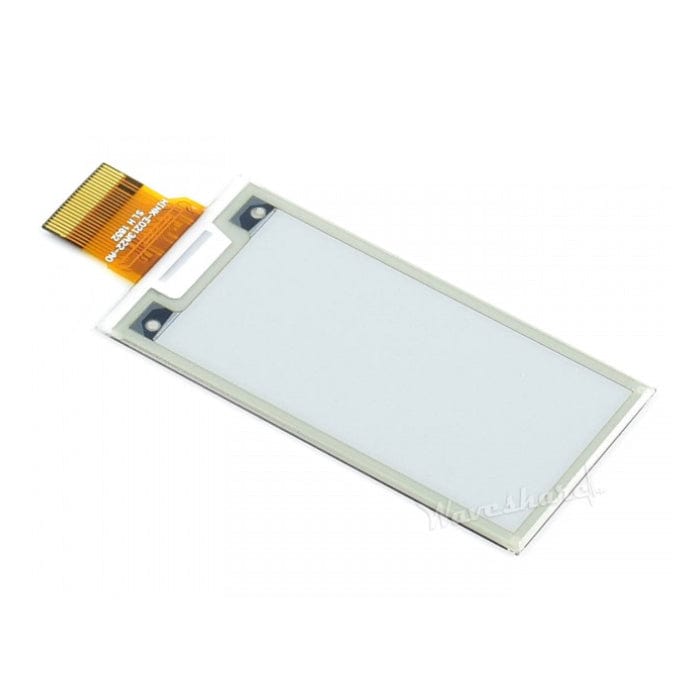

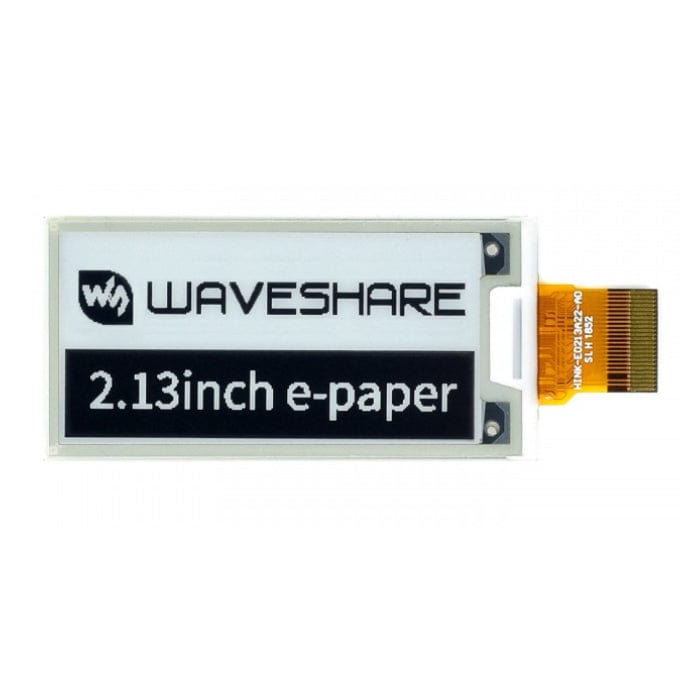

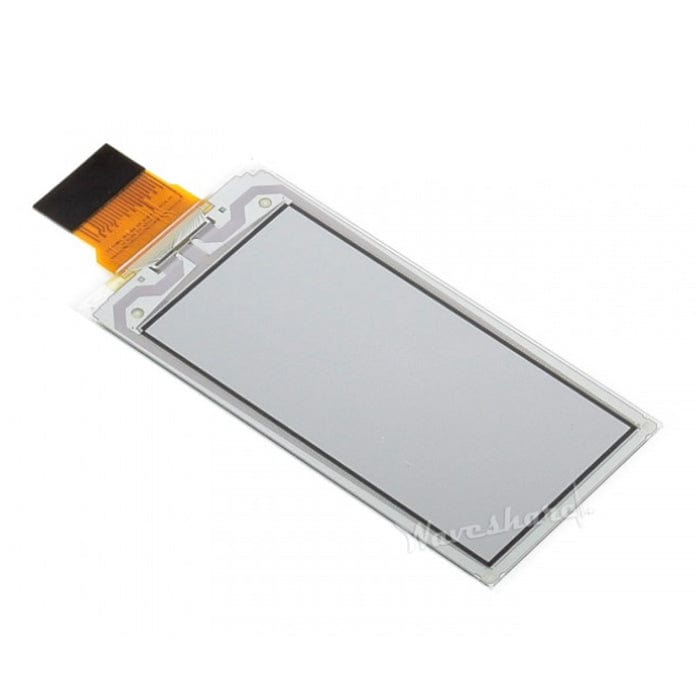

E-Ink Display Raw Panel - 2.13" (250x122)

WaveshareSKU: WAV-12672
Price:
Sale price £7.50
incl. VAT
excl. VAT
Stock:
Only 16 units left
Quantity:

Awesome Extras

Universal e-Paper Raw Panel Driver HAT - The Pi HutUniversal e-Paper Raw Panel Driver HAT - The Pi Hut
WaveshareUniversal e-Paper Raw Panel Driver HAT
Sale price £10.80 incl. VAT excl. VAT
E-Ink Display pHAT - 2.13" (250x122) - The Pi HutE-Ink Display pHAT - 2.13" (250x122) - The Pi Hut
WaveshareE-Ink Display pHAT - 2.13" (250x122)
Sale price £14.50 incl. VAT excl. VAT

Looking for an eInk / ePaper display for your Raspberry Pi or Raspberry Pi Zero? Look no further! These gorgeous little eInk / ePaper displays from Waveshare are available in 2.9", 2.13" & 1.54" sizes, so you're bound to find the perfect fit for your project!

ePaper / eInk displays are designed to replicate the appearance of ink on paper. Unlike regular displays, which lose their image when power is removed, eInk screens are able to hold text and images indefinitely, even without power. ePaper screens are therefore ultra low power, designed to have a wide viewing angle and additionally have limited reflection under sunlight. The applications are limitless!

Note: This is for the screen only! This does not come with a controller PCB.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra-low power consumption, basically power is only required for refreshing
  • Compatible with Raspberry Pi 2B/3B/Zero/Zero W
  • Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: SPI
  • Outline dimension: 65mm x 30.2mm
  • Display size: 23.71mm x 48.55mm
  • Dot pitch: 0.194 x 0.194
  • Resolution: 250 x 122
  • Display color: black, white
  • Grey level: 2
  • Refresh power: 26.4mW (typ.)
  • Standby power: <0.17mW
  • Viewing angle: >170°

Resources

Package Contents

  • 1x 2.13" E-Paper Display
