ESP32 Universal e-Paper Driver Board

WaveshareSKU: WAV-15823
Price:
Sale price £16.20
incl. VAT
excl. VAT
Stock:
Only 15 units left
Quantity:

Awesome Extras

(1 Reviews)
WaveshareE-Ink Display Raw Panel 5.83" (648x480)
Sale price £45.30 incl. VAT excl. VAT
WaveshareE-Paper Raw Panel - 1.02"
Sale price £7.50 incl. VAT excl. VAT
(1 Reviews)
WaveshareE-Ink Display Raw Panel - 1.54" (200x200)
Sale price £8.60 incl. VAT excl. VAT

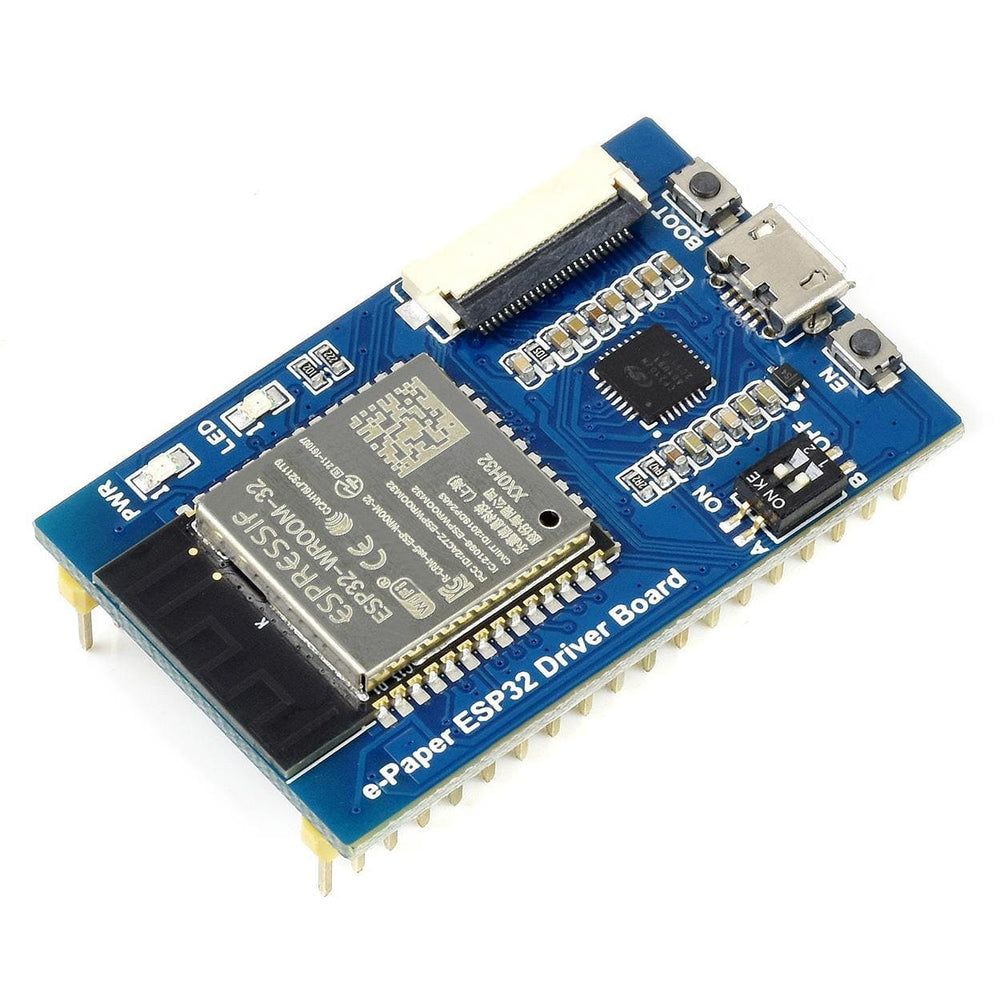

This ePaper driver board gives you an easy way to display images on any of our e-paper raw panel displays (not included) via the Arduino IDE or your PC/phone using WiFi/Bluetooth via the onboard ESP32 chip!

The e-Paper ESP32 Driver Board is a wireless solution for refreshing e-Paper display content, ideal for applications such as price tags, e-Cards, serial port info monitoring and more. Android studio allows control via your smartphone, or use the HTML host code to display content via a web page. Most popular image formats are supported, including BMP, JPEG, GIF and PNG.

The module comes with a 24-pin FFC cable and an adapter board for adding your own e-Paper raw panel.

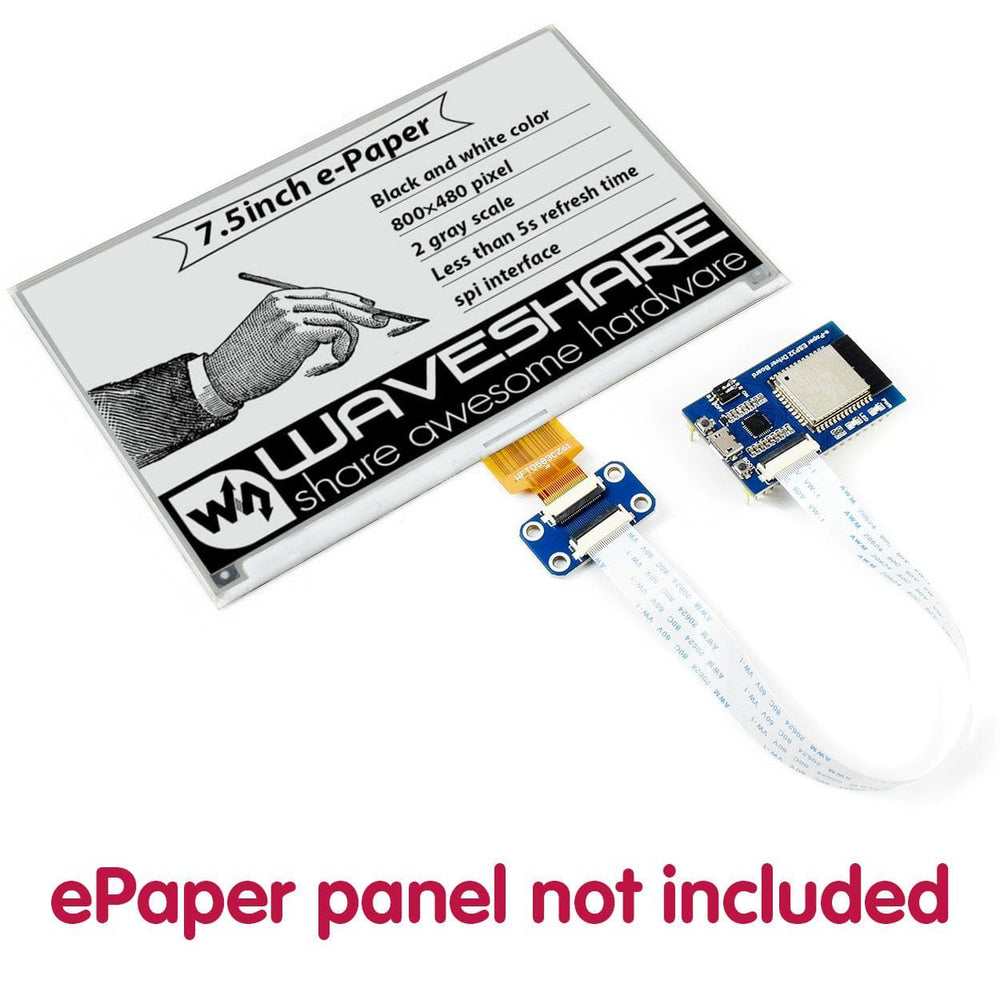

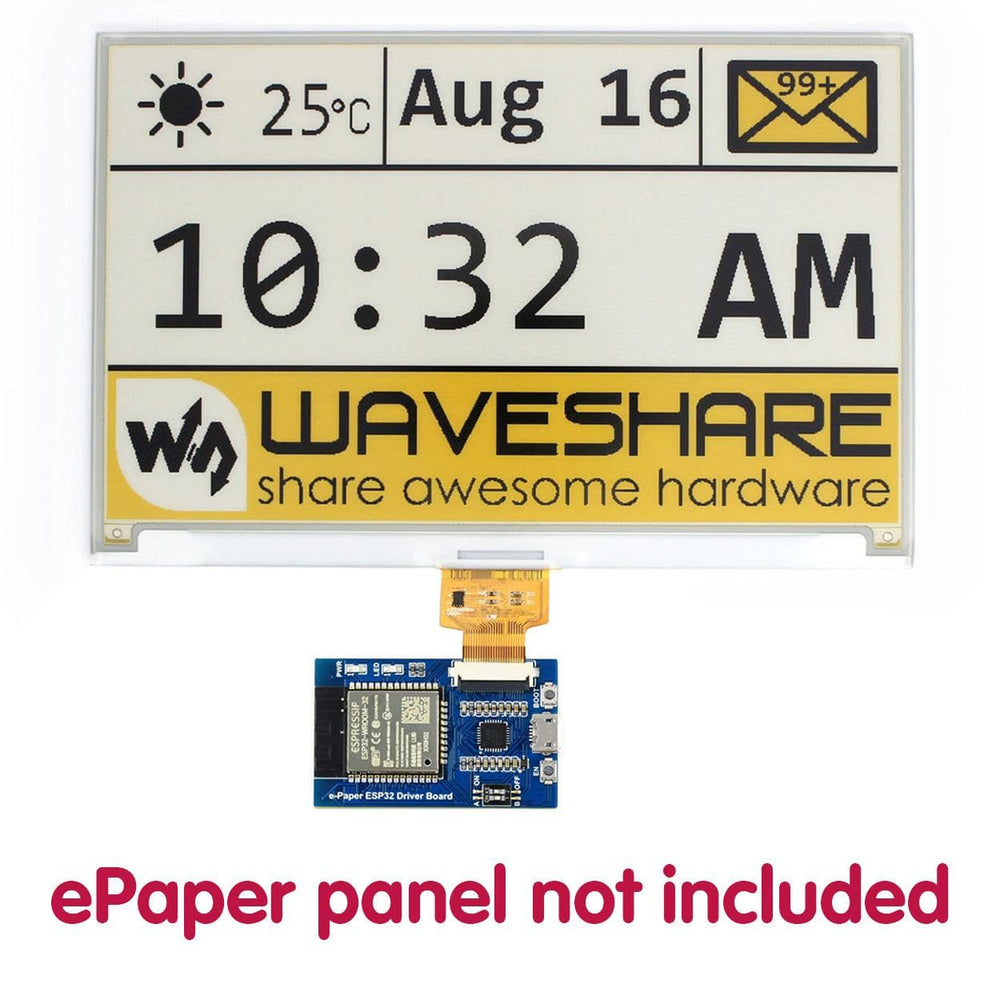

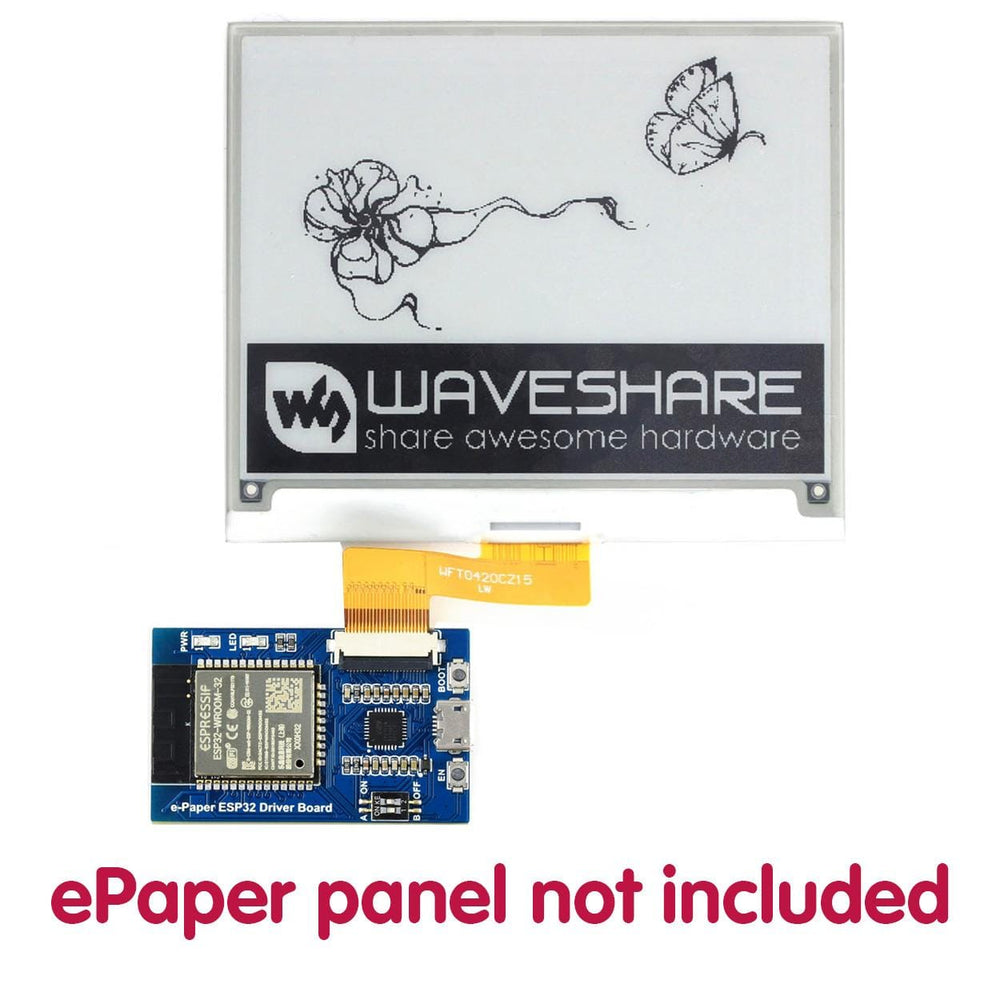

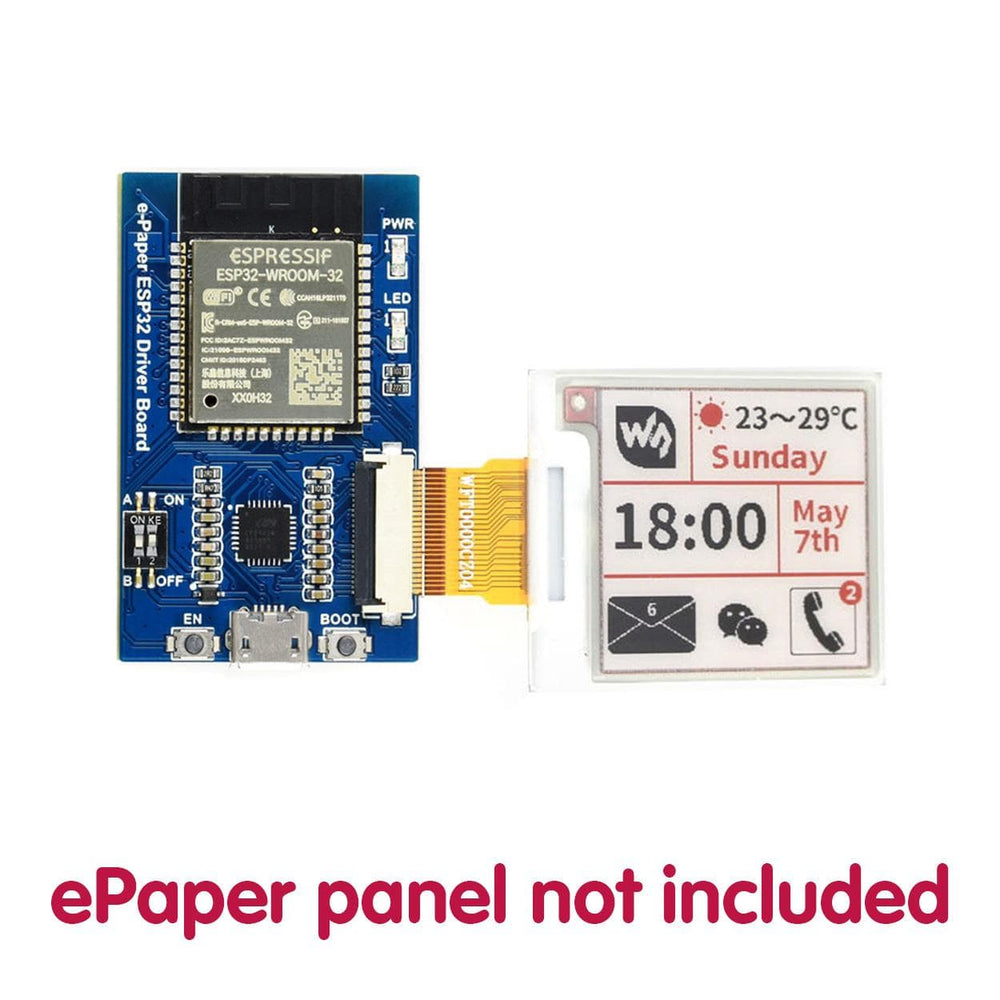

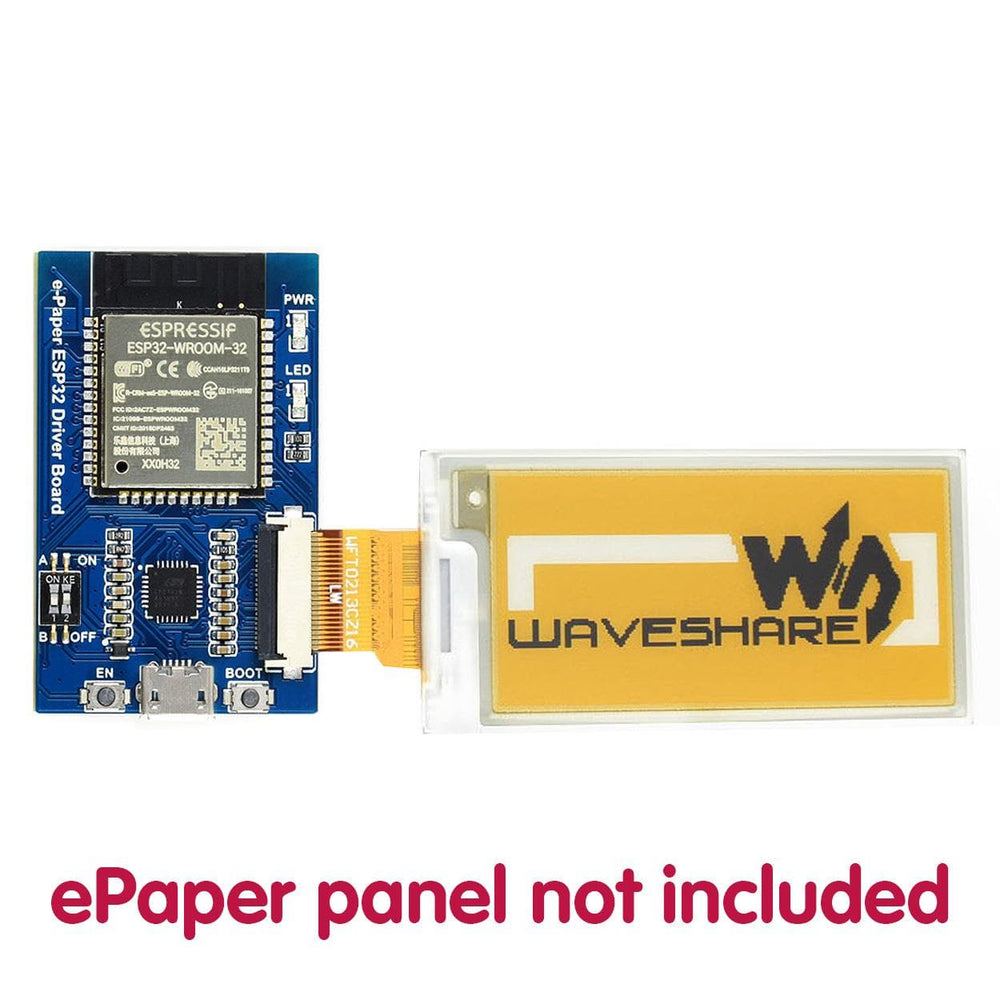

e-Paper raw panels not included!

Features

  • Onboard ESP32, supports Arduino development
  • Provides Android APP, allows refreshing display content via Bluetooth EDR
  • Provides HTML host code, allows refreshing display content via a remote webpage, suitable for Internet applications
  • Supports Floyd-Steinberg dithering algorithm, more colour combinations and better shadow rendering for the original image
  • Supports popular image formats: BMP, JPEG, GIF, PNG
  • Online development resources and manual

Specifications

  • WiFi Standard: 802.11b/g/n
  • Communication Interface: SPI
  • Bluetooth Standard: 4.2, BR/EDR and BLE included
  • Communication Interface: 3-Wire SPI, 4-wire SPI (default)
  • Working voltage: 5V
  • Working Current: 50mA-150mA

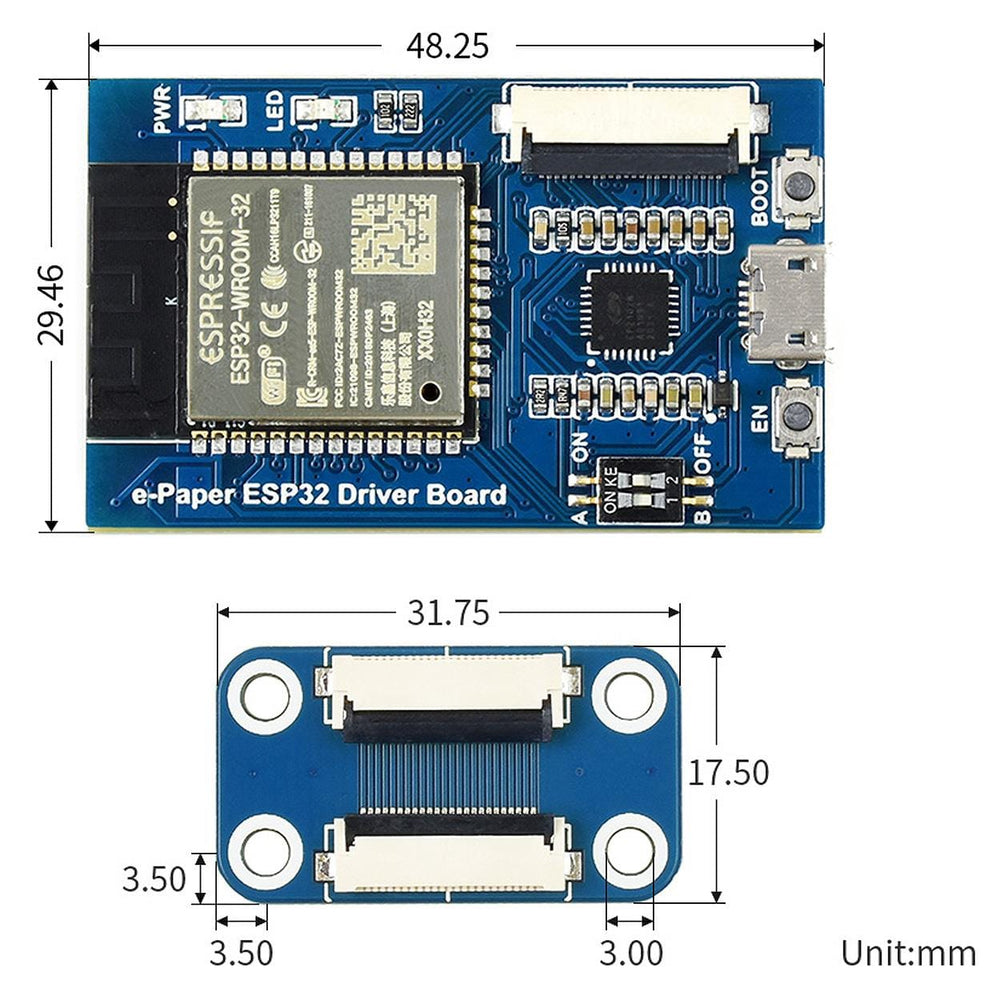

  • Outline dimension: 29.46mm x 48.25mm

Package Contents

  • 1x e-Paper ESP32 Driver Board
  • 1x e-Paper Adapter
  • 1x 24-pin FFC cable

Resources

Pinout
