2.8" Capacitive IPS LCD Touchscreen for Raspberry Pi (480×640)

WaveshareSKU: WAV-18628
(1 Reviews)
Price:
Sale price £31
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Compatible with:

Awesome Extras

(2467 Reviews)
Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £40incl. VAT excl. VAT
(396 Reviews)
The Pi HutUSB-C Cable with On/Off Switch
Sale price £3 incl. VAT excl. VAT
(1478 Reviews)
The Pi Hut'NOOBS' Pre-installed Micro SD Card (Latest v3.6.0)
Sale priceFrom £7 incl. VAT excl. VAT

This 2.8" IPS capacitive touchscreen for the Raspberry Pi offers an impressive 480x640 resolution considering the compact size of the screen.

The screen offers 5-point touch via the laminated and toughened glass panel, which has a 160-degree viewing angle thanks to IPS screen technology.

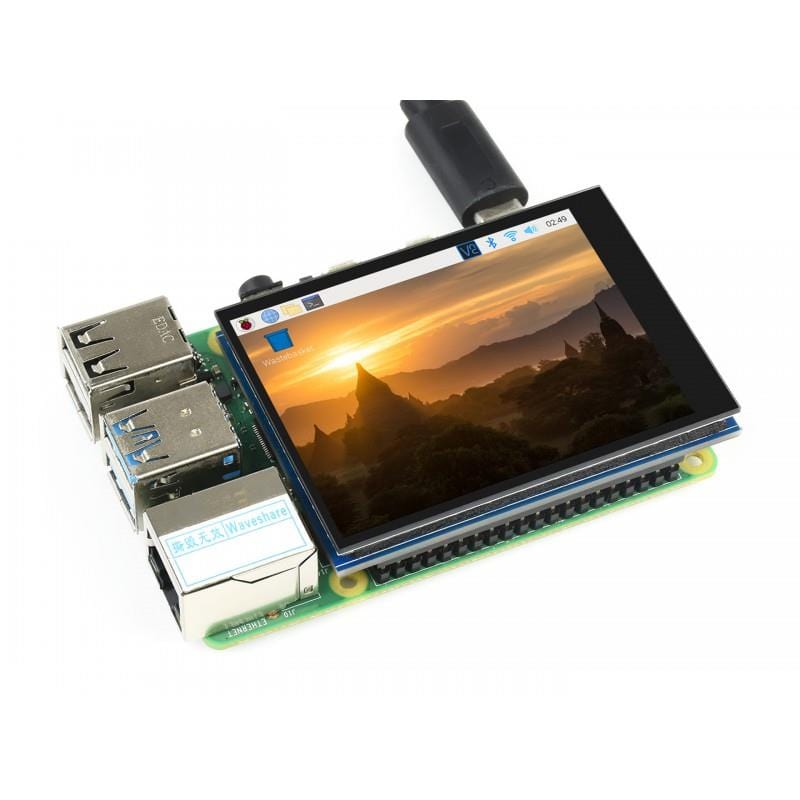

The screen simply pushes on to your Raspberry Pi GPIO header and requires a few lines of code to be added to your config file to start using the screen.

Features

  • Compatible with Raspberry Pi 4, 3 (all models) and Zero
  • Driven by Raspberry Pi DPI666 interface (262K colours)
  • Resolution 480x640
  • Up to 60Hz refresh rate
  • IPS 160-degree viewing angle
  • Low power
  • Up to 5-Point touch control via Raspberry Pi I2C interface (OS dependant)
  • Supports Raspberry Pi OS
  • Fully laminated toughened glass panel (up to 6H hardness)

Important Notes

  • This display must be configured in order to function properly - see the Product Wiki
    • As per the guide, when using with a Raspberry Pi 4,you need to comment (#) out dtoverlay=vc4-fkms-V3D
  • The display orientation is portrait by default - 480×640 resolution (H×V). Change the software config for landscape display
  • We strongly recommend using an official Raspberry Pi power supply with this screen
  • Raspberry Pi and cable not included

Package Contents

  • 1x 2.8inch DPI LCD
