1.54" e-Paper Raw Display Panel - Red/Yellow/Black/White (200x200)

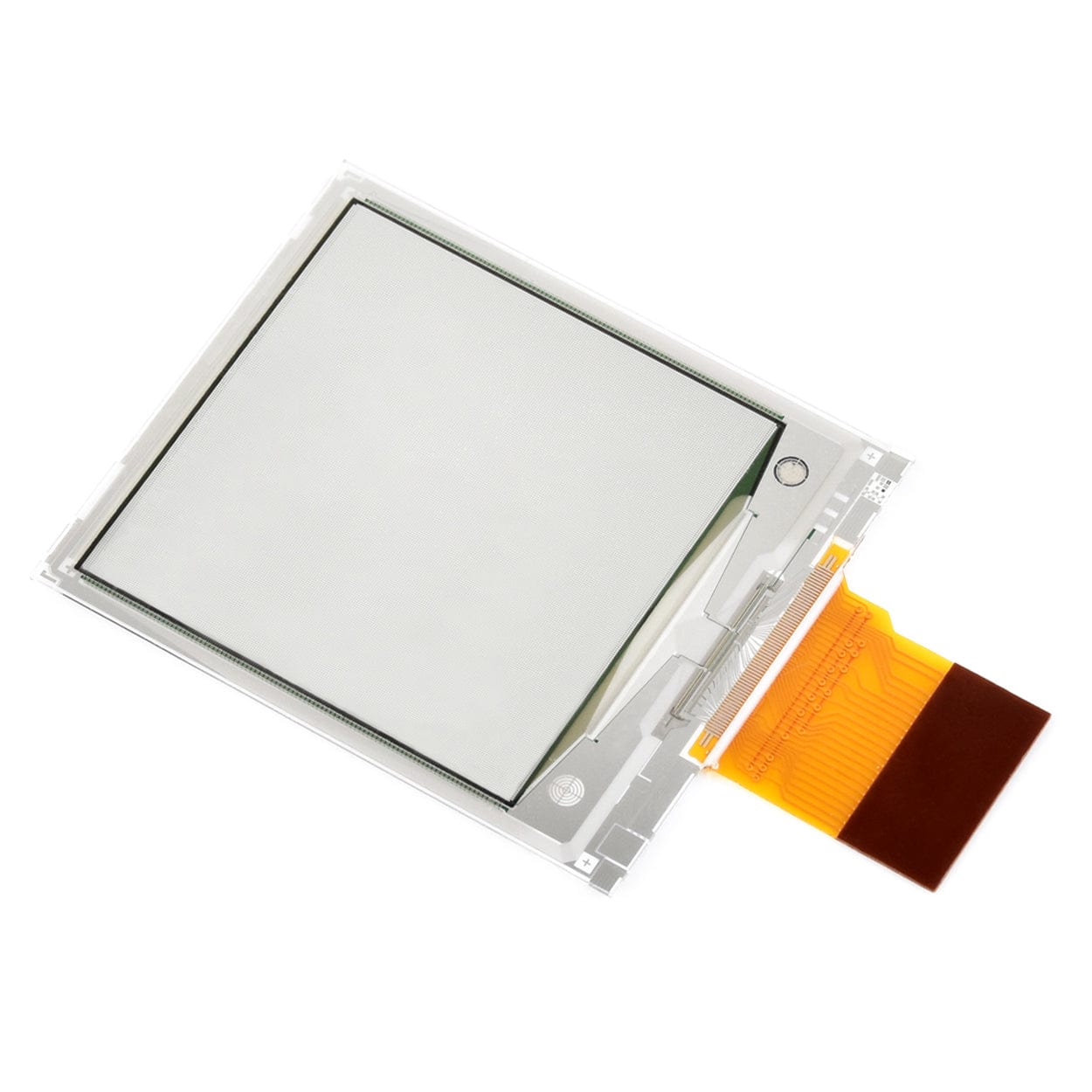

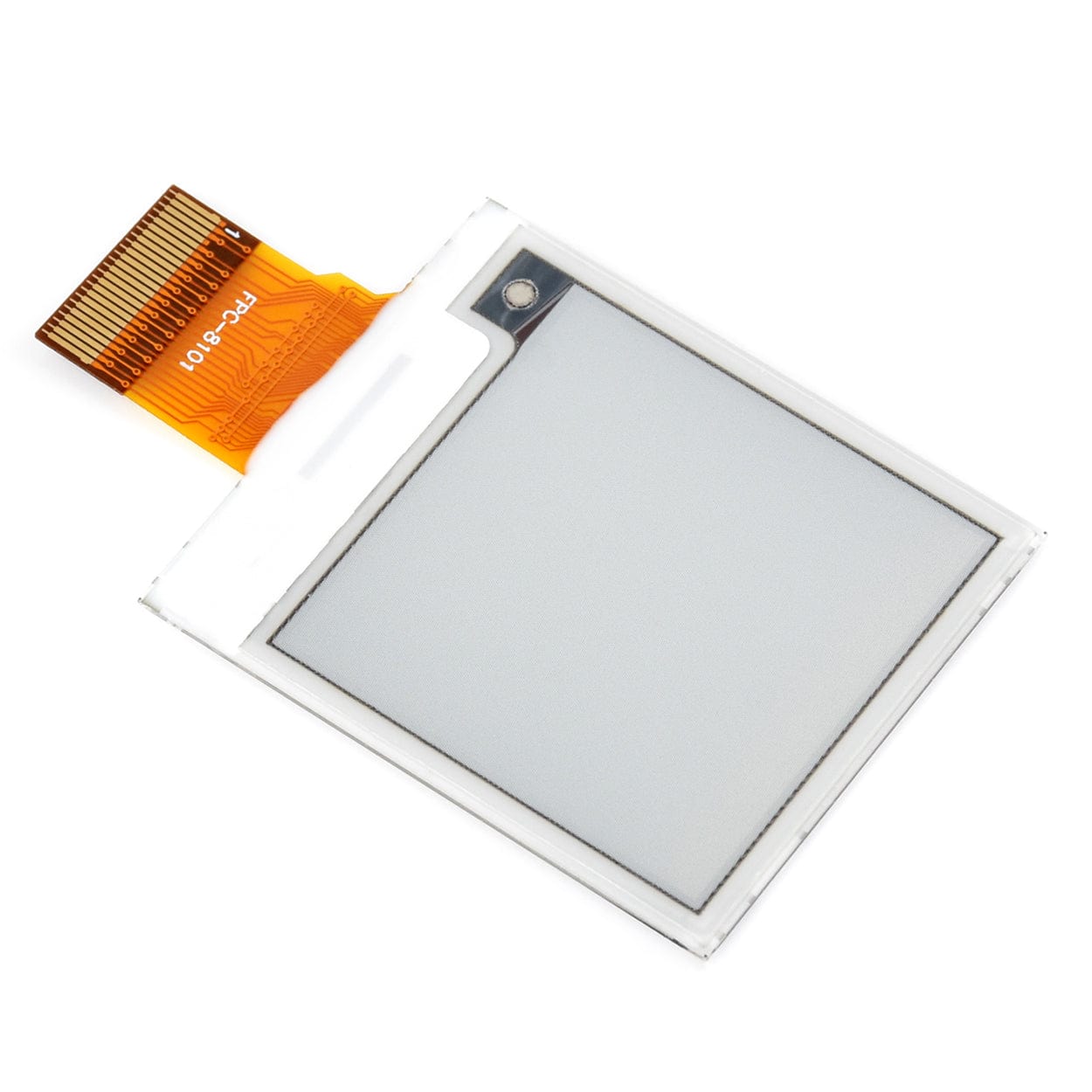

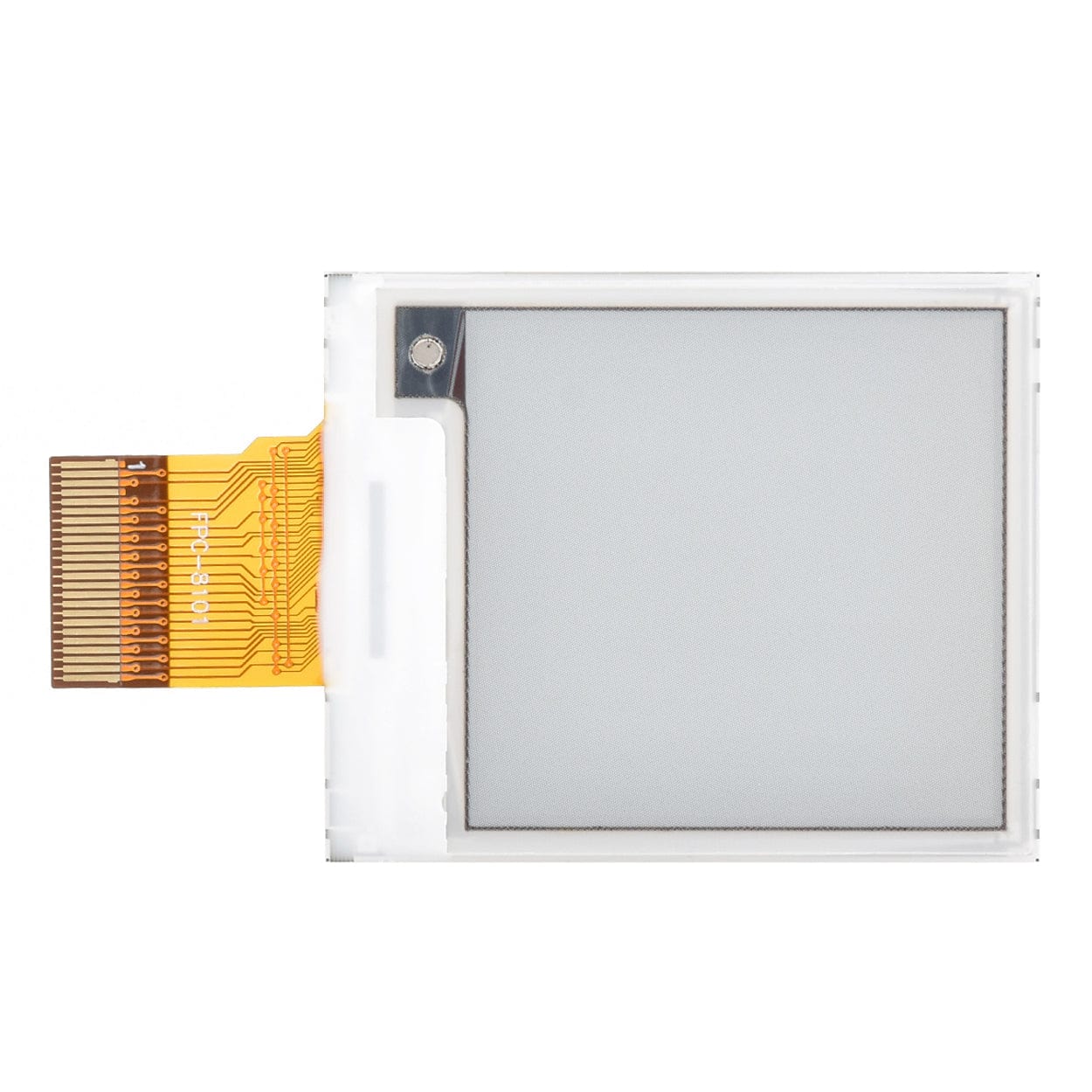

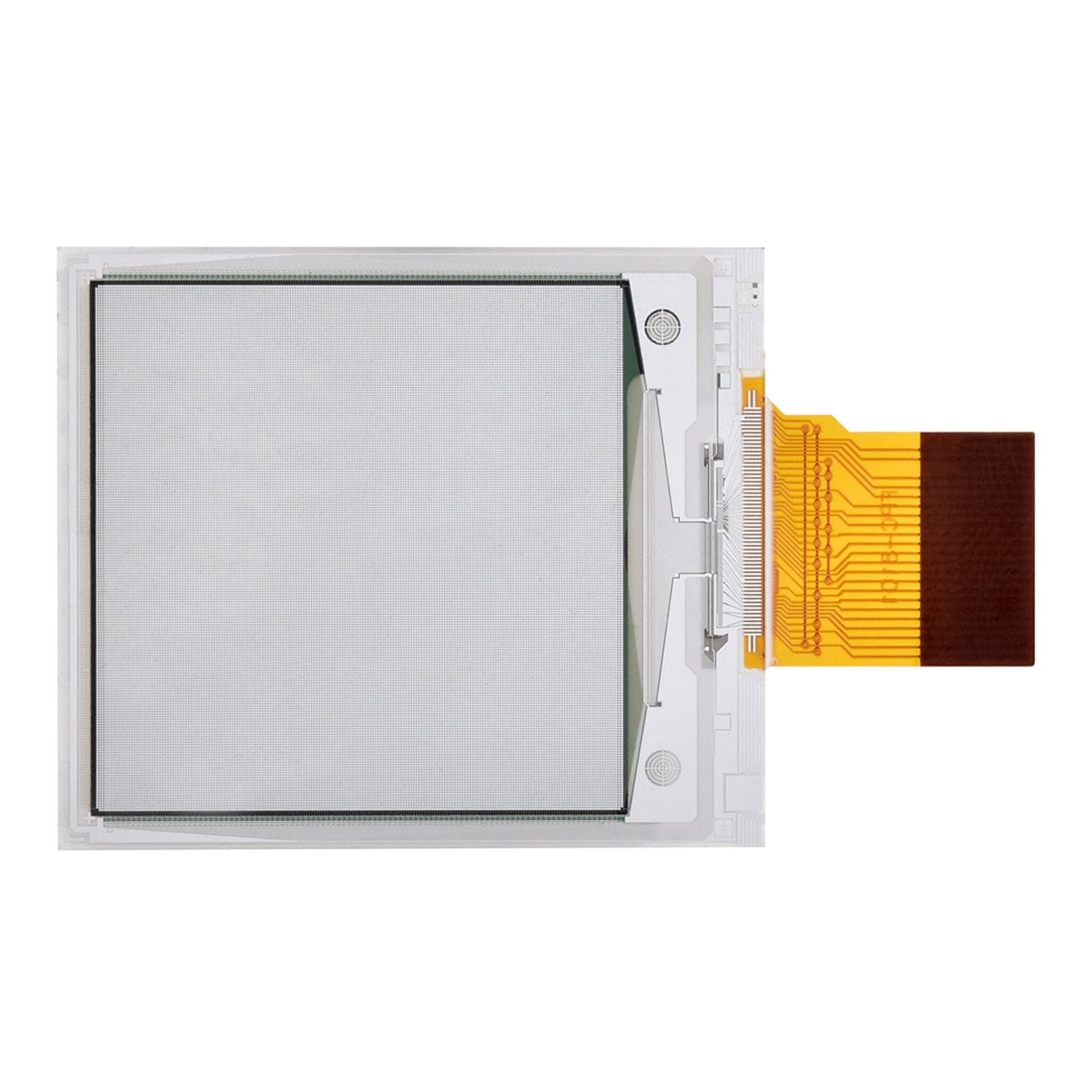

This is the 1.54" raw e-Paper panel that comes with our 1.54" e-Paper Display module, great if you want to do your own thing with e-Paper displays...or a replacement if you manage to damage your module!

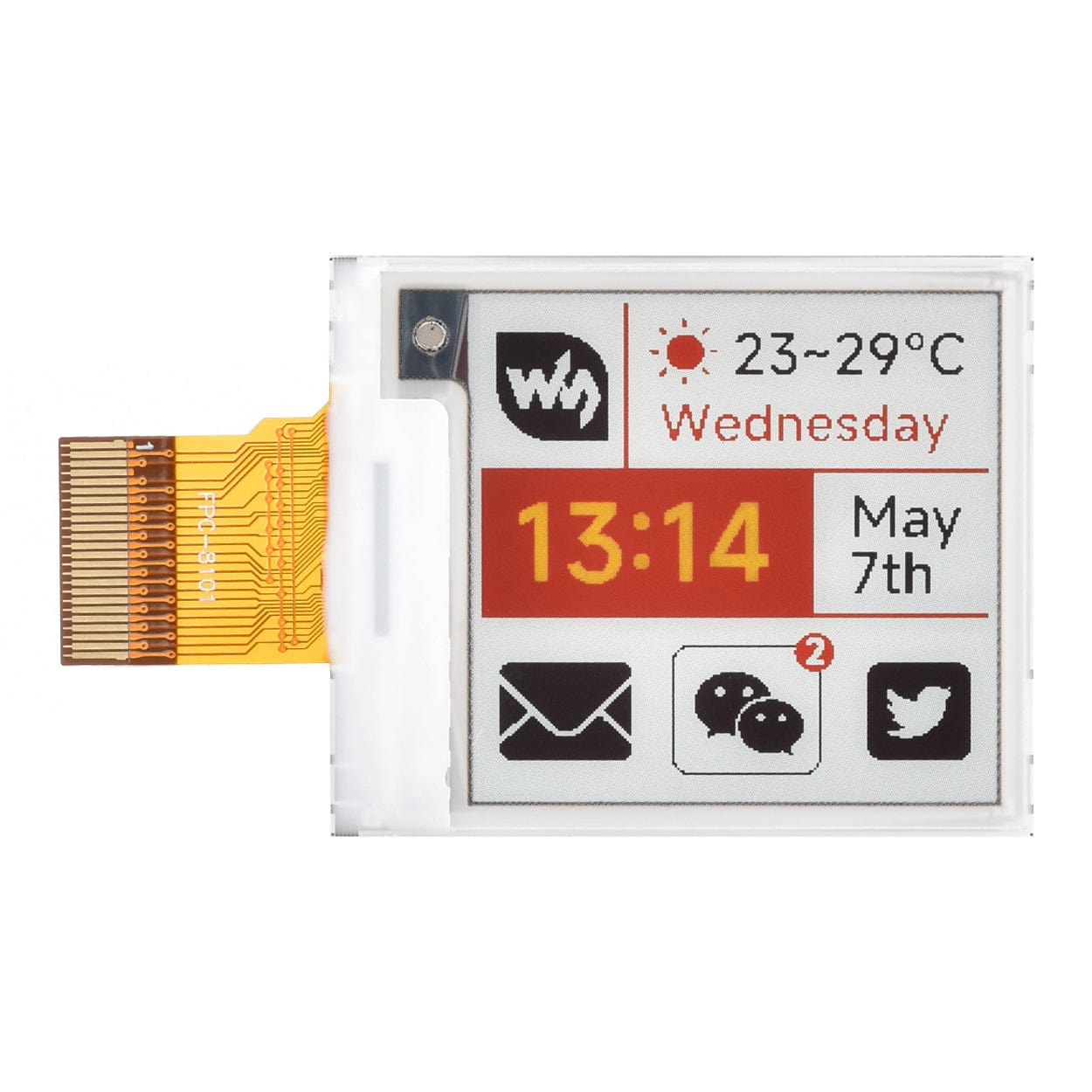

This raw e-Paper panel offers red, yellow, black and white colours, and like all e-Paper displays, doesn't require a backlight - making it great for low-power projects.

The panel has a 200x200 resolution, measures approximately ~37mm x ~32mm, and has a fast refresh time of 15s and a full refresh time of 20s.

You'll need a driver board to connect this to, and then drive from your favourite microcontroller. We stock an e-Paper driver for Raspberry Pi, or an Arduino version, and even a more generic ESP32 option.

Raw display panel only. Driver board not included.

Features

• 1.54" raw e-Paper panel
• Displays red, yellow, black, and white
• No backlight required
• Low power consumption
• 200×200 resolution

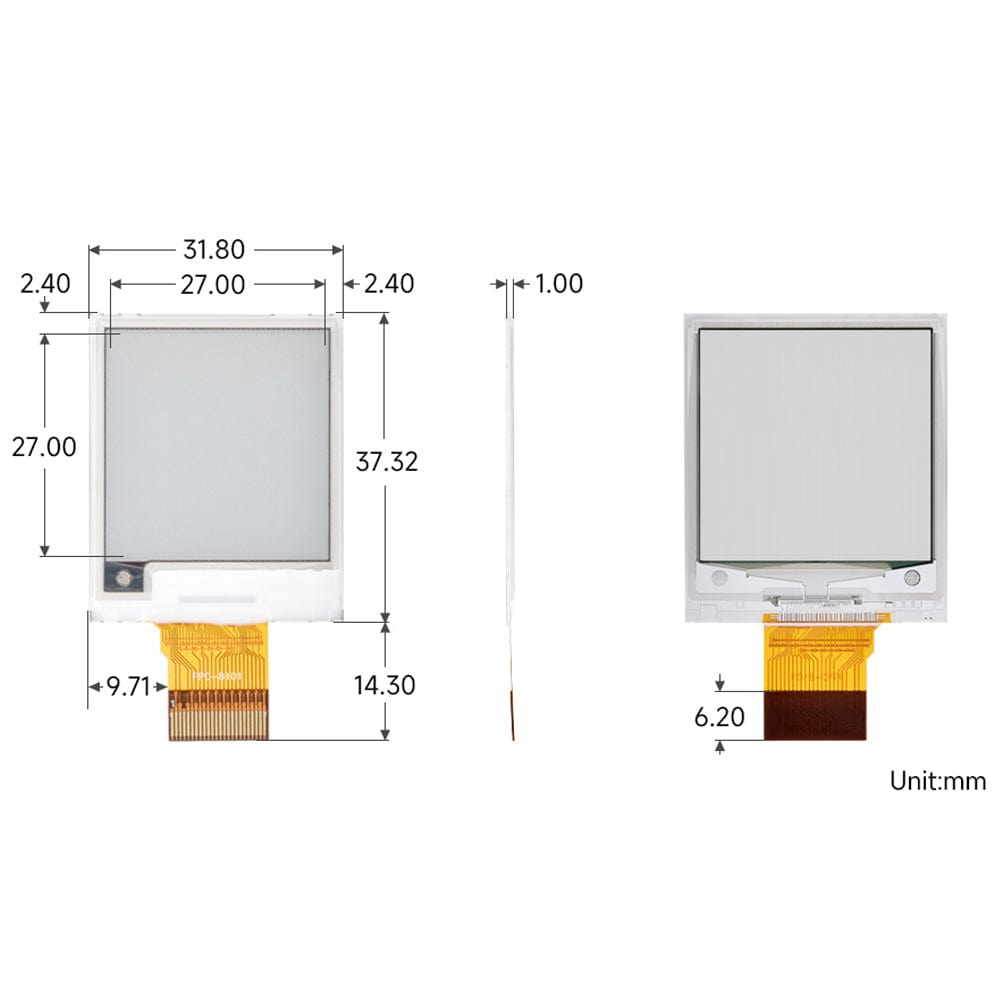

• Approximate dimensions: 37mm × 32mm
• Fast refresh time: 15s
• Full refresh time: 20s
• Requires a driver board (not included)
• Compatible with Raspberry Pi, Arduino, and ESP32 e-Paper drivers

Specifications

Resources

• Product Wiki

Package Contents

• 1x 1.54" e-Paper Raw Display Panel - Red/Yellow/Black/White (200x200)

Raw display panel only. Driver board not included.
